Introduction - 1

C

ongratulations on your purchase of this
technologically advanced sun tanning unit.
It has been designed to provide years of

dependable service for you.

Please read all the instructions in this booklet
before installing and using the unit. Always be
sure to observe all safety precautions.

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . .4

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . .5

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . .6

Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . .26

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . .27

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Tanning Position . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Using Your Booth . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . .32

Hour Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . .32

Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . .32

Lamp and Grill Maintenance . . . . . . . . . . . . . . . . . . .33

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

C

ontents

25809-02A

2 - Safety Information

Ultraviolet radiation.Follow instructions.Avoid overexposure.As with natural sunlight, overexposure can

cause eye and skin injury and allergic reactions.Repeated exposure may cause premature aging of the
skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM
INJURY TO THE EYES.Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician
before using sunlamp if you are using medications or have a history of skin problems or believe yourself especially sensitive
to sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or fair skinned
people who always burn easily and either never tan or tan minimally should not use this equipment.

For a uniform tan, center yourself within the booth. Other positions may result in overexposure to parts of your body. Do not
use without wire grills in place. Untanned persons should not tan on consecutive days during their first week of tanning.
Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately
four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin
at advanced levels corresponding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning
times should therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear pro­tective eyewear when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under
21 CFR 1040.20. Other types of eyewear may not provide adequate protection.Failure to use protective eyewear may result
in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE SOLARFORCE 652V:

BRONZING SUN™ Wolff® Model BS71-T12-160W VS-R BI-PIN

THIS EQUIPMENT MUST BE EARTH GROUNDED.

This product is in conformity with performance standards for sun lamp products under 21 CFR PART

1040.20 and ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.

LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section 1040.20,
and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:

DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP,

OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.

88465

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES

Level 1/Week 1

Level 2Level 3Level 4

Subsequent

Skin Type: 1st-3rd Sessions Maximum

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 246810
III Normal (Burns moderately and tans average.) 3 5 7 10 10
IV Dark (Burns minimally, tans easily and above average.) 4 6 8 10 10

DANGER

25809-02A

Renseignements sur la Sécurité - 3

Rayonnement ultraviolet.Veuillez suivre les instructions.Évitez une exposition excessive; tout comme

pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau
et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provo­quer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE
SÉCURITÉ PEUT ENTRAÎNER DE GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME.Les médica­ments ou les produits cosmétiques peuvent augmenter votre sensibilité au rayonnement ultraviolet. Consultez un médecin
avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous souffrez d’une maladie cutanée ou si vous croyez
être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il est peu probable que vous bronz­erez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire qui brûle facile­ment, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Pour un bronzage uniforme, placez-vous au centre du compartiment. Un mauvais alignement peut causer une exposition
excessive de certaines parties du corps. N’utilisez pas la lampe sans les grilles en fil métallique. La première semaine de
bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais
bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint
son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des
niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de
fonctionnement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes
dans la pièce doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour
les yeux recommandées: Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR

1040.20. Les autres types de lunettes protectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes
protectrices, ce produit peut causer des brûlures ou lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utili­sation et consultez un médecin.

SEULES LES LAMPES INDIQUÉES CI-DESSOUS ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT:

BRONZING SUN™ Wolff® Modèle BS71-T12-160W VS-R BI-PIN

Cet équipement doit être mis à la terre.

Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21
CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

Débrancher l’alimentation électrique avant de nettoyer l’appareil ,

d’en faire l’entretien ou de changer les lampes.

88465

DANGER

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 10 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4

Sem. suivantes

Type de peau: 1st-3rd Sessions Temps maximal

I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2 468 10
III Peau normale (brûle et bronze de façon modérée) 3571010
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4681010

25809-02A

4 - Pre-Installation Planning

Pre-Installation Planning

Before your booth is installed, you should observe the following considerations.

DANGER

Shock hazard.
Disconnect power before

servicing.

Air from the room is used to cool the unit.
Maximum ambient room temperature
should be 80°F. Place your booth no closer
than 6” from walls. Make sure nothing
obstructs the airflow into or out of the fan
openings. A poorly ventilated room may
cause the unit to become hot and cause
discomfort to the user.

CAUTION

Use of a voltage source above 230V AC
(with unit running) may prevent proper oper­ation of the unit and could cause damage
and void the warranty.

CAUTION

• The SolarForce® 652V requires a dedicated

circuit capable of providing 70A, 1-phase
service (2 wire plus ground) at 220VAC. This
unit must be hardwired directly to a junction
box on a dedicated circuit. W

e recommend
connection by a professional electrician.
Consult local and/or national codes for proper
circuit breaker and wire gauge.

• IMPORTANT! Operating voltage must be
below 230V AC or may require a Buck
Booster.

Always wear protective eyewear when unit
is on.

Failure to may result in severe burns or
longterm injury to the eyes.

WARNING

25809-02A

Unpacking and Inspection - 5

Unpacking and Inspection

The SolarForce® 652V arrives in eight boxes. For
ease of assembly, after inspection leave everything
in its original box until called for in the assembly
instructions.

Open each box and inspect the contents to make
sure they are free from any visible damage. Report
the extent of any damage to the transportation
company.

Note! The cartons are reusable. You may wish to
save them for future use.

As you unpack your boxes you should find the fol­lowing:

• Right Module (box 1)

• Bag containing necessary assembly hard­ware, and safety goggles (box 1)

• Left Module (box 2)

• Right Door (box 3)

• Left Door (box 4)

• Dome and ceiling assembly (box 5)

• Two blower assemblies (box 6)

• Base (box 7)

• Two Long Interior Handles (eighth box)

• Control Extrusion with keypad (eighth box)

Record the serial number of the Right Module in
the area provided at the back of this manual. This
information will be required if you ever need to
call customer service.

Tools Needed

You will need the following tools to assemble the
tanning booth.

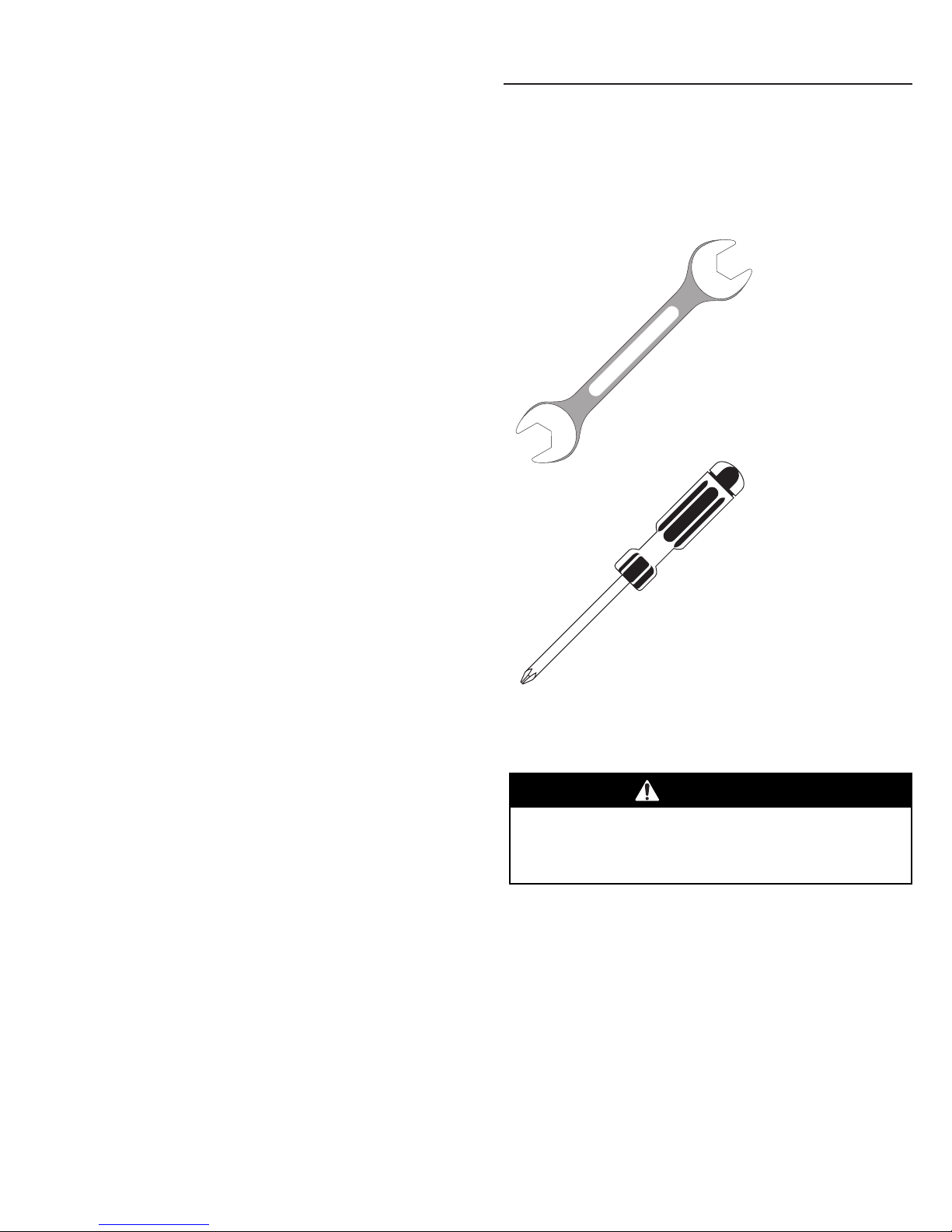

Wrenches or ratchet wrenches
in 5/16” and 1/2” sizes

#2 Phillips screwdriver

Proper assembly of your booth requires at
least three people. Plan to have a few
helpers assist you.

CAUTION

25809-02A

6 - Hardware Inventory

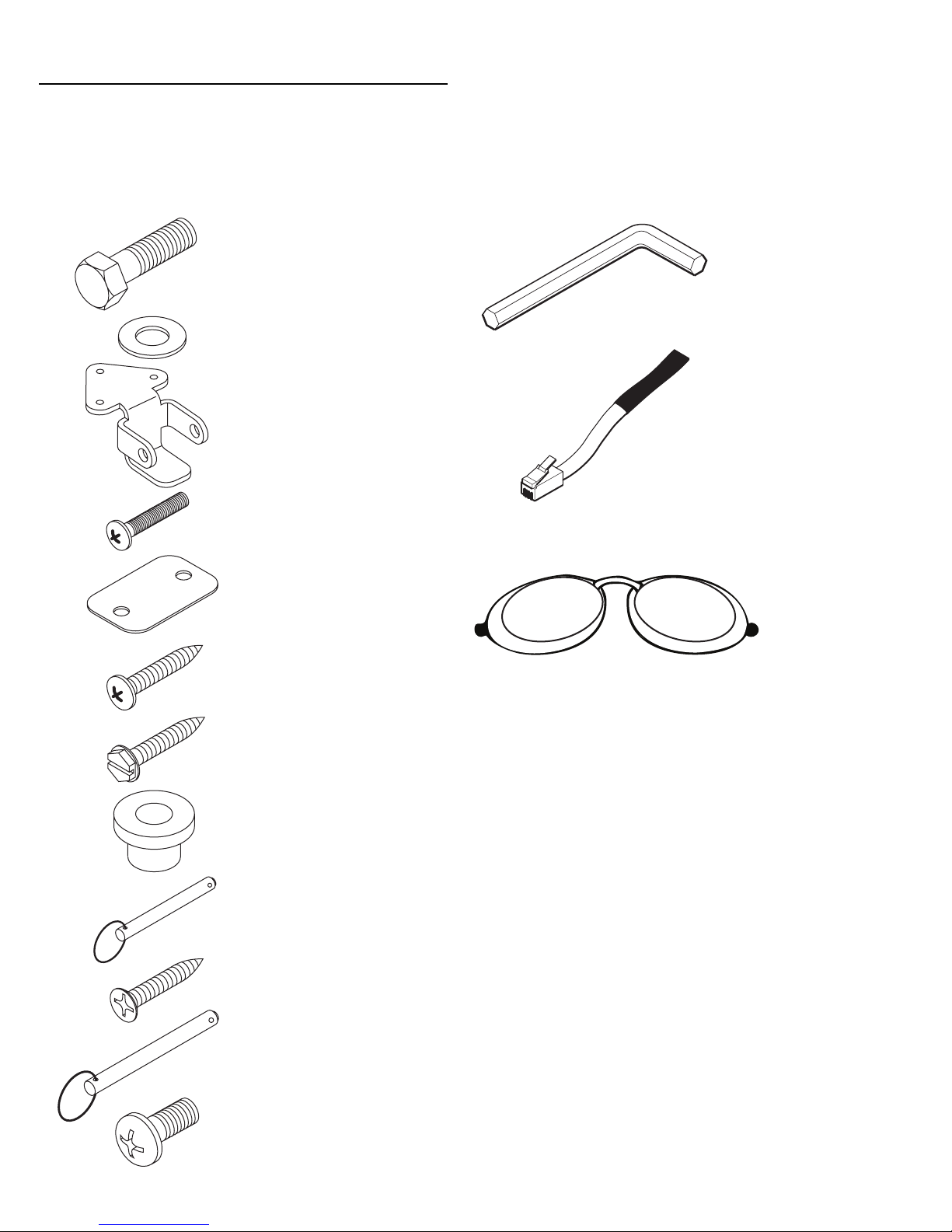

Hardware Inventory

Make sure you have all of these items before
beginning assembly.

x 10 Bolt, 5/16”-18 x 1”

x 10 Washer, 5/16” flat

x 2 Lower Handle Bracket

x 12 Screw, #8-32 x 3/4”

x 1 Module Strap

x 4 Screw, #10 x 1”

Phillips pan head

x 2 Screw, #10 x 1” slot-

ted hex washer head

x 4 Hinge Bushing

x 4 Hinge Locking Pin

x 4 Screw, #10 x 1”

Phillips flat head

x 2 Handle Pin

x 4 Bolt, 1/4-20 x 5/8”

Phillips pan head

x 1 Hex Key

x 1 Remote Control

Bypass Plug

x 1 Protective Eyewear

25809-02A

Assembly Procedures - 7

Assembly Procedures

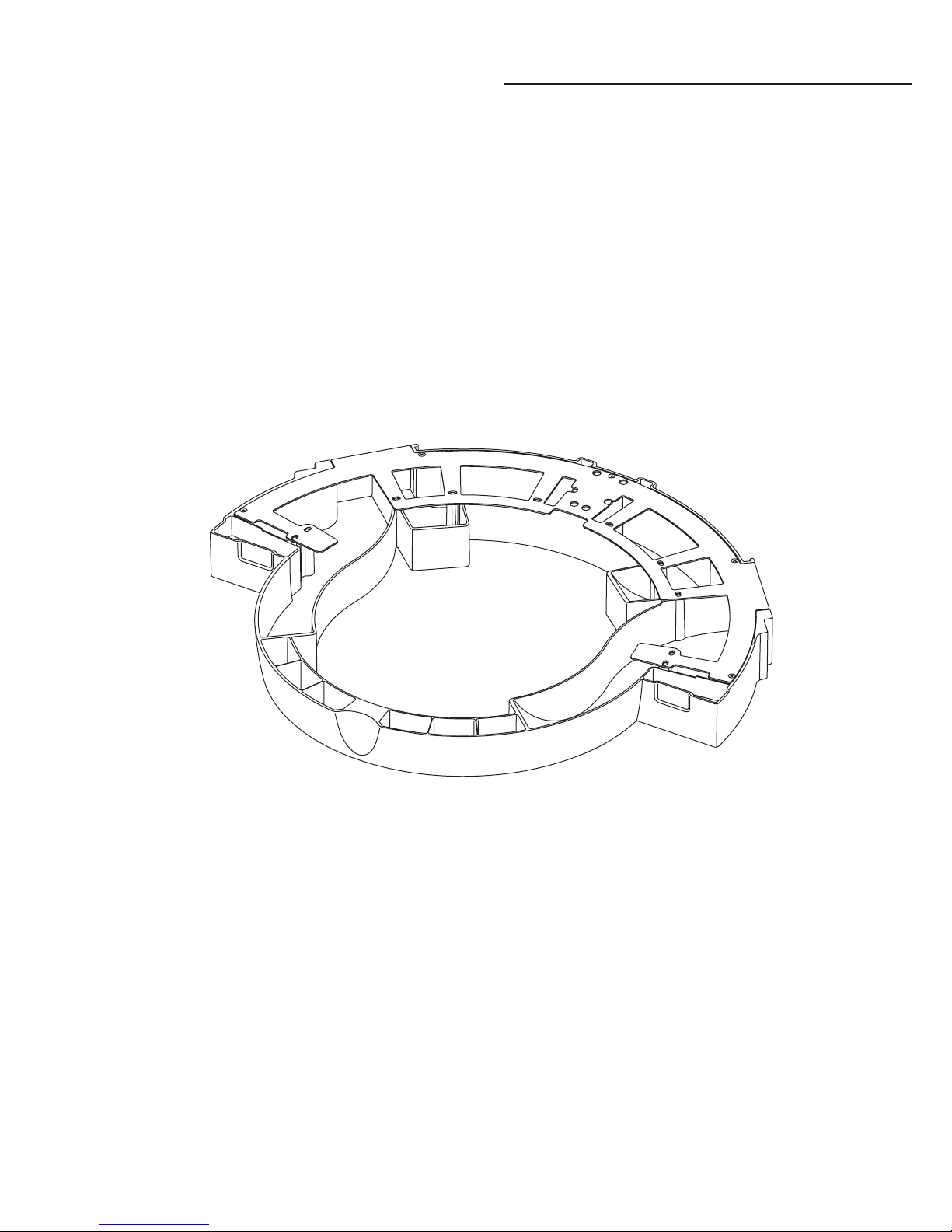

Put the Base (found in box 7) in the general area
you want the booth. Leave some space around the
base to work.

FRONT

BACK

25809-02A

8 - Assembly Procedures

Note on assembly:

These instructions illustrate how to assemble
the booth without removing the grills.
However, you may find it easier to remove
the grills before beginning.

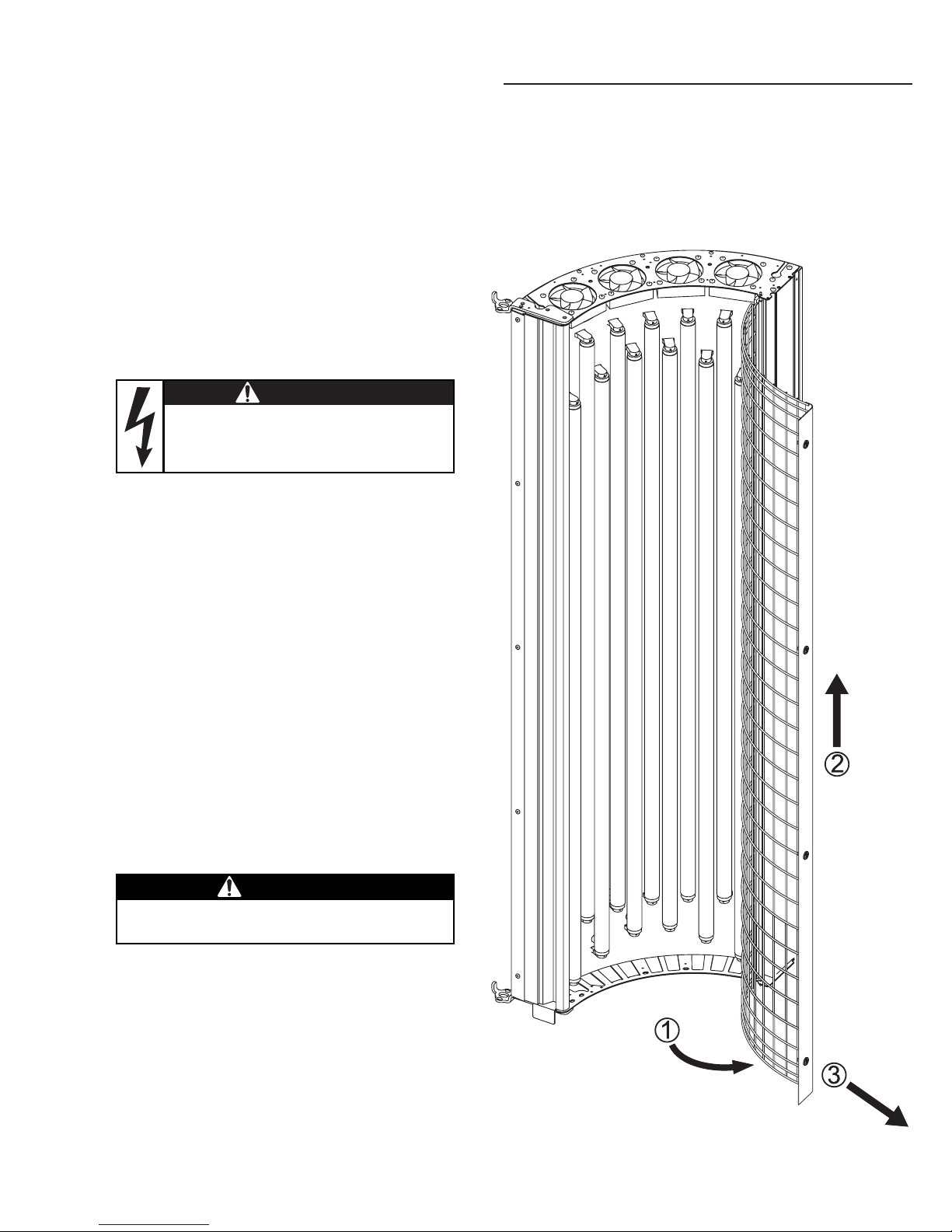

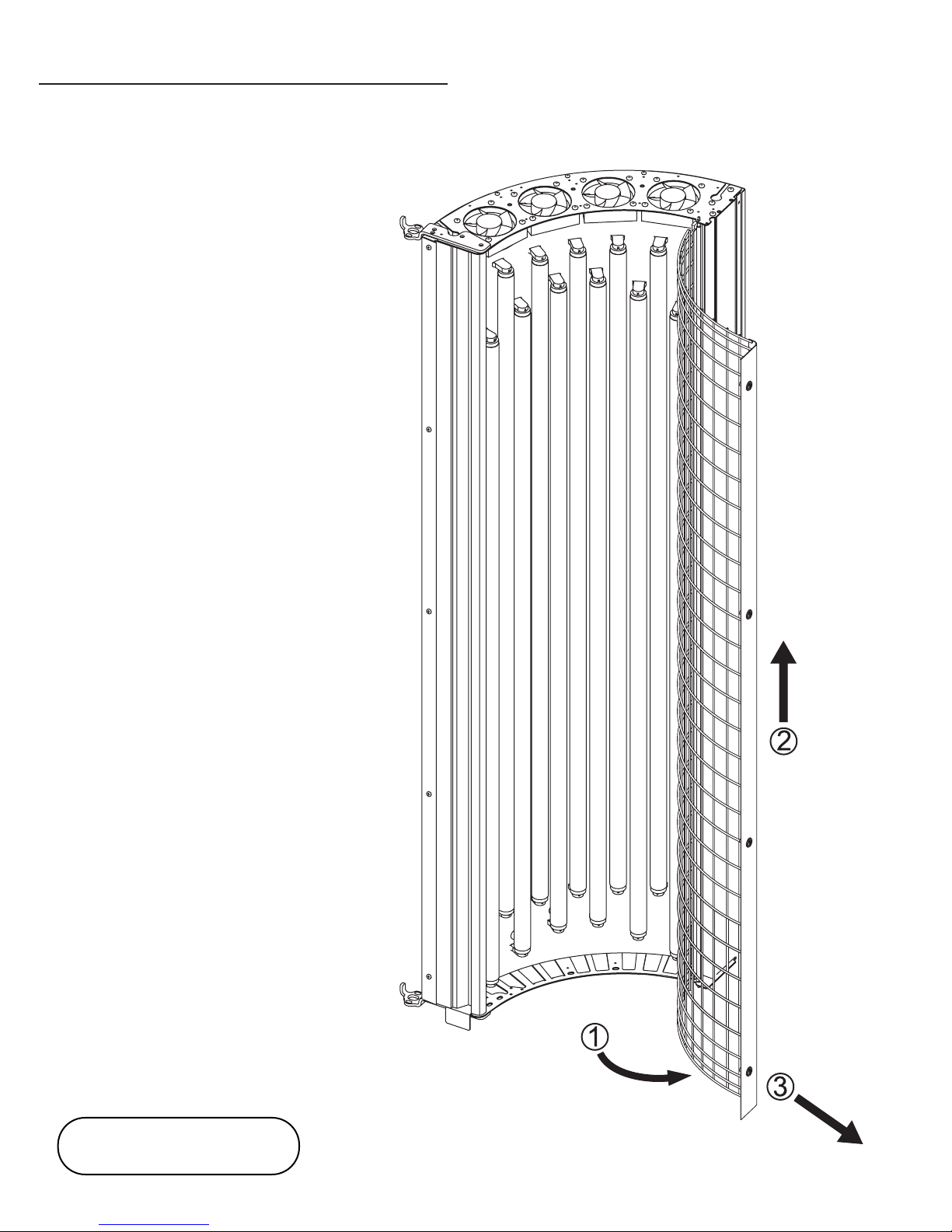

The Left Module is shown at right. Using the
hex key (included in the hardware kit) turn
the four quarter-turn latches on the grill to
unlock it. 1Swing the grill open, 2lift it and
3pull the bottom out.

To replace the grill, insert the top hinge pin
in the hole at the top of the module, swing
the bottom pin into place and drop it down
to engage the pin.

NOTE: Wiring deleted from

illustration for clarity.

25809-02A

Assembly Procedures - 9

Parts needed:
Left Module (box 2)

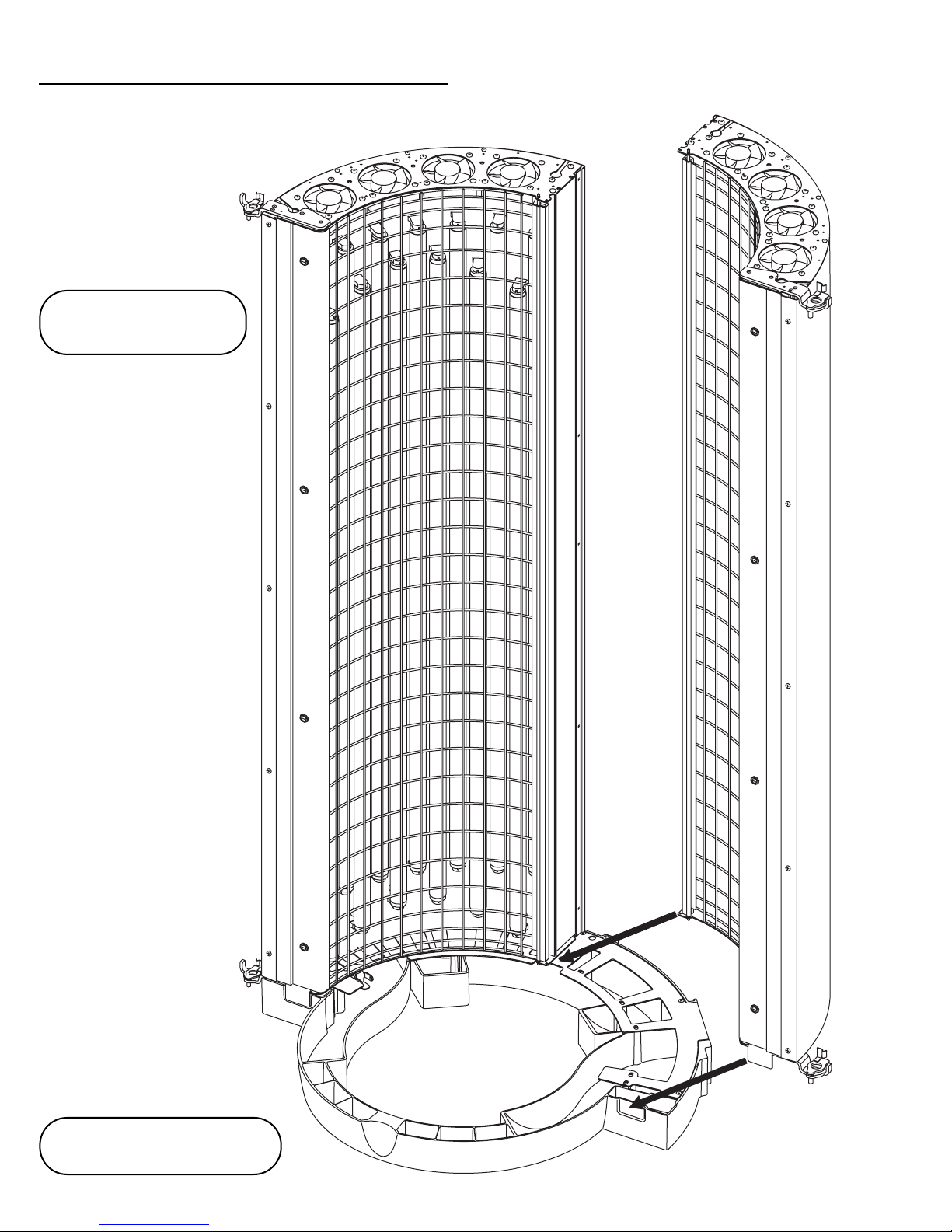

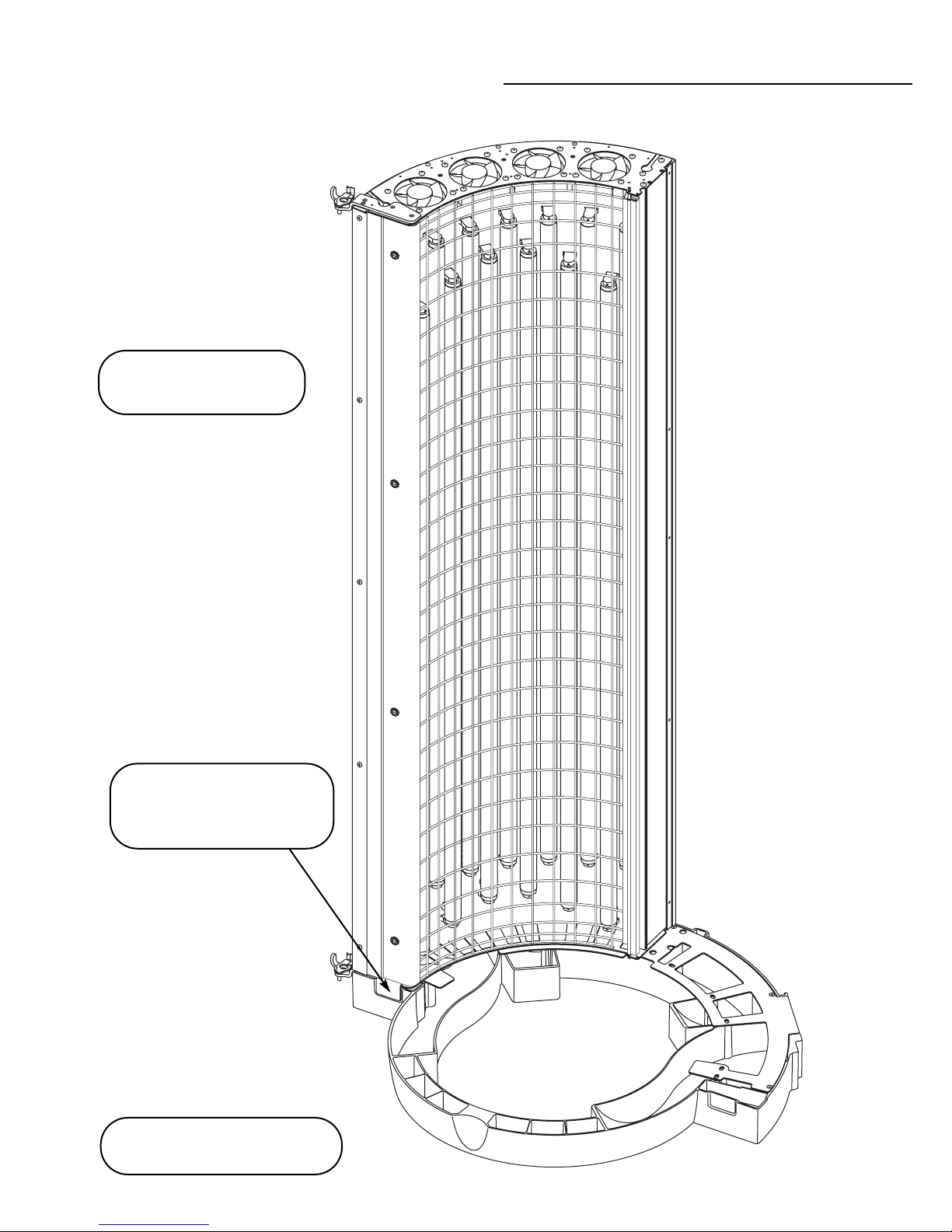

Stand the Left Module
on the Base as shown.

The tab on the module fits
into the indentation in the
base for easy positioning

NOTE: Wiring deleted from

illustration for clarity.

25809-02A

10 - Assembly Procedures

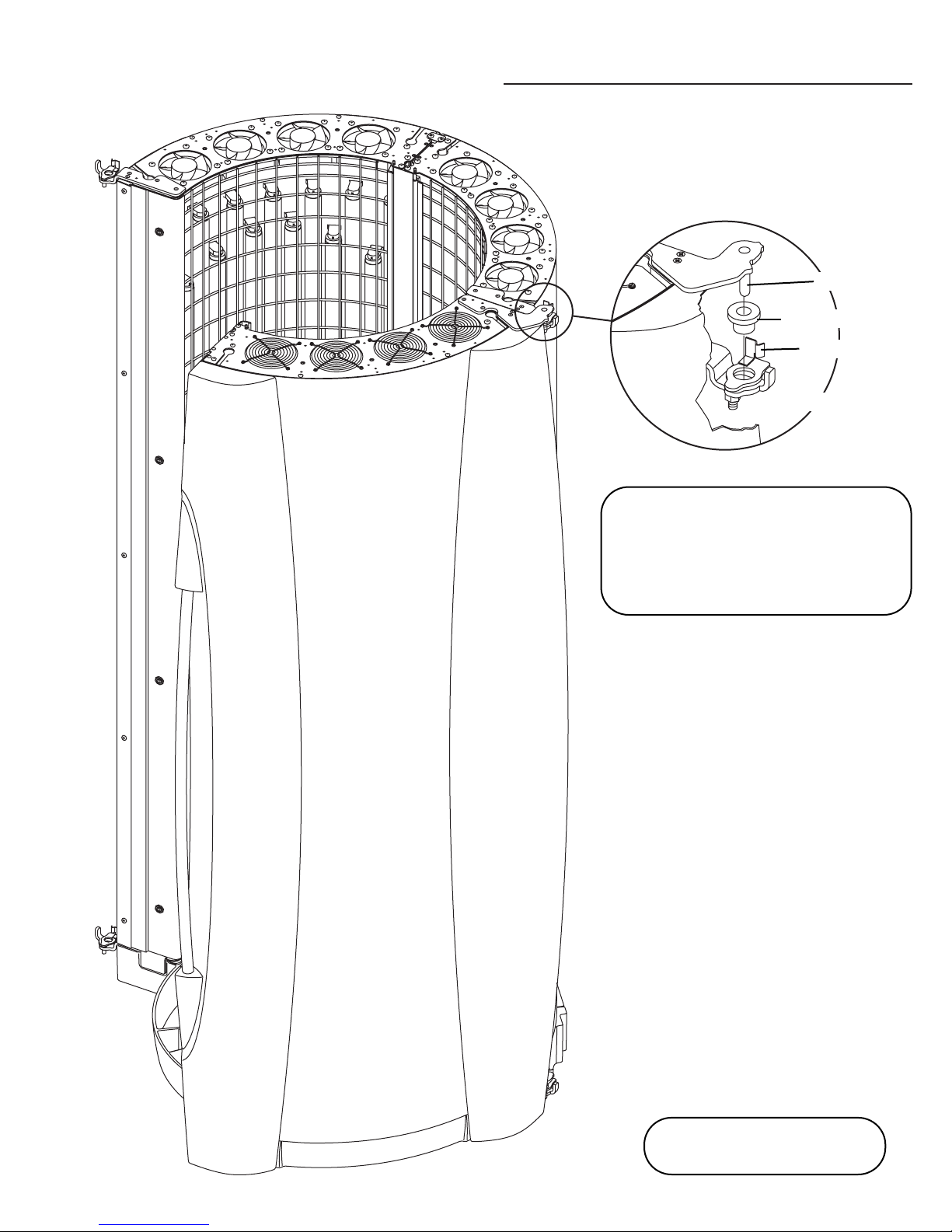

Parts needed:

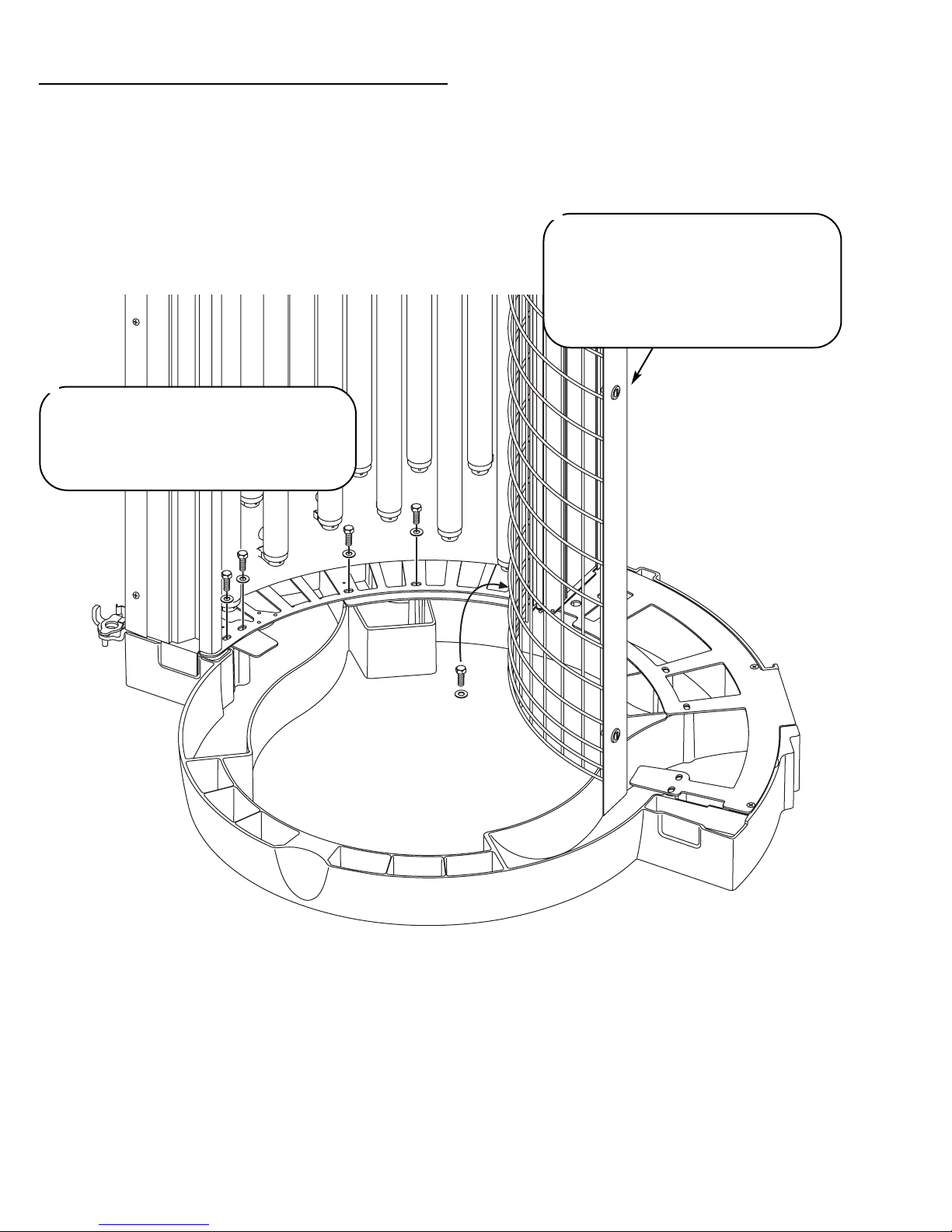

(5) 5/16-18 x 1” Hex-head bolts
(5) 5/16” Flat washers

Open the grill:
Using the hex key (in hardware kit)
turn the four latches on the grill to
unlock it. Swing the grill open.

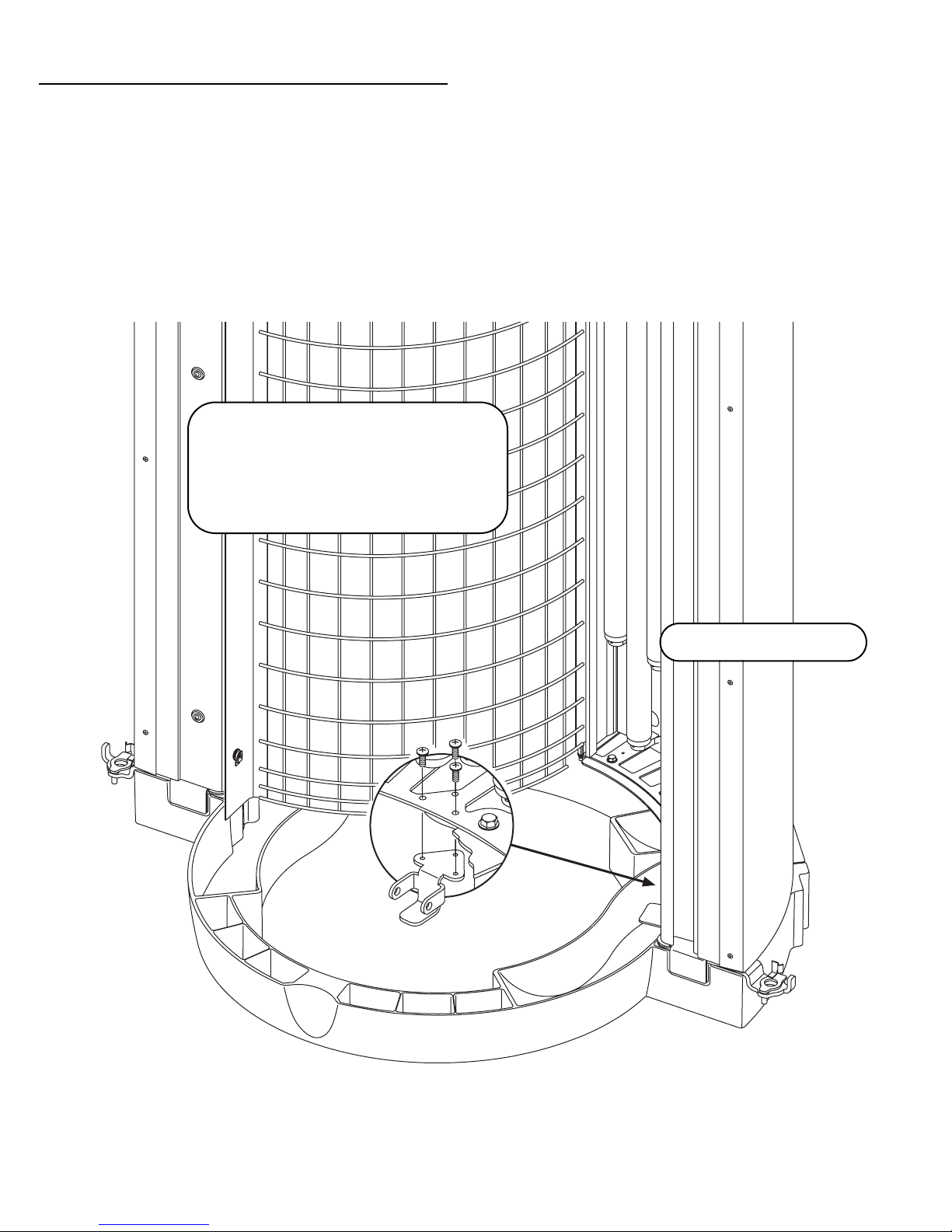

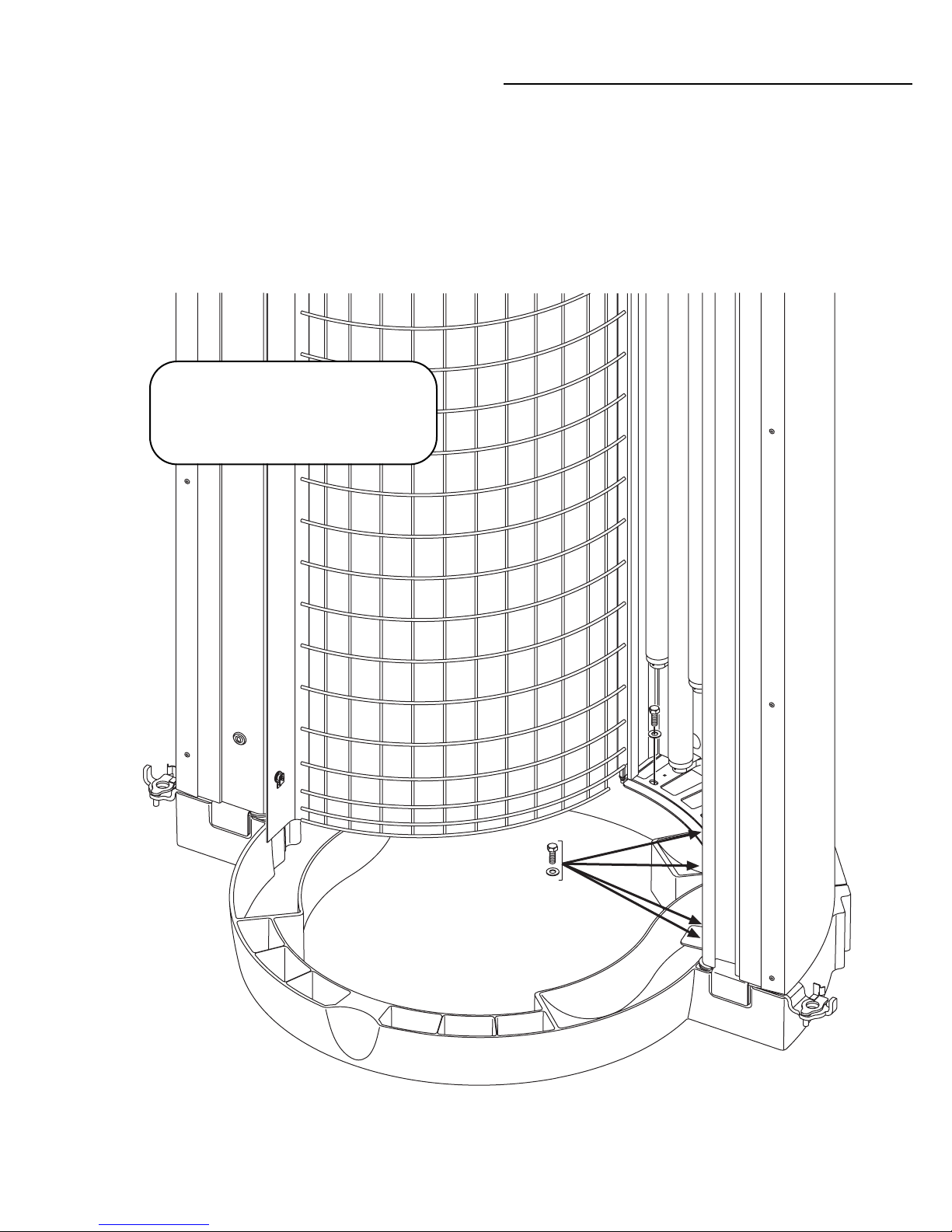

Secure the Left Module to the Base
with the five bolts and washers in the
slotted holes. (one hole not visible in
illustration because of grill)

2

1

25809-02A

Assembly Procedures - 11

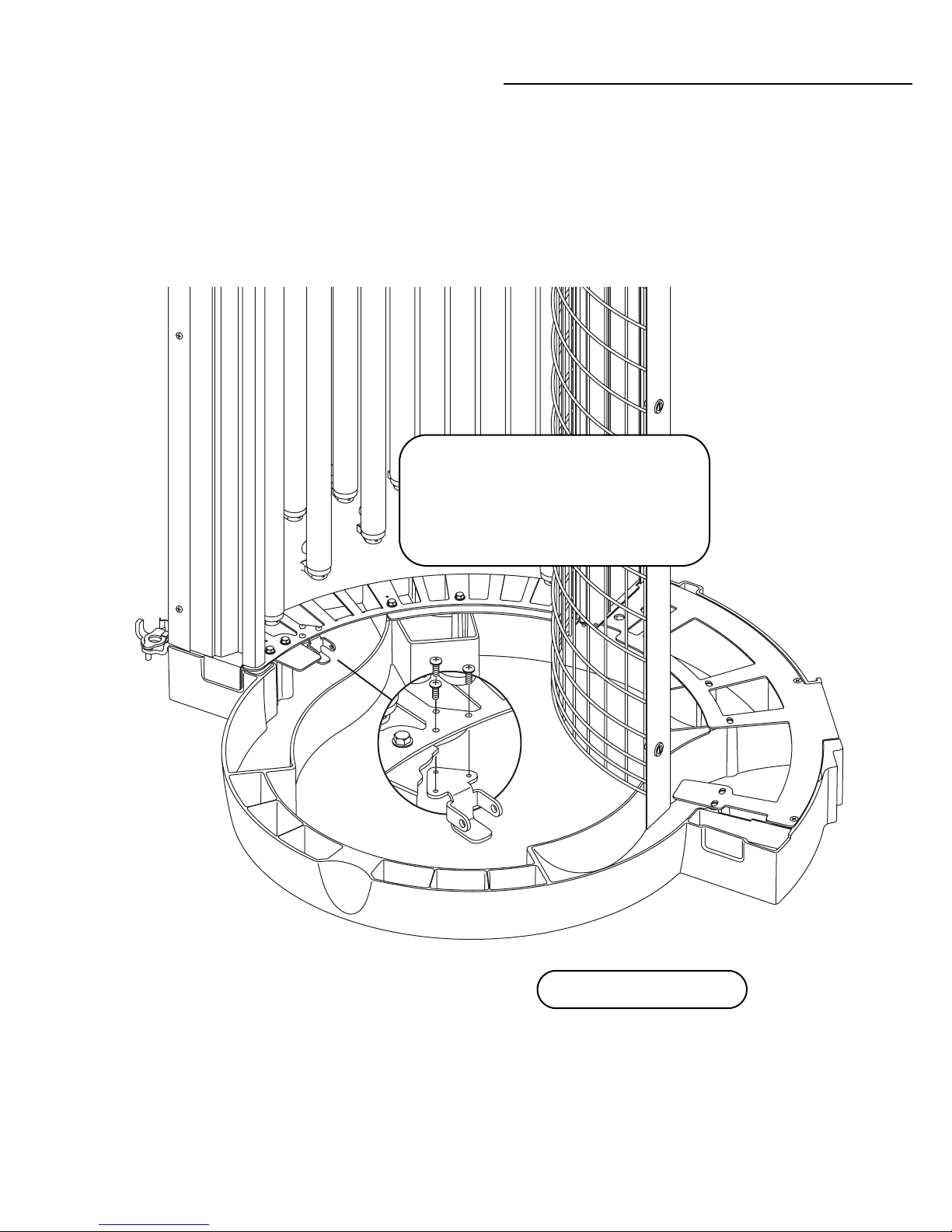

Parts needed:
(1) Lower handle bracket
(3) #8-32 x 3/4” Phillips pan-head thread cutting screws

Locate the three holes in the bottom
plate of the Left Module. Position the
Lower Handle Bracket underneath
the bottom plate and attach with the
three screws as shown.

Close and lock the grill.

25809-02A

12 - Assembly Procedures

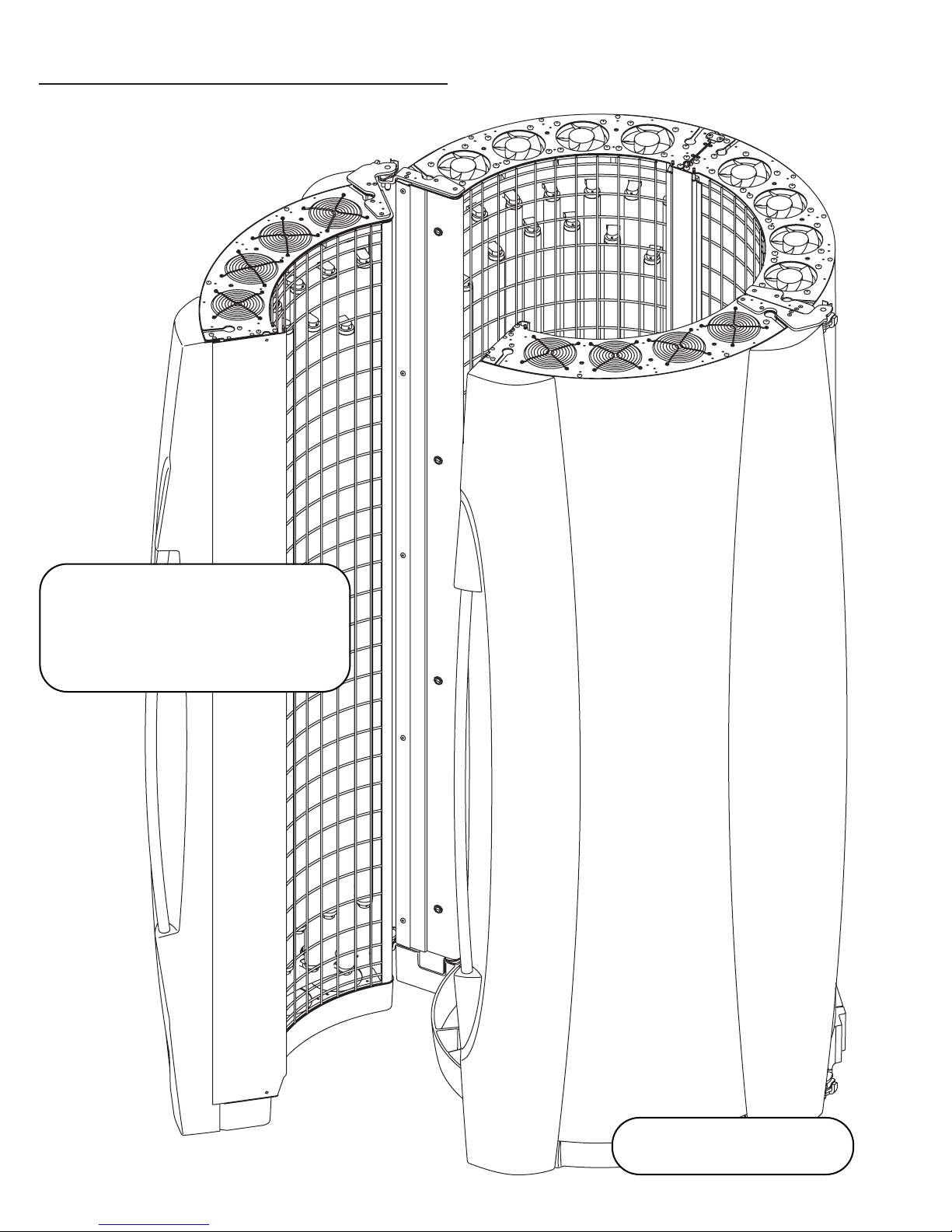

Parts needed:
Right Module (box 1)

Stand the Right Module
on the Base as shown.

NOTE: Wiring deleted from

illustration for clarity.

25809-02A

Assembly Procedures - 13

Parts needed:
(5) 5/16-18 x 1” Hex-head bolts
(5) 5/16” Flat washers

Just like the Left Module, open the
grill and secure the Right Module
to the Base with the remaining
five bolts and washers.

25809-02A

14 - Assembly Procedures

Parts needed:
(1) Lower handle bracket
(3) #8-32 x 3/4” Phillips screws

Locate the three holes in the bottom
plate of the Right Module. Position
the Lower Handle Bracket underneath
the bottom plate and attach with the
three screws as shown.

Close and lock the grill.

25809-02A

Assembly Procedures - 15

Parts needed:
(1) Module Strap
(2) #10 x 1” Phillips pan head screws

Connect the two modules with
the Module Strap, as shown.

NOTE: Wiring deleted from

illustration for clarity.

25809-02A

16 - Assembly Procedures

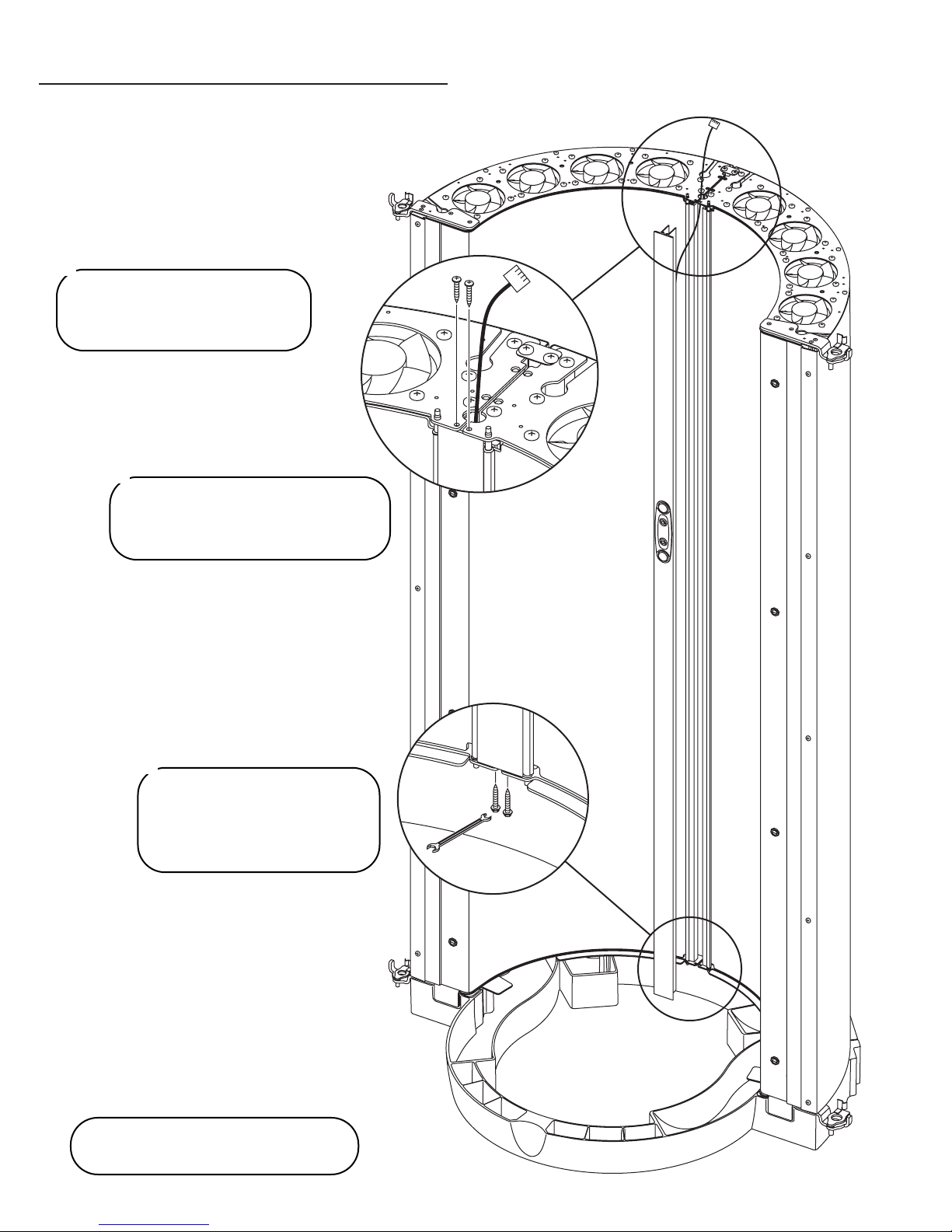

Parts needed:
Control Extrusion (box 1)
(2) #10 x 1” Phillips pan head screws
(2) #10 x 1” slotted hex washer head

screws

NOTE: Wiring and grills deleted

from illustration for clarity.

Feed the cable from the
Control Extrusion through the
hole between the modules).

1

Press the Control Extrusion into
place and secure the top with the
pan head screws.

2

Secure the bottom of the
extrusion with the hex head
screws. Use a 5/16” wrench
or ratchet.

3

25809-02A

Assembly Procedures - 17

Parts needed:
Right Door (box3)
(2) Hinge bushings

Place the Hinge Bushings into the
hinge holes (top and bottom).
Carefully lower the door hinge pins
into the bushings, being careful not
to bend the friction tabs.

NOTE: Wiring deleted from

illustration for clarity.

LOWER HINGE

FRICTION TAB

HINGE BUSHING

HINGE PIN

25809-02A

18 - Assembly Procedures

Parts needed:
Left Door (box 4)
(2) Hinge bushings

NOTE: Wiring deleted from

illustration for clarity.

Place the Hinge Bushings into the
hinge holes (top and bottom).
Carefully lower the door hinge pins
into the bushings, being careful not
to bend the friction tabs.

25809-02A

Assembly Procedures - 19

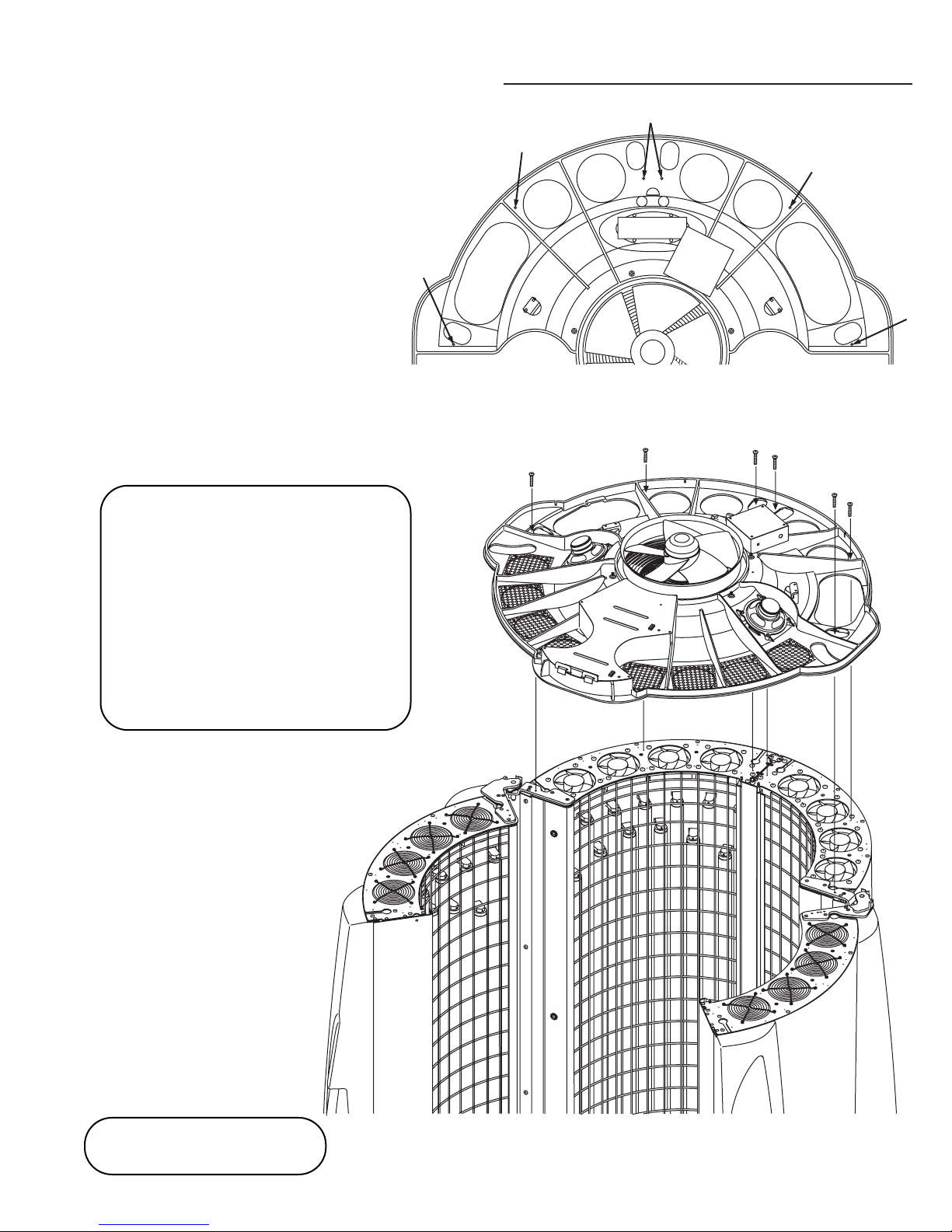

Parts needed:
Ceiling assembly (box 5)
(6) #8-32 x 3/4” Phillips screws

NOTE: Wiring deleted from

illustration for clarity.

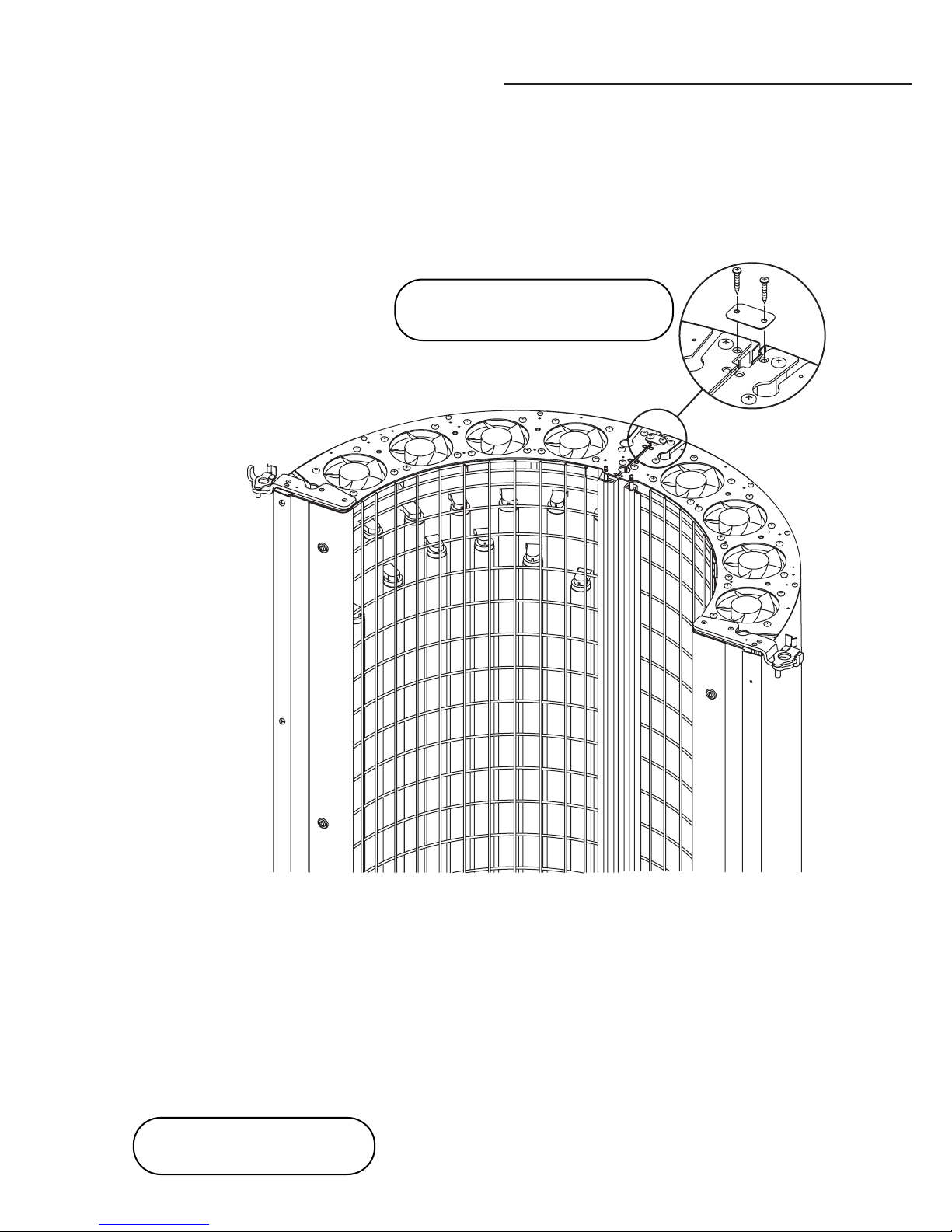

Lower the Ceiling assembly onto the
top of the booth. Pass the wiring har­nesses (not shown) through the holes
directly above each harness so no
wires get pinched beneath the
Ceiling.

Secure the Ceiling in place with the
six screws in the holes indicated by
arrows in the detail above, right.

25809-02A

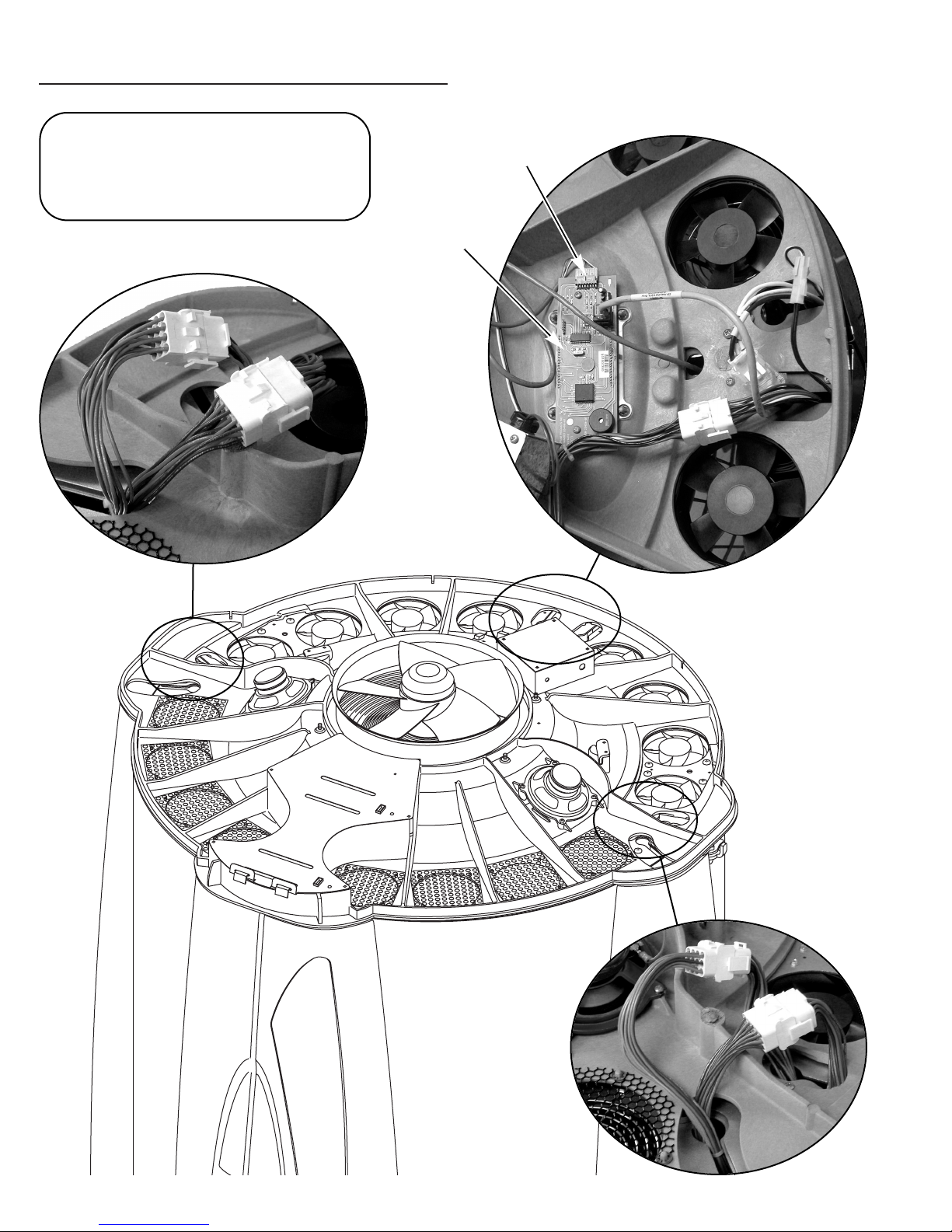

20 - Assembly Procedures

Connect the wiring harnesses as shown.
Match similarly colored harnesses and
plug them together firmly. Use care
when plugging into the display board.

FROM CONTROL

EXTRUSION

DISPLAY BOARD

25809-02A

Assembly Procedures - 21

Parts needed:

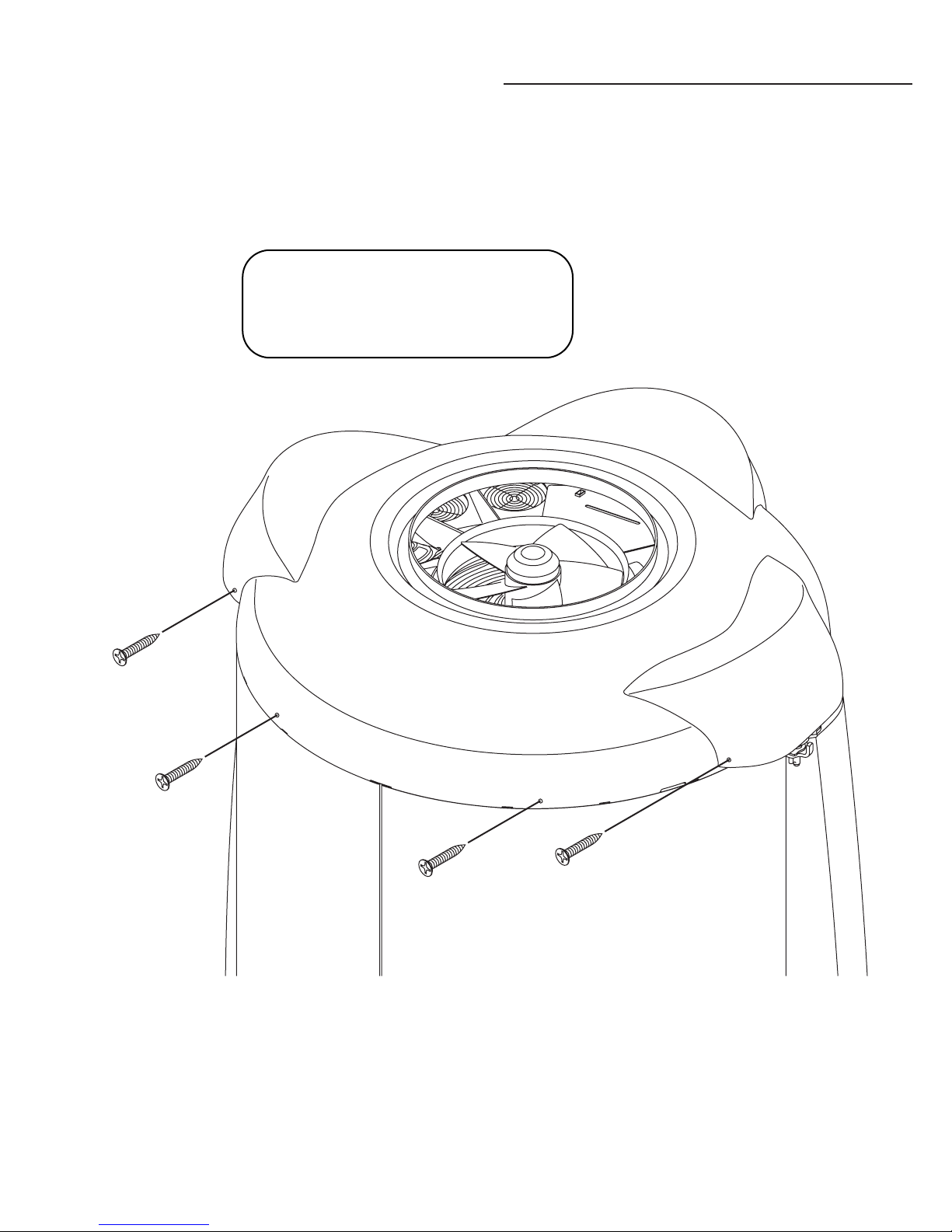

Dome (box 5)
(4) #10 x 1” Phillips flat head screws

Holding the Dome over the booth,
hook the front of the Dome on the front
of the Ceiling and lower the back into
place. Use the four screws to secure it.

25809-02A

22 - Assembly Procedures

Parts needed:
(2) Handles
(2) Handle pins

The handles, although they look similar, are
not the same. They will only fit properly
one way. A slot is cut into the top of each
handle that engages a tab inside the hole in
the Ceiling assembly. Insert a handle into
the hole, as shown, and twist it slightly to
make sure it engages the tab.

Slide the bottom of the handle into
the lower handle bracket and insert
a handle pin through it to lock the
handle in place.

HANDLE PIN

LEFT HANDLE

RIGHT HANDLE

LEFT HANDLE

VIEWED

FROM TOP

RIGHT HANDLE

VIEWED FROM

TOP

25809-02A

Assembly Procedures - 23

Parts needed:
Booth Floor (box 7)

Place the Booth Floor on the Base. It locks
in place with two quarter-turn latches,
one on each side near the handles. Use
the hex key to lock the floor in place.

25809-02A

24 - Assembly Procedures

Parts needed:

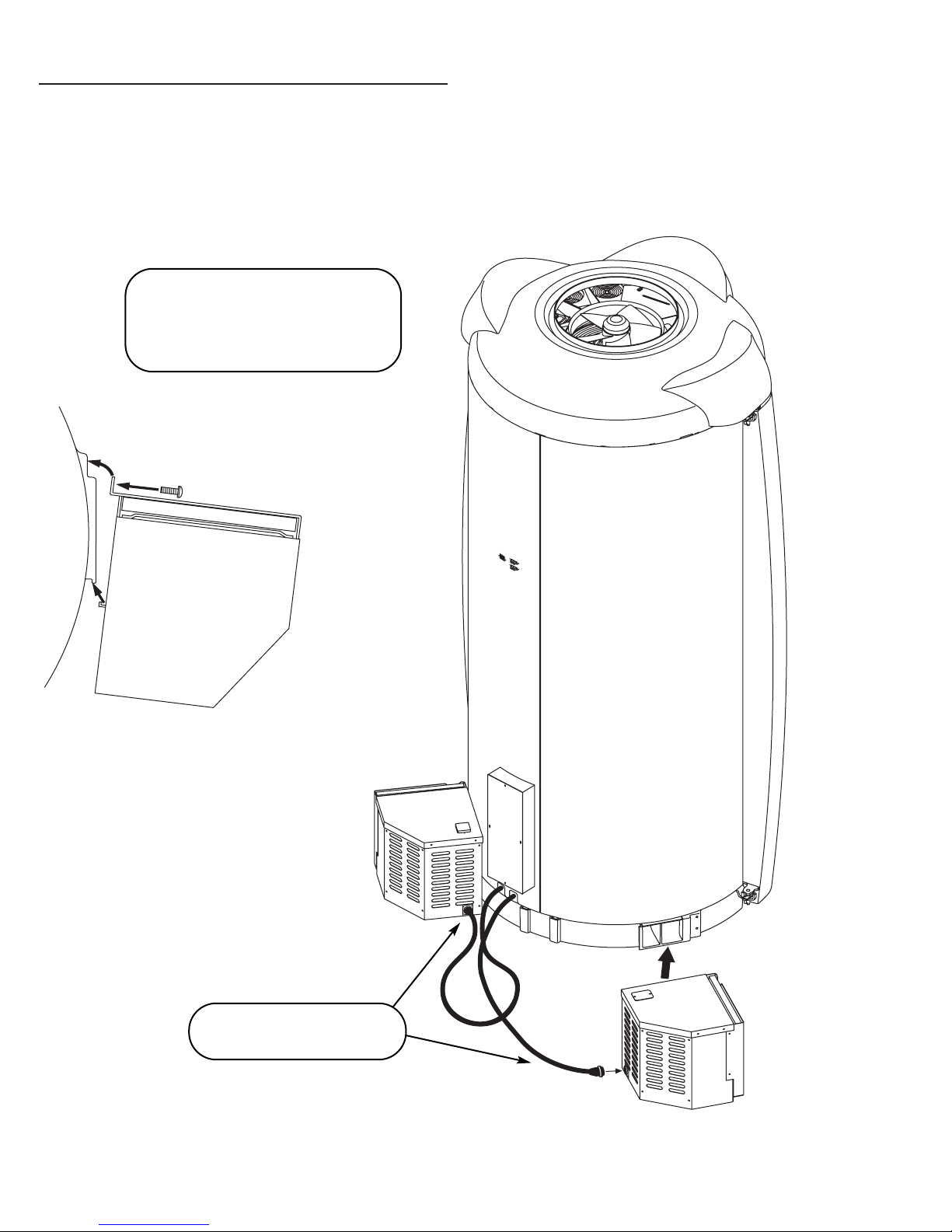

Blowers (box 6)
(4) 1/4-20 x 5/8” Phillips pan head bolts

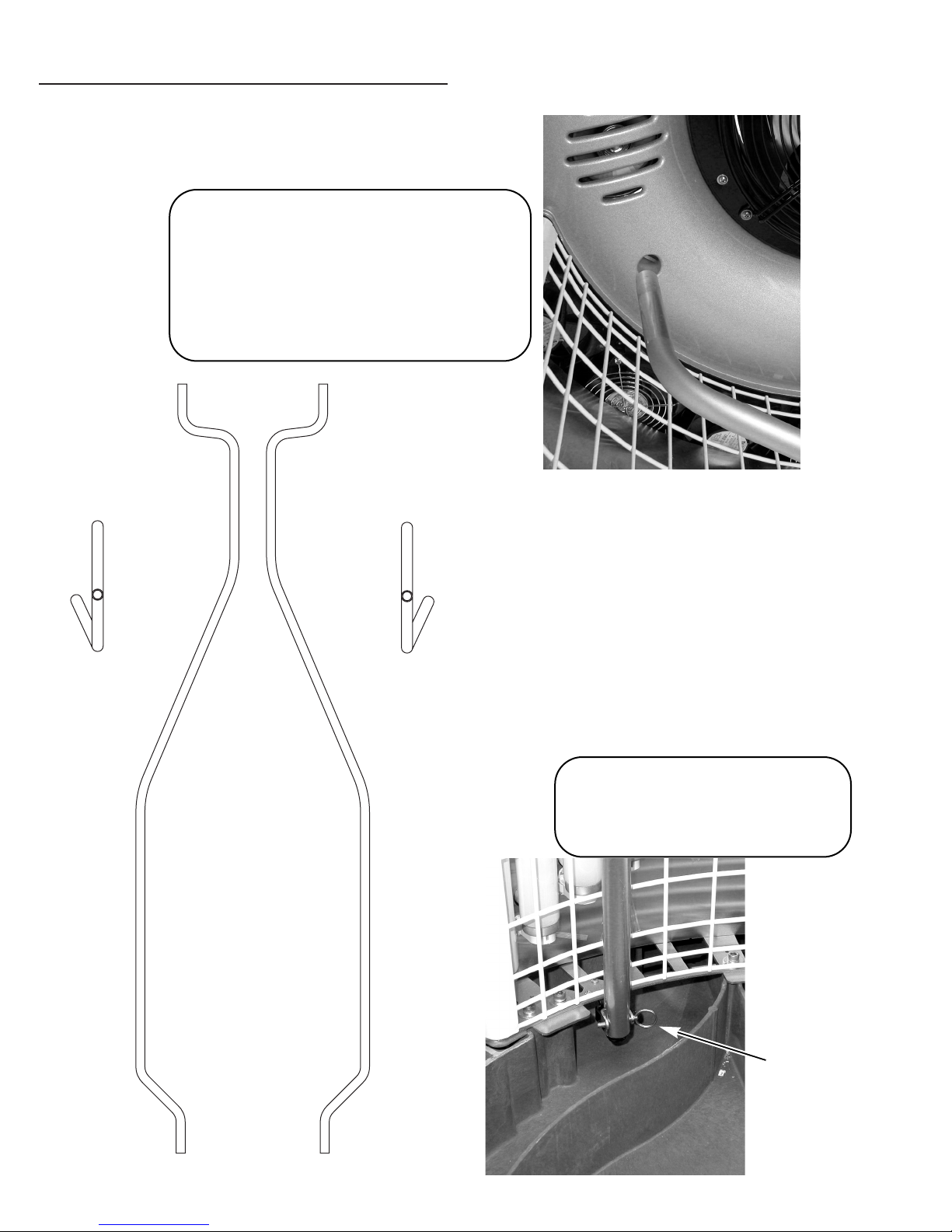

The Blower assemblies hook on
the base and pivot into position
(see detail below). Secure them
in place with the bolts.

Plug the cables from the
booth into each Blower.

25809-02A

Adjusting Hinges - 25

Adjusting Hinges

Parts needed:
(4) Hinge locking pins

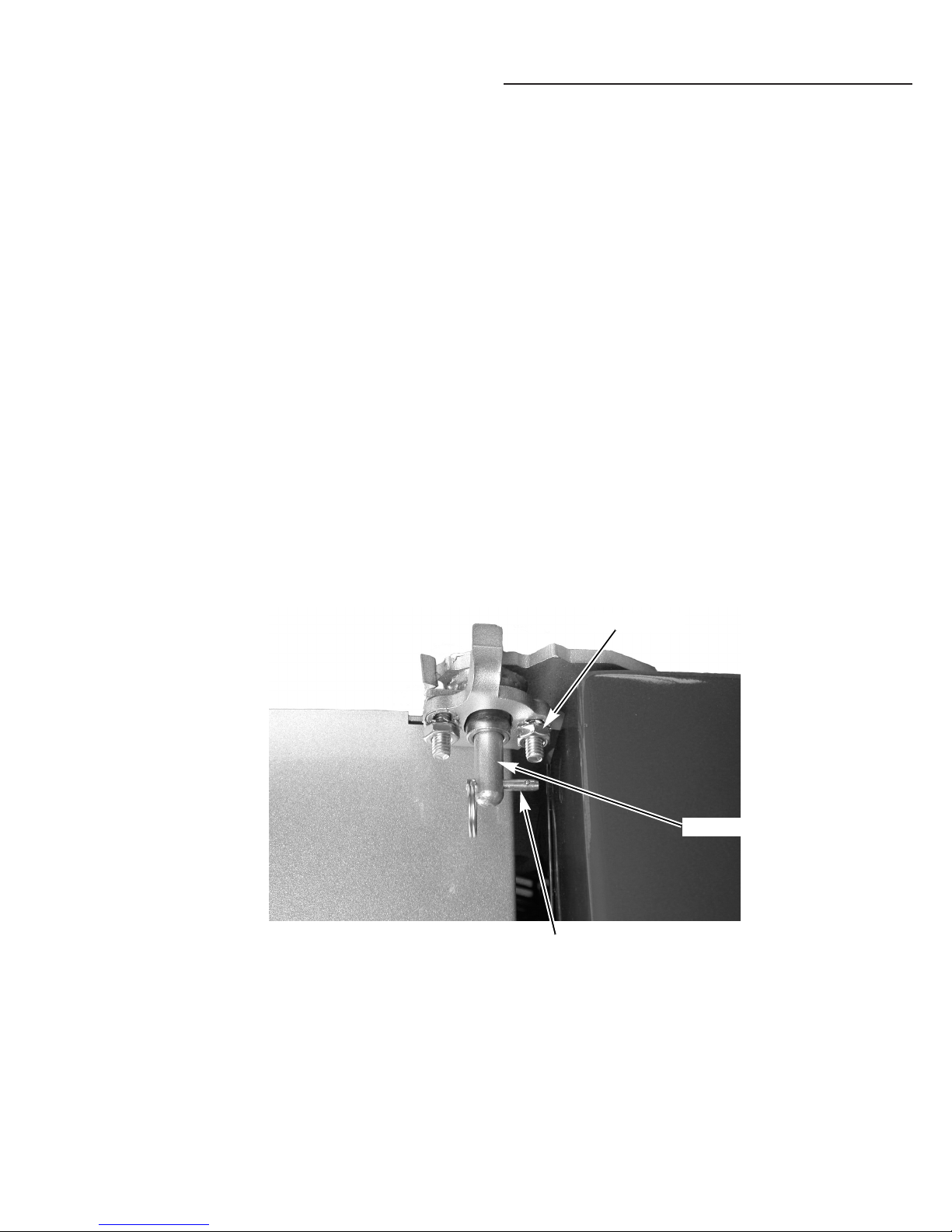

The booth doors should close tightly, with an even
seam between them. The hinges adjust to correct
any door alignment problems. Loosen the lock
nuts on the underside of a hinge (see photo) and
adjust the door as needed. Tighten the lock nuts
when the doors are adjusted properly.

Insert the Hinge Locking Pins into the Hinge Pins
to prevent the doors from lifting off.

HINGE PIN

LOCK NUT

HINGE LOCKING PIN

25809-02A

26 - Electrical Connections

Electrical Connections

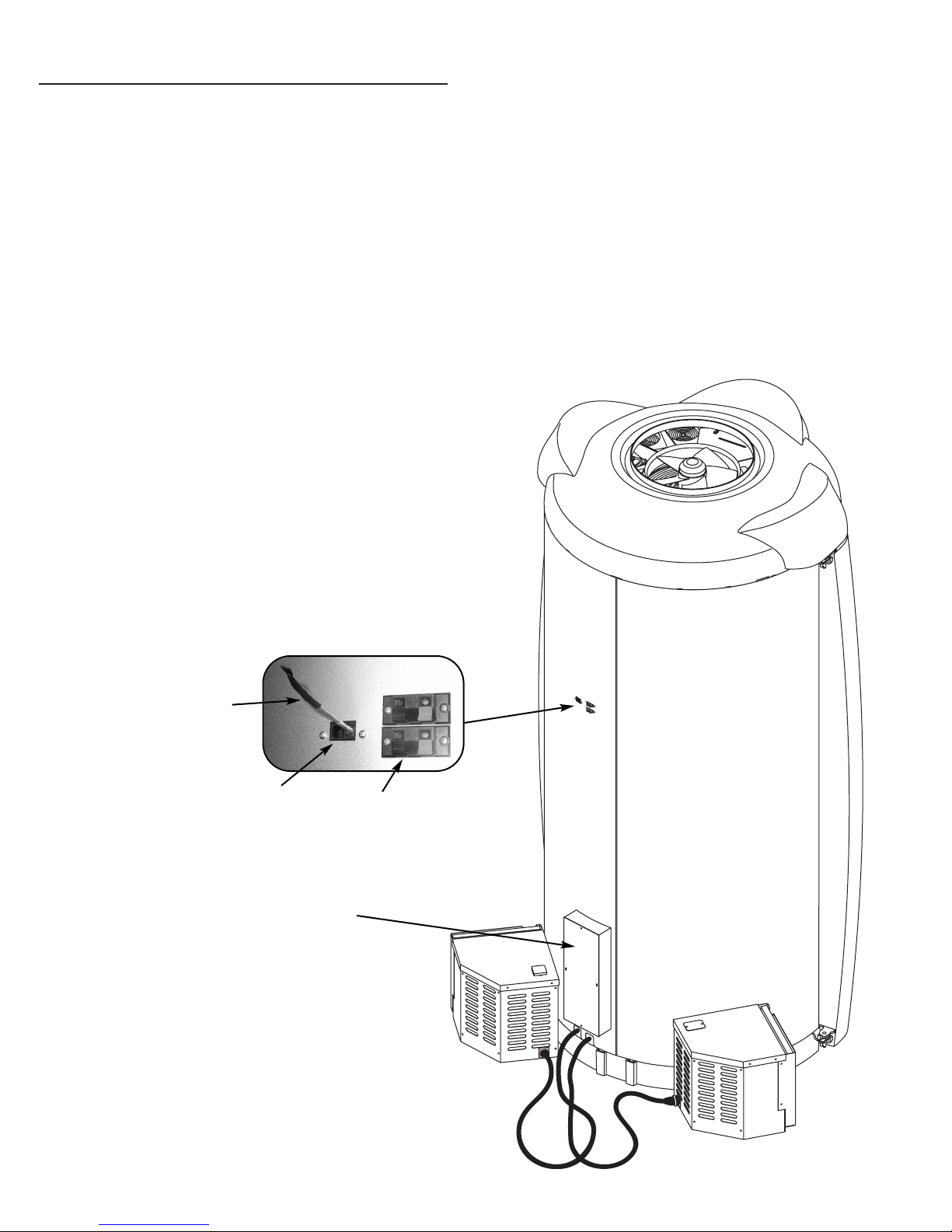

On the back of the booth is a junction box. Have
your electrician connect power directly into this
box as described in Pre-Installation Planning.
Again, a professional electrician is recommended.

Your booth is designed to work with a remote con­trol device. If you choose not to use one, insert the
Remote Control Bypass plug into one of the
remote control ports as shown. It may be installed
in either port. Your booth will not operate without
the Remote Control Bypass plug or a remote sys­tem connected. Your equipment is now ready for
use.

In the ceiling of the booth are two speakers capa­ble of handling 25W of musical power, with a
maximum of 130W. Next to the remote control
ports are two speaker inputs to connect to a
stereo.

NOTE: Your unit is designed to accept an input
from a remote control device. The remote con­trol is optional. If you plan on using a remote sys­tem refer to Remote Connections.

ATTENTION: Although the Remote Control
Bypass plug provided with your unit will work
wherever a T-Max® terminator is called for in the
series, the T-Max® terminator will not work as a
bypass plug. A bypass plug is needed only when
your booth is operated without a remote system
connected.

REMOTE CONTROL

BYPASS PLUG

REMOTE CONTROL

PORTS

SPEAKER

INPUTS

JUNCTION BOX

25809-02A

Remote Connections - 27

Remote Connections

Your tanning booth incorporates advanced circuit­ry allowing it to connect and communicate with
most remote control systems. If a remote system
is to be used, first determine whether the remote
system is a T-Max® System or a standard remote
system operating with a control relay. Follow the
appropriate instructions for your system type.

T-Max® Products

The T-Max® remote systems offer the ultimate in
sunbed control, while allowing the tanner easy
straightforward operation. Your booth is configured
to directly connect to this system. The circuitry
inside your booth eliminates the need for the T­Max® 1A or 3A when connecting to the T-Max®
Manager series. Your booth supports the auto
addressing feature of the latest T-Max® Manager
models and the following parameters: 5, 6, 7, 8, 9,
10, 13, 15. See your T-Max® manual for descrip­tions of these parameters and how they function.

Auto Addressing with T-Max®

Your T-Max® Manager manual will explain how to
get into auto address mode. Once auto address has
been activated, your booth display will blink “88”.
Wait 10 seconds for the system to communicate
properly and press the START button. The booth
will flash “99” to signify it has accepted the
address and return to “0:00”.

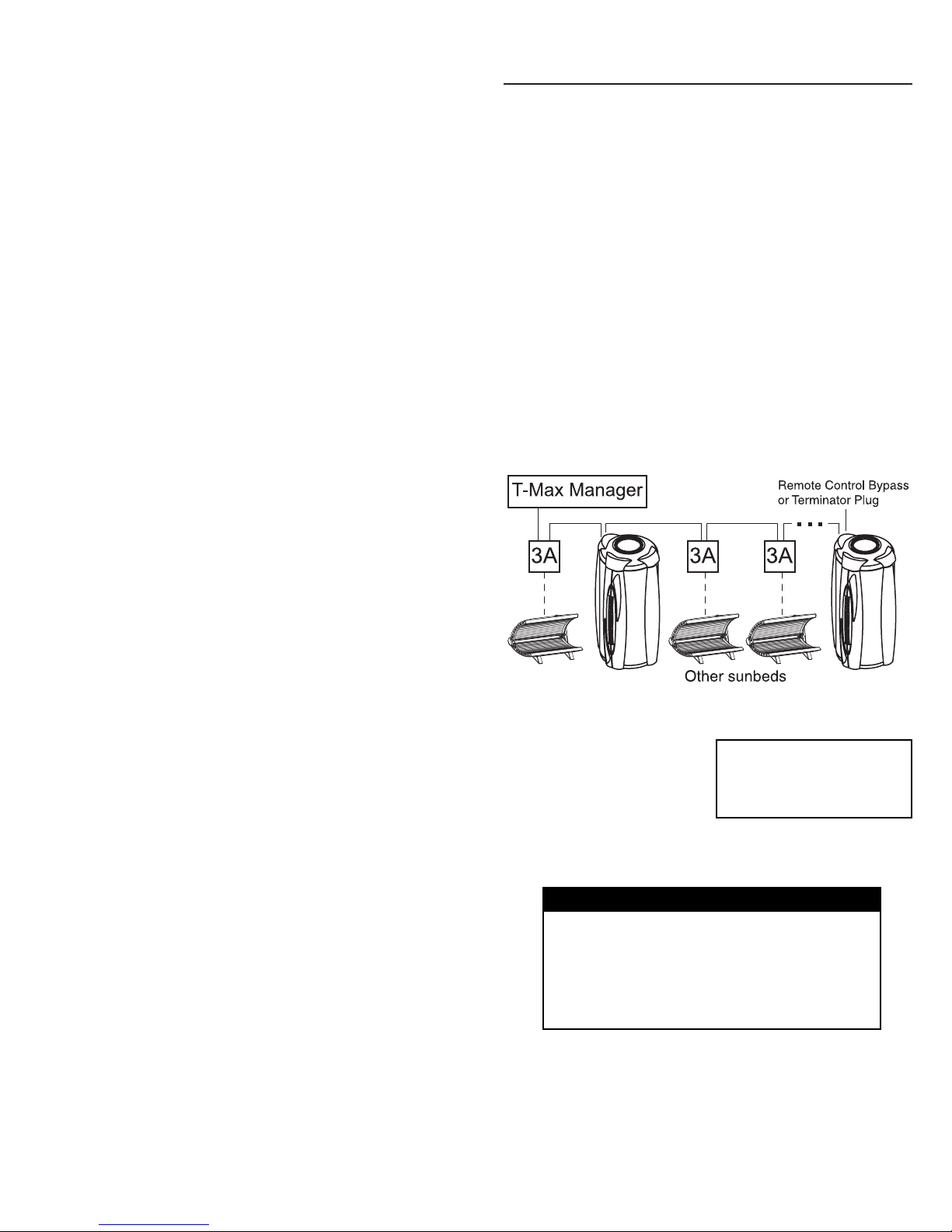

figure 1

NOTE: A T-Max® 1A

can be substituted for

the 3A in figure 1.

CAUTION

The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The booth’s remote inter­face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
unit as well as void your warranty.

T-Max® Manager Remote System

This system is ideal for multiple sunbed installa­tions. Simply connect the RJ-22 modular cable(s),
described in the T-Max® Manager manual, into
the remote port(s) located on the back of your
booth and follow the instructions that came with
your remote system, noting figure 1. If you have an
older T-Max® Manager that doesn’t support auto
addressing, set the address, or “id”, of each unit
manually as described in Setting the address man-
ually. You can place your booth at any location in
the series.

25809-02A

28 - Remote Connections

Setting the address manually

Before connecting your booth to the T-Max®
Manager or T-Max® 1A or 3A, the address of your
booth must first be set. Set the “id” manually as
described below.

Setting the Address

1. Make sure the booth display is showing
“0:00”.

2. Press the STOP button for three seconds. The
display should indicate an address number
from “1” to “255”.

3. If you are using a T-Max® 1A or 3A as a
“master” remote, the address of the booth
must be set to “1”. If you are using a T-Max®
Manager each sunbed must be assigned a
different address. To adjust the address, press
the START button to count up until the
desired number (from 1 to 128) is achieved.
Addresses 252 to 255 are not normally used.

4. Press the STOP button to return to the nor­mal display mode.

figure 3

Remote systems using a Control Relay

Most non-T-Max® remote systems control the unit
by the use of a relay. The relay operates the unit
by connecting and disconnecting a pair of wires
leading from the unit. Refer to the user’s manual
provided with your remote system to determine if
it operates in this way. To connect your booth to
this type of system a remote interface kit is
required. Contact your place of purchase to obtain
the kit. Figure 3 details a typical connection.
Follow the instructions provided with the kit and
from the remote’s manual to make the necessary
connections.

CAUTION

The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The booth’s remote inter­face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
unit as well as void your warranty.

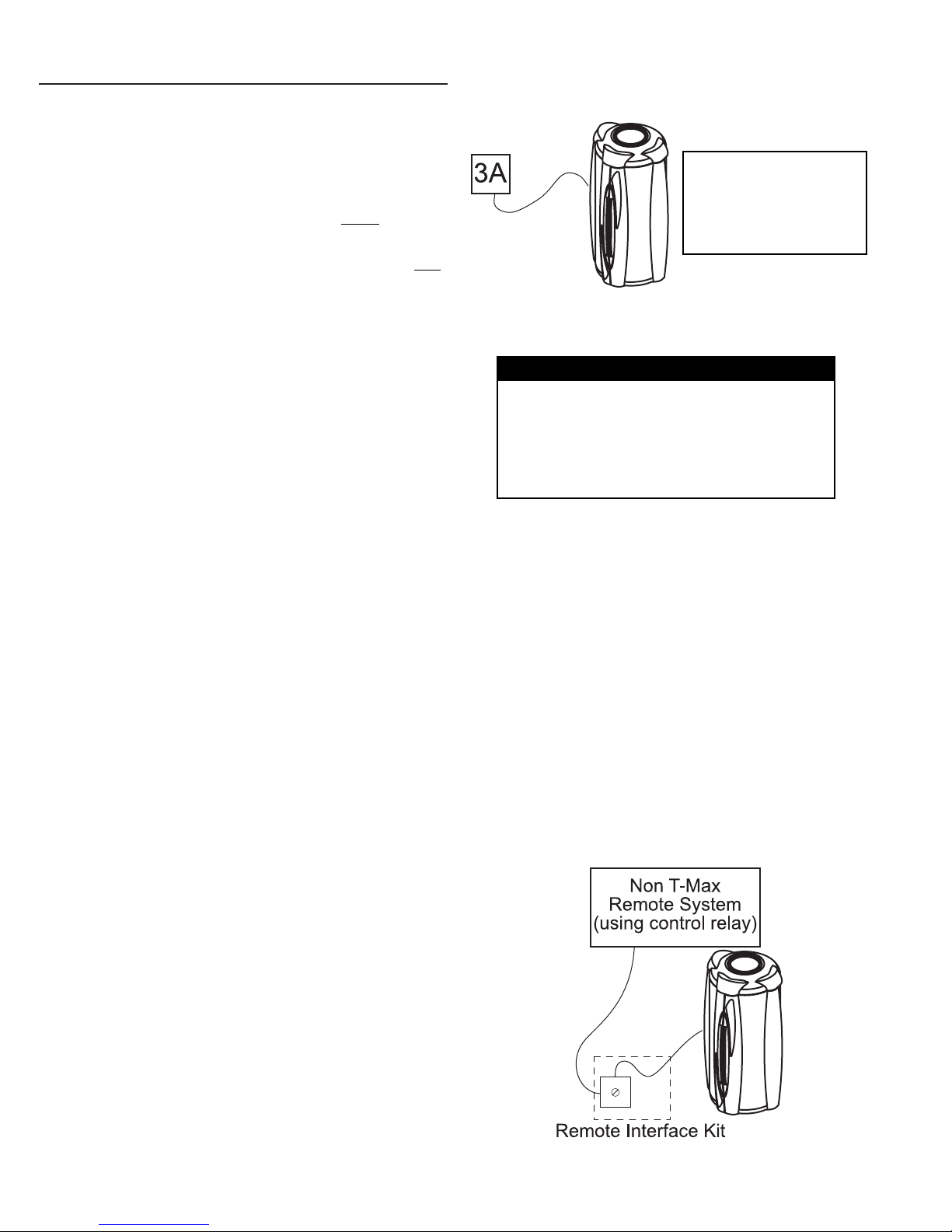

T-Max® 1A and 3A Remote Systems

In single sunbed installations, the T-Max® 1A and
3A can offer the same control as the T-Max®
Manager, eliminating the need for a Manager. If
you’re using a 1A in this manner, it must

have a
chip labelled “master” installed on its circuit
board. The remote control bypass plug must not
be used in this configuration. The 3A may be used
as a “master” with no modification.

After you have set the T-Max® 1A’s, or 3A’s,
address to “0” (refer to your T-Max® user’s guide)
and the booth’s address to “1” (see below), simply
connect the RJ-22 modular cables, described in
the T-Max® user’s guide, directly into either port
located on the back of the unit and either port on
the back of the T-Max® 1A or 3A. See figure 2.

NOTE: A T-Max® 1A

with a “master” chip

can be substituted

for a 3A in figure 2.

figure 2

25809-02A

Operation - 29

Before You Tan

Please note the following warnings and precau­tions before using your tanning booth.

• Your skin should be free of cosmetics, tan­ning oils, or other body lotions prior to tan­ning except for those specifically made for
use with tanning devices. However, do not
remove natural body oils by bathing or
showering immediately before tanning.

• This unit intended for individual use. Only
one pair of eyewear is included.

Exposure Times

Follow the guidelines for skin type and exposure
times as shown in the table below. Untanned per­sons should not tan on consecutive days during
their first week of tanning. Never tan more than
once a day. Tanning normally appears after the
first few sessions and maximizes after approxi­mately four weeks. Tan once or twice per week
thereafter to maintain appearance. Persons
already having a base tan may begin at advanced
levels corresponding to the extent of their base
tan.

Tanning Position

For best results, follow all directions carefully. To
obtain a uniform tan, stand in the center of the
booth and raise your hands. You may hold onto
the interior handles wherever it feels comfortable.
There is no need to turn yourself around while
tanning.

DANGER

Some medication may increase your sensi­tivity to ultraviolet light. It is recommended
that you consult a physician before using
this equipment if taking any medication or
if you suspect that your skin might be
especially sensitive to sunlight.

DANGER

Shock hazard.
Do not operate this device near

water or while you are wet.

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES

Level 1/Week 1

Level 2Level 3Level 4

Subsequent

Skin Type: 1st-3rd Sessions Maximum

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 246810
III Normal (Burns moderately and tans average.) 3 5 7 10 10
IV Dark (Burns minimally, tans easily and above average.) 4 6 8 10 10

25809-02A

30 - Using Your Booth

1. Open the doors, step inside and close the

doors fully. For best results, position your body
in the center of the booth.

2. Put on your safety goggles.

3. Assuming the remote system has been set to

allow a pre-tanning delay time, the timer dis­play (A) will count down the remaining delay
time. Press the START button (B) or wait until
the delay time has expired to begin the tanning
session. The lamps will turn on and the timer
will begin to count down.

4. If a tanning time less than the displayed time is

desired, repeatedly press the START button (B)
to decrease the remaining time.

5. When the timer reaches 0 the lamps turn off. If

you want to stop your session before time
expires, press the STOP button (C).

6. Exit the booth. The cooling fans run for a peri-

od of time after the lamps shut off to aid in
cooling the booth. The timer will indicate “:”
as a reminder to clean the tanning surfaces.
After the booth is cleaned, press the START
button and the display will return to “0:00”.

Using Your Booth

When connected to the T-Max® Manager or T-Max® 1A or 3A.

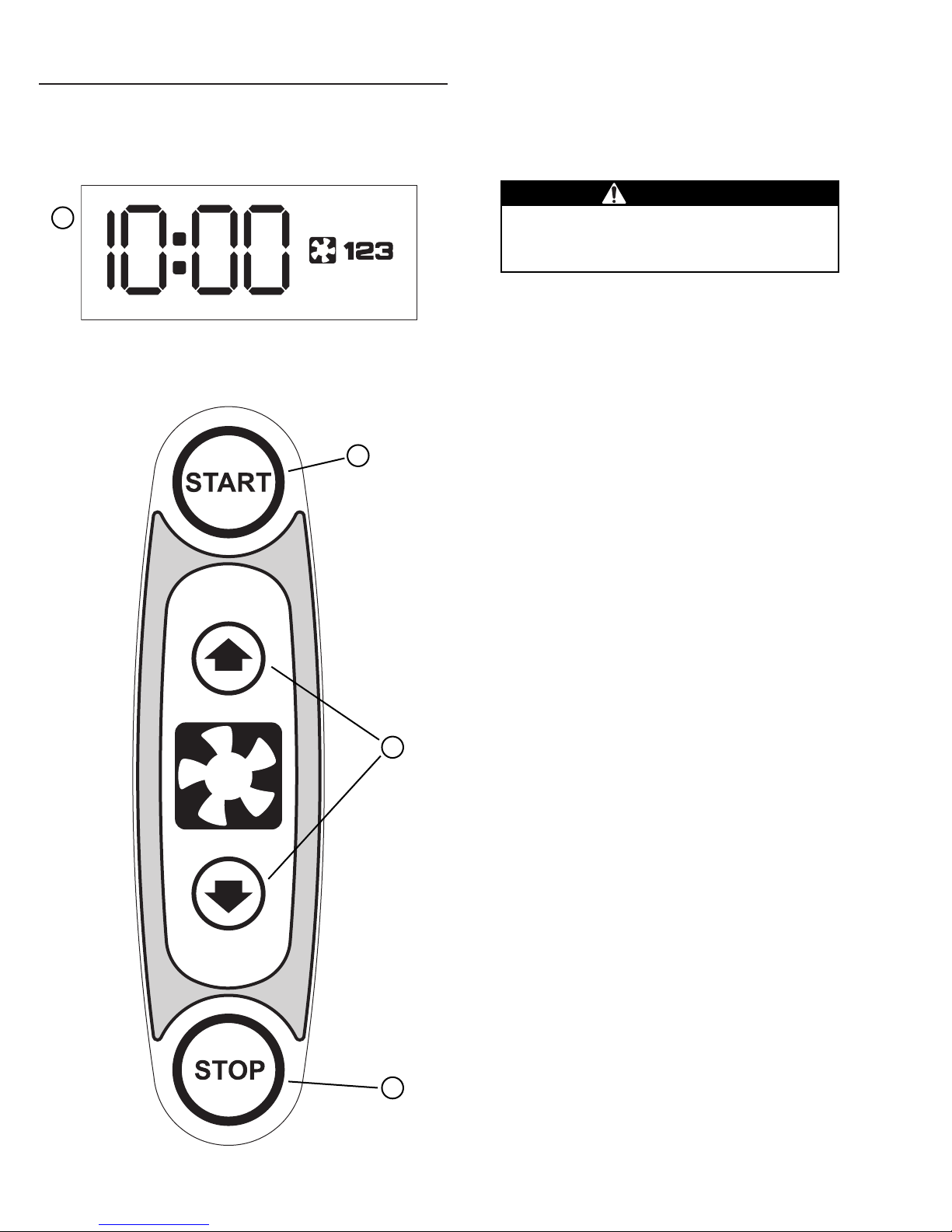

A Timer display - Displays remaining time and

fan status.

B START button - Turns unit on. Timer display

shows remaining time. If a lesser time is
desired, press START button until desired
time is displayed.

C STOP button - Interrupts tanning session.
D Body fan buttons - Adjusts body cooling fans.

Timer display shows intensity (1-2-3).

WARNING

Wear protective eyewear.
Failure to may result in severe burns or

longterm injury to the eyes.

A

B

C

D

25809-02A

Using Your Booth - 31

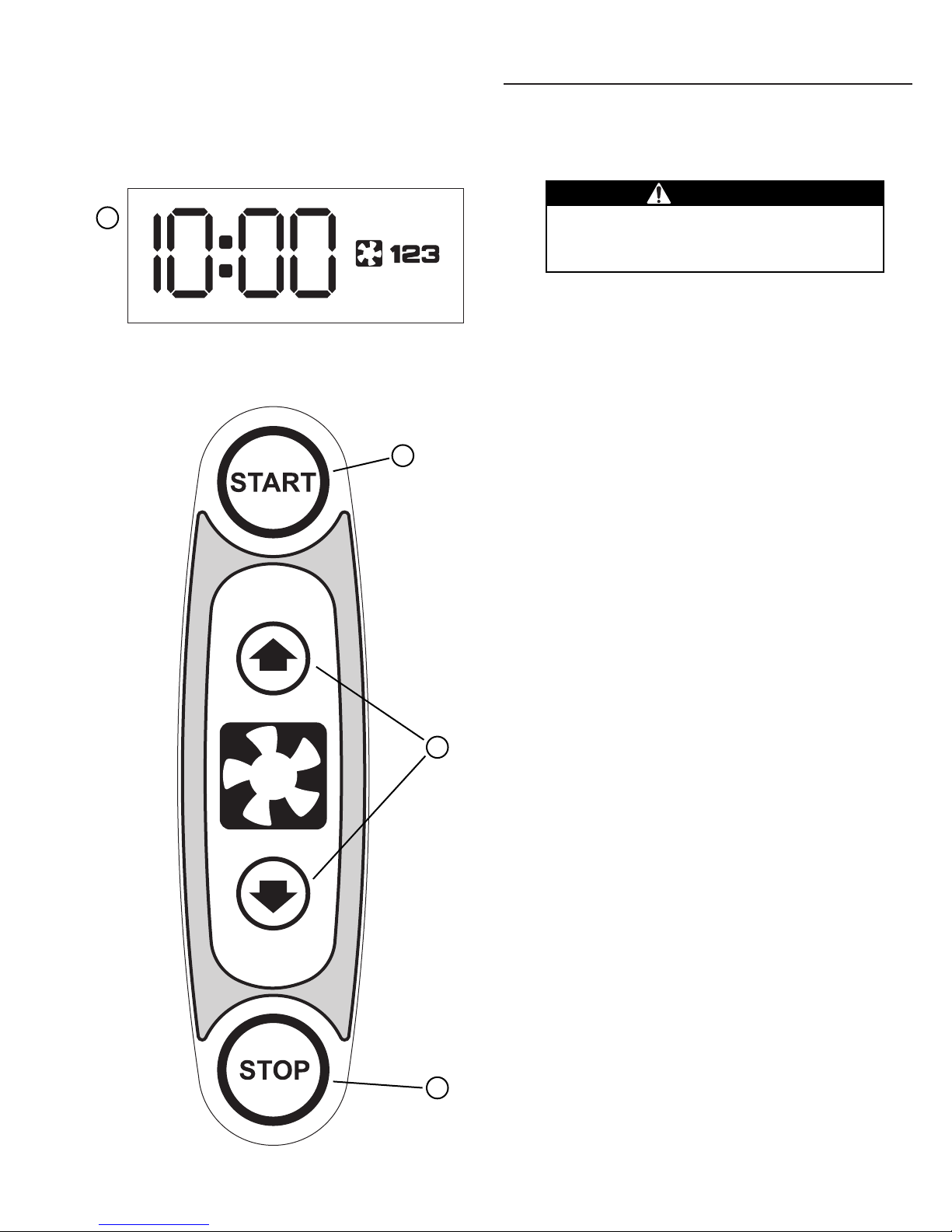

Using Your Booth

When used as a stand alone unit or when connected to a remote system using a control relay.

1. Open the doors, step inside and close the

doors fully. For best results, position your body
in the center of the booth.

2. Put on your safety goggles.

3. Press the START button (B) to begin the tanning

session. The lamps will turn on and the timer
will begin to count down.

4. If a tanning time less than the displayed time is

desired, repeatedly press the START button (B)
to decrease the remaining time.

5. When the timer reaches 0 the lamps turn off. If

you want to stop your session before time
expires, press the STOP button (C). You will
have ten seconds to restart with the remaining
time, otherwise the timer will reset to 0:00.

6. Exit the booth. The cooling fans run for a peri-

od of time after the lamps shut off to aid in
cooling the booth.

A Timer display - Displays remaining time and

fan status.

B START button - Turns unit on. Timer display

shows remaining time. If a lesser time is
desired, press START button until desired
time is displayed.

C STOP button - Interrupts tanning session.
D Body fan buttons - Adjusts body cooling fans.

Timer display shows intensity (1-2-3).

WARNING

Wear protective eyewear.
Failure to may result in severe burns or

longterm injury to the eyes.

A

B

C

D

25809-02A

32 - Care and Maintenance

Cleaning After Use

Clean and disinfect the grills, floor and handles
after each use. Use a non-abrasive disinfectant
cleaner. Wipe the grills and handles with a soft
cloth dampened with disinfectant and wipe dry
with a clean soft cloth. Spray the floor lightly with
disinfectant cleaner and wipe dry. We recommend
Australian Gold® PH Neutral disinfectant cleaner.

Mechanical Inspection

Your tanning booth has been built for years of
service. To ensure trouble-free operation through­out its life, inspect the unit’s mechanical integrity
every 400-500 hours of use.

•Inspect the unit’s fasteners verifying that all are
firmly in place.

• Inspect door alignment. Adjust hinges so doors
close tightly with an even seam between them.
See Adjusting Hinges.

•Inspect all power cords and connections.

WARNING

Shock hazard.
Disconnect power before removing

any protective covers.

Thorough Periodic Cleaning

Introduction

The cooling fans draw air through the booth and
over time will cause a dust buildup on the lamps
and reflectors. This will reduce the tanning effec­tiveness of the unit. When a dust buildup is
observed, it is necessary to thoroughly clean the
inside of the booth.

•Open the grills and remove lamps as described
in Lamp and Grill Replacement.

•With a soft cloth, wipe the entire length of each
lamp to remove any film buildup.

•Clean both sides of the grills with disinfectant
cleaner.

•Wipe the reflectors with a clean damp cloth.

•Reinstall the lamps and grills.

•Replace air filters inside each blower. Replace
with a 12” x 12” x 1” furnace filter.

Hour Counter

Your booth is equipped with an hour counter that
tracks how long the unit has been in service,
much like your vehicle’s odometer. The hour
counter is located on the top of the right blower,
behind the unit. Use this counter to track lamp
hours and many other time based maintenance
procedures.

25809-02A

Lamp and Grill Replacement - 33

Lamp and Grill Replacement

Introduction

To be assured of maximum tanning effectiveness,
change lamps after approximately 600-800 hours
of use. Tanning will continue after this time but at
a slower rate. To ensure trouble-free operation of
your booth, replace the lamp starters whenever
the lamps are replaced.

Opening/Replacing Grill Shields

Each grill is secured in place by four quarter-turn
latches. The Left Module is shown at right. Using
the hex key (included in the hardware kit) remove
the floor. Then use it to unlock the grill. 1Swing
the grill open, 2lift it and 3pull the bottom out.

To replace the grill, insert the top hinge pin in the
hole at the top of the module, swing the bottom
pin into place and drop it down to engage the pin.

WARNING

Shock hazard.
Disconnect power before removing

any protective covers.

CAUTION

Be careful. The edges of the grill shield
may be sharp.

25809-02A

34 - Lamp and Grill Replacement

Removing/Replacing Main Lamps

After opening the grill, grasp a lamp at one end
and at the middle and turn the lamp one quarter
turn. Gently remove the lamp from its holders.

Reinstall the lamp by inserting the pins located on
the ends of the lamp into the slots on top of the
lamp holders and turn the lamp a quarter turn. It
should click in place.

Removing/Replacing Main Lamp Starters

The top of the starter is visible after removing a
lamp. There is one starter for each lamp. Grasp the
starter and turn it gently. It will click loose and pull
out easily.

Reinstall the starter by inserting the pins located
on the bottom of the starter into the holes in the
starter holder and turning. It should click in place.

Recommended Replacement Lamps

We recommend using the lamps specified below.
Use of uncertified lamps is a violation of Federal
regulations and will void your warranty. These
lamps have an average life of 600-800 hours of
effective tanning use. Lamps used longer than that
begin to lose their effectiveness even though they
continue to light.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:

BRONZING SUN™ Wolff® Model BS71-T12-160W VS-R BI-PIN

25809-02A

Lamp and Grill Replacement - 35

Replacing Entry Lamps

Above the doors are two small fluorescent lamps
to illuminate the inside of the booth when the tan­ning lamps are off. To access these lamps you
must first remove the Dome. Follow these direc­tions carefully.

Unscrew the four screws on the back of the
Dome. Lift the back of the Dome, shift it forward
and remove it.

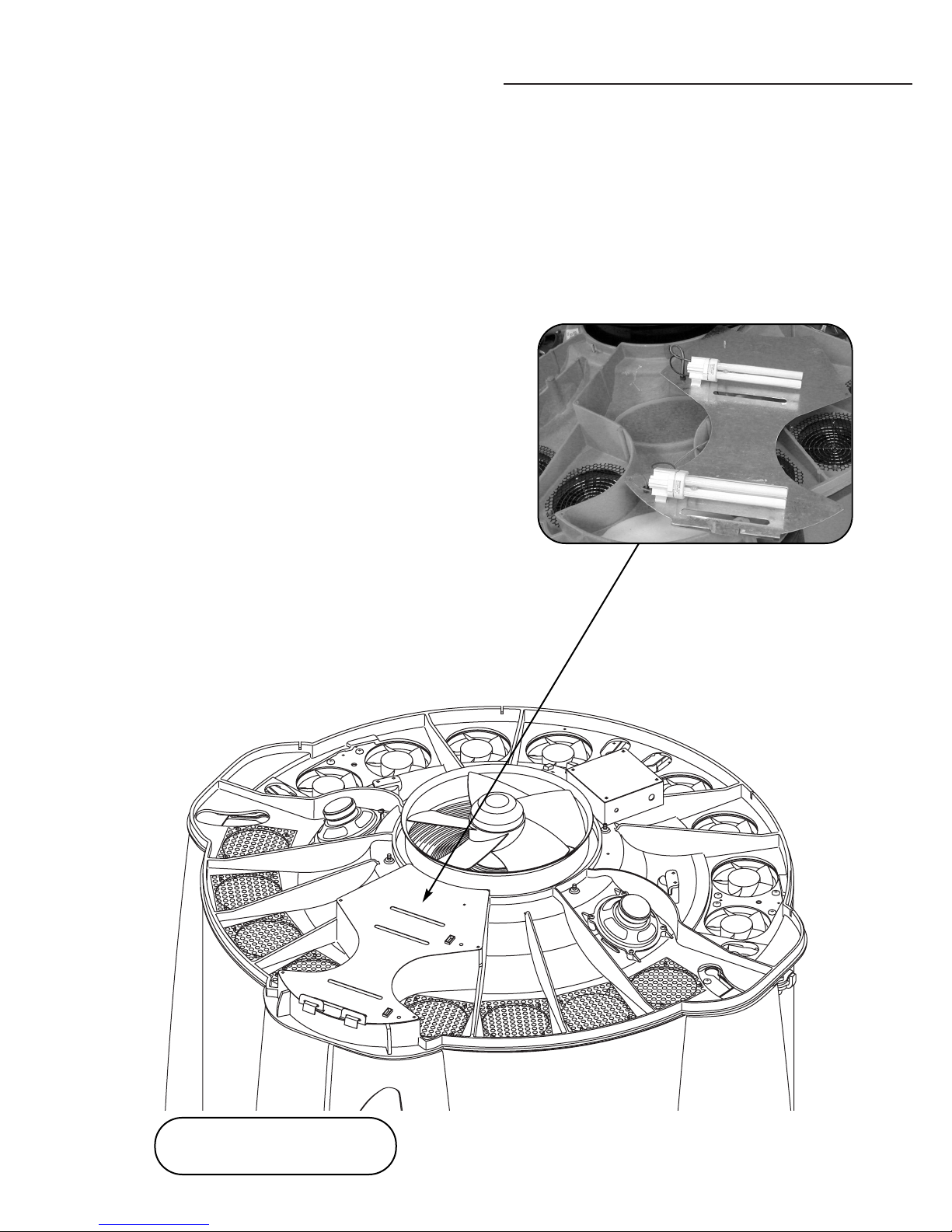

On the front of the ceiling assembly is an oddly
shaped metal panel (see below). Four screws hold
it in place. Remove the screws and carefully lift
the panel. Be careful not to pull on the wires run­ning through the panel. Turn it over to reveal the
lamps (right).

Grasp the lamp by its base, not the lamp glass,
and pull it straight out of the lamp holder. Replace
the lamp by lining up the pins on its base with the
lamp holder and pressing it firmly into place.

Reverse the above directions to reassemble the
Dome.

Replace with Philips Alto PL-C 26W/35/2P or
equivalent.

NOTE: Wiring deleted from

illustration for clarity.

25809-02A

36 - Troubleshooting

Problem Solution

Booth not tanning

Lamps fail to light and timer
display is blank

One or more lamps fail to
light

Booth getting too hot

E 91 showing on display

E 92 showing on display

E 93 showing on display

E 98 showing on display

1. Clean booth, see Thorough Periodic Cleaning.

2. Ensure supply voltage is between 208 and
230V AC.

3. Replace lamps if lamp hours are greater than
800hrs.

1. Make sure the unit is connected to a power
source.

2. Check source of AC power. Reset circuit break­er or replace fuse.

1. Check that lamp is installed correctly.

2. Switch unlit lamp with a lamp that lights, if
new lamp lights and old lamp still does not,
replace old lamp.

1. Turn body fan on high (3).

2. Ambient temperature of salon room must be
below 80° at all times.

3. Check air filters. Change if dirty.

4. Input voltage, with unit running, must be less
than 230VAC.

1. Disconnect then reconnect power to reset
timer.

2. Contact servicer to replace main timer.

Contact servicer.

Contact servicer.

1. Allow unit time to cool.

2. Check all fan openings and air filters for
obstructions.

3. If problem persists, contact servicer.

Cause

1. Booth dirty

2. Low voltage

3. Lamps old

1. Unit unplugged

2. Circuit breaker
tripped

1. Lamp loose

2. Lamp burnt out

1. Not enough airflow

2. Salon too hot

3. Air filters clogged

4. Voltage too high

Timer computer not
functioning properly

Current sensor indicat­ing unit is off when it
should be on

Current sensor indicat­ing unit is on when it
should be off

Unit temperature
exceeded

25809-02A

Troubleshooting - 37

Problem Solution

I forgot what address I set
my sunbed to

Timer display changes to
indicate a tanning time
after the START button is
pressed but lamps do not
come on

My bed is connected to the
T-Max® Manager remote
system and when the delay
time has expired the timer
display starts counting
down but the booth lights
do not come on

My booth won’t work with
the T-Max® Manager
remote system

I frequently disconnect my
sunbeds from the T-Max®
chain and interrupt the rest
of the units

Timer display continues to
show 0:00 after the START
button is pressed

By holding the STOP button for 3 seconds the
timer display will briefly blink “id” and your
address number.

1. See Electrical Connections.

2. See Electrical Connections.

3. If remote is being used, other than T-Max®
Manager, the external timer may not be acti­vated.

4. See the instructions provided with the remote
interface kit.

The auto start feature of the remote system is
disabled, see the instructions provided with
your remote system.

1. The booth must first be set to a unique
address, see Remote Connections.

2. The bypass or terminator plug may be
installed in the series in an inappropriate
location. Plug the bypass plug only into the
bed at the end of the series.

A T-Max® Inline 4-Pin Connector is available
from ETS, Inc. which connects the chain with­out a sunbed.

1. T-Max® Manager remote system has not yet
been set.

2. Booth address is not set correctly, see Remote
Connections.

Cause

1. Bypass plug not
installed

2. A non-SunStar®
bypass has been
used

3. Remote not set

4. Remote wiring
incorrect

Auto-start not on

1. Address incorrect

2. Terminator plug
installed incorrectly

25809-02A

38 - Troubleshooting

Problem Solution

My booth, connected to a
T-Max® Manager, did not
display a delay time but
does indicate:

0:00

a tanning time and the
lamps have come on

a tanning time but the
lamps have not come on

When auto-addressing the
first bed does not register
an address

When using a T-Max® 1A
my booth won’t function
properly

My salon suffers frequent,
short power outages and
clients complain about los­ing session time

1. Set remote device.

2. See Remote Connections.

1. Set delay time on T-Max® Manager.

2. Set a longer delay time if desired.

Auto start function of T-Max® Manager has
been turned off. Press the START button to
turn on lamps.

When using the auto address feature of the T­Max® Manager you must wait 10 seconds
from the time you start the auto address func­tion before addressing the first bed.

Remote Bypass plugs or terminator plugs may
be needed if the T-Max® 1A and the booth are
over 100 feet apart. Install the plugs in the
open remote port in the booth and the T­Max® 1A.

If you have a T-Max® Manager, changing
parameter 23 from “0” to “1” will allow the
tanning booth to remember how much time
was left when power goes out and resume its
session after power is restored. Consult your
T-Max® Manager manual for information on
setting parameters.

Cause

1. Remote device has
not been set

2. The booth has not
been connected to
the remote system

1. Delay time of T­Max® Manager has
not been set

2. Delay time has
expired

Auto-start not on

Terminator plugs not
installed

25809-02A

Notes - 39

25809-02A

40 - Notes

25809-02A

Limited Warranty - 41

Limited Lifet

ime Warranty

SolarForce® warrants your tanning unit to be free of structural defects in its material and

workmanship, under normal use, for its lifetime. SolarForce will repair or replace, at their

discretion, any defect to the structure which affects the performance of the unit.

For 6 months from the date of purchase, SolarForce will provide replacements for parts that

prove to be defective in material or workmanship. Acrylic shields, fluorescent lamps, and

lamp starters are excluded from this warranty. Labor will be covered for 30 days from pur-

chase date. Normal wear, damage from misuse or abuse, damage incurred in transit, or

damage done by unauthorized repairs or modifications are not covered by this warranty.

ETS, Inc. disclaims any implied warranty of merchantability or fitness for any period

beyond the expressed warranty. Some states do not allow limitations on how long an

implied warranty lasts, so the above limitations may not apply to you.

No one has authority to change or modify this Limited Lifetime Warranty in any respect. To

obtain service under the Limited Lifetime Warranty, contact ETS, Inc. at 1-800-449-3605,

and ask for the Technical Service Department.

ETS, Inc. shall not be liable for loss of use, loss of time , inconvenience, rental or substitute

products, loss of business, loss of income, or any other incidental or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages,

so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

All warranty service must be performed by an authorized service person. If your tanning unit

must be returned for service, all freight charges must be at your expense. Contact your place

of purchase for the address of the SolarForce Service Center nearest you. Proof of purchase is

required to obtain warranty service.

This warranty covers the original purchaser only. This warranty is void if the unit is modi-

fied in any manner from its original design.

Record this information for ease of service:
Date of purchase:
Serial number:

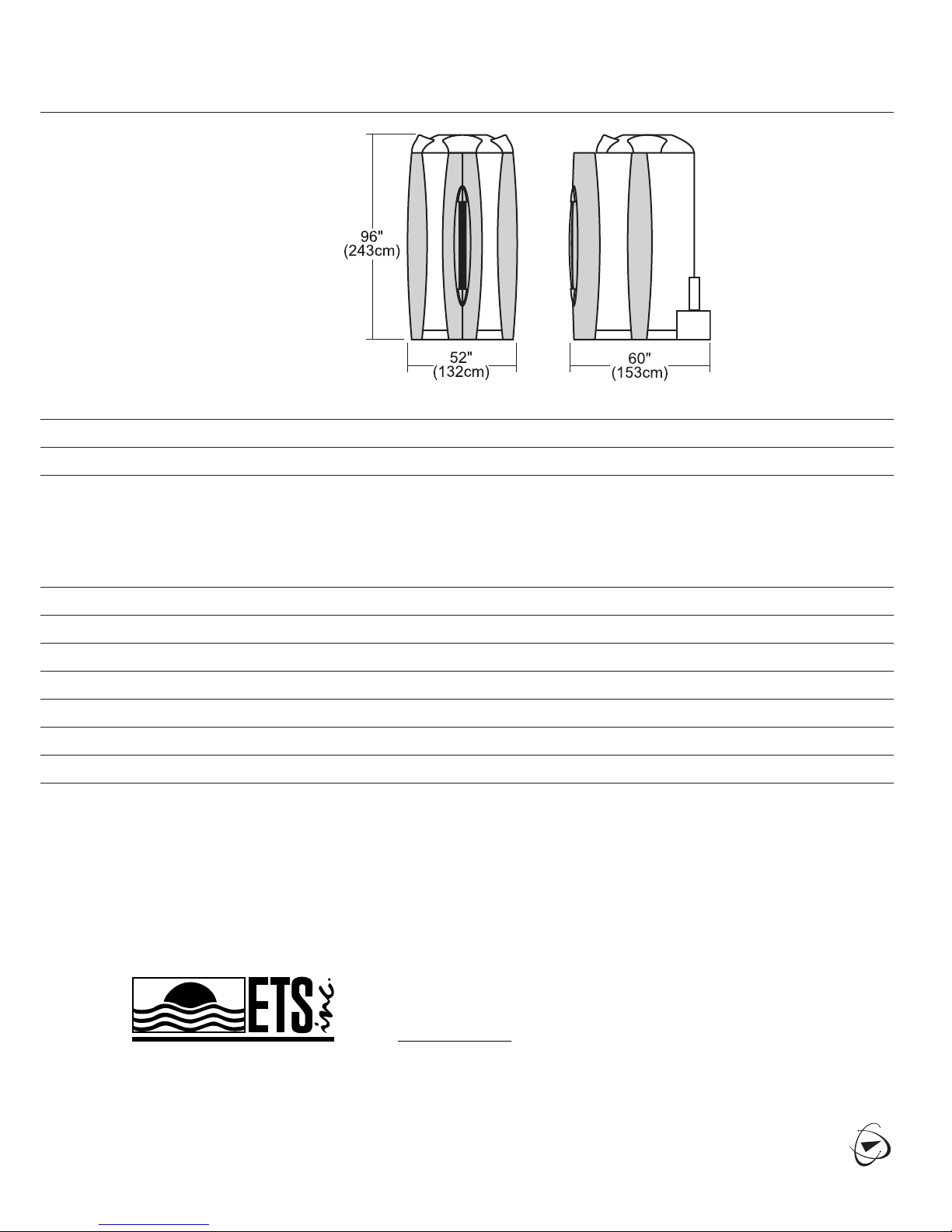

SolarForce® 652V

Size

Minimum Room Size 6’ x 6’ (1.8m x 1.8m)
Weight approx. 900 lbs. (409 kg)
Electrical -

Voltage (AC) 220
Amperage 55A 1-phase
Outlet Booth hardwired

Main Lamps 52 x BRONZING SUN™ 160W
Ballasts 160W
Body Cooling System 2 x high power blowers from base, overhead fan
Speakers 2 x 25W (130W max) 2-way speakers
Timer System Digital
Max. Exposure Time 10 minutes
Back-up Timer Digital “watchdog” circuitry
Remote Capability T-Max® compatible

CALL FOR SERVICE OR QUESTIONS: 1•800•449•3605

6270 Corporate Drive, Indianapolis, IN 46278-2900

In Canada call

1-800-661-6292 or 519-469-3166

(door open)
