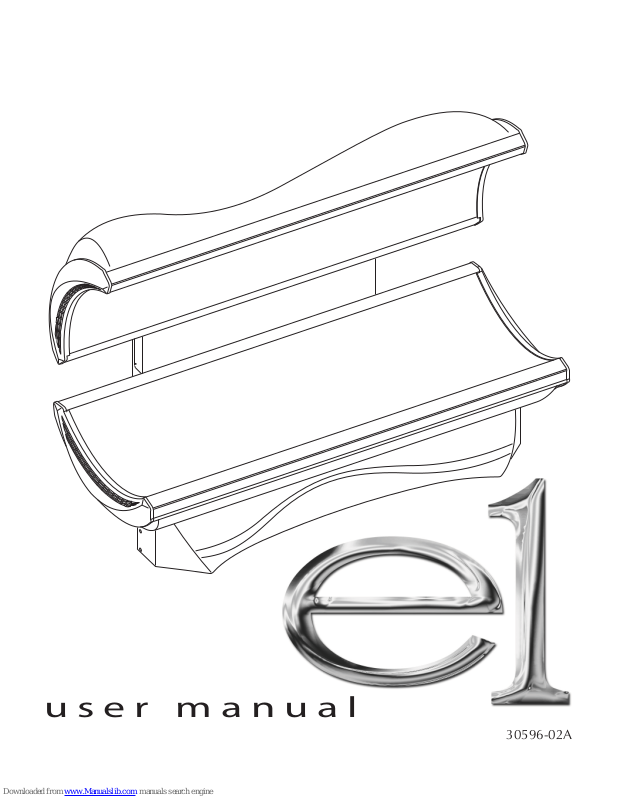

ETS e1 User Manual

Download

Page 1

user manual

30596-02A

Page 2

2 - e1 Assembly and User Manual

30596-02A

24 MONTH “SILVER MEDAL” WARRANTY

Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit, or replace the tanning unit.

For twenty-four (24) months following the purchase date of your tanning unit, your ETS Distributor will provide replacements for parts that prove to be defective in material or workmanship, with the following exceptions: gas springs, ballasts and electronic lamp starters are warranted against manufacturer’s defects for a period of one (1) year; “glow tube” lamp starters and cracked or broken endcaps are warranted against manufacturer’s defects for a period of ninety (90) days; ﬂ uorescent lamps are war- ranted against manufacturer’s defects for a period of thirty (30) days; acrylics are warranted against manufacturer’s defects for a period of six (6) months (prorated) following the purchase date of your tanning unit. Shipping charges will be covered during the ﬁ rst sixty (60) days following the purchase date.

Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and labor warranty , provided you send back the defective transformer.

Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replacement work required to be performed for a period of sixty (60) days following the shipping date of your tanning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or modiﬁ cations are not cov- ered by this warranty . Warranty coverage does not include cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.

THIS 24 MONTH “SILVER MEDAL” WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this 24 Month “Silver Medal” Warranty in any respect. To obtain service under this 24 Month “Silver Medal” Warranty, contact your authorized ETS Distributor (or ETS, LLC if purchased directly). Proof of purchase, including serial number, is required.

IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some states. This 24 Month “Silver Medal” Warranty gives you speciﬁ c, legal rights and you may have other rights which may vary from state to state.

All warranty service must be performed by an authorized service person using only ETS authorized replacement parts. Use of non-authorized parts may void your warranty. All labor charges must be authorized by your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If your tanning unit must be returned for service within thirty (30) days from the purchase date, freight charges will be paid for by your ETS Distributor, after which all freight charges shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This warranty is serial number speciﬁ c and only applies to tanning units purchased through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on the original sales document and may not be transferred to any other individual or legal entity . This warranty is void if the tanning unit is modiﬁ ed in any manner from its original design.

To obtain warranty service, contact your place of purchase. Proof of purchase, including serial number, is required for veriﬁ cation. Contact ETS, LLC only if you purchased your equipment directly.

Page 3

e1 Assembly and User Manual - 3

30596-02A

Thank you for purchasing this tanning bed. It has been designed to provide years of dependable service for you.

Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.

Shock hazard.

Disconnect power before servicing.

WARNING

Air from the room is used to cool the sunbed. Maximum ambient room temperature should be 80°F. Place your sunbed no closer than 6” from any wall. Make sure nothing obstructs the airﬂ ow into or out of the fan openings. A poorly ventilated room may cause the unit to become hot and cause discomfort to the user.

CAUTION

Proper assembly of your sunbed requires three people. Plan to have a couple of helpers assist you.

CAUTION

Contents

Warranty ..................................................2

Safety Information ................................ 4-5

Unpacking and Inspection ........................6

Tools Required..........................................6

Pre-installation Planning ...........................7

Hardware Inventory ..................................8

Assembly Procedures ................................9

Electrical Connections ............................16

Remote Connections ..............................17

Operation ...............................................21

Care and Maintenance ...........................24

Lamp and Acrylic Replacement ..............25

Troubleshooting ......................................27

Use of a voltage source above 245V AC may prevent proper operation of the sunbed and could cause damage and void the warranty.

CAUTION

Page 4

4 - e1 Assembly and User Manual

30596-02A

DANGER

Ultraviolet radiation. Follow instructions. Avoid overexposure. As with

natural sunlight, overexposure can cause eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan or tan minimally should not use this equipment.

To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 1 inch (2.5 centimeters) between your body and canopy clear plastic panel, otherwise overexposure may occur. Minimum use distance from face tanner (if equipped) is 4 inches (10.2 centimeters). Minimum use distance elsewhere is touching the clear plastic panels. Do not use without clear plastic panels in place. Untanned persons should not tan on consecutive days during their ﬁ rst week of tanning. Never tan more than once a day. Tanning normally appears after the ﬁ rst few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the ﬁ rst 50 hours of operation. Recommended tan- ning times should therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as deﬁ ned under 21 CFR 1040.20. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT: BRONZING SUN™ PLUS Model BSP 71-T12-100WR BI-PIN Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045 (SolarMax™ IFT facial unit, if equipped)

THIS EQUIPMENT MUST BE EARTH GROUNDED.

This product is in conformity with performance standards for sun lamp products under 21 CFR PART

1040.20 and ANSI/UL Standard 482. Certiﬁ ed to CAN/CSA Standard C22.2 NO. 224.

Disconnect power before attempting to clean, relamp,

or engage in the maintenance of this product

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 15 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4 Level 5

Skin Type: 1st-3rd Sessions I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) 3 6 9 12 15 III Normal (Burns moderately and tans average.) 4 7 11 15 15 IV Dark (Burns minimally, tans easily and above average.) 5 9 13 15 15

88465

Page 5

e1 Assembly and User Manual - 5

30596-02A

DANGER

Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive.

Tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au moins 1 pouce (2,5 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, aﬁ n d’éviter une exposition excessive. La distance minimale d’usage de l’appareil de bronzage pour le visage (si muni) est de 4 pouces (10,2 centimétres). Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonctionnement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR

1040.20. Les autres types de lunettes protectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.

SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :

BRONZING SUN™ PLUS Modèle BSP 71-T12-100WR BI-PIN Heraeus E400 HPT, Philips Modèle HPA 400/30s ou CosmoTech Modèle 23045 (unité faciale)

Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents

21 CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 15 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4 Élevé 5

Type de peau: 1ere-3e I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ II Peau claire (brûle facilement et bronze très peu) 3 6 9 12 15 III Peau normale (brûle et bronze de façon modérée) 4 7 11 15 15 IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 5 9 13 15 15

Débrancher l’alimentation électrique avant de nettoyer l’appareil ,

d’en faire l’entretien ou de changer les lampes

88465

Page 6

6 - e1 Assembly and User Manual

30596-02A

Unpacking and Inspection

Your sunbed comes in two cardboard cartons, one for the bench and one for the canopy. Open the cartons and remove the bench and canopy as follows.

The bench is packed upside-down in its box for ease of removal. Simply stand the box up on the long side so the back of the bench rests on the ﬂ oor (see right). Then carefully tip the bench out of the box.

The canopy is packed wrapped in plastic. Pull back the plastic and, with a helper, grasp the canopy and pull it from the carton bottom, leaving the plastic wrap and the carton packaging. Do not attempt to lift either unit with the plastic still on as it may slip.

Note! The cartons are reusable. You may wish to save them for future use.

As you unpack your boxes you should ﬁ nd the following:

Canopy unit•

Bench unit•

Pair of gas springs•

Bag containing necessary assembly • hardware, safety goggles and pillow

Gas spring cover panel•

Inspect these items, including the canopy and bench, and make sure they are free from any visible damage. Report the extent of any damage to the transportation company.

Record the serial numbers of the canopy and bench in the area provided at the back of this manual. This information will be required whenever you call customer service.

Tools Required

You will need the following tools to assemble your sunbed.

Utility Knife

#2 Phillips

Screwdriver

7/16” Wrench

Unpacking the bench

Page 7

e1 Assembly and User Manual - 7

30596-02A

Pre-installation Planning

Before you begin to assemble your sunbed, you should observe the following considerations.

Electrical Requirements

You are responsible for preparing the facility for your tanning bed. Please have an electrician present at the time your tanning bed is installed. That way the installation crew can fully verify all functions before they leave.

This unit runs on 220VAC service and must be hardwired directly to a junction box on a dedicated circuit. A professional electrician

is recommended for electrical installation.

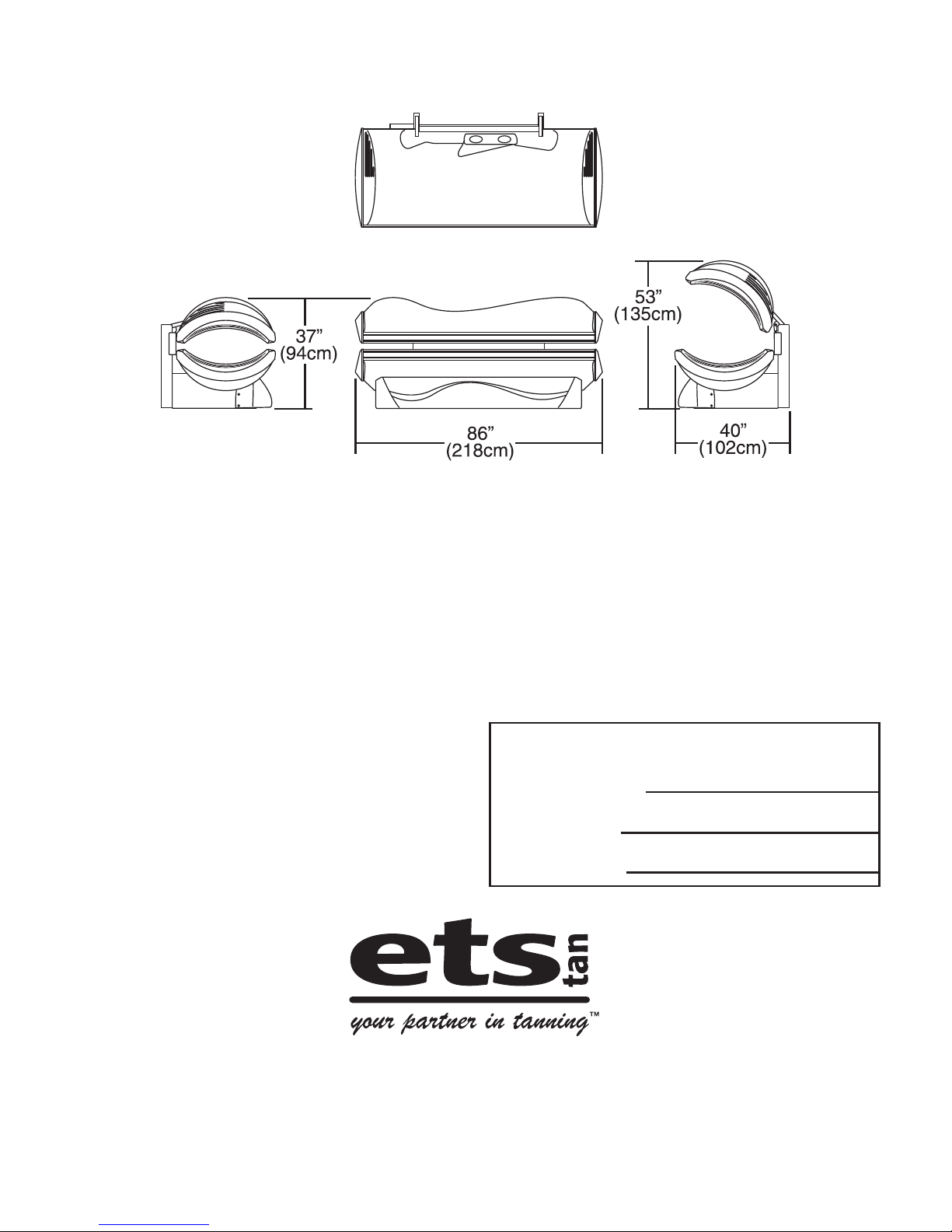

See the back cover of this manual for power requirements.

See page 16 for wiring instructions.

Use of a voltage source above 245V AC may prevent proper operation of the sunbed and could cause damage and void the warranty.

CAUTION

Proper assembly of your sunbed requires 3 people. Plan to have some helpers assist you.

CAUTION

Air from the room is used to cool the sunbed. Maximum ambient room temperature should be 80°F. Place your sunbed no closer than 6” from any wall. Make sure nothing obstructs the airﬂ ow into or out of the fan open- ings and endcaps. A poorly ventilated room may cause the unit to become hot and cause discomfort to the user.

CAUTION

Page 8

8 - e1 Assembly and User Manual

30596-02A

Hardware Inventory

Use the utility knife to cut open the hardware bag. Remove the hardware. Make sure you have the following items.

Clevis Pin

3/8” x 2 1/64”

Quantity 2

Bridge Pin

Quantity 4

Clevis Fork,

M10 Long

Quantity 4

Centering Spring

Quantity 4

1/4-20 x 1/2”

Machine Screw

Quantity 8

1/4-20 Locknut

Quantity 8

Nylon Floating

Bearing

Quantity 4

Clevis Pin

5/16” x 2 1/32”

Quantity 2

Retaining Ring

Quantity 2

10mm Clevis Pin

Quantity 2

Bronze Bushing

Quantity 2

#10 x 1/2” Screw,

Quantity 4

Safety Goggles

Quantity 1

Page 9

e1 Assembly and User Manual - 9

30596-02A

Assembly Procedures

Lower Clevis Fork Assembly

Insert the larger clevis pin (3/8” x 2 1. 1/64”) through the hole directly below the large hole in one of the stand uprights, as shown.

Slide a centering spring, a clevis fork 2. and then another centering spring onto the clevis pin and insert the pin the rest of the way through the upright.

Secure the clevis pin by inserting the 3. straight portion of a bridge pin through the small hole in the end of the clevis pin.

Repeat for the other 4. stand upright. Make sure the clevis forks point upwards as shown.

STAND UPRIGHT

CLEVIS PIN

CLEVIS FORK

BRIDGE PIN

CENTERING SPRING

Page 10

10 - e1 Assembly and User Manual

30596-02A

Stand Upright Assembly

Place the bench approximately where it 1. will remain, leaving room to work behind it.

Make sure the clevis forks are pointed 2. up and secure each stand upright to the rear of the bench pedestals using four 1/4-20 x 1/2” machine screws and four locknuts.

LOCKNUT

(others hidden)

MACHINE SCREWS

STAND UPRIGHT

Page 11

e1 Assembly and User Manual - 11

30596-02A

Canopy Installation

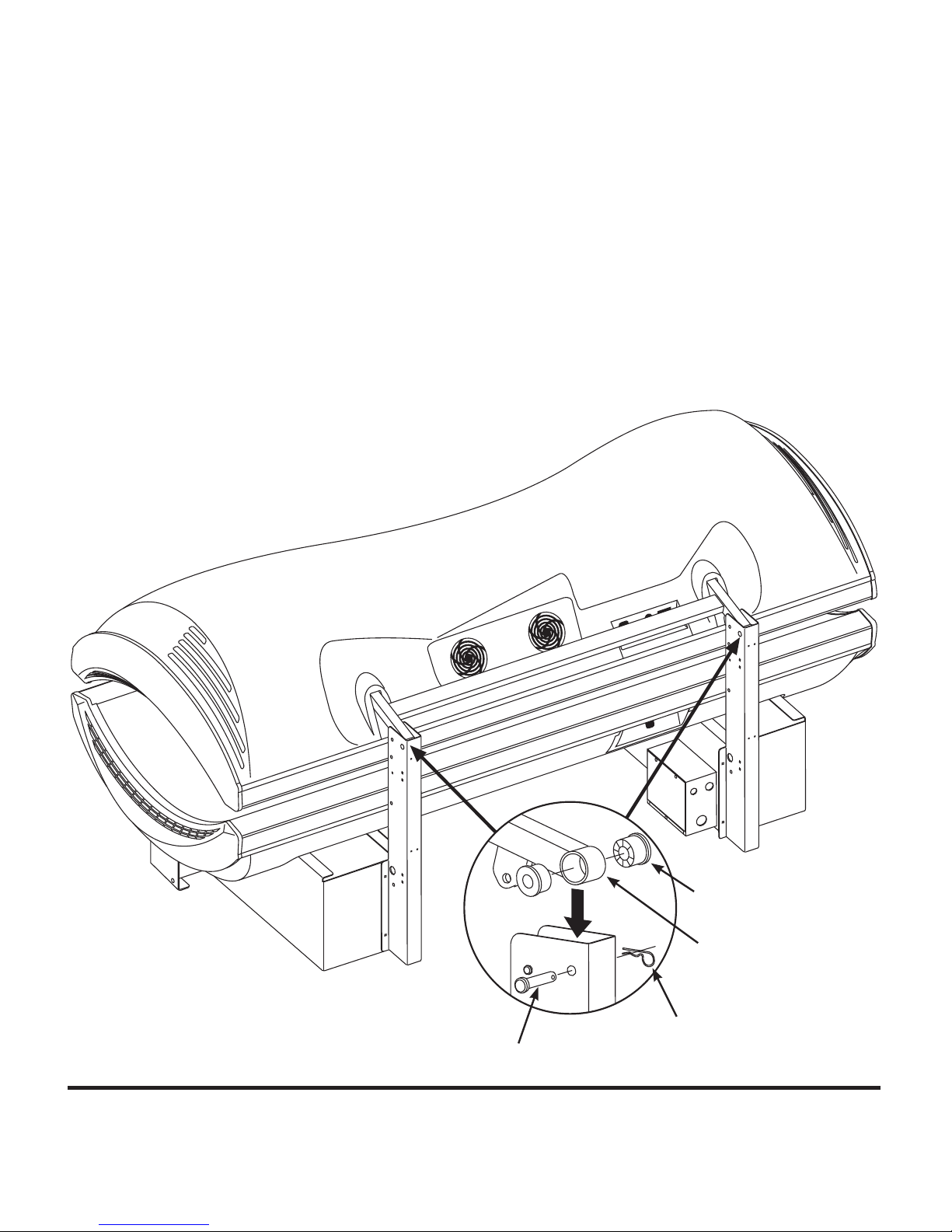

Place two nylon ﬂ oating bearings into 1. each canopy arm.

Holding the canopy over the bench, 2. with the canopy arms inside the stand uprights, insert clevis pins (5/16” x 2 1/32”) through the uprights and nylon ﬂ oating bearings to attach the canopy.

Secure the clevis pins by inserting the 3. straight portion of a bridge pin through the small hole in the end of the clevis pin.

CLEVIS PIN

BRIDGE PIN

BEARING

CANOPY ARM

Page 12

12 - e1 Assembly and User Manual

30596-02A

Install Gas Springs

Have a helper hold the canopy in its 1. fully open position.

Make sure the threaded holes in the low-2. er clevis forks face up (the large holes above the clevis forks allow ﬁ nger ac- cess). Slide the gas springs down into the stand uprights, piston end up as shown, and twist the gas springs into the lower clevis forks until they are snug.

Screw the upper clevis forks onto the gas 3. springs.

Do not lower the canopy yet!

Page 13

e1 Assembly and User Manual - 13

30596-02A

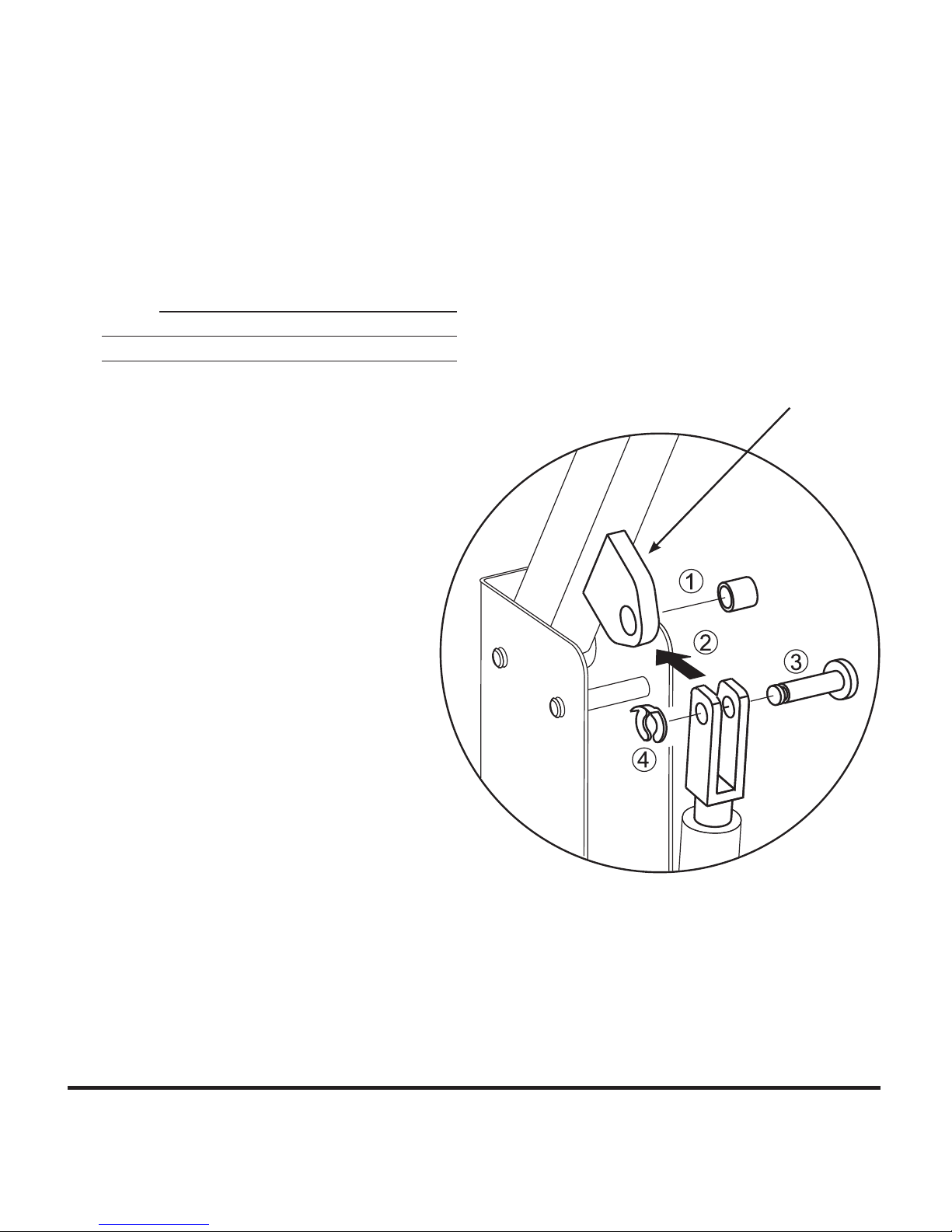

Attach Gas Springs

With the canopy still raised, slip the 1. bronze bushings into the hole in the clevis brackets on the underside of the canopy arms.

Line up both clevis forks and carefully 2. lower the canopy to engage the clevis forks. Pay special attention when lowering the canopy that the clevis forks do not damage the bronze bushings. Bronze is excellent for smooth pivoting applications such as this, but tends to be soft compared to the steel clevis fork.

Lock the clevis forks in place with the 3. 10mm clevis pins.

Secure the clevis pins with the retaining 4. rings.

NOTE: When this assembly is complete, lift and lower the canopy a few times to lubricate the gas springs for optimum performance.

CLEVIS BRACKET

Page 14

14 - e1 Assembly and User Manual

30596-02A

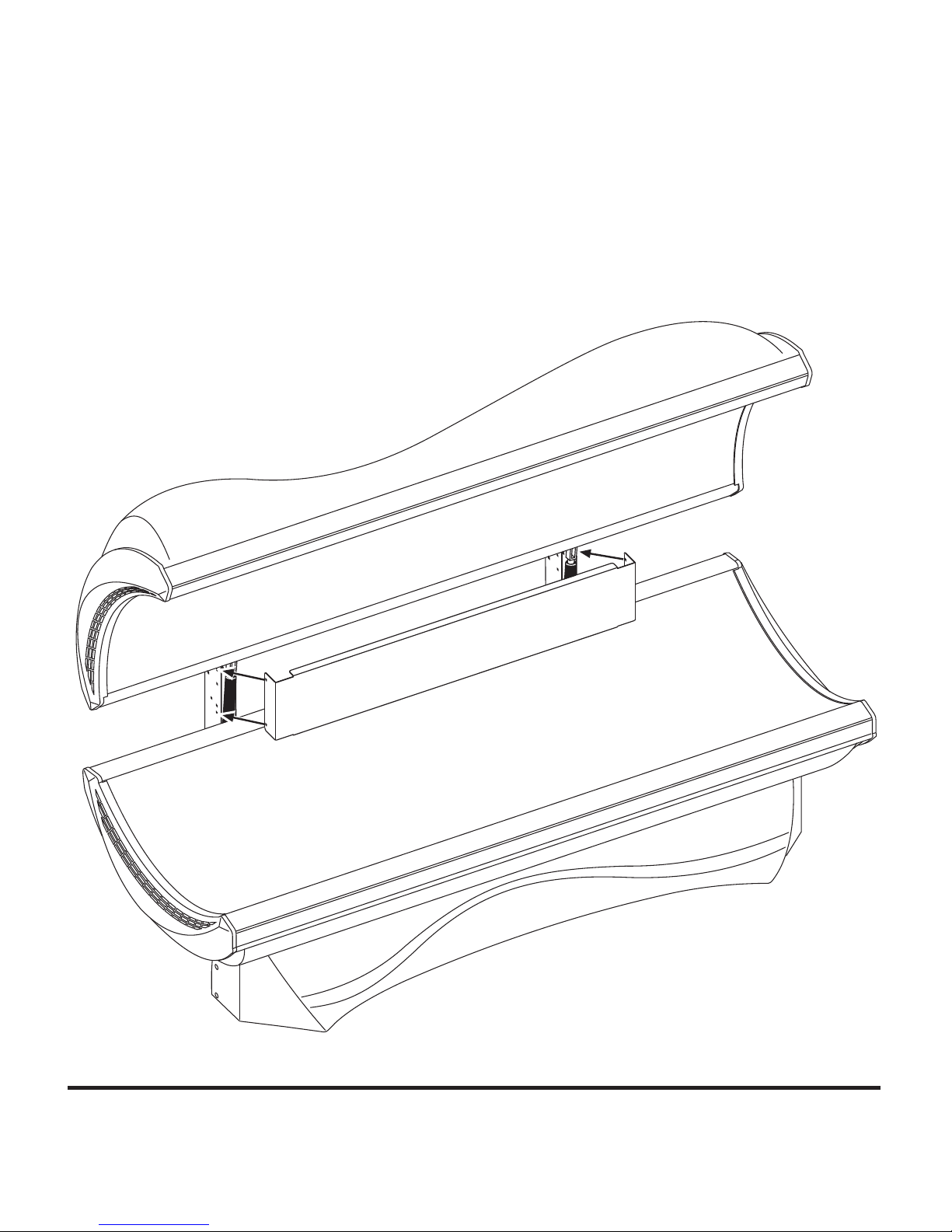

Attach Cover Panels

Put the gas spring cover panel in place 1. and secure with two #10 x 1/2” screws in each end.

Page 15

e1 Assembly and User Manual - 15

30596-02A

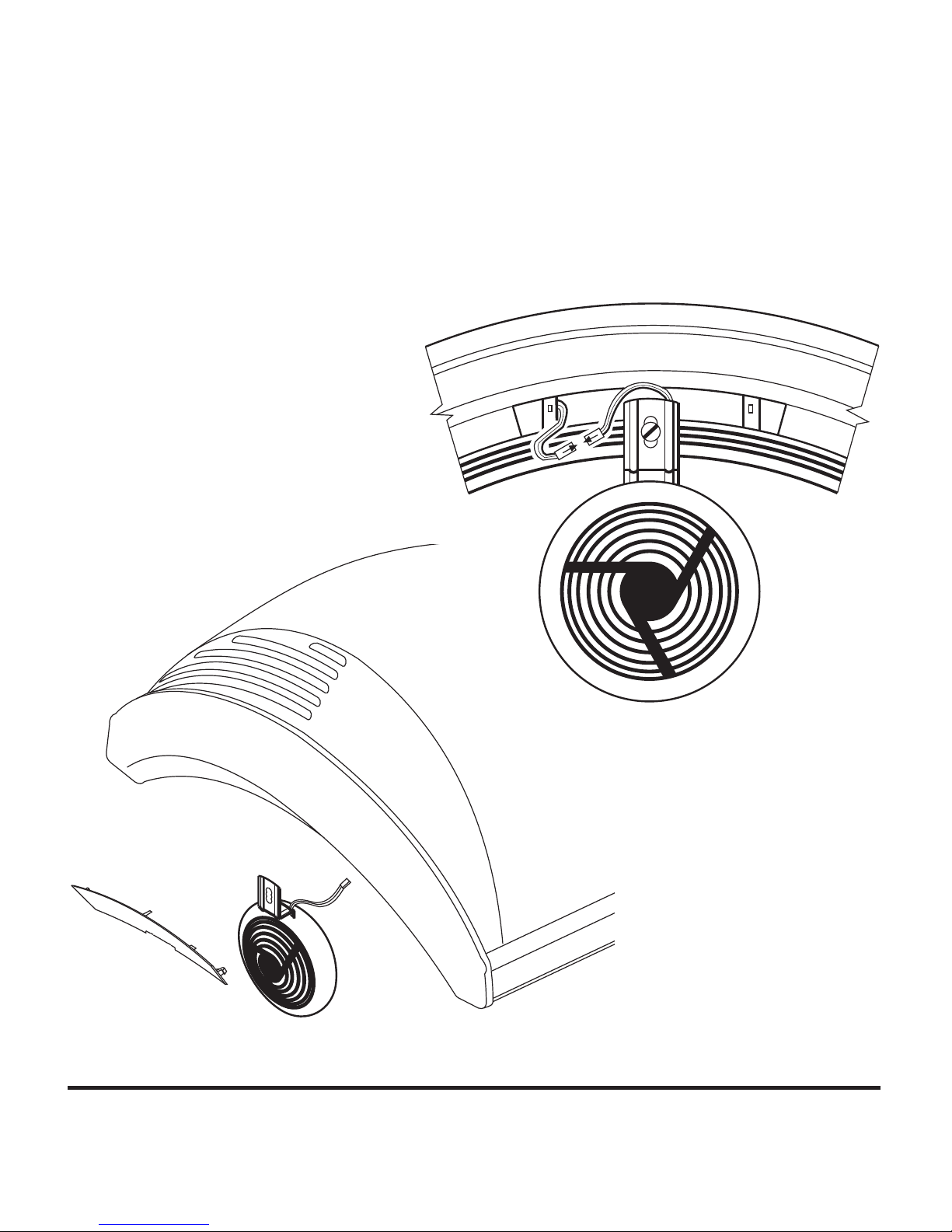

Body Fan Assembly

(body fan sold separately)

Your sunbed is designed to accept a body cooling fan on the canopy endcap at the foot end. Follow the instructions that come with the body fan for installation.

Page 16

16 - e1 Assembly and User Manual

30596-02A

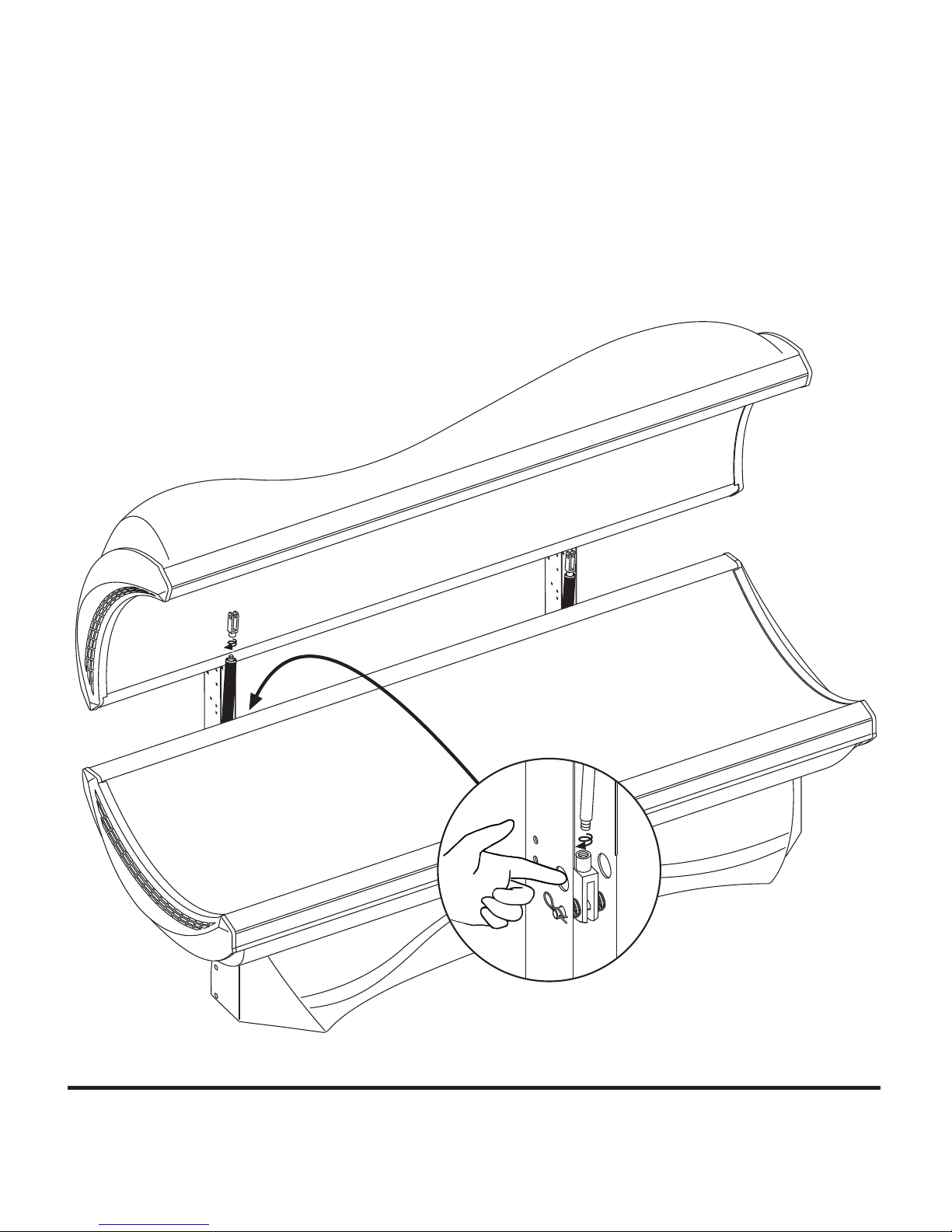

Electrical Connections

This unit must be hardwired directly to a junction box on a dedicated circuit. ETS

recommends connection by a professional electrician.

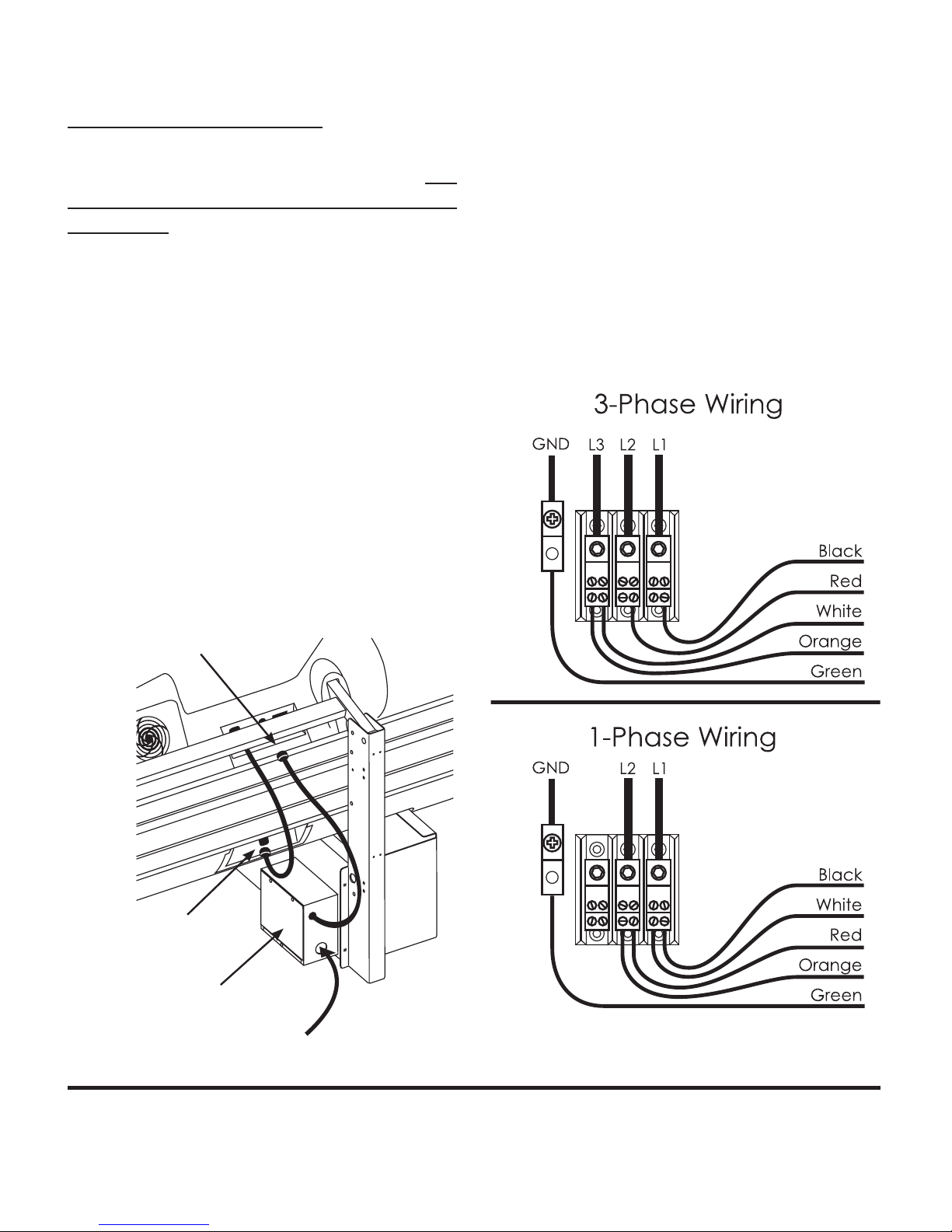

On the back of the bed, at the base of the foot-end stand upright, is a power junction box (see below). Connect the cable coming out of the junction box to the receptacle on the canopy as shown. Connect the cable coming out of the canopy to the receptacle on the bench.

Now remove the 3 screws holding the cover plate on the junction box and remove the plate. Inside is a connection bus for power. You may wire the bed to either a 3-phase circuit (3 wire plus ground) or single-phase circuit (2 wire plus ground). Follow the diagram at right for connection instructions.

Your sunbed arrives from the factory wired for single-phase. To convert to 3-phase, simply disconnect the White and Orange wires from the terminal block and connect to L3.

No power cord is supplied. The conduit ﬁ t- ting hole is sized for a 1” ﬁ tting. Be sure to provide a proper strain relief for the incoming power line.

JUNCTION BOX

CONNECT TO CANOPY

CONNECT TO BENCH

INCOMING POWER (CABLE NOT SUPPLIED)

Page 17

e1 Assembly and User Manual - 17

30596-02A

Remote Connections

Your sunbed incorporates advanced circuitry allowing it to connect and communicate with most remote control systems. If a remote system is to be used, ﬁ rst determine whether the remote system is a T-Max® System or a standard remote system operating with a control relay. The following pages outline many different remote connection scenarios. Find the scenario that best ﬁ ts your application.

Three remote ports are located on the back of the canopy next to the power cords, two RJ-22 (4-wire) ports for “daisy-chain” remote connections and one RJ-11 (6-wire) port for wireless remote connection.

T-Max® Products

The T-Max® remote systems offer the ultimate in sunbed control, while allowing the tanner easy, straightforward operation. Your sunbed is conﬁ gured to directly connect to this system, including the wireless remote system. The circuitry inside your sunbed eliminates the need for the T-Max® 3W (or the older 1A and 3A) when connecting to the T-Max® Manager series. Your sunbed supports the auto addressing feature of the T-Max® Manager models and many parameters. See your T-Max® manual for descriptions of these parameters and how they function.

REMOTE PORTS

RJ-22 RJ-11 wired wireless

T-Max® Wireless Remote System

The T-Max® G2 eliminates wires in your salon, allowing easy setup without hiring an electrician to run wires. It also protects your investment from damage by isolating each unit from one another. Your sunbed arrives “wireless ready”, which means it connects directly to the T-Max® G2 wireless system. Older tanning beds, and T-Max® managers, may also utilize this system but require a T-Max “Power Injector” (PI) to provide the needed power to the G2 wireless unit.

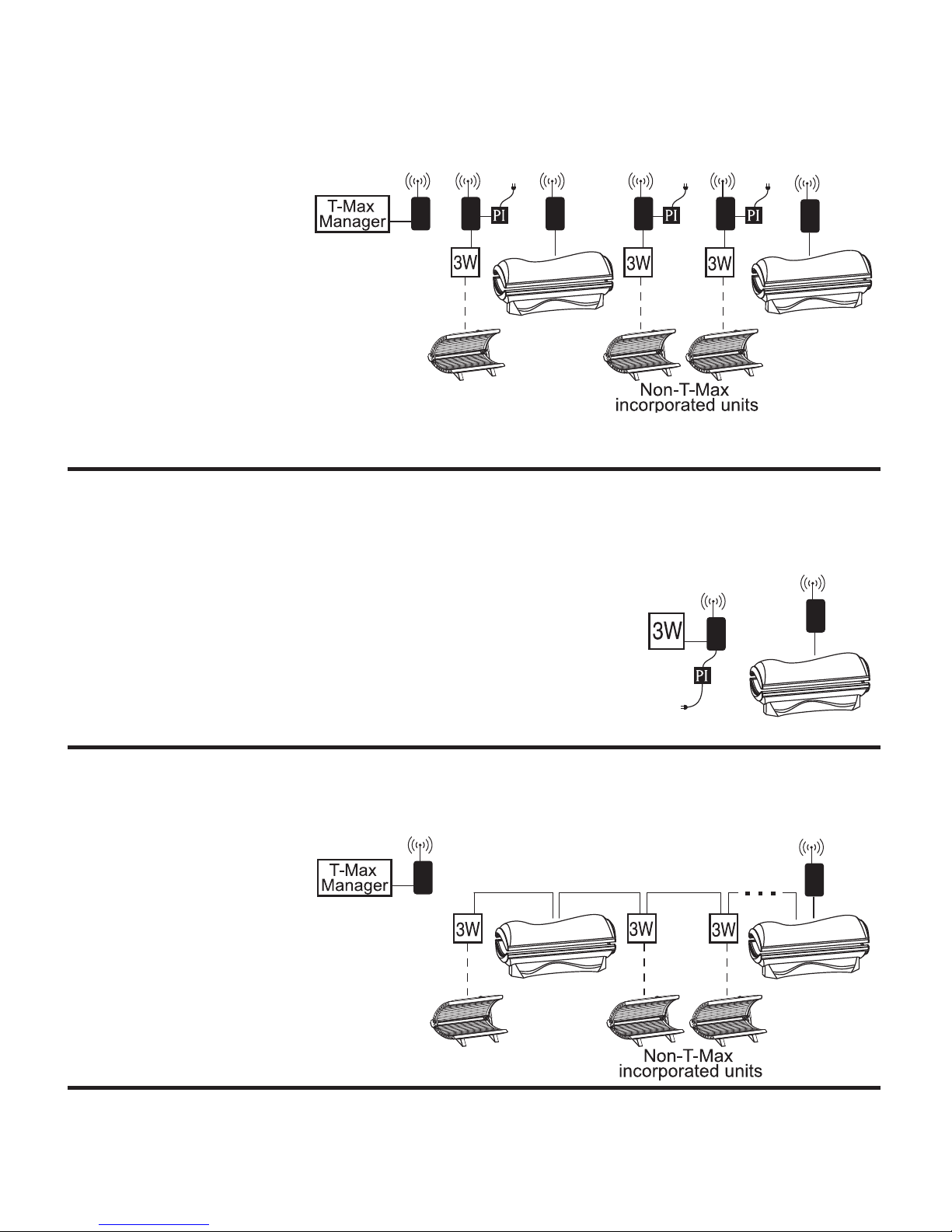

Remote System Hook-up Scenarios

Follow the diagrams on the next few pages to see the many different scenarios for hooking up your salon. If you need further assistance, call T-Max® directly at (417) 272-0761.

The remote connection is not designed to supply or accept high voltage, nor can it provide power to an external timer. The sunbed’s remote interface circuitry operates on 5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty.

CAUTION

Page 18

18 - e1 Assembly and User Manual

30596-02A

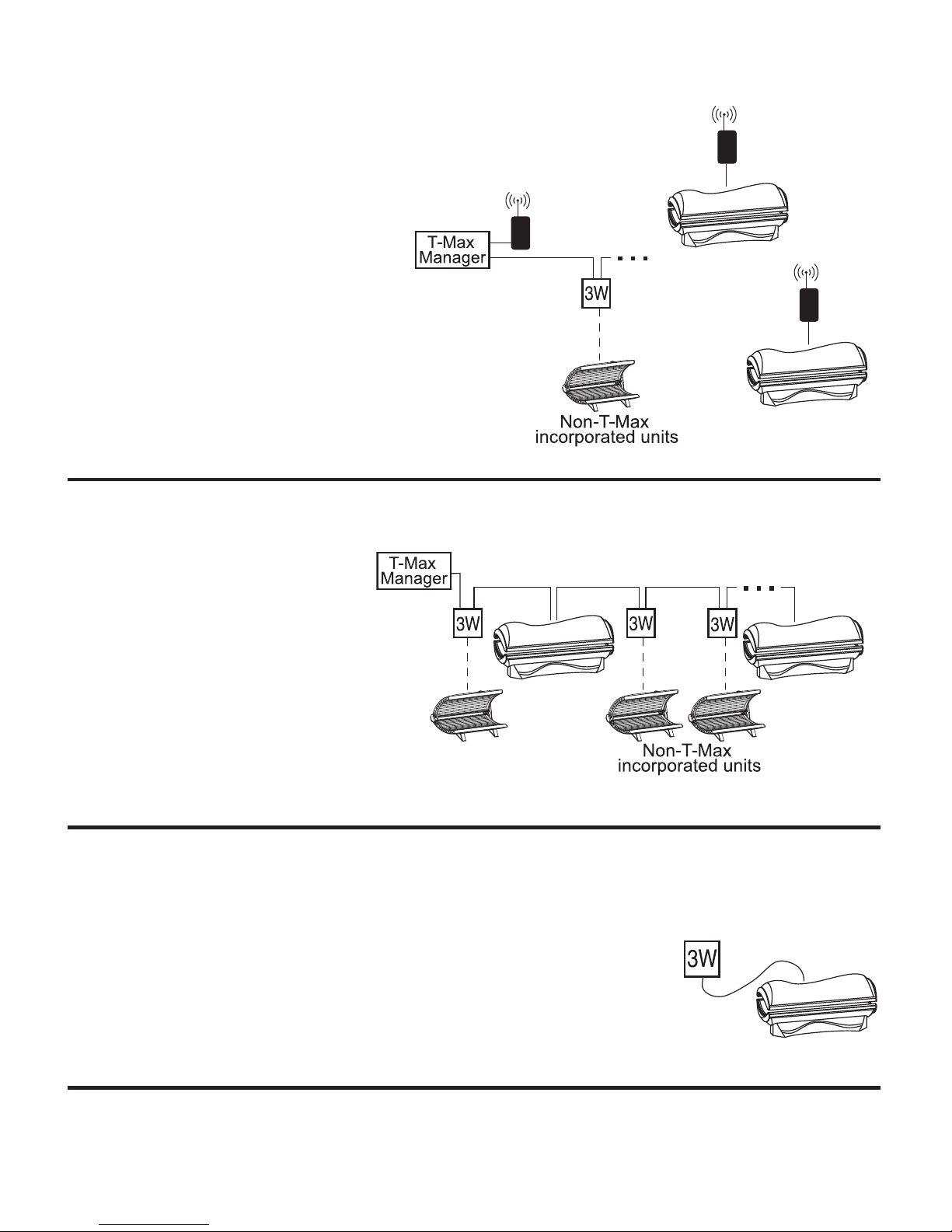

Scenario 1 - T-Max® Manager Series with Complete Wireless

Connect one G2 (with Power Injector) to the Manager and one G2 to each of the tanning beds. Install as many beds as you like with this conﬁ gura- tion. Units that do not communicate with T-Max will need a G2 and a 3W to operate. If you have an older T-Max® Manager that doesn’t support auto addressing, set the address of each sunbed manually as described in Setting the sunbed address manually. You can place your sunbed at any location in the series.

Scenario 2 - T-Max 3W with Wireless

In single sunbed installations, the T-Max® 3W can offer the same control as the T-Max® Manager, eliminating the need for a Manager.

After you have set the T-Max® 3W’s, address to “0” (refer to your TMax® user’s guide) and the sunbed’s address to “1”, simply connect one G2 to the T-Max® 3W and one G2 to the tanning bed.

Scenario 3 - T-Max® Manager Series with Wireless combo

Connect one G2 to the Manager and one G2 to a wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the wireless equipped tanning bed, eliminating the need to wire the Manager to the tanning beds.

Page 19

e1 Assembly and User Manual - 19

30596-02A

Scenario 4 - T-Max® Manager Series with Wireless combo 2

Wireless can be easily added to an existing salon already utilizing T-Max®. Connect one G2 (with Power Injector) to the Manager and one G2 to each wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the Manager.

Scenario 5 - T-Max® Manager Series with wires

As always, this tanning bed is fully compatible with a wired T-Max® system. Simply connect the RJ-22 modular cable(s), described in the TMax® Manager manual, into either of the smaller remote port(s) located on the back of the bed and follow the instructions that came with your remote system.

Scenario 6 - Single Bed wired to T-Max® 3W

In single sunbed installations, the T-Max® 3W can offer the same control as the T-Max® Manager, eliminating the need for a Manager.

After you have set the T-Max® 3W’s address to “0” (refer to your T-Max® user’s guide) and the sunbed’s address to “1”, simply connect the RJ-22 modular cables, described in the T-Max® user’s guide, directly into either of the smaller ports located on the back of the bed and either port on the back of the T-Max® 3W.

Page 20

20 - e1 Assembly and User Manual

30596-02A

Scenario 7 - Non T-Max® Remote System wired to unit

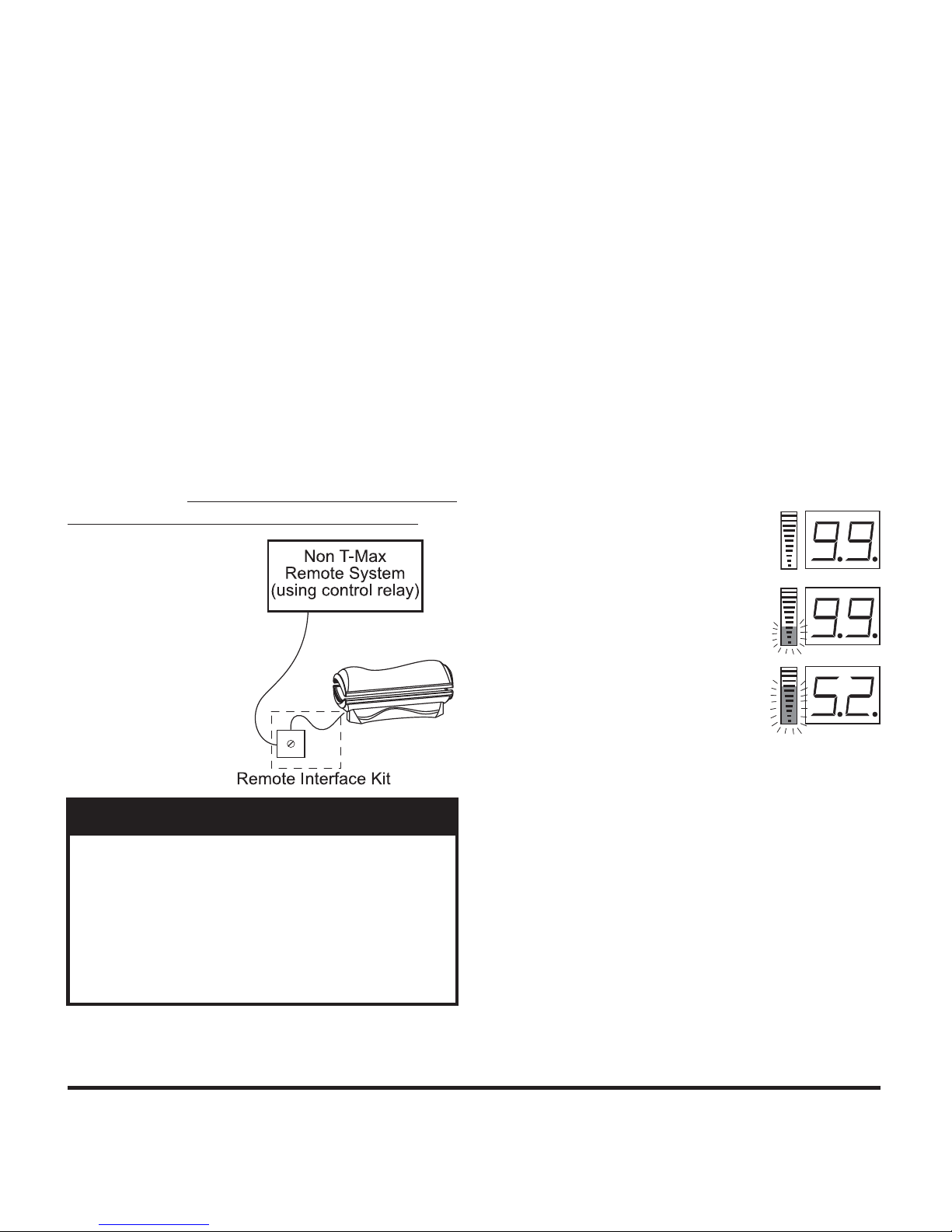

Most non-T-Max® remote systems control the sunbed by the use of a relay. The relay operates the sunbed by connecting and disconnecting a pair of wires leading from the sunbed. Refer to the user manual provided with your remote system to determine if it operates in this way. To connect your sunbed to this type of system a remote interface kit is required. Contact your place of purchase to obtain the kit. The illustration below details a typical connection. Follow the instructions provided with the kit and from the remote’s manual to make the necessary connections.

You will also need to enable Pa-

rameter 19. See Parameters for instructions.

Setting the sunbed address manually

Before connecting your sunbed to the TMax® Manager or T-Max® 3W, the address of your sunbed must ﬁ rst be set. Set the “id” manually as described below.

Setting the “id”

Make sure no cables are plugged into 1. your sunbed’s remote ports.

Remove and reapply power to the unit.2.

Press and hold the stop button, located 3. on the sunbed display, for three seconds and release. The display should indicate an “id” number from “oF” to “252”.

CAUTION

If you are using a T-Max® 1A or 3A 4. as a “master” remote, the “id” of the sunbed must be set to “1”. If you are using a T-Max® Manager each sunbed must be assigned a different “id”. To set the “id” press the timer button, to count up, or the body fan control button, to count down, until the desired number is achieved.

Press the stop button to return to the 5. normal display mode.

1-99

100-199

200-252

Page 21

e1 Assembly and User Manual - 21

30596-02A

Operation

Before You Tan

Before using your sunbed, please note the following important precautions.

Your skin should be free of cosmetics, • oils, or other body lotions prior to tanning except for those speciﬁ cally made for use with tanning devices. However, do not remove natural body oils by bathing or showering immediately before tanning.

Your hair should be free of gels, mouss-• es, sprays, or other hair products prior to tanning. These products can cause damage to the sunbed acrylic. As an alternative, a shower cap or towel can be worn to keep treated hair away from the sunbed surfaces.

This unit intended for individual use. • Only one pair of eyewear is included.

Some medication may increase your sensitivity to ultraviolet light. It is recommended that you consult a physician before using this sunbed if taking any medication or if you suspect that your skin might be especially sensitive to sunlight.

DANGER

Shock hazard.

Do not operate this device near water or while you are wet.

DANGER

Exposure Times

Follow the guidelines for skin type and exposure times as shown in the table below. Untanned persons should not tan on consecutive days during their ﬁ rst week of tanning. Never tan more than once a day. Tanning normally appears after the ﬁ rst few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

Wear protective eyewear.

Failure to may result in severe burns or longterm injury to the eyes.

WARNING

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 15 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4 Level 5

Page 22

22 - e1 Assembly and User Manual

30596-02A

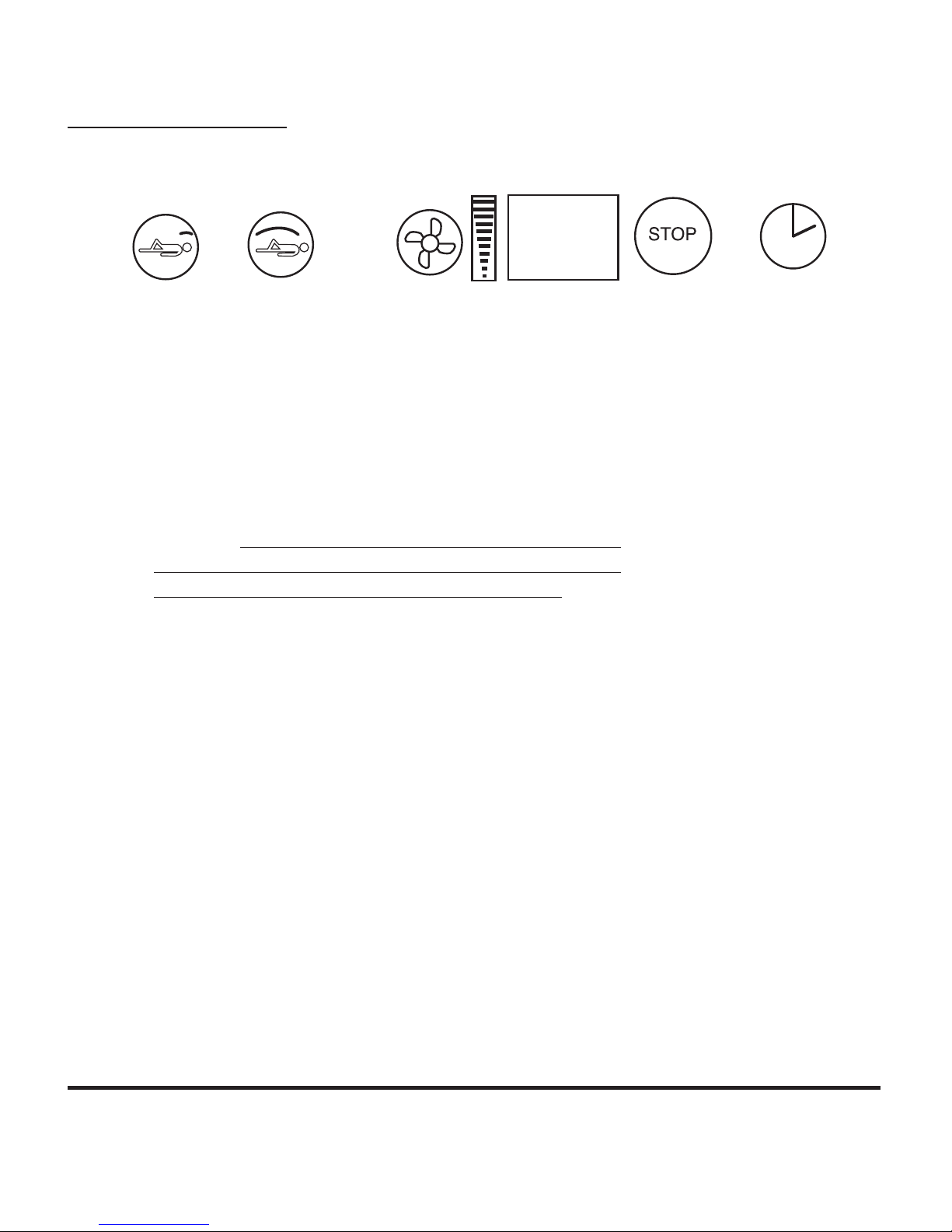

The Keypad

Your sunbed has been designed with the user in mind. Every effort has been made to ensure easy operation.

A Face tanner control - Turns face tanners on and off dur-

ing use. Note: Face tanners need a minute to cool down before relighting. There may be a delay when turning face tanners back on during a session. (Units equipped with face tanner only)

B Body tanner control - Turns body lamps on and off during

use. (Units equipped with face tanner only)

C Body fan control - Controls the speed of the body fan

during use.

D Body fan speed indicator - Indicates speed of fan.

(OFF - LOW - MED - HI)

E Timer display - Displays remaining time.

F Stop button - Interrupts tanning session.

G Timer button - Begins tanning session. Timer display

shows remaining time. If a lesser time is desired, press timer button until desired time is displayed.

Using Your Sunbed

A B C D E F G

Page 23

e1 Assembly and User Manual - 23

30596-02A

The Tanning Session

(Operation as a stand-alone unit or connected to a remote system using a control relay. If using T-Max® see right.)

Lift the canopy, lie down on the bench 1. (face up), lower the canopy toward your body using the canopy handle. See Safety Information for positioning instructions.

Put on your safety goggles.2.

Press the timer button (G) to begin the 3. tanning session. The lamps will turn on and the timer will begin to count down.

If a tanning time less than the displayed 4. time is desired repeatedly press the timer button (G) to decrease the remaining time.

When the timer reaches 0 the lamps turn 5. off. If you want to stop your session before time expires, press the stop button (F). You will have ten seconds to restart with the remaining time, otherwise the timer will reset to 0.

Raise the canopy by using the outer 6. edge of the canopy, do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed.

(Operation while connected to a T-Max® remote system. If using other remotes or no remote system, see left.)

Lift the canopy, lie down on the bench 1. (face up), lower the canopy toward your body using the canopy handle. See Safety Information for positioning instructions.

Put on your safety goggles.2.

Assuming the remote system has been 3. set to allow a pre-tanning delay time, the timer display (E) will repeatedly ﬂ ash the delay symbol “dL” and then the remaining delay time. Press the timer button (G) or wait until the delay time has expired to begin the tanning session. The lamps will turn on and the timer will begin to count down.

When the timer reaches 0 the lamps turn 4. off. If you want to stop your session before time expires, press the stop button (F).

Raise the canopy by using the outer edge, 5. do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed. The timer will indicate “..” as a reminder to clean the sunbed. After the sunbed is cleaned press the timer button and the display will return to “0”.

Page 24

24 - e1 Assembly and User Manual

30596-02A

Care and Maintenance

Cleaning After Use

Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant cleaner that does not contain ammonia or ammonia derivatives. Ammonia may damage the acrylic shield. Spray the acrylic lightly with disinfectant and wipe dry with a clean soft cloth. We recommend Australian Gold® pH Neutral Disinfectant Cleaner.

Thorough Periodic Cleaning

The cooling fans draw air through the bed and over time will cause a dust buildup on the lamps and reﬂ ectors. This will reduce the tanning effectiveness of the bed. When a dust buildup is observed, it is necessary to thoroughly clean the inside of the bench and canopy.

Cleaning the Canopy and Bench

Open the acrylics and remove lamps as 1. described on the next page.

With a soft cloth, wipe the entire length 2. of each lamp to remove any ﬁ lm build- up.

Clean both sides of the acrylics with a 3. non-ammonia disinfectant cleaner.

Wipe the reﬂ ectors with a clean damp 4. cloth.

Reinstall the lamps and acrylics.5.

Use a vacuum cleaner to clean all fan 6. openings.

Mechanical Inspection

Your tanning bed has been built for years of service. To ensure trouble-free operation throughout its life, inspect the unit’s mechanical integrity every 400-500 hours of use.

Inspect the unit’s fasteners verifying that • all are ﬁ rmly in place.

Inspect gas springs for signs of wear. Gas • springs that will not hold the canopy in the full open position when raised should be immediately replaced. See Troubleshooting.

Inspect all wiring connections. Contact a • servicer if any connections seem loose.

Inspect the acrylic. Broken, cracked or • badly scratched acrylics should be immediately replaced.

Shock hazard.

Disconnect power before removing any protective covers.

WARNING

Page 25

e1 Assembly and User Manual - 25

30596-02A

Shock hazard.

Disconnect power before removing any protective covers.

WARNING

Removing / Replacing Fluorescent Lamps

Grasp the lamp at one end and at the 1. middle and turn the lamp one quarter turn. Gently remove the lamp from its holders.

Reinstall the lamp by inserting the pins 2. located on the ends of the lamp into the slots on top of the lamp holders and turn the lamp a quarter turn. It should click into place.

Replacement Lamps

To be assured of maximum tanning effectiveness, change lamps after approximately 500-700 hours of use. Lamps used longer than that begin to lose their tanning effectiveness even though they continue to light.

We recommend using the lamps speciﬁ ed below. Use of uncertiﬁ ed lamps is a viola- tion of Federal regulations and will void your warranty.

The following lamps have been certiﬁ ed for use in your tanning bed:

BRONZING SUN™ PLUS Model BSP 71-T12-100WR BI-PIN Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045

(SolarMax™ IFT facial unit , if equipped)

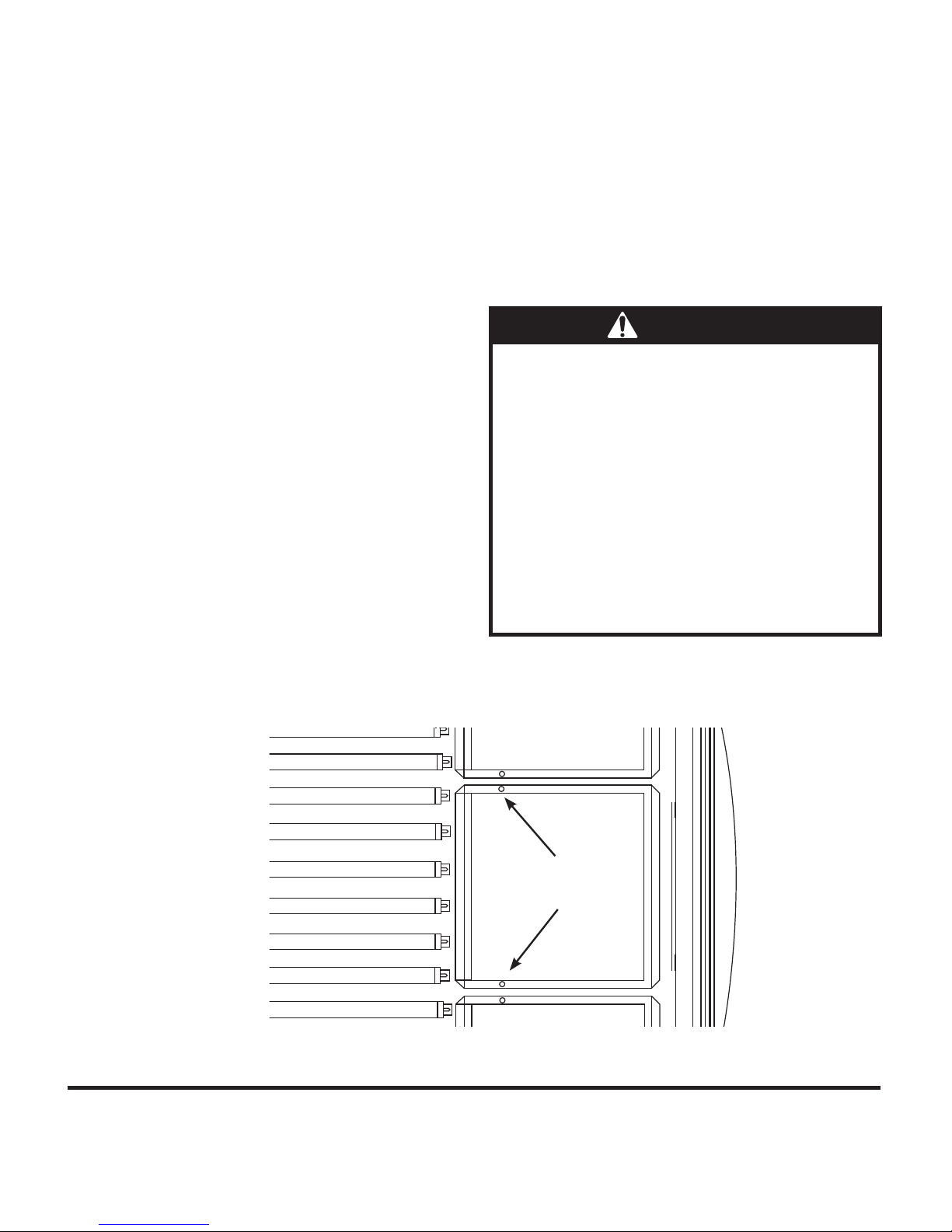

Lamp and Acrylic Replacement

Removing/Replacing Acrylic Shield

The acrylic shield in the bench and canopy are secured in place by hinged proﬁ les which run the length of the bed, both front and back. Simply pry up on the inside edge of the proﬁ le, starting at the center of the bed, until it releases its latching action (see

ﬁ gure below). Continue to pry up the pro- ﬁ le across its entire length until it swings

back freely. Repeat for the other proﬁ le. The long edges of the acrylic shields are now exposed.

Standing at the front of the unit, lift the exposed edge of the acrylic slightly and carefully begin sliding it toward you until it is removed from the sunbed. This might be easier with the help of another person.

Replace the acrylic shield by carefully aligning it with the channels on the ends of the sunbed and sliding it into place. Close the hinged proﬁ le by pushing it back into place until it snaps tight.

Be careful. The edges of the acrylic shield may be sharp.

CAUTION

Page 26

26 - e1 Assembly and User Manual

30596-02A

Unﬁ ltered light from face tanner can cause severe burns.

Never turn sunbed on while face tanner is disassembled or when glass ﬁ lters are removed.

Immediately discontinue use of this equipment if face tanner glass is broken or any unﬁ ltered light can be seen escaping face tanner assembly.

DANGER

Removing/Replacing Face Tanner Lamps (if equipped)

After removing the canopy acrylic shield, replace the face tanner lamp as follows:

Support the face tanner assembly with 1. your hand while unscrewing the two retaining screws. The face tanner glass casing will swing downward.

The lamp can now be exchanged. The 2. lamp holders are equipped with spring contacts which enable the lamp to be removed easily. Remove the old lamp and discard. Install the new lamp, using a clean cloth or paper towel. Ensure that the lamp is ﬁ rmly seated in the lamp holders. Note! Never take hold of the lamp such that your ﬁ ngers are in contact with the lamp glass. Finger oils will greatly reduce the lamp’s operational life.

Gently close the face tanner glass cas-3. ing and lock it closed with the screws. Ensure that the screws ﬁ rmly secure the glass casing.

RETAINING

SCREWS

Page 27

e1 Assembly and User Manual - 27

30596-02A

ISSUE RESOLUTION

Sunbed not tanning

Lamps fail to light and timer display is blank

One or more lamps fail to light

The face tanners will not come on

The canopy will not stay up

The last minute of tanning time does not count down from 59 seconds, but some time less than 59 seconds

I forgot what address, or “id”, I set my sunbed to

1. Clean sunbed, see Thorough Periodic Cleaning.

2. Ensure supply voltage is between 200 and 245V AC.

3. Replace lamps if lamp hours are greater than 700hrs.

4. Replace acrylic.

1. Make sure the unit is connected to a power source.

2. Check source of AC power. Reset circuit breaker or replace fuse.

1. Check that lamp is installed correctly.

2. Switch unlit lamp with a lamp that lights, if new lamp lights and old lamp still does not, replace old lamp.

1. Face tanners will not relight for 1 minute if turned off.

2. Replace face tanner lamp, see Removing/Replacing Face Tanner Lamp.

NOTE: Gas springs are manufactured to hold the canopy in its

fully open position as well as allow it to rest fully closed. If left open for an extended period of time some creep down may occur. This is considered normal. Keep the unit closed when not in use. If the canopy will not stay fully open when raised...

1. Raise and lower the canopy a few times to lubricate gas spring internal seals.

2. Replace gas springs.

If the timer button has been pressed to decrease tanning

time during the session, the time expired in the current minute is subtracted from the last minute.

By holding the body fan button for 3 seconds the timer dis-

play will brieﬂ y display three numbers; the installed timer software version, a factory set timer code and then the sunbed’s “id” number.

Page 28

28 - e1 Assembly and User Manual

30596-02A

ISSUE RESOLUTION

Timer display is indicating Er 91

Timer display is indicating Er 92

Timer display is indicating Er 93

Timer display is indicating Er 94

Timer display changes to indicate a tanning time after the timer button is pressed but lamps do not come on

My bed is connected to the T-Max® Manager remote system and when the delay time has expired the timer display starts counting down but the bed lights do not come on

My bed won’t work with the T-Max® Manager remote system

Timer display continues to show a 0 after the timer button is pressed

Timer software error. Disconnect and reapply power to the

unit.

Current sensor indicating unit is off when it should be on.

Contact servicer.

Current sensor indicating unit is on when it should be off.

Contact servicer.

Requested session time exceeds maximum time allowed.

1. Bypass plug is not installed, see Electrical Connections.

2. A non-SunStar® bypass has been used. See Electrical Connections.

3. If remote is being used, other than T-Max® Manager, the external timer may not be activated.

4. Remote wiring is incorrect, see the instructions provided with the remote interface kit.

The auto start feature of the remote system is disabled, see

the instructions provided with your remote system.

1. The sunbed must ﬁ rst be set to a unique address, see Re- mote Connections.

2. The bypass or terminator plug may be installed in the series in an inappropriate location. Plug the bypass plug only into the bed at the end of the series.

1. T-Max® Manager remote system has not yet been set.

2. Sunbed address is not set correctly, see Remote Connections.

Page 29

e1 Assembly and User Manual - 29

30596-02A

ISSUE RESOLUTION

My bed is connected to a T-Max® remote system but I am having trouble getting into “parameter” mode

My bed, connected to a TMax® Manager, did not display “dL” but does indicate:

“0”

a tanning time and the lamps have come on

a tanning time but the lamps have not come on

When auto-addressing the ﬁ rst bed does not register an “id”

My salon suffers frequent, short power outages and clients complain about losing session time

You have probably attempted to connect your sunbed to

the remote system already. Disconnect the remote plug(s) from the ports at the back of the sunbed, wait 90 seconds and try again.

1. Remote device has not been set.

2. The sunbed has not been connected to the remote system, see Remote Connections.

1. Delay time of T-Max® Manager has not been set.

2. Delay time has expired and session has begun.

Auto start function of T-Max® Manager has been turned

off. Press the START/TIME button to turn on lamps.

When using the auto address feature of the T-Max® Man-

ager you must wait 10 seconds from the time you start the auto address function before addressing the ﬁ rst bed.

If you have a T-Max® Manager, changing parameter 23

from “0” to “1” will allow the tanning bed to remember how much time was left when power goes out and resume its session after power is restored. See Parameters.

Page 30

30 - e1 Assembly and User Manual

30596-02A

Notes:

Page 31

e1 Assembly and User Manual - 31

30596-02A

WHEN

What to do After each use Monthly 400-500hrs 700-1000hrs

A. Clean/Disinfect Interior Surfaces*  B. Clean Lamps*  C. Clean Reﬂ ectors*  D. Clean Exterior  E. Check/Clean Fans†  F. Change Lamps**  H. Check Fasteners (nuts, bolts, etc.)*  I. Check Power Cords* 

MAINTENANCE LOG

What When What When What When

example: B C D E 2/16/2011

* See Care and Maintenance

** See Lamp and Acrylic Replacement

† Fans are located at the back of the canopy and under the bench. Use a vacuum to clean.

Page 32

1•800•449•3605

7445 Company Drive, Indianapolis, IN 46237-9296

In Canada call 1-800-661-6292 or 519-421-1212

Weight no-face (approximate) ... 338lbs (154kg)

Weight 3-face (approximate) ..... 345lbs (157kg)

Room Size ........................ 9’ (2.7m) x 7’ (2.4m)

Voltage ................................................220 VAC

Amperage (no-face) .................1Phase (P) - 15A

..............................................................3P - 8A

Circuit Breaker (recommended) ...........1P - 20A

............................................................3P - 20A

Amperage (3-face) ...............................1P - 20A

............................................................3P - 12A

Circuit Breaker (recommended) ...........1P - 30A

............................................................3P - 20A

Outlet ......................................... Hardwire only

Main Lamps ..................................... 32 x 100W

Face Tanner Lamps (if equipped) ........ 3 x 400W

Body Cooling (optional) ...........230cfm Foot Fan

Main Timer System ................................. Digital

Back-up Timer ................. Secondary Solid-state

Max. Exposure Time ........................ 15 minutes

Remote Capability ........T-Max® Wireless Ready

Record this information for ease of service:

Date of purchase:

Serial number:

Model number:

Proudly manufactured in the U.S.A.
