Page 1

28937-01A

Page 2

28937-01A

48 MONTH “GOLD MEDAL” WARRANTY

Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit, or replace the tanning unit.

For forty-eight (48) months following the purchase date of your tanning unit, your ETS Distributor will provide replacements for parts that prove to be defective in material or workmanship, with the following exceptions: gas springs, ballasts and electronic lamp starters are warranted against manufacturer’s defects for a period of one (1) year; “glow tube” lamp starters and cracked or broken endcaps are warranted against manufacturer’s defects for a period of ninety (90) days; fluorescent lamps are warranted against manufacturer’s defects for a period of thirty (30) days; acrylics are warranted against manufacturer’s defects for a period of one (1) year (prorated) following the purchase date of your tanning unit. Shipping charges will be covered during the first ninety (90) days following the purchase date.

Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and labor warranty, provided you send back the defective transformer.

Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replacement work required to be performed for a period of ninety (90) days following the shipping date of your tanning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or modifications are not covered by this warranty. Warranty coverage does not include cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.

THIS 48 MONTH “GOLD MEDAL” WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this 48 Month “Gold Medal” Warranty in any respect. To obtain service under this 48 Month “Gold Medal” Warranty, contact your authorized ETS Distributor (or ETS, LLC if purchased directly). Proof of purchase, including serial number, is required.

IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some states. This 48 Month “Gold Medal” Warranty gives you specific, legal rights and you may have other rights which may vary from state to state.

All warranty service must be performed by an authorized service person using only ETS authorized replacement parts. Use of non-authorized parts may void your warranty. All labor charges must be authorized by your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If your tanning unit must be returned for service within thirty (30) days from the purchase date, freight charges will be paid for by your ETS Distributor, after which all freight charges shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This warranty is serial number specific and only applies to tanning units purchased through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on the original sales document and may not be transferred to any other individual or legal entity. This warranty is void if the tanning unit is modified in any manner from its original design.

To obtain warranty service, contact your place of purchase. Proof of purchase, including serial number, is required for verification. Contact ETS, LLC only

if you purchased your equipment directly.

ETS, LLC 7445 Company Drive, Indianapolis, IN 46237-9296

1-800-449-3605

In Canada call 1-800-661-6292 or 519-421-1212

Page 3

28937-01A

elcome

Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you.

Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.

ontents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Page 4

28937-01A

Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause

eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan or tan minimally should not use this equipment.

To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your body and canopy clear plastic panel, otherwise overexposure may occur. Minimum use distance elsewhere is touching the clear plastic panels. Do not use without clear plastic panels in place. Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 542:

BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN

(Bench lamps)

Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin (Canopy lamps) Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)

THIS EQUIPMENT MUST BE EARTH GROUNDED. This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and

ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.

iii

afety Information

LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section

1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:

88465

DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.

DANGER

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4

Subsequent

Skin Type:

1st-3rd Sessions Maximum

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) 2471012 III Normal (Burns moderately and tans average.) 3691212 IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12

Page 5

28937-01A

Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les

rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une exposition excessive. Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonctionnement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.

SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :

BRONZING SUN™ PLUS Wolff® Modèle BSP 71-T12-100WR BI-PIN

(banc seulement)

Velocity® VS-R™ Wolff® Modèle VEL71-T12-160W VS-R Bi-Pin (partie supérieure seulement) Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045 (unité faciale)

Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie

1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 12 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4

Sem. suivantes

Type de peau:

ere-3e

Temps maximal

I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ II Peau claire (brûle facilement et bronze très peu) 2471012 III Peau normale (brûle et bronze de façon modérée) 3691212 IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 7 10 12 12

Renseignements sur la Sécurité

88465

Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.

DANGER

Page 6

28937-01A

nstallation

Unpacking and Inspection

The bench and canopy are each wrapped in plastic. Pull back the plastic and, with a helper, grasp the canopy and pull it from the carton bottom, leaving the plastic wrap and the carton packaging. Do the same for the bench. Do not attempt to lift

either unit with the plastic still on as it may slip. Do not lift the canopy by its plastic endcaps. The ballast tray is secured

to the carton bottom with brackets. Remove these brackets from the ballast tray with a Phillips screwdriver.

Note! The cartons are reusable. You may wish to save them for future use.

After unpacking the unit, check to make sure you have received the following:

• Canopy unit

• Bench unit

• Ballast tray

• Metal access panel

• Long metal hinge cover panel

• Two large endcaps

• Body fan (in a box)

• Bag containing necessary assembly hardware, safety goggles, and pillow.

Inspect these items, including the canopy and bench, to make sure they are free from any visible damage. Report the extent of any damage to the transportation company.

Record the serial number of the unit in the area provided at the back of this manual. This information will be required whenever you call customer service.

Tools Required

You will need the following tools to assemble your sunbed.

#2 Phillips Screwdriver

Adjustable Wrench

9/16” Wrench

5/16” Allen Wrench

(included in the hardware kit)

Page 7

28937-01A

Installation - Pre-Installation Planning

Pre-Installation Planning

Before you begin to assemble your sunbed, you should observe the following considerations.

• The SOLARIS® 542 operates from a 220V AC power source. The unit should be wired to a dedicated circuit capable of providing 50 Amp service. This unit must be hardwired directly to a junction box. We rec

ommend connection by a profes

sional electrician.

• This sunbed arrives with a ballast tray stop bar installed to limit tray movement (see below). To remove, lift the bar, shift it to the left or right and then pull it from the bed. After the bed is assembled, reinstall the bar to keep the tray from damaging the access panel if the bed is moved.

WARNING

Shock hazard.

Disconnect power before servicing.

Air from the room is used to cool the sunbed. Maximum ambient room temperature should be 80°F. Place your sunbed no closer than 6” from any wall. Make sure nothing obstructs the airflow into the sunbed’s endcaps or out of the fan openings. A poorly ventilated room may cause the unit to become hot and cause discomfort to the user.

CAUTION

Use of a voltage source above 230V AC may prevent proper operation of the sunbed and could cause damage and void the warranty. A buck booster transformer may be required to alter voltage.

CAUTION

Proper assembly of your sunbed requires three people. Plan to have a couple of helpers assist you.

CAUTION

Page 8

28937-01A

Installation - Hardware Inventory

Hardware Inventory

Open the hardware bag and remove the contents. In addition to a pillow, the Allen wrench and an RJ-11 (phone type) cable, make sure you have the following hardware items.

Safety Goggles

Quantity 1

Access Panel Key

Quantity 1

#10 x 1” Phillips

Pan Head Screw

Quantity 14

3/8-16 x 1 1/4”

Hex Socket Bolt

Quantity 6

3/8-16 Self-locking

Hex Nut

Quantity 6

#10 x 1/2” Phillips

Pan Head Screw

Quantity 4

WARNING

Wear protective eyewear. Failure to may result in severe burns or

longterm injury to the eyes.

Page 9

28937-01A

Installation - Assembly Procedures

Assembly Procedures

Before installing the foot end endcap you must install the body fan power cord into the endcap, as shown below. The connector will snap securely into the endcap. The body fan kit includes instructions for installation.

BODY FAN POWER CORD

Snap body fan power cord into hole in foot end endcap.

Page 10

28937-01A

Installation - Assembly Procedures

Parts needed: Head end endcap Foot end endcap 14 - #10 x 1” Phillips pan-head screws 4 - #10 x 1/2” Phillips pan-head screws

Attach each endcap with 7 - 1” screws as shown.

Foot end endcap shown.

Use 1/2” screws here.

Page 11

28937-01A

Installation - Assembly Procedures

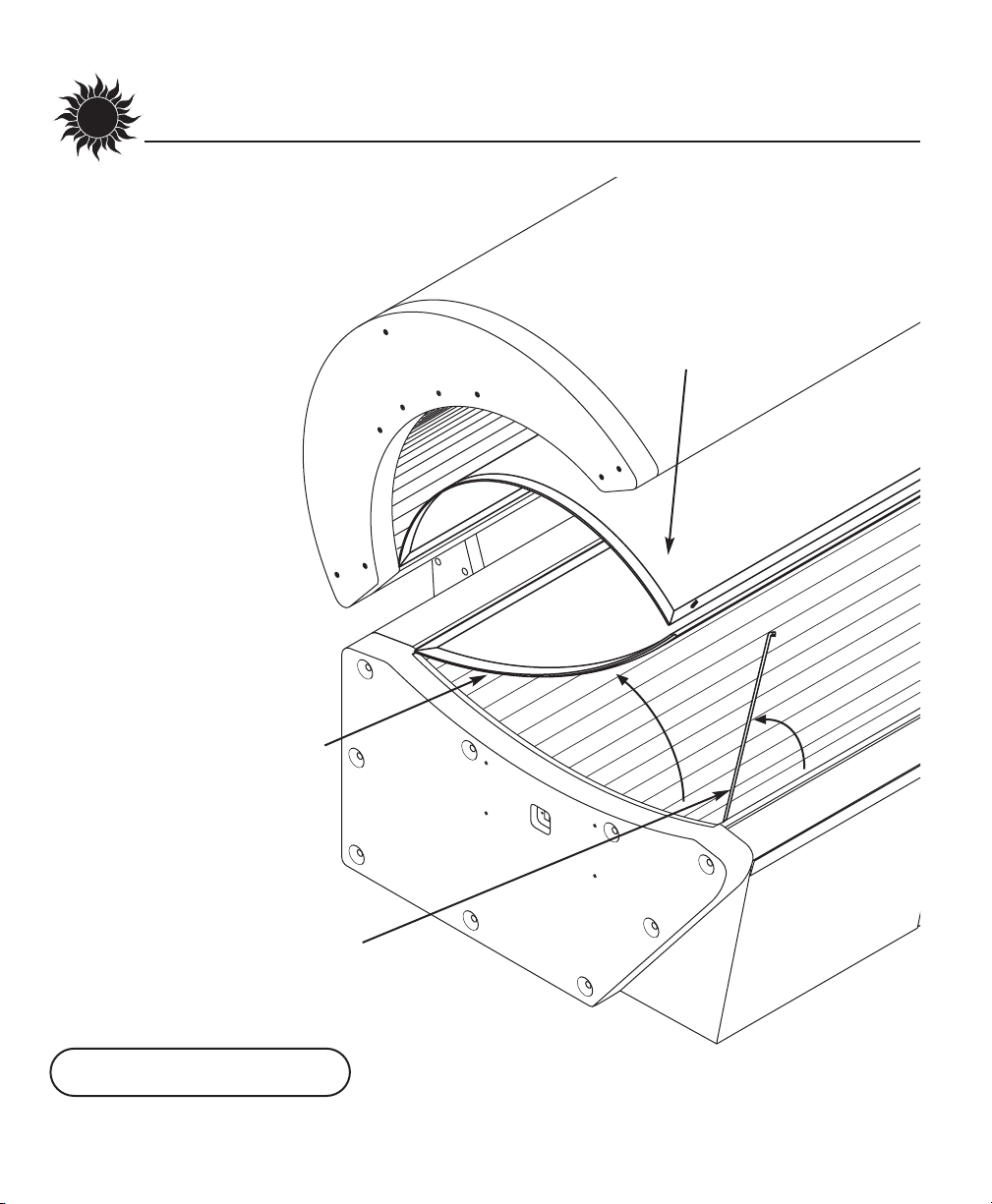

Use the preinstalled screws to attach the hinge cover panel.

Parts needed: Long blue hinge cover panel

Page 12

28937-01A

Installation - Assembly Procedures

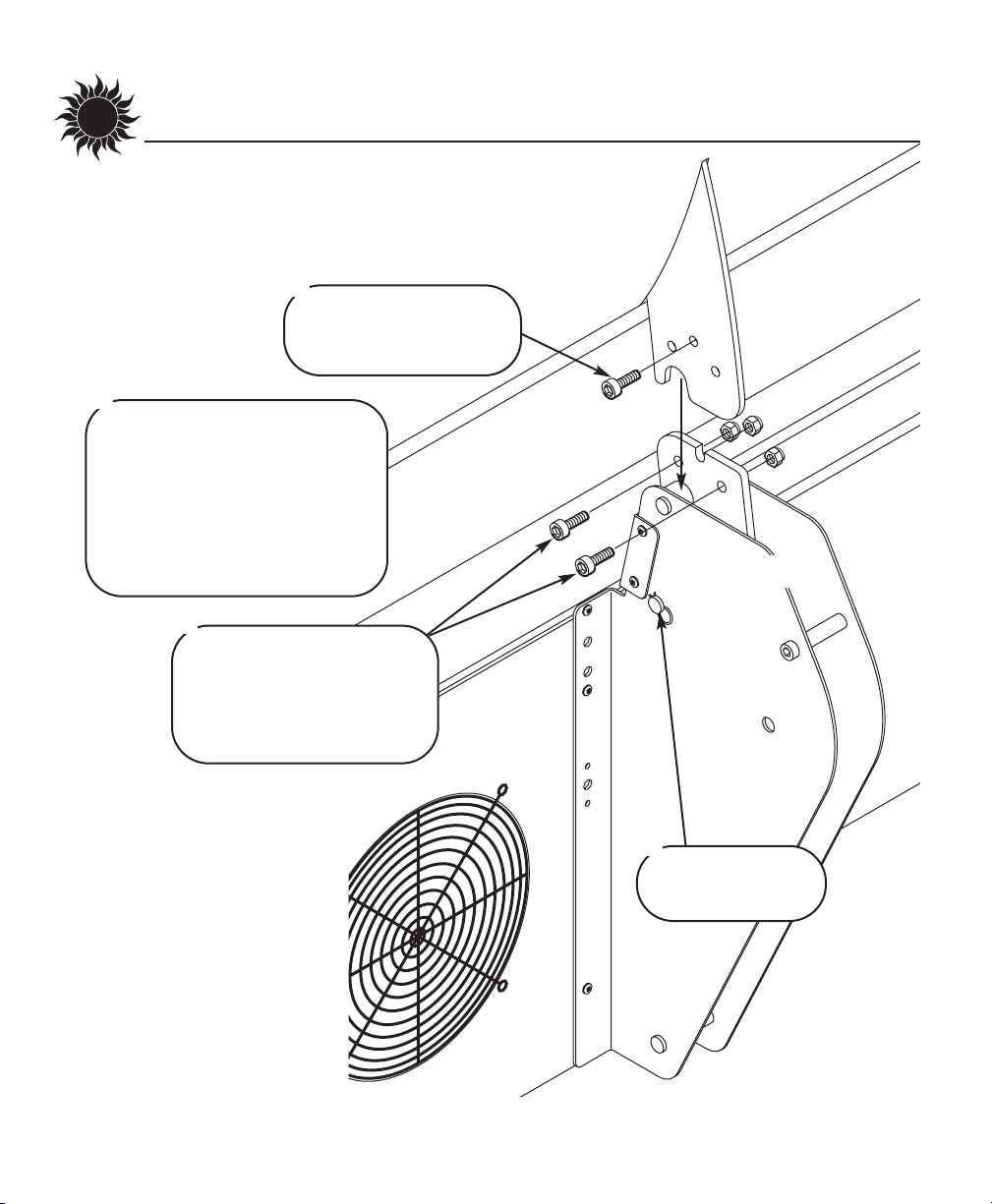

CANOPY ARM

HINGE ARM

Install this bolt as a positioning aide.

Slip canopy arm onto hinge arm. Positioning bolt will engage the slot on top of hinge arm and hold canopy up while the other bolts are installed.

Install other bolts as shown. Secure all six bolts in place with selflocking nuts.

Parts needed: 6 - 3/8 x 1 1/4” hex-socket bolts 6 - 3/8” self-locking hex nuts

Remove this pin and discard.

Page 13

28937-01A

Installation - Assembly Procedures

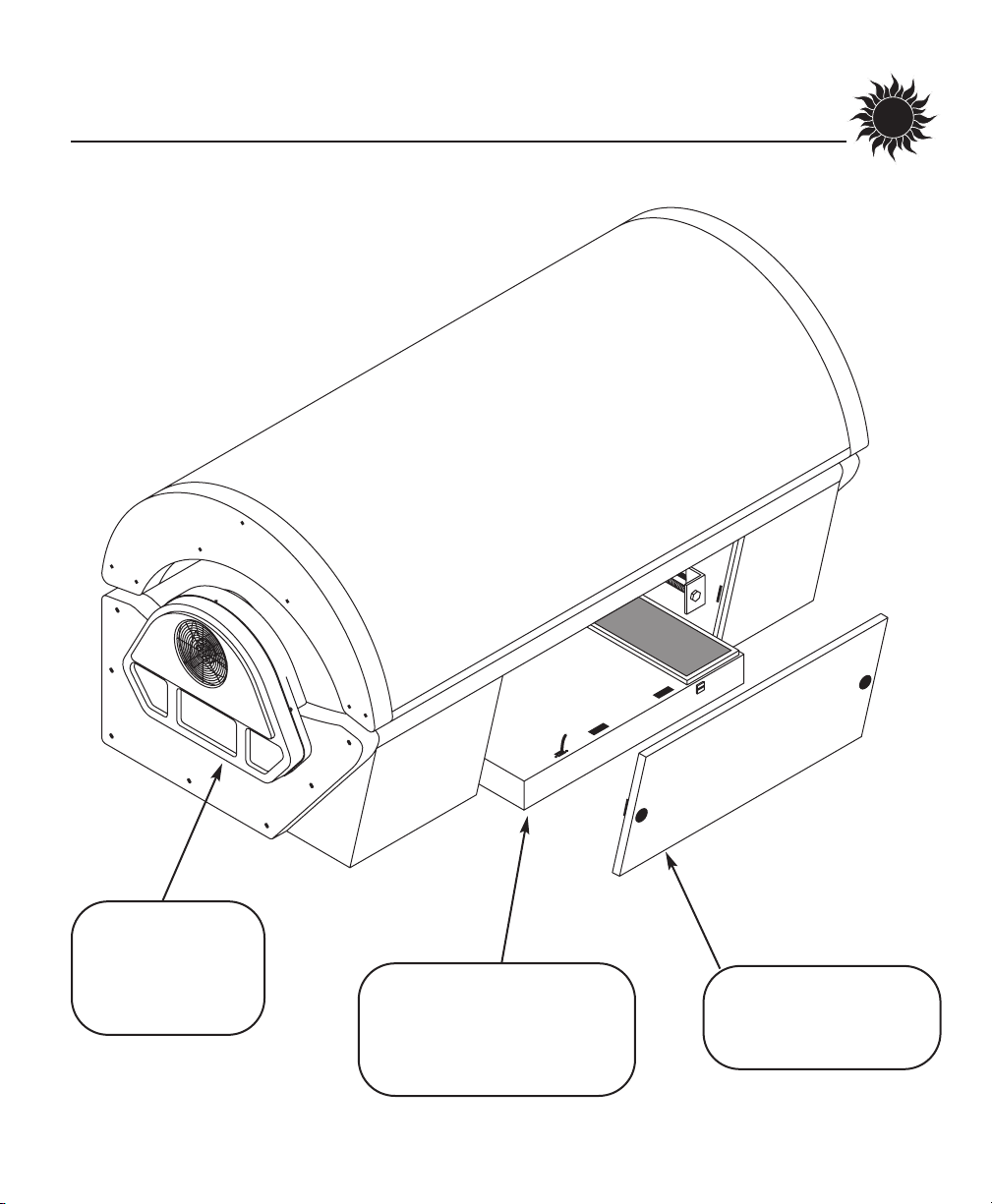

Put access panel in place and lock with access panel key.

Install Body Fan. Instructions are included in Body Fan kit.

Slide ballast tray under and pull cords through to the back. Reinstall ballast tray stop bar.

Page 14

28937-01A

Installation - Electrical Connections

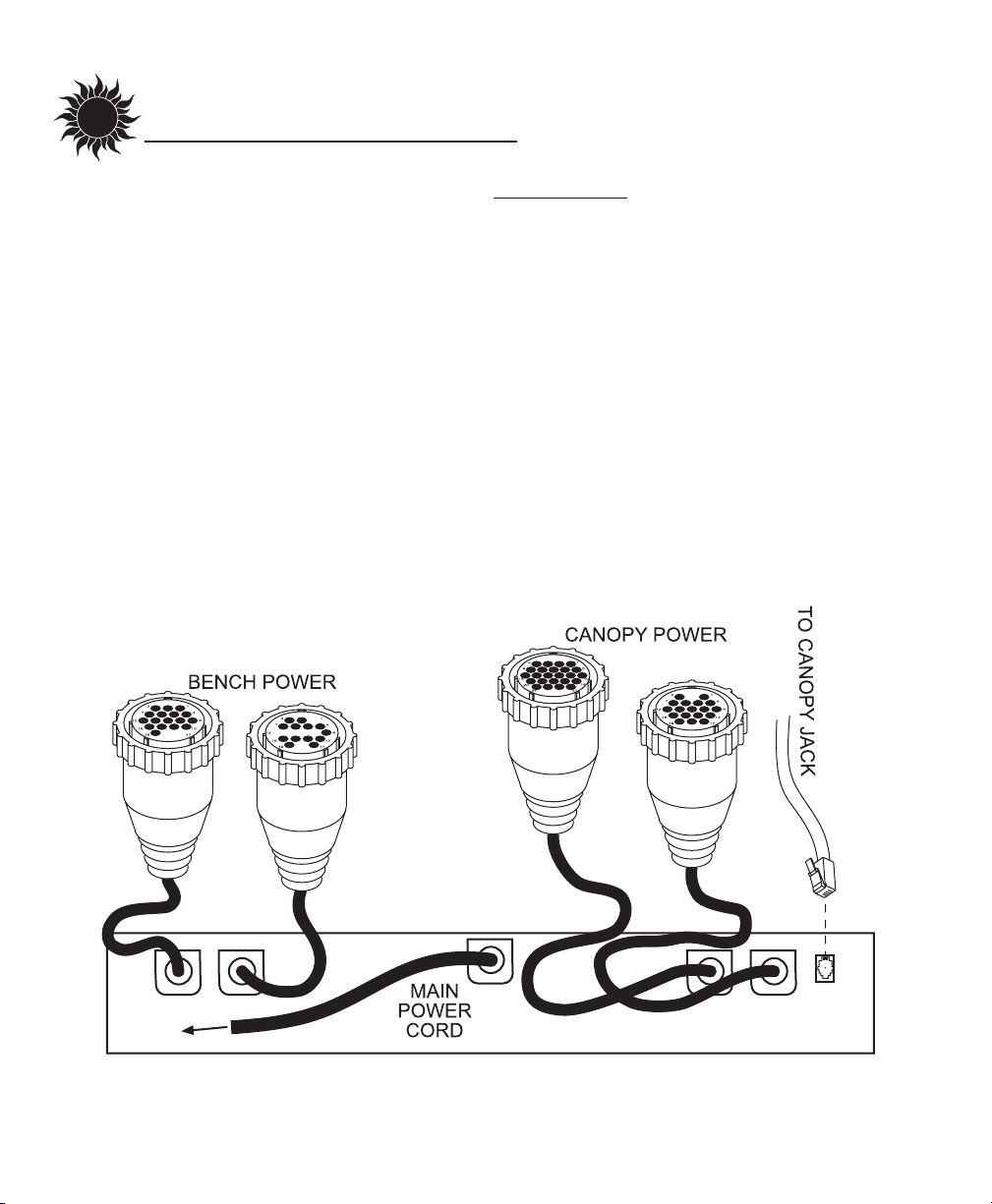

Electrical Connections

At the rear of the sunbed, connect the two canopy power cords and two bench power cords from the ballast tray to their respective power receptacles. Simply match the plug to the receptacle, push on firmly and secure by twisting the threaded locking ring. Connect the RJ-11 (phone type) cable between the canopy and rear jack on the ballast drawer. The three jacks on the front of the drawer are for remote connections. Connect main power cord as described in Pre-Installation Planning.

PIN CONFIGURATIONS MAY VARY FROM SHOWN

(Rear of ballast tray shown)

Helpful Hint

: Line up the plug with the proper receptacle and push in. Apply pressure to the plug and twist the locking ring counter-clockwise until you feel the plug click into place. Then turn the locking ring clockwise to secure it. The ring will click when fully engaged.

Page 15

28937-01A

Installation - Final Adjustments

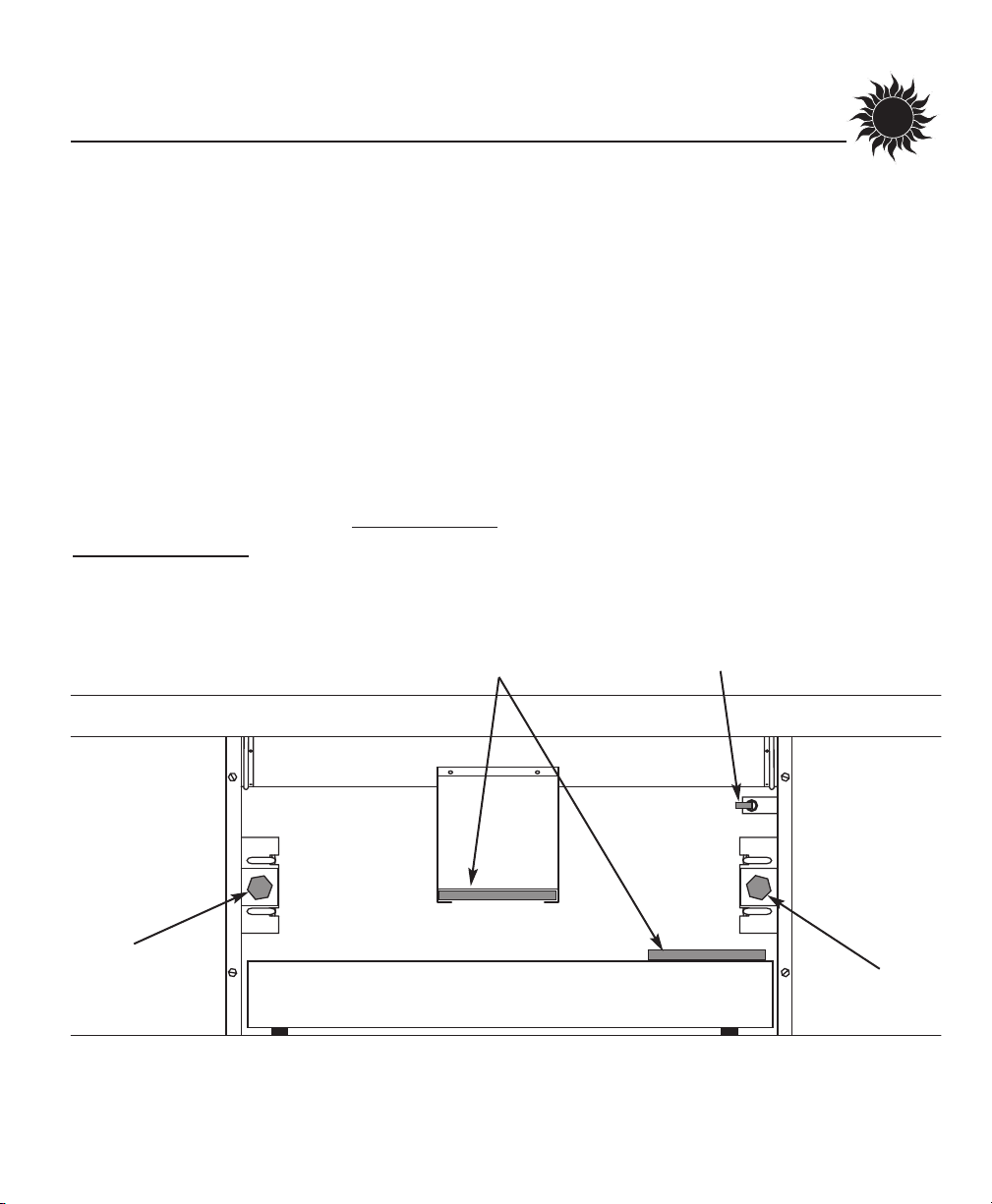

LIFT ADJUSTMENT

MAINTENANCE HEIGHT

RELEASE HANDLE

AIR FILTERS

Final Adjustments

Your sunbed uses a smooth gliding spring lift system to raise the canopy. This lift system may need to be adjusted slightly due to shipment. Remove the front access panel. Use a wrench to turn the hex shaped Lift Adjustment lugs (shown below), clockwise for more lift and counterclockwise for less. When adjusted properly, the canopy should raise easily as well as rest fully closed. Always adjust both lugs equally.

Make sure the air filters are in place. The filter on top of the ballast tray simply sits over the vent holes. Airflow holds it in place when the unit is on. The airflow arrow on the side of this filter should point down. The filter hanging under the bench should be installed with the arrow pointing up.

LIFT

ADJUSTMENT

Page 16

28937-01A

Installation - Remote Connections

Remote Connections

Your sunbed incorporates advanced circuitry allowing it to connect and communicate with most remote control systems. If a remote system is to be used, first determine whether the remote system is a T-Max® System or a standard remote system operating with a control relay. The following pages outline many different remote connection scenarios. Find the scenario that best fits your application.

Three remote ports are located on top of the ballast drawer at the front, two RJ-22 (4-wire) ports and one RJ-11 (6-wire) port. A Remote Control Bypass plug is already installed in one of the RJ-22 remote control ports. Your sunbed will not operate without the Remote Control Bypass plug or a remote system connected.

ATTENTION: Although the Remote Control Bypass plug provided with your sunbed will work wherever a T-Max® terminator is called for in the series, the TMax® terminator will not work as a bypass plug. Normally, a bypass plug is needed only when your sunbed is operated without a remote system connected.

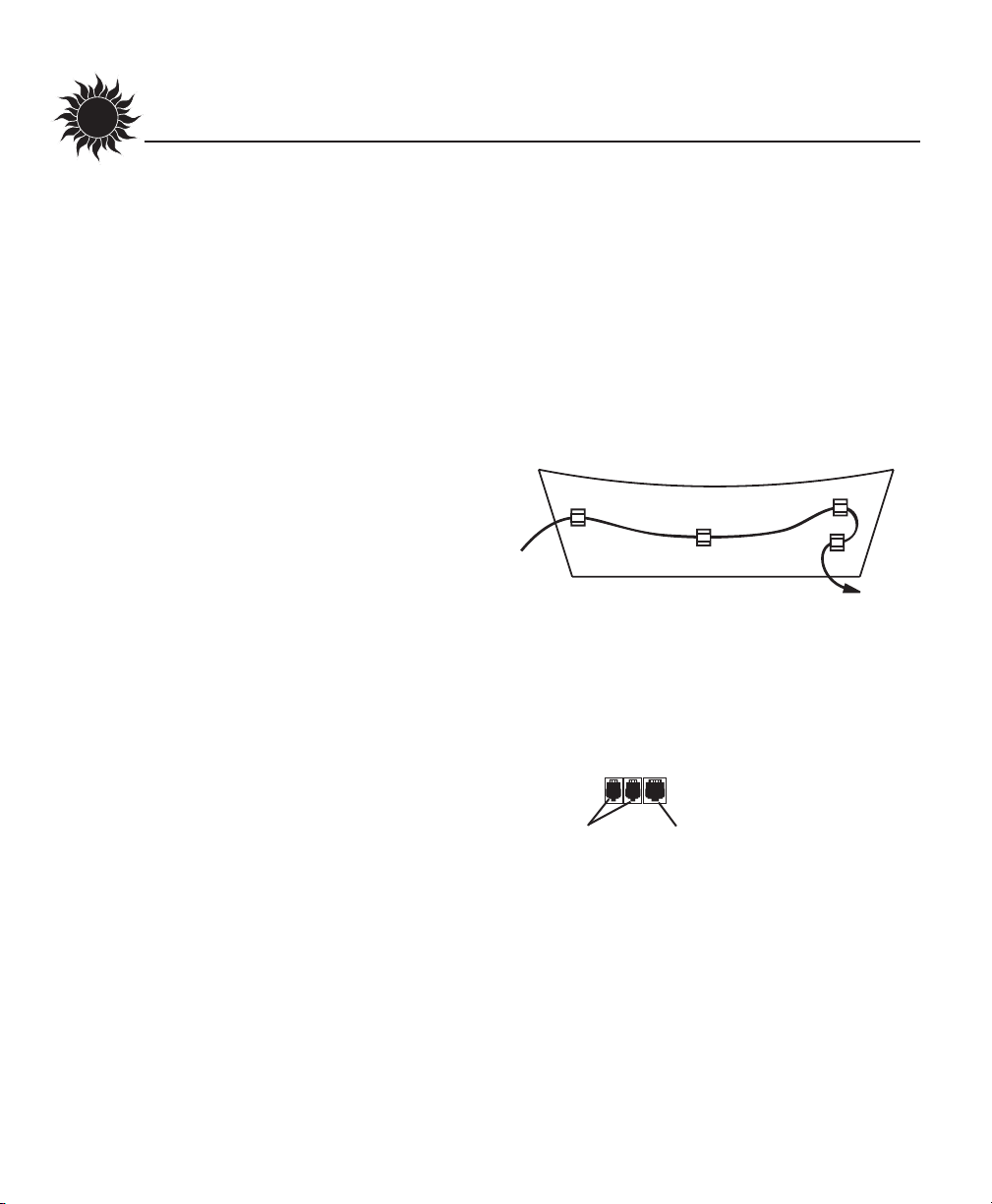

You will notice some wire clamps along the side of the fan housing under the bench. These are for the remote cables to keep them out from under the ballast drawer when rolling the drawer in and out of the unit. Route the remote cables as shown below, leaving some slack for the drawer to roll out.

REAR

TO REMOTE PORT

FAN HOUSING UNDER BENCH

REMOTE PORTS

WIRED

REMOTE

PORTS (RJ-22)

WIRELESS

REMOTE

PORT (RJ-11)

Page 17

28937-01A

Installation - Remote Connections

CAUTION

The remote connection is not designed to supply or accept high voltage, nor can it provide power to an external timer. The sunbed’s remote interface circuitry operates on 5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty.

T-Max® Products

The T-Max® remote systems offer the ultimate in sunbed control, while allowing the tanner easy straightforward operation. Your sunbed is configured to directly connect to this system, including the new wireless remote system. The circuitry inside your sunbed eliminates the need for the T-Max® 1A or 3A when connecting to the T-Max® Manager series. Your sunbed supports the auto addressing feature of the latest T-Max® Manager models and the following parameters: 5, 6, 7, 8, 9, 10, 15 and

23. See your T-Max® manual for descriptions of these parameters and how they function.

REMOTE PORTS

WIRED

REMOTE

PORTS (RJ-22)

WIRELESS

REMOTE

PORT (RJ-11)

T-Max® Wireless Remote System

The T-Max® G2 eliminates wires in your salon, allowing easy setup without hiring an electrician to run wires. It also protects your investment from damage by isolating each unit from one another. Your sunbed arrives “wireless ready”, which means it connects directly to the T-Max® wireless system. Older tanning beds, and T-Max® managers, also utilize this system but require a T-Max “Power Injector” (PI) to provide the needed power to the wireless unit.

Remote System Hook-up Scenarios

Follow the diagrams on the next few pages to see the many different scenarios for hooking up your salon. If you need further assistance, call T-Max® directly at (417) 338-5101.

Page 18

28937-01A

Installation - Remote Connections

NOTE: A T-Max® 1A with a

“master” chip can be substituted

for a 3A.

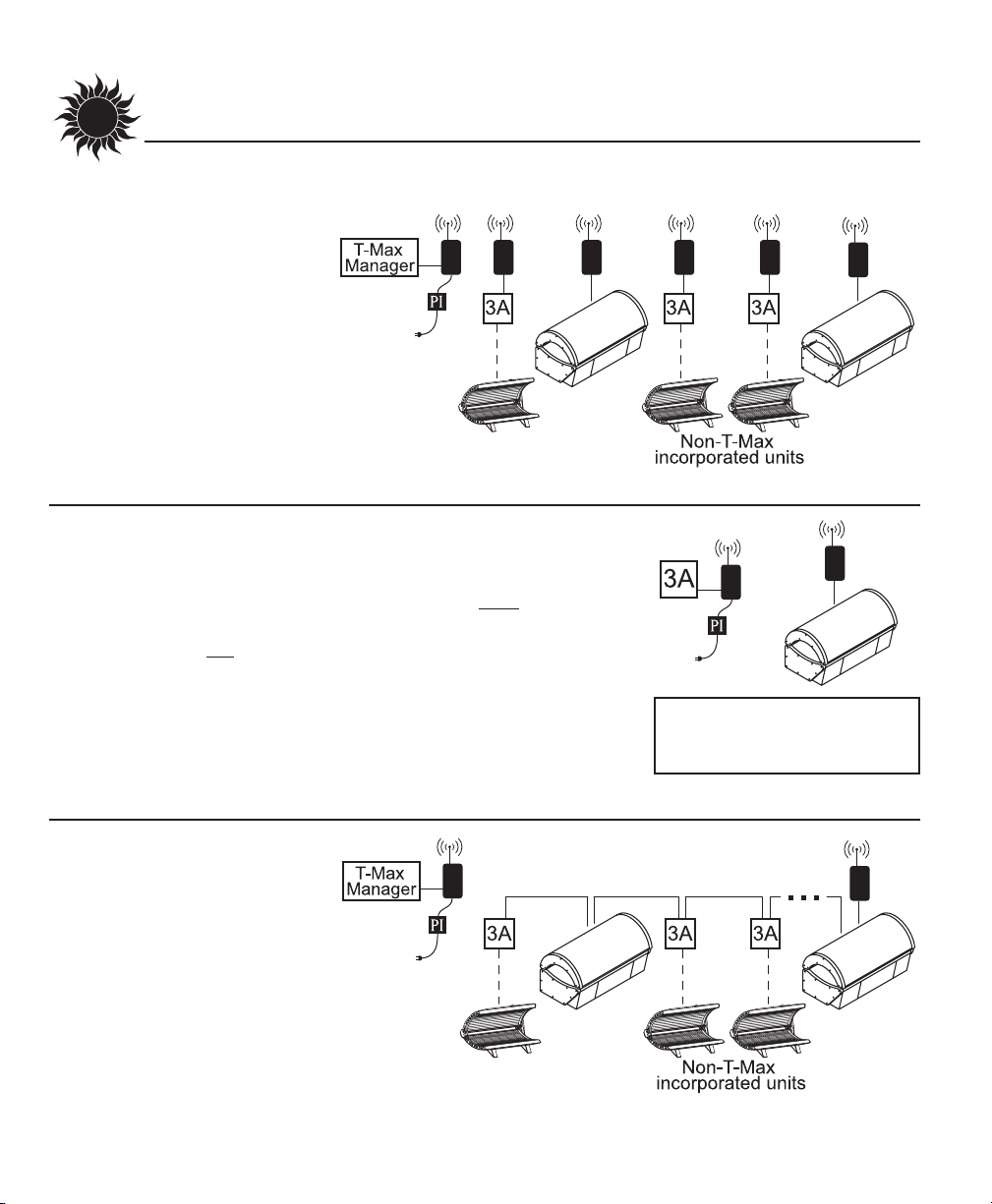

Scenario 1 - T-Max® Manager Series with Complete Wireless

Connect one G2 (with Power Injector) to the Manager and one G2 to each of the tanning beds. Install as many beds as you like with this configuration. Units that do not communicate with T-Max will need a G2 with Power Injector and an additional 3A to operate. If you have an older T-Max® Manager that doesn’t support auto addressing, set the address of each sunbed manually as described in Setting the address manually. You can place your sunbed at any location in the series.

Scenario 2 - T-Max 3A with Wireless

In single sunbed installations, the T-Max® 1A and 3A can offer the same control as the T-Max® Manager, eliminating the need for a Manager. If you’re using a 1A in this manner, it must

have a chip labelled “master” installed on its circuit board. The remote control bypass plug must not

be used in this configuration. The 3A may be

used as a “master” with no modification.

After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to your T-Max® user’s guide) and the sunbed’s address to “1”, simply connect one G2 (with Power Injector) to the T-Max® 3A and one G2 to the tanning bed.

Scenario 3 - T-Max® Manager Series with Wireless combo

Connect one G2 (with Power Injector) to the Manager and one G2 to a wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the wireless equipped tanning bed, eliminating the need to wire the Manager to the tanning beds.

Page 19

28937-01A

Installation - Remote Connections

After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to your T-Max® user’s guide) and the sunbed’s address to “1”, simply connect the RJ-22 modular cables, described in the T-Max® user’s guide, directly into either of the smaller ports located on the ballast drawer and either port on the back of the T-Max® 1A or 3A.

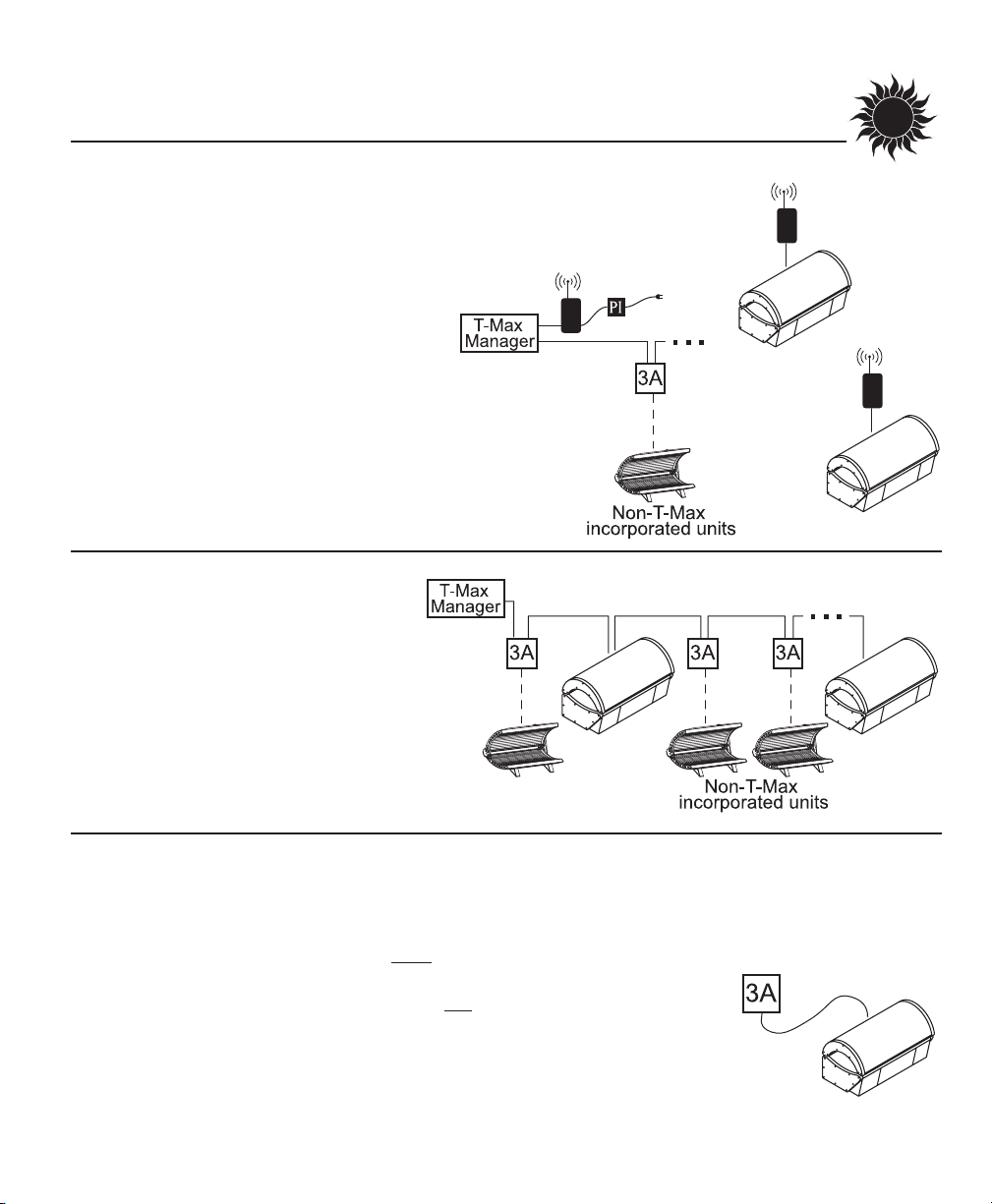

Scenario 4 - T-Max® Manager Series with Wireless combo 2

Wireless can be easily added to an existing salon already utilizing T-Max®. Connect one G2 (with Power Injector) to the Manager and one G2 to each wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the Manager.

Scenario 5 - T-Max® Manager Series with wires

As always, this tanning bed is fully compatible with a wired T-Max® system. Simply connect the RJ-22 modular cable(s), described in the T-Max® Manager manual, into either of the smaller remote port(s) located on the ballast drawer and follow the instructions that came with your remote system.

Scenario 6 - Single Bed wired to T-Max® 3A

In single sunbed installations, the T-Max® 1A and 3A can offer the same control as the T-Max® Manager, eliminating the need for a Manager. If you’re using a 1A in this manner, it must

have a chip labelled “master” installed on its circuit board. The remote control bypass plug must not

be used in this configuration. The 3A may be used as a “master” with no modification.

Page 20

28937-01A

Installation - Remote Connections

CAUTION

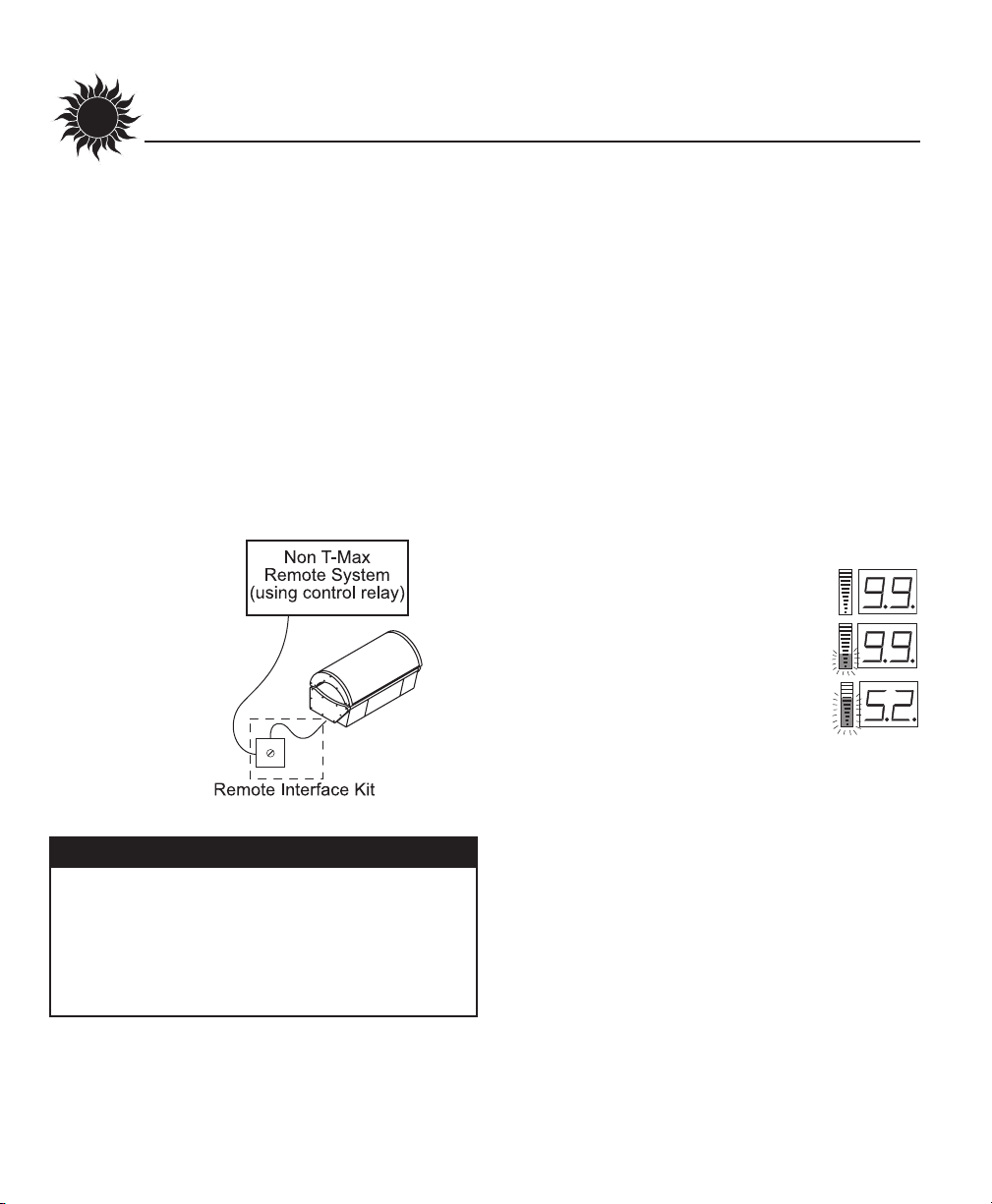

Scenario 7 - Non T-Max® Remote System wired to unit

Most non-T-Max® remote systems control the sunbed by the use of a relay. The relay operates the sunbed by connecting and disconnecting a pair of wires leading from the sunbed. Refer to the user’s manual provided with your remote system to determine if it operates in this way. To connect your sunbed to this type of system a remote interface kit is required. Contact your place of purchase to obtain the kit. The illustration below details a typical connection. Follow the instructions provided with the kit and from the remote’s manual to make the necessary connections.

Setting the sunbed address manually

Before connecting your sunbed to the T-Max® Manager or T-Max® 1A or 3A, the address of your sunbed must first be set. Set the “id” manually as described below.

Setting the “id”

1. Make sure no cables are plugged into your sunbed’s remote ports.

2. Remove and reapply power to the unit.

3. Press and hold the stop button, located on the sunbed display, for three seconds and release. The display should indicate an “id” number from “oF” to “252”.

4. If you are using a T-Max® 1A or 3A as a “master” remote, the “id” of the sunbed must be set to “1”. If you are using a TMax® Manager each sunbed must be assigned a different “id”. To set the “id” press the timer button, to count up, or the body fan control button, to count down, until the desired number is achieved.

5. Press the stop button to return to the normal display mode.

1-99

100-199

200-252

Page 21

28937-01A

peration

Before You Tan

Before using your sunbed, please note the following important precautions.

• Your skin should be free of cosmetics, oils, or other body lotions prior to tanning except for those specifically made for use with tanning devices. However, do not remove natural body oils by bathing or showering immediately before tanning.

• Your hair should be free of gels, mousses, sprays, or other hair products prior to tanning. These products can cause damage to the sunbed acrylic. As an alternative, a shower cap or towel can be worn to keep treated hair away from the sunbed surfaces.

• This unit intended for individual use. Only one pair of eyewear is included.

Exposure Times

Follow the guidelines for skin type and exposure times as shown in the table below. Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

DANGER

Shock hazard.

Do not operate this device near water or while you are wet.

DANGER

Some medication may increase your sensitivity to ultraviolet light. It is recommended that you consult a physician before using this sunbed if taking any medication or if you suspect that your skin might be especially sensitive to sunlight.

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4

Subsequent

Skin Type:

1st-3rd Sessions Maximum

Page 22

28937-01A

Operation - Using Your Sunbed

1. Lift canopy, lie down on bench (face up), lower canopy toward your body using canopy handle. For best results, position canopy as close to your body as possible.

2. Put on your safety goggles.

3. Assuming the remote system has been set

to allow a pre-tanning delay time, the timer display (D) will repeatedly flash the delay symbol “dL” and then the remaining delay time. Press the timer button (F) or wait until the delay time has expired to begin the tanning session. The lamps will turn on and the timer will begin to count down.

4. When the timer reaches 0 the lamps turn off. If you want to interrupt your session before time expires, press the stop button (E).

5. Raise the canopy by using the canopy handle, do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed. The timer will indicate “..” as a reminder to clean the sunbed. After the sunbed is cleaned press the timer button and the display will return to “0”.

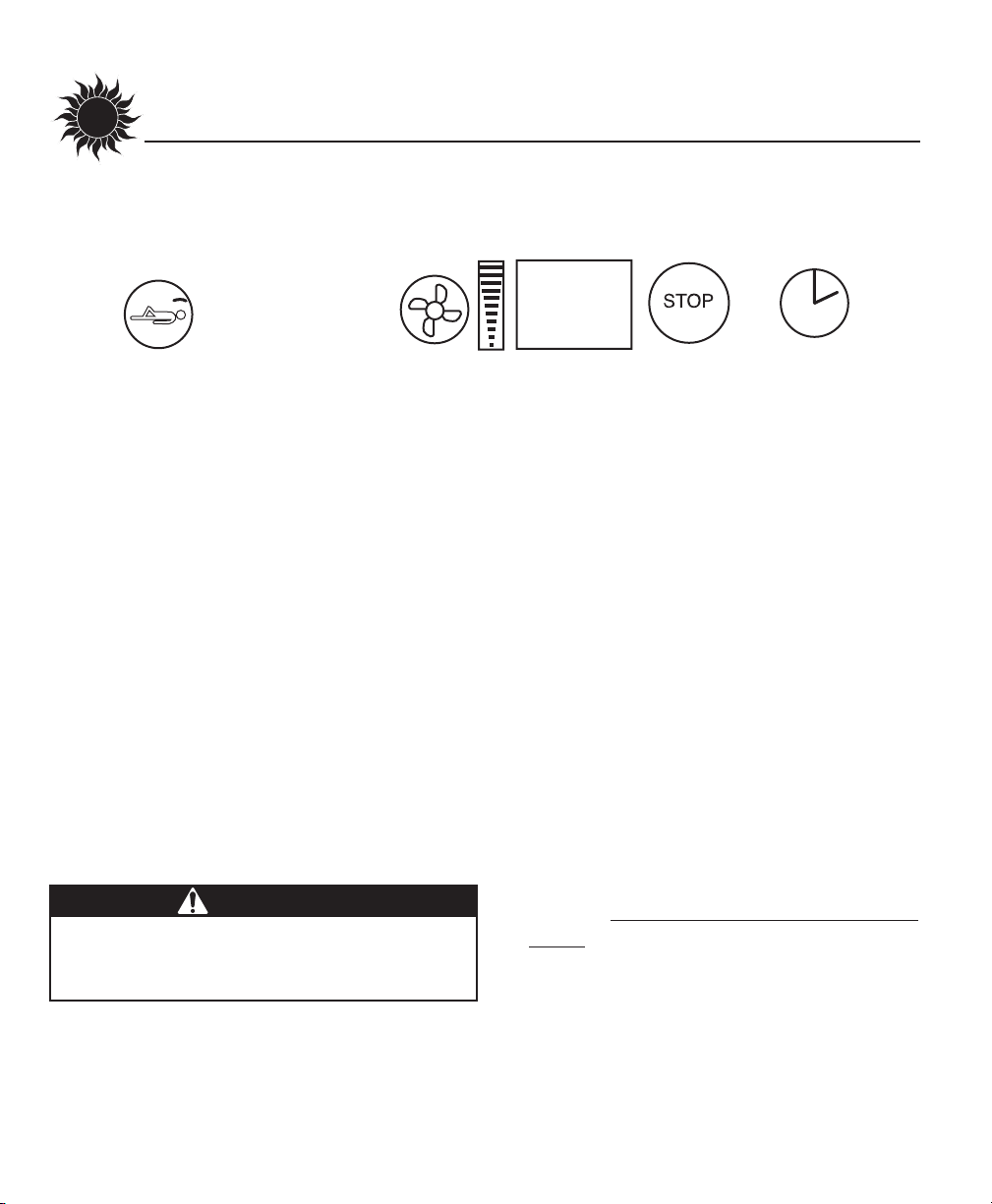

Using Your Sunbed

When connected to the T-Max® Manager or T-Max® 1A or 3A.

A Face tanner control - Turns face tanners

on and off during use. Face tanner lamps require one minute to relight.

B Body fan control - Controls the speed of

the body fan during use.

C Body fan speed indicator - Indicates

speed of fan. (OFF - LOW - MED HIGH)

D Timer display - Displays remaining time.

E Stop button - Interrupts tanning session.

F Timer button - Turns bed on. Timer dis-

play shows remaining time.

ABCDEF

WARNING

Wear protective eyewear. Failure to may result in severe burns or

longterm injury to the eyes.

Page 23

28937-01A

Operation - Using Your Sunbed

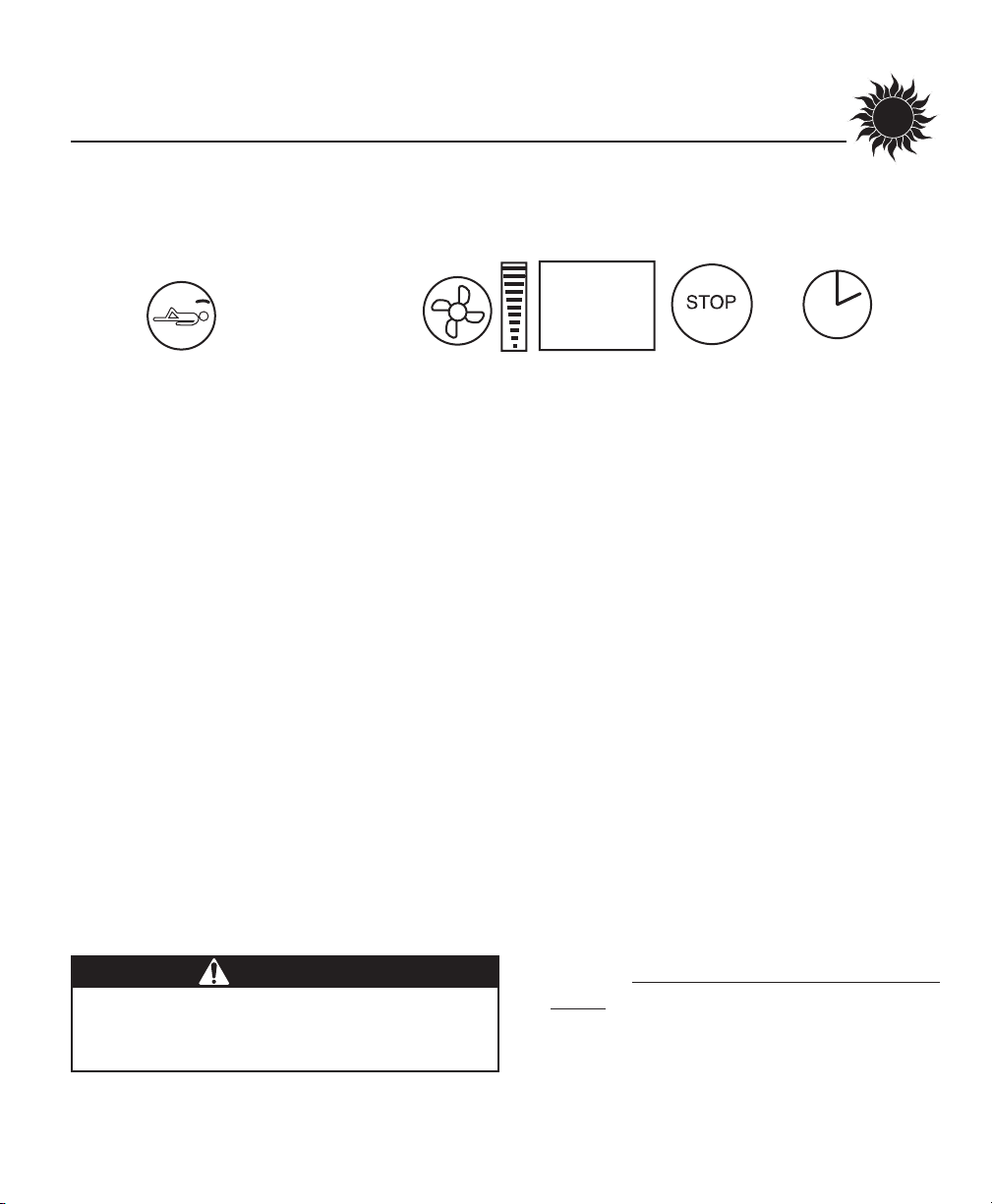

Using Your Sunbed

When used as a stand alone unit or when connected to a remote system using a control relay.

1. Lift the canopy, lie down on the bench (face up), lower the canopy toward your body using the canopy handle. For best results, position the canopy as close to your body as possible.

2. Put on your safety goggles.

3. Press the timer button (F) to begin the tan-

ning session. The lamps will turn on and the timer will begin to count down.

4. If a tanning time less than the displayed time is desired repeatedly press the timer button (F) to decrease the remaining time.

5. When the timer reaches 0 the lamps turn off. If you want to stop your session before time expires, press the stop button (E). You will have ten seconds to restart with the remaining time, otherwise the timer will reset to 0.

6. Raise the canopy by using the canopy handle, do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed.

ABCDEF

A Face tanner control - Turns face tanners

on and off during use. Face tanner lamps require one minute to relight.

B Body fan control - Controls the speed of

the body fan during use.

C Body fan speed indicator - Indicates

speed of fan. (OFF - LOW - MED HIGH)

D Timer display - Displays remaining time.

E Stop button - Stops tanning session.

F Timer button - Turns bed on. Timer dis-

play shows remaining time. If a lesser time is desired, press timer button until desired time is displayed.

WARNING

Wear protective eyewear. Failure to may result in severe burns or

longterm injury to the eyes.

Page 24

28937-01A

are and Maintenance

Cleaning After Use

Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant cleaner that does

not contain ammonia or ammonia derivatives. Ammonia may damage the acrylic

shield. Spray the acrylic lightly with disinfectant and wipe dry with a clean soft cloth. We recommend Australian Gold® pH Neutral Disinfectant Cleaner.

Thorough Periodic Cleaning

Introduction

The cooling fans draw air through the bed and over time will cause a dust buildup on the lamps and reflectors. This reduces the tanning effectiveness of the bed. When a dust buildup is observed, it is necessary to thoroughly clean the inside of the unit.

Cleaning the Canopy and Bench

Step 1 Remove the acrylic shields and

lamps as described in Lamp and Acrylic Replacement.

Step 2 With a soft cloth, wipe the entire

length of each lamp.

Step 3 Clean both sides of the acrylic

shields with a non-ammonia disinfectant cleaner.

Step 4 Wipe the reflectors with a clean

damp cloth.

Step 5 Reinstall the lamps and acrylic

shields.

Step 6 Clean or replace air filters on top

of ballast tray and under bench (see Final Adjustments). Replace with 10” x 24” x 1” furnace filters.

Mechanical Inspection

Your tanning bed has been built for years of service. To ensure trouble-free operation throughout its life, inspect the unit’s mechanical integrity every 400-500 hours of use.

• Inspect the unit’s fasteners verifying that all are firmly in place.

• Inspect lift springs for signs of wear. Adjust for proper lift if needed. See Final Adjustments.

• Inspect the AC power cord and its connections.

• Inspect the acrylic. Broken, cracked or badly scratched acrylics should be immediately replaced.

• Check damper operation. The damper limits the canopy’s movement speed. Replace if canopy raises and lowers too quickly.

WARNING

Shock hazard. Disconnect power before removing

any protective covers.

Page 25

Care and Maintenance - Lamp and Acrylic Replacement

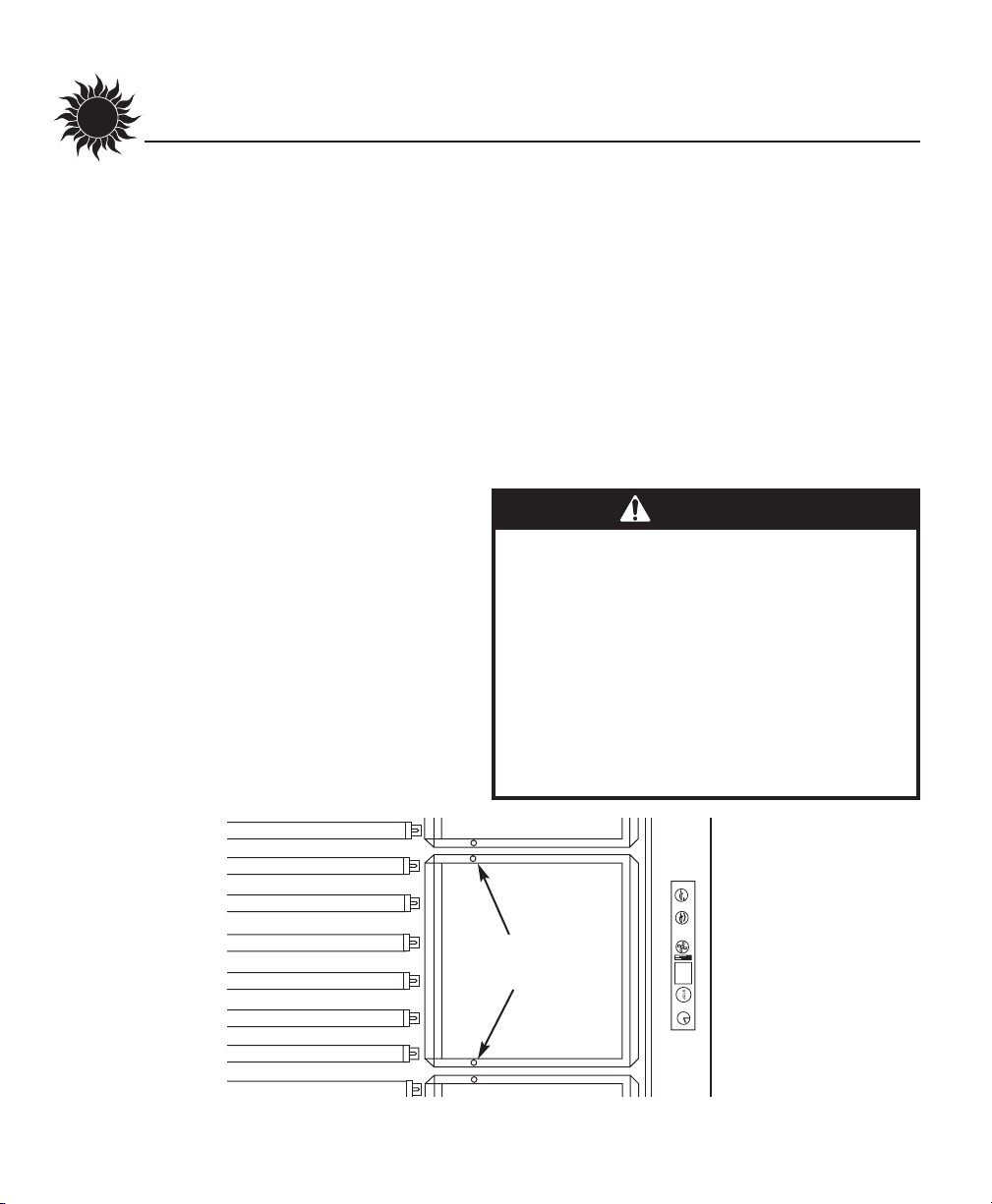

Lamp and Acrylic Replacement

Introduction

To be assured of maximum tanning effectiveness, change 100W lamps after approximately 800-1000 hours of use. Change 160W lamps after 600-800 hours of use. Tanning will continue after this time but at a slower rate. To ensure trouble-free operation of your sunbed, replace the lamp starters whenever the lamps are replaced.

Maintenance Height Feature

The SOLARIS® offers a convenience feature when maintenance must be performed. Behind the front access panel is a release handle (see Final Adjustments). With the canopy open, pull this handle and the canopy will raise to its maintenance position, allowing easier access to lamps, etc. When finished, simply close the canopy to return to normal operation.

WARNING

Shock hazard. Disconnect power before removing

any protective covers.

Opening/Replacing Acrylic Shields

Refer to the illustration on the next page while reading this instruction. The acrylic shields in the bench and canopy are secured in place with quarter turn latches along the front edge. Use a flat-bladed screwdriver or coin to turn the latches a quarter turn to open the acrylic. The aluminum frame around the acrylic offers support as well as allowing the acrylic to hinge open without removing it from the bed. On the inside of the bench, along the front, are two supports for the bench acrylic. Release them from their clips and swing up to hold the acrylic open. You may remove the acrylics by lifting them out of the hinge channel along the back edge.

When you are finished, simply reverse the above directions to secure the acrylic shields.

28937-01A

Page 26

28937-01A

Care and Maintenance - Lamp and Acrylic Replacement

CANOPY ACRYLIC

BENCH ACRYLIC

ACRYLIC SUPPORT

Body fan deleted for clarity.

Page 27

28937-01A

Care and Maintenance - Lamp and Acrylic Replacement

Removing/Replacing Lamps

After opening the acrylic shield, replace lamps as follows.

Step 1 Grasp the lamp at one end and

at the middle and turn the lamp one quarter turn. Gently remove the lamp from its holders.

Step 2 Reinstall the lamp by inserting

the pins located on the ends of the lamp into the slots on top of the lamp holders and turn the lamp a quarter turn. It should click in place.

Recommended Replacement Lamps

We recommend using the lamps specified below. Use of uncertified lamps is a violation of Federal regulations and will void your warranty. These lamps have an average life of 600-800 hours of effective tanning use. Lamps used longer than that begin to lose their effectiveness even though they continue to light.

Recommended Replacement Acrylics

Acrylics vary greatly over time in their ability to effectively transmit UV light. Acrylics sold by ETS have been life tested to ensure proper transmission throughout their useful life.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:

Bench lamps

BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN

Canopy lamps

Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin

SolarMax™ IFT facial unit Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045

Page 28

28937-01A

Removing/Replacing Face Tanner Lamps

After removing the canopy acrylic shield, replace the face tanner lamps as follows:

Step 1 Support the face tanner assembly

with your hand while unscrewing the two retaining screws. The face tanner glass casing will swing downward.

Step 2 The lamp can now be

exchanged. The lamp holders are equipped with spring contacts which enable the lamp to be removed easily. Remove the old lamp and discard. Install the new lamp, using a clean cloth or paper towel. Ensure that the lamp is firmly seated in the lamp holders.

Note! Never take hold of the lamp such that your fingers are in contact with the lamp glass. Finger oils will greatly reduce the lamp’s operational life.

Step 3 Gently close the face tanner

glass casing and lock it closed with the screws. Ensure that the screws firmly secure the glass casing.

RETAINING

SCREWS

DANGER

Unfiltered light from face tanner can cause severe burns. Never turn sunbed on while face tanner is disassembled or when glass filters are removed. Immediately discontinue use of this equipment if face tanner glass is broken or any unfiltered light can be seen escaping face tanner assembly.

Care and Maintenance - Lamp and Acrylic Replacement

Page 29

28937-01A

roubleshooting

Problem Solution

Sunbed not tanning

Lamps fail to light and timer display is blank

The last minute of tanning time does not count down from 59 seconds, but some time less than 59 seconds

One or more lamps fail to light

The face tanners will not come on

The canopy will not stay up / The canopy will not stay down

My canopy opens and closes too fast (slamming, not enough resistance)

I forgot what address, or “id”, I set my sunbed to

1. Clean sunbed, see Thorough Periodic Cleaning.

2. Ensure supply voltage is between 208 and 230V AC.

3. Replace lamps if lamp hours are greater than 800hrs.

4. Replace acrylic.

1. Make sure the unit is connected to a power source.

2. Check source of AC power. Reset circuit breaker or replace fuse.

If the timer button has been pressed to decrease tanning time during the session, the time expired in the current minute is subtracted from the last minute.

1. Check that lamp is installed correctly.

2. Switch unlit lamp with a lamp that lights, if new lamp lights and old lamp still does not, replace old lamp.

1. Face tanner operation is initially delayed by 5 seconds.

2. Face tanners will not relight until cooled (around 1 minute).

3. Replace face tanner lamp, see Removing/Replacing Face Tanner Lamps.

Your sunbed uses a smooth gliding spring lift system to raise the canopy. This lift system may need to be adjusted slightly from time to time. See Final Adjustments for proper adjustment procedures. The canopy should raise easily as well as rest fully closed.

Your sunbed utilizes a damper which limits the canopy’s movement speed. This also serves as a safety device in case of spring lift failure as the canopy will not crash down. Replace the damper on back of unit.

By holding the body fan button for 3 seconds the timer display will briefly display three numbers; the installed timer software version, a factory set timer code and then the sunbed’s “id” number.

Page 30

28937-01A

Troubleshooting

Problem Solution

Timer display is indicating Er 91

Timer display is indicating Er 92

Timer display is indicating Er 93

Timer display is indicating Er 94

Timer display changes to indicate a tanning time after the timer button is pressed but lamps do not come on

My bed is connected to the TMax® Manager remote system and when the delay time has expired the timer display starts counting down but the bed lights do not come on

My bed won’t work with the TMax® Manager remote system

Timer display continues to show a 0 after the timer button is pressed

Timer software error. Disconnect and reapply power to the unit.

Current sensor indicating unit is off when it should be on. Contact servicer.

Current sensor indicating unit is on when it should be off. Contact servicer.

Requested session time exceeds maximum time allowed.

1. Bypass plug is not installed, see Electrical Connections.

2. A non-SunStar® bypass has been used. See Electrical Connections.

3. If remote is being used, other than T-Max® Manager, the external timer may not be activated.

4. Remote wiring is incorrect, see the instructions provided with the remote interface kit.

The auto start feature of the remote system is disabled, see the instructions provided with your remote system.

1. The sunbed must first be set to a unique address, see Remote Connections.

2. The bypass or terminator plug may be installed in the series in an inappropriate location. Plug the bypass plug only into the bed at the end of the series.

1. T-Max® Manager remote system has not yet been set.

2. Sunbed address is not set correctly, see Remote Connections.

Page 31

28937-01A

Troubleshooting

Problem Solution

My bed is connected to a T-Max® remote system but I am having trouble getting into “id” mode

My bed, connected to a T-Max® Manager, did not display “dL” but does indicate:

“0”

a tanning time and the lamps have come on a tanning time but the lamps have not come on

When auto-addressing the first bed does not register an “id”

When using a T-Max® 1A my sunbed won’t function properly

My salon suffers frequent, short power outages and clients complain about losing session time

You have probably attempted to connect your sunbed to the remote system already. Disconnect the remote plug(s) from the ports at the back of the sunbed, wait 90 seconds and try again.

1. Remote device has not been set.

2. The sunbed has not been connected to the remote system, see Remote Connections.

1. Delay time of T-Max® Manager has not been set.

2. Delay time has expired and session has begun. Auto start function of T-Max® Manager has been turned off. Press the timer button to turn on lamps.

When using the auto address feature of the T-Max® Manager you must wait 10 seconds from the time you start the auto address function before addressing the first bed.

SunStar® Bypass plugs or terminator plugs may be needed if the T-Max® 1A and the sunbed are over 100 feet apart. Install the plugs in the open remote port in the sunbed and the TMax® 1A.

If you have a T-Max® Manager, changing parameter 23 from “0” to “1” will allow the tanning bed to remember how much time was left when power goes out and resume its session after power is restored. Consult your T-Max® Manager manual for information on setting parameters.

Page 32

28937-01A

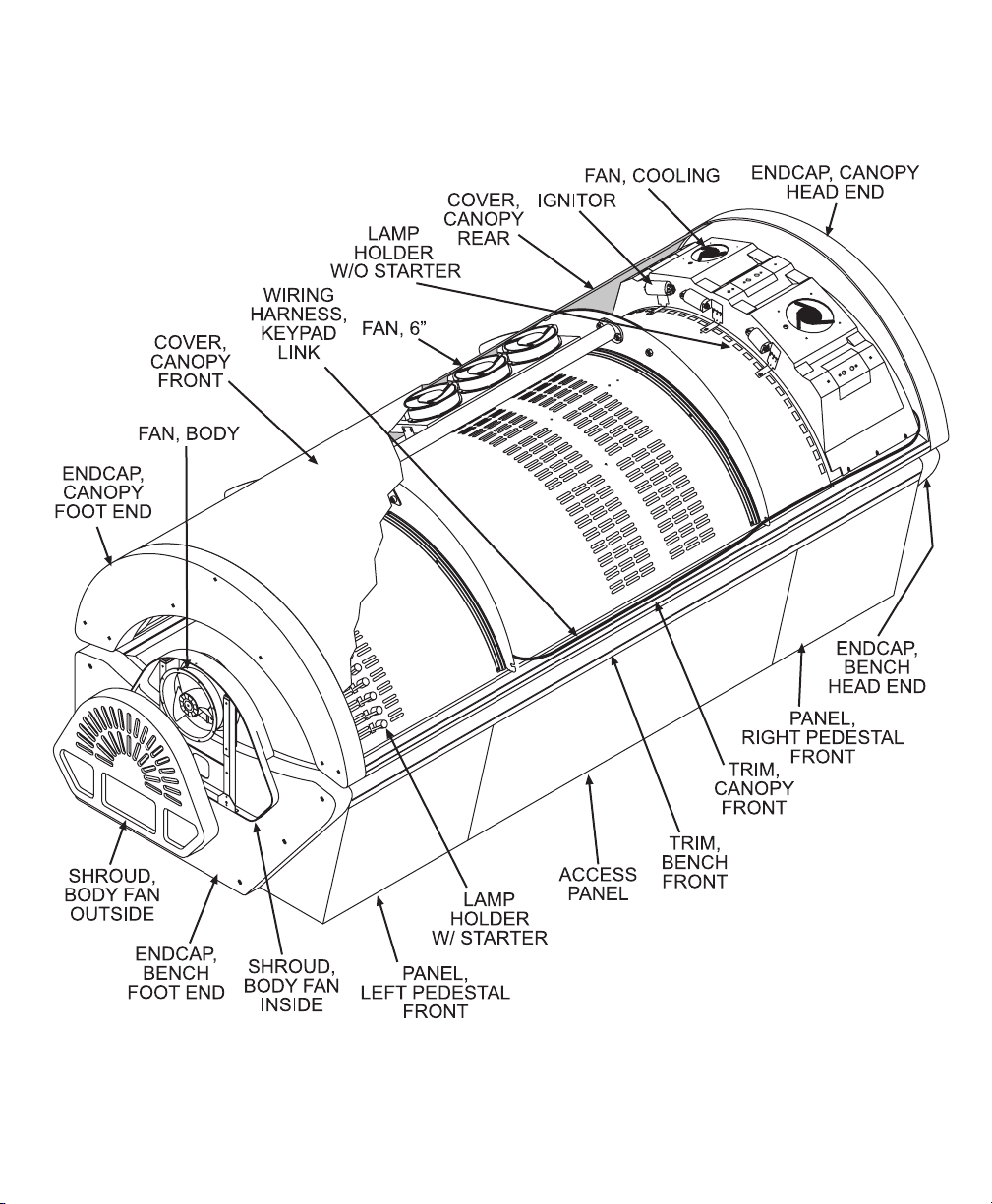

T-542-3F

Page 33

28937-01A

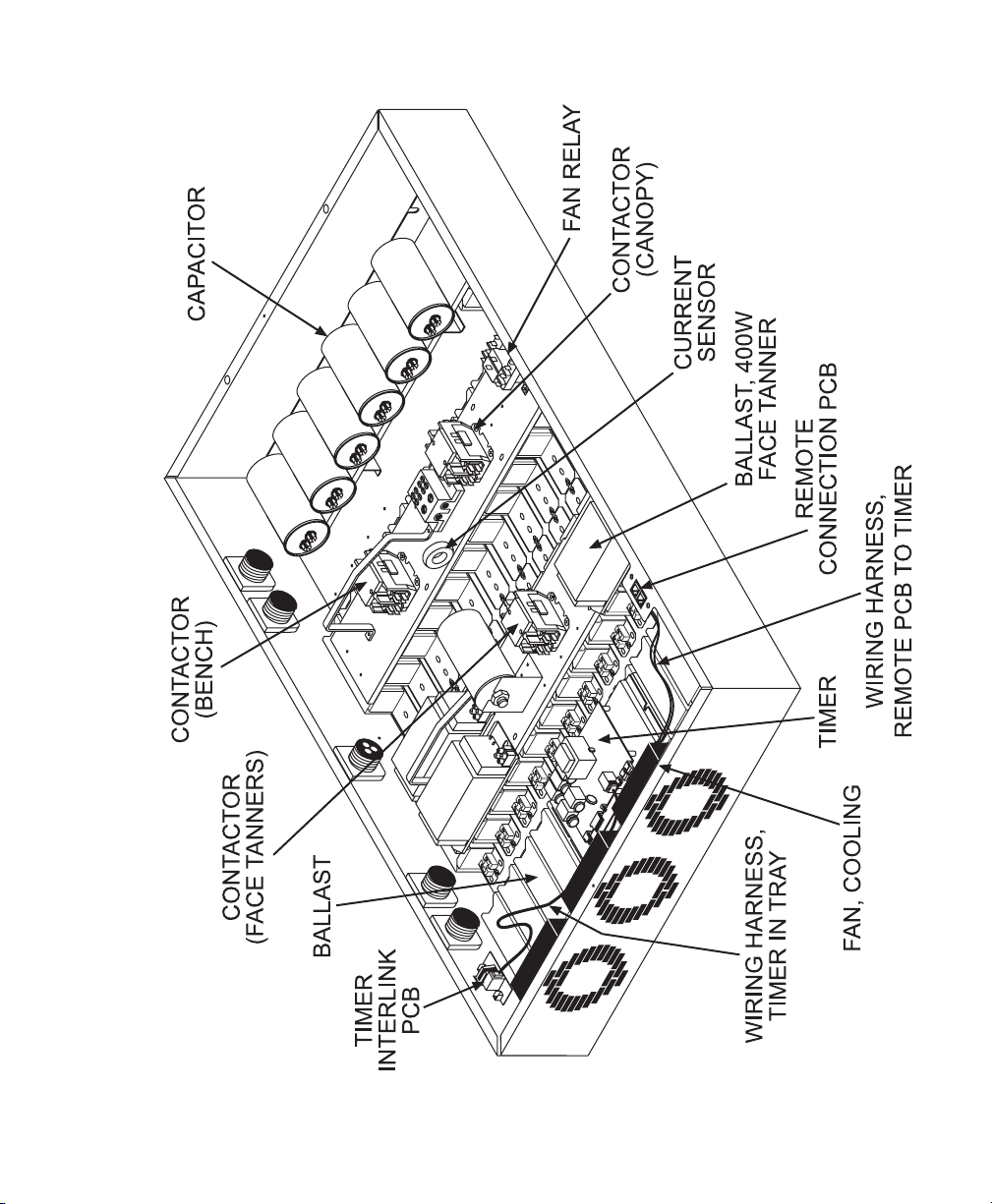

Ballast Tray

Page 34

28937-01A

Parts List

This is a list of parts which may be replaced by

the consumer. Care should be taken when replac-

ing anything related to electrical wiring. We rec-

ommend contacting a professional electrician.

When calling for parts, first state your bed model

as T-542-3F. Then refer to this list and preceding

illustrations for proper part identification.

Access Panel Access Panel Key* Acrylic, Bench*

(with aluminum frame)

Acrylic, Canopy* (with aluminum frame) Acrylic Latch Stud Kit* (4 latches) Acrylic Protector Strip* Ballast, 100W Ballast, 160W Ballast, 400W

(face tanner lamps)

Capacitor, 75uF Contactor Control Cable* Cover, Canopy Front Cover, Canopy Rear Damper* Endcap, Bench Foot End Endcap, Bench Head End Endcap, Canopy Foot End Endcap Canopy Head End Fan, 6” Fan, Body Fan, Cooling Fan Relay Filter* Handle Kit* Hardware Kit*

Hinge Cover Panel* Hour Counter* Ignitor

(face tanner starter)

Lamp Holder w/ Starter Lamp Holder w/o Starter Lamp Holder, Face Tanner* Lamps* Panel, Left Pedestal Front

(all blue)

Panel, Right Pedestal Front (blue/grey) Pillow* Remote Connection PCB* Remote Control Bypass Plug* Schematic Packet* Shroud, Body Fan Inside Shroud, Body Fan Outside Starter Holder Starter, Electronic “Blue Juice”* Support, Bench Acrylic*

(“kickstand”)

Thermostat* (for face tanner) Timer Timer Interlink PCB Timer Keypad Kit*

(circuit board)

Timer Keypad Pushbuttons* Trim, Bench Front Trim, Canopy Front Wiring Harness, Keypad Link*

(in canopy)

Wiring Harness, Remote PCB to Timer Wiring Harness, Resistor Code* Wiring Harness, Timer in Tray Wiring Harness, RJ-11 Canopy to Bench*

Record this information for ease of service:

Date of purchase:

Serial number:

* Not shown

Page 35

28937-01A

WHEN

What to do

After each use Monthly 400-500hrs 600-800hrs

A. Clean/Disinfect Interior Surfaces*



B. Clean Lamps*



C. Clean Reflectors*



D. Clean Exterior



E. Check/Clean Fans†



F. Change Lamps**



H. Check Fasteners (nuts, bolts, etc.)*



I. Check Power Cords*



J. Change Filters*



* See Care and Maintenance ** See Lamp and Grill Replacement † Fans are located on top of the canopy, under the bench and at the side of the ballast drawer. Use a vacuum to clean.

MAINTENANCE LOG

What When What When What When

example B C D E 4/15/09

Page 36

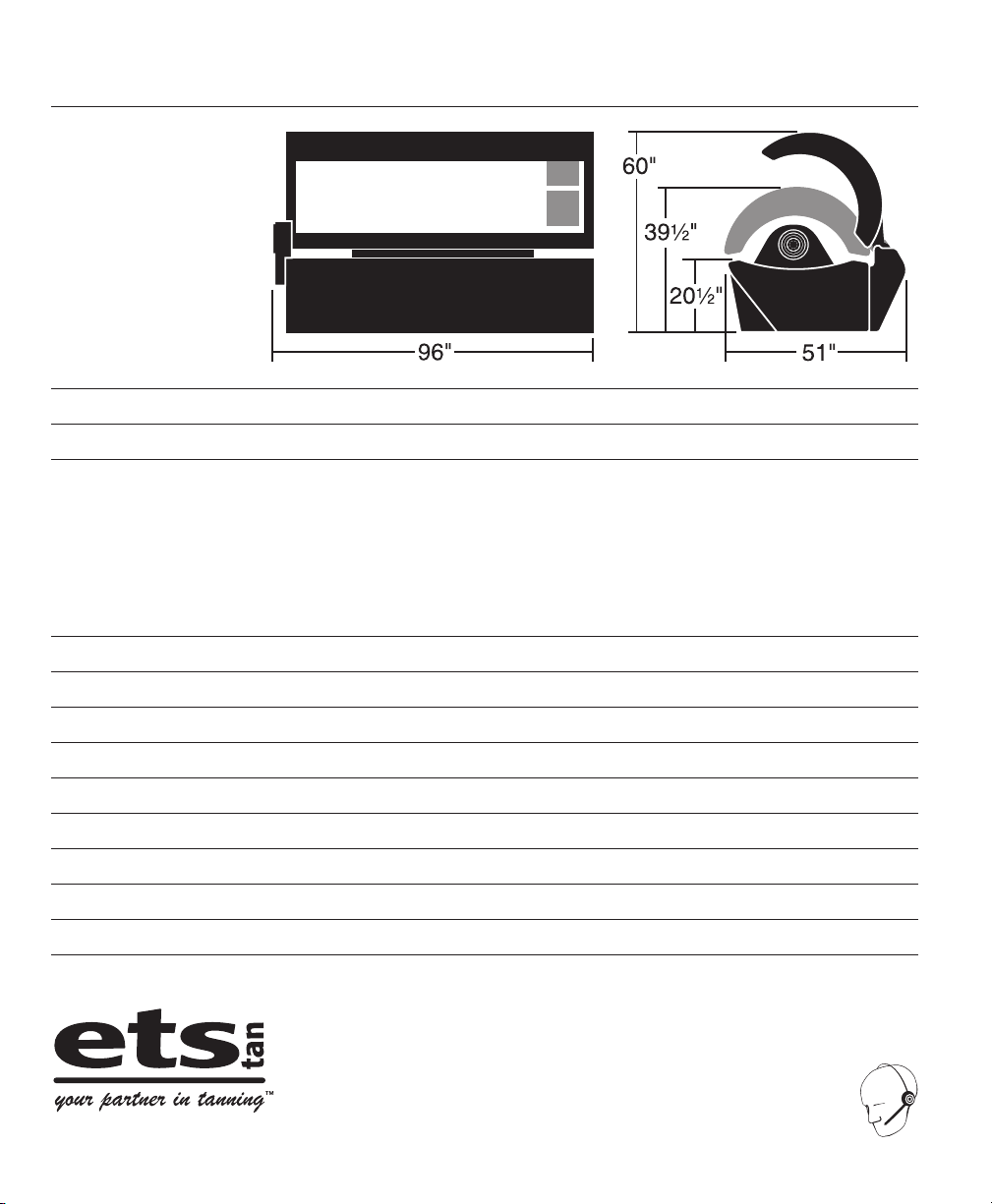

SOLARIS 542

Size

Weight (Pounds) 930 Recommended Room Size 9’ x 10’ Electrical -

Voltage (AC) 220 Amperage 40 Circuit Breaker (Amps) 50 Outlet Hardwire

Main Lamps (bench) BRONZING SUN™ PLUS Main Lamps (canopy) Velocity® VS-R™ Ballasts 100W (bench) / 160W (canopy) Face Tanner SolarMax™ IFT FT Ballasts 400W Cooling System 825cfm body fan Timer System Digital Max. Exposure Time 12 minutes Back-up Timer Digital “Watchdog” circuitry Remote Capability T-Max® compatible (Wireless ready)

U.S. Patent 6,660,025 B2

Proudly manufactured in the U.S.A.
