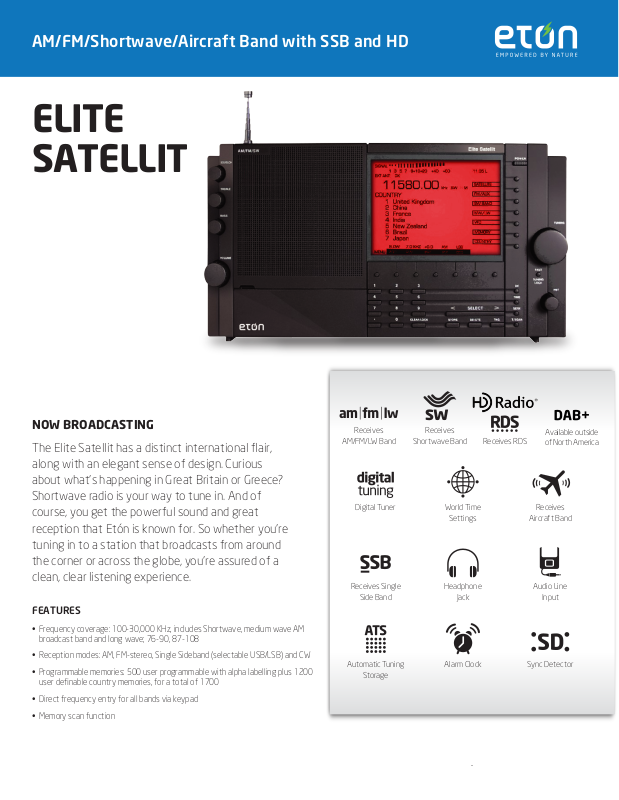

Page 1
AM/FM/Shortwave/Aircraft Band with SSB and HD
ELITE
SATELLIT
NOW BROADCASTING
The Elite Satellit has a distinct international flair,
along with an elegant sense of design. Curious
about what’s happening in Great Britain or Greece?
Shortwave radio is your way to tune in. And of
course, you get the powerful sound and great
reception that Etón is known for. So whether you’re
tuning in to a station that broadcasts from around
the corner or across the globe, you’re assured of a
clean, clear listening experience.
FEATURES
• Frequency coverage: 100-30,000 KHz, includes Shortwave, medium wave AM
broadcast band and long wave; 76-90, 87-108
• Reception modes: AM, FM-stereo, Single Sideband (selectable USB/LSB) and CW
• Programmable memories: 500 user programmable with alpha labelling plus 1200
user definable country memories, for a total of 1700
• Direct frequency entry for all bands via keypad
• Memory scan function
Receives
AM/FM/LW Band
Digital Tuner
Receives Single
Side Band
Automatic Tuning
Storage
Receives
Shortwave Band
World Time
Settings
Headphone
Jack
Alarm Clock
Receives RDS
Available outside
of North America
Receives
Aircraft Band
Audio Line
Input
Sync Detector
-
Page 2
AM/FM/Shortwave/Aircraft Band with SSB and HD
ADDITIONAL FEATURES
• Excellent sensitivity: yielding a true high-performance receiver
• Dual conversion super heterodyne circuit: results in minimized interference
through superior selectivity
• Calibrated LCD signal strength meter
• Digital Phase Lock Loop (PLL) synthesized tuning with Direct Digital Synthesis
(DDS) for drift-free frequency stability and finest tuning resolution
• Tuning modes: variable-rate tuning knob, direct keypad frequency entry,
up/down push buttons and auto-tuning
• Direct Shortwave band entry, allows instant access to the Shortwave band of choice
• IF passband tuning: an advanced tuning feature that functions in AM and SSB
which greatly helps reject interference
• Single sideband synchronous AM detector: selectable USB/LSB or double sideb and
to minimize adjacent frequency interference and fading distortion of AM signals
• Selectable bandwidths: 7.0, 4.0, 2.5 kHz for excellent selectivity
• Digital display: large 5.7 inch square, 240 x 320 pixel, dot matrix display- shows
all modes and selected functions
• Display backlighting: evenly lit backlight enables display viewing under all lighting conditions
• High dynamic range: allowing for detection of weak signals in the presence of strong signals
• Dual programmable clocks with WWV Auto-Setting
• Dual-event programmable ON/OFF timers: can be used for recording or ‘alarm clock’ function
• Stereo line-level input: allows listening to other devices such as a CD player through the Elite Satellit
• Stereo line-level output: for recording or routing the output to another device
such as a home stereo
• Input for AC adapter (included), input for earphones (not included), input for antenna (not included)
• External antenna connection for the addition of auxiliary antennas, e.g. professionally
engineered Shortwave antennas; long-wire Shortwave antennas; specialized AM
broadcast band antennas for enthusiasts of AM DX’ing; FM broadcast band antennas
• Separate, continuous bass and treble tone controls
• Superior audio quality via a bridged type audio amplifier, providing high output power
with battery operation
• Selectable AGC (Automatic Gain Control): fast and slow mode
• Built-in antenna: telescopic antenna for AM, FM and Shortwave reception
• Power source: 4 D batteries (not included) or AC adapter (included)
SHORTWAVE BANDS
AM 520-1710 kHz (10k)
FM 87.5-108 MHz
LW 150-285 kHz
SW 17.11-30 MHz
AIR 118-136 MHz
PRODUCT SETUP INFORMATION
Color Item Number UPC
Elite Satellit NELITESATELLIT 750254811081
What's Included Product Size & Weight
Elite Satellit Height: 7-1/2" (18.8 cm)
Owner's Manual Width: 13" (33.3 cm)
AC/DC Adapter Depth: 2-1/2" (6.6 cm)
Weight: 4 lbs 3 oz (1.9 kg)
Packaging Dimensions Master Carton Dimensions
Height: Height:
Width: Width:
Depth: Depth:
Weight: Weight:
Case Quantity 4
DIGITAL OPTIONS
HD Radio
DAB+ Internationally
Meet the Elite Family of Shortwave Radios
Elite 750 Elite FieldElite Executive HD Elite Traveler Elite Mini
