www.etiger.com

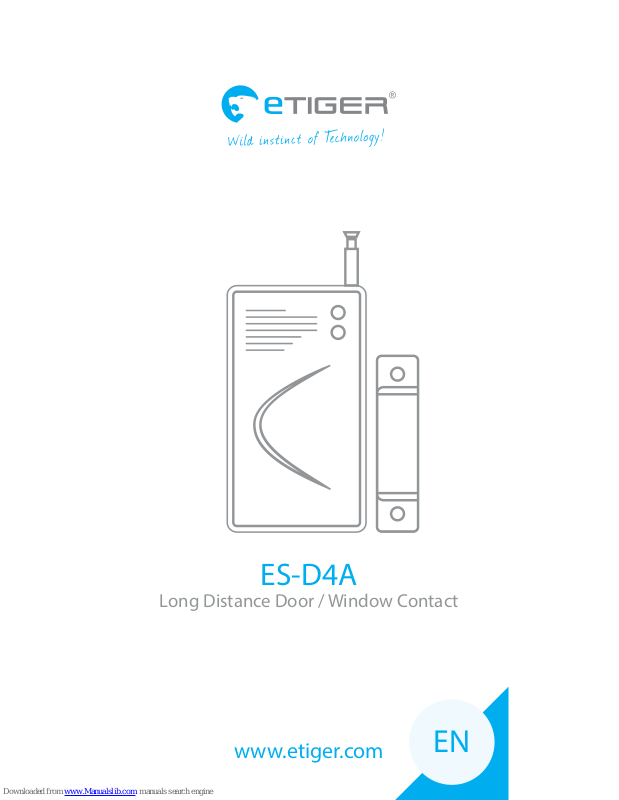

ES-D4A
Long Distance Door / Window Contact
EN
Box Content
1 x Long Distance Door / Window Contact
1 x User Manual
Undervoltage
LED
Operation
LED
Magnet
Transmitter
360° Rotating Antenna
Images, illustrations and text are non-contractual.
ETIGER and the ETIGER logo are registered
trademarks and the property of ETIGER.
Copyright © 2015 ETIGER. All rights reserved.
Installation
-
Clean the door on which the detector will be
installed.
-
Tear apart the double-sided tape on the front of
the magnet and x it to the desired location. The
magnet must be installed less than 2 cm away
from the transmitter
For stronger installation, the detector can also be
mounted with screws: remove the plastic cover of
the magnet and drive two screws through it.
If mounted on a metal door or window and
transmission signal is not sucient, place a nonmetallic layer under the magnet.
Register the detector in the alarm system
Switch to Connection Mode on the control panel.
Separate the magnet of the detector from its
transmitter. The control panel beeps once: the
detector is registered. If you hear two beeps, the
detector has already been connected.
+ 12/23 Battery -
Jumpers for
Zone setup
Wired Magnet-
ic Door Sensor
Inteface
D3
D2
D1
D0
Zone setup
The detector can be assigned to dierent
categories of zone, by opening its case and
moving its jumpers according to the drawing
below:
Zone A Zone B
Zone C Zone D
Zone E Zone F
24h Zone
It is recommended to set
the smoke detector, the gas
detector and the outdoor
beam sensor at 24-H zone.
The detector is assigned to zone C by default.
The detector can be assigned to a dierent zone
depending on your needs. For more information
on the zone set up, please refer to the instruction
manual of your eTiger alarm system.
Specications
Power Supply:
DC 12V (A23 12V
battery x1)
Static current:
≤30 uA
Alarm current:
≤40 mA
Transmission distance
≤ 300 m (in open area)
Radio-frequency:
433MHz (±75KHz)
Housing material:
ABS plastic
Operating conditions:
Temperature:
-10°C ~ +55°C
Relative Humidity:
≤80% (non-condensing)
Transmitter dimensions:
92 x 36 x 20 mm
Magnet dimensions:
64 x 13 x 13 mm
Standards
This product bears the selective sorting symbol for
waste electrical and electronic equipment (WEEE).
This means that this product must be handled
pursuant to European Directive 2002/96/EC in
order to be recycled or dismantled to minimize
its impact on the environment. For further
information, please contact your local or regional
authorities. Electronic products not included in the
selective sorting process are potentially dangerous
for the environment and human health due to the
presence of hazardous substances.
In compliance with European laws. This product
is in compliance with the essential requirements
and other relevant provisions of Directive
1999/5/EC (R&TTE).
This product was designed and manufactured
in compliance with Directive 2002/95/EC of the
European Parliament and of the Council on the
restriction of use of certain hazardous substances
in electrical and electronic equipment (RoHS
Directive - RoHS) and is deemed to comply with
the maximum concentration values set by the
European Technical Adaptation Committee (TAC).
Manufactured in China.
ES-D4A-UM-EN20150212-3.1-W
This user manual is available in other
languages at
www.etiger.com/eu/support
ETIGER EUROPE
Rue de la Loi, 25, 7100 La Louvière, Belgium
