ES-D3A
Wireless Door / Window Contact
Page 2
Box Content
1 x Door / Window Contact
1 x User Manual

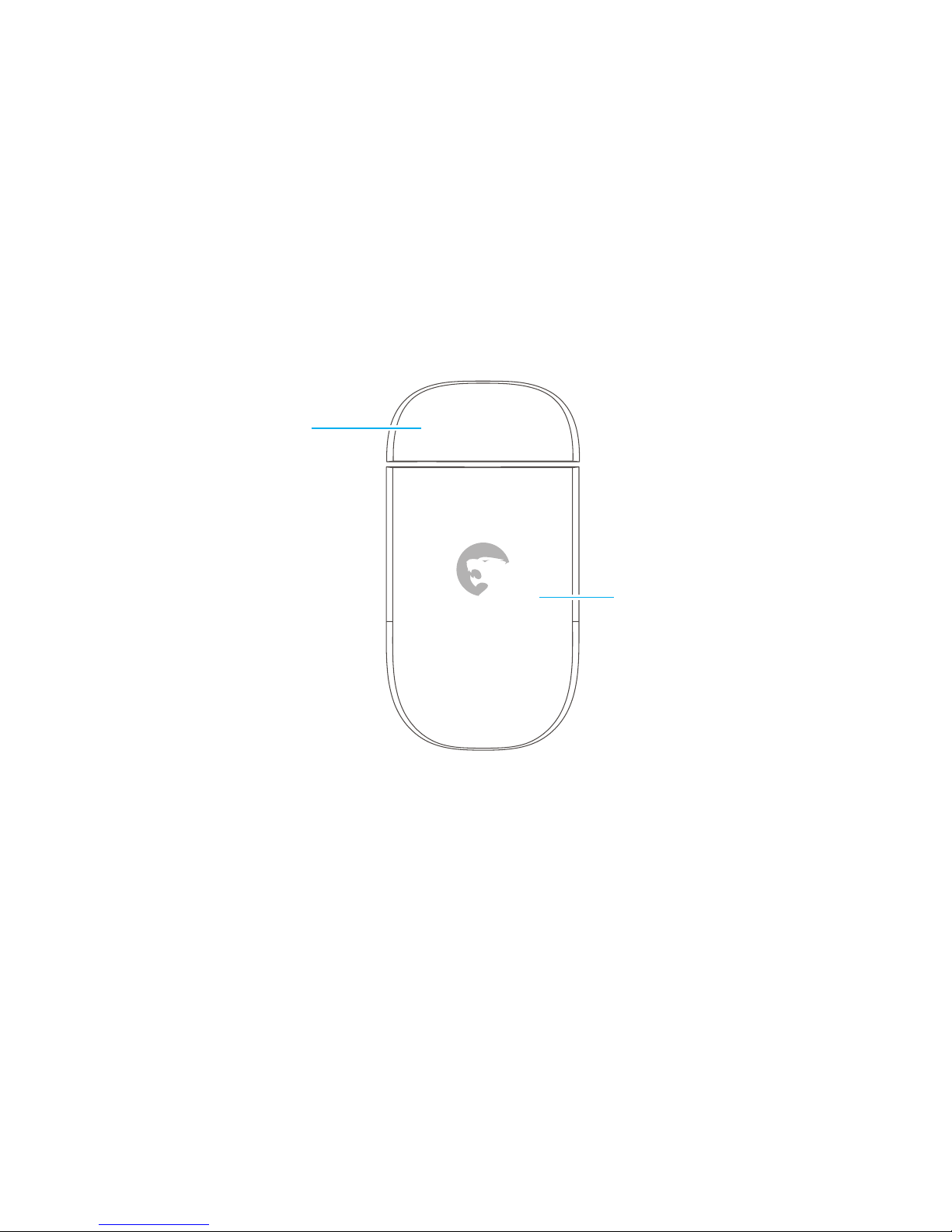

Transmitter
Magnet
Images, illustrations and text are non-contractual. ETIGER and
the ETIGER logo are registered trademarks and the property of
ETIGER. Copyright © 2015 ETIGER. All rights reserved.
Page 3
Installation
- Open the case and remove the battery activation
strip.

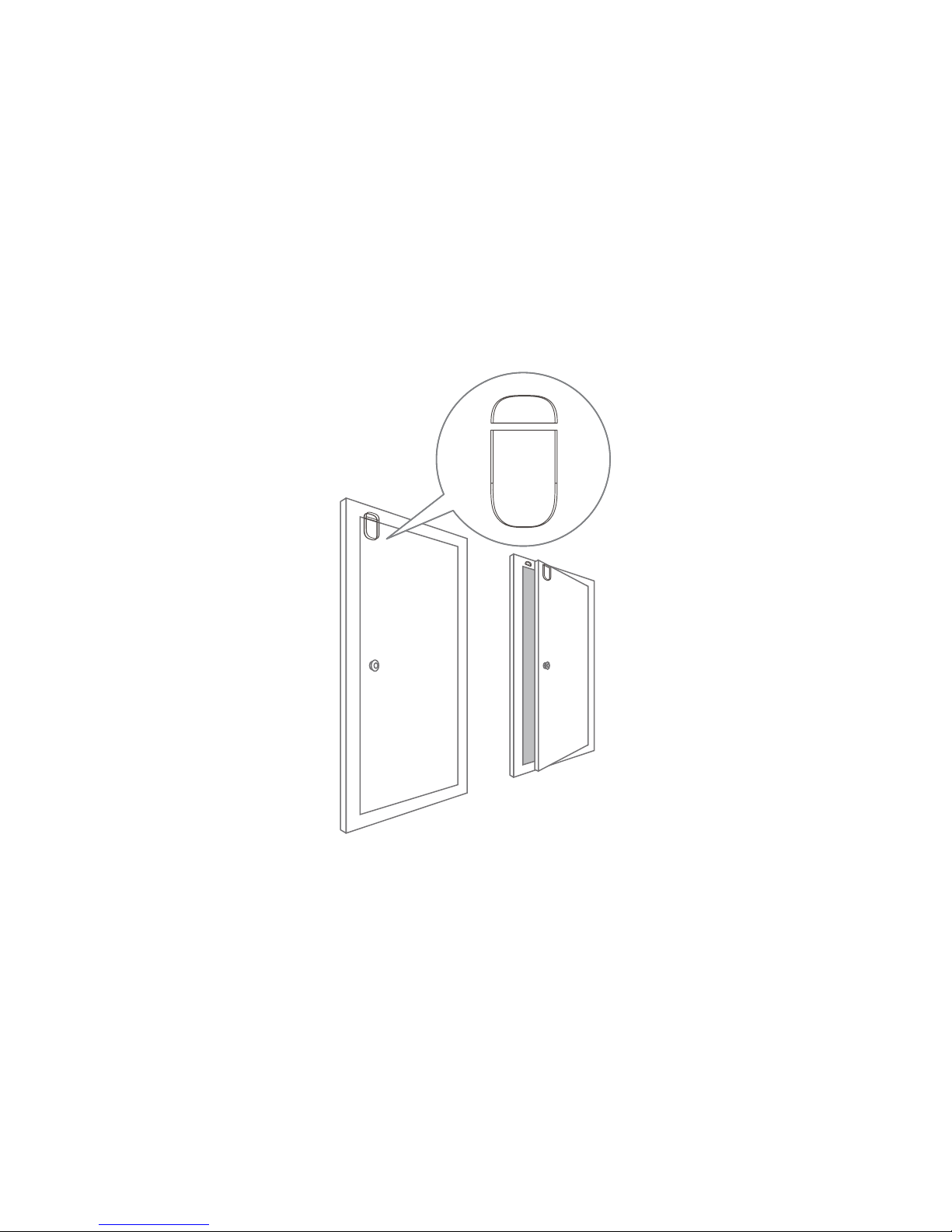

- Mount the sensor on the door and the magnet on
the door frame.
- Make sure the magnet is placed above of the
transmitter.
- Mount the magnet max. 1cm away from the
transmitter and secure the transmitter and
magnet with double-sided tape or screws.
- Avoid mounting the sensor in areas with a large
amount of metal or electrical wiring, such as a
furnace or utility room.
Register the detector in the alarm system
Switch to Connection Mode on the control panel.
Separate the magnet of the detector from its
transmitter. The control panel beeps once: the
detector is registered. If you hear two beeps, the
detector has already been connected.
Page 4
To check if the registration is complete, arm
the system and separate the magnet from the
transmitter again by opening the door or window
on which it is installed. If the siren rings out, the
registration is successful.
Page 5

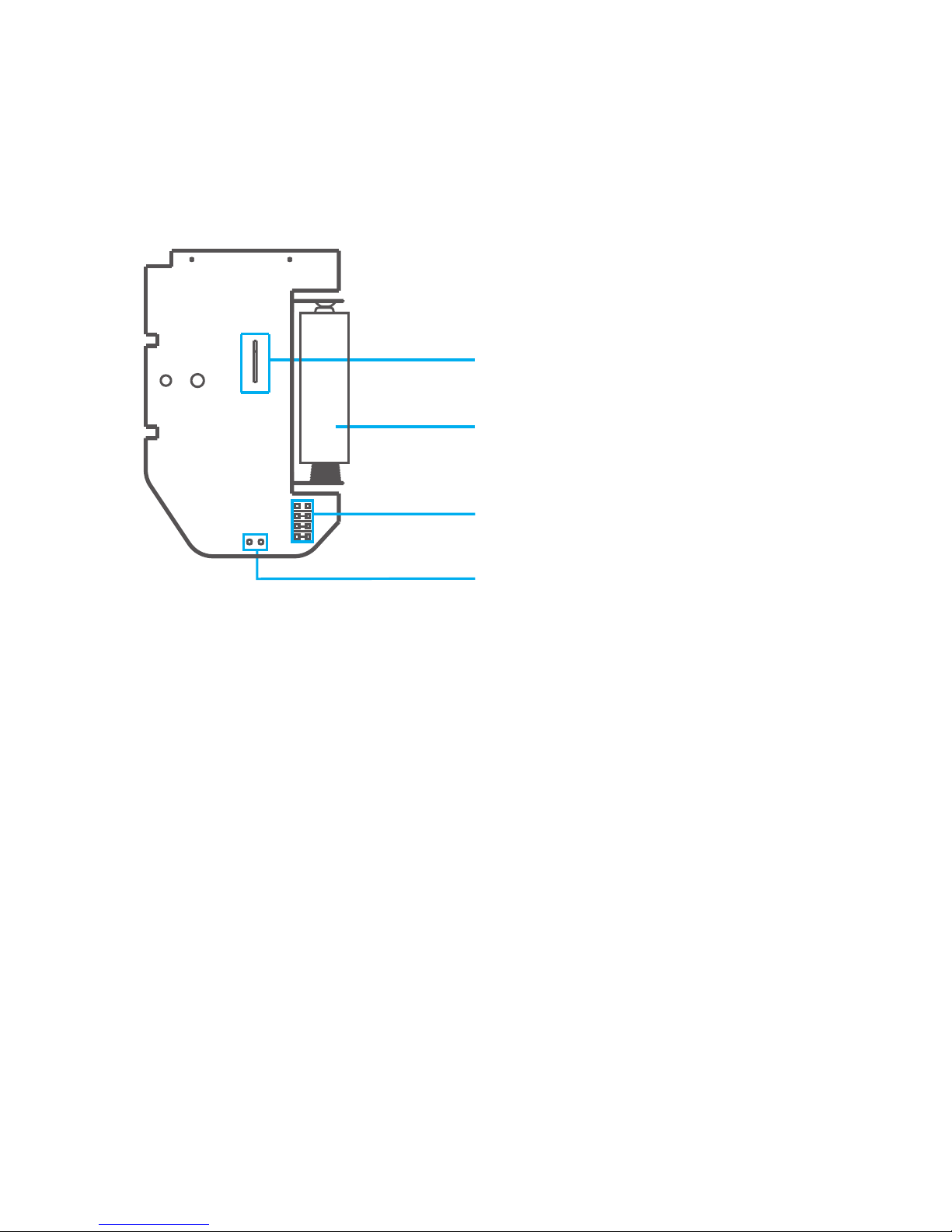

PCB Layout
LED indicator
Jumpers for zone setup
A23 12V Battery
Tamper switch
Infrared sensor: Detects the infrared rays released
by human body motion. Do not touch the surface.
Keep the surface clean.
Tamper switch: When the alarm system is armed,
the tamper switch will trigger the alarm if the case
is opened.
Jumpers for Zone setup: The jumpers enable you
to assign the detector to a specic zone. Refer to
the user manual of your alarm system for more
information on zone set up.
Page 6
Specications
Power Supply
DC 12V
(A23 12V battery x1)
Static current
≤30 uA
Alarm current
≤40 mA
Transmission distance
≤ 80 m (in open area)
Radio-frequency
433MHz (±75KHz)
Housing material
ABS plastic
Operating conditions
Temperature:
-10°C ~ +55°C
Relative Humidity: ≤80%
(non-condensing)
Transmitter dimensions
60 x 43 x 18 mm
Magnet dimensions
19 x 43 x 18 mm
LED indications
Blinks once
The door or window is open and the transmitter
sends a signal to the control panel.
Blinks quickly
Low power indication: the batteries must be replaced.
Page 7
Standards
This product bears the selective sorting symbol for waste
electrical and electronic equipment (WEEE). This means
that this product must be handled pursuant to European
Directive 2002/96/EC in order to be recycled or dismantled
to minimize its impact on the environment. For further
information, please contact your local or regional authorities.
Electronic products not included in the selective sorting
process are potentially dangerous for the environment and
human health due to the presence of hazardous substances.
In compliance with European laws. This product is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC (R&TTE).
This product was designed and manufactured in compliance
with Directive 2002/95/EC of the European Parliament and
of the Council on the restriction of use of certain hazardous
substances in electrical and electronic equipment (RoHS
Directive - RoHS) and is deemed to comply with the
maximum concentration values set by the European Technical
Adaptation Committee (TAC).
Manufactured in China.
ES-D3A-UM-EN20150212-3.1-W
Page 8
This user manual is available in other languages at
www.etiger.com/eu/support
ETIGER EUROPE
Rue de la Loi, 25, 7100 La Louvière, Belgium
