Pet-Immune Wireless Motion Detector
ES-D2A
www.etiger.com
EN
Box Content
1 x PIR Pet-Immune Motion Detector
1 x Bracket
1 x User Manual
The ES-D2A is a high performance wireless petimmune PIR motion detector. This motion detector
will not trigger the alarm when your pets (under 25kg)
move inside your home, even if your alarm system is
armed.
Before Using for the First
Time
Open the case and remove the battery activation
strip to activate the batteries. Self-testing starts for 30
seconds.
Images, illustrations and text are non-contractual. ETIGER and the
ETIGER logo are registered trademarks and the property of ETIGER.
Copyright © 2015 ETIGER. All rights reserved.
Installation
Fix the bracket on the wall with screws and attach the
detector to the bracket. Adjust the bracket to change
the detection distance and angle. It is recommended
to mount the detector 2m from the ground.
Avoid mounting the detector close to windows, air
conditioner, heater, refrigerator, oven, sunshine and
places where the temperature changes fast or where the
air stream ows frequently.
If two detectors are installed in the same detection scope,
adjust the location to avoid interferences and false
alarms.
The detector is more sensitive to cross movements than
vertical movements.
Top view
Side view
Detection scope
Mode Setting
Testing mode
Once the self-testing is complete, long press the test
button. The sensor switches to testing mode, and scans
once every 10 seconds. After 3 minutes, the LED blinks
twice, and the sensor switches to working mode.
Working mode / Stand-by mode
In working mode, if the sensor is triggered more than
twice within 3 minutes, it will switch to standby mode
to save power. If no movement is detected within the
next 3 minutes, the sensor goes back to working mode.
Register the detector in the
alarm system
Switch to Connection Mode
on the control panel. Press
the test button of the sensor
twice. The control panel beeps
once: the motion detector
is registered. If you hear
two beeps, the detector has
already been connected.
To check if the registration is complete, arm the system
and trigger the sensor again. If the siren rings out, the
registration is successful.

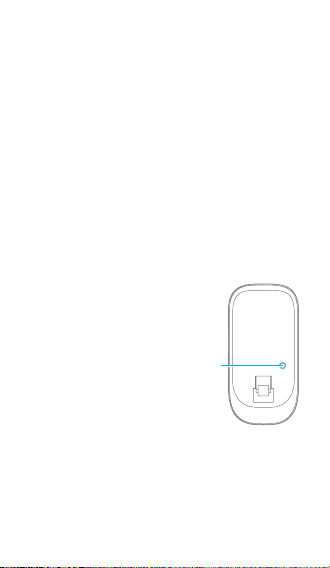

Test
Button
Specications
Power Supply:
DC 3V (AA 1.5V LR6 x2)
Static current:
≤90uA
Transmitting current:
≤9.5mA
Transmission distance:
≤ 80 m (in open area)
Radio-frequency:
433MHz (±75KHz)
Housing material:
ABS plastic
Operating conditions:
Temperature:
-10°C ~ +55°C
Relative Humidity: ≤80%
(non-condensing)
Detector dimensions:
107 x 53 x 32 mm
Bracket dimensions:
52 x 30 x 26.5 mm
LED indications
Blinks continuously: Self-testing
Blinks once: An intruder is detected
Blinks twice: Self-testing is complete; entering
working mode
Blinks three times every 3 seconds: Under-voltage
indication: the batteries must be replaced (the user will
be informed by SMS when the batteries are low if the
detector is registered in the control panel).

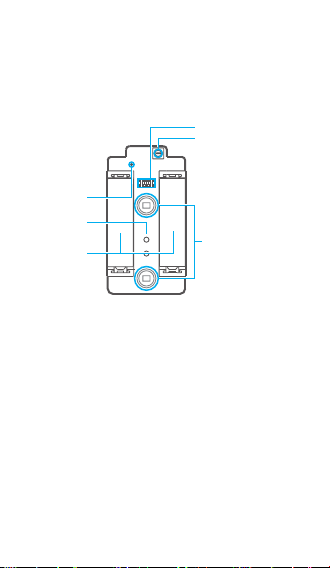

PCB Layout
Jumpers for zone setup
Tamper switch
Antenna
LED indicator
AA 1.5V LR6
Infrared sensor: Detects the infrared rays released by
human body motion. Do not touch the surface. Keep
the surface clean.
Tamper switch: When the alarm system is armed,
the tamper switch will trigger the alarm if the case is
opened.
Jumpers for Zone setup: The jumpers enable you to
assign the detector to a specic zone. Refer to the user
manual of your alarm system for more information on
zone set up.
Infrared sensor
Standards
This product bears the selective sorting symbol for
waste electrical and electronic equipment (WEEE). This
means that this product must be handled pursuant
to European Directive 2002/96/EC in order to be
recycled or dismantled to minimize its impact on the
environment. For further information, please contact
your local or regional authorities. Electronic products
not included in the selective sorting process are
potentially dangerous for the environment and human
health due to the presence of hazardous substances.
In compliance with European laws. This product is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC (R&TTE).
This product was designed and manufactured in
compliance with Directive 2002/95/EC of the European
Parliament and of the Council on the restriction of
use of certain hazardous substances in electrical and
electronic equipment (RoHS Directive - RoHS) and is
deemed to comply with the maximum concentration
values set by the European Technical Adaptation
Committee (TAC).
Manufactured in China.
ES-D2A-UM-EN20150226-3.2-W
This user manual is available in other languages at
www.etiger.com/eu/support
