eTIGER ESB-WS2A User Manual

Secual Box V2

GSM/WIFI ALARM SYSTEM

ESB-WS2A

www.etiger.com

Box contents............................................................................................................................................ 3

Design ...................................................................................................................................................... 3

Install APP on your Smart phone .......................................................................................................... 4

Step1: Download and Install APP ..................................................................................................... 4

Step2: Create an account ................................................................................................................... 4

Step3: Login ........................................................................................................................................... 4

Connect Secual box to your APP account ............................................................................................ 5

Step 1: Connect to control panel’s AP ............................................................................................. 5

Step 2: Connect control panel to home’s Wi-Fi ............................................................................. 5

Step 3: Connect control panel to the Server .................................................................................. 6

Use Secual Box with SIM card ............................................................................................................... 7

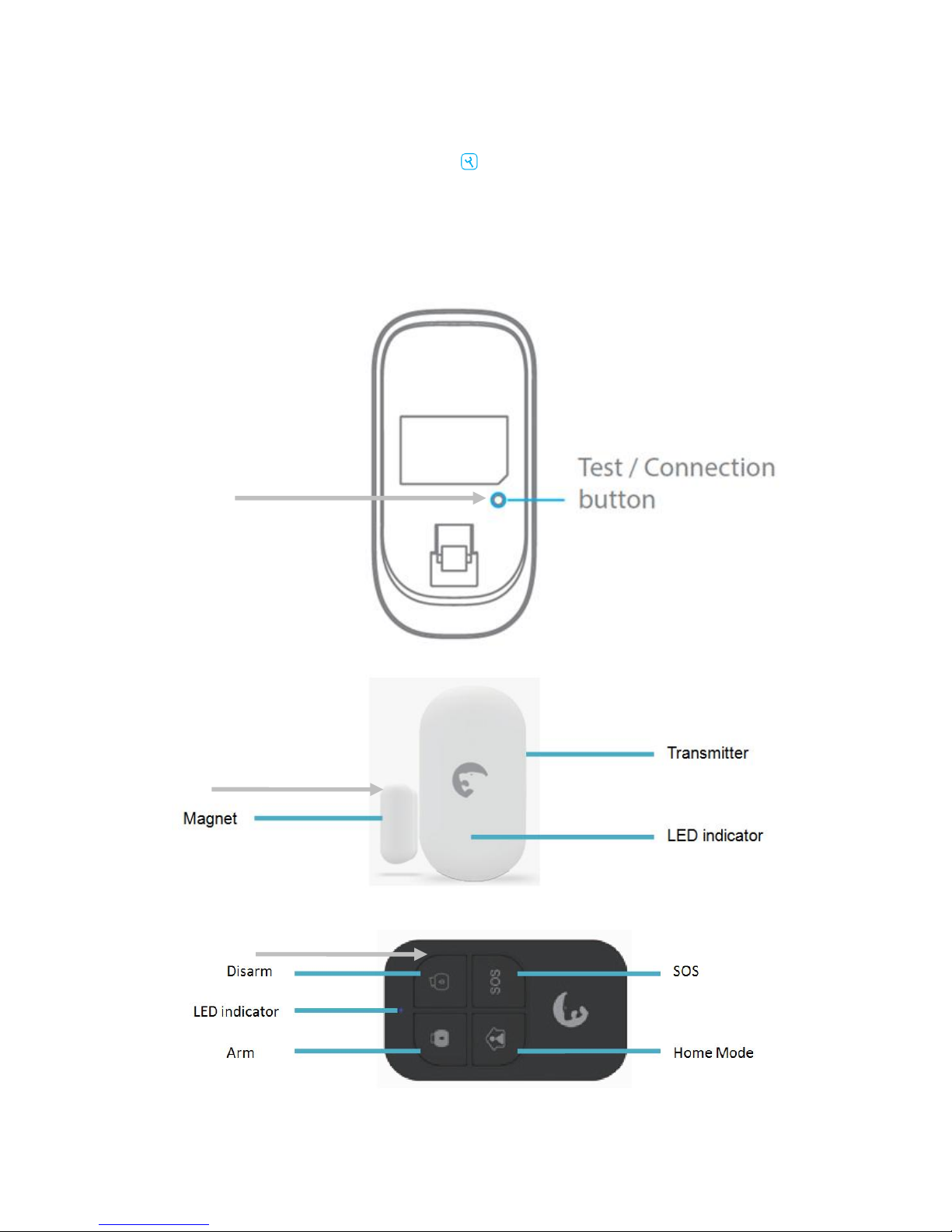

Connect wireless accessories ................................................................................................................ 8

Daily use .................................................................................................................................................. 9

Arm the system ....................................................................................................................................... 9

Arm in Home mode ................................................................................................................................. 9

Disarm the system .................................................................................................................................10

SOS function ..........................................................................................................................................10

Control by phone call ...........................................................................................................................11

Warning .................................................................................................................................................12

Normes ..................................................................................................................................................13

Box contents

- Control panel x1

- ES-D2A (Pet-immune motion sensor) x1

- ES-D3D(Door/Window contact) x1

- ES-RC1N (Remote controls) x2

- AC Adapter x1

- crews and anchors

- Documentation

Design

Top: Status Indicator

Blue fixed: system armed
Blinking blue: Home mode
Blinking slowly white: connected to GSM signal
Blinking rapidly white: not connected to GSM signal

Bottom: Power / Network Indicator

Green fixed only: Not connected to Wi-Fi router
Green + Blue(Continuous): Connected to Wi-Fi router

Install APP on your Smart phone

Step1: Download and Install APP

1.1 Download APP “Secual Box V2” on your smart phone. The app is available on the
App Store and Google Play.

1.2 Run and install the APP on your smart phone.

Step2: Create an account

2.1 Connect your phone to home’s Wi-Fi router.

2.2 Run the “Secual Box V2” on your smart phone.

2.3 Click “Register” to enter “Create your Account” interface.

2.4 Fill the Username, Password and Email in the fields, click “ ” to save the information.

Step3: Login

3.1 Enter the “Username” and “Password”.

3.2 Click “Login” to enter the APP.

2.4

2.3

3.1

3.2
