Page 2
Page 3
The IPL-E router is manufactured by
ETIC TELECOM
13 Chemin du vieux chêne
38240 MEYLAN
FRANCE
TEL : + 33 4-76-04-20-00
Hotline : + 33 4-76-04-20-05
FAX : + 33 4-76-04-20-01
E-mail : [email protected]
web : www.etictelecom.com
Page 4
Page 5
Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A Page 5
CONTENT
OVERVIEW ....................................................................................................................... 7
1
Certificate of conformity .................................................................................. 7
2
Products identification .................................................................................... 8
3
Data-sheet ..................................................................................................... 10
4
Product Overview .......................................................................................... 12
4.1 Applications .............................................................................................. 12
4.2 Functions .................................................................................................. 13
4.3 Router interfaces & organisation ................................................................ 14
INSTALLATION .............................................................................................................. 15
1
Product description ....................................................................................... 15
1.1 Dimensions ............................................................................................... 15
1.2 Push-buttons ............................................................................................ 15
1.3 Connectors ................................................................................................ 15
1.4 IPL-E-400 or IPL-EW-400 (WiFi option) ..................................................... 19
1.5 IPL-E-220 or IPL-EW-220 (WiFi option) ...................................................... 20
1.6 IPL-E-230 or IPL-EW-230 (WiFi option) ...................................................... 21
1.7 IPL-E-260 or IPL-EW-260 (WiFi option) ...................................................... 22
1.8 IPL-E-261 or IPL-EW-261 (WiFi option) ...................................................... 23
2
Mounting the product on a Din rail ................................................................. 24
3
Cooling .......................................................................................................... 24
4
Supply voltage ............................................................................................... 24
5
Digital input and output ................................................................................. 25
6
RS232 ........................................................................................................... 25
7
RS485 connection (IPL-E-220 or IPL-EW-220) ............................................... 25
8
RS422 isolated interface (IPL-E-260 or IPL-EW-260) .................................... 27
9
RS485 isolated interface (IPL-E-261 or IPL-EW-261) ..................................... 28
Page 6
CONTENT
Page 6 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
PREPARING THE SETUP ................................................................................................ 29
1
First setup ..................................................................................................... 29
2
Protecting the access to the administration web server ................................. 29
3
HTTPS set-up modifications through the WAN interface ................................ 30
4
Recovering the factory LAN IP address .......................................................... 30
5
Restoring the factory set-up .......................................................................... 30
6
Saving or restoring a set of parameters ......................................................... 31
7
Configuration steps ....................................................................................... 32
DIAGNOSTIC .................................................................................................................. 34
1
Diagnostic ..................................................................................................... 34
1.1 Logs .......................................................................................................... 34
1.2 Network status .......................................................................................... 35
1.3 Serial gateways status ............................................................................... 36
1.4 « Ping » tool .............................................................................................. 36
1.5 « WiFi » scanner tool .................................................................................. 36
2
Firmware update ............................................................................................ 37
Page 7
Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A Page 7
OVERVIEW
Certificate of conformity
The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares
that the listed products
Type of device : Ethernet interfaces IP router
Reference : IPL-E
conforms to the Council Directive 1999/5/EC related to radio and telecommunication terminal equipment.
The harmonized standards to which the equipment complies are :
Standard
Title
EN301489-1
Electromagnetic compatibility and Radio spectrum Matters :
Part 1 : General requirements
EN61000-6-2
Ed. 2001
Immunity :
EN60100-4-2 Electrostatic Discharge
EN60100-4-3 Radiated Immunity
EN60100-4-4 EFT/Burst Immunity
EN60100-4-5 Surge Immunity
EN60100-4-6 Conducted Immunity
EN61000-6-4
Ed 2001
Emission :
EN55022 radiated and conducted emission
EN60950
Security
EN50385
Human exposure to radio frequency fields exposure
Philippe DUCHESNE
Quality manager
5th January 2015
Page 8
OVERVIEW
Page 8 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
Products identification
The present user guide describes the products listed hereafter.
Router without WiFi
IPL-E-
400
220
230
260
261
IP routing
• • • • •
Firewall SPI
• • • • •
IPSEC & OpenVPN VPNs (16 tunnels max.)
• • • • •
25 remote users RAS
PPTP / L2TP/IPSec / OpenVPN / HTTPS
• • • • •
HTTPS portal
• • • • •
Serial gateway (Raw TCP & UDP, Telnet, Modbus,
Unitelway)
- • • •
Ethernet 10 / 100 BT (LAN / WAN)
4 / 1
2 / 1
2 / 1
2 / 1
2 / 1
RS232
- 1 2
-
-
RS485 - 1
- - -
RS422 isolated
-
-
- 1 -
RS485 isolated
-
-
- - 1
USB
1
1
1 1 1
NAT
• • • • •
Port forwarding
• • • • •
SNMP
• • • • •
DNS
• • • • •
DHCP server on the LAN inteface
• • • • •
Digital input for alarm email
1 1 1 1 1
HTTPS / HTML / SSH configuration
• • • • •
Page 9
OVERVIEW
Router Firewall IPL-E User Guide 9021209-01 Page 9
Router with WiFi interface
IPL-EW-
400
220
230
260
261
IP routing
• • • • •
WiFi 2.4 & 5 GHz Client or Access point
• • • • •
Firewall SPI
• • • • •
IPSEC & OpenVPN VPNs (16 tunnels max.)
• • • • •
25 remote users RAS
PPTP / L2TP-IPSec / OpenVPN / HTTPS
• • • • •
HTTPS portal
• • • • •
Serial gateway (Raw TCP & UDP, Telnet, Modbus,
Unitelway)
_
• • •
•
Ethernet 10 / 100 BT (LAN / WAN)
4 / 1
2 / 1
2 / 1
2 / 1
2 / 1
RS232
_ 1 2
_
_
RS485 _ 1
_ _ _
RS422 isolated
_
_
_ 1 _
RS485 isolated
_
_
_ _ 1
USB
1
1
1 1 1
NAT
• • • • •
Port forwarding
• • • • •
SNMP
• • • • •
DNS
• • • • •
DHCP server on the LAN inteface
• • • • •
Digital input for alarm email
1 1 1 1 1
HTTPS / HTML / SSH configuration
• • • • •
Option
Référence
Service de connexion M2Me_Connect
M2Me pack initial
Page 10
OVERVIEW
Page 10 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
Data-sheet
General characteristics
Dimensions
137 x 48 x 116 mm (h, l, p)
Electrical safety
EN 60950- UL 1950
EMC
ESD : EN61000-4-2 : Discharge 6 KV
RF field : EN61000-4-3 : 10V/m < 2 GHz
Fast transient : EN61000-4-4
Surge voltage : EN61000-4-5 : 4KV line / earth
RoHS
2002/95/CE (RoHS)
Supply voltage
IPL-E-400, IPL-EW-400 10 to 60 VDC
IPL-E-230, IPL-EW-230 10 to 60 VDC
IPL-E-260, IPL-EW-260 10 to 60 VDC
IPL-E-261, IPL-EW-261 10 to 60 VDC
IPL-E-220, IPL-EW-220 10 to 30 VDC
Operating T°
-20°C / + 60°C Humidity 5 – 95 %
WiFI
Type
2.4 & 5 GHz
RF connector
R-SMA female
WiFi transmission
802.11 a/b/g/n
VPN & firewall
VPN
Client or server IPSEC or OpenVPN
Encryption AES256 3DES
Certificate X509 or preshared key
16 VPNs maximum of the same type (OpenVPN or IPSec)
Firewall
Stateful packet inspection (50 rules)
Deny of service filter
Source & destination IP address & port number filter
Remote users filter
Logs
Date and time stamped logs
Remote access server (RAS)
User list
25 users
Connection
PPTP / L2TP-IPSec / Open VPN / HTTPS
Login & password
Certificate X509
M2Me
(option)
VPN Compliant with the M2Me_Secure VPN client
Compliant with the M2Me_Connect mediation service
Alarms
1 input : emails or SM (cellular models)
Page 11
OVERVIEW
Router Firewall IPL-E User Guide 9021209-01 Page 11
Serial interfaces
Data rate
1200 to 115200 kb/s parity N / E / O
Gateway
Raw TCP UDP client & server - Modbus master & slave
Multicast - Telnet - Unitelway
USB
1 USB host port
PPP client over the usb interface
IP router
Ethernet
10/100 BT – 2 or 4 switched ports
IP router
Static routes – RIP V2
IP address
translation
Source IP @ translation (NAT)
Destination IP @ translation (DNAT)
Port forwarding
DHCP
LAN interface : Fixed IP @ or DHCP client or DHCP server
Page 12
OVERVIEW
Page 12 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
Product Overview
The IPL-E router is a security product.
It is designed to interconnect safely automated devices over an Intranet or the Internet.
The IPL-E is at the same time
an IP router to route IP packets between a WAN interface and a LAN interface,
a powerful VPN client or server (IPSec or OpenVPN),
a remote access server (RAS) to provide a secure access to the LAN for remote users;
a stateful inspection firewall to filter the IP traffic.
4.1 Applications
That features in the same product make the IPL-E a top level solution for remote SCADA systems and
remote maintenance through the Internet.
Remote SCADA system
Remote access server
Firewall between a company network and a
factory network or a machine
Page 13
OVERVIEW
Router Firewall IPL-E User Guide 9021209-01 Page 13
4.2 Functions
IP router
The IPL-E router provides powerful, flexible and comprehensive solutions to route IP packets from one
network to other networks.
The solutions include static routes, RIP protocol and address translation (NAT, DNAT) and port forwarding.
IPSec & OpenVPN tunnels
The IPL-E features IPSec and OpenVPN tunnels to provide a high level of security and also compatibility with
existing devices.
Remote access server for PCs, tablets and smartphones
The IPL-E router can also behave like a remote access server.
If he is registered in the user list, a remote user can access to particular devices of a machine network
depending on his identity.
The new HTTPS portal make possible to access easily and safely to HMIs or PLCS web servers using a
tablet, a PC or a smartphone.
Firewall
The firewall protects against the sophisticated attacks coming from the Internet.
It is also able to filter IP frames between the WAN interface or any VPN interface on one hand, and the LAN
interface on the other hand.
VRRP redundancy
VRRP makes possible to usse two routers shaping a redundant solution.
DNS server
DNS makes it possible to assign Internet names to devices or organizations independently of their public IP
address.
The IPL-E router behaves like a DNS server for the devices connected to the LAN.
DHCP server
On the LAN interface, the IPL-E router can behave like a DHCP server.
WiFi interface
The IPL-E router provides optionaly a WiFi interface able to behave like a client or an access point.
Serial gateway
Optionally, the IPL-E router provides 1 or 2 serial RS232, RS485, RS422 interfaces.
Le serial gateway features the following modes :
Raw TCP client or server
Raw UDP
Telnet
Modbus master or slave
Unitelway
Page 14
OVERVIEW
Page 14 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E

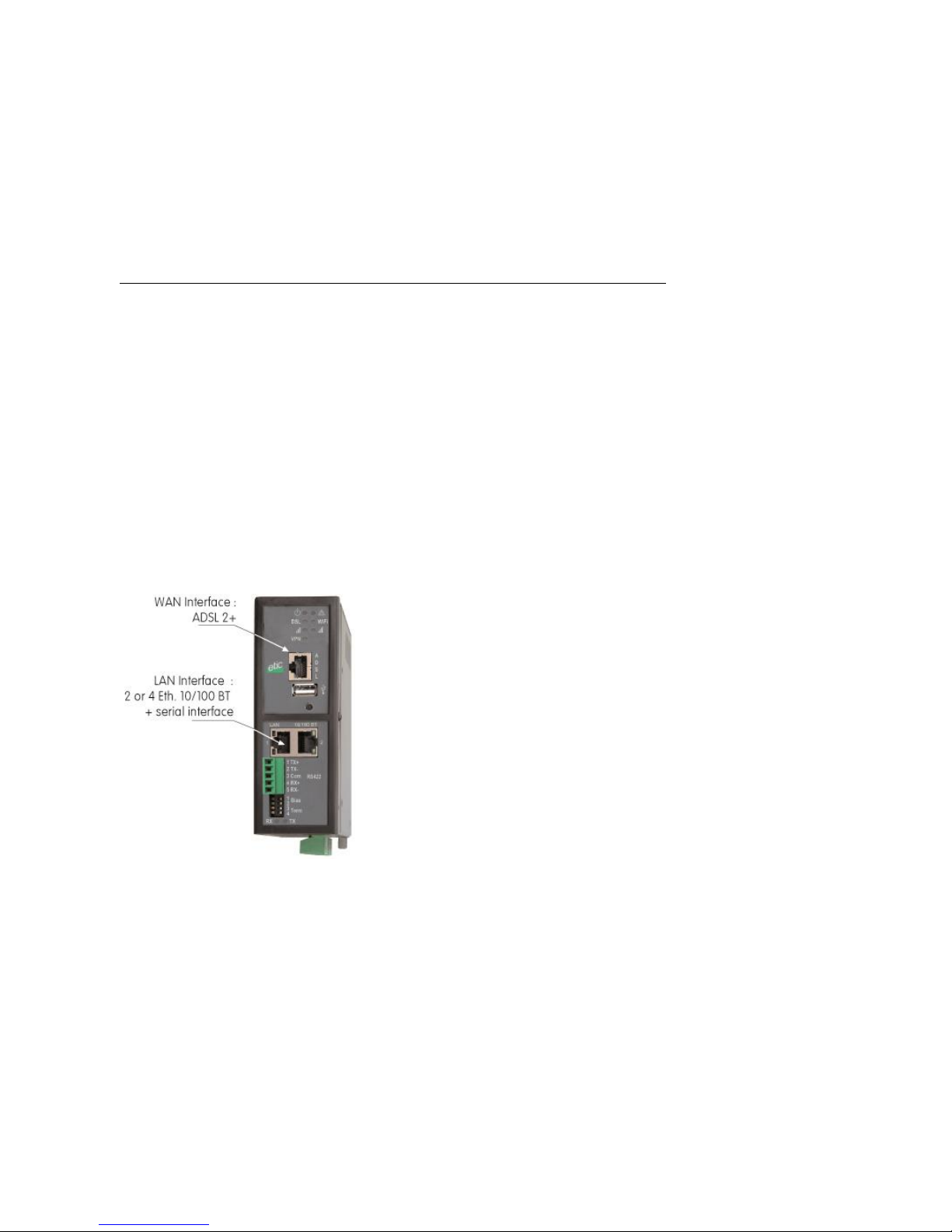

4.3 Router interfaces & organisation
The IPL-E router provides two IP interfaces : The Ethernet WAN interface to connect the router to an Intranet
or a company network and the LAN interface to connect the machine.
WAN interface :
The main WAN interface is the RJ45 WAN connector.
The WiFi interface when it is used as a client, can also be used as a WAN interface.
Only one interface can be selected as the WAN interface at the same time (Ethernet port 1, WiFi).
LAN interface :
The LAN interface consists of Ethernet switched ports, or, optionally, the WiFi interface when it is used as an
access point.
The serial gateway is located at the IP address of the LAN interface.
Firewall :
The firewall filters the IP frames between the WAN interface or any VPN interface on one hand, and the LAN
interface on the other hand.
Page 15
Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A Page 15
INSTALLATION
Product description

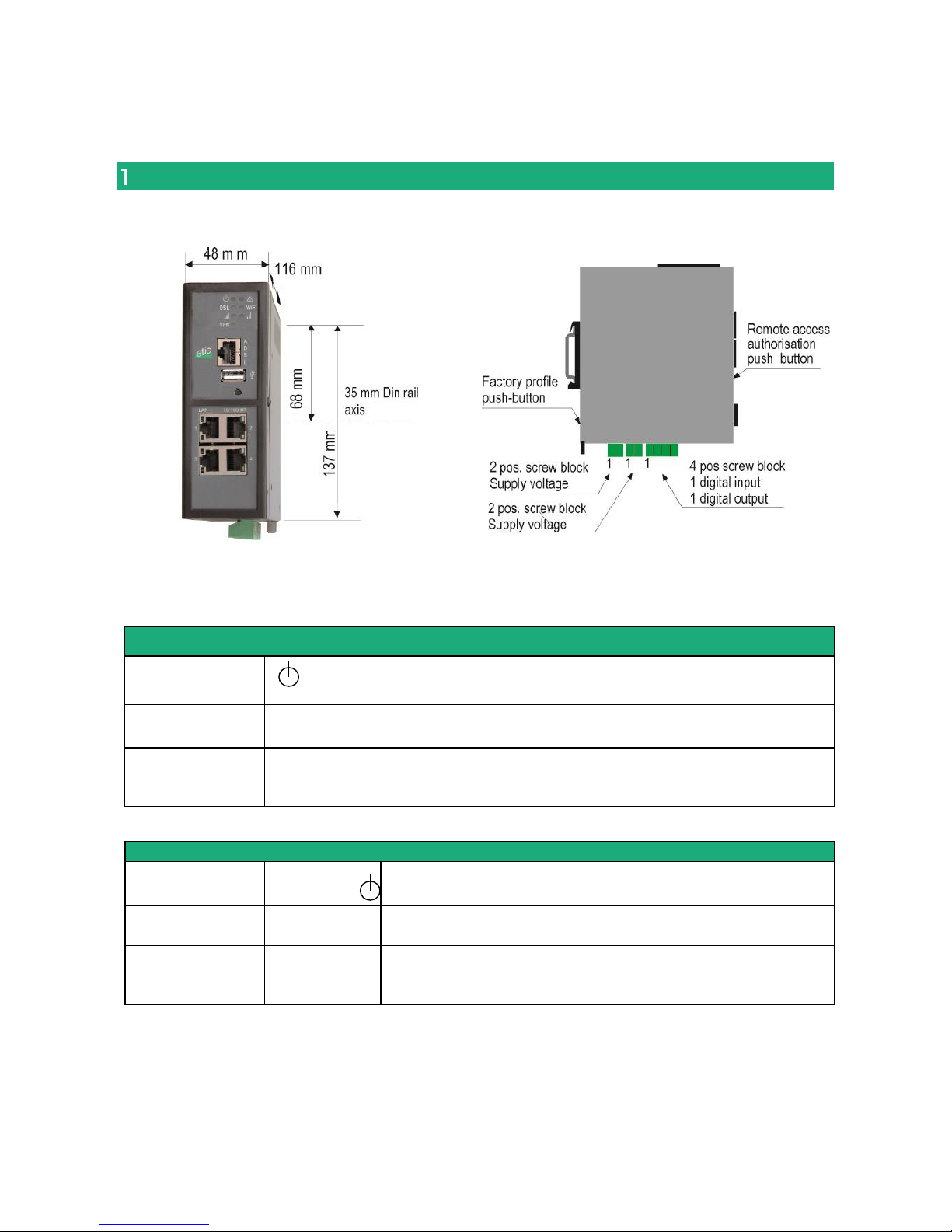

1.1 Dimensions
1.2 Push-buttons
Rear panel push-button
Pressing the rear
panel PB
led
Function
During operation
Flashing red
The default IP address 192.168.0.128 is selected
The current configuration remains active
During power-up
Flashing red
The factory configuration and the default IP address
192.168.0.128 are selected.
The current configuration is deleted.
Front panel push-button
Pressing the front
panel PB
led
Function
During 5 seconds
3 flashes
The hotline of ETICTELECOM is authorised to connect remotely to
the router administration server within a 1 hour delay.
During 10 seconds
5 flashes
A remote user is authorised to connect remotely to the router
administration server within a 10 mn delay without entering the
login r password
1.3 Connectors
Page 16
INSTALLATION
Page 16 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E

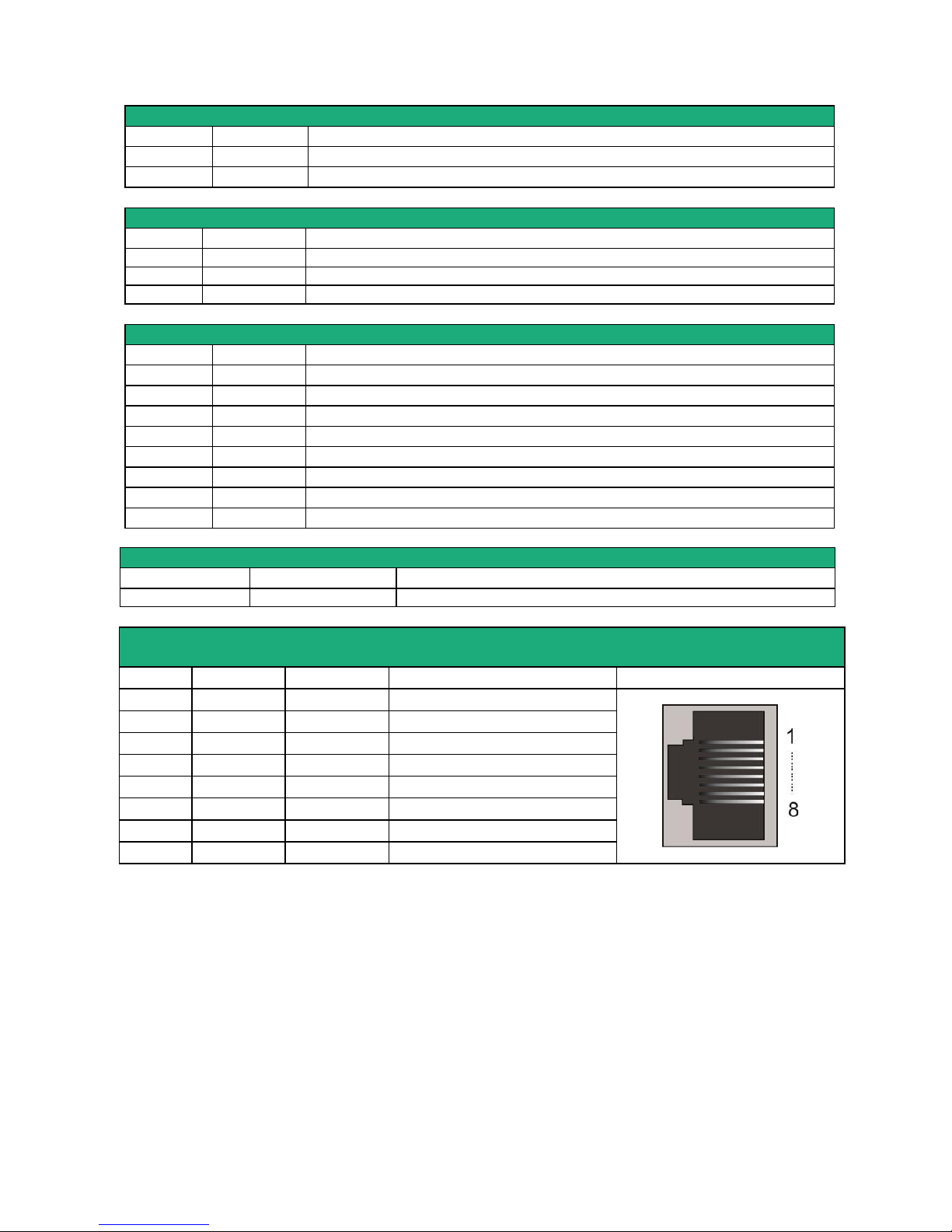

Supply voltage connector
Position
Signal
Description
1
Power 1 +
Supply voltage
2
Power 1 -
0V
Digital inputs & outputs
Position
Signal
Description
1
0V
TOR 0V 2 In
Digital input TOR+
4
F -
Digital output -
RJ45 Ethernet)
Position
Signal
Description
1
Tx +
Emission polarity +
2
Tx -
Emission polarity -
3
Rx +
Reception polarity +
4
N.C
-
5
N.C
-
6
Rx -
Reception polarity -
7
N.C. - 8
N.C.
-
WiFi Antenna connector
Network
Type
Description
WiFi
RP-SMA female
J45 RS232
DCE interface
Position
Signal Description
RJ45
1
DTR - 108
OUT
Data terminal ready
2
TD - 103
OUT
Data Emission
3
RD - 104
IN
Data Reception
4
DSR - 107
IN
Data set ready
5
SG - 102
-
Ground
6
Inutilisé
OUT
- 7 CTS - 106
IN
Clear to send
8
RTS - 105
OUT
Request to send
Page 17
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 17
Out = Signal provided by the router.

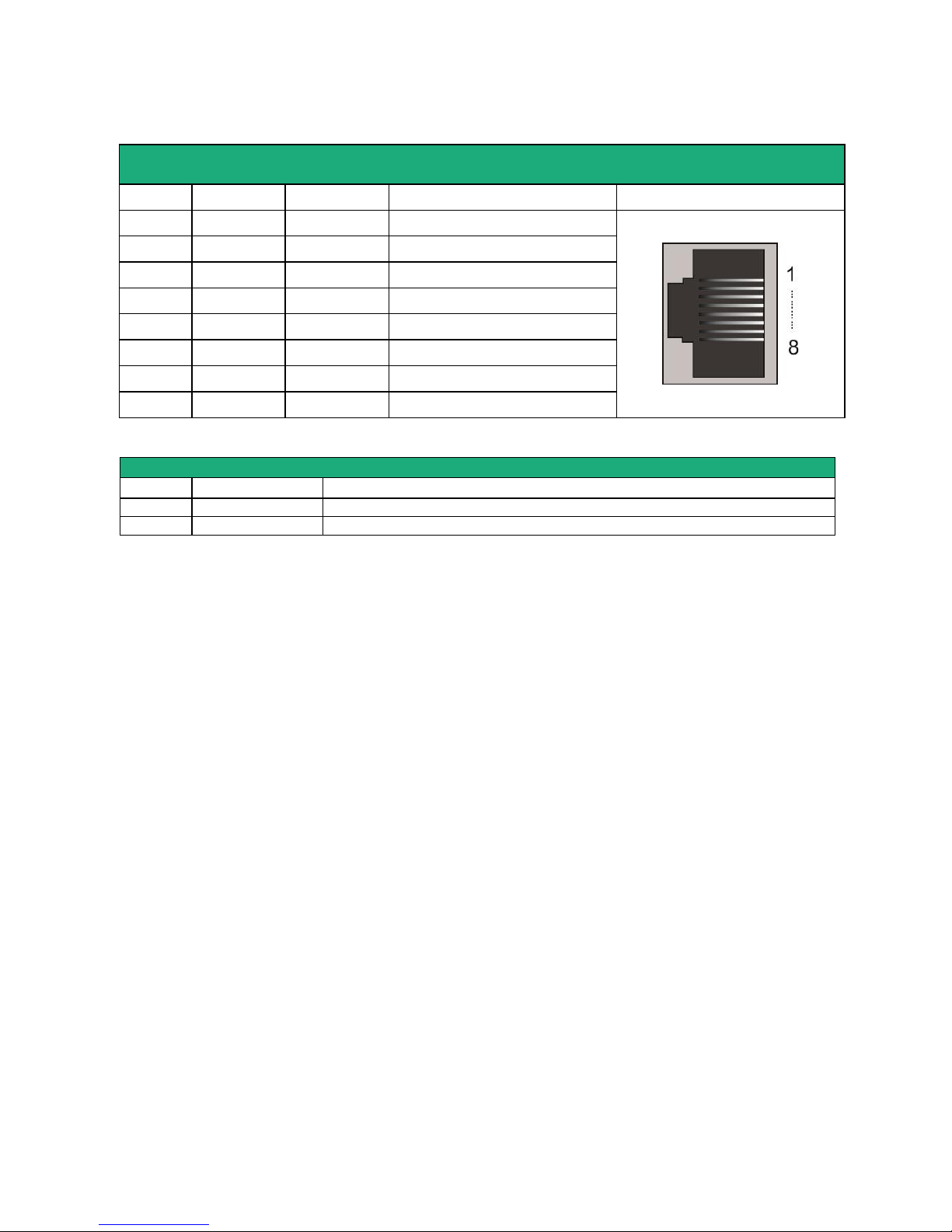

RJ45 RS232
DTE interface
Position
Signal Description
RJ45
1
CD - 109
OUT
Carrier detect
2
RD - 104
OUT
Data Reception
3
TD - 103
IN
Data Emission
4
DTR - 108
IN
Data terminal ready
5
SG - 102
-
Ground
6
DSR - 107
OUT
Data set ready
7
RTS - 105
IN
Request to send
8
CTS - 106
OUT
Clear to send
Out = Signal provided by the router.
2 positions RS485 screw block
Position
Signal
Fonction
1
A
RS485 polarity A
2
B
RS485 polarity B
Page 18
INSTALLATION
Page 18 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
5 positions RS422 screw block
IPL-E-260 IPL-EW-260
Position
Signal
Function
1
TX+
Sortie
RS422 transmission polarity +
2
TX-
Sortie
RS422 transmission polarity -
3
Com
Common voltage
4
RX+
Entrée
RS422 Reception polarity +
5
RX-
RS422 Reception polarity -

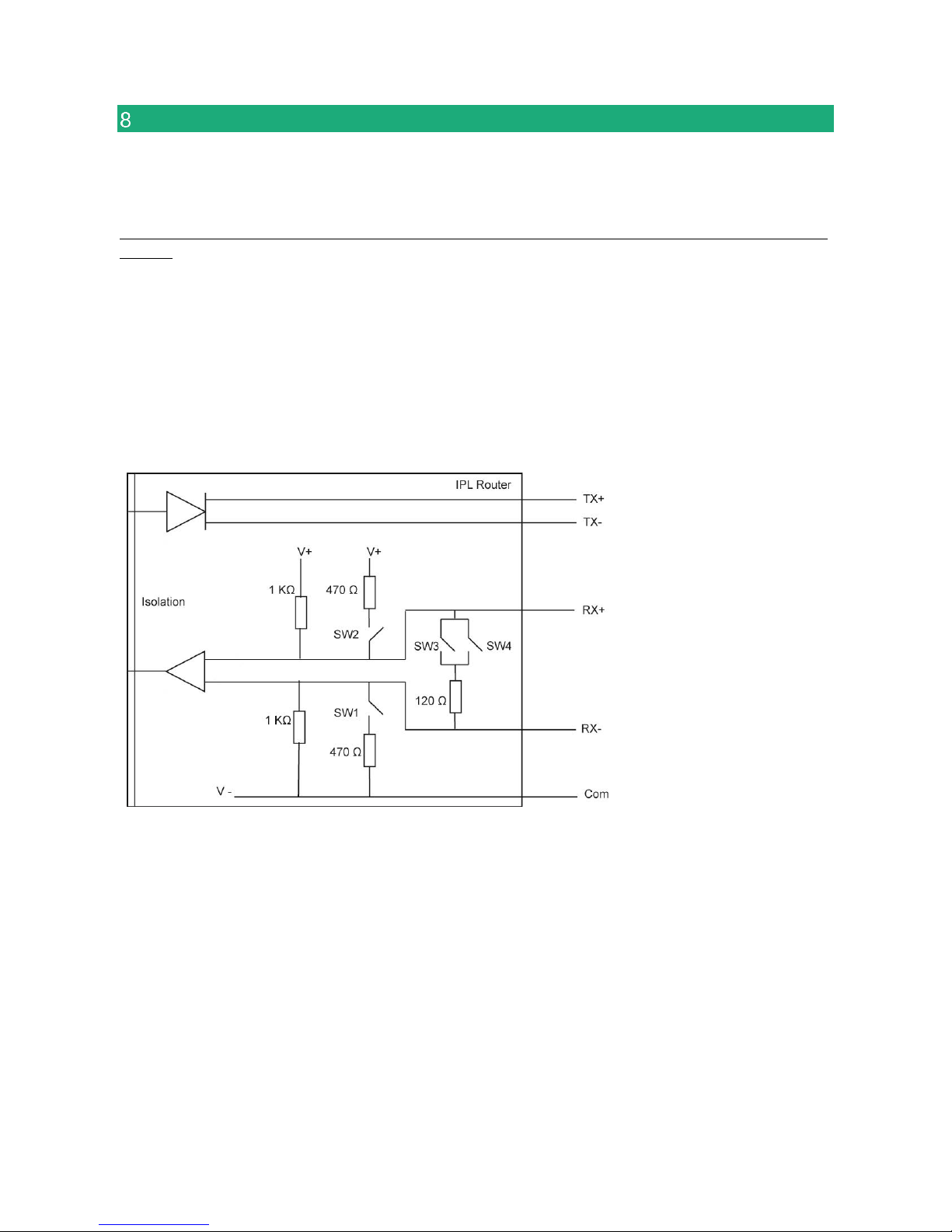

RS422 DIP switches
IPL-E-260 IPL-EW-260
SW 1
SW 2
ON
ON
The two 470 Ohm polarisation R. are enabled on the reception RS422 signal
OFF
OFF
The two 470 Ohm polarisation R. are disabled on the reception RS422 signal
SW3
SW4
ON
ON
The 120 Ohm termination R. is enabled on the reception RS422 signal
OFF
OFF
The 120 Ohm termination R. is disabled on the reception RS422 signal
2 positions RS485 screw block
IPL-E-261 IPL-EW-261
Position
Signal
Signal
1
Com
Common
2
B (+)
RS485 polarity B
3
A (-)
RS485 polarity A

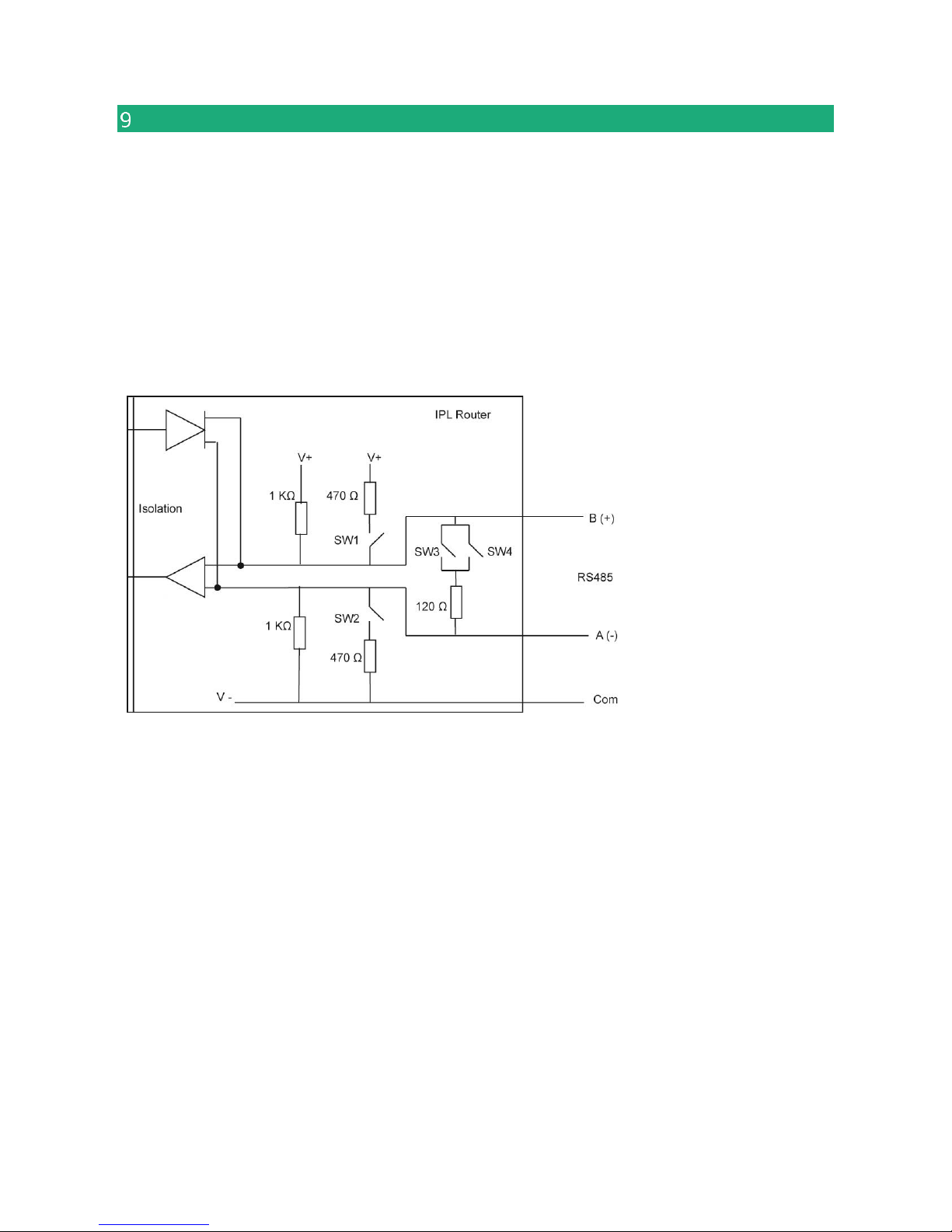

Micro-switches RS485
IPL-E-261 IPL-EW-261
SW 1
SW 2
ON
ON
The two 470 Ohm polarisation R. are enabled
OFF
OFF
The two 470 Ohm polarisation R. are disabled
SW3
SW4
ON
ON
The 120 Ohm termination R. is enabled
OFF
OFF
The 120 Ohm termination R. is enabled
Page 19
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 19
1.4 IPL-E-400 or IPL-EW-400 (WiFi option)
IPL-E-400
IPL-EW-400

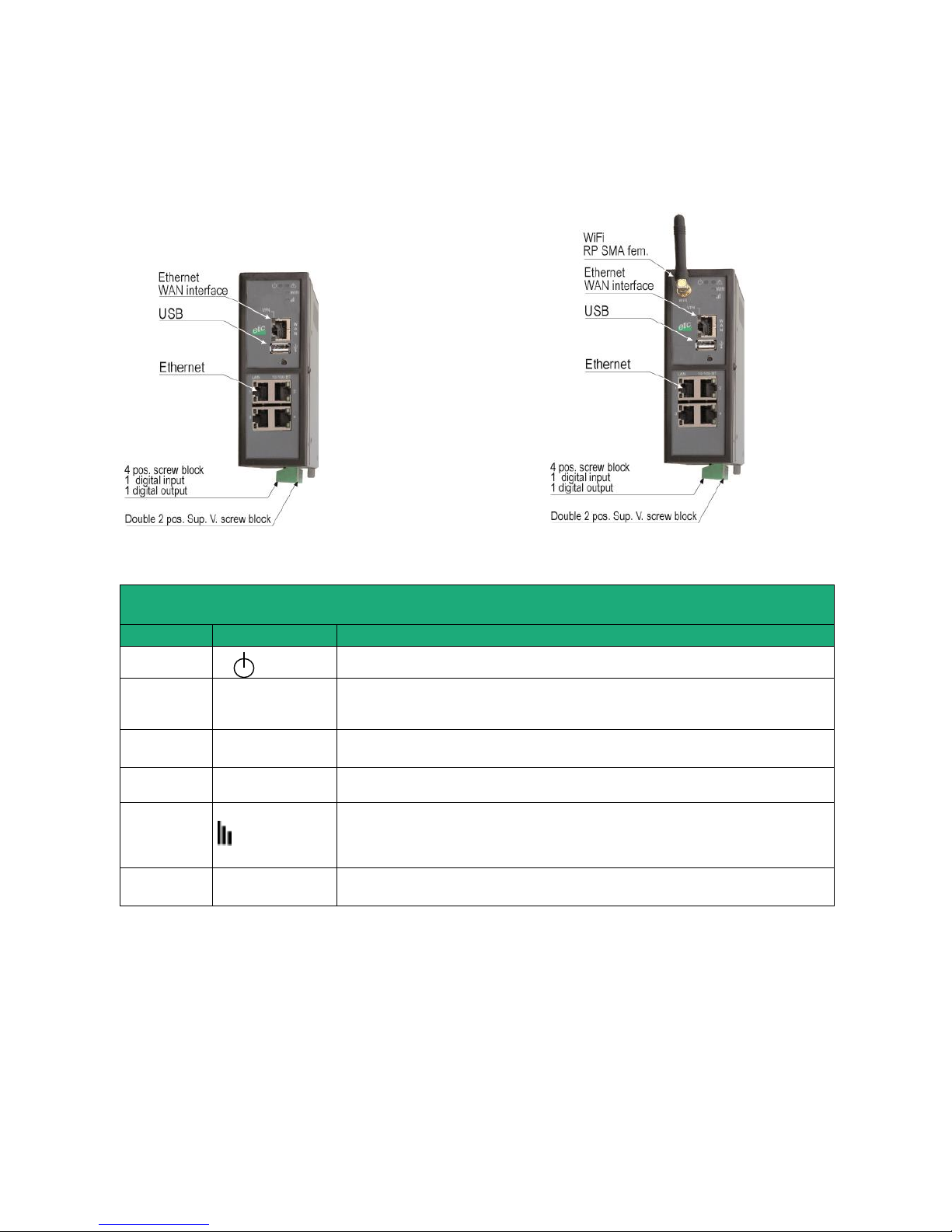

LED INDICATORS
IPL-E-400 or IPL-EW-400
Designation
Function
Operation
Green The unit is ready
Flashing red Hardware default or unit power-up or firmware update in progress
Ethernet
WAN
VPN
Off No VPN connection in progress
Flashing One VPN at least is progressing
Green One VPN at least is established
Ethernet
WAN
Lower led
Off Ethernet interface disabled or not connected
Green Ethernet interface connected
WiFi
connection
WiFi
Off WiFi Interface disabled
Green WiFi Interface enabled
WiFi
Signal
quality
WiFi
Off WiFi not enabled or enabled as an access point
1 flash Weak not sufficient signal
2 flashes Sufficient signal
3 flashes Strong signal
Ethernet LAN
1 to 4
Off Ethernet interface not connected
Green Ethernet interface connected
Page 20
INSTALLATION
Page 20 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E

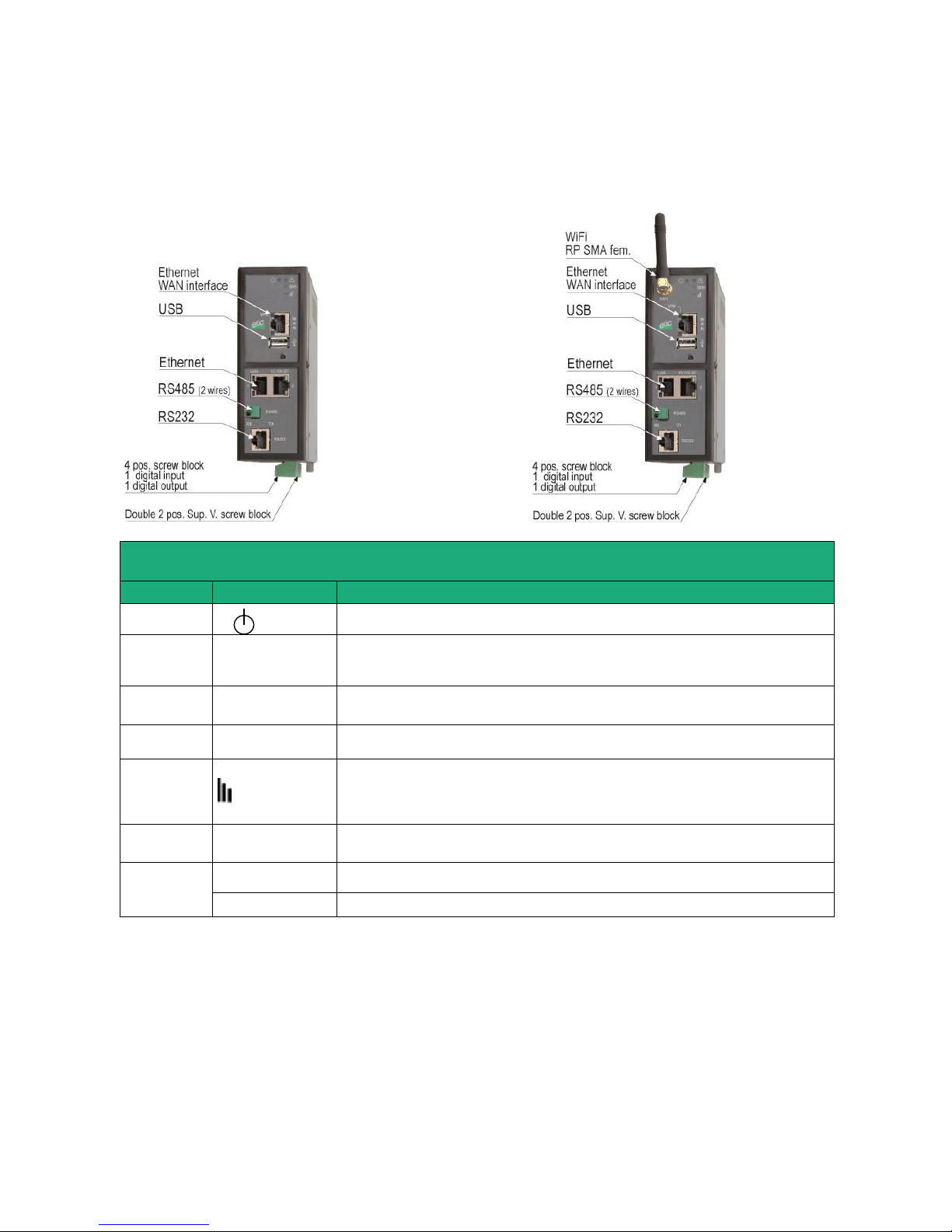

1.5 IPL-E-220 or IPL-EW-220 (WiFi option)
IPL-E-220
IPL-EW-220
LED INDICATORS
IPL-E-400 or IPL-EW-400
Designation
Function
Operation
Green The unit is ready
Flashing red Hardware default or unit power-up or firmware update in progress
Ethernet
WAN
VPN
Off No VPN connection in progress
Flashing One VPN at least is progressing
Green One VPN at least is established
Ethernet
WAN
Lower led
Off Ethernet interface disabled or not connected
Green Ethernet interface connected
WiFi
connection
WiFi
Off WiFi Interface disabled
Green WiFi Interface enabled
WiFi
Signal
quality
WiFi
Off WiFi not enabled or enabled as an access point
1 flash Weak not sufficient signal
2 flashes Sufficient signal
3 flashes Strong signal
Ethernet LAN
1 to 2
Off Ethernet interface not connected
Green Ethernet interface connected
RS232
RS485
Rx
Characters received from the serial interface (to the IPL router)
Tx
Characters transmitted to the serial interface (from the IPL router)
Page 21
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 21

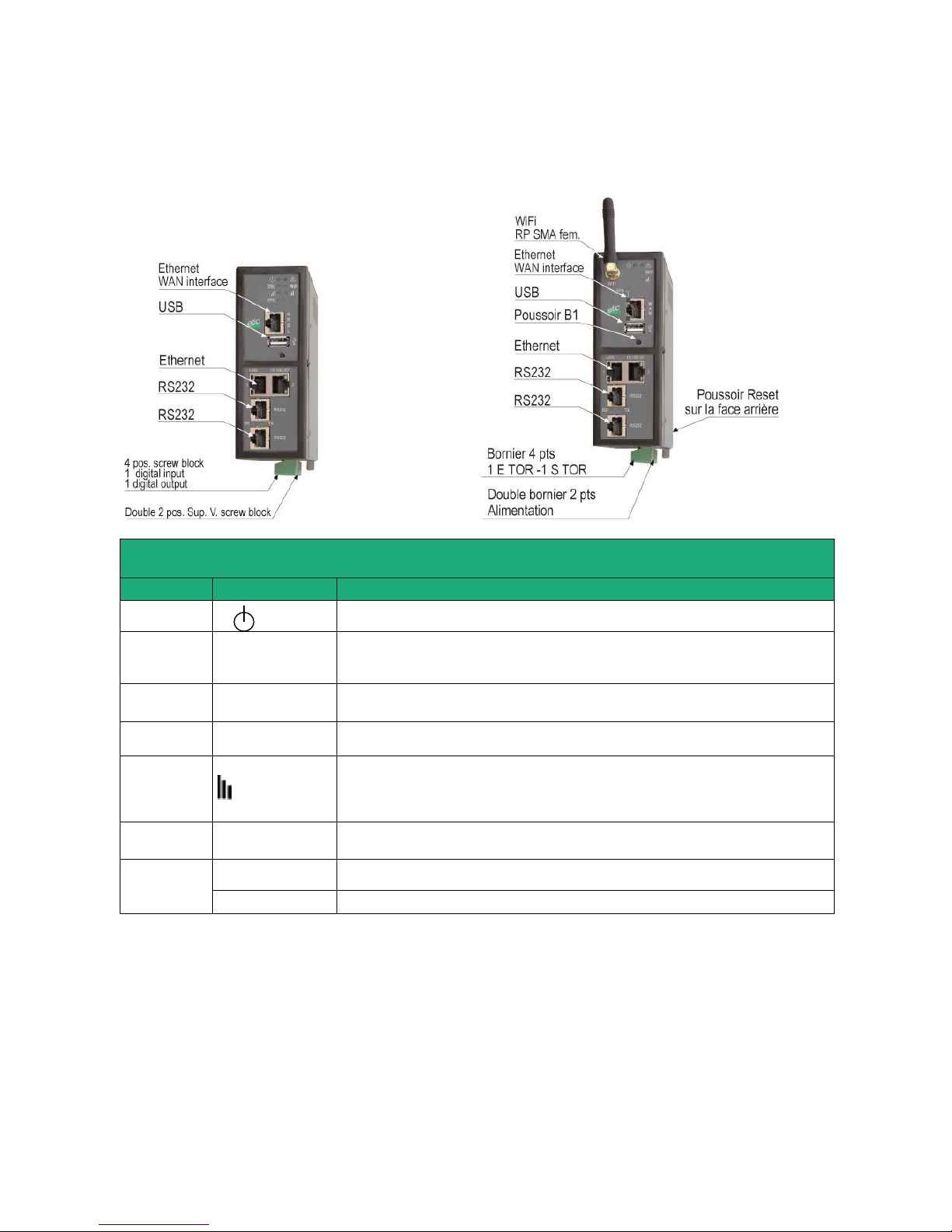

1.6 IPL-E-230 or IPL-EW-230 (WiFi option)
IPL-E-230
IPL-EW-230
LED INDICATORS
IPL-E-400 or IPL-EW-400
Designation
Function
Operation
Green The unit is ready
Flashing red Hardware default or unit power-up or firmware update in progress
Ethernet
WAN
VPN
Off No VPN connection in progress
Flashing One VPN at least is progressing
Green One VPN at least is established
Ethernet
WAN
Lower led
Off Ethernet interface disabled or not connected
Green Ethernet interface connected
WiFi
connection
WiFi
Off WiFi Interface disabled
Green WiFi Interface enabled
WiFi
Signal
quality
WiFi
Off WiFi not enabled or enabled as an access point
1 flash Weak not sufficient signal
2 flashes Sufficient signal
3 flashes Strong signal
Ethernet LAN
1 to 2
Off Ethernet interface not connected
Green Ethernet interface connected
RS232
Rx
Characters received from the serial interface (to the IPL router)
Tx
Characters transmitted to the serial interface (from the IPL router)
Page 22
INSTALLATION
Page 22 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
1.7 IPL-E-260 or IPL-EW-260 (WiFi option)

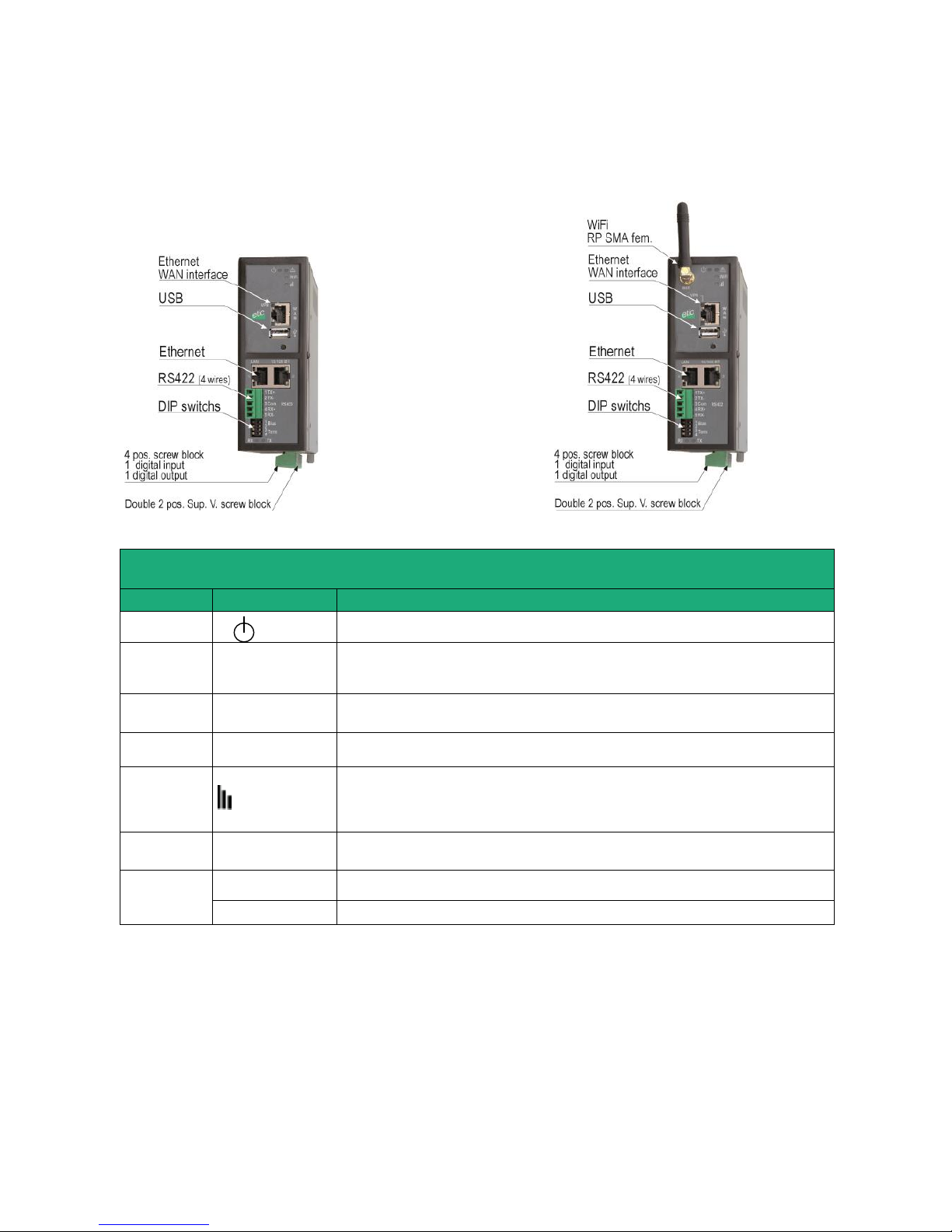

IPL-E-260
IPL-EW-260
LED INDICATORS
IPL-E-400 or IPL-EW-400
Designation
Function
Operation
Green The unit is ready
Flashing red Hardware default or unit power-up or firmware update in progress
Ethernet
WAN
VPN
Off No VPN connection in progress
Flashing One VPN at least is progressing
Green One VPN at least is established
Ethernet
WAN
Lower led
Off Ethernet interface disabled or not connected
Green Ethernet interface connected
WiFi
connection
WiFi
Off WiFi Interface disabled
Green WiFi Interface enabled
WiFi
Signal
quality
WiFi
Off WiFi not enabled or enabled as an access point
1 flash Weak not sufficient signal
2 flashes Sufficient signal
3 flashes Strong signal
Ethernet LAN
1 to 2
Off Ethernet interface not connected
Green Ethernet interface connected
RS422
Rx
Characters received from the serial interface (to the IPL router)
Tx
Characters transmitted to the serial interface (from the IPL router)
Page 23
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 23

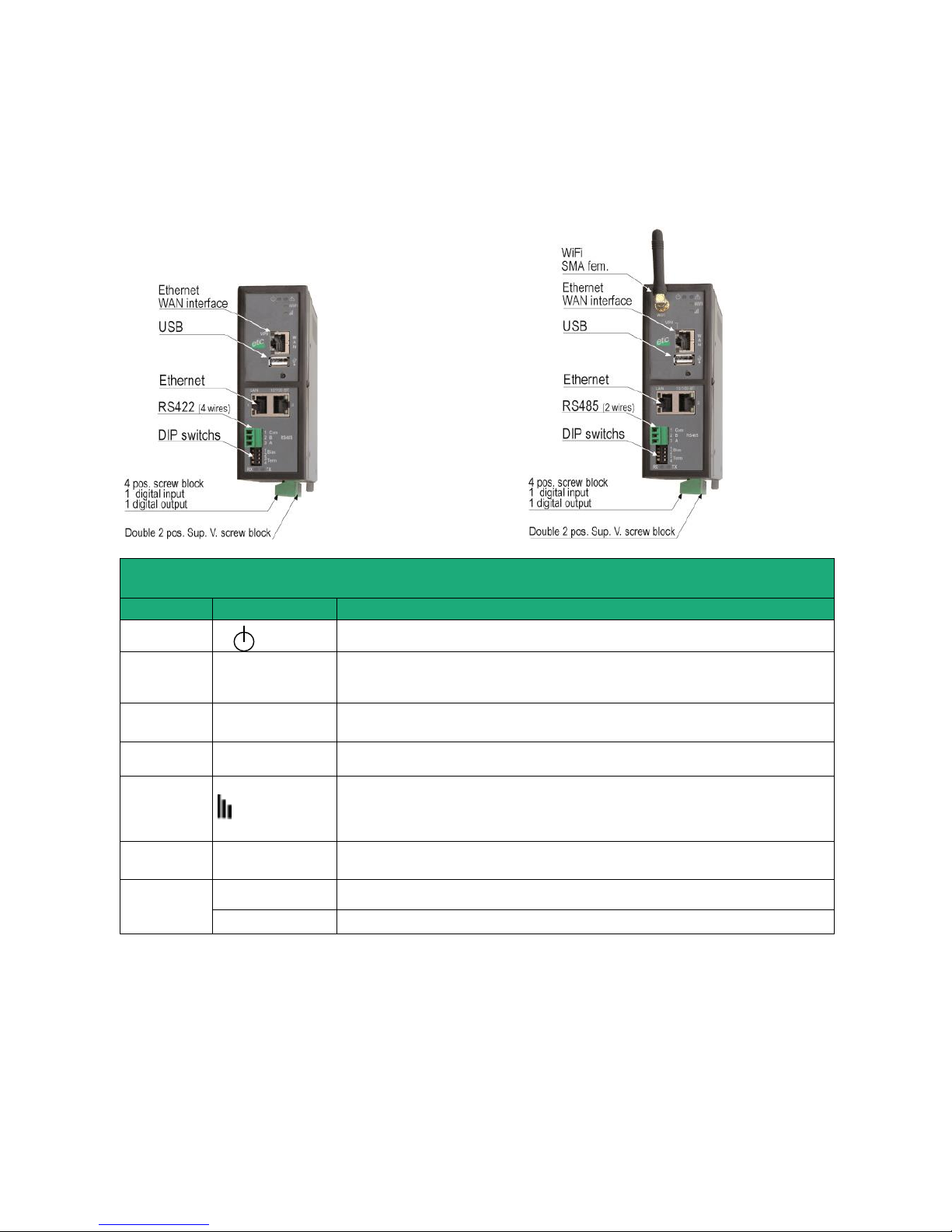

1.8 IPL-E-261 or IPL-EW-261 (WiFi option)
IPL-E-261
IPL-EW-261
LED INDICATORS
IPL-E-400 or IPL-EW-400
Designation
Function
Operation
Green The unit is ready
Flashing red Hardware default or unit power-up or firmware update in progress
Ethernet
WAN
VPN
Off No VPN connection in progress
Flashing One VPN at least is progressing
Green One VPN at least is established
Ethernet
WAN
Lower led
Off Ethernet interface disabled or not connected
Green Ethernet interface connected
WiFi
connection
WiFi
Off WiFi Interface disabled
Green WiFi Interface enabled
WiFi
Signal
quality
WiFi
Off WiFi not enabled or enabled as an access point
1 flash Weak not sufficient signal
2 flashes Sufficient signal
3 flashes Strong signal
Ethernet LAN
1 to 2
Off Ethernet interface not connected
Green Ethernet interface connected
RS485
Rx
Characters received from the serial interface (to the IPL router)
Tx
Characters transmitted to the serial interface (from the IPL router)
Page 24
INSTALLATION
Page 24 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E

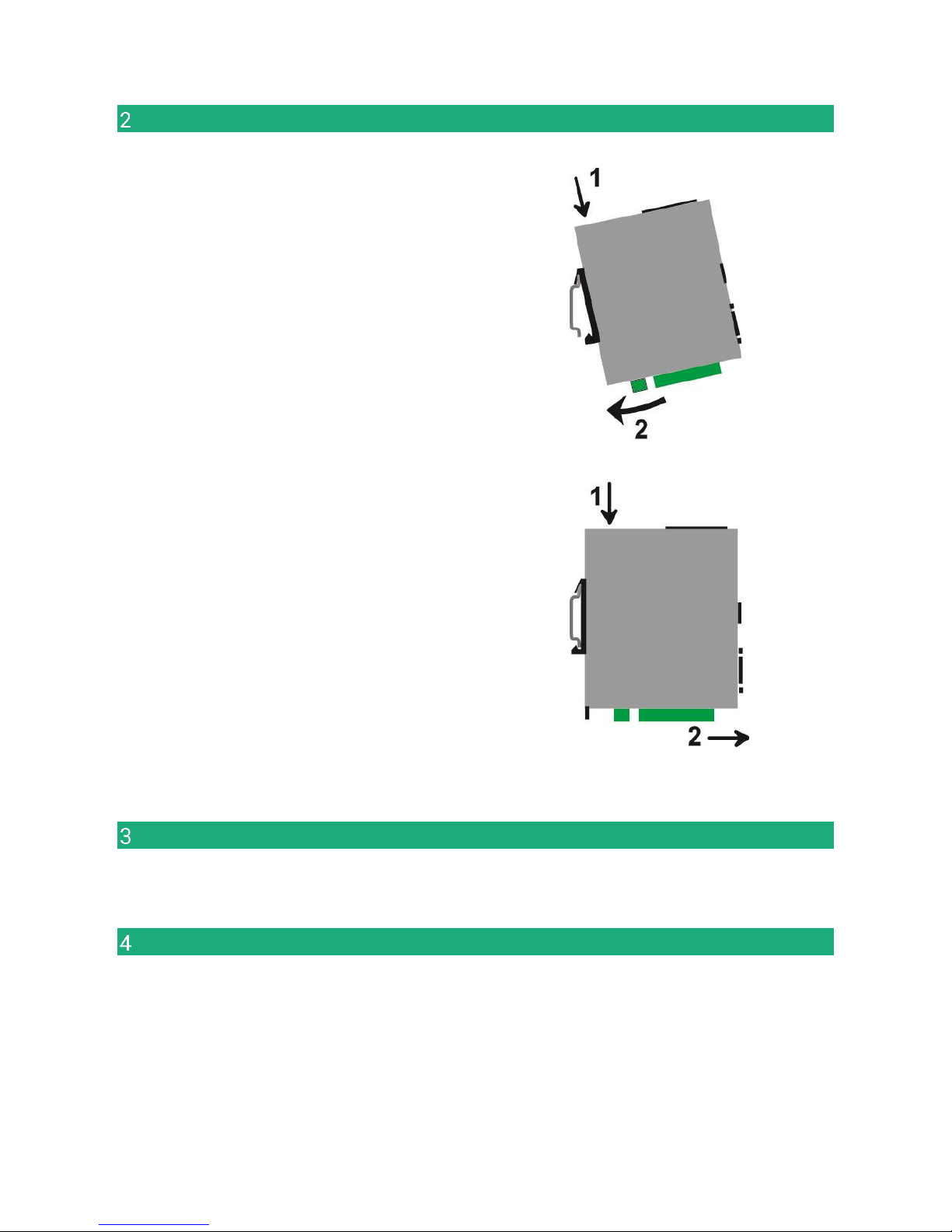

Mounting the product on a Din rail
Mounting the unit on the 35 mm horizontal DIN rail
Removing the unit from the DIN rail
Cooling
To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and
10 mm left and right.
Supply voltage
Page 25
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 25
IPL-E-400, IPL-EW-400
IPL-E-230, IPL-EW-230
IPL-E-260, IPL-EW-260
IPL-E-261, IPL-EW-261
Minimum input voltage : 10 V DC
Maximum input voltage : 60 VDC
IPL-E-220, IPL-EW-220
Minimum input voltage : 10 V DC
Maximum input voltage : 30 VDC
The consumption is lwer than 6 W.

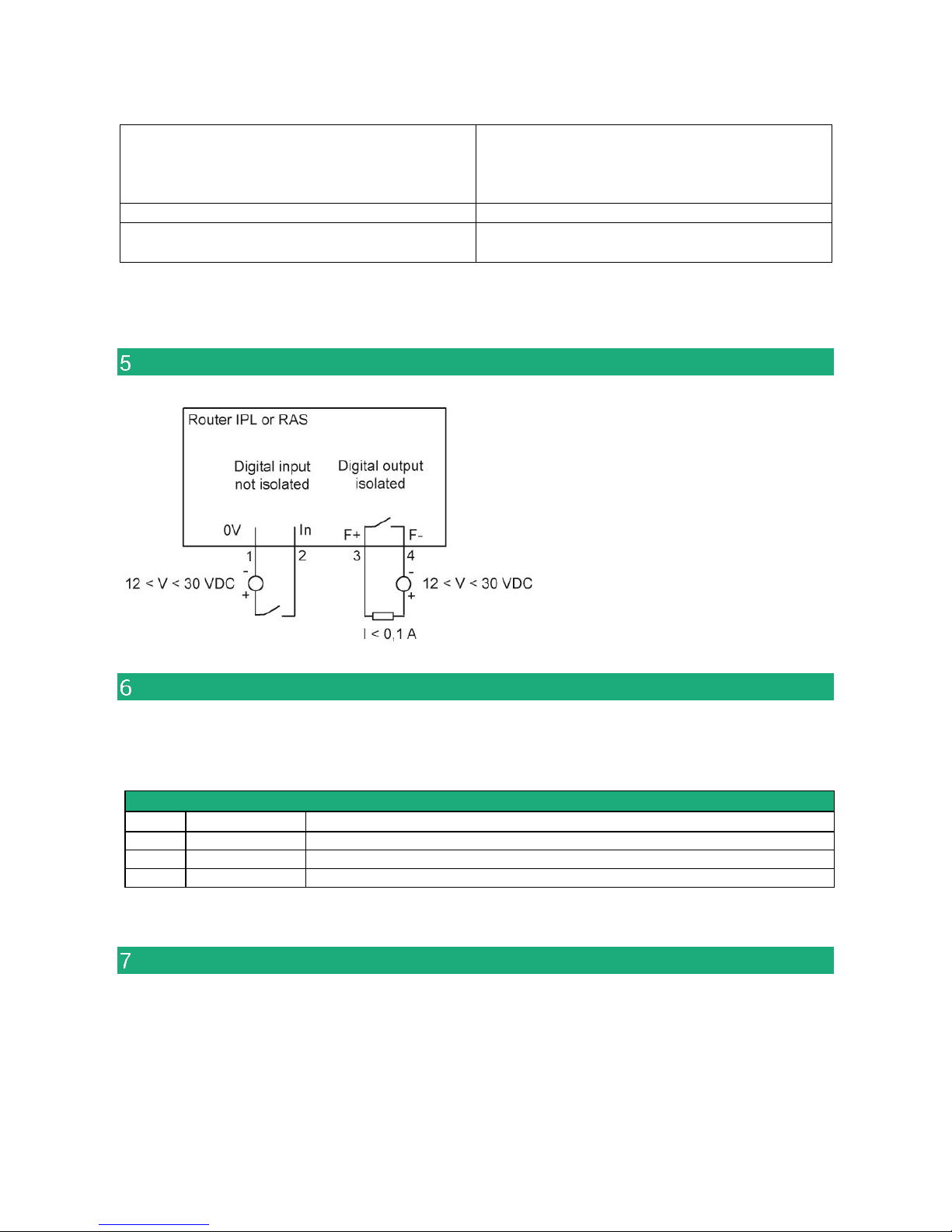

Digital input and output
To check that the input and the output are
correctly wired, select
Diagnostic > Hardware > Input / Output
The status of the input is displayed and
the output can be switched ON or OF.
RS232
The RS232 cable must be shorter than 10 meters.
Cables can be provided to connect the product to DTE and DCE as follows :
RS232 cables (L=1m)
Code
User connector
Cable function
CAB592
SubD 9 male
To connect a DCE to the router
CAB593
SubD 9 female
To connect a DTE to the router
CAB609
Wires
To connect a device providing a specific connector
RS485 connection (IPL-E-220 or IPL-EW-220)
Page 26
INSTALLATION
Page 26 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
The RS485 serial interface is provided on the front
panel 2 positions screw-block.
It is not isolated.

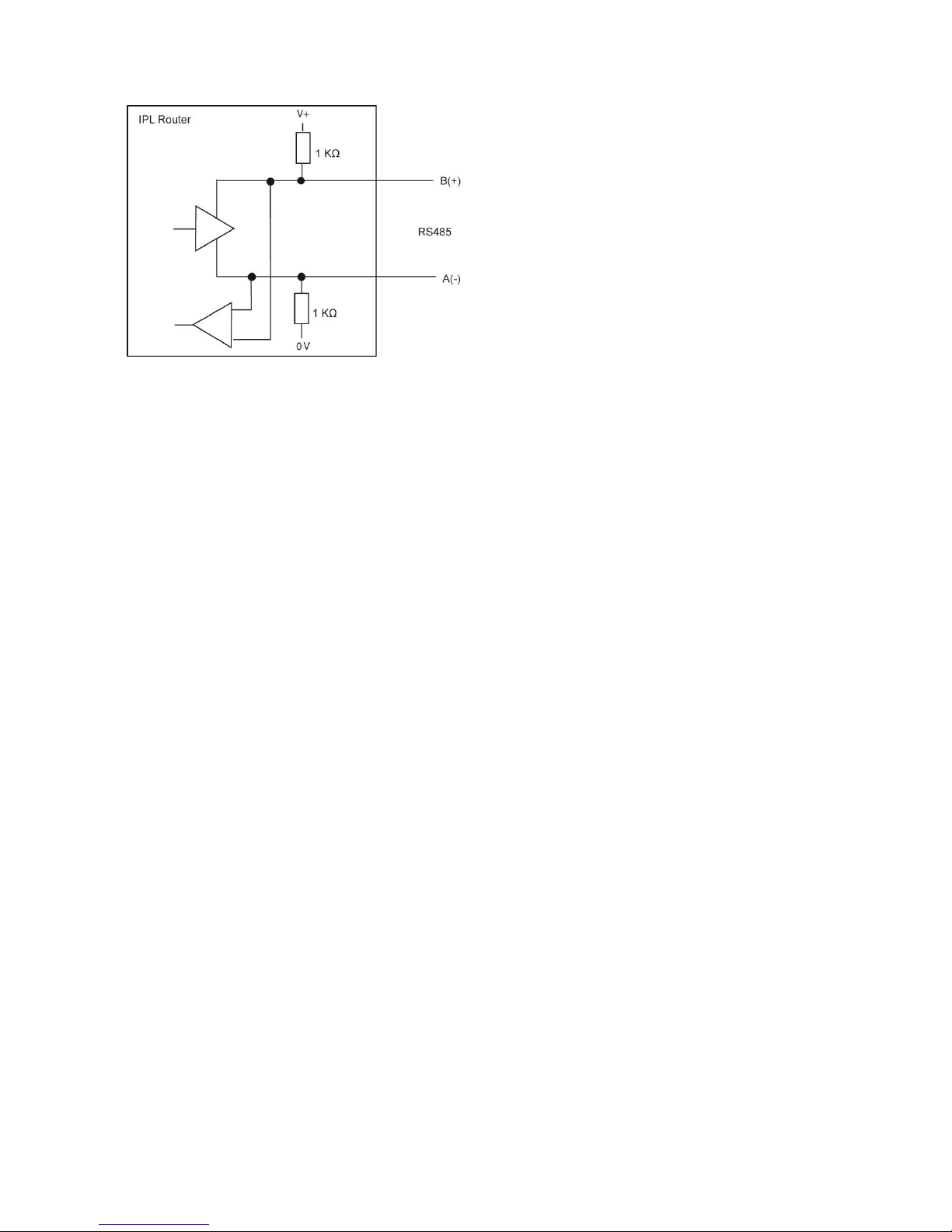

Long RS485 line or high data rate
if the RS485 line is longer than10 meters or if the
data rate is greater than 19200 b/s, it is necessary
to connect one 120 Ohm matching resistor at each
end of the line and two 390 Ohm polarisation
resistors at one of the two extremities of the line.
Page 27
INSTALLATION
Router Firewall IPL-E User Guide 9021209-01 Page 27
RS422 isolated interface (IPL-E-260 or IPL-EW-260)
The RS422 interface is isolated.
When two devices or more are connected to the RS422 interface of the IPL router, the IPL router must be
the only device to transmit data on the TX+/TX- line towards all the other devices.
It means that the TX+/TX- line of the IPL router must be connected to the RX+/RX- of all the other devices of
the bus.
The polarisation and termination resistors can be selected with DIP switches.
The polarisation résistors must be enabled by one device of the bus.
The termination resistor must be enabled with SW3 & SW4 when the router is located at the extremity of the
bus.
Up to 16 devices can be connected to the bus.
We recommend to use a shielded cable and twisted pairs.
If the line is exposed to lightning, we recommend to protect the router with a surge arrester.
Page 28
INSTALLATION
Page 28 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
RS485 isolated interface (IPL-E-261 or IPL-EW-261)
The RS485 (3 wires : A- / B+ plus the common voltage wire) interface is isolated.
The polarisation and termination resistors can be selected with DIP switches.
The polarisation résistors must be enabled by one device of the bus.
The termination resistor must be enabled with SW3 & SW4 when the router is located at the extremity of the
bus.
Up to 16 devices can be connected to the bus.
We recommend to use a shielded cable and twisted pairs.
If the line is exposed to lightning, we recommend to protect the router with a surge arrester.
Page 29
Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A Page 29
PREPARING THE SETUP

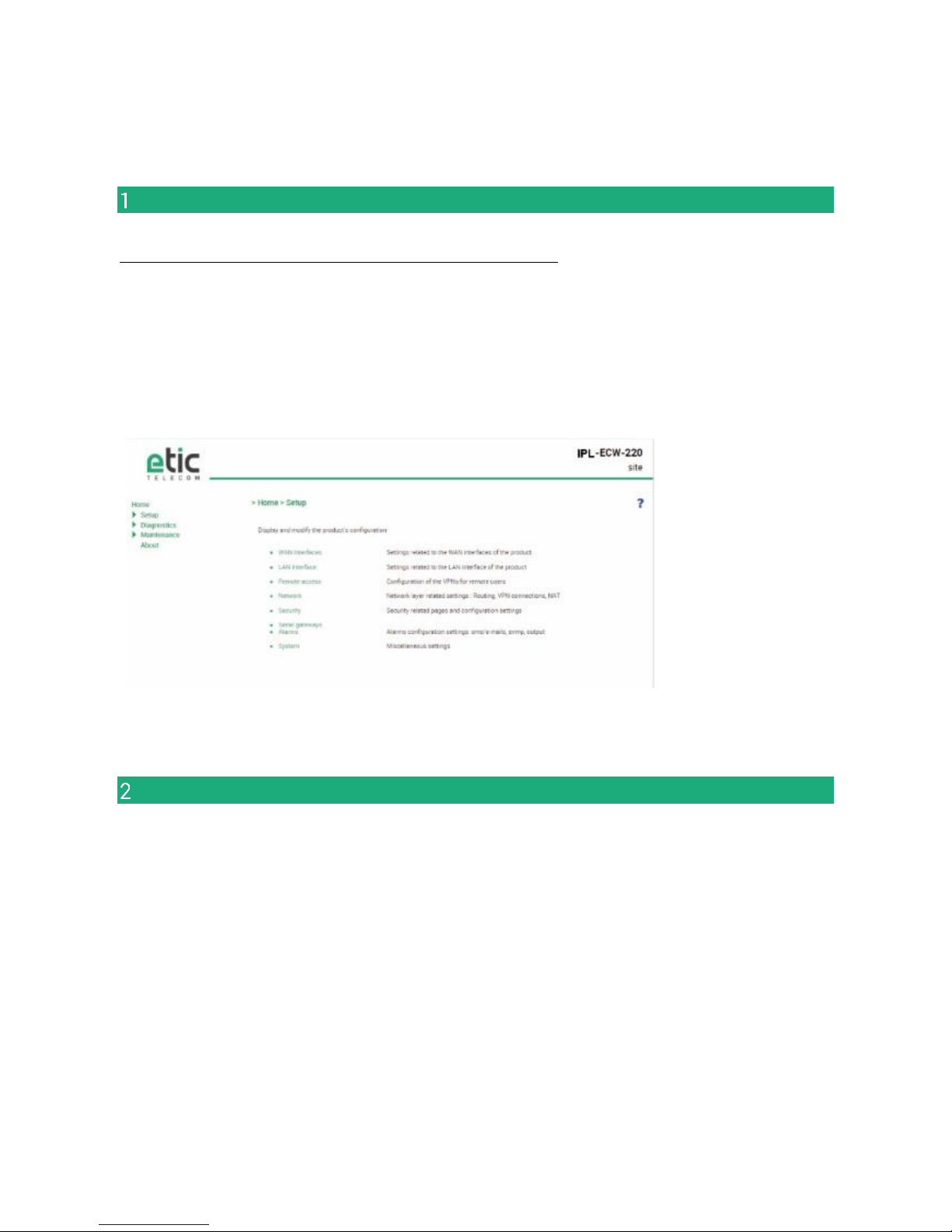

First setup
Coming from factory, the IP address of the router is 192.168.0.128.
Step 1 : Create or modify the PC IP connection.
Assign to the PC an IP @ in accordance with the IPL router IP address.
For the first configuration, assign for instance 192.168.0.127 to the PC.
Step 2 : Connect the PC directly to the LAN interface of the router.
Step 3 : Launch the HTML browser : http://192.168.0.128
Protecting the access to the administration web server
Select Set-up > Security > Administration rights.
Enter an administration identifier and password.
Page 30
PREPARING THE SETUP
Page 30 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
HTTPS set-up modifications through the WAN interface
The administration web server is located at the LAN IP address.
Coming from factory, access to the administration web server is not allowed through the WAN interface
To use HTTPS instead of HTTP to setup the product or to authorise access to the administration web server
through the WAN interface,
Select Configuration > Security > Administration rights.
Enter an administration identifier and password.
Check the “HTTPS configuration” box.
Check the “WAN access“ box if you wish to access to the administration web server through the WAN
interface.
Remark : the port Nr used to access to the administration web server with HTTPS is 4433.
Exemple : https://192.168.38.191:4433.
Recovering the factory LAN IP address
Press the rear panel push-button ;
The OPERATION led indicator will flash.
The factory IP address 192.168.0.128 will be restored but the current configuration remains active.
Restoring the factory set-up
If firewall rules have been created finally preventing from reaching any IP address on the LAN interface
including the router itself, it may be necessary to restore the factory configuration of the router.
To restore the factory configuration,
Switch OFF the power supply of the router.
Press the rear panel push button and, switch-on the power supply.
Keep the push button pressed until the operation led turns red.
Remark : The curent configuration is cleared and the factory IP address 192.168.0.128 is restored.
Page 31
PREPARING THE SETUP
Router Firewall IPL-E User Guide 9021209-01 Page 31
Saving or restoring a set of parameters
Once a product has been set-up, the current set of parameters can be stored inside the router.
In a second step, any set stored inside the router and displayed with the Configurations table can be saved
as an editable file stored outside the ETIC router.
Inversely, a saved file can be loaded to the product Configurations table and then, if necessary, declared as
the active set of parameters.
Select the Maintenance > configuration management menu
To store the current configuration set of parameters in the configurations table,
Assign a name for the current set of parameters (“configuration name” field) and click the Save button.
The updated Configurations table is displayed with an additional line.
To save a stored set of parameters as an editable file
Select the set of parameters name in the Configurations table,
Click the Export to the PC button.
The set_of_parameters.txt file is created.
To import an editable **.txt file
Click the Select a file button,
Browse the PC and select the file,
Click the Import from PC button.
The updated Configurations table is displayed with an additional line.
To select a configuration set of parameters in the Configuration table, as the current configuration
Select the set of parameters name in the Configurations table,
Click the Load button.
The selected set of parameters is now the current set of parameters.
Page 32
PREPARING THE SETUP
Page 32 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
Configuration steps
To configure the router, we advise to proceed as follows :
WAN interface setup
LAN interface setup
VPNs setup
Routing and IP address translation functions setup
Remote users connections, the user list and the access rights setup
Serial or USB gateway setup
Firewall setup
For detail about the configuration, refer to the IPL routers setup manual refernce 90 234 09.
Page 33
Page 34
Router Firewall IPL-E DOC_DEV_IPL-E_User guide_A Page 34
DIAGNOSTIC
Diagnostic
1.1 Logs
Select the Diagnostic > Logs menu
Main logs
It registers
the VPN connections & disconnections
The remote users connections & disconnections
The router starts
OpenVPN & IPSec Logs
These logs registers the detail of the VPN connections
Advanced logs
That logs registers details about the following events :
ADSL events
M2Me
RIP
DHCP
VRRP
Telnet gateway
Alarm emails
The filter checkbox allow to display particular classes of events.
Page 35
DIAGNOSTIC
Router Firewall IPL-E User Guide 9021209-01 Page 35
1.2 Network status
To display the Interfaces status pages ,
Select The Diagnostic > Network status> Interfaces menu.
The Interfaces page summarizes the current information of each interface of the router, like for instance :
LAN interface : MAC and IP address
Ethernet ports status
…
Ethernet WAN interface : MAC and IP address, default gateway address
Priority level
…
ADSL interface : Connection Status
IP address and remote IP address
Reception level
…
WiFi interface : Wifi mode (client or base station
Connection status
SSID
RF Frequency
…
To display the M2Me page,
Select The Diagnostic > Network status> M2Me menu.
The M2Me page summarizes the current status of the M2Me connection and also displays the M2Me logs.
To display the remote users page,
Select The Diagnostic > Network status> Remote users menu.
This page displays the table of the remote users currently connected.
To display the VPN connections page,
Select The Diagnostic > Network status> VPN (IPSec or OpenVPN) menu.
This page displays the table of the Open VPN or IPSec VPNs currently connected.
Page 36
DIAGNOSTIC
Page 36 DOC_DEV_IPL-E_User guide_A Router Firewall IPL-E
To display the Routes page,
Select The Diagnostic > Network status > Routes menu.
This page displays the table of the routes set-up by the router and the ARP table.
1.3 Serial gateways status
Select the Diagnostic > Serial gateway menu
That page displays the current status of the serial gateways :
Type of the gateway (Modbus, RAW UDP or TCP, Telnet …),
serial port set-up (data rate etc…),
number of characters received or sent,
Number of TCP frames or UDP datagrams received or sent,
Number of TCP connections enabled.
The View link displays a window which shows the hexadecimal received and transmitted traffic over each
serial COM port.
It can be a great help for trouble shooting.
.
1.4 « Ping » tool
Select the Diagnostic > Tool > Ping menu.
Enter the PING destination IP address.
1.5 « WiFi » scanner tool
The Wifi scanner displays the main information about each WiFi network :
MAC address of the access point, SSID, reception level.
Remark : The WiFi interface of the ETIC router needs to be registered as a WiFi client interface.
Page 37
DIAGNOSTIC
Router Firewall IPL-E User Guide 9021209-01 Page 37
Firmware update
The firmware update can be carried-out locally or remotely.
If the firmware update operation do not succeed, for instance if the connection fails, the ETIC router restarts
with the current firmware.
Once the firmware update has been carried-out, the ETIC router restores the previous current set of
parameters.
To update the firmware,
Select Maintenance > Firmware update menu,
Click the Select the firmware file button,
Click Upgrade now.
When the firmware is updated, the product automatically reboots.
Page 38
ETIC TELECOM
13 chemin du vieux Chêne
38240 Meylan
France
[email protected]
Loading...
