OAM Managed Dual Rate Media Converter
Quick Start Guide
This quick start guide describes how to install and use the
OAM managed dual rate media converter.
Functional Description
Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX,
IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX.
Complies with IEEE802.3ah OAM standard.
Supports SNMP v1 & v2c Ma n agement.
Supports Q in Q double tagged frame transparent.
Supports IN-BAND Loop Back and Diagnostic.
DIP switch configuration for “Link-Fault-Pass-Through”.
One fiber interface supports dual rate 100Base-FX/BX or 1000Base-
SX/LX/BX fi ber transmission.
SFP fiber interface supports 100Base and 1000Base dual rate fiber
transmission.
Gigabit transmission supports 9K Bytes jumbo frame.
1000Mbps-Auto/Full-duplex, 10/100Mbps-Full/Half-duplex, AutoNegotiation, Auto-MDI/MDIX.
Supports IEEE802.3x Flow control: Flow control for Full-duplex and
Back pressure for Half-duplex.
Full wire-speed forwarding rate.
Built-in Fiber Tray, for ease of fiber cable management and installation.
Operating voltage and Max. current consumption: 0.25A @ 12VDC.
Power consumption: 3W Max.
Power Supply: 12VDC external universal PSU.
-5℃ to 55℃ (-23℉ to 131℉) operating temperature range.
Physical Description
Product Overview
User’s Manual 1
OAM Managed Dual Rate Media Converter
Connect the supplied AC to DC power adaptor to the
receptacle on the front panel of the OAM managed dual rate
media converter, and then attach the plug into a standard AC
outlet.
DIP Switc h
No. Down Up
1 Disable LFPT Enable LFPT
2
3 TX port Force mode: Full-duplex TX port Force mode: Half-duplex
4 TX port Force mode: 100Mbps TX port Force mode: 10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
Enable Auto-Negotiation for TX
port
Enable Force mode for TX port
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after
re-setting LFPT function.
The 10/100/1000Base-TX, 100Base-FX/BX, and 1000Base-SX/LX/BX
Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
The 100Base-FX Connections
The 1000Base-SX/LX Connection
The fiber port pinouts
The Tx (transmit) port of device I is
connected to the Rx (receive) port of device
II, and the Rx (receive) port of device I to the
Tx (transmit) port of device II.
The WDM 100Base-BX Connection
The WDM 1000Base-BX Connection
The fiber port pinouts
Only one optical fiber is required to transmit
and receive data.
2 User’s Manual
OAM Managed Dual Rate Media Converter
The SFP Connection
The SFP socket for 100Base and 1000Base
fiber optic expansion.
The Port Status LEDs
For SFP expansion
LEDs State Indication
Steady Power on POWER
Off Power off
OAM LOOP
SPEED
(TX Port
10/100/1000Mbps)
FDX
(TX)
LNK/ACT
(TX)
Test
pass
Test fail Blink when testing and until if fail
Off No test
Steady Green: Connection at the speed of
Off Connection at the speed of 10Mbps
Steady TX port at Full-duplex mode
Off At Half-duplex mode
Steady A valid network connection is established
Blink when testing and light in 3 seconds if
pass
1000Mbps
Amber: Connection at the speed of
100Mbps
FDX stands for Full-duplex
on TX port
LNK stands for LINK
User’s Manual 3
OAM Managed Dual Rate Media Converter
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
Off No network connection is established
LNK/ACT
(FX)
Steady A valid network connection is established
on Fiber port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
Off No network connection is established
Web Configuration
Login the OAM managed dual rate media converter: Specify the default
IP address (192.168.1.10) of the OAM managed dual rate media
converter in the web browser. A login window will be shown as below.
Enter the factory default Username (admin). Enter the factory default
Password (no password). Then click on the “Login” button to log on to
the OAM managed dual rate media converter.
4 User’s Manual
OAM Managed Dual Rate Media Converter
User’s Manual 5
OAM Managed Dual Rate Media Converter
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
All brand names are registered trademarks of their relative
holders.
Trademarks
Product names mentioned in this manual may be trademarks
or registered trademarks of those products and are hereby
acknowledged.
Ethernet is a trademark of Xerox Corporation.
Microsoft Windows is a trademark of Microsoft Corporation.
6 User’s Manual
OAM Managed Dual Rate Media Converter
Preface
This OAM Managed Dual Rate Media Converter can be
monitored and configured through management via SNMP
and Web-based. This manual describes how to install and
use the OAM Managed Dual Rate Media Converter. The
OAM Managed Dual Rate Media Converter introduced here
provides one channel media conversion solution:
10/100/1000Base-TX to 100Base or 1000Base dual rate fiber
interface
The OAM Managed Dual Rate Media Converter fully
complies with IEEE802.3 10Base-T, IEEE802.3u 100BaseTX/FX, IEEE802.3ab 1000Base-T, and IEEE802.3z
1000Base-SX/LX Ethernet standards.
In this manual, you will find:
Product overview
Features on the media converter
Illustrative LED functions
Installation instructions
System configuration
Specifications
User’s Manual 7
OAM Managed Dual Rate Media Converter
Table of Contents
QUICK START GUIDE ......................................................1
FUNCTIONAL DESCRIPTION..................................1
PHYSICAL DESCRIPTION......................................1
WEB CONFIGURATION.........................................4
FCC WARNING...............................................................6
CE MARK WARNING ......................................................6
TRADEMARKS .................................................................6
PREFACE .........................................................................7
TABLE OF CONTENTS ......................................................8
INTRODUCTION ...............................................................9
PRODUCT OVERVIEW..........................................9
PRODUCT FEATURES ..........................................9
PACKING LIST ..................................................10
ONE-CHANNEL MEDIA CONVERTER ............................ 11
PORTS.............................................................11
FRONT PANEL & LEDS.....................................11
INSTALLATION ............................................................. 13
SELECTING A SITE FOR THE EQUIPMENT .............13
CABLE MANAGEMENT TRAY ..............................13
CONNECTING TO POWER...................................15
SYSTEM CONFIGURATION ............................................ 16
LOGGING ON TO THE MEDIA CONVERTER............16
MAIN MENU .....................................................16
NETWORK INFORMATION ...................................17
LOCAL SETTING ...............................................18
REMOTE SETTING.................................. ...........30
TOOLS.............................................................33
LOGOUT ..........................................................34
SPECIFICATIONS........................................................... 36
8 User’s Manual
OAM Managed Dual Rate Media Converter
Introduction
The OAM Managed Dual Rate Media Converter provides one
channel for media conversion between 10/100/1000Base-TX
to 100Base or 1000Base dual rate fiber interface.
Product Overview
Product Features
Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX,
IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX.
Complies with IEEE802.3ah OAM standard.
Supports SNMP v1 & v2c Ma n agement.
Supports Q in Q double tagged frame transparent.
Supports IN-BAND Loop Back and Diagnostic.
DIP switch configuration for “Link-Fault-Pass-Through”.
One fiber interface supports dual rate 100Base-FX/BX or 1000Base-
SX/LX/BX fi ber transmission.
SFP fiber interface supports 100Base and 1000Base dual rate fiber
transmission.
Gigabit transmission supports 9K Bytes jumbo frame.
1000Mbps-Auto/Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-
Negotiation, Auto-MDI/MDIX.
Supports IEEE802.3x Flow control: Flow control for Full-duplex and
Back pressure for Half-duplex.
Full wire-speed forwarding rate.
Built-in Fiber Tray, for ease of fiber cable management and installation.
Operating voltage and Max. current consumption: 0.25A @ 12VDC.
Power consumption: 3W Max.
Power Supply: 12VDC external universal PSU.
-5℃ to 55℃ (-23℉ to 131℉) operating temperature range.
DIP Switc h
User’s Manual 9
OAM Managed Dual Rate Media Converter
No. Down Up
1 Disable LFPT Enable LFPT
2
3 TX port Force mode: Full-duplex TX port Force mode: Half-duplex
4 TX port Force mode: 100Mbps TX port Force mode: 10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
Enable Auto-Negotiation for TX
port
Enable Force mode for TX port
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after
re-setting LFPT function.
Packing List
When you unpack this product package, you will find the items listed below.
Please inspect the contents, and report any apparent damage or missing
items immediately to our authorized reseller.
The Media Converter
User’s Manual
AC to DC Power Adaptor
10 User’s Manual
OAM Managed Dual Rate Media Converter
One-Channel Media Conver ter
Ports
This converter provides one TX port and one dual rate
100Base-FX/BX or 1000Base-SX/LX/BX fiber interface. For
the dual rate 100Base-FX/BX or 1000Base-SX/LX/BX fiber
interface, it provides options of multi-mode/single-mode or
WDM multi-mode/single-mode fiber. For the TX port, it uses
RJ-45 connector and supports auto MDIX for uplink purpose.
Front Panel & LEDs
LED Indicators
The LED indicators give you instant feedback on status of the
converter:
User’s Manual 11
OAM Managed Dual Rate Media Converter
LEDs State Indication
Steady Power on POWER
Off Power off
OAM LOOP
Test
pass
Test fail Blink when testing and until if fail
Off No test
Blink when testing and light in 3 seconds if
pass
SPEED
(TX Port
10/100/1000Mbps)
FDX
(TX)
LNK/ACT
(TX)
LNK/ACT
(FX)
Steady Green: Connection at the speed of
1000Mbps
Amber: Connection at the speed of
100Mbps
Off Connection at the speed of 10Mbps
Steady TX port at Full-duplex mode
FDX stands for Full-duplex
Off At Half-duplex mode
Steady A valid network connection is established
on TX port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
Off No network connection is established
Steady A valid network connection is established
on Fiber port
LNK stands for LINK
Flashing Transmitting or receiving Data
ACT stands for ACTIVITY
Off No network connection is established
12 User’s Manual
OAM Managed Dual Rate Media Converter
Installation
This chapter gives step-by-step installation instructions for
the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet th e f oll owi ng requirements:
The ambient temperature should be between -5 to 55 degrees Ce lsius
(-23 and 131 degrees Fahrenheit).
The relative humidity should be less than 95 percent, non-condensing.
Surrounding electrical devices should not exceed the electromagnetic
field (RFC) standards for IEC 801-3, Level 2 (3V/M) field strength.
Make sure that the equipment receives adequate ventilation. Do not
block the ventilation holes on each side of the equipment.
The power outlet should be within 1.8 meters of the product.
Cable Management Tray
User’s Manual 13
OAM Managed Dual Rate Media Converter
Cable management tray, board of cable outlet hole, and
cable outlet hole.
Route the fiber cable.
Bend the board of cable outlet hole.
14 User’s Manual
OAM Managed Dual Rate Media Converter
Cable ties.
Connecting to Power
This Converter is a plug-and-play device.
Connect the supplied AC to DC power adaptor to t he receptacle on the
front panel of the converter, and then attach the plug into a standard
AC outlet with a voltage range from 100 to 240VAC.
User’s Manual 15
OAM Managed Dual Rate Media Converter
System Configuration
This chapter provides network managers and system
administrators with information about how to configure the
OAM Managed Dual Rate Media Converter via the Web
Browser.
Logging on to the Media Converter
The default IP Address for the OAM Managed Media
Converter is 192.168.1.10. Enter the factory default
Username (admin). Enter the factory default Password (no
password). Then click on the “Login” button to log on to the
OAM Managed Media Converter.
Main Menu
16 User’s Manual
OAM Managed Dual Rate Media Converter
Network Information
User’s Manual 17
OAM Managed Dual Rate Media Converter
It will show local device information and local port status.
Local Setting
IP Configuration
DHCP Client: Click “DHCP Client” drop-down menu to
choose “Disable” or “Enable” from the “DHCP Client”
drop-down list to disable or enable DHCP Client setting
for the media converter. You need to set the IP Address,
Subnet Mask, and Gateway by self if DHCP Client is
disabled. The IP Address would be provided by DHCP
Server if the DHCP Client is enabled.
IP Address: Click in “IP Address” text box and type a new
address to change the IP Address.
Subnet Mask: Click in “Subnet Mask” text box and type a
new address to change the Subnet Mask.
18 User’s Manual
OAM Managed Dual Rate Media Converter
Gateway: Click in the “Gateway” text box and type a new
address to change the Gateway.
Description: Click in the “Description” text box and type a
description for the media converter. Description field can
only be a number, in English, or “*@_-“.
Apply: Click “Apply” button when you finished IP
Configuration.
Password Setting
Login Name: The factory default login name “admin”
can’t be changed.
Old Password: Click in “Old Password” text box and type
the old password. You must type the old password into
this field if you want to set a new password. The
password must be “a”-“z”, “A”-“Z”, “0”-“9”, and “_”. The
max length is 16 characters.
New Password: Click in “New Password” text box and
type a new password.
User’s Manual 19
OAM Managed Dual Rate Media Converter
Confirm: Click in “Confirm” text box and type the new
password in “Confirm” text box again to verify it.
Apply: Click “Apply” button when you finished Password
Setting.
Converter Configuration
Jumbo Frame (9K): The media converter could pass the
max 9KB packet if enable this function.
Link Transparent: Toggle up Pin 1 on DIP Switch inside
media converter to enable the Link Transparent (LinkFault-Pass-Through) then to enable Remote Fault Detect
and Link Loss Carry Forward.
20 User’s Manual
OAM Managed Dual Rate Media Converter
Remote Fault Detect: The media converter will set local
UTP port link up or link down according to remote
device’s UTP port link status if enable this function.
Link Loss Carry Forward: If enable this function, when
the UTP port link down, the fiber port will be forced link
down. And the fiber will be resumed when UTP port link
up.
Forward CRC Error Frame: The CRC error packets will
be passed if enable this function. Otherwise the CRC
error packets will be dropped.
Forward Pause Frame: The media converter will forward
pause frame and regard it as a normal packet if enable
this function.
Management Packet High Priority: Need to reset media
converter then this function will take effect. All
management packet will be allocated to high priority
queue to guarantee bandwidth when Management
Packet High Priority is enabled. Media converter will
enable QoS and four queues and set queue 3 as strict
priority if enable this function. All management packets
such as 802.3ah OAM and SNMP packets will be in
queue 3 to guarantee bandwidth.
Broadcast Storm Filter: If enable this function, when too
many broadcast packets arrive in a period time, the
broadcast packets will be dropped.
Multicast Storm Filter: If enable this function, when too
many multicast packets arrive in a period time, the
multicast packets will be dropped.
Unknown DA Unicast Storm Filter: If enable this function,
when too many unknown DA unicast packets arrive in a
period time, the unknown DA unicast packets will be
dropped.
Apply: Click “Apply” button when you finished Converter
Configuration.
Port Configuration
User’s Manual 21
OAM Managed Dual Rate Media Converter
Mode: The mode of TP port can be set by DIP Switch
inside media converter. Click “Mode” drop-down menu to
choose “Auto Speed”, “1000 Full”, or “100 Full” from the
“Mode” drop-down list for FX port.
Flow Control: Click “Flow Control” drop-down menu to
choose “Disable” or “Enable” from the “Flow Control”
drop-down list to disable or enable Flow Control for TP or
FX port.
Ingress Rate Limit (kbps): Click “Ingress Rate Limit”
drop-down menu to choose the ingress rate limit from the
“Ingress Rate Limit” drop-down list for TP or FX port. Or
click “Ingress Rate Limit” drop-down menu to choose the
“User Setting” from the “Ingress Rate Limit” drop-down
list for TP or FX port. Then click in “Ingress Rate Limit”
text box and type an ingress rate limit for TP or FX port.
The ingress rate limit should be divided exactly by 64
because 64kbps is as a minimal step for ingress rate limit.
The program will change the ingress rate limit to 64
automatically if the ingress rate limit is not divided by 64,
for example 65.
Egress Rate Limit (kbps): Click “Egress Rate Limit” drop-
down menu to choose the egress rate limit from the
22 User’s Manual
OAM Managed Dual Rate Media Converter
“Egress Rate Limit” drop-down list for TP or FX port. Or
click “Egress Rate Limit” drop-dow n menu to choose the
“User Setting” from the “Egress Rate Limit” drop-down
list for TP or FX port. Then click in “Egress Rate Limit”
text box and type an egress rate limit for TP or FX port.
The egress rate limit should be divided exactly by 64
because 64kbps is as a minimal step for egress rate limit.
The program will change the egress rate limit to 64
automatically if the egress rate limit is not divided by 64,
for example 65.
Apply: Click “Apply” button when you finished Port
Configuration.
Refresh: Click “Refresh” button to show the current Port
Configuration again.
MIB Counter
This page shows local device’s MIB counters.
User’s Manual 23
OAM Managed Dual Rate Media Converter
Clear: All MIB counters will be cleared to zero if click
“Clear” button.
Refresh: Click “Refresh” button to show the current MIB
counters again.
SNMP Configuration
SNMP Ability: Click “SNMP Ability” drop-down menu to
choose “Disable” or “Enable” from the “SNMP Ability”
drop-down list to disable or enable SNMP functions.
Trap Mode: Click “Trap Mode” drop-down menu to
choose “Disable” or “Enable” from the “Trap Mode” dropdown list to disable or enable to send trap event to
SNMP server.
SNMP Trap IP Address: Click in “SNMP Trap IP
Address” text box and type SNMP server’s IP address
used for trap destination IP.
24 User’s Manual
OAM Managed Dual Rate Media Converter
Apply: Click “Apply” button when you finished SNMP
Configuration.
SNMP Community Setting
This OAM Managed Media Converter supports up to 5 SNMP
Read/Write Communities.
SNMP Read Community:
Add Read Community: Click in “Add Read Community”
text box and type a read community name.
Delete Read Community: Click in “Delete Read
Community” text box and type a read community name to
be deleted.
SNMP Write Community:
Add Write Community: Click in “Add Write Community”
text box and type a write community name.
User’s Manual 25
OAM Managed Dual Rate Media Converter
Delete Write Community: Click in “Delete Write
Community” text box and type a write community name
to be deleted.
ClearReadAll: Click “ClearReadAll” button to clear all
read community names.
ClearWriteAll: Click “ClearWriteAll” button to clear all
write community names.
Apply: Click “Apply” button when you finished SNMP
Community Setting.
VLAN
VLAN Group:
VLAN Mode: Click “VLAN Mode” drop-down menu to
choose “Disable” or “Enable” from the “VLAN Mode”
26 User’s Manual
OAM Managed Dual Rate Media Converter
drop-down list to disable or enable 802.1Q VLAN Group.
User could set 16 VLAN entries if enable 802.1Q VLAN
Group functions. Each VLAN entry could set VID and
member port. The VID should be 1~4094.
Apply: Click “Apply” button when you finished VLAN
Group setting.

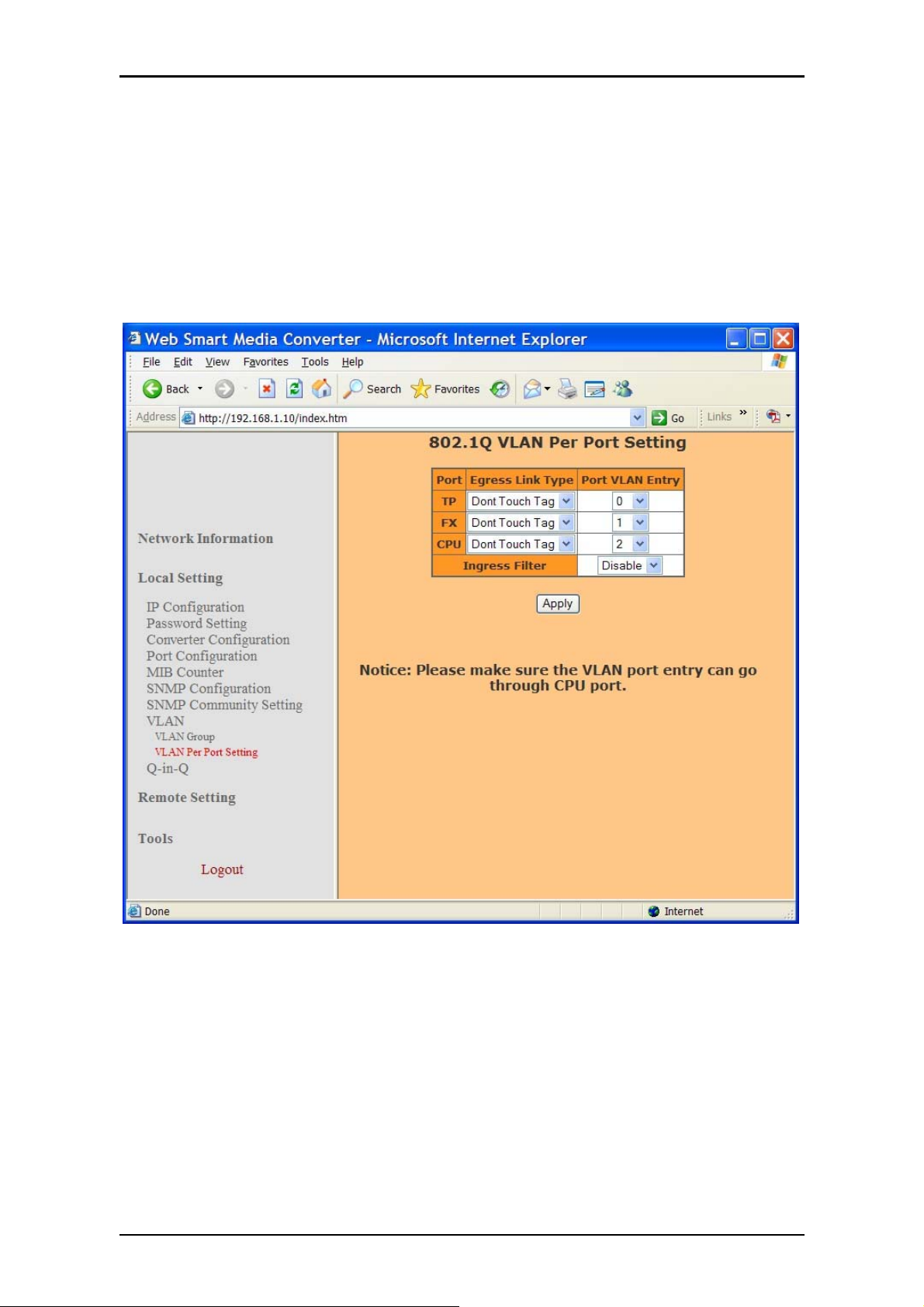

VLAN Per Port Setting:
Egress Link Type:
Replace Tag: The media converter will remove VLAN tags
from packets then add new tags to them. The inserted tag is
the ingress port’s “Default tag”, which is indexed by port “Port
based VLAN index”. This is a replacement processing for
tagged packets and an insertion for untagged packets.
Remove Tag: The media converter will remove VLAN tags
from packets if they are tagged when these packets are
User’s Manual 27
OAM Managed Dual Rate Media Converter
output. The media converter will not modify packets received
without tags.
Add Tag: The media converter will add VLAN tags to packets
if they are not tagged when these packets are output on this
port. The media converter will not add tags to packets
already tagged. The inserted tag is the ingress port’s “Default
tag”, which is indexed by port’s “Port based VLAN index”.
Don’t Touch Tag: Do not insert or remove VLAN tags to/from
packet which is output on this port.
Port VLAN Entry: Select Port based VLAN index. The
number means VLAN table entry index, not VID.
Ingress Filter: Click “Ingress Filter” drop-down menu to
choose “Disable” or “Enable” from the “Ingress Filter”
drop-down list to disable or enable VLAN ingress filter.
Apply: Click “Apply” button when you finished VLAN
Group setting.
Please make sure the VLAN port entry can go through CPU
port.
Q-in-Q
28 User’s Manual
OAM Managed Dual Rate Media Converter
Q in Q Enable: Click “Q in Q Enable” drop-down menu to
choose “Disable” or “Enable” from the “Q in Q Enable”
drop-down list to disable or enable Q in Q function.
Out Layer VLAN Tag EtherType (HEX): Click in “Out
Layer VLAN Tag EtherType” text box and type user
defined Q-in-Q out layer VLAN tag Ether type.
Out Layer VLAN VID (DEC): Click in “Out Layer VLAN
VID” text box and type user defined Q-in-Q out layer
VLAN tag VID.
VLAN Tag Priority Decision: Click “VLAN Tag Priority
Decision” drop-down menu to choose “Use Internal
VLAN Tag Priority” or “Use 802.1p remarking decision
Priority” from the “VLAN Tag Priority Decision” drop-
down list to decide out layer VLAN Tag’s priority.
Q in Q direction: C lick “Q in Q direction” drop-down menu
to choose “P0 Add QinQ Tag. P1 Remove Tag.” or “P1
Add QinQ Tag. P0 Remove Tag.” from the “Q in Q
direction” drop-down list to select Q in Q direction.
User’s Manual 29
OAM Managed Dual Rate Media Converter
Apply: Click “Apply” button when you finished VLAN
Group setting.
Web connection may be lost because of the VLAN tag if Qin-Q is enabled.
Remote Setting
802.3ah Functions
802.3ah Configuration:
802.3ah Function: Choose “Disable” or “Enable” to
disable or enable 802.3ah function.
802.3ah Mode: Choose “Passive” or “Active” to set
passive or active 802.3ah mode.
Remote Loopback: Choose “Disable” or “Enable” to
disable or enable remote loopback.
Apply: Click “Apply” button when you finished 802.3ah
OAM Configuration.
Refresh: Click “Refresh” button to show the current
802.3ah status again.
30 User’s Manual
Loopback Test:
OAM Managed Dual Rate Media Converter
Send Packet Number (1~255): Click in “Send Packet
Number” text box and type packet number to be sent.
Packet Length (Not include CRC) (60~1514): Click in
“Packet Length” text box and type packet length.
Apply: Click “Apply” button when you finished 802.3ah
Loop Back Test.
802.3ah Status:
User’s Manual 31
OAM Managed Dual Rate Media Converter
32 User’s Manual
OAM Managed Dual Rate Media Converter
This page shows 802.3ah Status Information of the media
converter.
Tools
System Reboot
OK: Click “OK” button to restart the media converter.
OK: Click “Cancel” button to cancel the media converter
restarting.
Save and Restore
SaveToFlash: Click “SaveToFlash” button to save all
current configurations to media converter as backup.
User’s Manual 33
OAM Managed Dual Rate Media Converter
LoadFromFlash: Click “LoadFromFlash” button to restore
to previous backup configuration. The Web Interface may
be disconnected for restoration.
ResetToFactory: Click “ResetToFactory” button. The
Web Interface will be disconnected. The system will back
to factory default mode after media converter resets all
configurations. The default IP address is 192.168.1.10.
Firmware Upgrade
Browse: Click “Browse” button to select the location and
file of the new fir mware image file on your computer.
Upgrade: Click “Upgrade” button. The new firmware
image file will be burned into the flash. Reset the media
converter to use the new firmware.
Logout
34 User’s Manual
OAM Managed Dual Rate Media Converter
OK: Click “OK” button to logout of the media converter.
OK: Click “Cancel” button to cancel the media converter
logout.
User’s Manual 35
OAM Managed Dual Rate Media Converter
Specifications
Applicable Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
Fixed Ports 1 10/100/1000Base-TX port
1 dual rate 100Base-FX/BX or 1000BaseSX/LX/BX fiber interface
1 100Base and 1000Base dual rate SFP fiber
interface
Speed
10Base-T
100Base-TX
100Base-FX/BX
1000Base-T
1000Base-SX/LX/BX
Forwarding rate 14,880pps for 10Mbps
LED Indicators POWER, OAMLOOP
Dimensions 100mm (W) × 122mm (D) × 32.5mm (H)
Weight 0.5Kg (1.1lbs.)
Power External power adaptor 12VDC, 0.25A
Power Consumption 3W Max.
Operating Temperature
10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
200Mbps for full-duplex
2000Mbps for full-duplex
2000Mbps for full-duplex
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Fiber port: LNK/ACT
TX port: SPEED, FDX, LNK/ACT
(3.94” (W) x 4.8” (D) x 1.28” (H))
-5℃ ~ 55℃ (23℉ ~ 131℉)
Storage Temperature
Humidity 5 ~ 95%, non-condensing
Emissions CE Mark Class A
-20℃ ~ 70℃ (-4℉ ~ 158℉)
FCC part 15 Class A
VCCI Class A
36 User’s Manual
Loading...
