EtherWan Hardened Web-Smart PoE, High Power PoE Ethernet Switch Quick Start Guide

Hardened Web-Smart PoE & High Power PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the Hardened Web-Smart PoE (Power over Ethernet) and High Power PoE Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

Physical Description

The Port Status LEDs and Power Inputs

Hardened Web-Smart PoE & High Power PoE Ethernet Switch
LED State Indication
Steady A valid network connection established.
Link/ACT
PoE High Power PoE
Flashing
Steady Power Device (PD) is connected.
Off Power Device (PD) is disconnected.
Transmitting or receiving data. ACT stands for ACTIVITY.
Power Input Assignment
Power3 48, 55VDC (High Power) DC Jack
Power2
Power1
48, 55VDC (High Power)
Power Ground
48, 55VDC (High Power)
Power Ground
Terminal
Block
Relay Output Rating 0.1A @ 24VDC
Relay Alarm Assignment
FAULT
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2 are both failed but Power3 on.
The relay contact closes if Power3 is failed but Power1 and Power2 are both on.
DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this switch. Redundant power supplies function is supported.

The 10/100Base-TX and 100Base-FX/BX Connectors

The 10/100Base-TX Connections
The following lists the pinouts of 10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
2 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
The 100Base-FX Connections The fiber port pinouts The Tx (transmit) port of device I is connected to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II.
The WDM 100Base-BX Connections The fiber port pinouts Only one single-mode optical fiber is required to transmit and receive data.

Functional Description

z Meets NEMA TS1/TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control equipment.
z Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity
for industrial environment.
z Manageable via Web browser interface.
z Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z High Power PoE design up to 30W (enhancement of IEEE802.3af
PoE).
z Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps-full/half-duplex; Auto MDI/MDIX.
z 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type.
100Base-BX: WDM Single mode SC type.
z Supports 1024 MAC addresses. Provides 1M bits memory buffer.
z Store-and-forward mechanism.
z Full wire-speed forwarding rate.
z Alarms for power and port link failure by relay output.
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
z PoE: Redundant 48VDC Terminal Block power inputs and 48VDC DC
JACK power input for 15.4W per PoE port. Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power consumption: 72W Max.
z High Power PoE: Redundant 55VDC Terminal Block power inputs and
55VDC DC JACK power input for 30W per High Power PoE port. Operating voltage and Max. current consumption: 2.3A @ 55VDC. Power consumption: 130W Max.
z -40℃ to 75 (-40℉ to 167) operating temperature range. Tested for
functional operation @ -40 to 85 (-40 to 185). Web-Smart function operating temperature @ -20 to 85 (-4 to 185℉).
z Supports DIN-Rail, Panel, or Rack Mounting installation.

Web Configuration

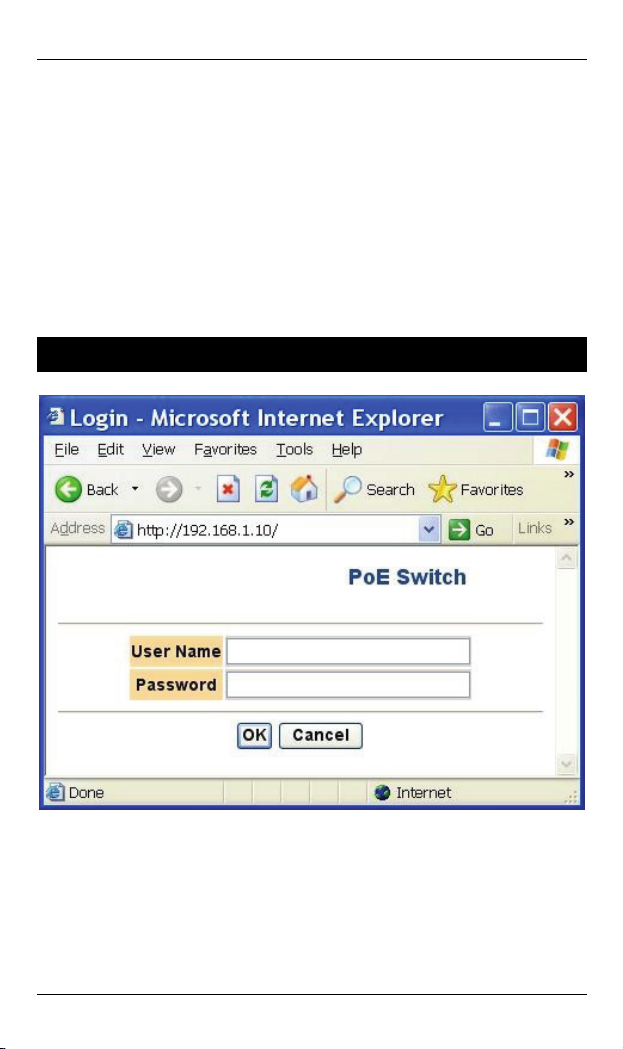

z Login the switch:
Specify the default IP address (192.168.1.10) of the switch in the web
browser. A login window will be shown as below:
z Enter the factory default user name: admin.
Enter the factory default password (no password).
Then click on the “OK” button to log on to the switch.
4 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Assembly, Startup, and Dismantling

Assembly: Place the switch on the DIN rail from above using the slot.
Push the front of the switch toward the mounting surface until it audibly
snaps into place.
Startup: Connect the supply voltage to start up the switch via the
terminal block (or DC JACK).
Dismantling: Pull out the lower edge and then remove the switch from
the DIN rail.
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Preface

This manual describes how to install and use the Hardened Web-Smart PoE & High Power PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with web-based management functions. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.
Port 1 to port 4 on this switch supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD). Using external 48VDC power inputs through Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable through port 1 to port 4 on the switch.
Port 1 to port 4 on this switch also supports High Power PoE Power Sourcing Equipment (PSE) and can detect a Powered Device (PD). Using external 55VDC power inputs through Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable through port 1 to port 4 on the switch.
To get the most out of this manual, you should have an understanding of Ethernet networking concepts.
In this manual, you will find:
Features on the Hardened Web-Smart PoE & High Power PoE Ethernet Switch
z Illustrative LED functions z Installation instructions z Management Configuration z Specifications
6 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Table of Contents

Quick Start Guide 1
PHYSICAL DESCRIPTION 1
The Port Status LEDs and Power Inputs 1 The 10/100Base-TX and 100Base-FX/BX Connectors 2
FUNCTIONAL DESCRIPTION 3 WEB CONFIGURATION 4 ASSEMBLY, STARTUP, AND DISMANTLING 5
Preface 6
Table of Contents 7
Product Overview 9
HARDENED WEB-SMART ETHERNET SWITCH 9 PACKAGE CONTENTS 10 PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11 PHYSICAL PORTS 12 SWITCH MANAGEMENT 12
Web-based browser interface 12
Installation 13
SELECTING A SITE FOR THE SWITCH 13 DIN RAIL MOUNTING 13 CONNECTING TO POWER 14
Redundant DC Terminal Block Power Inputs 14 DC Jack 15 Alarms for Power and Port Link Failure 15
CONNECTING TO YOUR NETWORK 16
Cable Type & Length 16 Cabling 17
Switch Management 18
MANAGEMENT ACCESS OVERVIEW 18 WEB MANAGEMENT 19
Web-Based Browser Management 20
LOGGING ON TO THE SWITCH 20 UNDERSTANDING THE BROWSER INTERFACE 22 POE 23 PORT BASED VLAN 25 PRIORITY 26 DIFF SERV CODE POINT 27
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
SYSTEM SETUP 29 FIRMWARE UPGRADE 31
Specifications 32
8 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Product Overview

Hardened Web-Smart Ethernet Switch

Front and Top View
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.
The Hardened Web-Smart PoE & High Power PoE Ethernet Switch
User’s Manual

Product Highlights

Basic Features

z Complies with NEMA TS1/TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control equipment.
z Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard
immunity for Industrial environment.
z Manageable via Web browser interface. z Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z High Power PoE design up to 30W (enhancement of IEEE802.3af PoE). z Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps-full/half-duplex; Auto MDI/MDIX.
z 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type.
100Base-BX: WDM Single mode SC type.
z Supports 1024 MAC addresses. Provides 1M bits memory buffer. z Store-and-forward mechanism. z Full wire-speed forwarding rate. z Alarms for power and port link failure by relay output. z PoE: Redundant 48VDC Terminal Block power inputs and 48VDC DC
JACK power input for 15.4W per PoE port. Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power consumption: 72W Max.
z High Power PoE: Redundant 55VDC Terminal Block power inputs and
55VDC DC JACK power input for 30W per High Power PoE port. Operating voltage and Max. current consumption: 2.3A @ 55VDC. Power consumption: 130W Max.
z -40℃ to 75 (-40 to 167) operating temperature range. Tested for
functional operation @ -40 to 85 (-40 to 185). Web-Smart function operating temperature @ -20 to 85 (-4 to 185℉).
z Reset button on front panel. z Front panel port status LEDs. z Hardened aluminum case. z Supports DIN-Rail, Panel, or Rack Mounting installation.
10 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Front Panel Display

z Power (Power1, Power2, Power3) This LED comes on when the switch is properly connected to power and turned on.
z Port Status LEDs The LEDs are located on the front panel, displaying status for each respective port. Please refer to the following table for more details.
User’s Manual 11
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
LED State Indication
Link/ACT
PoE High Power PoE
Steady A valid network connection established.
Flashing
Steady Power Device (PD) is connected.
Off Power Device (PD) is disconnected.
Transmitting or receiving data. ACT stands for ACTIVITY.

Physical Ports

The Hardened Web-Smart PoE & High Power PoE Ethernet Switch provides:

CONNECTIVITY

RJ-45 connectors on TX ports
z z ST or SC connector on 100Base-FX fiber port z SC connector on 100Base-BX fiber port
MODE SELECTION
10Base-T full-duplex mode
z z 10Base-T half-duplex mode
z 100Base-TX full-duplex mode z 100Base-TX half-duplex mode z 100Base-FX full-duplex mode z Auto-negotiating mode

Switch Management

Web-based browser interface

The switch also boasts a point-and-click browser-based interface that lets user access full switch configuration and functionality from a Netscape or Internet Explorer browser.
12 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Installation

This chapter gives step-by-step instructions about how to install the switch:

Selecting a Site for the Switch

As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements:
-The ambient temperature should be between -40°C to 75 ℃ (-40 to 167).
-The relative humidity should be less than 95 percent, non-condensing.
-Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.
-Make sure that the switch receives adequate ventilation. Do not block the ventilation holes on each side of the switch.

DIN Rail Mounting

Fix the DIN rail attachment plate to the back panel of the switch.
Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the switch from the DIN rail.
User’s Manual 13
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Connecting to Power

Redundant DC Terminal Block Power Inputs or DC Jack Power Input:

Redundant DC Terminal Block Power Inputs

There are two pairs of power inputs for use with redundant power sources. You only need to have one power input connected to run the switch.
Step 1: Connect the DC power cord to the plug-able terminal block on the
14 User’s Manual
switch, and then plug it into a standard DC outlet.
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
Step 2: Disconnect the power cord if you want to shut down the switch.

DC Jack

Step 1: Connect the supplied AC to DC power adapter to the receptacle on
Step 2: Connect the power cord to the AC to DC power adapter and attach
Top View
the topside of the switch.
the plug into a standard AC outlet with the appropriate AC voltage.

Alarms for Power and Port Link Failure

Step 1: There are two pins on the terminal block used for power failure
detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.
User’s Manual 15
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
Power Input Assignment
Power3 48, 55VDC (High Power) DC Jack
Power2
Power1
48, 55VDC (High Power)
Power Ground
48, 55VDC (High Power)
Power Ground
Terminal
Block
Relay Output Rating 0.1A @ 24VDC
Relay Alarm Assignment
FAULT
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2 are both failed but Power3 on.
The relay contact closes if Power3 is failed but Power1 and Power2 are both on.
Special note: The relay output is normal open position when there is no power to the switch. Please do not connect any power source to this terminal to prevent shorting your power supply.

Connecting to Your Network

Cable Type & Length

It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements.
Cable Specifications
Speed Connector
Port Speed Half/Full Duplex
10Base-T RJ-45 10/20 Mbps 2-pair
100Base-TX RJ-45 100/200
100Base-FX ST, SC 200 Mbps MMF (50 or
16 User’s Manual
Mbps
Cable Max.
Distance
UTP/STP Cat. 3, 4, 5
2-pair UTP/STP Cat. 5
62.5μm)
100 m
100 m
2 km
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
100Base-FX ST, SC 200 Mbps SMF (9 or
10μm)
100Base-BX SC 200 Mbps SMF (9 or
10μm)
20, 40, or 75 km
20 or 40 km

Cabling

Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port
Step 3: Consult Cable Specifications Table on previous page for cabling
Step 4: Connect one end of the cable to the switch and the other end to a
Step 5: Once the connections between two end devices are made
in use.
requirements based on connectors and speed.
desired device.
successfully, turn on the power and the switch is operational.
User’s Manual 17
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Switch Management

This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.
This chapter covers the following topics:
Management Access Overview
Key Concepts
Key Guidelines for Implementation
Web Management Access
Standards, Protocols, and Related Reading

Management Access Overview

The switch gives you the flexibility to access and manage the switch using any or all of the following methods.
The web browser interface support is embedded in the switch software and is available for immediate use.
18 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Web Management

The switch provides a browser interface that lets you configure and manage the switch remotely.
After you set up your IP address for the switch, you can access the switch’s web interface applications directly in your web browser by entering the IP address of the switch. You can then use your web browser to list and manage switch configuration parameters from one central location, just as if you were directly connected to the switch’s console port.
User’s Manual 19
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Web-Based Browser Management

The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser.
This chapter describes how to configure the switch using its web-based browser interface.

Logging on to the switch

SWITCH IP ADDRESS

In your web browser, specify the IP address of the switch. Default IP address is 192.168.1.10.
USER NAME
Enter the factory default user name: admin.
20 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
PASSWORD
Enter the factory default password (no password). Or enter a user-defined password if you followed the instructions later and changed the factory default password.
Then click on the “OK” button to log on to the switch.
User’s Manual 21
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Understanding the Browser Interface

The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch.
PoE
Port Based VLAN
Priority
Diff Serv Code Point
Bit 0 ~ 31, Bit 32 ~ 63
System Setup
Firmware Upgrade
22 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

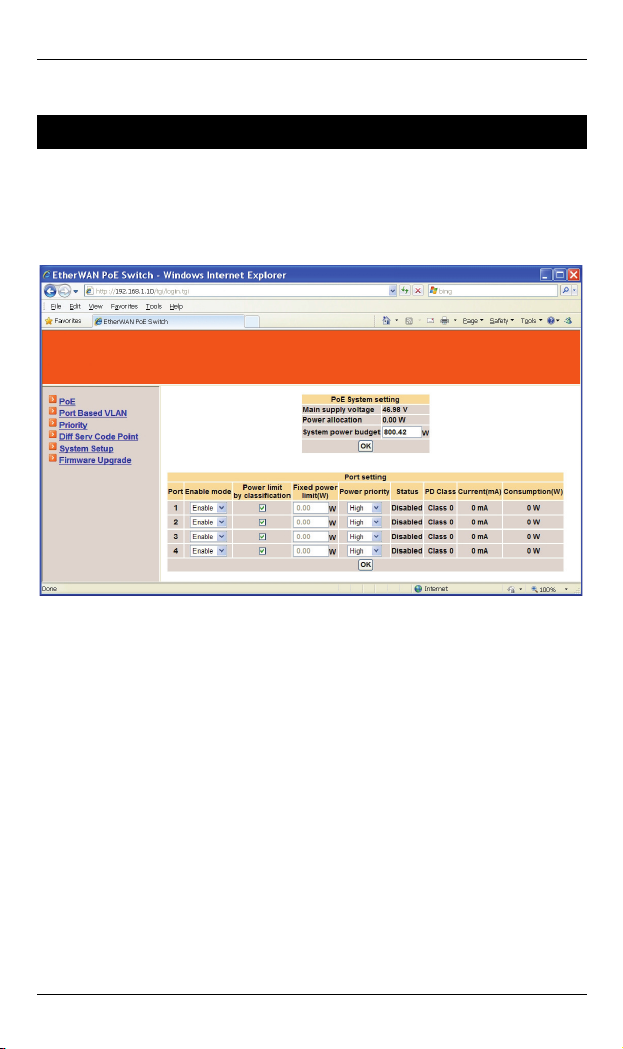

PoE
PoE
1. System power budget: Click in “System power budget” text box and type a new system power budget.
2. OK: Click “OK” button to update your settings.
3. Enable mode: Click “Enable mode” drop-down menu to choose “Enable” or “Disable” from the “Enable mode” drop-down list to enable or disable Port 1 ~ Port 4 to discover Powered Device (PD) connected to Port 1 ~ Port 4 of the Switch.
4. Power limit by classification: Check or uncheck “Power limit by classification” to enable or disable Port 1 ~ Port 4 to provide power to PD according to classification of maximum power range used by PD.
5. Fixed power limit(W): First uncheck “Power limit by classification” to disable Port 1 ~ Port 4 to provide power to PD according to classification of maximum power range used by PD. Then click in “Fixed power limit(W)” text box and type a new fixed power limit for Port 1 ~ Port 4 to provide power to PD.
6. Power priority: Click “Power priority” drop-down menu to choose “Low”, “Middle”, or “High” from the “Power priority” drop-down list to determine power priority of Port 1 ~ Port 4.
7. OK: Click “OK” button to update your settings.

Flexible 802.3af High Power PoE Operation: Compatible with the 802.3at Standard

This Hardened Web-Smart PoE & High Power PoE Ethernet switch is compliant with the 802.3af High Power standard, providing 30W of pure
User’s Manual 23
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
power to power demanding devices such as pan-tilt-zoom (PTZ) network cameras, wireless access bridge/routers and large-screen network video phones et cetera.
This 802.3af High Power switch’s PoE operation with 802.3at based PD is highly versatile and adaptable. Normally, when an 802.3at PD is connected to an 802.3af High Power compliant switch, the switch will detect that the PD’s power requirement is based on class 4 classification outlined in the IEEE802.3at standard, and only attempt to provide 15.4W of power, which is insufficient to power a 30W 802.3at PD. This is due to the reason that the 30W of power in 802.3af High Power is classified as class 0. However, this
802.3af High Power switch can support 30W 802.3at PD by setting the switch
explicitly to provide a fixed rate of 30W power to 30W 802.3at PD.
1. Power limit by classification: Uncheck “Power limit by classification” to disable Port 1 ~ Port 4 to provide power to 30W 802.3at PD according to classification of maximum power range used by PD.
2. Fixed power limit(W): Click in “Fixed power limit(W)” text box and type a new fixed power limit 30W for Port 1 ~ Port 4 to provide power to 30W
802.3at PD.
3. OK: Click “OK” button to update your settings.
24 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Port Based VLAN

Port Based VLAN
1. VLAN.1 ~ VLAN.7: Click and choose Port 1 ~ Port 8 to be added into VLAN.1 ~ VLAN.7.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
User’s Manual 25
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Priority

Priority
1. Ratio Scheme: Click and choose “All High Before Low”, “10:1”, “5:1”, or “2:1” ratio scheme.
2. Port 1 ~ Port 8: Click and choose “TOS”, “802.1p”, or “Port Priority” (“High” or “Low”) for Port 1 ~ Port 8.
3. 802.1p Level 7 ~ Level 0: Click and set “High” or “Low” priority to queue of 802.1p Level 7 ~ Level 0.
4. Cancel: Click “Cancel” button to cancel your settings.
5. OK: Click “OK” button to update your settings.
26 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Diff Serv Code Point

Diff Serv Code Point
Bit 0 ~ 31:
1. Diff Serv Code Point: Check and set Bit 0 ~ 31 of Diff Serv Code Point to high priority.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
User’s Manual 27
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

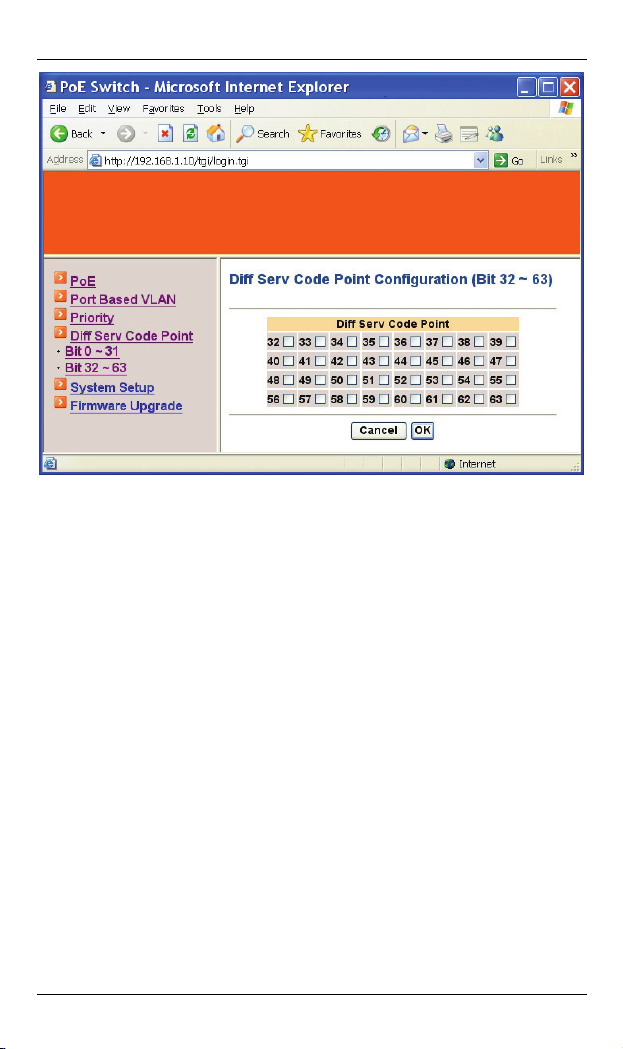

Bit 32 ~ 63:
1. Diff Serv Code Point: Check and set Bit 32 ~ 63 of Diff Serv Code Point to high priority.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
28 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

System Setup

System Setup
System Configuration:
1. DHCP Client: Click and choose “Enable” or “Disable” to enable or disable the Switch as DHCP client to be automatically supplied an IP address, gateway address, and subnet mask from DHCP server.
2. IP Address: Click in “IP Address” text box and type a new address to change the IP Address.
3. Subnet Mask: Click in “Subnet Mask” text box and type a new address to change the Subnet Mask.
4. Default Gateway: Click in “Default Gateway” text box and type a new address to change the Default Gateway.
5. Cancel: Click “Cancel” button to cancel your settings.
6. OK: Click “OK” button to update your settings.
Password Configuration:
1. Old Password: Click in “Old Password” text box and type in the old password.
2. New Password: Click in “New Password” text box and type in a new password.
3. Confirm Again: Click in “Confirm Again” text box. Type the same password in “New Password” text box again to verify it.
4. Cancel: Click “Cancel” button to cancel your settings.
5. OK: Click “OK” button to update your settings.
User’s Manual 29
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
System Reset/Restore to default:
1. Load Default: Click “Load Default” button to restore the default settings of the Switch.
2. Reset System: Click “Reset System” button to restart the Switch.
30 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Firmware Upgrade

Firmware Update
1. Cancel: Click “Cancel” button to cancel firmware update request.
2. Update: Click “Update” button and wait for firmware update request being processed.
User’s Manual 31
Hardened Web-Smart PoE & High Power PoE Ethernet Switch

Specifications

Applicable Standards
Switching Method Store-and-Forward Forwarding Rate
10Base-T 100Base-TX 100Base-FX/BX
Performance
Cable
10Base-T 100Base-TX 100Base-FX 100Base-BX

LED Indicators Per unit – Power status (Power1, Power2, Power3)

Dimensions 68mm (W) x 110mm (D) x 135mm (H)
Net Weight 1Kg (2.2lbs.) Power Input
Operating Voltage & Max. Current
Consumption Power Consumption
Operating Temperature
Storage Temperature
Humidity 5%-95% non-condensing EMI FCC Part 15, Class A
EMS EN61000-6-2:
Environmental Test Compliance
NEMA TS1/2 Environmental requirements for traffic control equipment
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX
10 / 20Mbps half / full-duplex 100 / 200Mbps half / full-duplex 200Mbps full-duplex
14,880pps for 10Mbps 148,810pps for 100Mbps
4-pair UTP/STP Cat. 3, 4, 5 Up to 100m (328ft) 4-pair UTP/STP Cat. 5 Up to 100m (328ft) MMF (50 or 62.5μm), SMF (9 or 10μm) SMF (9 or 10μm)
Per port – PoE & High Power PoE: PoE, Link/ACT 10/100TX, 100FX: Link/ACT
(2.68” (W) x 4.33” (D) x 5.31” (H))
Terminal Block: 48, 55VDC (High Power) DC Jack: 48, 55VDC (High Power)
PoE: 1.5A @ 48VDC High Power PoE: 2.3A @ 55VDC
PoE: 72W Max. High Power PoE: 130W Max.
-40°C to 75℃ (-40 to 167) Tested for functional operation @
-40 to 85 (-40 to 185) Web-Smart function operating temperature @
-20 to 85 (-4 to 185)
-40°C to 85 (-40 to 185℉)
EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3
EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free Fall)
32 User’s Manual
Hardened Web-Smart PoE & High Power PoE Ethernet Switch
User’s Manual 33
Loading...
