Hardened Web-Smart PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the Hardened
Web-Smart PoE (Power over Ethernet) Ethernet Switch. This is the switch of
choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs and Power Inputs
User’s Manual 1
Hardened Web-Smart PoE Ethernet Switch
LED State Indication
Steady A valid network connection established.
Link/ACT
PoE
Flashing
Steady Power Device (PD) is connected.
Off Power Device (PD) is disconnected.
Transmitting or receiving data.
ACT stands for ACTIVITY.
Power Input Assignment
Power3 48VDC DC Jack
＋
Power2
Power1
－
＋
－
48VDC
Power Ground
48VDC
Power Ground
Terminal
Block
Relay Output Rating 0.1A @ 24VDC
Relay Alarm Assignment
FAULT
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2
are both failed but Power3 on.
The relay contact closes if Power3 is failed but
Power1 and Power2 are both on.
DC Terminal Block Power Inputs: There are two pairs of power inputs can be
used to power up this switch. Redundant power supplies function is
supported.
The 10/100Base-TX and 100Base-FX Connectors
The 10/100Base-TX Connections
The following lists the pinouts of
10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
2 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
The 100Base-FX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,
and the Rx (receive) port of device I to the Tx (transmit) port of device II.
The WDM 100Base-FX Connections
The fiber port pinouts
Only one single-mode optical fiber is required to transmit and receive data.
Functional Description
z Meets NEMA TS1/TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control equipment.
z Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity
for industrial environment.
z Manageable via Web browser interface.
z Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps-full/half-duplex; Auto MDI/MDIX.
z 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type;
WDM Single mode SC type.
z Supports 1024 MAC addresses. Provides 1M bits memory buffer.
z Store-and-forward mechanism.
z Full wire-speed forwarding rate.
z Alarms for power and port link failure by relay output.
z Power Supply: Redundant 48VDC Terminal Block power inputs and
48VDC DC JACK with 100-240VAC external power supply.
z Operating voltage and Max. current consumption: 1.5A @ 48VDC.
Power consumption: 72W Max.
User’s Manual 3
Hardened Web-Smart PoE Ethernet Switch
z -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for
functional operation @ -40℃ to 85℃ (-40℉ to 185℉). Web-Smart
function operating temperature @ -20℃ to 85℃ (-4℉ to 185℉).
z Supports DIN-Rail, Panel, or Rack Mounting installation.
Web Configuration
z Login the switch:
Specify the default IP address (192.168.1.10) of the switch in the web
browser. A login window will be shown as below:
z Enter the factory default user name: admin.
Enter the factory default password (no password).
Then click on the “OK” button to log on to the switch.
4 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Assembly, Startup, and Dismantling
• Assembly: Place the switch on the DIN rail from above using the slot.
Push the front of the switch toward the mounting surface until it audibly
snaps into place.
• Startup: Connect the supply voltage to start up the switch via the
terminal block (or DC JACK).
• Dismantling: Pull out the lower edge and then remove the switch from
the DIN rail.
User’s Manual 5
Hardened Web-Smart PoE Ethernet Switch
Preface
This manual describes how to install and use the Hardened
Web-Smart PoE Ethernet Switch. This switch introduced here
is designed to deliver full scalability with web-based
management functions. Capable of operating at temperature
extremes of -40°C to +75°C, this is the switch of choice for
harsh environments constrained by space.
Port 1 to port 4 on this switch supports IEEE802.3af Power
over Ethernet (PoE) Power Sourcing Equipment (PSE) and
can detect an IEEE802.3af compliant Powered Device (PD).
Using external 48VDC power inputs through Terminal Block
or Power Jack, data and power can be transmitted to a
Powered Device (PD) over the same twisted-pair Ethernet
cable through port 1 to port 4 on the switch.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
Features on the Hardened Web-Smart PoE Ethernet Switch
z Illustrative LED functions
z Installation instructions
z Management Configuration
z Specifications
6 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Table of Contents
Quick Start Guide 1
PHYSICAL DESCRIPTION 1
The Port Status LEDs and Power Inputs 1
The 10/100Base-TX and 100Base-FX Connectors 2
FUNCTIONAL DESCRIPTION 3
WEB CONFIGURATION 4
ASSEMBLY, STARTUP, AND DISMANTLING 5
Preface 6
Table of Contents 7
Product Overview 9
HARDENED WEB-SMART POE ETHERNET SWITCH 9
PACKAGE CONTENTS 10
PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11
PHYSICAL PORTS 12
SWITCH MANAGEMENT 12
Web-based browser interface 12
Installation 13
SELECTING A SITE FOR THE SWITCH 13
DIN RAIL MOUNTING 13
CONNECTING TO POWER 14
Redundant DC Terminal Block Power Inputs 14
48VDC DC Jack 15
Alarms for Power and Port Link Failure 15
CONNECTING TO YOUR NETWORK 16
Cable Type & Length 16
Cabling 17
Switch Management 18
MANAGEMENT ACCESS OVERVIEW 18
WEB MANAGEMENT 19
Web-Based Browser Management 20
LOGGING ON TO THE SWITCH 20
UNDERSTANDING THE BROWSER INTERFACE 22
POE 23
PORT BASED VLAN 24
PRIORITY 25
DIFF SERV CODE POINT 26
SYSTEM SETUP 28
User’s Manual 7
Hardened Web-Smart PoE Ethernet Switch
FIRMWARE UPGRADE 30
Specifications 31
8 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Product Overview
Hardened Web-Smart PoE Ethernet Switch
Front and Top View
User’s Manual 9
Hardened Web-Smart PoE Ethernet Switch
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
•
The Hardened Web-Smart PoE Ethernet Switch
User’s Manual
•
Product Highlights
Basic Features
z Complies with NEMA TS1/TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control equipment.
z Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard
immunity for Industrial environment.
z Manageable via Web browser interface.
z Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps-full/half-duplex; Auto MDI/MDIX.
z 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type;
WDM Single mode SC type.
z Supports 1024 MAC addresses. Provides 1M bits memory buffer.
z Store-and-forward mechanism.
z Full wire-speed forwarding rate.
z Alarms for power and port link failure by relay output.
z Power Supply: Redundant 48VDC Terminal Block power inputs and
48VDC DC JACK with 100-240VAC external power supply.
z Operating voltage and Max. current consumption: 1.5A @ 48VDC.
Power consumption: 72W Max.
z -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for
functional operation @ -40℃ to 85℃ (-40℉ to 185℉). Web-Smart
function operating temperature @ -20℃ to 85℃ (-4℉ to 185℉).
z Reset button on front panel.
z Front panel port status LEDs.
z Hardened aluminum case.
z Supports DIN-Rail, Panel, or Rack Mounting installation.
10 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Front Panel Display
z Power (Power1, Power2, Power3)
This LED comes on when the switch is properly connected to power and
turned on.
z Port Status LEDs
The LEDs are located on the front panel, displaying status for each
respective port. Please refer to the following table for more details.
User’s Manual 11
Hardened Web-Smart PoE Ethernet Switch
LED State Indication
Link/ACT
PoE
Steady A valid network connection established.
Flashing
Steady Power Device (PD) is connected.
Off Power Device (PD) is disconnected.
Transmitting or receiving data.
ACT stands for ACTIVITY.
Physical Ports
The Hardened Web-Smart PoE Ethernet Switch provides:
CONNECTIVITY
RJ-45 connectors on TX ports
z
z ST or SC connector on 100Base-FX fiber port
MODE SELECTION
10Base-T full-duplex mode
z
z 10Base-T half-duplex mode
z 100Base-TX full-duplex mode
z 100Base-TX half-duplex mode
z 100Base-FX full-duplex mode
z Auto-negotiating mode
Switch Management
Web-based browser interface
The switch also boasts a point-and-click browser-based interface that
lets user access full switch configuration and functionality from a
Netscape or Internet Explorer browser.
12 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Installation
This chapter gives step-by-step instructions about how to
install the switch:
Selecting a Site for the Switch
As with any electric device, you should place the switch
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
-The ambient temperature should be between -40°C to 75 ℃ (-40℉ to
167℉).
-The relative humidity should be less than 95 percent, non-condensing.
-Surrounding electrical devices should not exceed the electromagnetic field
(RFC) standards.
-Make sure that the switch receives adequate ventilation. Do not block the
ventilation holes on each side of the switch.

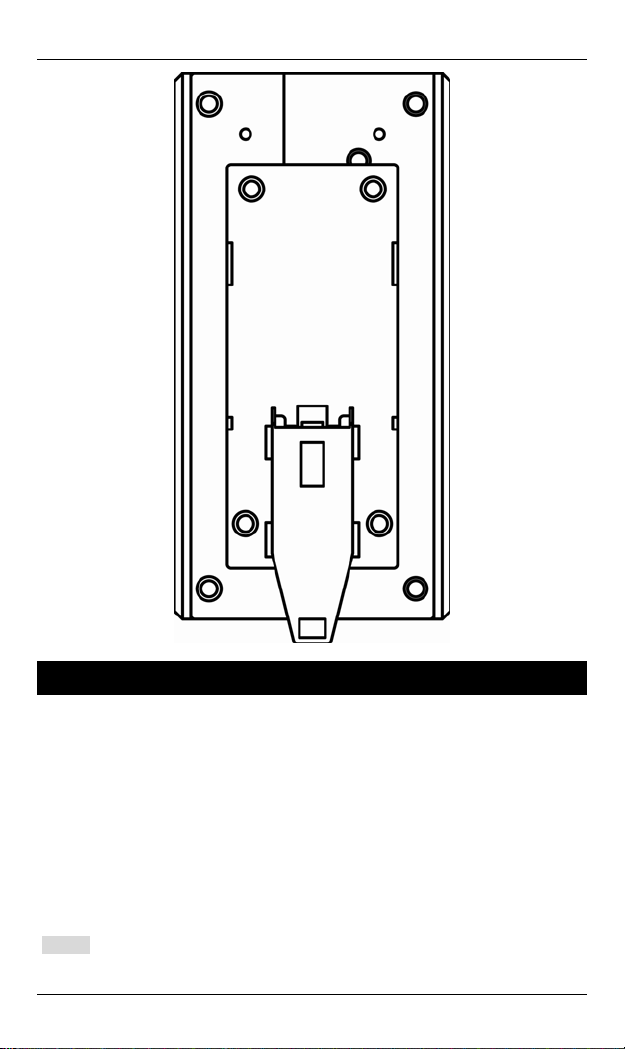

DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the
switch.
Installation: Place the switch on the DIN rail from above using
the slot. Push the front of the switch toward the mounting
surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the switch
from the DIN rail.
User’s Manual 13
Hardened Web-Smart PoE Ethernet Switch
Connecting to Power
Redundant DC Terminal Block Power Inputs or 48VDC DC
Jack:
Redundant DC Terminal Block Power Inputs
There are two pairs of power inputs for use with redundant
power sources. You only need to have one power input
connected to run the switch.
Step 1: Connect the DC power cord to the plug-able terminal block on the
14 User’s Manual
switch, and then plug it into a standard DC outlet.
Hardened Web-Smart PoE Ethernet Switch
Step 2: Disconnect the power cord if you want to shut down the switch.
48VDC DC Jack
Step 1: Connect the supplied AC to DC power adapter to the receptacle on
Step 2: Connect the power cord to the AC to DC power adapter and attach
Top View
the topside of the switch.
the plug into a standard AC outlet with the appropriate AC voltage.
Alarms for Power and Port Link Failure
Step 1: There are two pins on the terminal block used for power failure
detection. It provides the normally closed output when the power
source is active. Use this as a dry contact application to send a
signal for power failure detection.
User’s Manual 15
Hardened Web-Smart PoE Ethernet Switch
Power Input Assignment
Power3 48VDC DC Jack
＋
Power2
Power1
－
＋
－
48VDC
Power Ground
48VDC
Power Ground
Terminal
Block
Relay Output Rating 0.1A @ 24VDC
Relay Alarm Assignment
FAULT
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2
are both failed but Power3 on.
The relay contact closes if Power3 is failed but
Power1 and Power2 are both on.
Special note:
The relay output is normal open position when there is no pow er to the
switch. Please do not connect any power source to this terminal to
prevent shorting your power supply.
Connecting to Your Network
Cable Type & Length
It is necessary to follow the cable specifications below when connecting
the switch to your network. Use appropriate cables that meet your speed
and cabling requirements.
Cable Specifications
16 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Speed Connector
Port
Speed
Cable Max.
Distance
Half/Full
Duplex
10Base-T RJ-45 10/20 Mbps 2-pair
100Base-TX RJ-45 100/200
Mbps
100Base-FX ST, SC 100/200
Mbps
100Base-FX ST, SC 100/200
Mbps
UTP/STP
Cat. 3, 4, 5
2-pair
UTP/STP
Cat. 5
MMF (50 or
62.5µm)
SMF (9 or
10µm)
100 m
100 m
2 km
20, 40, or
75 km
Cabling
Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port
Step 3: Consult Cable Specifications Table on previous page for cabling
Step 4: Connect one end of the cable to the switch and the other end to a
Step 5: Once the connections between two end devices are made
in use.
requirements based on connectors and speed.
desired device.
successfully, turn on the power and the switch is operational.
User’s Manual 17
Hardened Web-Smart PoE Ethernet Switch
Switch Management
This chapter explains the methods that you can use to
configure management access to the switch. It describes the
types of management applications and the communication
and management protocols that deliver data between your
management device (workstation or personal computer) and
the system. It also contains information about port connection
options.
This chapter covers the following topics:
• Management Access Overview
• Key Concepts
• Key Guidelines for Implementation
• Web Management Access
• Standards, Protocols, and Related Reading
Management Access Overview
The switch gives you the flexibility to access and manage the
switch using any or all of the following methods.
The web browser interface support is embedded in the switch
software and is available for immediate use.
18 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Web Management
The switch provides a browser interface that lets you
configure and manage the switch remotely.
After you set up your IP address for the switch, you can
access the switch’s web interface applications directly in your
web browser by entering the IP address of the switch. You
can then use your web browser to list and manage switch
configuration parameters from one central location, just as if
you were directly connected to the switch’s console port.
User’s Manual 19
Hardened Web-Smart PoE Ethernet Switch
Web-Based Browser Management
The switch provides a web-based browser interface for
configuring and managing the switch. This interface allows
you to access the switch using a preferred web browser.
This chapter describes how to configure the switch using its
web-based browser interface.
Logging on to the switch
SWITCH IP ADDRESS
In your web browser, specify the IP address of the switch. Default IP address
is 192.168.1.10.
USER NAME
Enter the factory default user name: admin.
20 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
PASSWORD
Enter the factory default password (no password).
Or enter a user-defined password if you followed the instructions later and
changed the factory default password.
Then click on the “OK” button to log on to the switch.
User’s Manual 21
Hardened Web-Smart PoE Ethernet Switch
Understanding the Browser Interface
The web browser interface provides groups of point-and-click
buttons at the left field of the screen for configuring and
managing the switch.
PoE
Port Based VLAN
Priority
Diff Serv Code Point
Bit 0 ~ 31, Bit 32 ~ 63
System Setup
Firmware Upgrade
22 User’s Manual
PoE
Hardened Web-Smart PoE Ethernet Switch
PoE
1. System power budget: Click in “System power budget” text box and type
a new system power budget.
2. OK: Click “OK” button to update your settings.
3. Enable mode: Click “Enable mode” drop-down menu to choose “Enable”
or “Disable” from the “Enable mode” drop-down list to enable or disable
Port 1 ~ Port 4 to discover Powered Device (PD) connected to Port 1 ~
Port 4 of the Switch.
4. Power limit by classification: Check or uncheck “Power limit by
classification” to enable or disable Port 1 ~ Port 4 to provide power to
PD according to classification of maximum power range used by PD.
5. Fixed power limit(W): First uncheck “Power limit by classification” to
disable Port 1 ~ Port 4 to provide power to PD according to classification
of maximum power range used by PD. Then click in “Fixed power
limit(W)” text box and type a new fixed power limit for Port 1 ~ Port 4 to
provide power to PD.
6. Power priority: Click “Power priority” drop-down menu to choose “Low”,
“Middle”, or “High” from the “Power priority” drop-down list to determine
power priority of Port 1 ~ Port 4.
7. OK: Click “OK” button to update your settings.
User’s Manual 23
Hardened Web-Smart PoE Ethernet Switch
Port Based VLAN
Port Based VLAN
1. VLAN.1 ~ VLAN.7: Click and choose Port 1 ~ Port 8 to be added into
VLAN.1 ~ VLAN.7.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
24 User’s Manual
Priority
Hardened Web-Smart PoE Ethernet Switch
Priority
1. Ratio Scheme: Click and choose “All High Before Low”, “10:1”, “5:1”, or
“2:1” ratio scheme.
2. Port 1 ~ Port 8: Click and choose “TOS”, “802.1p”, or “Port Priority”
(“High” or “Low”) for Port 1 ~ Port 8.
3. 802.1p Level 7 ~ Level 0: Click and set “High” or “Low” priority to queue
of 802.1p Level 7 ~ Level 0.
4. Cancel: Click “Cancel” button to cancel your settings.
5. OK: Click “OK” button to update your settings.
User’s Manual 25
Hardened Web-Smart PoE Ethernet Switch
Diff Serv Code Point
Diff Serv Code Point
Bit 0 ~ 31:
1. Diff Serv Code Point: Check and set Bit 0 ~ 31 of Diff Serv Code Point to
high priority.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
26 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
Bit 32 ~ 63:
1. Diff Serv Code Point: Check and set Bit 32 ~ 63 of Diff Serv Code Point
to high priority.
2. Cancel: Click “Cancel” button to cancel your settings.
3. OK: Click “OK” button to update your settings.
User’s Manual 27
Hardened Web-Smart PoE Ethernet Switch
System Setup
System Setup
System Configuration:
1. DHCP Client: Click and choose “Enable” or “Disable” to enable or
disable the Switch as DHCP client to be automatically supplied an IP
address, gateway address, and subnet mask from DHCP server.
2. IP Address: Click in “IP Address” text box and type a new address to
change the IP Address.
3. Subnet Mask: Click in “Subnet Mask” text box and type a new address
to change the Subnet Mask.
4. Default Gateway: Click in “Default Gateway” text box and type a new
address to change the Default Gateway.
5. Cancel: Click “Cancel” button to cancel your settings.
6. OK: Click “OK” button to update your settings.
Password Configuration:
1. Old Password: Click in “Old Password” text box and type in the old
password.
2. New Password: Click in “New Password” text box and type in a new
password.
3. Confirm Again: Click in “Confirm Again” text box. Type the same
password in “New Password” text box again to verify it.
4. Cancel: Click “Cancel” button to cancel your settings.
5. OK: Click “OK” button to update your settings.
28 User’s Manual
Hardened Web-Smart PoE Ethernet Switch
System Reset/Restore to default:
1. Load Default: Click “Load Default” button to restore the default settings
of the Switch.
2. Reset System: Click “Reset System” button to restart the Switch.
User’s Manual 29
Hardened Web-Smart PoE Ethernet Switch
Firmware Upgrade
Firmware Update
1. Cancel: Click “Cancel” button to cancel firmware update request.
2. Update: Click “Update” button and wait for firmware update request
being processed.
30 User’s Manual
Specifications
Hardened Web-Smart PoE Ethernet Switch
Applicable Standards
Switching Method Store-and-Forward
Forwarding Rate
10Base-T
100Base-TX/FX
Performance
Cable
10Base-T
100Base-TX
100Base-FX:
LED Indicators Per unit – Power status (Power1, Power2, Power3)
Dimensions 68mm (W) x 110mm (D) x 135mm (H)
Net Weight 1Kg (2.2lbs.)
Power Input
Operating Voltage &
Max. Current
Consumption
Power Consumption
Operating
Temperature
Storage Temperature
Humidity 5%-95% non-condensing
Safety UL508, EN60950-1, IEC60950-1
EMI FCC Part 15, Class A
EMS EN61000-6-2:
Environmental Test
Compliance
NEMA TS1/2 Environmental requirements for traffic control equipment
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
14,880pps for 10Mbps
148,810pps for 100Mbps
4-pair UTP/STP Cat. 3, 4, 5 Up to 100m (328ft)
4-pair UTP/STP Cat. 5 Up to 100m (328ft)
MMF (50 or 62.5µm), SMF (9 or 10µm)
Per port –
PoE: PoE, Link/ACT
10/100TX, 100FX: Link/ACT
(2.68” (W) x 4.33” (D) x 5.31” (H))
Terminal Block: 48VDC
DC Jack: 48VDC, External AC/DC required
1.5A @ 48VDC
72W Max.
-40°C to 75℃ (-40℉ to 167℉)
Tested for functional operation @
-40℃ to 85℃ (-40℉ to 185℉)
Web-Smart function operating temperature @
-20℃ to 85℃ (-4℉ to 185℉)
-40°C to 85℃ (-40℉ to 185℉)
EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
EN61000-4-11 (Voltage Dips Standards)
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)
User’s Manual 31
Loading...
