EtherWan Hardened Web-Smart High Power PoE Ethernet Switch Quick Start Guide
Hardened Web-Smart High Power PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the Hardened
Web-Smart High Power PoE (Power over Ethernet) Ethernet Switch. This is
the switch of choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs and Power Inputs
User’s Manual 1
Hardened Web-Smart High Power PoE Ethernet Switch
LED State Indication
Power1
Power2
Power3
Fault
Steady Power on.
Off Power off.
Steady Power redundant system failure occurred.
Off Power redundant system failure is not occurred.
10/100Base-TX, 100Base-FX/BX
Steady A valid network connection established.
Link/ACT
10/100
PoE
Flashing
Steady Valid port connection at 100Mbps.
Off Valid port connection at 10Mbps.
Steady Powered Device (PD) is connected.
Off Powered Device (PD) is disconnected.
Transmitting or receiving data.
ACT stands for ACTIVITY.
Power Input Assignment
Power3 55VDC DC Jack
＋
Power2
Power1
－
＋
－
55VDC
Power Ground
55VDC
Power Ground
Terminal Block
Relay Output Rating 1A @ 24VDC
Relay Alarm Assignment
FAULT
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2 are
both failed but Power3 on.
The relay contact closes if Power3 is failed but
Power1 and Power2 are both on.
2 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
The 10/100Base-TX and 100Base-FX/BX Connectors
The 10/100Base-TX Connections
The following lists the pinouts of
10/100Base-TX ports.
Pin PoE Ports (Port 1-4) Non-PoE Port (Port 5)
1 Output Transmit Data + Output Transmit Data +
2 Output Transmit Data - Output Transmit Data -
3 Input Receive Data + Input Receive Data +
4 Positive (VCC+)
5 Positive (VCC+)
6 Input Receive Data - Input Receive Data -
7 Negative (VCC-)
8 Negative (VCC-)
The 100Base-FX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx (receive) port of
device II, and the Rx (receive) port of device I to the Tx (transmit) port of
device II.
The WDM 100Base-BX Connections
The fiber port pinouts
Only one optical fiber is required to transmit and receive data.
Functional Description
z Meets NEMA TS2 Environmental requirements such as temperature,
shock, and vibration for traffic control equipment.
z Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
z Manageable via Web browser interface.
z Port 1 – 4 support Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z High Power PoE design up to 30W.
z Supports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,
full/half-duplex. Auto MDI/MDIX.
z 100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX:
WDM Multi mode/Single mode SC type.
User’s Manual 3
Hardened Web-Smart High Power PoE Ethernet Switch
z Supports 1024 MAC addresses. Provides 512K bits memory buffer.
z Alarms for power and port link failure by relay output.
z Power Supply: Redundant 55VDC Terminal Block power inputs and
55VDC DC JACK with optional 100-240VAC external power supply.
z Operating voltage and Max. current consumption: 2.36A @ 55VDC.
Power consumption: 130W Max.
z -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for
functional operation @ -40℃ to 85℃ (-40℉ to 185℉).
z Supports Wall and Desktop Mounting installation.
Web Configuration
z Login the switch:
Specify the default IP address (192.168.1.10) of the switch in the web
browser. A login window will be shown as below:
4 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
z Enter the factory default user name: admin.
Enter the factory default password: admin.
Then click on the “OK” button to log on to the switch.
User’s Manual 5
Hardened Web-Smart High Power PoE Ethernet Switch
Preface
This manual describes how to install and use the Hardened
Web-Smart High Power PoE Ethernet Switch. This switch
introduced here is designed to deliver full scalability with
web-based management functions. Capable of operating at
temperature extremes of -40℃ to +75℃, this is the switch of
choice for harsh environments constrained by space.
Port 1 to port 4 on this switch supports Power over Ethernet
(PoE) Power Sourcing Equipment (PSE) and can detect a
Powered Device (PD). Using external 55VDC power inputs
through Terminal Block or Power Jack, data and power can
be transmitted to a Powered Device (PD) over the same
twisted-pair Ethernet cable through port 1 to port 4 on the
switch.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
Features on the Hardened Web-Smart High Power PoE Ethernet Switch
z Illustrative LED functions
z Installation instructions
z Management Configuration
z Specifications
6 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
Table of Contents
Quick Start Guide 1
PHYSICAL DESCRIPTION 1
The Port Status LEDs and Power Inputs 1
The 10/100Base-TX and 100Base-FX/BX Connectors 3
FUNCTIONAL DESCRIPTION 3
WEB CONFIGURATION 4
Preface 6
Table of Contents 7
Product Overview 9
HARDENED WEB-SMART HIGH POWER POE ETHERNET SWITCH 9
PACKAGE CONTENTS 9
PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11
PHYSICAL PORTS 12
SWITCH MANAGEMENT 12
Web-based browser interface 12
Installation 13
SELECTING A SITE FOR THE SWITCH 13
CONNECTING TO POWER 13
Redundant DC Terminal Block Power Inputs 13
55VDC DC Jack 14
Alarms for Power and Port Link Failure 14
CONNECTING TO YOUR NETWORK 15
Cable Type & Length 15
Cabling 15
Switch Management 17
MANAGEMENT ACCESS OVERVIEW 17
WEB MANAGEMENT 18
Web-Based Browser Management 19
LOGGING ON TO THE SWITCH 19
UNDERSTANDING THE BROWSER INTERFACE 21
ADMINISTRATOR 23
Authentication Configuration 23
System IP Configuration 24
System Status 25
Load Default Setting 26
Firmware Update 27
Reset Device 28
PORT MANAGEMENT 29
User’s Manual 7
Hardened Web-Smart High Power PoE Ethernet Switch

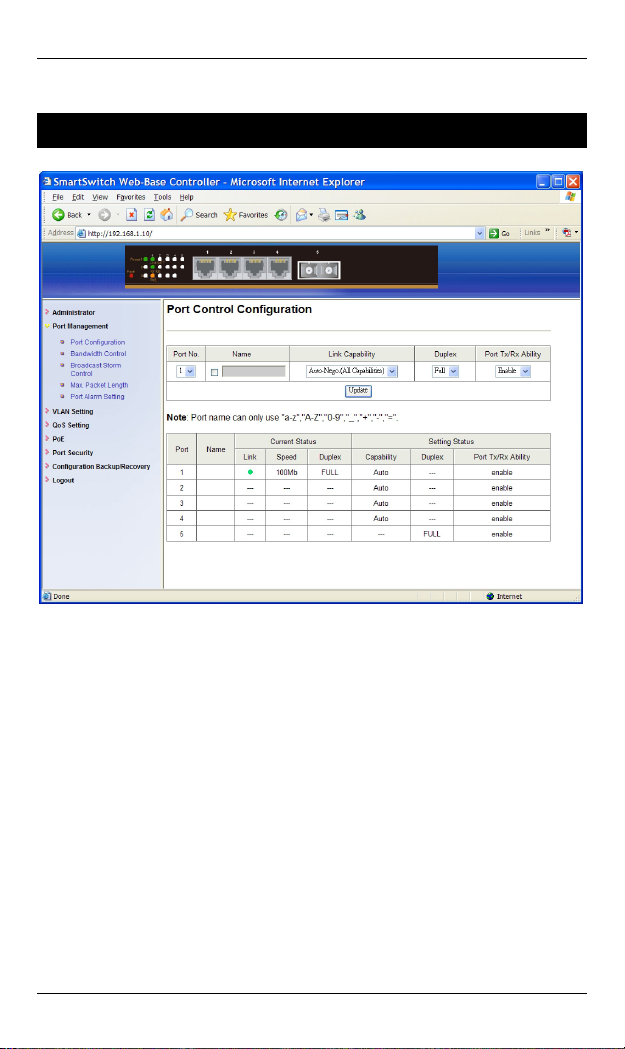

Port Configuration 29
Bandwidth Control 30
Broadcast Storm Control 31

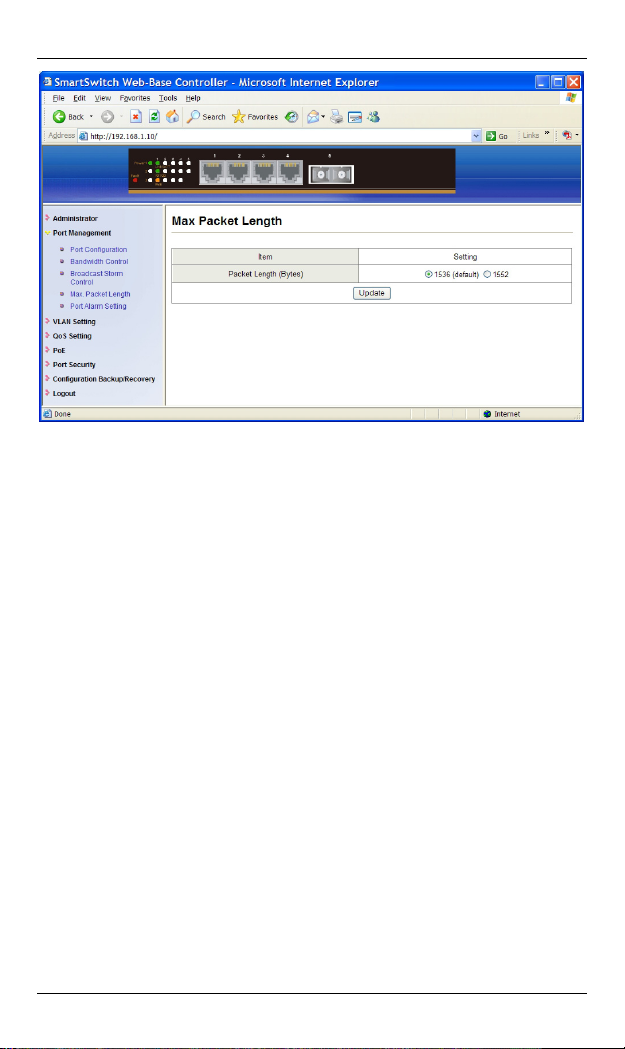

Max. Packet Length 32
Port Alarm Setting 33
VLAN SETTING 34
Multi to 1 Setting 34
Tag Based VLAN 35
Port Based VLAN 36
QOS SETTING 37
Class of Service Configuration 37
High Priority Queue Configuration 38
Customization Diffserv 39
POE 40
PoE System Settings 40
PoE Port Settings 41
PoE Scheduling 42
PORT SECURITY 44
CONFIGURATION BACKUP/RECOVERY 45
LOGOUT 46
Specifications 47
8 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
Product Overview
Hardened Web-Smart High Power PoE Ethernet
Switch
Front and Back View
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
•
The Hardened Web-Smart High Power PoE Ethernet Switch
User’s Manual
•
User’s Manual 9
Hardened Web-Smart High Power PoE Ethernet Switch
Product Highlights
Basic Features
z Meets NEMA TS2 Environmental requirements such as temperature,
shock, and vibration for traffic control equipment.
z Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
z Manageable via Web browser interface.
z Port 1 – 4 support Power over Ethernet (PoE) Power Sourcing
Equipment (PSE).
z High Power PoE design up to 30W.
z Supports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps,
full/half-duplex. Auto MDI/MDIX.
z 100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX:
WDM Multi mode/Single mode SC type.
z Supports 1024 MAC addresses. Provides 512K bits memory buffer.
z Alarms for power and port link failure by relay output.
z Power Supply: Redundant 55VDC Terminal Block power inputs and
55VDC DC JACK with optional 100-240VAC external power supply.
z Operating voltage and Max. current consumption: 2.36A @ 55VDC.
Power consumption: 130W Max.
z -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for
functional operation @ -40℃ to 85℃ (-40℉ to 185℉).
z Supports Wall and Desktop Mounting installation.
10 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
Front Panel Display
z Power (Power1, Power2, Power3)
This LED comes on when the switch is properly connected to power and
turned on.
z Port Status LEDs The LEDs are located on the front panel, displaying status for each respective port. Please refer to the following table for more details.
LED State Indication
Power1
Power2
Power3
Fault
10/100Base-TX, 100Base-FX/BX
Link/ACT
10/100
PoE
Steady Power on.
Off Power off.
Steady Power redundant system failure occurred.
Off Power redundant system failure is not occurred.
Steady A valid network connection established.
Flashing
Steady Valid port connection at 100Mbps.
Off Valid port connection at 10Mbps.
Steady Powered Device (PD) is connected.
Off Powered Device (PD) is disconnected.
Transmitting or receiving data.
ACT stands for ACTIVITY.
User’s Manual 11
Hardened Web-Smart High Power PoE Ethernet Switch
Physical Ports
The Hardened Web-Smart High Power PoE Ethernet Switch
provides:
CONNECTIVITY
RJ-45 connectors on TX ports
z
z ST or SC connector on 100Base-FX fiber port
z SC connector on 100Base-BX fiber port
MODE SELECTION
10Base-T full-duplex mode
z
z 10Base-T half-duplex mode
z 100Base-TX full-duplex mode
z 100Base-TX half-duplex mode
z 100Base-FX full-duplex mode
z Auto-negotiating mode
Switch Management
Web-based browser interface
The switch also boasts a point-and-click browser-based interface that
lets user access full switch configuration and functionality from a
Netscape or Internet Explorer browser.
12 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
Installation
This chapter gives step-by-step instructions about how to
install the switch:
Selecting a Site for the Switch
As with any electric device, you should place the switch
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
-The ambient temperature should be between -40℃ to 75℃ (-40℉ to
167℉).
-The relative humidity should be less than 95 percent, non-condensing.
-Surrounding electrical devices should not exceed the electromagnetic field
(RFC) standards.
-Make sure that the switch receives adequate ventilation. Do not block the
ventilation holes on each side of the switch.
Connecting to Power
Redundant DC Terminal Block Power Inputs or 55VDC DC
Jack:
Redundant DC Terminal Block Power Inputs
There are two pairs of power inputs for use with redundant
power sources. You only need to have one power input
connected to run the switch.
Step 1: Connect the DC power cord to the plug-able terminal block on the
Step 2: Disconnect the power cord if you want to shut down the switch.
User’s Manual 13
switch, and then plug it into a standard DC outlet.
Hardened Web-Smart High Power PoE Ethernet Switch
55VDC DC Jack
Step 1: Connect the supplied AC to DC power adapter to the receptacle on
the back side of the switch.
Step 2: Connect the power cord to the AC to DC power adapter and attach
the plug into a standard AC outlet with the appropriate AC voltage.
Back View
Alarms for Power and Port Link Failure
Step 1: There are two pins on the terminal block used for power failure
Special note:
The relay output is normal open position when there is no pow er to the
switch. Please do not connect any power source to this terminal to
prevent shorting your power supply.
detection. It provides the normally closed output when the power
source is active. Use this as a dry contact application to send a
signal for power failure detection.
Power Input Assignment
Power3 55VDC DC Jack
＋
Power2
Power1
Relay Output Rating 1A @ 24VDC
Relay Alarm Assignment
FAULT
55VDC
－
Power Ground
＋
55VDC
－
Power Ground
Earth Ground
*Warning signal disable for following:
The relay contact closes if Power1 and Power2 are
both failed but Power3 on.
The relay contact closes if Power3 is failed but
Power1 and Power2 are both on.
Terminal Block
14 User’s Manual
Hardened Web-Smart High Power PoE Ethernet Switch
Connecting to Your Network
Cable Type & Length
It is necessary to follow the cable specifications below when connecting
the switch to your network. Use appropriate cables that meet your speed
and cabling requirements.
Cable Specifications
Speed Connector
10Base-T RJ-45 10/20 Mbps 2-pair
100Base-TX RJ-45 100/200
100Base-FX ST, SC 200 Mbps MMF (50 or
100Base-FX ST, SC 200 Mbps SMF (9 or
100Base-BX SC 200 Mbps MMF (50 or
100Base-BX SC 200 Mbps SMF (9 or
Port
Speed
Half/Full
Duplex
Mbps
Cable Max.
Distance
UTP/STP
Cat. 3, 4, 5
2-pair
UTP/STP
Cat. 5
62.5μm)
10μm)
62.5μm)
10μm)
100 m
100 m
2 km
20 or 40 km
2 or 5 km
20 or 40 km
Cabling
Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port
Step 3: Consult Cable Specifications Table on previous page for cabling
Step 4: Connect one end of the cable to the switch and the other end to a
User’s Manual 15
in use.
requirements based on connectors and speed.
Loading...
