EtherWan EL2242 Quick Start Guide
EL2242 www.etherwan.com
Quick Start Guide
This quick start guide describes how to install and use the hardened media
converter. This is the media converter of choice for harsh environments
constrained by space.
Physical Description

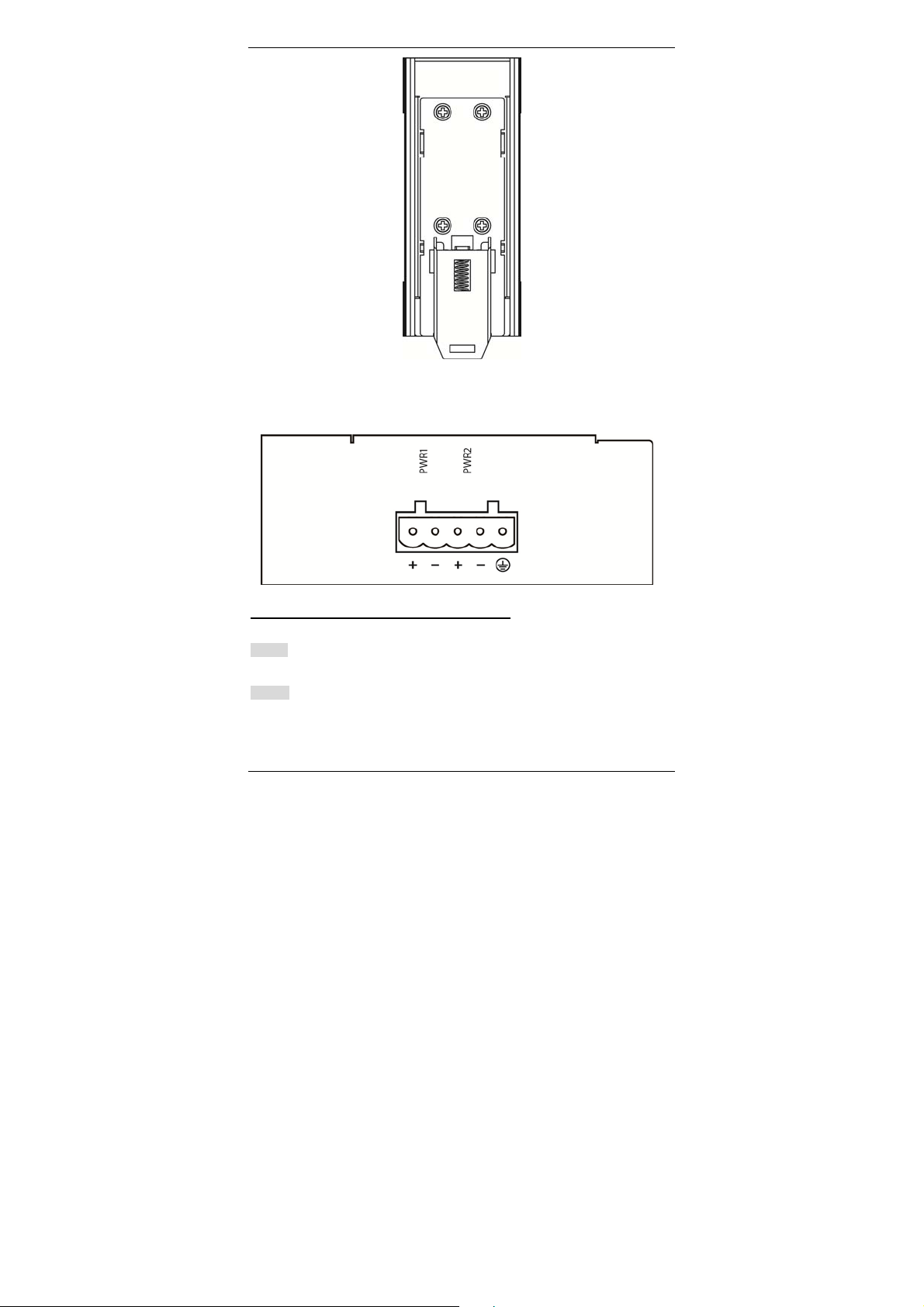

The Terminal Block and Power inputs
Power Input Assignment
Power2
Power1
＋
52-57VDC
－
Power Ground
＋
52-57VDC
－
Power Ground
Earth Ground

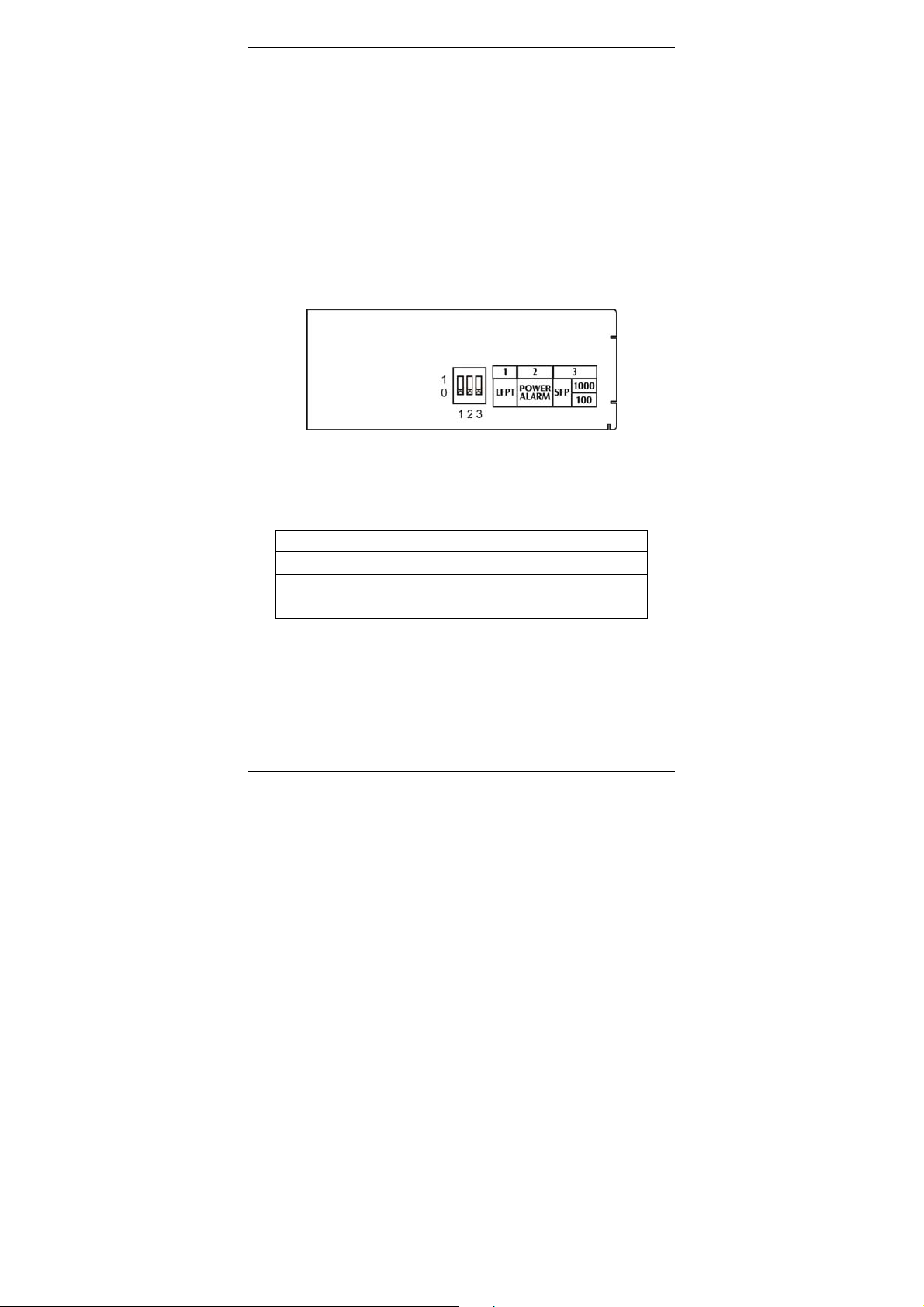

Terminal Block
No. ON (1) OFF (0)
1 Enable LFPT Disable LFPT
2 Enable power redundancy alarm Disable power redundancy alarm
3 Enable 1000Base SFP Enable 100Base SFP
1
EL2242 www.etherwan.com
<Note>
Must re-plug the fiber port after re-setting DIP switches to launch the new settings.
LFPT: Link Fault Pass Through.
DC Terminal Block Power Inputs: There are two pairs of power inputs
can be used to power up this device. When the power redundancy
alarm is enabled, it will need to have two power inputs connected to
run the media converter. The FAULT LED indicator will light up to
remind that the power redundant system functions abnormal in case
either Power 1 or Power 2 is dead. Media Converter, however,
continues working normally even fault LED indicator lights up.
The 10/100/1000Base-TX (PoE) and SFP Connectors
The 10/100/1000Base-TX (PoE) Connections
The following lists the pinouts of 10/100/1000Base-TX (PoE) port.
Pin Signal Name Signal Definition
1
TP0＋ Transmit and Receive Data 0 ＋
2
TP0－ Transmit and Receive Data 0 －
3
TP1＋ Transmit and Receive Data 1 ＋
4
TP2＋ Transmit and Receive Data 2 ＋
5
TP2－ Transmit and Receive Data 2 －
6
TP1－ Transmit and Receive Data 1 －
7
TP3＋ Transmit and Receive Data 3 ＋
8
TP3－ Transmit and Receive Data 3 －
The SFP Connection
The SFP socket for 100Base and 1000Base fiber optic expansion.
For SFP expansion
2
EL2242 www.etherwan.com
The Port Status LEDs
3
EL2242 www.etherwan.com
LEDs State Indication
Power 1, 2
Fault
LFPT
(Link Fault Pass
Through)
PoE Steady
Link/ACT
(10/100/1000TX)
Speed
(10/100/1000TX)
Link/ACT
(SFP)
Speed
(100/1000SFP)
Steady Power on
Off Power off
Steady While power redundancy failed
Off Power redundancy function normal
Steady Link fault pass through function is enabled
Off Link fault pass through function is disabled
Powered Device (PD) is connected
Off
Powered Device (PD) is disconnected
Steady A valid network connection is established on TX
port
Flashing Transmitting or receiving data
ACT stands for Activity
Off No network connection is established
Amber
Connection at the speed of 1000Mbps
Green Connection at the speed of 100Mbps
Off Connection at the speed of 10Mbps
Steady A valid network connection is established on
Fiber port
Flashing Transmitting or receiving data
ACT stands for Activity
Off No network connection is established
Amber
The SFP slot works at 1000Base SFP
Green The SFP slot works at 100Base SFP
4
EL2242 www.etherwan.com
Functional Description
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
• Supports 802.3/802.3u/802.3ab/802.3z/802.3x.
• 10/100/1000-Auto/Full-duplex, Auto-Negotiation, Auto-MDI/MDIX.
• IEEE802.3x full-duplex flow control and half-duplex back pressure.
• Supports
Equipment (PSE).
• Redundant power: two 52~57VDC Terminal Block power inputs.
• Power consumption: 32.5W (30W for PoE) Max.
• -40°C to 75°C (-40°F to 167°F) operating temperature range.
• DIP switch configuration for link-fault-pass-through, power redundancy
alarm, and 1000Base/100Base SFP.
• Supports DIN-Rail or Panel Mounting installation.
IEEE802.3at Power over Ethernet (PoE) Power Sourcing
Assembly, Startup, and Dismantling
• Assembly: Place the media converter on the DIN-Rail from above using
the slot. Push the front of the media converter toward the mounting
surface until it audibly snaps into place.
• Startup: Connect the supply voltage to start up the media converter via
the terminal block.
• Dismantling: Pull out the lower edge and then remove the media
converter from the DIN-Rail.
5
