1 Introduction
Page 7
SFFR-6 User Manual
Introduction
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 7 of 39
1.1 Overview
The SFFR-6, also known as the GoBox, is a small form factor, highly portable, self-powered, APCO P25 standalone repeater
and base station capable of delivering analogue and P25 conventional networked and standalone functionality.
The GoBox weighs in at just over 9.0Kgs, and can deliver up to 15W of RF output power from its 2 hot swappable Lithium
Ion rechargeable batteries.
When connected to external AC or DC power source, the GoBox is able to operate continuously while simultaneously
acting as a battery recharger.
Unlike any other portable P25 tactical repeater on the market, the GoBox is also a fully featured networkable base station
that can extend existing fixed station network infrastructure coverage. The GoBox can deliver a full suite of P25 network
services and functionality including support for all P25 call types, supplementary and data services such as AVL and OTAR
when connected to a core network.
GoBox’s can also be networked together when connected to Etherstack’s RFSS Network Controller via its on-board
Ethernet interface. The GoBox can connect to an IP backhaul using Cat5/Cat6 or can connect to an external 3G/4G cellular,
Wi-Fi or Satellite based IP uplink via the Ethernet interface.
Multiple Go Boxes can also be used to provide P25 digital to digital cross-band operation (e.g. VHF and UHF cross-banding),
or P25 digital and analogue interoperability (e.g. UHF P25 & VHF analogue) when used with Etherstack’s RFSS Network
Controller.
To further simplify operation and enable fast deployment and setup, multiple operational configurations can be preprogrammed and permanently saved into the GoBox for quick selection and activation via the GoBox control dial.
In addition, a default configuration profile can be keyed to a specific duplexer such that on insertion of a duplexer, an
associated default profile can be selected. This feature totally eliminates the need for any configuration in the field and
truly speaks to why we love to call this product … the Go Box !
1.2 Document Conventions
Within the document you will see two text highlights.
This is a hint or useful tip box
!
This is a key highlight or important information box
!
Page 8
SFFR-6 User Manual
Introduction
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 8 of 39
1.3 Features
Protocols
P25 Conventional (Repeat Only)
Standard
P25 Conventional Network
Option
P25 Trunked Composite 1+0 (Repeat Only)
Option
P25 Trunked Composite 1+0 Network
Option
Analogue
Option
Analogue Network
Option
Operational Modes
Repeater (Standalone)
Standard
Base Station (Networked)
Option
Network Options
Ethernet 100Mbs
Standard
3G IP Bridge
Option
4G IP Bridge
Option
Wi-Fi IP Bridge
Option
Satellite IP Bridge
Option
Duplexer Modules
Quick Change Duplexer Module
Standard
1 Duplexer Module
Standard
2 or more Duplexer Modules
Option
Power Options
AC Power
Standard
DC Power
Standard
2 x Lithium Ion Batteries
Standard
Hot Swappable Batteries
Standard
Inbuilt battery charger
Standard
External battery charger
Option
Additional Lithium Ion Batteries
Option
Redundant Power Supplies
Standard
Connectors
AC Power
Standard
DC Power
Standard
Control Module Ethernet Transmit/Receive (Programming)
Standard
Interface Module Ethernet Transmit/Receive (Network Mode)
Standard
RF Transmit/Receive
Standard
Accessory Connector (Control Module)
Standard
User Interface
Power Button
Standard
LCD Backlight Button
Standard
Rotary Dial
Standard
Rotary Button
Standard
Page 9
SFFR-6 User Manual
Introduction
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 9 of 39
Status Indicators
Power On
Standard
Receive Signal Detected
Standard
Transmit Enabled
Standard
AC Power Detected
Standard
DC Power Detected
Standard
Battery 1 Detected
Standard
Battery 1 Power Level
Standard
Battery 1 Charging Status
Standard
Battery 2 Detected
Standard
Battery 2 Power Level
Standard
Battery 2 Charging Status
Standard
Active Profile
Standard
Programming Port Ethernet Transmit (Control Module)
Standard
Programming Port Ethernet Receive (Control Module)
Standard
Network Port Ethernet Transmit (Interface Module)
Standard
Network Port Ethernet Receive (Interface Module)
Standard
LCD Backlight
Standard
Software Features
Profile Management
Standard
Profile Ordering
Standard
Accidental Profile Change Protection
Standard
Auto Profile Filtering via Duplexer Group Tag on GoBox Interface
Standard
Auto Profile Selection for Duplexer Group Tag
Standard
Duplexer Viewer
Standard
Auto LCD Backlight Enable
Standard
Tamper Protection and PIN Access
Option
AES 256 Software Encryption
Option
AES 256 Hardware Encryption (FIPS 140-2)
Option
Administration
Web Based Configuration Tool
Standard
Configuration Backup
Standard
Configuration Restore
Standard
Page 10
SFFR-6 User Manual
Introduction
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 10 of 39
1.4 Technical Specifications
General
Dimensions
259 mm (D) x 216 mm (W) x 198 mm (H)
(10.2 in (D) x 8.5 in (W) x 7.8 in (H))
Weight
9.0 kgs 1
(19.8 lbs) 1
External Casing
Aluminium Alloy
Certifications
AS/NZS 4295
Input Power
AC
100 – 250 VAC
DC
10.8 - 15.6 VDC / 10Amps
Batteries
2 x Lithium Ion 11.25V 8850mAh
RF Specifications
VHF
UHF
Supported Frequency Ranges
136-174 MHz
380-520 MHz2
Channel Spacing
12.5 kHz
12.5 kHz
Channel Step Size
2.5 / 3.125 kHz
2.5 / 3.125 kHz
Modulation
C4FM / FM
C4FM / FM
Duplexer
Internal notch type single antenna
4.5MHz Minimum Split
Internal notch type single antenna
5Mhz Minimum Split
Transmitter
Output Power
1W to 15W
1W to 15W
Conducted Spurious Emissions
<-20 dBm
<-20 dBm
Modulation Fidelity
<1%
<1%
Frequency Accuracy
+/- 1.0 ppm
+/- 1.0 ppm
Adjacent Channel Power
67 db
67 db
Receiver
Reference Sensitivity
-116 dBm
-116 dBm
Selectivity
60 db
60 db
Intermodulation Rejection
75 dB
75 dB
Conducted Spurious Emissions
-57 dBm
-57 dBm
1
Includes UHF duplexer and two batteries
2
Covered by two duplexer bands 380-470MHz and 440-520MHz
Page 11
SFFR-6 User Manual
2 Getting Started
Page 12
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 12 of 39

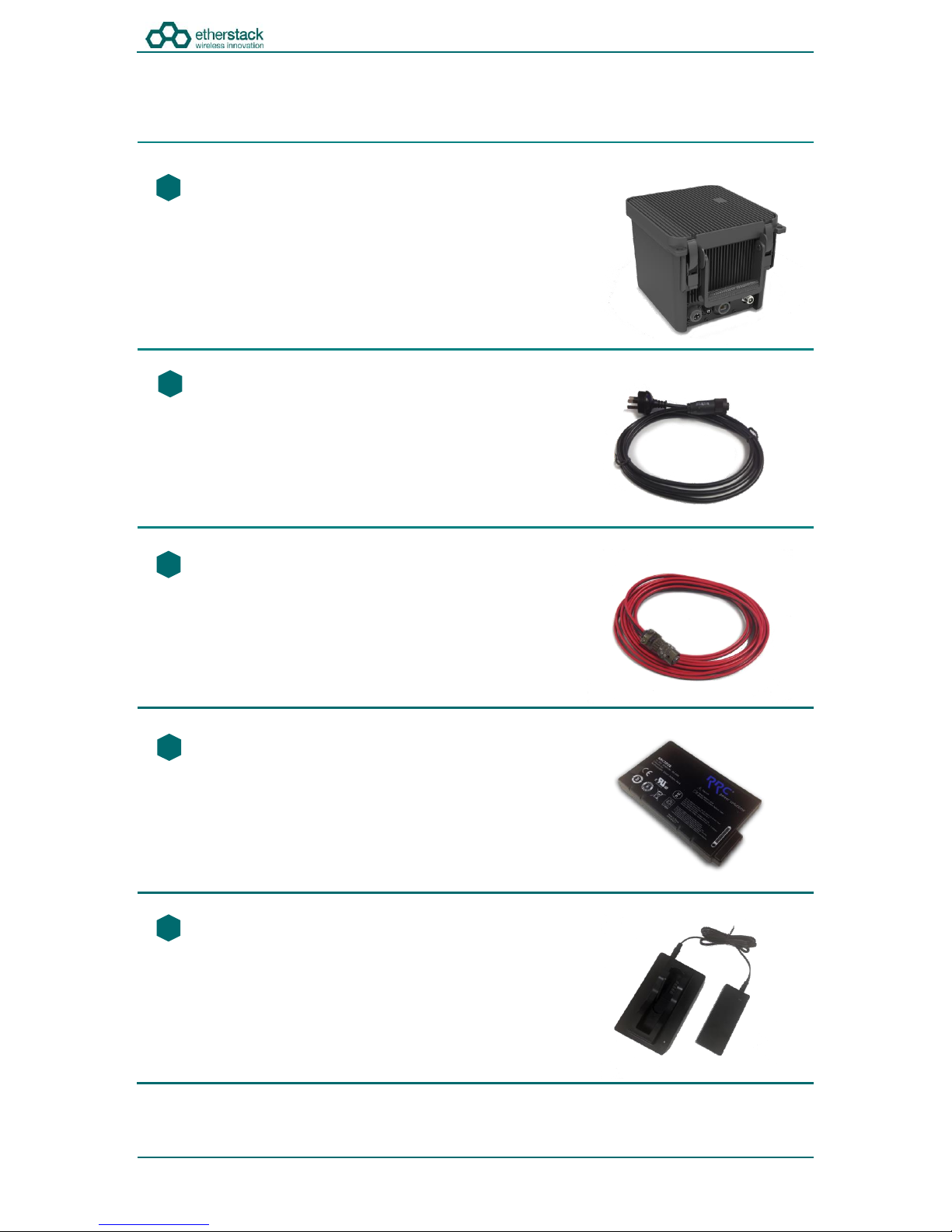

2.1 Package Contents
Go Box
The GoBox will be in the carry mode with its lid closed and both locking
clamps engaged.
The GoBox will be pre-fitted with a GoBox control module, GoBox radio
modules, GoBox Duplexer (in the band/frequency requested at time of
order), 15W power amplifier and dual hot swappable battery module.
AC Power Cable
The AC power cable will have a standard AC power plug for your country
of operation (requested at time of order) on one end and will have an
IP67 rated coupling socket for connection to the GoBox on the other.
DC Power Cable
The DC power cable will be pre stripped for connection to standard
telecommunications grade power supplies on one end and will have an
IP67 rated coupling socket for connection to the GoBox on the other.
2 x Lithium Ion Rechargeable Batteries
Each battery will require a full charge prior to first use.
It is recommended that any additional batteries be sourced through your
authorised reseller.
d
f
f
s
d
f
f
Lithium Ion Battery Recharger (Optional Accessory)
An external battery charger is available as an option.
1
2 3
4
5
Page 13
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 13 of 39
2.2 Getting to know your GoBox
2.2.1 Locking Clamps
The GoBox has two locking clamps on either side of the Carry Handle to lock the lid firmly against the chassis.
To disengage the locking clamps, place your finger behind the clamps and pull away and up towards the lid. Lift the curved
section of the locking clamp up and out of the channel in the top of the lid and repeat for the other clamp to release the
GoBox lid.

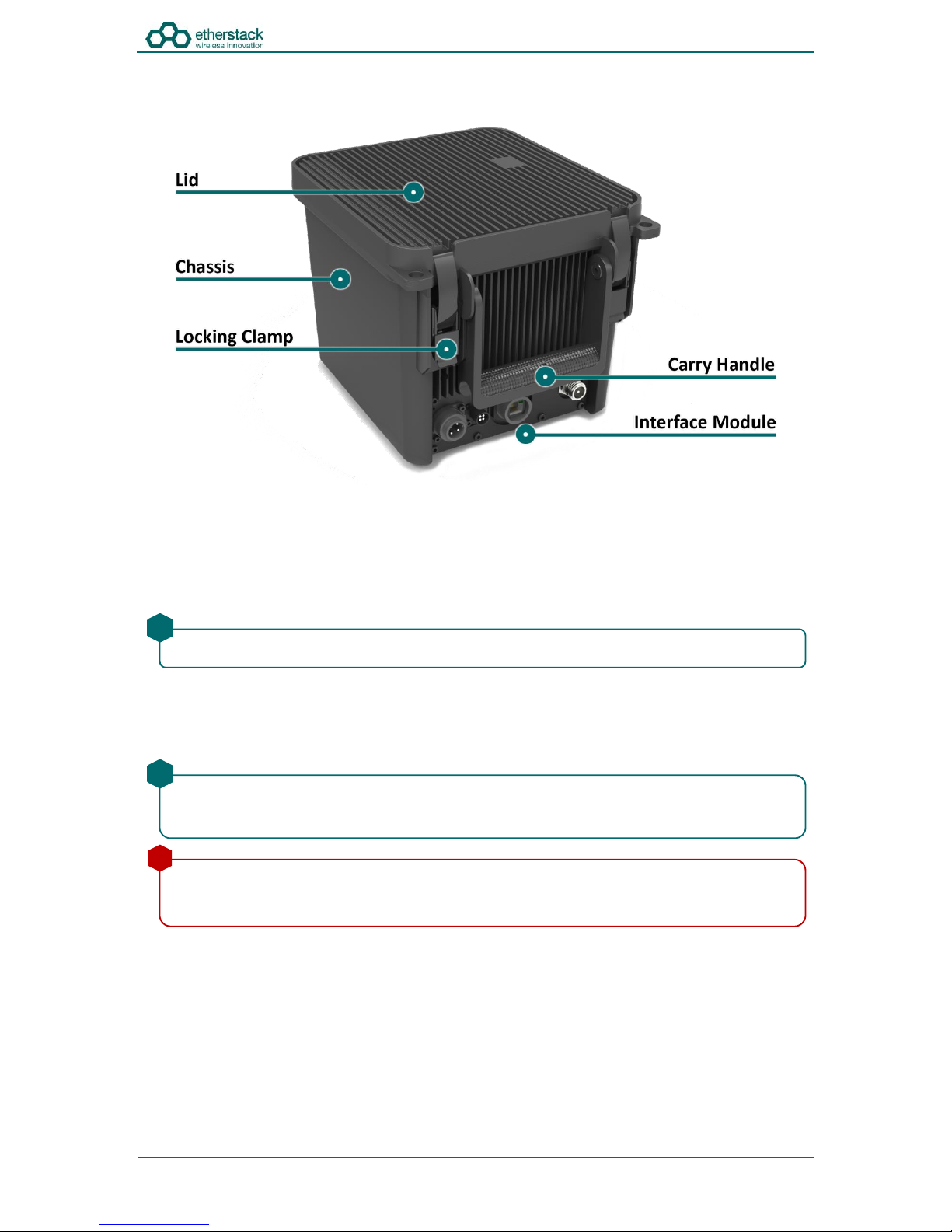

2.2.2 Lid
The GoBox lid has been designed to prevent dust and water from entering the GoBox when the locking clamps are fully
engaged.
Both locking clamps must be fully engaged to ensure a correct seal.
!
Once the GoBox has been programed, the lid only needs to be opened to turn the GoBox on when powered under
batteries. The lid does not need to be closed during operation however it is recommended to be closed during
infield use.
!
The lid gasket located around the lid perimeter of the chassis must be kept clean and free of any debris. It should
be inspected before field operation and cleaned or replaced if damaged otherwise water or dust could penetrate
and damage GoBox electronics.
!
Page 14
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 14 of 39

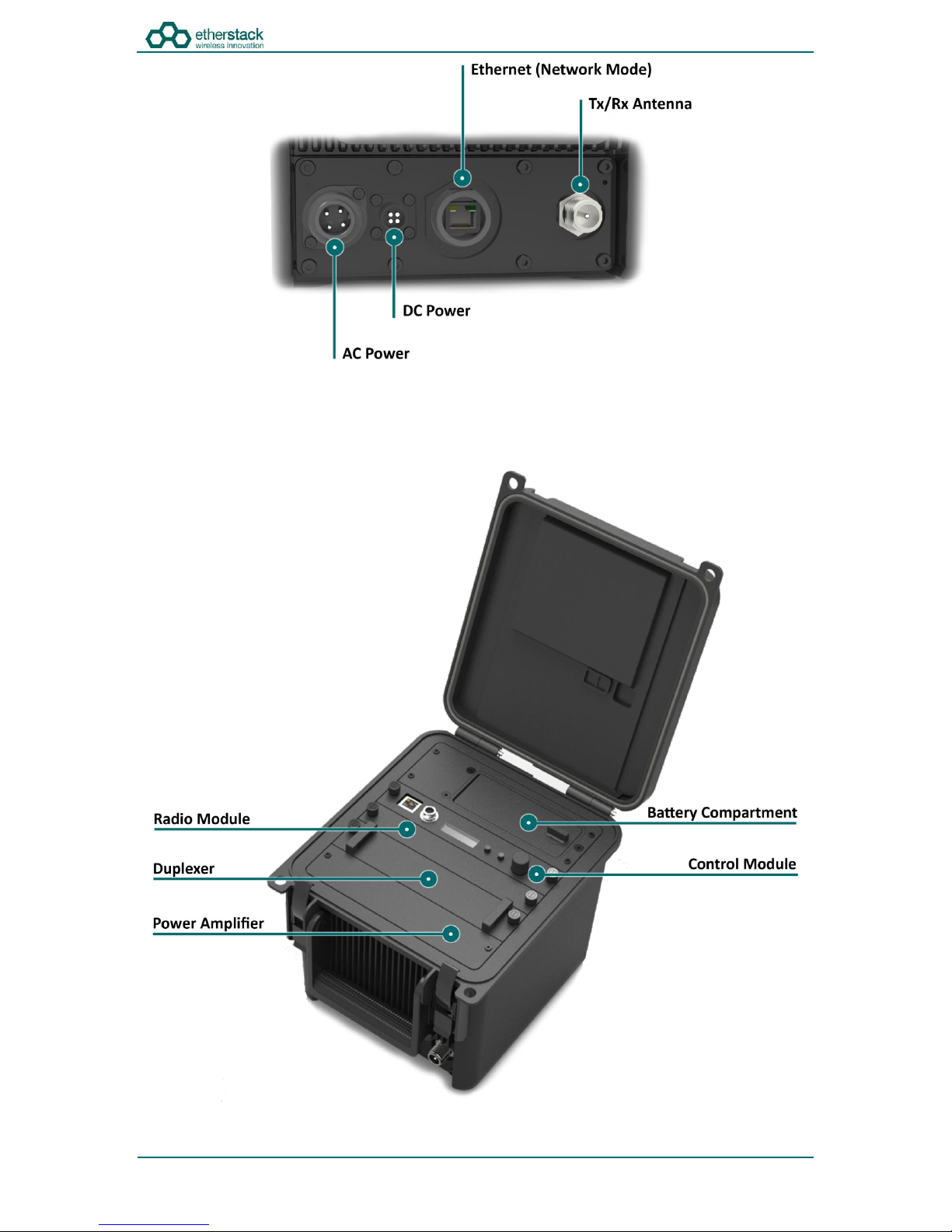

2.2.3 Interface Module
The interface module will vary based on the options purchased when your GoBox was ordered.
The interface module presents both AC and DC connectors, combined transmit and receive antenna connector or separate
transmit and receive antenna connectors and/or an Ethernet port for use in Network mode.
Page 15
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 15 of 39
2.2.4 Battery Compartment
The battery compartment supports two lithium ion batteries and while only one battery is required to operate the GoBox it
is recommended to install two batteries to maximise run time when no AC or DC power is connected.
To open the battery compartment, turn the locking dial on the battery compartment 90 degrees counter clockwise and pull
up to access the battery compartment. To lock the battery compartment, lower the battery compartment lid and turn the
dial 90 degrees clockwise.
Each battery supplied will have a small nylon tag attached to the battery so it can be easily removed when installed in the
GoBox Battery Compartment.
Each battery also has a battery charge status indicator that can be activated by pressing the small button located on the
corner of the battery.
The battery compartment has also been designed to allow battery hot swapping to quickly replace an exhausted battery
source without the need to turn the GoBox off.
The battery compartment has also been designed to recharge batteries when an external power source is applied. Battery
charge and charging state is explained under the control module section below.

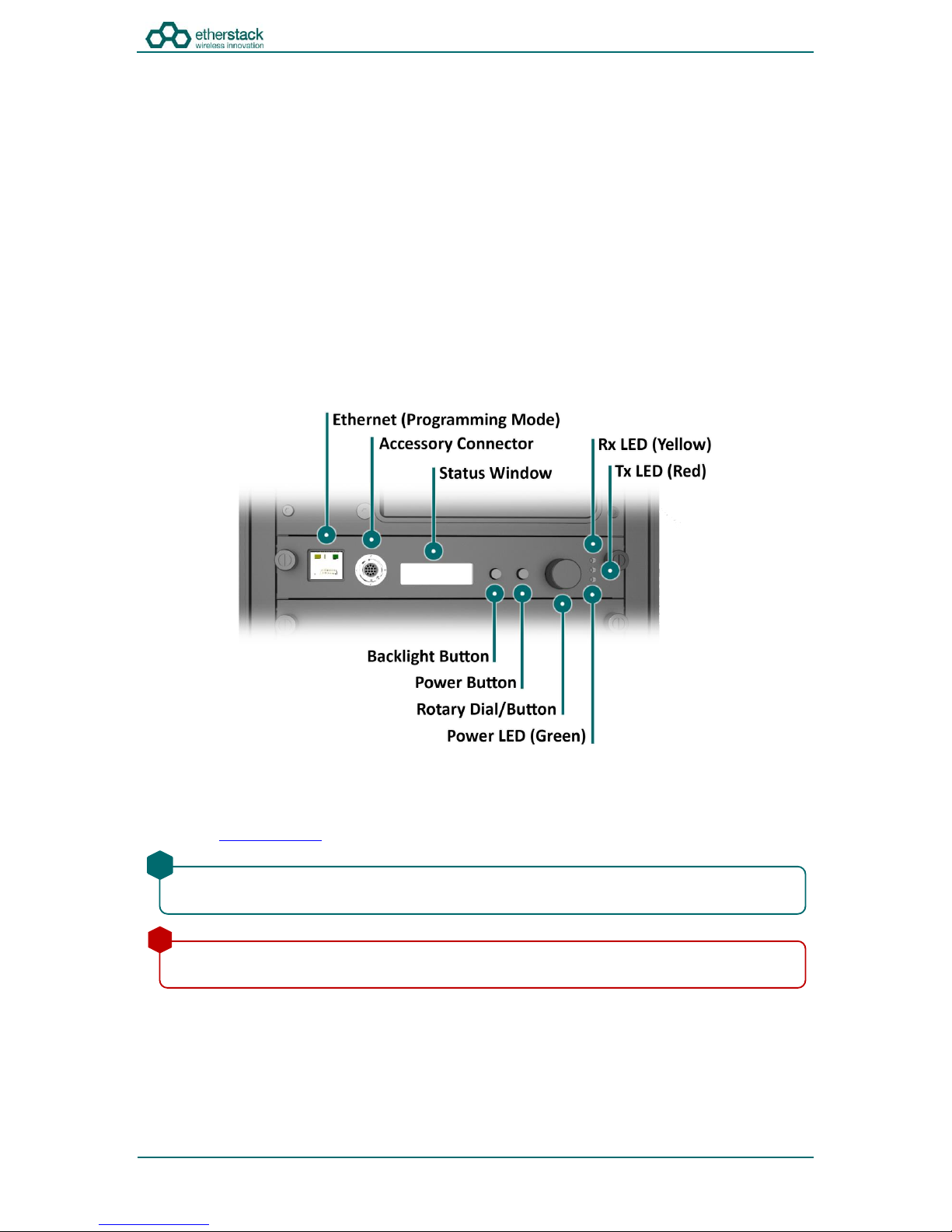

2.2.5 Control Module
2.2.5.1 Ethernet (Programming Port)
The Ethernet programming port is used to check GoBox status and to configure the GoBox.
Attach a standard Ethernet cable to this port with the other end connected directly to your laptop/PC. From your web
browser type http://172.16.10.1 to gain access to the GoBox configuration interface.
2.2.5.2 Accessory Connector
The accessory connector is used to connect a local speaker microphone or short range wireless speaker microphone or
headset for operation with the GoBox.
For further information on available accessories please contact your authorised distributor.
Some corporate IT policies may prevent accessing this subnet from your laptop/PC either directly or across your
network. Please contact your local IT support team if you have trouble accessing the GoBox configuration interface.
!
Do not attach an Ethernet cable to both Ethernet ports on the GoBox at the same time to a switch/router as it may
cause some network switches/routers to fail.
!
Page 16
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 16 of 39
2.2.5.3 Status Window
The status window displays the currently selected operational profile, power level of each battery, status of the on-board
battery charger and external power source if AC and/or DC power is connected.
2.2.5.4 Backlight Button
The backlight button when pressed will engage the LCD backlight for several seconds so the LCD display can be more easily
viewed if external lighting conditions are poor.
2.2.5.5 Power Button
The power button when pressed and held down will toggle the power status of the GoBox.
2.2.5.6 Rotary Dial and Button
The rotary dial is used to quickly select different operational profiles.
On pressing the rotary dial, the status window backlight will automatically illuminate and remain on until the rotary dial
button is released. You can turn the dial to select any of the available and pre-configured profiles.
Once a profile has been found, releasing the rotary dial push button will commence a reconfiguration of the GoBox. During
this time the Green Power LED will flash indicating a reconfiguration is in progress. When the Green Power LED turns solid,
the GoBox is ready for operation.
2.2.5.7 Tx and RX LED
On receiving a signal on the frequency the GoBox is programmed for, the yellow Rx LED will illuminate for the duration of
the signal. The red Tx LED will illuminate to indicate that the signal has been repeated.
2.2.5.8 Power LED
On power-up, the GoBox will perform a series of self-tests to ensure all elements are operational. During this time the LED
will flash to indicate that power is on but he GoBox is not yet operational. Once the LED turns a solid Green, the GoBox is
ready for use.
2.2.6 Radio Module
The radio module houses two high performance radio transmitters and receivers. These modules are band specific and will
be pre fitted based on the frequency band of the duplexer fitted at the time of order.
The backlight is on a timeout to ensure it is not left on and otherwise drain the batteries unnecessarily.
!
The power button must be held done for several seconds to avoid accidental power on/off scenarios.
!
To avoid accidental profile changes, the rotary dial must be pressed during rotation.
!
Based on the configuration profile, the Tx LED may not illuminate.
!
The GoBox when first unpacked will not have any operational profiles to execute. Until the GoBox has been
configured, the Power LED will continue to flash, indicating it is in the programming state.
!
The GoBox radio modules have been designed to run at high temperatures in order to support the power output
and high duty cycles typical of a heavy use repeater/base station. Care must be taken if the GoBox has been
running for several hours supporting a large volume of calls. The front panel of the radio module can exceed 50oC.
!
Page 17
SFFR-6 User Manual
Getting Started
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 17 of 39
2.2.7 Duplexer
The GoBox will be fitted with a duplexer when the single antenna interface is fitted. The duplexer module will be tuned to
the centre frequency requested at the time of order to maximise RF performance.
Additional Duplexers in the same band can be ordered and swapped within minutes. Additionally the GoBox can auto
sense the installed duplexer and select the correct operational profile without any user interaction.
To remove the Duplexer, ensure the GoBox is off and all power sources removed. Turn the locking screws counter
clockwise to remove and lift the Duplexer module out.
2.2.8 Power Amplifier
The GoBox will be fitted with a power amplifier.
The Duplexer is not hot swappable. You must ensure the GoBox is powered down, batteries removed and all
external power sources disconnected before removing the Duplexer module.
!
The GoBox Power Amplifier has been designed to run at high temperatures in order to support the power output
and high duty cycles typical of a heavy use repeater/base station. Care must be taken if the GoBox has been
running for several hours supporting a large volume of calls. The chassis area located near the handle can get hot.
!
Page 18
SFFR-6 User Manual
3 Configuration
Page 19
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 19 of 39
3.1 Before you begin
3.1.1 About GoBox Configuration Files
The GoBox Configuration file is stored within the GoBox but you should develop a process to centrally backup and manage
this configuration file.
For users that maintain several GoBox’s, the configuration file can be shared and it is recommended that a single file be
used to simplify GoBox administration.

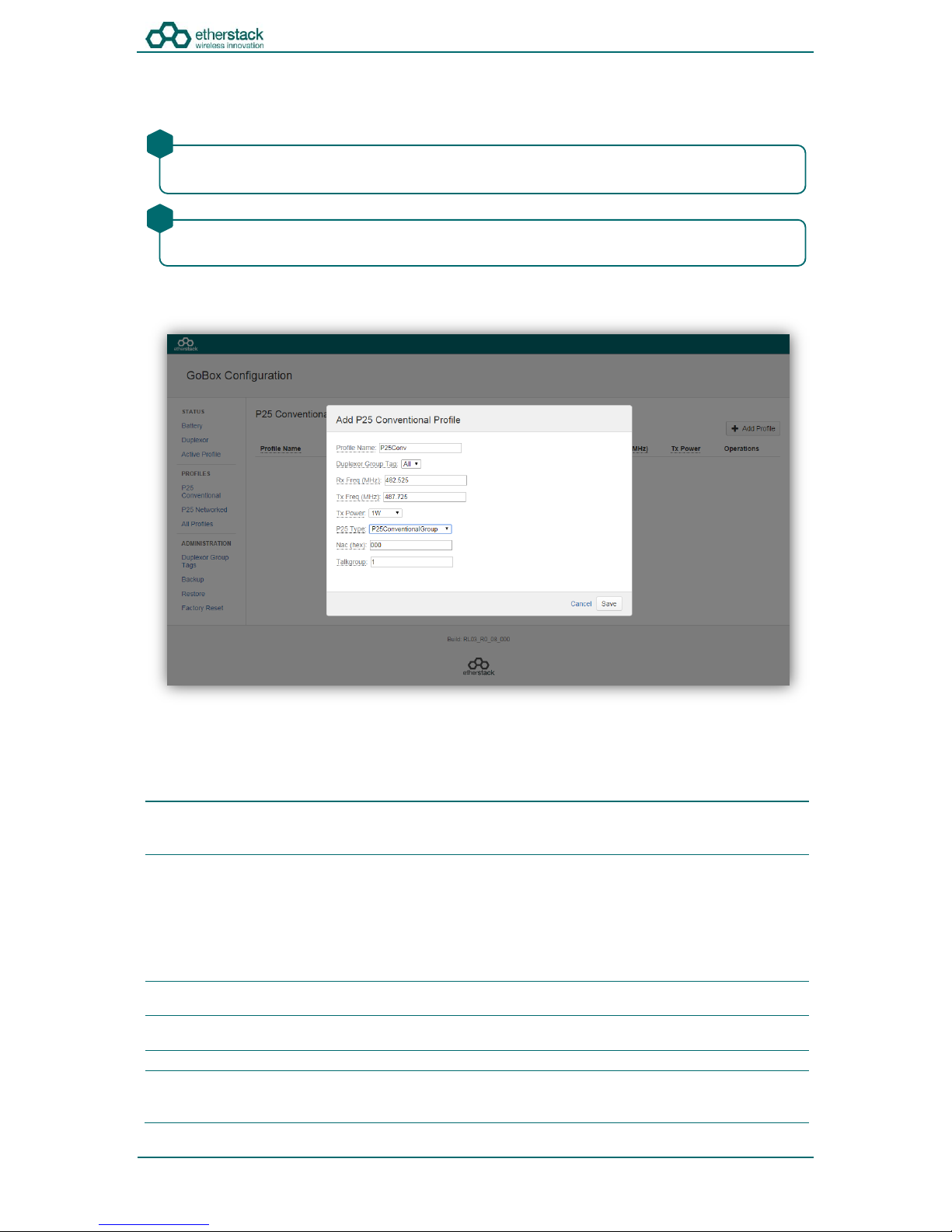

3.1.2 About Operational Profiles
To use your GoBox you need to program at least one operational profile which can then be assigned to a duplexer for auto
selection on power-up.
Up to 50 operational profiles can be pre-loaded into the GoBox. Each operational profile contains all information
necessary to configure the GoBox.
Profiles can then be selected and activated by pressing and turning the rotary dial on the GoBox control interface to select
and activate that profile.

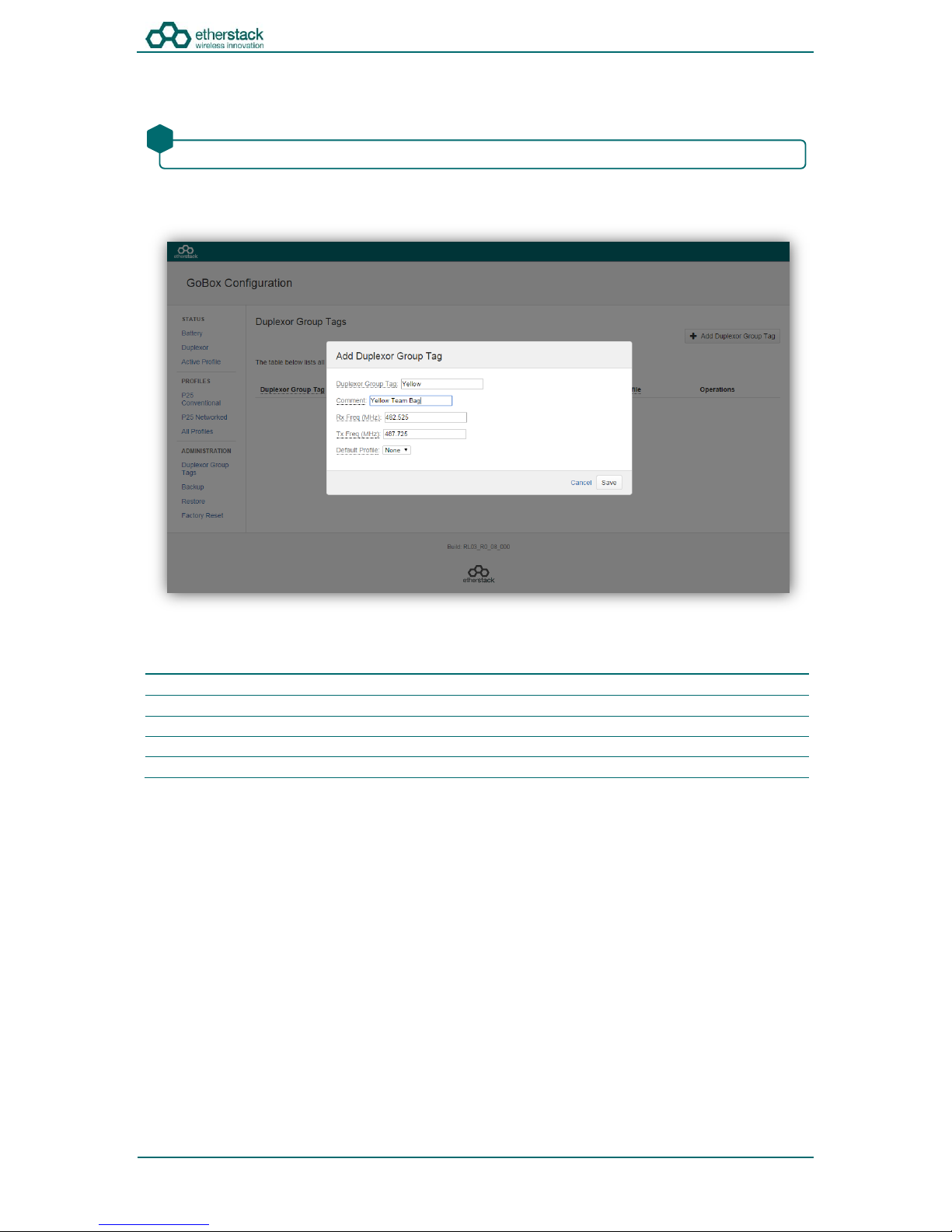

3.1.3 About Duplexer Group Tags
A unique duplexer tag can be programmed into a duplexer and then tagged to an operational profile to essentially link the
operational profile with the duplexer.
The GoBox will only display operational profiles whose duplexer group tag field has been set to the same tag group as what
is programmed in the duplexer.

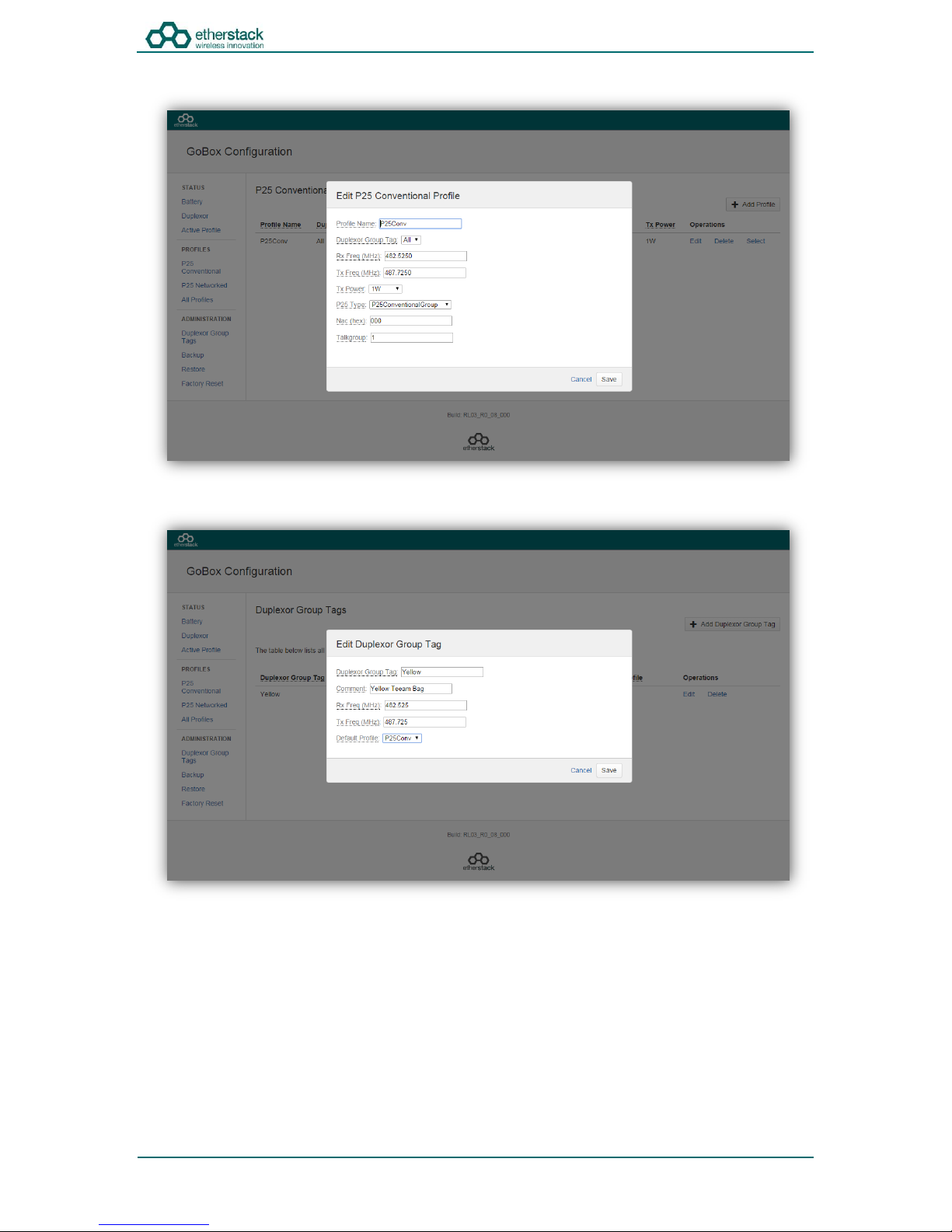

Additionally, an operational profile can be assigned as the default operational profile for when a Duplexer is installed and
therefore when the GoBox powers up. This feature allows Duplexers to be easily moved around GoBox’s in the same band
and providing the configuration files are identical, the GoBox will automatically select the correct operational profile
without requiring any user intervention.
If your GoBox is ever damaged or you purchase additional units, your configuration file can be easily used to
reprogram a new GoBox within minutes.
!
Make sure you press and hold the rotary dial down when turning to select a new profile.
!
Operational profiles can also be backed up and restored over the network allowing easy transfer of profiles from
one GoBox to another
!
To setup multiple GoBox’s, we recommend using the following process on a single GoBox:
1. Write a Duplexer tag to each Duplexer
2. Add Duplexer Group Tags
3. Add Operational Profiles
4. Set the start-up profile for each Duplexer
5. Backup the configuration
6. Restore the configuration to the other GoBox’s
!
If an operational profile uses the All tag, the profile will always be visible in the GoBox control panel via the rotary
dial however its frequency may not be supported by the currently installed Duplexer
!
Page 20
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 20 of 39
3.1.4 What you need to program and test your GoBox
3.1.4.1 Laptop or PC with an Ethernet Interface
The GoBox doesn’t not require any external programming application to be installed on your laptop/PC and does not
require a special programming cable.
A laptop or PC with a web browser and standard Ethernet cable is all that will be required to configure the GoBox. Once
configured the laptop is no longer required for GoBox operation.
3.1.4.2 Radios
Mobile and/or portable radios will be required to be programmed for the Duplexer frequency and other supported
operational parameters such as NACs configured in the GoBox.
A simple way to test GoBox operation is to simply PTT on a correctly programmed radio. If correctly programmed,
the GoBox Rx and Tx LEDs will illuminate.
!
Page 21
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 21 of 39
3.2 Connecting to your GoBox configuration interface
Once your GoBox has been connected via an Ethernet cable using the Ethernet port on the control module to your
laptop/PC or network you will be able to:

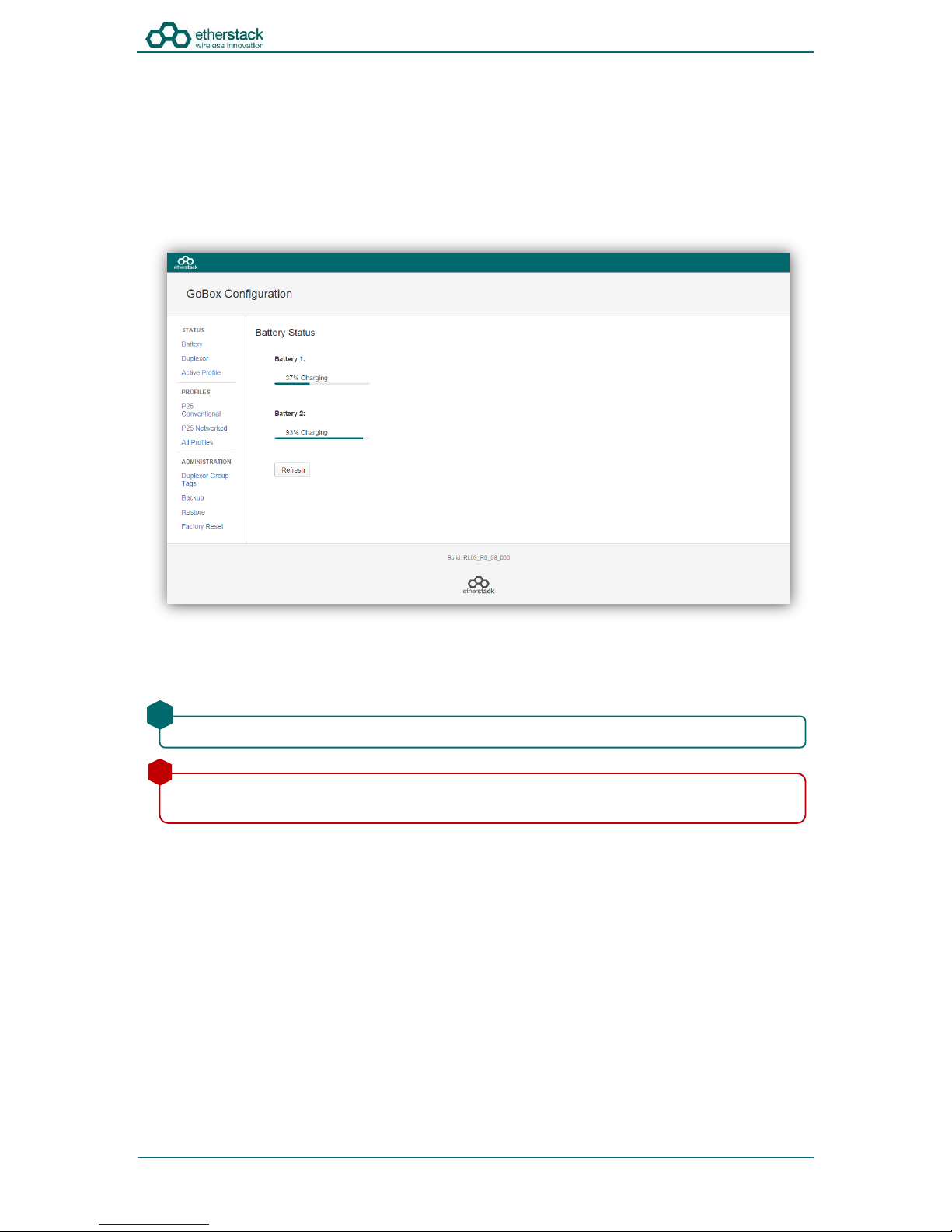

View battery presence and charging status
View details of the installed duplexer
Read and write a profile tag to the duplexer
Create, edit and delete operational profiles
Backup and restore a GoBox configuration
Ensure the GoBox is connected, powered on and connected via Ethernet to your PC/laptop either directly or via a network.

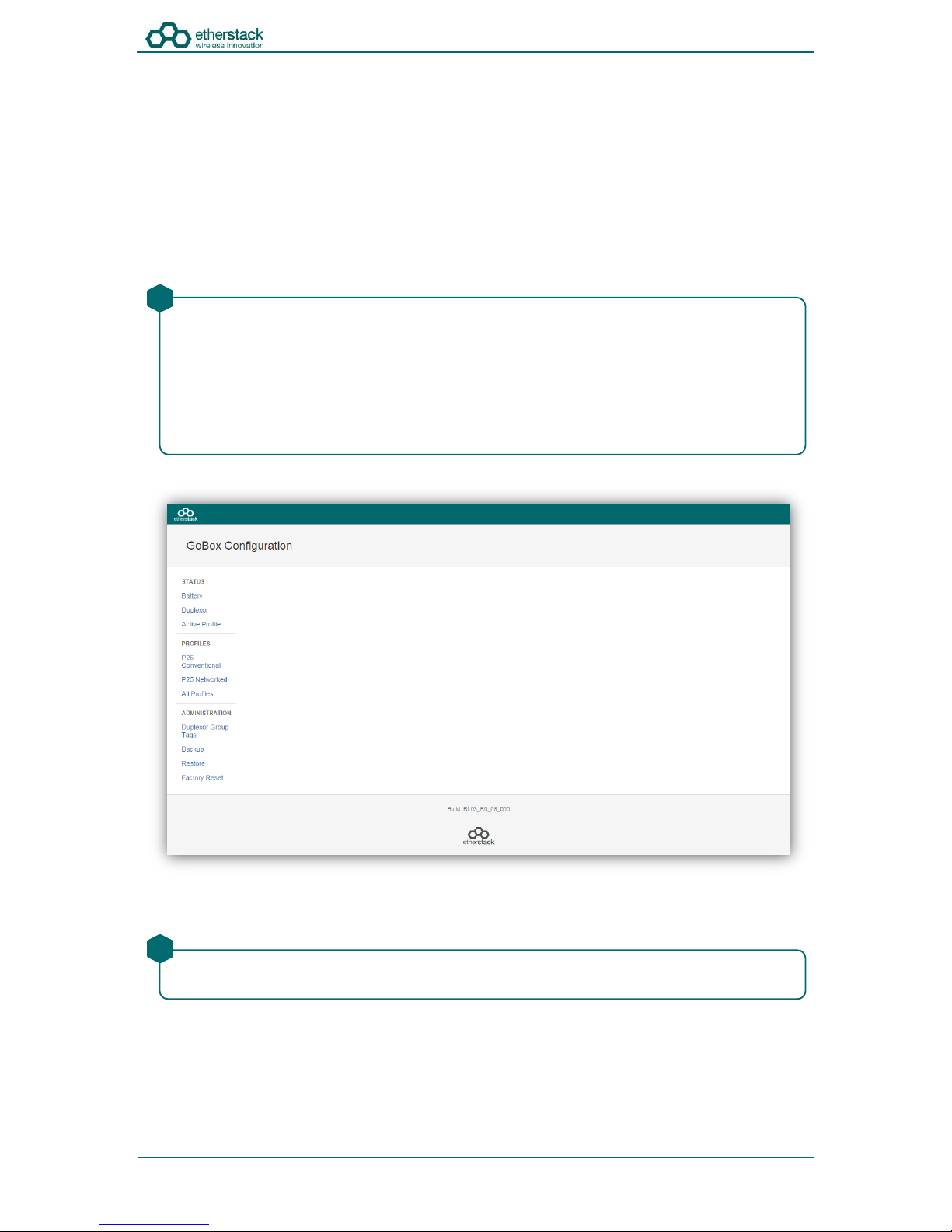

Open your web browser and type the following http://172.16.10.1/
The configuration page above will display showing a navigation pane on the left and a content pane on the right. At the
bottom of the page is the software build currently installed on the GoBox.
You need to ensure your PC can access the 172.16.10.x subnet.
The following network settings will be required to be configured into your PC/laptop:
IP Address: 172.16.10.100
Note: the use of the 100 address is an arbitrary value but selected so it does not clash with the GoBox address or
another IP device on the network.
Subnet Mask: 255.255.0.0
Default Gateway: 172.16.10.254
!
If you see this page you have successfully connected to the GoBox configuration page. If you cannot see this page
contact your IT support department to check your IP configuration.
!
Page 22
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 22 of 39
3.3 Managing Operational Profiles
GoBox profiles are managed under the Profiles heading in the navigation pane.
3.3.1 Adding a P25 Conventional Repeating Profile
To create a new P25 Conventional Profile, click the P25 Conventional menu item in the navigation pane and click on + Add
Profile button on the content pane.
The following fields will be required to be completed.
Field
Description
Profile Name
Create a unique profile name that will appear in the Status Window of the GoBox control interface. This
name is what your operational profile will be called.
The Profile Name is limited to 8 characters and may only include letters, numbers or a hyphen '-'.
Duplexor Group Tag
If Duplexor Group Tags have been created, you can select a Duplexor Group to associate this profile with.
Selecting a specific Duplexor tag means this profile will only be available on the GoBox control interface if
the corresponding Duplexor is installed.
If Duplexor Group Tags have not been created, you can select All and then edit the profile once Duplexor
Group tags have been created. Selecting All means this profile option will always be available to select on
the GoBox control interface regardless of what Duplexor is installed.
Once an operational profile is associated with a Duplexor Group Tag, it may also be chosen as the default
start-up profile for a Duplexor.
Rx Frequency
This should be set to the desired centre receive frequency. The installed duplexer must be calibrated to this
frequency to ensure optimal RF performance.
Tx Frequency
This should be set to the desired centre transmit frequency. The installed duplexer must be calibrated to
this frequency to ensure optimal RF performance.
Tx Power
The transmit power in Watts to use for this operational profile.
Site ID
The Site ID indicates the identity of the P25 site and is inserted into over-the-air traffic. The Site Id must be
unique within an RFSS when the GoBox is used in Network mode.
The Site ID is limited to values between 0 and 255 (decimal).
If the user enters an invalid value in any form field, the GoBox will reject the profile, and the reason will be
displayed on the form in red.
!
Hovering over any form field name that has a dotted underline will display a popup tip to assist completing the
form.
!
Page 23
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 23 of 39
Field
Description
P25 Type
The P25 Type field indicates the level of filtering the GoBox will apply to a received signal before repeating
the signal.
P25ConventionalMonitor
All detected P25 signals will be repeated. A user specified NAC will be used
for transmission.
P25ConventionalNAC
The GoBox will unsquelch on a NAC code
P25ConventionalGroup
The GoBox will unsquelch on both a NAC code and a Talkgroup Id
NAC
The NAC is a feature similar to CTCSS or DCS for analogue radios. Repeaters can be programmed to only
repeat P25 signalling when receiving the correct NAC.
NACs are programmed as a three-hexadecimal-digit code that is transmitted along with the digital signal
being transmitted.
Three of the possible NACs have special functions
0x293 ($293)
the default NAC
0xf7e ($F7E)
a repeater set for this NAC will repeat P25 signalling on any decoded signal
received
0xf7f ($F7F)
a repeater set for this NAC will allow all incoming decoded signals and the
repeater transmitter will retransmit the received NAC
Talkgroup (optional)
The GoBox may be configured to only repeat P25 signals matching a certain Talkgroup Id.
Allowed values are 1 to 65535 inclusive.
Once the form has been completed, press the Save button to save the profile or Cancel to abort the operation.
3.3.2 Adding a P25 Networked Repeating Profile

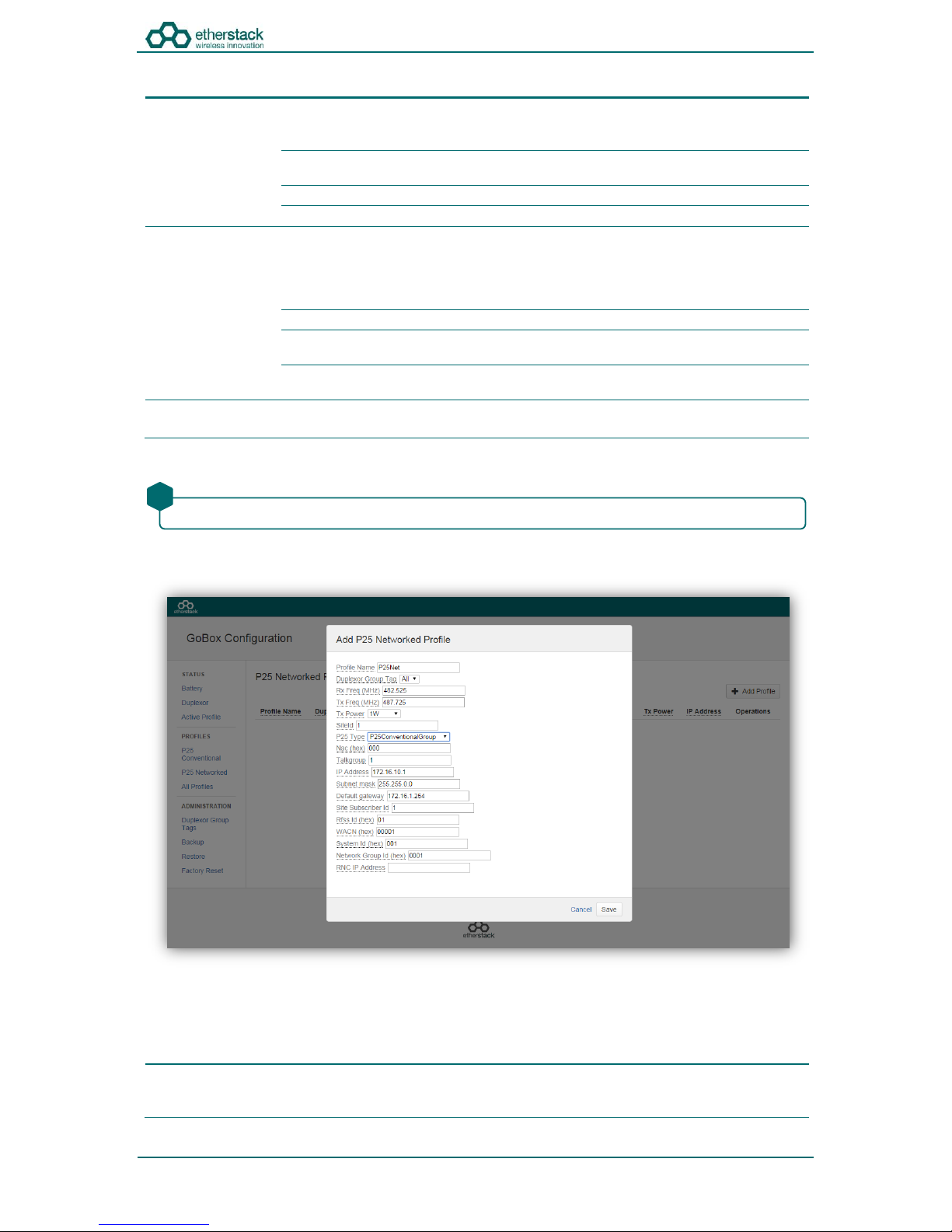

To create a new P25 Networked Profile, click the P25 Networked menu item in the navigation pane and click on + Add
Profile button on the content pane.
The following fields will be required to be completed.
Field
Description
Profile Name
Create a unique profile name that will appear in the Status Window of the GoBox control interface. This
name is what your operational profile will be called.
The Profile Name is limited to 8 characters and may only include letters, numbers or a hyphen '-'.
Once save is pressed the profile is written to the GoBox.
!
Page 24
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 24 of 39
Field
Description
Duplexor Group Tag
If Duplexor Group Tags have been created, you can select a Duplexor Group to associate this profile with.
Selecting a specific Duplexor tag means this profile will only be available on the GoBox control interface if
the corresponding Duplexor is installed.
If Duplexor Group Tags have not been created, you can select All and then edit the profile once Duplexor
Group tags have been created. Selecting All means this profile option will always be available to select on
the GoBox control interface regardless of what Duplexor is installed.
Once an operational profile is associated with a Duplexor Group Tag, it may also be chosen as the default
start-up profile for a Duplexor.
Rx Frequency
This should be set to the desired centre receive frequency. The installed duplexer must be calibrated to this
frequency to ensure optimal RF performance.
Tx Frequency
This should be set to the desired centre transmit frequency. The installed duplexer must be calibrated to
this frequency to ensure optimal RF performance.
Tx Power
The transmit power in Watts to use for this operational profile.
Site ID
The Site ID indicates the identity of the P25 site and is inserted into over-the-air traffic. The Site Id must be
unique within an RFSS when the GoBox is used in Network mode.
The Site ID is limited to values between 0 and 255 (decimal).
P25 Type
The P25 Type field indicates the level of filtering the GoBox will apply to a received signal before repeating
the signal.
P25ConventionalMonitor
All detected P25 signals will be repeated. A user specified NAC will be used
for transmission.
P25ConventionalNAC
The GoBox will unsquelch on a NAC code
P25ConventionalGroup
The GoBox will unsquelch on both a NAC code and a Talkgroup Id
NAC
The NAC is a feature similar to CTCSS or DCS for analogue radios. Repeaters can be programmed to only
repeat P25 signalling when receiving the correct NAC.
NACs are programmed as a three-hexadecimal-digit code that is transmitted along with the digital signal
being transmitted.
Three of the possible NACs have special functions
0x293 ($293)
the default NAC
0xf7e ($F7E)
a repeater set for this NAC will repeat P25 signalling on any decoded signal
received
0xf7f ($F7F)
a repeater set for this NAC will allow all incoming decoded signals and the
repeater transmitter will retransmit the received NAC
Talkgroup (optional)
The GoBox may be configured to only repeat P25 signals matching a certain Talkgroup Id.
Allowed values are 1 to 65535 inclusive.
IP Address
IP Address the GoBox will use when this operational profile will be selected. The GoBox will reconfigure its
network interface and IP address to this value when selected.
Subnet mask
The subnet mask the GoBox will use when this operational profile is selected.
Default gateway
The default gateway the GoBox will use when this operational profile is selected.
Site Subscriber Id
The site subscriber ID is used to register and affiliate with the RNC to allow multisite conventional
repeating. The value should be unique and homed to an RFSS.
RFSS Id
P25 Radio Frequency Sub-System Id.
Allowed values are hexadecimal (00 to FF)
WACN
P25 Wide Area Communications Network ID.
Allowed values are hexadecimal (00000 to FFFFF)
System Id
P25 System ID.
Allowed values are hexadecimal (000 to FFF)
Group Id
P25 Network Talkgroup ID.
Allowed values are hexadecimal (0000 to FFFF)
RNC IP Address
The static IP Address of the RNC in the IP network that the GoBox will register with.
Once the form has been completed, press the Save button to save the profile or Cancel to abort the operation.
Once save is pressed the profile is written to the GoBox.
!
Page 25
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 25 of 39

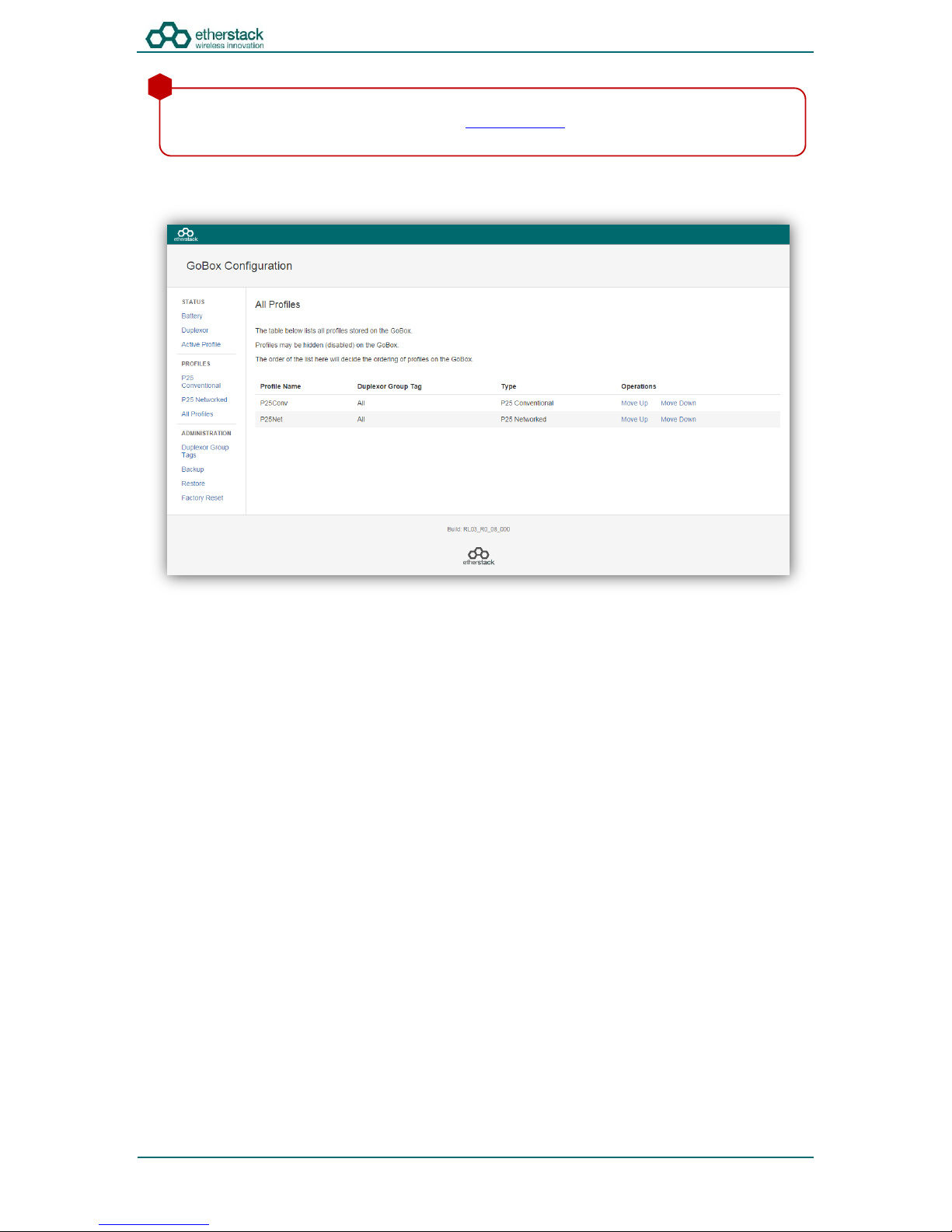

3.3.3 Setting the Operational Profile Order
If you have created a large number of profiles, it may be useful to set the order in which they appear on the GoBox control
interface.
To change the display order, find the profile you want to move in the list and click Move Up or Move Down to move the
operation profile to the required position. The display order on the screen will be the display order on the GoBox control
interface.
Once this operational profile is selected, the IP address of the GoBox Web Interface will also change to the new IP
address. To re-connect to the GoBox Web Interface at http://172.16.10.1 turn the rotary dial on the control
interface until “Ready” is displayed in the Status Window.
!
Page 26
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 26 of 39
3.4 Managing Duplexers
3.4.1 Writing a Duplexer Group Tag
Before the GoBox will recognise a Duplexer and allow operational profiles to be associated with it, you must write a
Duplexor Group Tag to the Duplexers internal memory. To do this use the following steps:

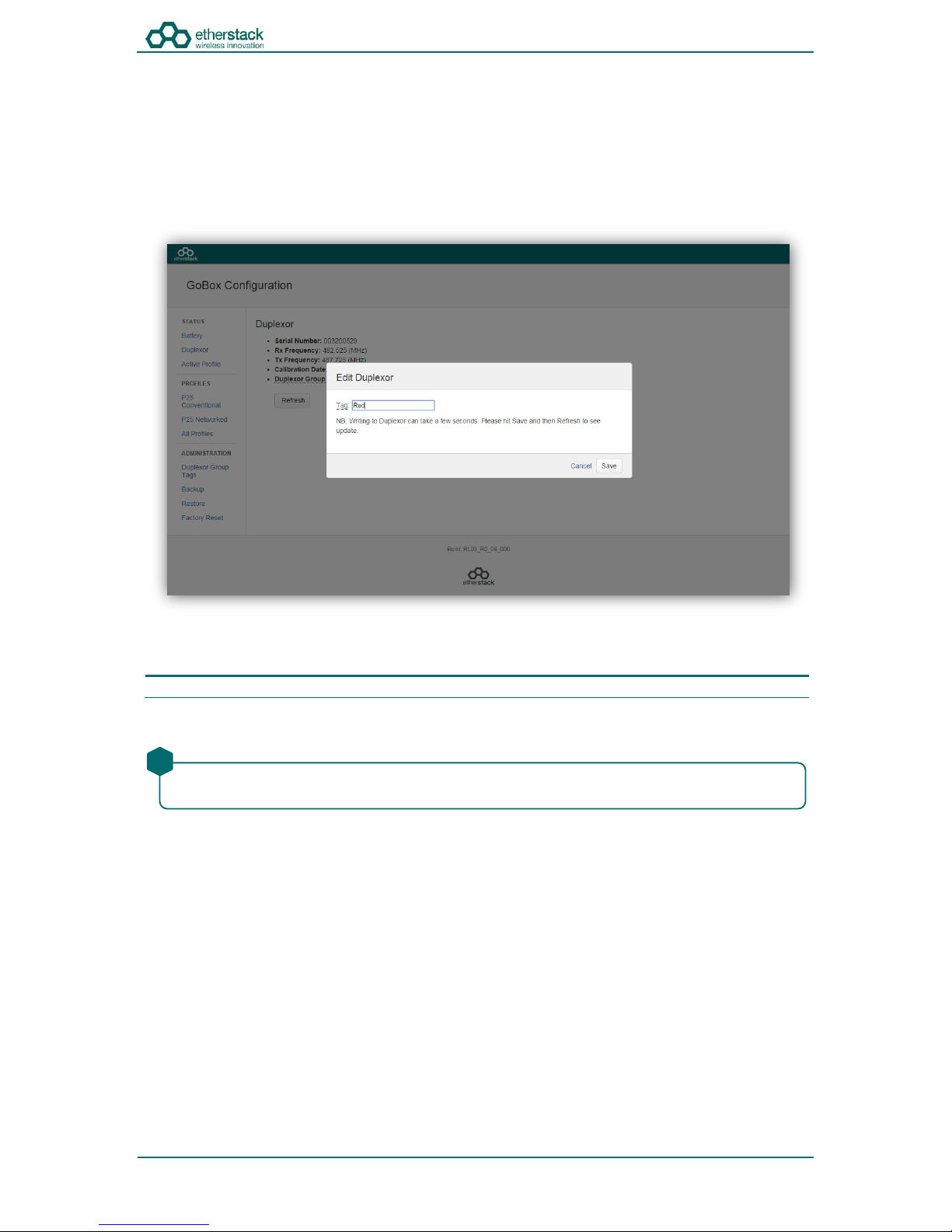

Click on the Duplexor menu item on the navigation pane and press the Edit button on the content pane to show the Edit
Duplexor form.
The following fields will be required to be completed.
Field
Description
Tag
A unique name for this duplexor group.
Once the form has been completed, press the Save button to write to the Duplexer or Cancel to abort the operation.
Writing to the Duplexer will take several seconds. It is necessary to hit the Refresh button to verify the tag has been
written.
!
Page 27
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 27 of 39
3.4.2 Setting the start-up profile for a Duplexer
To define different start-up profiles for different Duplexers use the following steps:
Click on the Duplexor Group Tags menu item on the navigation pane and press the + Add Duplexor Group Tag button on
the content pane to show the Add Duplexor Group Tag form.
The following fields will be required to be completed.
Field
Description
Duplexor Group Tag
A unique name for this duplexor group.
Comment (Optional)
An optional comment describing this duplexor group tag.
Rx Freq
The receive frequency of the duplexor group
Tx Frew
The transmit frequency of the duplexor group
Default Profile
The operational profile to be selected on powerup when this duplexor tag is found.
At least one operation profile is required.
!
Page 28
SFFR-6 User Manual
Configuration
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 28 of 39
Create or edit each operational profile, and link it to a specific Duplexor by setting the Duplexor Group Tag field.
Back in the Duplexor Group Tag menu item, select a start-up profile for each Duplexor.
Page 29
SFFR-6 User Manual
4 Using the GoBox
Page 30
SFFR-6 User Manual
Using the GoBox
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 30 of 39
4.1 Turning your GoBox On
The GoBox will automatically turn on when AC or DC power is first applied or a battery is inserted with sufficient charge.
If a power source has already been connected and the GoBox was previously turned off via the GoBox Power Button,
pressing and holding down the Power button will turn the GoBox on.
During the GoBox’s power-on self-test, the Status Window backlight and all control panel LEDs will turn on briefly to
indicate these subsystems are fully operational.
During the GoBox’s power-on self-test, the Power LED will flash to indicate that power is supplied but the GoBox is not
ready for use.
After approximately 30 seconds, the Power LED will turn solid indicating that the GoBox is ready for use if a suitable
operational profile can be found otherwise the Power LED will continue to flash and the word Ready displayed in the
GoBox status window.
If operational profiles have been programmed into the GoBox, and a valid operational profile found, this operational
profile will be selected and the GoBox will be ready for operation, indicated by a solid Green LED.
4.2 Selecting an Operational Profile
Once the GoBox has been programmed with operational profiles, you can change the operating profile by pressing the
rotary dial and turning to select the required profile.
During profile changes, the GoBox will perform a soft reset, indicated by a flashing Power LED. When the Power LED
returns to a solid state the operational profile will have been loaded and the GoBox is ready for use.
4.3 Checking GoBox Status
The GoBox displays several indicators in the Status Window such as power source, battery state and active operational
profile and if a laptop/PC is connected additional status information can be viewed.
4.3.1 Status Window
4.3.1.1 Checking Battery Status
Two rectangles will appear in the top right hand corner of the Status Window to indicate if any of the batteries are
detected in the battery compartment.
A solid rectangle indicates a battery is inserted and is fully charged. A partially filled rectangle indicates the remaining
battery charge. When a battery has no charge remaining it will be represented as an empty rectangle.
The GoBox has a built in battery charger and when AC or DC power is available, any batteries detected in the GoBox will be
charged and will be indicating by a scrolling battery charge image.
4.3.1.2 Checking External Power Source
The letters AC and/or DC will appear in the bottom right hand corner of the Status Window to indicate if any external
power source is detected.
The power button must be held down for several seconds to turn the GoBox on and off. This is a feature to avoid
accidental power-on/off.
!
If the GoBox displays Ready in the Status Window, the GoBox cannot find a default profile. You will need to attach
your laptop/PC to the programmer to address the issue.
!
The GoBox will always power up using your programmed default profile.
!
An external battery charger is also available
!
Both power sources can be connected at the same time.
!
Page 31
SFFR-6 User Manual
Using the GoBox
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 31 of 39
4.3.1.3 Checking the current operational profile
The GoBox will display the current operational mode in the status window after power up.
If the GoBox displays Ready in the Status Window, the GoBox is in programming mode and awaiting a connection from a
laptop or PC otherwise the GoBox will display the current operational profile.
4.3.2 Web configuration interface
4.3.2.1 Checking Battery Status
To access this page, click on the Battery menu item on the navigation pane.
The battery status page will show if a battery is installed, each batteries current charge percentage and if the internal
GoBox battery charger is active.
To update the page with the latest information press the Refresh button.
!
The battery charger will only operate when an AC or DC power source is applied and will automatically turn off to
protect the battery once full charge has been reached.
!
Page 32
SFFR-6 User Manual
Using the GoBox
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 32 of 39

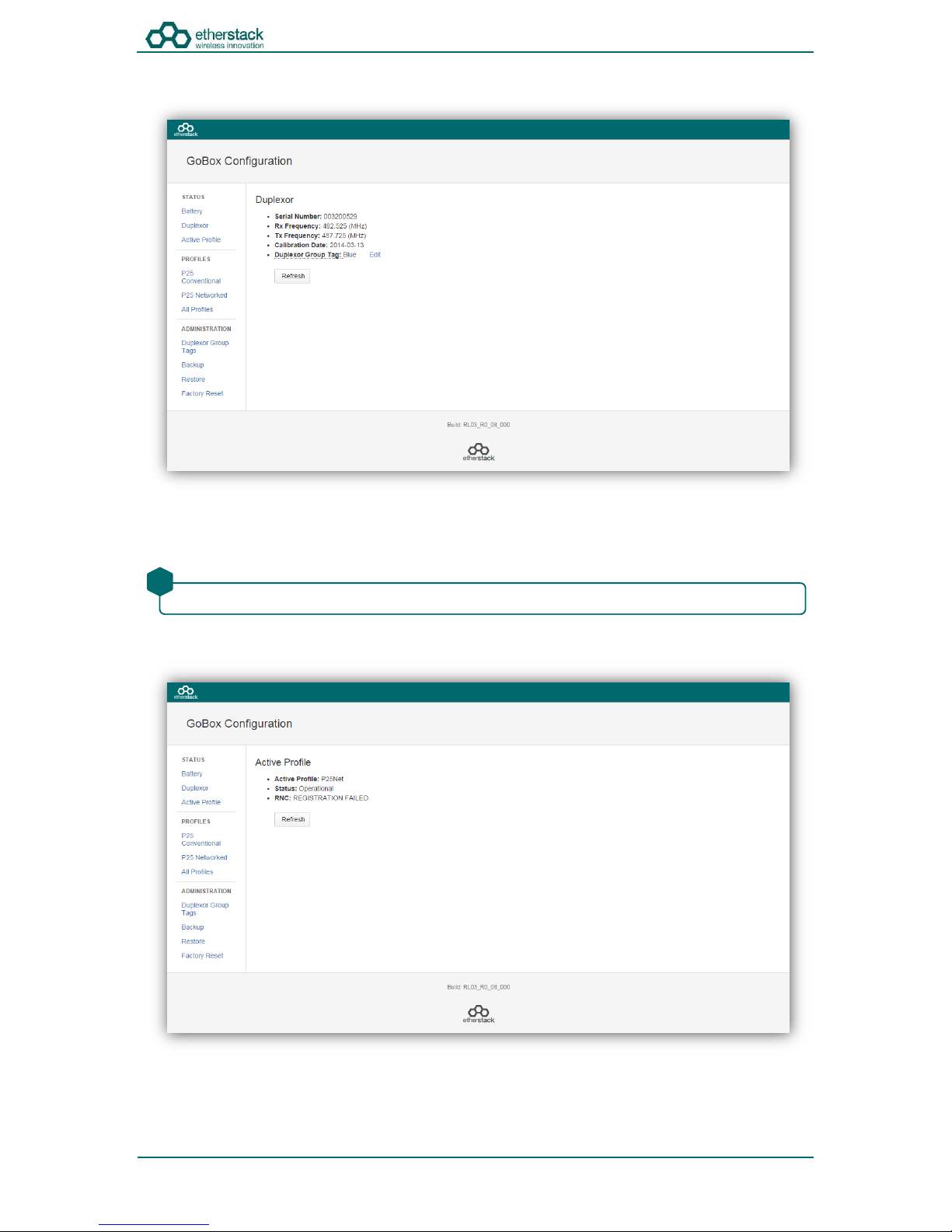

4.3.2.2 Checking Duplexor Status
To access this page, click on the Duplexor menu item on the navigation pane.
The duplexor status page will show the duplexor serial number, receive centre frequency, transmit centre frequency, date
last calibrated and the duplexor group tag used to link a duplexor to a start-up operational profile.
4.3.3 Checking Active Profile
To access this page, click on the Active Profile menu item on the navigation pane.
To update the page with the latest information press the Refresh button.
!
Page 33
SFFR-6 User Manual
Using the GoBox
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 33 of 39
The active profile status page will show:
Active Profile: The active profile name. This will match what is shown on the GoBox LCD.
Status: Will show Loading whilst the profile is being loaded. Once the profile is ready, Operational will be
displayed.
RNC: Valid only If the profile is a P25 networked profile. Displays whether or not the GoBox has successfully
connected to the RNC.
4.4 Administration

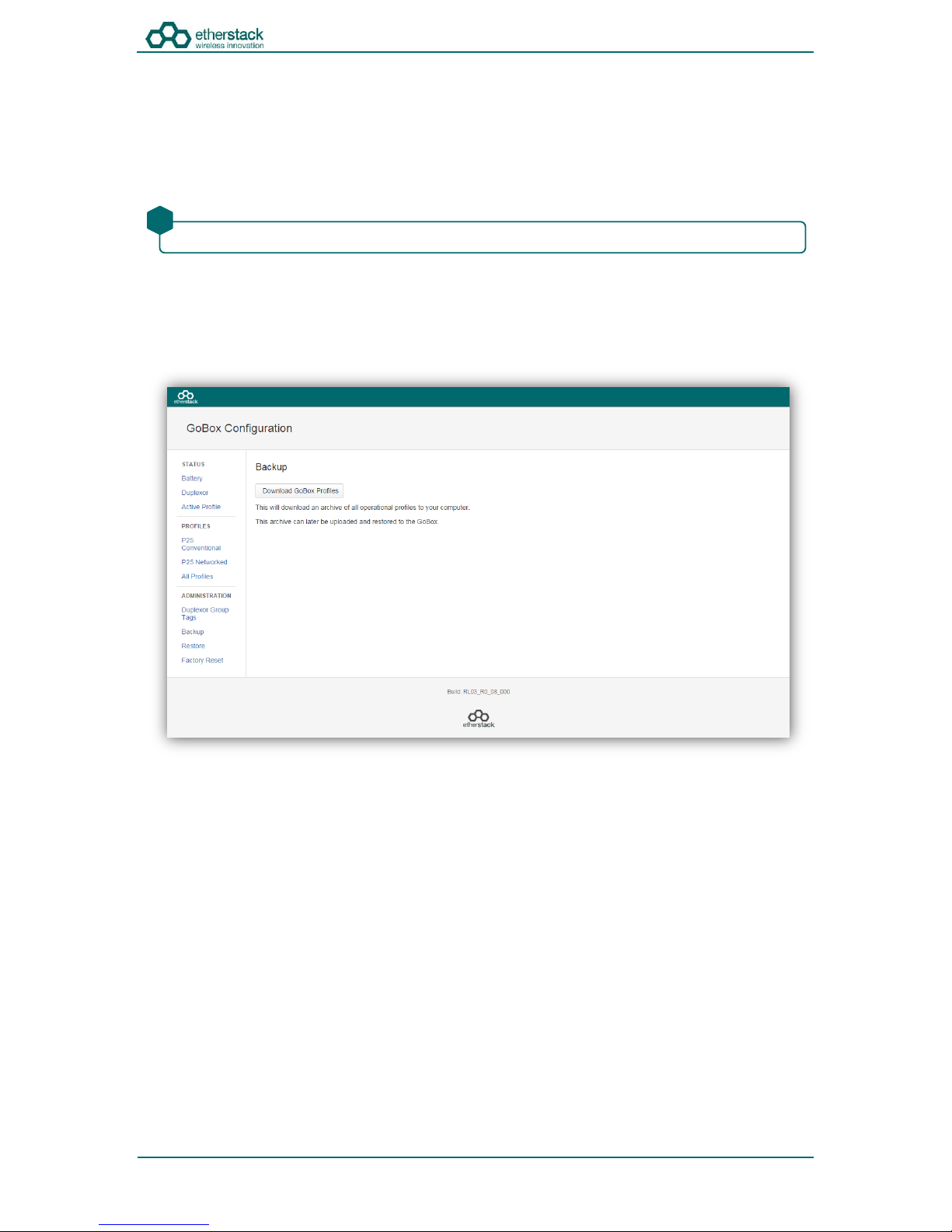

4.4.1 Backing up your GoBox Configuration
To back-up your GoBox configuration to your local computer, click the Backup menu item on the left hand navigation pane
and click on the Download GoBox Profiles button in the content pane.
A specially constructed zip file containing all GoBox profiles will be downloaded to the Download folder of your local
computer. This file should be archived and stored in a safe place.
This configuration file can be used to restore the configuration on any GoBox and/or program future GoBox’s.
To update the page with the latest information press the Refresh button.
!
Page 34
SFFR-6 User Manual
Using the GoBox
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 34 of 39

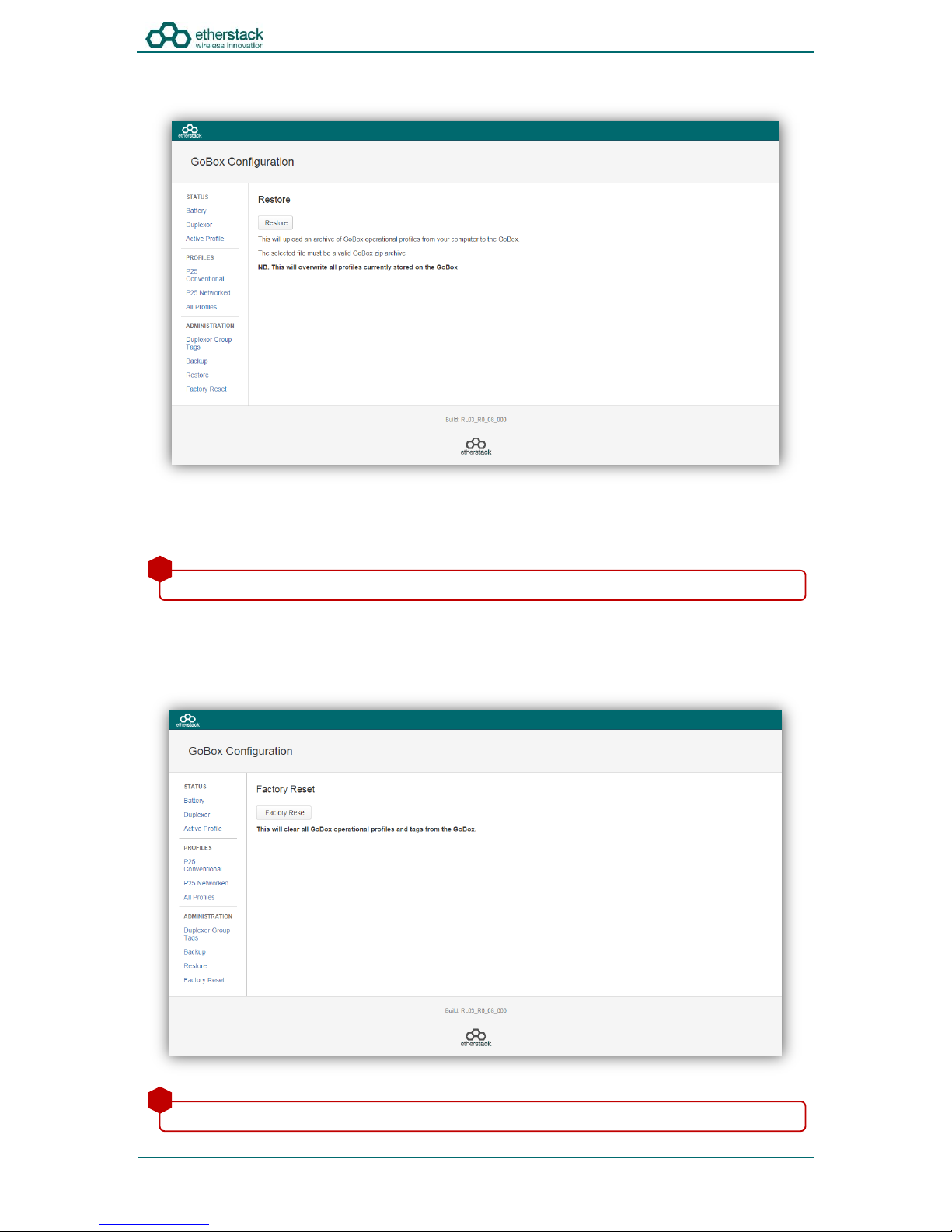

4.4.2 Restoring your GoBox Configuration from a Backup
To restore a GoBox profile, click the Restore menu item on the left hand navigation pane and click on the Restore button in
the content pane.
A file browser will then be displayed where you can select a previously backed up configuration file.
4.4.3 Clearing the Gobox Configuration from memory
To clear all GoBox profile and Duplexor information, click the Factory Reset menu item on the left hand navigation pane
and click on the Factory Reset button in the content pane.
This will overwrite all profiles currently stored on the GoBox
!
This will clear all profiles currently stored on the GoBox
!
Page 35
SFFR-6 User Manual
5 Troubleshooting
Page 36
SFFR-6 User Manual
Troubleshooting
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 36 of 39
5.1 Cannot connect to the GoBox Web Interface
Ensure a functioning Ethernet cable is connected to the GoBox from your PC/Laptop and check the Ethernet activity lights
are on/flashing on the GoBox Ethernet connector.
Ensure that the GoBox LCD displays the "Ready" string. This guarantees that the IP address configuration will be set to the
default of 172.16.10.1
If the GoBox does not display "Ready", rotate the rotary dial until the Status Window displays "Ready".
Verify there is network connectivity between your PC and the GoBox on the 172.16.10.1 subnet. (Request help from your
System Administrator if required)
5.2 Status Window displays No IGEP
Power-cycle the GoBox and if the problem persists turn the GoBox off and remove and reinsert the control module. If the
error still is present when power is reapplied, contact support.
5.3 Status Window display Err: xr1 or Err: xr2
Power-cycle the GoBox and if the problem persists turn the GoBox off and remove and reinsert the radio module. If the
error still is present when power is reapplied, contact support.
5.4 There are no profiles to select on the GoBox Control Panel
You need to have at least one profile programmed in your GoBox and if a duplexer tag is configured, the operational profile
must have the same tag otherwise it will be hidden.
Check your operational profiles using the web interface and retry.
5.5 GoBox Web UI displays “Template Syntax Error”
The GoBox profile and Duplexor information may have become corrupted due to a power or network loss during
configuration.
If this occurs, please either restore your operational profiles from a backup or perform a Factory Reset using the web
interface.
Page 37
SFFR-6 User Manual
6 Glossary
Page 38
SFFR-6 User Manual
Glossary
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 38 of 39
Term
Definition
APCO
Association of Public-Safety Communications Officials
AVL
Automatic Vehicle Location
MMI
Man Machine Interface
NAC
Network Access Code
OTAR
Over the Air Rekeying
PTT
Push-To-Talk
P25
Project 25
RFSS
Radio Frequency Sub-System
RNC
RFSS Network Controller
SFFR
Small Form Factor Repeater
WACN
Wide Area Communications Network
Page 39
SFFR-6 User Manual
Glossary
Doc ID: ES1002-UM02-v204a
Copyright © 2014 Etherstack London Limited
Page 39 of 39
Powered By
Asia Pacific Headquarters
Etherstack Pty Ltd
Level 1, 80 Abercrombie Street
Sydney NSW 2008
AUSTRALIA
Ph: +61 2 8399 7500
Fax: +61 2 8399 7507
Etherstack Japan
Etherstack Japan
12F Daiwa Jisho Building
74-1 Yamashita-cho Naka-ku
Yokohama Kanagawa 231-0023
JAPAN
Ph: +81 45 342 9050
Fax: +81 45 342 9053
European Headquarters
Etherstack Limited
1st Floor, 28 Poland Street
London, W1F 8QN
UNITED KINGDOM
Ph: +44 20 7734 0200
Fax: +44 20 7437 1505
North American Headquarters
Etherstack Inc
The Radio Wave Building
49 W. 27th Street 10th Floor East
New York, NY 10001
UNITED STATES
Ph: +1 917 661 4110
Fax: +1 212 255 3610
Copyright © 2014 Etherstack London Limited and Auria Wireless Pty Ltd Under License. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from
Etherstack London Limited or Auria Wireless Pty Ltd.
All copyright, confidential information, patents, design rights and all other intellectual property rights of whatsoever nature contained
herein are and shall remain the sole and exclusive property of Etherstack London Limited. The information furnished herein is believed to
be accurate and reliable. However, no responsibility is assumed by Etherstack London Limited for its use, or for any infringements of
patents or other rights of third parties resulting from its use.
The name Etherstack London Limited and Etherstack logo are trademarks or registered trademarks of Etherstack London Limited. The
name Auria Wireless Pty Ltd and logo are trademarks or registered trademarks of Auria Wireless Pty Ltd.
All other trademarks are the property of their respective owners.
Loading...
