tModel No.: CS-HDSCOAX
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Introduction
CS-HDSCOAX is a HDMI extender while using coax cable as transmission
media.
Benefits from using CS-HDSCOAX:
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by
professional worker in factory, the users can not reduce or increase by
themselves. However coax cables are available everywhere and be
processed easily by the user or installer.
2) By using CS-HDSCOAX, the transmission distance for 1080P reaches 100
meters. For general HDMI cables, cables must be customized when the
length over 10 meters.
3) CS-HDSCOAX has the ability of buffering and amplifying. Series
connection of CS-HDSCOAX achieves long distance transmission of HDMI
signal.
4) The IR system could control the sources from the display or control the
display from sources.
CS-HDSCOAX offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
Contents
HDMI Extender .................................................................................................1
Product Overview .............................................................................................1
Features............................................................................................................1
Package Contents ............................................................................................3
Connections and Operations ............................................................................3
Specifications....................................................................................................6
Panel Descriptions............................................................................................7
Typical Application............................................................................................9
Maintenance .....................................................................................................9
HDMI Extender (By single coax cable)
■ Product Overview ( Model Number: CS-HDSCOAX )
■ Features
Use single coax cable to send an HDMI signal over long distance.
Transmission distance of up to 100 meters with of 1080P.
Auto-adjustment of feedback, equalization and amplify, the user does not
need to make adjustments for the length of the cable.
HDMI V1.3 supported.
HDCP compliant.
Full HD support: 1080p@60Hz.
LEDs indicators to show the power status and the signal status.
Mounting ears supplied.
Transfer Infrared control signal together with the HDMI signal.
Page 1
this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
only with dry cloth.
Do not install or place this unit
in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
ation openings
with newspapers, tablecloths,
Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
amplifiers)
Do not place sources of naked
flames, such as lighted candles,
plugs.
Notice
Metra Home Theater Group reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.

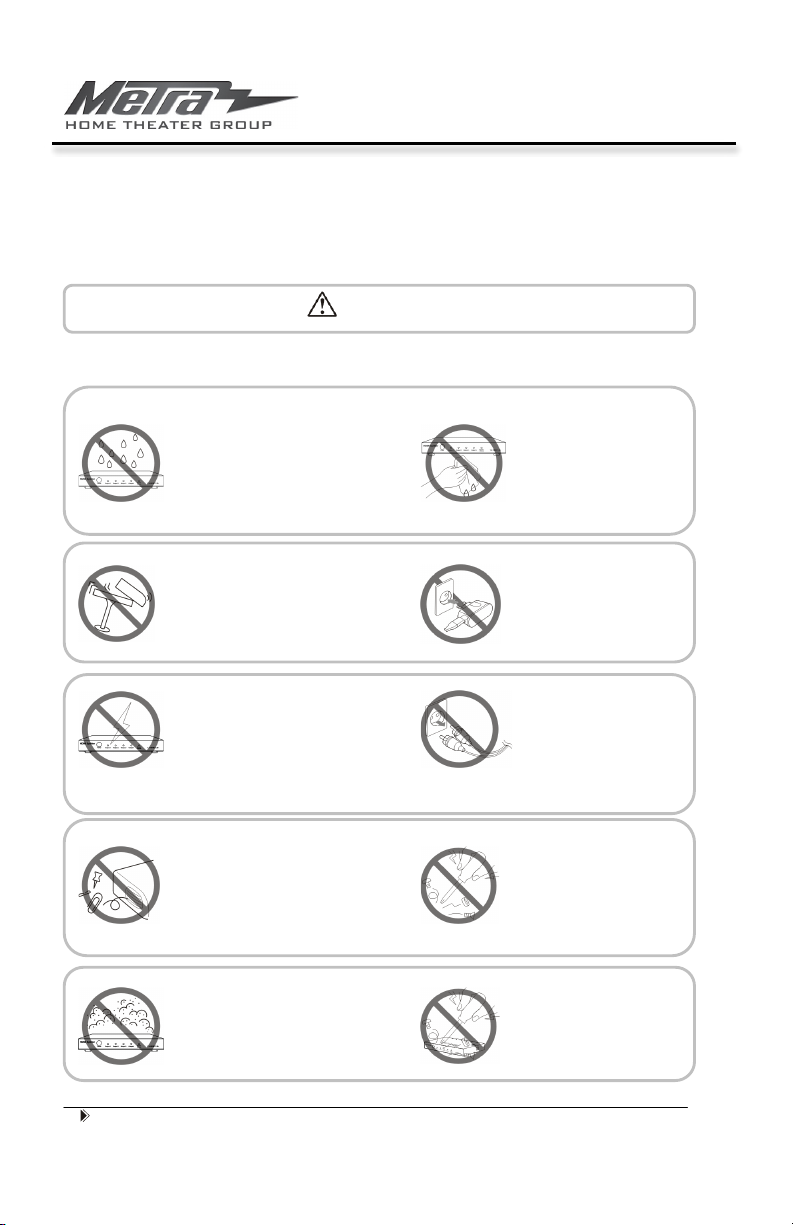

Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose
shall be placed on the apparatus.
2.
in a bookcase, built-
the unit’s ventil
curtains, and similar items.
4.
apparatus (including
that produce heat.
6. Clean this apparatus
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
9. Only use attachments /
accessories specified by
the manufacturer.
5.
on the unit.
Page 2
10. Refer all servicing to
qualified service
personnel.
■ Package Contents
① Main unit NO.1. TRANSMITTER.
② Main unit NO.2. RECEIVER.
③ Operating instructions. CS-HDSCOAX .
④ 2x 5VDC power supply P/N_VDC0502.
(One for Transmitter, one for Receiver)
⑤ 1xIR TX unit. (IR emitter cable)
⑥ 1xIR RX unit. (IR receiver unit)
■ HDMI Connections and Operations
1) Connect the HDMI input source to TRANSMITTER.
2) Connect a COAX cable from COAX output of TRANSMITTER to COAX input
of RECEIVER.
3) Connect the HDMI to Display.
■ IR Connections and Operations
1) Determine which way that you want the IR signal to flow. Connect the RX
unit at the controller side and the TX emitter at the controlled side.
2) Connect the IR Receiver (unit with stereo mini plug) to the RX port
3) Connect the IR emitter (mono mini plug) to the TX port
Attention: Please insert and extract cables gently.
DIP Switch Setting Instructions
■
Note: “0” is up and :1: is down
Page 3
TRANSMITTER
Leave position 1 in “0” position.
osi tio n2 P o sit ion 3 Fun cti on
P
0 0 1080P stereo (Using Embedded EDID) (note1)
0 1 1080P 5.1 (Using Embedded EDID) (note2)
1 0
1 1
ot e1: The CS-HDSCOAX will use the embedded 1080P-stereo EDID when the DIP switch is
N
in this mode. The EDID will be 1080P video and stereo audio.
N
ot e2: The CS-HDSCOAX will use the embedded 1080P-5.1 EDID when the DIP switch is in
this mode. The EDID will be 1080P video and 5.1 audio.
N
ot e3: The CS-HDSCOAX will use the embedded 1080P-7.1 EDID when the DIP switch is in
this mode. The EDID will be 1080P video and 7.1 audio.
1080P 7.1 (Using Embedded EDID) (note3)
EDID auto copy (note4)
Page 4
RECEIVER
color depth
P
osi tio n1 Pos iti on2 Positio n 3 Fun cti on
0 0 0 Normal mode,8bit color depth
0 0 1 LC mode(note1), 8bit color depth
0 1 0
0 1 1
Normal mode, color depth decided
by the sink.
LC mode (note1),
decided by the sink.
others Normal mode,8bit color depth
Note1 : if video appears noise or interference when the long HDMI cable is used or the quality
of HDMI cable is not so good, use this mode
Page 5
■ Specifications
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported
DTV/HDTV;
1080P/1080i/720P/576i/480i
HDMI 1.3+HDCP
Output Video
(repeat the source to the sink)
Output Audio
Support 7.1/5.1/stereo audio (PCM
only)
Maximum Transmission Distance 100 meters
Power Supply 5VDC
5Watts (TRANSMITTER)
Power Consumption
5Watts (RECEIVER)
120mmH×115mmW×31mmD
Dimensions
/5.98’’W×4.13’’H×1.22’’D
Mass (Main unit) 0.9Kg / 1.98lb (Pairs)
NOTE1: Specifications are subject to change without notice. Mass and dimensions are
approximate.
Page 6

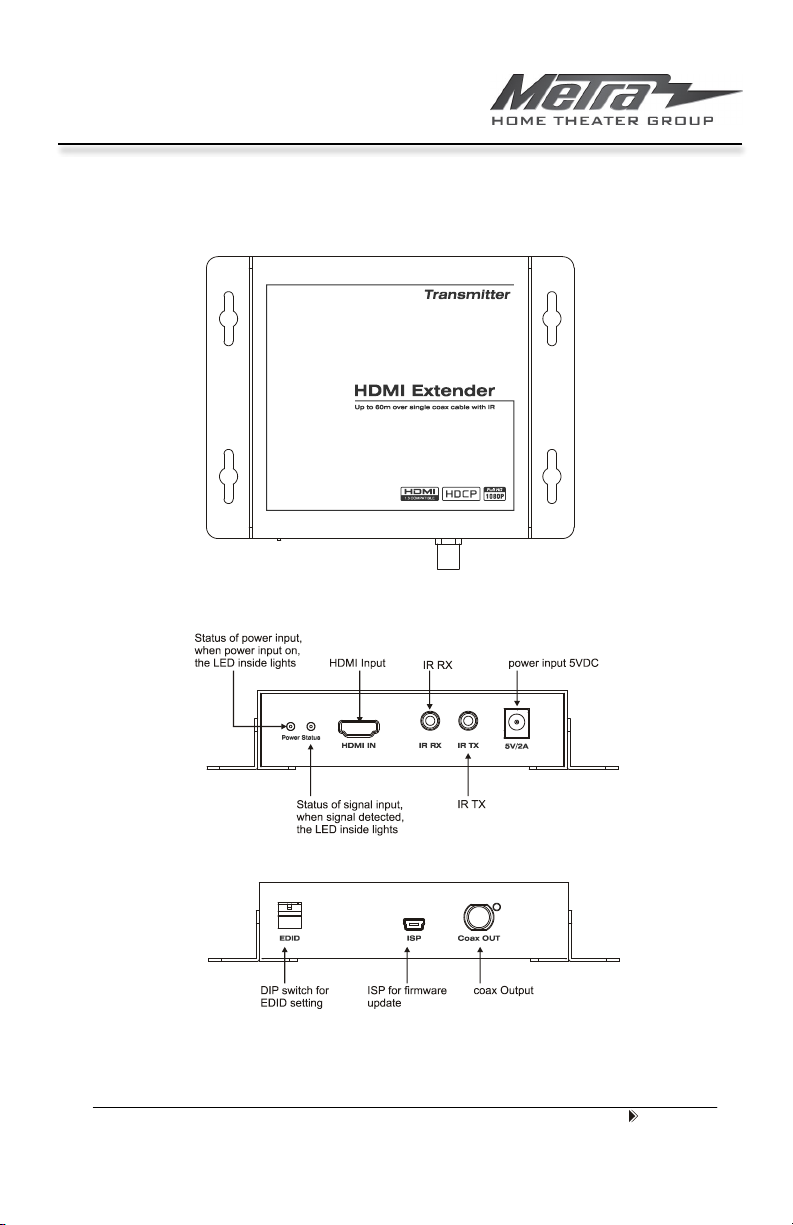

■ Panel Descriptions
1. TRANSMITTER
Page 7
2. RECEIVER
Page 8
■ Typical Application
Maintenance
■
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzine to clean this unit.
