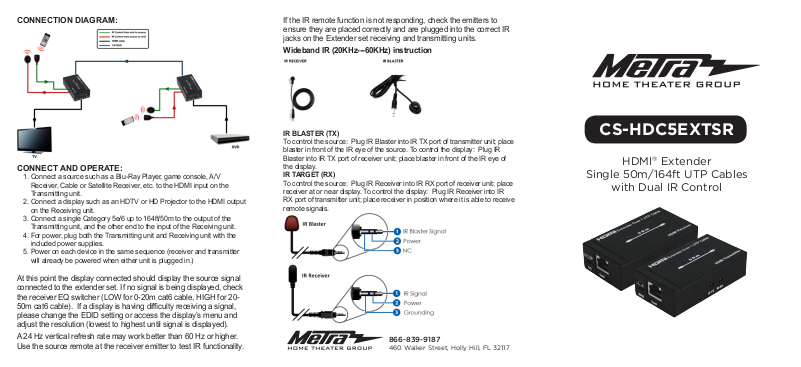

CONNECTION DIAGRAM:
If the IR remote function is not responding, check the emitters to
ensure they are placed correctly and are plugged into the correct IR
jacks on the Extender set receiving and transmitting units.
Wideband IR (20KHz---60KHz) instruction
CONNECT AND OPERATE:
1. Connect a source such as a Blu-Ray Player, game console, A/V
Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the
Transmitting unit.
2. Connect a display such as an HDTV or HD Projector to the HDMI output
on the Receiving unit.
3. Connect a single Category 5e/6 up to 164ft/50m to the output of the
Transmitting unit, and the other end to the input of the Receiving unit.
4. For power, plug both the Transmitting unit and Receiving unit with the
included power supplies.
5. Power on each device in the same sequence (receiver and transmitter
will already be powered when either unit is plugged in.)
At this point the display connected should display the source signal
connected to the extender set. If no signal is being displayed, check
the receiver EQ switcher (LOW for 0-20m cat6 cable, HIGH for 20-
50m cat6 cable). If a display is having difculty receiving a signal,
please change the EDID setting or access the display’s menu and
adjust the resolution (lowest to highest until signal is displayed).
A 24 Hz vertical refresh rate may work better than 60 Hz or higher.
Use the source remote at the receiver emitter to test IR functionality.
IR BLASTER (TX)
To control the source: Plug IR Blaster into IR TX port of transmitter unit; place
blaster in front of the IR eye of the source. To control the display: Plug IR
Blaster into IR TX port of receiver unit; place blaster in front of the IR eye of
the display.
IR TARGET (RX)
To control the source: Plug IR Receiver into IR RX port of receiver unit; place
receiver at or near display. To control the display: Plug IR Receiver into IR
RX port of transmitter unit; place receiver in position where it is able to receive
remote signals.
866-839-9187
460 Walker Street, Holly Hill, FL 32117
CS-HDC5EXTSR
HDMI® Extender
Single 50m/164ft UTP Cables
with Dual IR Control
Thank you for purchasing the CS-HDC5EXTSR.
For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
INTRODUCTION:
The HDMI Extender over Single Cat5e/6 with Bi-directional
IR extends high denition video and audio signals and IR, at
a distance of up to 164ft/50m over a single Cat5e/6 cable.
Features EDID management, which allows and encourages
source and display “handshake” for seamless integration.
With only one Cat5e/6 cable, high denition sources with HDMI
outputs can be connected to HD displays with HDMI inputs
over long distances. 1080P/60, DTS-HD or Dolby TrueHD
audio is supported and compatible with the extender. In
addition, the extender is also equipped with bi-directional IR
pass-through which allows for source or display control.
The extender includes two units: transmitting unit and receiving
unit. The transmitting unit is used to capture the HDMI input
with IR signals and carries the signals via one Cat5e/6 cable.
The receiving unit is responsible for equalizing the transmitted
HDMI signal and reconstructing IR and serial control signals.
FEATURES:
• Allows HDMI Audio/Video and IR signals to be transmitted
over a single Cat5e/6 cable
• Bi-directional IR system allowing for control of source or
display (IR accessories included)
• EDID management
• Transmission Range: Extends 1080p resolution up to
50m/164ft over a single Cat5e or Cat6 cable
• Works with HDMI and HDCP compliant devices
• Supports up to 1080p High Denition resolution
SPECIFICATIONS:
Video Bandwidth: Single-link 165Mhz [4.95Gbps]
Video Support: 480i/480p/720p/1080i/1080p @60
Audio Support: Surround Sound/stereo digital PCM
Transmission Range: 1080p 24-bit color – up to 50m/164ft
HDMI connector: Type A 19 pin female
3.5mm connector: (TX and RX) IR Receiver/IR Blaster
MECHANICAL SPECS:
Housing: Metal enclosure
Power Supply: (2) 5V1A DC
PACKAGE CONTENTS:
• HDMI Transmitter 1pcs
• HDMI Receiver 1pcs
• Wideband IR Tx cable 1pcs
• Wideband IR Rx cable 1pcs
• 5V, 1A DC Power Supply 2 Pcs
• Product Manual 1pcs
PANEL DESCRIPTIONS:
Transmitting unit
• Power LED: This LED will illuminate when the device is
connected with power supply.
• HDMI IN: This slot is where you connect the HDMI output port of
your source equipment such as DVD/Blu-ray players or Set-TopBox with an HDMI cable.
• DC 5V: Connect from 5V DC power supply into the unit and
connect the adaptor to an AC outlet.
• EDID: Select the setting [1 or 2] that works best for your system.
• CAT6: Connect the CAT output of the transmitter with the CAT
input of the receiver with CAT5E/6 cable.
• IR TX: Connect the IR Blaster cable included in the package for
IR signal transmission. Pace the IR blaster in direct line-of-sight
of the equipment to be controlled.
• IR RX: Connect to the IR Receiver for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of
the IR receiver.
Receiver unit
• LOCK LED: This LED will illuminate when the HDMI signal
from the transmitter is stable.
• HDMI OUT: This slot is to connect the HDMI input port of
your display such as an HDTV.
• DC 5V: Connect from 5V DC power supply into the unit and
connect the adaptor to an AC outlet.
• EQ: HDMI Receiver equalizer switcher, LOW for 8—20m
CAT5E/6 cable, High for 20-50m CAT5E/6 cable.
• CAT6: Connect the CAT input of the receiver with the CAT
output of the transmitter with CAT5E/6 cable.
• IR TARGET (RX): Connect to the IR Receiver for IR signal
reception. Ensure that remote being used is within the direct
line-of-sight of the IR receiver.
• IR BLASTER (TX): Connect the IR Blaster cable included in
the package for IR signal transmission. Pace the IR blaster
in direct line-of-sight of the equipment to be controlled.
