Eterna SH1844DVO Installation Instructions

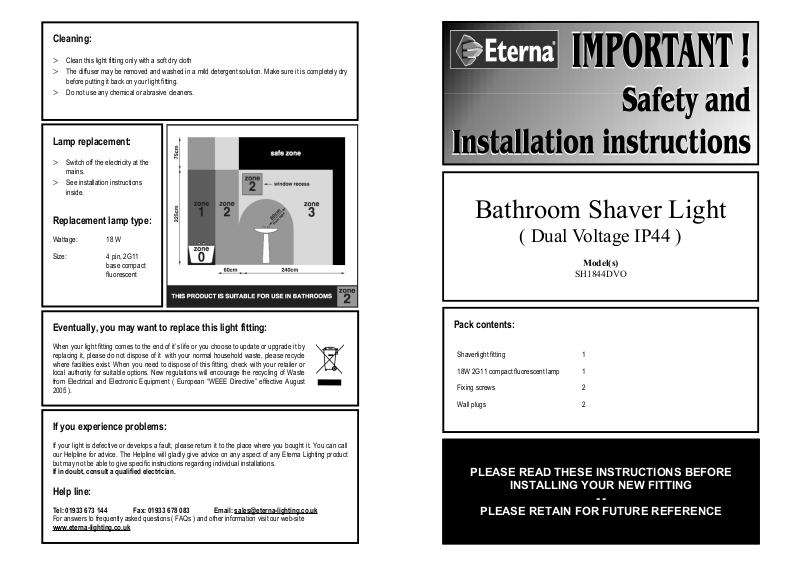

Cleaning:

> Clean this light fitting only with a soft dry cloth
> The diffuser may be removed and washed in a mild detergent solution. Make sure it is completely dry

before putting it back on your light fitting.

> Do not use any chemical or abrasive cleaners.

Lamp replacement:

> Switch off the electricity at the

mains.

> See installation instructions

inside.

Replacement lamp type:

Wattage: 18 W

Size: 4 pin, 2G11
base compact
fluorescent

Bathroom Shaver Light

( Dual Voltage IP44 )

Model(s)

SH1844DVO

Eventually, you may want to replace this light fitting:

When your light fitting comes to the end of it’s life or you choose to update or upgrade it by
replacing it, please do not dispose of it with your normal household waste, please recycle
where facilities exist. When you need to dispose of this fitting, check with your retailer or
local authority for suitable options. New regulations will encourage the recycling of Waste
from Electrical and Electronic Equipment ( European “WEEE Directive” effective August
2005 ).

If you experience problems:

If your light is defective or develops a fault, please return it to the place where you bought it. You can call
our Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting product
but may not be able to give specific instructions regarding individual installations.

If in doubt, consult a qualified electrician.

Help line:

Tel: [phone] Fax: [phone] Email: [e-mail]

For answers to frequently asked questions ( FAQs ) and other information visit our web-site

www.eterna-lighting.co.uk

Pack contents:

Shaverlight fitting 1

18W 2G11 compact fluorescent lamp 1

Fixing screws 2

Wall plugs 2

PLEASE READ THESE INSTRUCTIONS BEFORE

INSTALLING YOUR NEW FITTING

- -

PLEASE RETAIN FOR FUTURE REFERENCE

Read this first:

> This light fitting must be installed in

accordance with the Building Regulations.
These may be obtained from HMSO or viewed
and downloaded from www.odpm.gov.uk
following the link for Building Regulations.

> If in any doubt, consult a qualified

electrician.

> Switch off the mains before commencing

installation and remove the appropriate circuit
fuse.

> This fitting contains an isolating transformer

rated at 20W maximum and is only intended
for use with electric shavers. It is possible to
connect other devices to the socket outlet such
as chargers for electric toothbrushes provided
they are fitted with the correct plug. Use of the
socket to power equipment requiring greater
than 20W will cause the transformer to
overheat and/or stop working altogether.
Please refer to the manufacturers instructions
supplied with your appliance to determine
whether it is suitable for use in the location
where you have installed your shaver light and
that the power consumption is less than 20W.

> The switch in your fitting turns the light on and

off but not the socket. The socket is
permanently live while there is a supply to the
fitting.

> When using the shaver socket, ensure that the

correct socket is used according to the working
voltage of your appliance. Connecting your
appliance to the wrong socket could cause
permanent damage to your appliance, your
fitting or both.

> Suitable for indoor use only.
> This fitting is suitable for use in bathrooms in

Zones 2, 3 or the safety or outside zone. This
fitting must not be installed in zones 0 or 1—
see diagram on back page.

> IMPORTANT !

The fitting must not be installed where the
socket is likely to be splashed. Please refer to
the Wiring Regulations for further details.

> This product is suitable for installation on

surfaces with normal flammability ( indicated
by the "F" in a triangle ) e.g. wood,
plasterboard, masonry. It is not suitable for
use on highly flammable surfaces ( e.g.
polystyrene, textiles ).

> Before making fixing hole(s), check that there

are no obstructions hidden beneath the
mounting surface such as pipes or cables.

> The chosen location of your new fitting should

allow for the product to be securely mounted
and safely connected to the mains supply
( lighting circuit ).

> If the location of your new fitting requires the

provision of a new electrical supply, the supply
must conform with the requirements of the
latest edition of the Wiring Regulations.

> This product is designed for permanent

connection to fixed wiring: this should be either
a suitable lighting circuit ( protected with a 5 or
6 Amp MCB or fuse ) or a fused spur ( with a 3
Amp fuse ) via a fused connection
unit.IMPORTANT !
Please check the Wiring Regulations for
permissible location of fused spurs and other
outlets if installing in a bathroom.

> Make connections to the electrical supply in

accordance with the following code:

Live - Brown or Red
Neutral - Blue or Black
Earth - Green and Yellow

> This product must be connected to Earth.
> You are advised at every stage of your

installation to double-check any electrical
connections you have made. After you have
completed your installation there are electrical
tests that should be carried out: these tests are
specified in the Wiring Regulations ( BS7671 )
referred to in the Building Regulations. If in
doubt, consult a qualified electrician.

Installation:

1) Remove the decorative end pieces by gently
pulling the clips off the end of the fitting using
your thumbnail or blunt blade and slide the cap
downwards.

2) Remove the diffuser by inserting a coin into the
recess and twisting, lifting the diffuser off as
shown opposite.

3) Remove the tube by pulling sideways out of
the lampholder and then twisting out of the
clip.

4) Place the fitting in the desired location, using
the fitting as a template and checking to make
sure that the fitting is level, mark the fixing

points through the mounting holes. Note the
position of the cable entry.

5) If fixing directly to the wall, drill holes using a
N°8 / 5mm drill bit to a depth of 30mm and
insert the wall plugs—see fig. 4.

5) Pierce the rubber grommet in the back of the
fitting making a hole just large enough to allow
the cable through while maintaining a tight,
waterproof fit.

6) Remove the terminal block cover from the front
of the fitting by loosening ( but not removing )
the screw and lifting off.

7) Make the mains supply connections to the fitting
following the colour coding opposite.

8) Replace the terminal block cover.

Pull out and slide down

2

9) Secure the fitting in place using the fixings
supplied. If the fixings are not suitable to your
installation, use appropriate alternatives.

10) Replace the decorative end pieces—if required.

11) Insert the lamp and replace the diffuser—see
below. Check that the diffuser is properly
seated.

12) Restore the power and switch on.

Twist to remove diffuser

Pull out then twist and lift

1

Safety markings:

IP44
