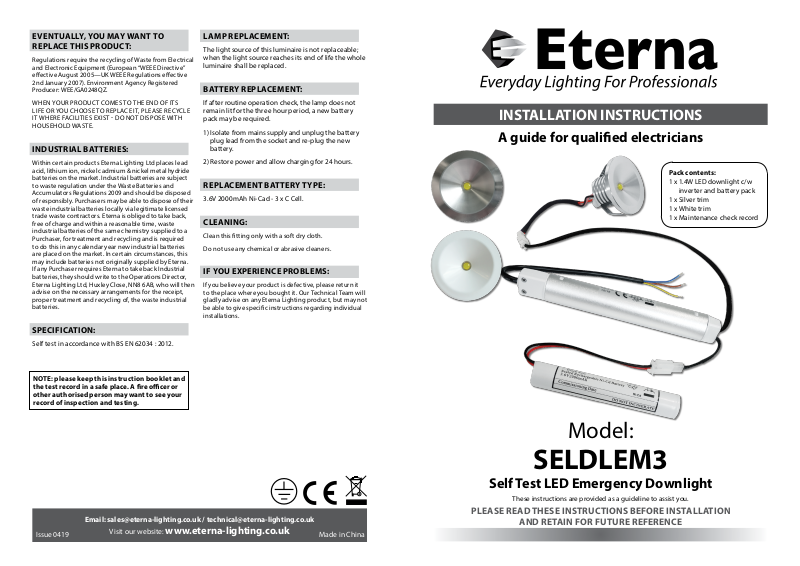

Eterna SELDLEM3 Installation Instructions Manual

EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:

Regulations require the recycling of Waste from Electrical
and Electronic Equipment (European “WEEE Directive”
eective August 2005—UK WEEE Regulations eective
2nd January 2007). Environment Agency Registered
Producer: WEE/GA0248QZ.

WHEN YOUR PRODUCT COMES TO THE END OF ITS
LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE RECYCLE
IT WHER E FACILITIES EXIST  DO NOT DISPOSE WITH
HOUSEHOLD WASTE.

INDUSTRIAL BATTERIES:

Within cer tain products Eterna Lighting Ltd places lead
acid, lithium ion, nickel cadmium & nickel metal hydride
batteries on the market. Industrial batteries are subject
to waste regulation under the Waste Bat teries and
Accumulators Regulations 2009 and should be disposed
of responsibly. Purchasers may be able to dispose of their
waste industrial batteries locally via legitimate licensed
trade waste contractors. Eterna is obliged to take back ,
free of charge and within a reasonable time, waste
industrial batteries of the same chemistry supplied to a
Purchaser, for treatment and recycling and is required
to do this in any calendar year new industrial batteries
are placed on the market. In certain circumstances, this
may include batteries not originally supplied by Eterna.
If any Purchaser requires Eterna to take back Industrial
batteries, they should write to the Operations Director,
Eterna Lighting Ltd, Huxley Close, NN8 6AB, who will then
advise on the necessary arrangements for the receipt,
proper treatment and recycling of, the waste industrial
batteries.

SPECIFICATION:

Self test in accordance with BS EN 62034 : 2012.

LAMP REPLACEMENT:

The light source of this luminaire is not replaceable;
when the light source reaches its end of life the whole
luminaire shall be replaced.

BATTERY REPLACEMENT:

If after routine operation check, the lamp does not
remain lit for the three hour period, a new battery
pack may be required.

1) Isolate from mains supply and unplug the battery
plug lead from the socket and re-plug the new
bat tery.

2) Restore power and allow charging for 24 hours.

REPLACEMENT BATTERY TYPE:

3.6V 2000mAh Ni-Cad - 3 x C Cell.

CLEANING:

Clean this t ting only with a soft dry cloth.

Do not use any chemical or abrasive cleaners.

IF YOU EXPERIENCE PROBLEMS:

If you believe your product is defective, please return it
to the place where you bought it. Our Technical Team will
gladly advise on any Eterna Lighting product, but may not
be able to give specic instructions regarding individual
installations.

INSTALLATION INSTRUCTIONS

A guide for qualied electricians

Pack contents:

1 x 1.4W LED downlight c/w

inverter and battery pack
1 x Silver trim
1 x White trim
1 x Maintenance check record

NOTE: please keep this instruction booklet and
the test record in a safe place. A re ocer or
other authorised person may want to see your
record of inspection and testing.

Email: [e-mail] / [e-mail]

Visit our website: www.eterna-lighting.co.uk

Model:

SELDLEM3

Self Test LED Emergency Downlight

These instructions are provided as a guideline to assist you.

PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION

AND RETAIN FOR FUTURE REFERENCE

Made in ChinaIssue 0419

READ THIS FIRST:

Dia = 32mm

Ceiling

Ceiling

Clips will lock

fitting into place

Check the pack and make sure you have all of the
parts listed on the front of this booklet. If not,
contact the outlet where you bought this product.

As the buyer, installer and/or user of this product it
is your own responsibility to ensure that this tting
is t for the purpose for which you have intended
it. Eterna Lighting cannot accept any liability for
loss, damage or premature failure resulting from
inappropriate use.

Switch o the mains before commencing installation
and remove the appropriate circuit fuse or lock o
MCB.

Use only with the driver/inverter provided. Do not
connect directly to the mains.

This unit is suitable for indoor use only.

This product is designed for permanent connection
to xed wiring: this must be a suitable circuit
(protected with the appropriate MCB or fuse).

Do not cover the t ting, battery and driver with any
insulating materials.

The driver should be placed where it cannot come
into contact with water or moisture.

You are advised at every stage of your installation to
double-check any electrical connections you have
made. After you have completed your installation
there are electrical tests that should be carried out,
these tests are specied in the current IEE wiring and
building regulations.

The batteries supplied with this tting are a
consumable part and therefore may be outside of
any warranty oered.

INPUT 220-240VAC

50/60Hz

E
N

DRIVER

L

INSTALLATION:

Choose the location for the new tting taking the
above points into consideration.

1) Mark the locations of your downlight and then
using an appropriate hole cutter, make a 32mm
diameter hole. (See below).

2) Prepare the route for the mains cable and feed
through the hole and make the connections to the
input side of the driver/inverter.

3) Write commissioning date on to battery.

4) Feed the driver/inverter through the hole,
followed by the battery pack, which can lay
adjacent to the hole.

5) Feed the excess cable through the hole and press
the down light into position (see below) until it is
retained by the springs. The tting may require
some manipulation in order to pass through the
hole. Do not enlarge the hole to make tting
easier.

6) Restore the power and check tting is working
correctly.

Dia = 32mm

Ceiling

Clips will lock

fitting into place

Ceiling

BATTERY

OPERATION CHECKS:

This product is tted with an automatic, self-test
function that will commission and test itself in
accordance with the requirements of the British
Standards. Monthly and annual tests will be
automatically completed as detailed below with
tests including battery charge condition, functional
test and duration test.

Monthly – ten minute functional test
Annually – full three-hour duration test

• On installation a date will be randomly assigned for
the rst monthly and rst annual test.

• The initial monthly test will be between 16 and 30
days from installation.

• The initial full-duration test will be between 200
and 360 days from installation (annual tests will
then be conducted every 360 days).

• The schedule of these tests will be remembered
for a period of 7 days if no power is supplied to the
luminaire.

• If there is a mains failure in 24 hours before a test
is due to be conducted, the test will automatically
be postponed until sucient time is allowed to
recharge the battery.

• If there is a mains failure during the self-test
operation the unit will go into emergency mode.

TESTING

This product is designed to conduct self-testing in
accordance with EN 62034, the results of monthly
and annual tests should be endorsed on the test
record form supplied.

Because of the possibility of a failure of the normal
lighting supply occurring shortly after a period of
testing of the emergency lighting system or during
the subsequent recharge period, all full duration
tests shall wherever possible be undertaken
preceding time of low risk to allow for battery
recharge.

Daily:

Visual inspection of the batter y charge LED.

Each Month:

The product will be energised from its battery for
adequate time to ensure that emergency mode is
functioning correctly.

Once Each Year:

The product will be placed into emergency mode
and check that the duration provided meets the
specied time period.

PERFORMANCE AND FAULT INDICATORS:

Normal operation constant green LED

Duration test underway red indicator ashing rapidly

Battery circuit failure red indicator ashing once every 3 seconds

Light source failure red indicator ashing twice every 3 seconds

Failure of duration test red indicator ashing three times every 3 seconds

Auto test function fails red indicator ashing four times every 3 seconds

LED indicator o in emergency mode (mains failure)

LIVE

NEUTRAL

EARTH

1.4W LED
