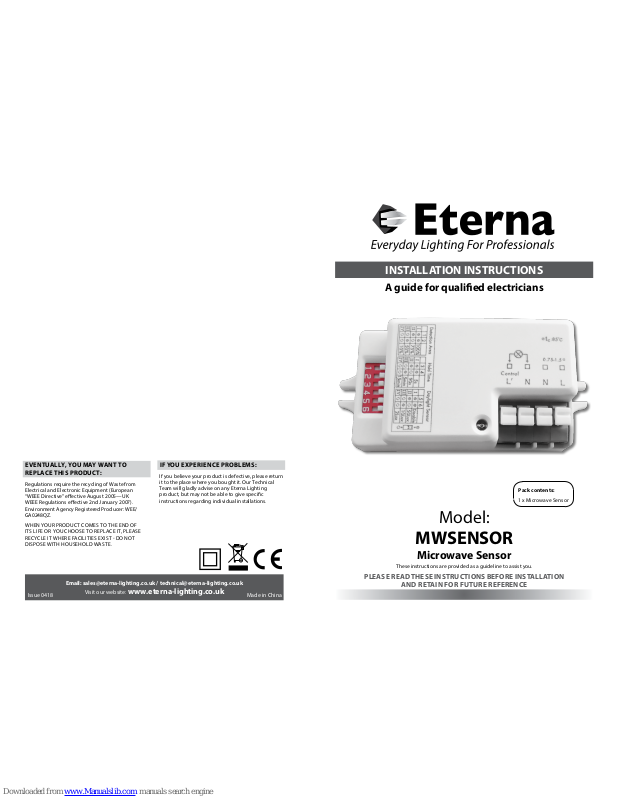

Eterna MWSENSOR Installation Instructions Manual

Pack contents:

1 x Microwave Sensor

Model:

MWSENSOR

Microwave Sensor

These instructions are provided as a guideline to assist you.

PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION

AND RETAIN FOR FUTURE REFERENCE

EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:

Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
“WEEE Direc tive” eective August 20 05—UK
WEEE Regulation s eective 2nd January 20 07).
Environment Agenc y Registered Producer : WEE/
GA0248Q Z.

WHEN YOUR PR ODUCT COMES TO TH E END OF
ITS LIFE OR YO U CHOOSE TO REPLACE I T, PLEA SE
RECYCLE IT W HERE FACILITIES E XIST  DO NOT
DISPOSE WITH HOUSEHOLD WASTE.

IF YOU EXPERIENCE PROBLEMS:

If you believe your p roduct is defective, p lease return
it to the place where yo u bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, bu t may not be able to give specic
instructions regarding individual installations.

Email: [e-mail] / [e-mail]

Visit our website: www.eterna-lighting.co.uk

Made in ChinaIssue 0418

INSTALLATION INSTRUCTIONS

A guide for qualied electricians

DETECTION AREA

1 2

I

 

100%

II

 

75%

III

 

50%

IV

 

10%

KEY: ON:  OFF: 

DAYLIGHT SENSOR

5 6

I

 

Disable

II

 

50 Lux

III

 

10 Lux

IV

 

2 Lux

KEY: ON:  OFF: 

HOLD TI ME

3 4

I

 

5s

II

 

90s

III

 

5min

IV

 

15min

KEY: ON:  OFF: 

READ THIS FIRST:

Check the pack and m ake sure you have all of the
parts liste d on the front of this bookle t. If not,
contact the outlet where you bought this product.

This produc t must be installed by a compet ent
person in accord ance with the current building a nd
IEE wiring regulations.

As the buyer, install er and/or user of this product it
is your own responsi bility to ensure that this tt ing
is t for the purpo se for which you have intended
it. Eterna Lightin g cannot accept any liability fo r
loss, damage or premature failure resulting from
inappropriate use.

This product is designed and constructed according
to the principles o f the appropriate British Stan dard
and is intended for normal domestic service.

Switch o the mains be fore commencing installati on
and remove the appro priate circuit fuse or lock o
MCB.

This produc t is designed for permanent co nnection
to xed wiring: this m ust be a suitable circuit
(protected w ith the appropriate MCB or fuse).

When making con nections ensure that the ter minals
are tightened se curely and that no strands of wi re
protrude. Chec k that the terminals are tightene d
onto the bared cond uctors and not onto any
insulation.

This product is double insulated. DO NOT CONNECT

ANY PART TO EARTH.

This produc t is not intended to be used by childr en
and persons wi th sensory, physical and/or ment al
impairments th at would prevent them from using i t
saf ely.

You are advised at ever y stage of your installatio n to
double-check any electrical connections you have
made. After you h ave completed your installatio n
there are elec trical tests that should b e carried out,
these tests are sp ecied in the current IEE wir ing and
building regulations.

INTRODUCTION:

This is a microwave sens ing device which continuously
scans the oper ating zone and immediately s witches
the light on when it d etects movement in that area .
This means that whe never movement is detecte d
within the range o f the sensor the light will switch
on automaticall y and illuminate the area you have
selected to l ight. While there is movement wi thin
range of the unit th e light will remain on.

A microwave sensor is an a ctive motion detecto r
emitting high -frequency ele ctro-magnetic waves at

5.8GHz and rece iving their echo. The senso r detects
change in the echo p attern within its detec tion
zone and the light is th en triggered. The wave can
pass through doo rs, glass and thin walls and will
continually monit or the signal within the detec tion
area.

MICROWAVE SENSOR SPECIFICATIONS:

INSTALLATION:

Isolate mains and lo ck o.

1) Connect mains and outpu t as per below image,
brown to live, blue to ne utral on input and adjust
control accordingly.

2) Restore the power an d switch on.

UNDERSTANDING THE CONTROLS:

The sensor is an ac tive motion detector : it emits a
high frequenc y electromagneti c wave 5.8GHz and
receives its ech o. The sensor detects th e change
in echo from movem ent in its detection zone . A
microprocesso r then triggers the switch li ght ON
command. Detection is possible through doors,
panels of glass and t hin walls.

DETECTION RANGE:

This determine s the eective range of the m otion
detector and i s set up by DIP switches at the
sensor itsel f, refer to gure. Note that reducin g the
sensitivity will also narrow the detection range.

The following settings
are available:

I - Detection R ange 100%
II - Detectio n Range 75%
III - Detecti on Range 50%
IV - Detectio n Range 10%

HOLD TI ME:

This determine s the time the tting remains at
100% level on motion d etection and is set with DI P
switches at the se nsor itself, refer to gure. Th e walk
test setting i s useful when installing th e tting to
establish correct operation and range.

The following settings
are available:

I - Walk test mode 5s
II - 90s
III - 5 minutes
IV - 15 minutes

DAYLIGHT SE NSOR:

This setting h olds o the 100% light output sho uld
there be sucien t daylight and is set using DIP
switches at the se nsor, refer to gure.

The following settings are available:

I - Photocell disabl ed
II - 50 lux twilight o peration
III - 10 lux twilight op eration
IV - 2 lux darknes s operation only

* In daylight set ting the

lamp(s) will always be on
with motion dete cted
and operate at 100% li ght
output, even in br ight
daylight.

1-2 Detection
Area

Daylight
Sensor

Power
Supply

220 -240V
Out Control

O / On

3-4 Hold
Time

5-6 Daylight
Threshold

Microwave

Sensor

OFF ON

 

PRODUCT

TYPE

MICROWAVE

MOTION SENSOR

Operating Voltage 220-240VAC 50/60Hz

HF Syste m 5.8GHz CW rad ar

Transmission Power <0.2mW

Detection Angle 30-150 Degree

Power Consumption <0.5W

Detection Range Max. 10m adjusta ble

Time Setting 5s-15 m

Mounting Indoors, ceiling and wall

Light Control 2-50lux, disabl e

Working Temp -20 to +60 degree

Rated Load

800W (resistive load)

400W (capacitive load)

270W (LED)

RED DIRECTIVE Eterna Lighting Ltd

Microwave Occupancy Sensor

Full declaration available at www.eterna-lighting.co.uk
