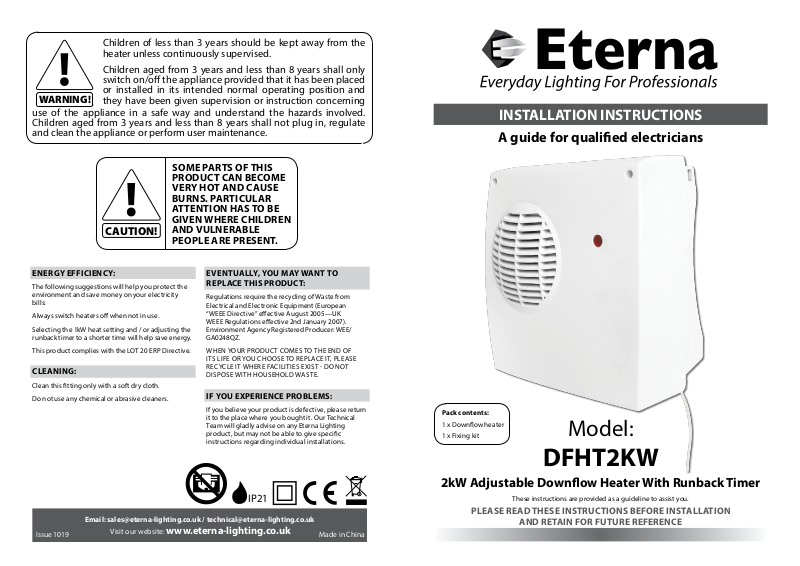

Eterna DFHT2KW User guide

Page 1
Children of less than 3 years should be kept away from the heater unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the appliance provided that it has been placed or installed in its intended normal operating position and
WARNING!
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE CHILDREN
CAUTION!
AND VULNERABLE PEOPLE ARE PRESENT.
INSTALLATION INSTRUCTIONS
ENERGY EFFICIENCY:
The following suggestions will help you protect the environment and save money on your electricity bills:
Always switch heaters o when not in use.
Selecting the 1kW heat setting and / or adjusting the runback timer to a shorter time will help save energy.
This product complies with the LOT 20 ERP Directive.
CLEANING:
Clean this tting only with a soft dr y cloth.
Do not use any chemical or abrasive cleaners.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website: www.eterna-lighting.co.uk
EVENTUALLY, YOU MAY WANT TO REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from Electrical and Electronic Equipment (European “WEEE Directive” eective August 2005—UK WEEE Regulations eective 2nd Januar y 2007). Environment Agency Registered Producer: WEE/ GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF ITS LIFE OR YOU CHOOSE TO REPL ACE IT, PLEASE RECYCLE IT WHERE FACILITIES EXIST  DO NOT DISPOSE WITH HOUSEHOLD WASTE.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return it to the place where you bought it. Our Technical Team will gladly advise on any Eterna Lighting product, but may not be able to give specic instructions regarding individual installations.
IP21
Made in ChinaIssue 1019
Pack contents:
1 x Downow heater
1 x Fixing kit
Model:
DFHT2KW
2kW Adjustable Downow Heater With Runback Timer
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Page 2
READ THIS FIRST:
This heater must be installed in accordance with the Building Regulations. These may be obtained from OPSI or viewed and downloaded from www. communities.gov.uk following the link for Building Regulations.
This heater is designed for wall mounting and must be used with the warm air vent facing downwards. This heater should not be used in any other orientation and should not be used as a free standing portable appliance.
ADVI SORY: This heater must be installed at least
1.8m above the oor.
This heater must be installed so that switches and other controls (except the pull cord) cannot be touched by a person in the bath or shower.
The mounting position should allow the free movement of air around the heater. Obstructing the air ow could result in overheating.
This product is not intended to be used by children and persons with sensory, physical and/or mental impairments that would prevent them from using it saf ely.
Small children should be supervised to ensure that they do not play with this appliance.
Switch o the mains before commencing installation and remove the appropriate circuit fuse.
Suitable for indoor use only.
This product is suitable for installation on surfaces with normal ammability e.g. wood, plasterboard, masonry. It is not suitable for use on highly ammable sur faces (e.g. polystyrene, textiles).
Before making xing hole(s), check that there are no obstructions hidden beneath the mounting sur face such as pipes or cables.
The chosen location of your new heater should allow for the product to be securely mounted (e.g. to a rm wall) and safely connected to the mains supply.
Do not site the heater directly beneath a mains outlet socket.
If the location of your new heater requires the provision of a new electrical supply, the supply must conform with the requirements of the Building Regulations.
This product is designed for permanent connection to xed wiring: this should be to a suitable ring circuit (protected with a 10 Amp MCB or fuse) or a fused spur (with a 10 Amp fuse) via a fused connection unit. The supply must incorporate a switch or other means of disconnection.
This product is not suitable for mounting within bathroom zones 0, 1 or 2 – it can be installed outside of zones where the permanent connection to the mains supply is made in accordance with the requirements of building and wiring regulations.
If installed in a bathroom, the supply circuit must be protected by a 30mA RCD.
Make connections to the electrical supply in accordance with the following code:
Live - Brown or Red • Neutral - Blue or Black
This product is double insulated, do not connect any part to Earth.
WARNING - To avoid overheating, do not cover the heater.
The heater is tted with 2 stage over-temperature protection for protection against brief excess of temperature, the heater has a resetting thermostatic device; for longer periods of excess temperature or higher excess temperatures, the heater is tted with a one-shot thermal fuse which cannot be reset.
As you are making a xed connection to the mains, you are advised at every stage of your installation to double-check any electrical connections you have made. After you have completed your installation there are electrical tests that should be carried out: these tests are specied in the Wiring Regulations (BS7671) referred to in the Building Regulations.
124mm
Fixing Hole Positions
INSTALLATION:
01. Choose the location for your new heater giving consideration to all of the points above.
02. Loosen the two screws at the top of the front of the heater and lift o the front cover.
03. Using the guide diagram above, mark the position of the top two xing holes.
04. Use a spirit level to check holes are level.
05. Make the top two xing holes using a suitable drill bit.
06. Insert the plastic plugs and screws leaving
approximately 3mm of the shank protruding.
07. Hang the heater on the screws. If the xings supplied are not suitable for your mounting surface, select suitable alternatives.
67mm
114 mm
08. Mark the position of the third xing hole using the heater as a template.
09. Remove the heater, make the xing hole and insert the plastic plug.
10. Replace the heater adjusting the top two screws to make as tight a t as possible.
11. Secure using the third xing through the hole
indicated opposite.
12. Remove the cable clamp from inside the heater.
13. Thread the supply cable through the hole in the
rear of the case.
14. Make connections to the supply terminals
according to the colour code (left). Ensure that there are no strands or whiskers protruding from the terminals.
15. Secure the cable under the cable clamp. Ensure
that the cable is gripped rmly but take care not to over-tighten the screws.
16. This tting is factory pre-set at 1kW operation and 30 minute run back timer. If a dierent output /time is required this can be set upon installation.
Fixing Hole
Select desired mode of operation using the dip switches*
1 - On position 1kW / O position 2kW 2 - On position 5 minutes 3 - On position 10 minutes 4 - On position 20 minutes
*You can have multiple time dip switches selected at one time, this allows you to add the times together e.g dip switch 2 and 3 on = 15 minutes
17. Close and secure the front cover.
18. Restore the power and switch on.
19. Pull the switch cord to turn the heater on and it will automatically switch o when the selected Runback time has elapsed. The heater can then be restar ted by pulling the switch cord twice, once to turn o the red indicator and a second time to restart the heater.
The heater can be turned o at any time before the Runback time has elapsed by pulling the switch cord and the red indicator will automatically turn o.
Dip switches
Terminal block ACL (Live) • ACN (Neutral)
