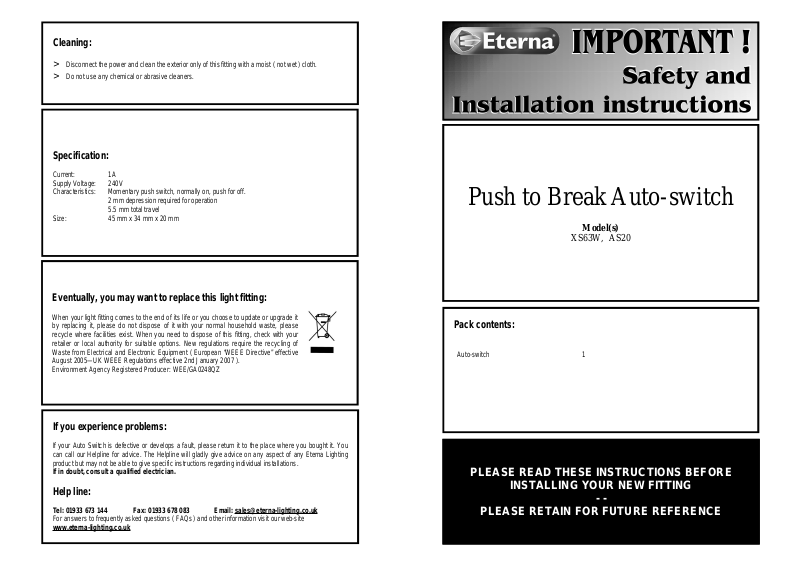

Eterna XS63W, AS20 Installation Instructions

Cleaning:

> Disconnect the power and clean the exterior only of this fitting with a moist ( not wet ) cloth.
> Do not use any chemical or abrasive cleaners.

Specification:

Current: 1A
Supply Voltage: 240V
Characteristics: Momentary push switch, normally on, push for off.
2 mm depression required for operation

5.5 mm total travel
Size: 45 mm x 34 mm x 20 mm

Eventually, you may want to replace this light fitting:

When your light fitting comes to the end of its life or you choose to update or upgrade it
by replacing it, please do not dispose of it with your normal household waste, please
recycle where facilities exist. When you need to dispose of this fitting, check with your
retailer or local authority for suitable options. New regulations require the recycling of
Waste from Electrical and Electronic Equipment ( European “WEEE Directive” effective
August 2005—UK WEEE Regulations effective 2nd January 2007 ).
Environment Agency Registered Producer: WEE/GA0248QZ

Push to Break Auto-switch

Model(s)

XS63W, AS20

Pack contents:

Auto-switch 1

If you experience problems:

If your Auto Switch is defective or develops a fault, please return it to the place where you bought it. You
can call our Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting
product but may not be able to give specific instructions regarding individual installations.

If in doubt, consult a qualified electrician.

Help line:

Tel: [phone] Fax: [phone] Email: [e-mail]

For answers to frequently asked questions ( FAQs ) and other information visit our web-site

www.eterna-lighting.co.uk

PLEASE READ THESE INSTRUCTIONS BEFORE

INSTALLING YOUR NEW FITTING

- -

PLEASE RETAIN FOR FUTURE REFERENCE

Read this first:

> Check the pack and make sure you have all of

the parts listed on the front of this booklet. If
not, contact the outlet where you bought this
product.

> This light fitting must be installed by a

competent person in accordance with the
Building Regulations making reference to the

current edition of the IEE Wiring Regulations
(BS7671). The Building Regulations may be
obtained from HMSO or viewed and
downloaded from www.communities.gov.uk
following the link for Building Regulations.

> As the buyer, installer and/or user of this

product it is your own responsibility to ensure
that this fitting is fit for the purpose for which
you have intended it. Eterna Lighting cannot
accept any liability for loss, damage or
premature failure resulting from inappropriate
use.

> If in any doubt, consult a qualified electrician.
> Switch off the mains before commencing

installation and remove the appropriate circuit
fuse.

> Suitable for indoor use only.
> This product is suitable for use in living areas,

and Bathroom dry (Outside) Zones only It is
not suitable for use in bathrooms.

> Before making fixing hole(s), check that there

are no obstructions hidden beneath the
mounting surface such as pipes or cables.

> The chosen location of your new switch should

allow for the product to be securely mounted
and safely connected to the mains supply
( lighting circuit ).

> If the location of your new fitting requires the

provision of a new electrical supply, the supply
must conform with the requirements of the
Building Regulations making reference to the
current edition of the IEE Wiring Regulations
(BS7671).

> This product, in conjunction with your light

fitting is designed for permanent connection to
fixed wiring: this should be either a suitable
lighting circuit ( protected with a 5 or 6 Amp
MCB or fuse ) or a fused spur ( with a 3 Amp
fuse ) via a fused connection unit. We
recommend that the supply incorporates a

switch for ease of operation.

> Make connections to the electrical supply in

accordance with the following code:

Live—Brown or Red—N.B. switch must be
fitted in this line
Neutral—Blue or Black

> When making connections, ensure that the

terminals are tightened securely and that no
strands of wire protrude. Check that the
terminals are tightened onto the bared
conductors and not onto any insulation.

> This switch is double insulated, do not connect

any part to earth although your light fitting may
require provision for earthing.

> This switch is suitable for use with SELV

( Safety Extra Low Voltage ).

> You are advised at every stage of your

installation to double-check any electrical
connections you have made. After you have
completed your installation there are electrical
tests that should be carried out: these tests are
specified in the Wiring Regulations ( BS7671 )
referred to in the Building Regulations. If in
doubt, consult a qualified electrician.

Installation:

1) Carefully ease the cover from the main body
with a small flat bladed screwdriver.

2) Using the body as a template mark the 2 fixing
holes ensuring that the plunger is fully
depressed when the cabinet door is closed.

3) Strip away 60 mm of the outer sheath of the
two-core cable ensuring that the inner
conductor sheath is not damaged.

4) Cut the brown core in the middle and strip 10
mm of core insulation from both ends.

5) Lift the switch out of the case and connect the
brown wires to the terminals and tighten the
grub screws.

6) Refit the switch in the base.

7) Secure the cables in the cable clamp and
tighten the two screws.

8) Secure the switch in place with screws suitable
to the installation and snap on the cover.

Safety markings:

XS63W– Push to Break Auto-switch 080408PA
