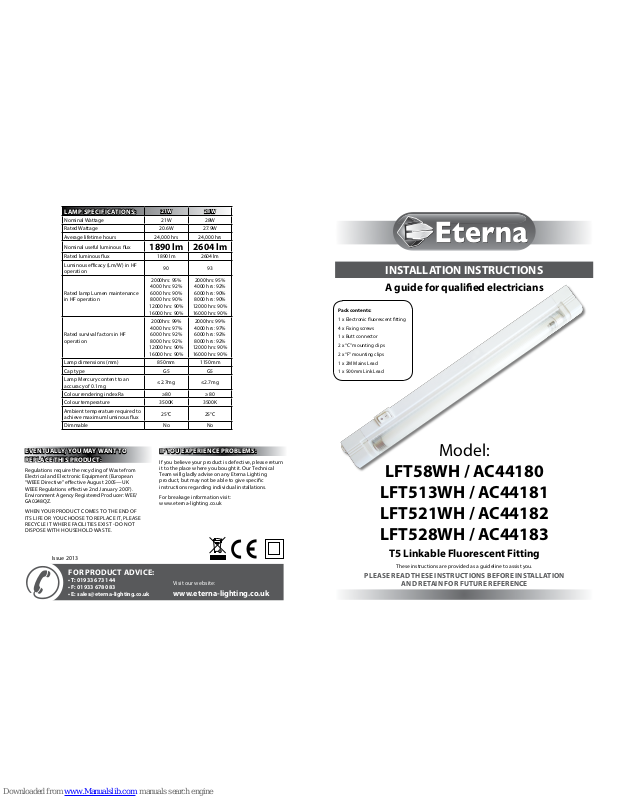

INSTALLATION INSTRUCTIONS

A guide for qualied electricians

Model:

LFT58WH / AC44180
LFT513WH / AC44181
LFT521WH / AC44182
LFT528WH / AC44183

T5 Linkable Fluorescent Fitting

These instructions are provided as a guideline to assist you.

PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION

AND RETAIN FOR FUTURE REFERENCE

FOR PRODUCT ADVICE:

• T: 01933 673 144

• F: 01933 678 083

• E: [e-mail]

Visit our website:

www.eterna-lighting.co.uk

EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:

Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
“WEEE Direc tive” eective August 20 05—UK
WEEE Regulation s eective 2nd January 20 07).
Environment Agenc y Registered Producer : WEE/
GA0248Q Z.

WHEN YOUR PR ODUCT COMES TO TH E END OF
ITS LIFE OR YO U CHOOSE TO REPLACE I T, PLEASE
RECYCLE IT W HERE FACILITIES E XIST  DO NOT
DISPOSE WITH HOUSEHOLD WASTE.

IF YOU EXPERIENCE PROBLEMS:

If you believe your p roduct is defective, p lease return
it to the place where yo u bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, bu t may not be able to give specic
instructions regarding individual installations.

For breakage inf ormation visit:
www.eterna-lighting.co.uk

Pack contents:

1 x Electronic uorescent tting

4 x Fixing screws

1 x Butt connector

2 x “C” mounting clips

2 x “F” mounting clips

1 x 2M Mains Lead

1 x 500mm Link Lead

LAMP SPECIFICATIONS:

21W 28W

Nominal Wattage 21W 28W

Rated Wattage 20.6W 27.9W

Average lifetime hours 24,000 hrs 24,000 hrs

Nominal useful luminous ux

1890 lm 2604 lm

Rated luminous ux 1890 lm 2604 lm

Luminous ecacy (Lm/W) in HF
operation

90 93

Rated lamp Lumen maintenance
in HF operation

2000hrs: 95%
4000 hrs: 92%
6000 hrs: 90%

8000 hrs: 90%
12000 hrs: 90%
16000 hrs: 90%

2000hrs: 95%
4000 hrs: 92%
6000 hrs: 90%

8000 hrs: 90%
12000 hrs: 90%
16000 hrs: 90%

Rated survival factors in HF
operation

2000hrs: 99%
4000 hrs: 97%
6000 hrs: 92%

8000 hrs: 92%
12000 hrs: 90%
16000 hrs: 90%

2000hrs: 99%
4000 hrs: 97%
6000 hrs: 92%

8000 hrs: 92%
12000 hrs: 90%
16000 hrs: 90%

Lamp dimensions (mm) 850mm 1150mm

Cap type G5 G5

Lamp Mercury content to an
accuracy of 0.1mg

≤2.7mg ≤2.7mg

Colour rendering index Ra ≥80 ≥80

Colour temperature 3500K 3500K

Ambient temperature required to
achieve maximum luminous ux

25°C 25°C

Dimmable No No

READ THIS FIRST:

Check the pack and make sure you have all of
the parts listed on the front of this booklet. If not,
contact the outlet where you bought this product.

This product contains glass, care must be taken
when assembling, tting or handling to prevent
personal injury or damage to the product.

This light tting must be installed by a
competent person in accordance with the
Building Regulations making reference to the
current edition of the IEE Wiring Regulations
(BS7671). The Building Regulations may be

obtained from OPSI (Oce for Public Sector
Information) or the department of Communities
and Local Government and viewed and
downloaded from www.communities.gov.uk
following the link for Building Regulations.

As the buyer, installer and/or user of this product it
is your own responsibility to ensure that this tting
is t for the purpose for which you have intended
it. Eterna Lighting cannot accept any liability for
loss, damage or premature failure resulting from
inappropriate use.

This product is designed and constructed according
to the principles of the appropriate British Standard
and is intended for normal domestic service. Use of
this tting in any other environment, for example
where prolonged periods of use may be expected
and/or higher than normal ambient temperatures,
may result in a foreshortened working life.

The lamps (tubes), supplied with this tting are
consumable parts and therefore may be outside of
any warranty oered.

This tting is not suitable for frequent use for
extended periods or in environments with higher
than normal ambient temperatures for example:
lighting public or shared spaces or in care facilities.

Switch o the mains before commencing
installation and remove the appropriate circuit fuse.

When working at heights, please use a suitable
platform.

Disconnect the HF ballast from the electrical supply
before ash or high voltage testing.

Suitable for indoor use only.

This product is suitable for use in living areas. It
is not suitable for bathroom or other areas where
contact with moisture is likely.

This product is suitable for installation on surfaces
with normal ammability (indicated by the “F” in a
triangle) e.g. wood, plasterboard, masonry. It is not
suitable for use on highly ammable surfaces (e.g.
polystyrene, textiles).

Before making xing hole(s), check that there are
no obstructions hidden beneath the mounting
surface such as pipes or cables.

Make sure that the xings are strong enough to
support the weight of the tting and hold it rigidly.

When choosing the location for your new tting,
give consideration to the ease and frequency of
lamp changes. The tting should not be installed in
a position where it will be dicult to reach,

Do not cover the tting.

The tting must be positioned so that there is at
least 10mm between the diuser and any other
surfaces.

If the location of your new tting requires the
provision of a new electrical supply, the supply
must conform with the requirements of the
Building Regulations making reference to the
current edition of the IEE Wiring Regulations
(BS7671).

This product is designed for permanent connection
to xed wiring: this should be either a suitable
lighting circuit (protected with a 5 or 6 Amp MCB or
fuse) or a fused spur (with a 3 Amp fuse) via a fused
connection unit. We recommend that the supply
incorporates a switch for ease of operation.

Make connections to the electrical supply in
accordance with the following code:
Live - Brown or Red
Neutral - Blue or Black

This tting is double insulated; do not connect any
part to earth.

This product is not intended to be used by children
and persons with sensory, physical and/or mental
impairments that would prevent them from using
it safely.

Small children should be supervised to ensure that
they do not play with this appliance.

IMPORTANT - Always switch o and isolate mains
supply to the ttings before changing the lamp(s).

If the external exible cable of this luminaire is
damaged it shall be exclusively replaced by an
qualied personnel.

You are advised at every stage of your installation to
double-check any electrical connections you have
made. After you have completed your installation
there are electrical tests that should be carried out:
these tests are specied in the Wiring Regulations
(BS7671) referred to in the Building Regulations.

874/2012

A

MODELNO.

LFT5 8W/13W

874/2012

A

+

MODELNO.

LFT5 21W/28W

MODELNO.

A

++

XXX kWh/1000h

8.80

8W

A

MODELNO.

A

++

XXX kWh/1000h

14.30

13W

A

MODELNO.

A

++

XXX kWh/1000h

22.66

21W

A

+

MODELNO.

A

++

XXX kWh/1000h

30.69

28W

A

+
