Video door phone
Video door phone
I.Introduction
One complete package includes:1 pc indoor monitor ,1 pc outdoor camera ,
1 pc 10m cable,bracket and instruction manual , Please see below details:
II.Parts
Introduction
9
12
15
Structure Description
T hanks for purch as in g v ideo door phone inte rc om sy st em, Th is se ri es
i s t he la test desig n of our co mp an y w it h m ul ti-fu nc ti on and u ltra- th in wa ll mount i ns talla ti on .the pr od uct is adopt in g the pri nciple of clos ed -c ircui t
monit or in g, ou ts ide p ho tograph y, i nd oo r d is pl ay, tw o-way inte rcom, v ideo,
door r emote un locki ng and su pervi se out do or sit ua ti on a ny time . Adva nc ed
ultra light auxilia ry fun ct io ns pro vide clear ima ge eve n at ni ght time .the
produ ct wit h fa sh io n ap pe ar ance, hgh -d ef initi on ima ge ,easy ins ta llation ,
which make s you r home un de r t ec hn ology barr ie rs pr ot ectio n as we ll .it is
defin it el y ideal hom e se cu rity pr od uc ts for th e mo de rn f amily.
In or de r t o displ ay exce ll en t f un ct ions of th e pro du ct , p le as e c ar ef ully
read t he p ro duct i nstru ct io n ma nu al s o as to c or rectl y know insta ll at ion an d
oprat io n.
T-96 0CL
Video door phone
Video door phone
T-960CL
T-01C
T-03C T-01C
T-06C
T-03C
T-06C
Video door phone
Video door phone
T-06C
T-03C
T-01C
1.indoor monitor 2 outdoor camera.
3 10m cable. 4 bracket. 5 fitting screws .
6 instruction
manual and
warranty card
.
7 DC15V power
adapter
.
III.Structure Description
Can take vistor’s photo
Can take vistor’s photo
Can take vistor’s photo
Transmit auolio to
monitor
Transmit auolio to
monitor
Transmit auolio to
monitor
4-wire socket 4-wire socket
Induction lamp
Video door pho ne
Video door pho ne
Video door pho ne
Video door pho ne
+
-
DC15V
L+L-
L+L-
Left button
Monitor button
Call button /
Menu button
Camera button /
Left button
Monitor button /
Right button
Unlock button/
Exit button
Front view
Volume adjust button
Quiescent
condition
Menu
Bell
State
Button
Menu button
Call button
Camera button
Right button
Unlock button
Exit button
Backview
To menu
4-wire socket
4-wire socket

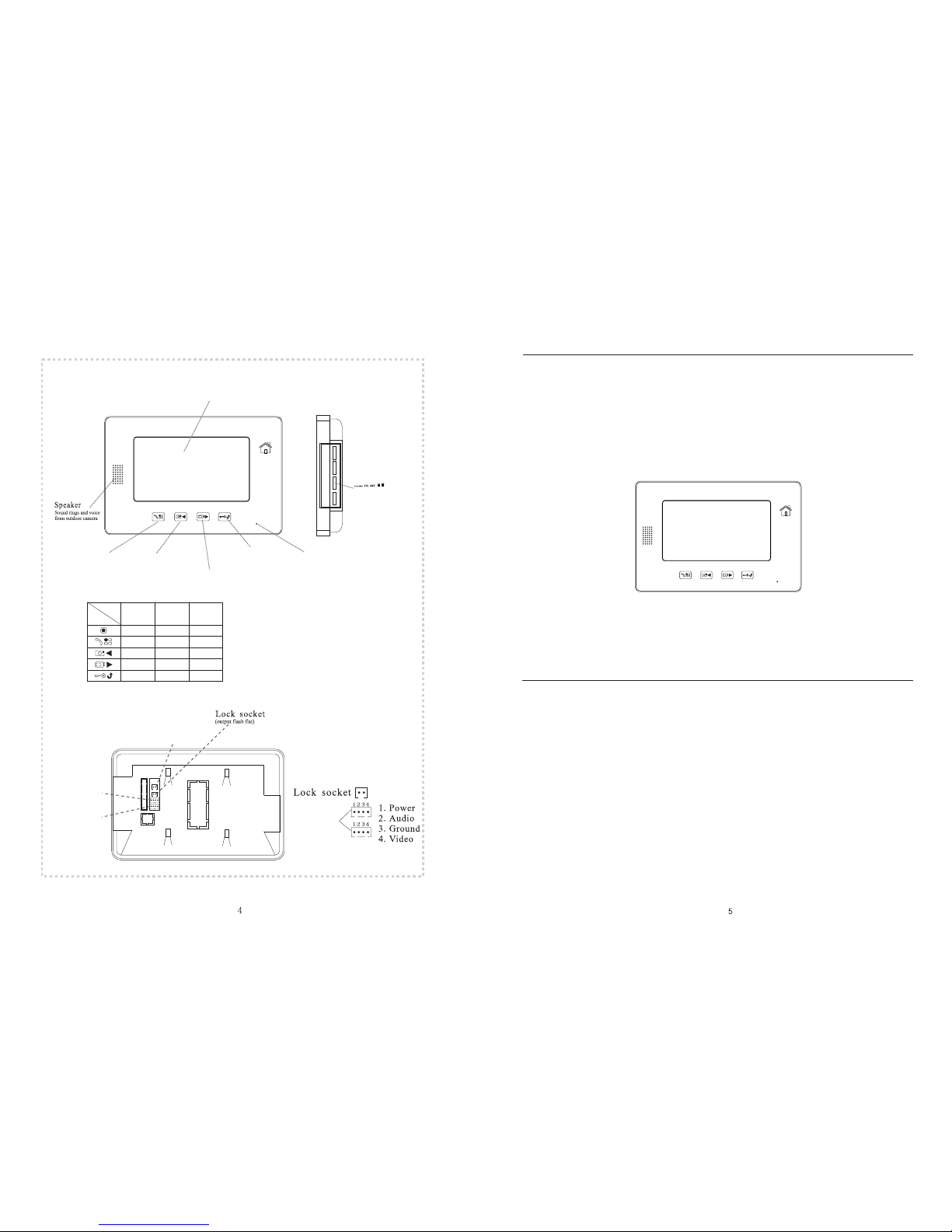

3.Indoor unit T-960CL
Transmit audio to camera
A.State instruction :
B.Intercom function :
Under standby sate or other working state ,outdoor vistitors press call
botton on outdoor camera ,indoor monitor will ring , image will be taken
and saved at the same time,then enter into monitor state automatically.
IV.Function instruction
1.When the system under standby state, the call button, camera
button, monitor button ,unlock button of the bell are out of use .Only
after press the call button enter into bell stare ,above four buttons
can work.
2.When the system under Standby state,the menu button, left
button, right button, exit button of the menu are out of use, only after
pressing the menu button , above four buttons can work.
Button instruction while the system is under standby state
V.Operating instruction
Power off sate: Machine didn’t operate
Standby sate: Machine is working, LCD display didn’t opened, the machine
in the sleep state
Under working state: Machine is operating , LCD display opened,
Monitor state :display outdoor video image
Menu state:under working state , In the main interface , press menu button
to enter main menu
Stand-by State
4-wire socket
Ima ge disp lay are a
D. Unlock function
Setting
Visitor recording
brightness
saturation
SD card
language
time and date
Monitor mode
ring setting
12
11
10
9
8
7
6
5
4
3
2
1
简体中文
English
Capacity
Delete
Low High
Low High
English
Chinese
Ch
En
Y/M/D 2013-05-28
H：M 11：30
C.Monitor function
At main interface,press call botton twice then enter into monitor state .
owner can supervise outdoor situation through outdoor camera now .press
intercom button if want to talk with outdoor visitor,press the call botton
again when conversation ending or LCD screen will close automatically and
return to standby state after 60 seconds.
For safe purpose, the lock can be released only when outdoor visitor
presses call button or indoor is under monitor state (image opened ) press
unlock button can unlock.
E .Camera function(workable if no SD card)
Under monitor state, press camera button can take picture, the image
can be saved automatically and return to monitor state.
F. Video recording function （Must insert SD card）
Under monitor state, press video button , video record for 10 seconds,
then recording will be saved automatically and return to monitor state.
G .Menu setting function
Under working state, when in the main interface ,press menu button can
enter into main menu.
1.Setting
SD card , brightness, saturation,language,time and date , Monitor mode ,
ring setting can be set up at this menu.
a.SD card
Can check the capacity and delete files at this menu.
b. Brightness
Can adjust the brightness of the screen at this menu.
c.Saturation
Press the right /left button can adjust the saturation of the screen at this menu.
d.Language
Press the right /left button can set up the language to English , Chinese at
this menu.
e.Time and date
Press the right /left button can set up time ,date, press menu button to
confirm after adjusted .then go to the next number set.
f.Monitor mode
Press the right /left button can set up camera and video at this menu.
Monitor
Video
tone
tone
tone
tone
tone
tone
tone
tone
01
02
03
04
05
06
07
08
tone
tone
tone
tone
tone
tone
tone
tone
09
10
11
12
13
14
15
16
Video
VI.Installation instruction
g.tone
There are 16 ring tos for option ,press menu button to choose, then
press exit.
2 .Visitor recording
Can set up picture and video at this menu.
a.Picture
Press the left / right button can view the picture , delete all the files at this
menu.
View Picture
Delete All
Capacity
Delete
b.
Video
At main menu,press left/right button to select the memory menu,
then press video button to view the video recorded.To delete video,
select clear content to accomplish it.
Copy
12 13
VII.Specifications
VIII.Wiring Diagram
.
Video door phone
Video door phone
F2. 8, about 7 8 degre e F2. 8, about 7 8 degre e F2. 8, about 7 8 degre e
0.5 L UX 0.5 L UX 0.5 LU X
T-960 CL T-960 CL
240×1 60×26 mm
7"L CD
480 h×234v
16 Ri ng tone s
Rec ord vid eo：
Take ph oto：
Avail able( SD c ard) Avail able
14 15
VIIII.Caution
