Etec PDV7900, PDV9000 User Manual

Safety information

CAUTION:

DVD / CD PLAYER IS A CLASS 1 LASER
PRODUCT HOWEVER THIS DVD / CD PLAYER
USES A VISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS RADIATION
EXPOSURE IF DIRECTED. BE SURE TO
OPERATE THE DVD / CD PLAYER CORRECTLY
AS INSTRUCTED.

WHEN THIS DVD / CD PLAYER IS PLUGGED
TO THE WALL OUTLET, DO NOT PLACE
YOUR EYES CLOSE TO THE OPENING OF THE
DISC TRAY AND OTHER OPENINGS TO LOOK
INTO THE INSIDE OF THIS PLAYER.

USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER

SERVICING TO QUALIFIED

SERVICE PERSONNEL

(Back of player)

The light nin g flash with arrowhead symbo l,
within an equilateral triangle, is intended to
alert the us er to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of elec tri c shock to
persons.

The exclamation point wi thi n an equil ateral
triangle is intended to alert the user to the
presenc e of important operat ing and
maintenanc e (servicing) instructions in the
literature accompanying the appliance.

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.

THIS DEVICE IS INTENDED FOR CONTINUOUS
OPERATION!

VENTILATION WARNING:
THE NORMAL VENTILATION OF THE PRODUCT
SHALL NOT BE IMPEDED FOR INTENDED USE.

-- 1 --

Tables of contents

:snoitarepO decnavdAdetratSgnitteG

Safety information

Features

Precautions

DVD player overview

Remote control function

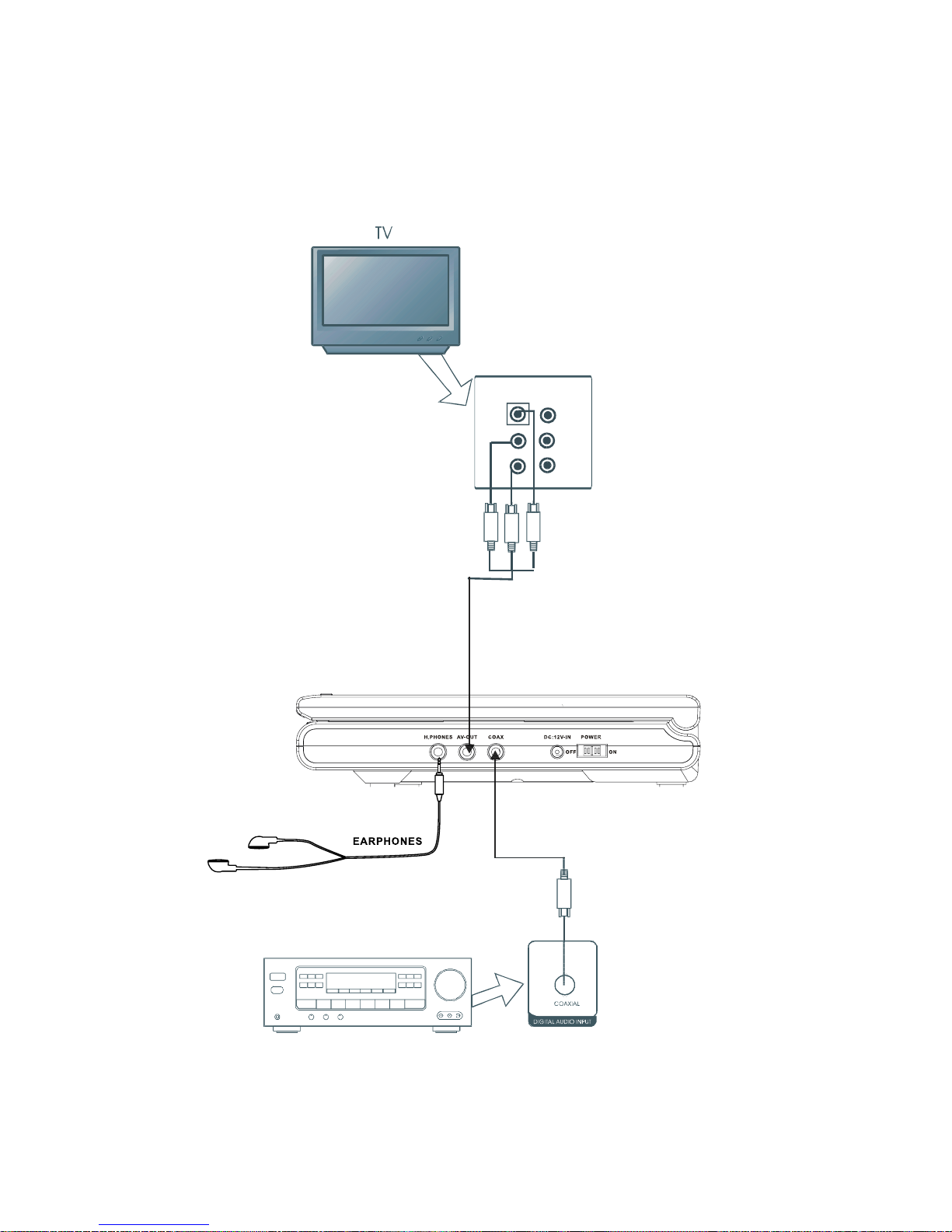

System connection

Remote control unit preparation

Using the built-in battery or AC adapter

1

3

4

5

6

7

8

9

Program play

Repeat play

A-B Repeat play

Changing Subtitle language (DVD Only)

ZOOM play

Changing audio soundtrack language (DVD)

Viewing angle (DVD only)

Picture CD playback

11

11

11

12

12

12

12

12

sgnitteS laitinInoitarepOcisaB

System Setup

Language Setup

Audio Setup

Video Setup

Speaker Setup

13

14

14

14

14

REFERENCE

Basic play

Stopping play

Skipping ahead or back

Rapid advance / Rapid reverse

Step play

Slow-motion play(DVD)

MP3 playback

Basic play

Play mode

Video CDs with playback control

On Screen Display information

9

9

9

9

9

10

10

10

10

10

11

Definitions of terms

Specifications

Troubleshooting

Disc handling and maintenance

15

15

16

17

-- 2 --

Features

HIGH QUALITY SOUND AND PICTURE

96 kHz / 24 bit audio D / A converter

This player enables 96 kHz / 24 bit linear PCM signals, which
constitute the highest specifications in the DVD standards, to
be reproduced faithfully. To support 96 kHz sampling / 24 bit
sound, the shaping noise of this multi-level digital sigma type of
D / A converter is kept flat up to 44 kHz, thus preventing the
important audio signals from being affected in any way. In
terms of the bottom line, the sound in all of its various modes is
reproduced faithfully.

10 bit video D / A converter

With its 10-bit capability, this D / A converter reproduces images
faithfully.

This DVD player will only play region 1 prerecorded discs.

DVD PLAYER MENU

Simply by pressing the “OSD” button on the remote control unit,
information on the player and disc can be displayed on the
screen for easy identification. The player's operations and
settings can easily be performed by operating the remote control
while monitoring the screen.

MULTI-ANGLE FUNCTION

This function allows you to choose the viewing angle of scenes
which were shot from a number of different angles. (Limited to
DVDs with multi-angle capability.)

PARENTAL LOCK FUNCTION

This can prevent play of DVD unsuitable for children.

DISC FORMATS SUPPORTED BY PLAYER

The player can play back discs bearing any of the following
marks:

-- 3 --

Precautions

Please read these precautions before operating this unit.

Power Adapter Protection

To avoid any malfunctions of the units, and to protect against electric shock, fire or personal injury, please observe the following:

Hold the plug firmly when connecting or disconnecting the power adapter to the AC plug.
Do not connect or disconnect the power adapter when your hands are wet.
Keep the power cord away from heating appliances.
Never put any heavy object on the power cord.
Do not attempt to repair or reconstruct the power adapter in any way.

Placement

Avoid placing the unit in areas of:

Direct sunlight or heating radiators, or closed automobiles
High temperature (over 35º C) or high humidity (over 90%)
Much dust
Vibration, impact or where the surface is tilted as the internal parts may be seriously damaged.

Non-use periods

When the unit is not being used, turn the unit off.
When left unused for a long period of time, the unit should be unplugged from the household AC outlet.

No fingers or other objects inside

Touching internal parts of this unit is dangerous, and may cause serious damage to the unit. Do not attempt to disassemble the unit.
Do not put any foreign object on the disc tray.

Keep away from water / magnet.

Keep the unit away from flower vases, tubs, sinks, etc, if liquids are spilled into the unit, serious damage could occur.
Never bring magnetic objects such as speakers near to this unit.

Stacking

Place the unit in a horizontal position, and do not place anything heavy on it.
Do not place the unit on amplifiers or other appliances which may become hot.

Condensation

Moisture may form on the lens in the following conditions:

Immediately after a heater has been turned on.
In a steamy or very humid room.

When the unit is moved from a cold environment to a warm one.
If moisture forms inside this unit, it may not operate properly. In this case, turn off the power and wait about one hour for the moisture to
evaporate.

If there is noise interference on the TV while a broadcast is being received

Depending on the reception condition of the TV, interference may appear on the TV monitor while you are watching a TV broadcast and the
unit is left on. This is not a malfunction of the unit or the TV. To watch a TV broadcast, turn off the unit.

CAUTION

To avoid electric shock, this unit must not be exposed to dripping water or water splash.

Minimum distances around the apparatus for sufficient ventilation.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

The use of apparatus in tropical and/or moderate climates.

Before scrapping the appliance, remove the batteries and place them in the appropriate battery collection container.

-- 4 --

DVD Player Overview

1. LCD display screen

2. Latch

4. OPEN / CLOSE button

3. REMOTE Sensor

5. Charge indicator

6. Power indicator

7. CD door

8. SETUP button

11. VOL+ / - button

9. ENTER button

12. Navigation (Left)

13. Navigation(Up)

15. PLAY / PAUSE II button

14. Navigator (Right)

16. Navigation (Down)

10. STOP button

17. SKIP / SEARCH+ / - button

18. HEADPHONE OUT jack

19. AV OUT jack

20. COAXIAL jack

21. DC IN (12V) jack

22. POWER switch

23 Battery Compartment

1

2

3

4

5 6 7

9

8

10

11
12

13

14

15

16
17

18 19 12

21

22

23

NAMES OF PARTS:

IMPORTANT:

Both the “MENU / ENTER” (9) and “SKIP / SEARCH”(17)
buttons located on the top of the DVD Player are
multi-function buttons.

To use the functions ,”ENTER” or “SKIP” , Press and

release the button.

To use the functions, “MENU” or “SEARCH”, Press

and hold the button for about 2 seconds.
