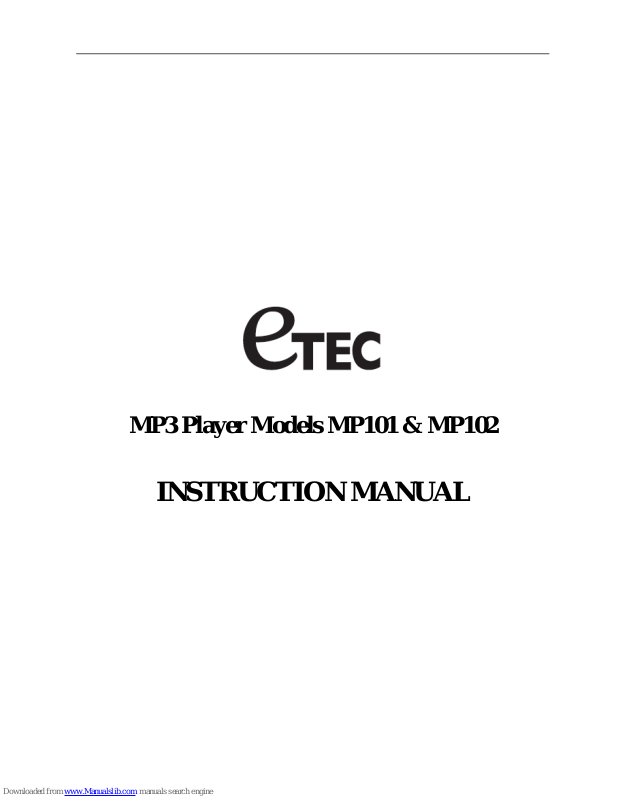

Etec MP101, MP102 Instruction Manual

MP3 Player Models MP101 & MP102

INSTRUCTION MANUAL

User Manual for ETEC MP101/102 MP3 Players

This MP3 player is a new generation of multi-function, portable digital devices that plays multiple music
formats: MP3 & WMA, and operates as a high-quality digital voice recorder and USB Flash Drive.

Unique Features

Multiple Music Formats:

o Supports: MP3 & WMA
Backlit LCD Display
ID3 and LRC Support for Displaying Lyrics and Title Information
7 Preset Equalizer Settings

o Normal, Rock, Pop, Classical, Soft, Jazz and DBB
Multiple Repeat Modes

o Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, and Intro.
Automatic Power Off Timer

o You may set a Sleep Timer or use the Off Time mode for added battery saving

convenience.

Record/ Replay

o High-quality digital voice recordings are easy to make with the built-in microphone.
USB 2.0 High Speed Data transmission
Driver Free USB Storage Disk

o Manage your files without installing additional drivers.

Declaration

Thank you for choosing one of our ETEC products. We recommend you carefully read the entire manual
carefully prior to using to avoid damaging your Player or music files. Functions and performance may
change without prior notice.

1. GETTING TO KNOW THE PLAYER

Controls

Prev / Menu / Mode /

Mini USB Drive Port

Volume + / -

Play / Stop / Pause

Ear Buds Jack

Hold

LCD Display Window

Battery Icon

 The player displays remaining battery level information with 9 icons ranging

o From:

Indicates that the battery is fully charged

o To:

Indicates the battery power is depleted and a new battery should be installed

2. GETTING STARTED
Install the battery

Remove the battery cover on the rear of the player and insert one AAA battery (included) and the player
will turn ON automatically and enter the main interface. If the Player does not turn ON, make sure the „+‟
and „-„ends of the battery match the diagram inside the player.

o After connecting to a PC via USB cable, the player will turn ON automatically and enter USB

mode.

o When connected to a USB port, the Player receives power from the computer and can be

operated without a battery installed.

Loading Music Files on the MP3 Player:

Connect the MP3 Player to a USB port on your computer using the included USB Cable. Your computer
will automatically recognize the MP3 Player as a “Removable Disk” in your System Tray (lower-right corner
of the desktop) and in the “My Computer” directory. Connecting to the Player to a USB port turns the
power ON to the Player unit.

Loading music files into the MP3 Player is very easy. Locate the music files on your computer that you
want to load onto the MP3 Player and simply, “drag and drop” the music files into the MP3 Players‟
Removable Disk directory. You can easily; add new folders, rename existing ones, and organize your
music in the same manner that you would for other groups of folders, files, and data sets on a computer or
USB drive.

The Proper Way to Disconnect or “Eject” the MP3 Player from the Computer
If the MP3 Player is not properly „Ejected” from the computer; music & recorded files may be lost or
damaged, and the player may not function correctly.

For Windows and MAC systems, follow the normal system procedures for the SAFE ejection of a

“USB DEVICE”.

o First, make sure all MP3 Player functions have stopped and all programs using the player

on your computer (i.e. Media Player or others) are closed.

o WINDOWS: right-click on the USB icon in the bottom right (system tray) of your computer

screen and a box with the message, “Safely Remove Hardware” will appear. Click on the

“Safely Remove Hardware” message and your computer will indicate that it is OK to

remove the device.

o MAC: right-click on the icon that appears on the screen or in the “Finder” menu to

“EJECT” the unit. The unit can be safely be removed.

The Controls Again

Turning the Player ON & OFF

Press & Hold the Play button to turn the player ON, repeat to turn it OFF.

Using the Controls

PRESS: Press and release the indicated key quickly
PRESS & HOLD: Press and hold the indicated key for about 3 seconds
Menu / Mode Button

o Press & Hold the Menu / Mode button to enter the main menu / submenu systems, make

selections, or enter the desired operating mode.

Prev / Next Buttons

o Press the Prev and Next buttons to highlight desired files and menu options.

o To Rewind or Fast forward the playing file

Volume Control

o Press the Vol + / - buttons to increase or decrease the volume level.

Playing your Music – Basic Operation

Plug the Ear Bud Headphones into the headphone jack on the player
Make sure the HOLD switch is set to the OFF position (to the right)
Press & Hold the Play / Pause button to turn the player ON

Prev / Menu / Mode / Next

Mini USB Drive Port

Volume + / -

Play / Stop / Pause

Ear Buds Jack

Hold
