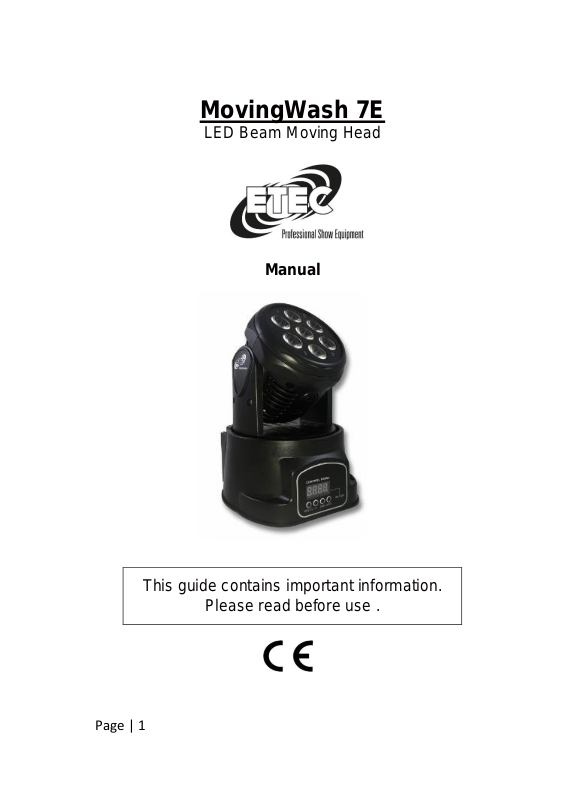

Etec MovingWash 7E User Manual

Page | 1

MovingWash 7E

LED Beam Moving Head

Manual

This guide contains important information.

Please read before use .

Page | 2

1. INTRODUCTION

Thank you for choosing this LED Moving Head. With 7 x 10W
RGBW 4 in 1 LED, it produces extremely bright rays and unlimited
colors. Excellent for stage, club, bar, DJ, etc. To optimize the
performance of this product, please read this manual carefully
before use.

1.1 unzip

The following items are included in the carton:

■ 1 x Moving Beam 7E

■ 1 x Power cable

■ 1 x Holder

■ 1 x Operation manual

Carefully unpack the carton, check the contents to make sure that
all parts are in place and in good condition. Contact your supplier
immediately if a part is missing or damaged and store packaging
material for viewing.

1.2 Safety

Danger! Follow these important safety instructions to avoid

fire, electric shock or personal injury!

▪ The product is intended for indoor use only.
▪ Always switch off the power supply, disconnect the plug and

allow the device to cool down.

▪ Make sure the device is properly grounded.
▪ Please keep this manual for future reference.

Always make sure that you have the correct voltage and that the
existing mains voltage is not higher than indicated on the label or
rear panel of the device.

Page | 3

▪ Always disconnect from the power before servicing or changing
the fuse.

▪ Ensure that the power cable is never corrugated or damaged.
Attention!

Do not look directly at the LED light beam from a distance!

1.3 Features

▪ LED Moving Head
▪ DMX, Auto, sound activated, Master/Slave
▪ 12 DMX channels
▪ Linearer Dimmer 0 – 100%
▪ Various Strobes 1-25 fps
▪ Pan/Tilt: 540° / 255°
▪ 4- Grope LCD display

1.4 Product Overview

____|___ _________/ |________

Control panel Power In/Out DMX In/Out

2. CONFIGURATION

2.1 Assembly

Page | 4

The moving head is fully functional in any mounting position,
suspended, side mounted, or standing on a flat, level surface, etc.

IMPORTANT!!! If the unit is installed on ceilings or trusses,
always use safety cables. The safety cable must be capable of
holding 10 times the weight of the device.

2.3 AC Power

The device was designed for AC 100-240V 50-60Hz. All devices
must be operated directly from a circuit. This unit can not be
operated by Switchpackoder dimmer even if it is used exclusively
for a 0% to 100% switchover.

WARNING!!! All devices must be connected to circuits with
suitable grounding.

3. OPERATING INSTRUCTIONS

3.1 Menu overview

1
DMX
Address

DMX Address =
001

Change
with UP
and
DOWN
buttons

Confirm with ENTER

2R255

LEDs Red 0-255

Change
with UP
and
DOWN
buttons

Confirm with ENTER

3G255

LEDs Green 0-255

Change
with UP
and
DOWN
buttons

Confirm with ENTER

4B255

LEDs Blue 0-255

Change

Confirm with ENTER

Page | 5

with UP
and
DOWN
buttons

5H255

LEDs White 0-255

Ändern mit
UP und
DOWN
Tasten

Confirm with ENTER

6PR01

Automatic Program
(Pr01-Pr35)

Change
with UP
and
DOWN
buttons

Confirm with ENTER

7SP01

Speed control for
automatic programs
(SP01-Sp16)

Change
with UP
and
DOWN
buttons

Confirm with ENTER

8LD01

Color change mode
(LD01 -> fast /
LD02 -> slow)

Change
with UP
and
DOWN
buttons

Confirm with ENTER

9AUTO

Test Mode

Change
with UP
and
DOWN
buttons

Confirm with ENTER

Automatic

Change
with UP
and
DOWN
buttons

Confirm with ENTER

Sound control

Change
with UP
and
DOWN
buttons

Confirm with ENTER

10Reset

= ON / OFF

Change
with UP
and
DOWN
buttons

Confirm with ENTER

Page | 6

3.2 DMX channels

12 DMX channels

Channel

DMX value and functions

1 Pan

000-255Pan movement

2Tilt

000-255 Tilt movement

3 P/T
Geschwindigkeit

000-255 Pan / Tilt speed from fast to slow

4 Dimmer

000-255 Dimmer 0-100%

5 Strobe

000-009 Strobe closed

010-250 strobe speed from slow to fast
251-255 Strobe open

6 Red

000-255 Intensity ret 0-100%

7 Green

000-255 Intensity green 0-100%

8 Blue

000-255 Intensity blue 0-100%

9 White

000-255 Intensity white 0-100%

10 color macros

000-016
R

136-152 RW

017-034
G

153-169 GW
035-050 B

170-186 BW

051-067
W

187-203 RBW

068-084
RG

204-220 RGW

085-101
GB

221-237 RGB
102-118
BW

238-255 RGBW

119-135
RB

Page | 7

11 Auto
Program

000-010 No function
011-120 Program 1
121-180 Program 2
181-245 Auto color change
246-255 Sound control

12 Speed

000-225 Color change speed control

4. General maintenance

4.1 Fuse Replacement

a. a. Unscrew the fuse holder and remove the damaged

fuse.

b. b. Replace with a fuse of exactly the same type and

screw the fuse holder back in place.

5. Specifications

Power consumption: 80W
Power supply: 100 - 240V
Voltage frequency: 50 / 60Hz
Number of Diodes: 7RGBW4in1
Diode Power: 10W
Display: LCD matrix
Dimmer: Linear: 0 - 100%
Number of DMX channels: 12DMX 512
Control interface: 4 buttons

Page | 8

Protection class: IP20
Housing: ABS
Measurements: 180x180x285mm
Weight: 2.6 kg

Importeur

Hansaring 138-142

48268 Greven

Fon: +49 (0) 25 71 - 80 5 40 42

Fax: [phone]

www.etec-professional.de
