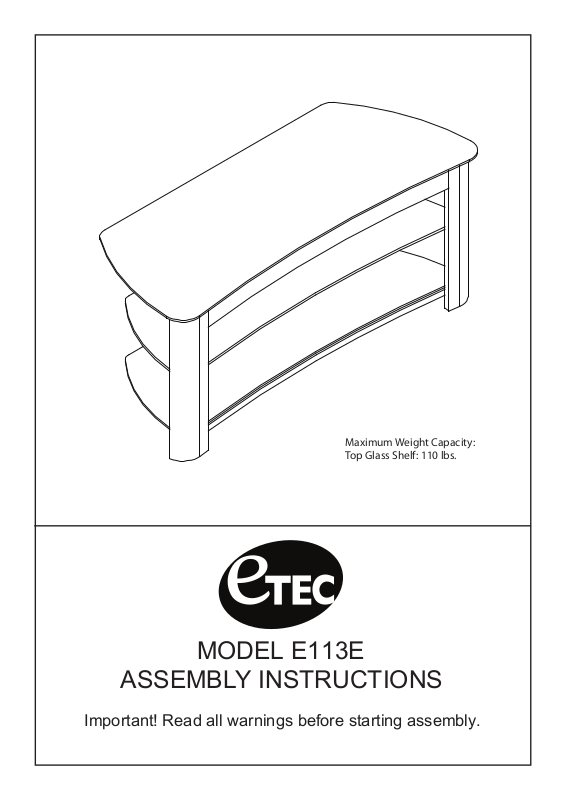

Etec E113E, E602E Assembly Instructions Manual

Maximum Weight Capacity:
Top Glass Shelf: 110 lbs.

MODEL E113E

ASSEMBLY INSTRUCTIONS

Important! Read all warnings before starting assembly.

READ THIS FIRST!

Read all of the warnings and cautions contained

in this manual before assembly.

• Do not attempt to assemble this product if you

do not understand the instructions.

• Contact a professional if you have any doubts

about safe and secure TV furniture assembly.

• Check all the parts carefully to make sure
there are no missing or damaged parts.

• Improper assembly may result in damage to
your TV, property, and personal injury.

• This product is intended only to support a
television of the indicated size and weight
combination. Using this product to support
televisions heavier than the maximum weight
capacity can damage product and cause
personal injury.

• Schoenfeld International Inc. and ETEC are
not responsible for any personal injury or
product damage due to mishandling, incorrect

mounting, incorrect assembly or incorrect use

of this product.

WARNINGS

• This product is intended only to mount a
television of the indicated size and weight
combination. Using this product to support
televisions or other products heavier than the
maximum weight capacity can damage equip­ment and cause personal injury.

• Schoenfeld International Inc. and ETEC are
not responsible for any personal injury or
product damage due to mishandling, incorrect

mounting, incorrect assembly or incorrect use

of this product.

• Do not force the bolts into the hole or use an

electric drill to fasten any bolts. This could

damage the equipment or cause personal
injury.

• A large television requires two people to lift.
Schoenfeld International and ETEC are not
responsible for equipment damage or personal
injury due to mishandling.

• Do not release the TV until you are sure that it

is securely mounted. Releasing the TV without
first ensuring that it is securely installed can

result in equipment damage or personal injury.

CHILD SAFETY WARNINGS

How and where you use your television stand is
extremely important for Child Safety

As you set up and use your new product, keep all
of these safety tips in mind

! Don't let children climb on or play with enter-

tainment system furniture and TVs.

! Remember that children can become excited

while watching a program, especially on a
"larger than life" TV. Make sure to place or
install the TV stand where it cannot be pushed,
pulled over, or knocked down.

! Make sure that you route all cords and cables

so that they cannot be pulled or grabbed by

curious children.

CAUTION:

• Do not place the TV face down on a hard
surface when installing the mounting plate on

the TV. Placing the TV face down on a hard

surface can result in equipment damage. Use
a blanket or other suitable surface.

• Check with your TV manual or manufacturer to
confirm the required bolt diameter according to
the size, depth, and position of the mounting

holes in your TV.

FOR YOUR SAFETY, PLEASE FOLLOW

THESE PRECAUTIONS:

! Always remove the TV and other equipment

from the furniture prior to moving the

assembled unit

E113E 2

! Be careful when moving the assembled furni-

ture after the glass shelf has been installed, or
when there is equipment of any kind located
on the furniture as this may cause the shelves
and other parts to become unstable and fall.

! When in use, this furniture must be placed on

a flat, level and solid surface.

! Do not lean on or place any force on the TV

when it is on the TV stand.

! Do not climb or step on the stand.

! Do not bang into or place your own weight on

the glass sheves

! Do not place any items on the shelves or

mounts which may exceed the maximum
weight limits.

! Always place the heaviest component (except

for your TV) on the bottom shelf

Schoenfeld International Inc. and ETEC will not be respon­sible for failure to assemble as directed or for the improper

assembly, use or handling of this stand

.

VEILLER Á RESPECTER CES MESURES DE

PRECAUTION!

! TOUJOURS ENLEVER LE TÉLÉVISEUR ET

AUTRE ÉQUIPEMENT AVANT DE
DÉPLACER LE MEUBLE ASSEMBLÉ.

! DÉPLACER LE MEUBLE AVEC PRÉCAU-

TION UNE FOIS QUE LE PLATEAU EN
VERRE A ÉTÉ POSÉ OU LORSQU’IL Y A DU
MATERIEL PLACÉ SUR LE MEUBLE CAR
CELA PEUT CAUSER LE DÉCROCHEMENT
ET LA CHUTE DES PLATEAUX ET AUTRES
ÉLÉMENTS.

! DURANT L’UTILISATION, LE MEUBLE DOIT

ÉTRE POSÉ SUR UNE SURFACE PLATE,
SOLIDE ET HORIZONTALE.

! NE PAS S'APPUYER CONTRE LE TÉLÉVI-

SEUR LORSQU'IL EST POSÉ SUR LE
MEUBLE.

! NE PAS GRIMPER NI MARCHER SUR LE

MEUBLE.

! NE PAS TAPER NI S'APPUYER SUR LE

PLATEAU EN VERRE.

Schoenfeld International Inc. y ETEC decline toute respon­sabilité en cas d’assemblage non conforme aux instruc­tions ou pour l’assemblage, l'utilisation ou la manutention

incorrects de ce meuble

.

POR SU SEGURIDAD TENGA LAS SIGUIEN­TES PRECAUCIONES:

! SIEMPRE QUITE EL TELEVISOR Y

CUALQUIER OTRO EQUIPO DEL MUEBLE
ANTES DE MOVER LA UNIDAD ARMADA.

! TENGA CUIDADO AL MOVER LA UNIDAD

ARMADA UNA VEZ INSTALADO EL
ESTANTE DE VIDRIO Y/O CUANDO HAYA
ALGUN EQUIPO EN EL MUEBLE YA QUE
ESTO PODRÍA AFLOJAR EL ESTANTE Y
OTROS ARTÍCULOS Y HACER QUE SE
CAIGAN.

! EL MUEBLE DEBE ESTAR UBICADO EN

UNA SUPERFICIE PLANA, SÓLIDA Y NIVE­LADA CUANDO SE LO ESTE UTILIZANDO.

! NO INCLINE EL TELEVISOR CUANDO ESTE

EN EL SOPORTE PARA TV.

! NO SE SUBA NI SE PARE SOBRE EL

SÓPORTE.

! NO GOLPEE EL ESTANTE DE VIDRIO NI SE

APOYE CON SU PESO SOBRE EL MISMO.

Schoenfeld International Inc. y ETEC no se hara respon­sable en caso de que no se instale la base segun las
instrucciones, ni de la instalación, uso o manejo incorrectos

de esta base

.

E113E 3

LIMITED ONE-YEAR FURNITURE WARRANTY

We warrant this product to be free from defects in material and workmanship under normal use for a
one-year period from the original date of purchase by the original purchaser from an authorized ETEC
dealer. We will repair or replace the unit free of charge should it become defective under this warranty.

Should you be missing any of the assembly hardware (screws etc.), please contact the retailer or the Techni­cal Support Center to secure a replacement for those parts. It should not be necessary to bring the entire
unit to the store but instead bring the parts list found in the Instruction Manual to accurately identify the
missing parts and obtain replacements.

The Technical Support Center is available 24-hours a day, 7-days a week for technical assistance or trouble­shooting. To contact us by phone, please call 1-800-936-1168.

ETEC will warrant for a period of one-year from the original date of purchase, all Furniture parts and compo­nents described in the parts list for this model located in the Instruction Manual. The warranty covers
defective materials and workmanship and is applicable only under normal use. Our furniture models are
not intended for outdoor use.

This warranty does not cover any product, which has been subject to damage due to improper assembly or
disassembly, an act of nature, misuse, neglect, accident, abuse, commercial use, or modication of, or to,
any part of the product. Also not covered are labor or assembly costs, products purchased from unauthor­ized ETEC sellers or costs incurred in shipping the unit or part for warranty repair. Under no circumstances
shall ETEC, be liable for any loss (direct, indirect, incidental, foreseen, unforeseen, special or consequential)
or for any damage arising out of, or in connection with, the use of this product.

This warranty does not cover product sold ‘As Is’.

This warranty is valid only to the original purchaser of the Product in the United States, Canada, and Mexico
and grants specic legal rights.
