Etec 32E800 User Manual
USER’S MANUAL
32” LED TELEVISION
32E800
Ver 1.0
For technical assistance or troubleshooting
please call 1-855-994-3832 or visit www.sibrandssupport.com
1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
paratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or
Moisture.
shall be palced on the apparatus
17. The mains plug or appliance coupler shall remain readily operable.
18. Use in outdoor: This TV is not designed for outdoors installation. Do not expose the TV to rain, as it may
become damaged.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Safety:
TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLEPARTS ARE INSIDE. REFER TO QUALIFIED
PERSONNEL ONLY.
intended to alert the user to thepresence of uninsulated “dangerous voltage” within the product’s
sk of electric shock to persons.
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying the
appliance.
2
Safety Instructions
Important safeguards for you and your new TV
Observing the simple precautions discussed in this booklet will provide you with many years of enjoyment and safe
operation.
This product complies with all applicable US Federal safety requirements, and those of the Canadian Standards
Association.
1. Read & Follow Instructions
All safety and operating instructions should be read and followed before the TV is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the TV and in the operating instructions should be adhered to.
4. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft and
slightly damp cloth for cleaning.
5. Water and Moisture
Do not use this TV near water, for example, near a bathtub,wash bowl, kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool.
6. Accessories Carts and Stands
Do not place this TV on a slippery or tilted surface, or on an unstable cart, stand, or table. The TV may slide or fall,
causing serious injury to a child or adult, and serious damage to the TV.
7. Transporting the Television
A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause
the TV and cart combination to overturn.
8. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to protect
it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar surface. The TV should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided.
9. Power Sources
This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your electronics retailer or local power company.
10. Power-Cord Polarization
This TV is equipped with a three-wire grounding type plug,a plug with a third (grounding) pin. This plug will only fit into
a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, the contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
11. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,convenience receptacles, and the point where they exit from
the TV.
12. Lightning
For added protection for the TV during a lightning storm, or when it is left unattended and unused for long periods of
time,unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV
from lightning and power-line surges.
3
Safety Instructions
13. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as
to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connect on to grounding electrodes, and requirements for the grounding electrode.
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
14. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall on to power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
15. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid of any kind on or inside the TV.
17. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
18. Damage Requiring Service
Unplug from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the TV has been dropped or the cabinet has been damaged.
f. If the TV exhibits a distinct change in performance.
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Electric Service
Equipment
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
4
Safety Instructions
19. Replacement Parts
When replacement parts are required, be sure that only an authorized service technician has used replacement parts
specified by Apex Digital or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards and void any warranty.
20. Safety Check
Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine
whether the product is in proper operating condition.
21. Wall Mounting
The TV should be mounted to a wall only by a professional. The TV may slide or fall, causing serious injury to a child
or adult, and serious damage to the product. Warranty shall be voided.
22. Heat
The TV should be situated away from heat sources such as radiators, heat registers, stoves, or other products
(including) amplifiers) that produce heat.
NOTE TO CABLE / TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground
should be connected to the grounding system of the building, as close to the point of the cable entry as practical.
FCC REGULATORY INFORMATION:
This television has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This television generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this television does cause interference to other
electronic equipment, which can be determined by turning the television off and on, then the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and television.
- Connect the equipment into an outlet on a circuit different from that to which the television is connected.
- Consult your dealer or an experienced radio / TV technician for assistance.
Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s
authority to operate the equipment.
5
Table of Contents
Important Safety Instructions .........................................................................................................................................1
Table of Contents ..........................................................................................................................................................5
Introduction ....................................................................................................................................................................6
Remote Control
Battery Install .................................................................................................................................................................7
Overview .......................................................................................................................................................................8
TV Overview
Front Panel ................................................................................................................................................................ 10
Rear Panel & Pedestal Removal ................................................................................................................................. 11
Installation
Connection to Antenna & Cable / Satellite Box ...........................................................................................................12
Connection to HDMI Input ...........................................................................................................................................13
Connection to Component YPbPr Input ......................................................................................................................14
Connection to Composite Input ...................................................................................................................................15
Connection to a Personal Computer ...........................................................................................................................16
Connection to a Home Theater System ......................................................................................................................17

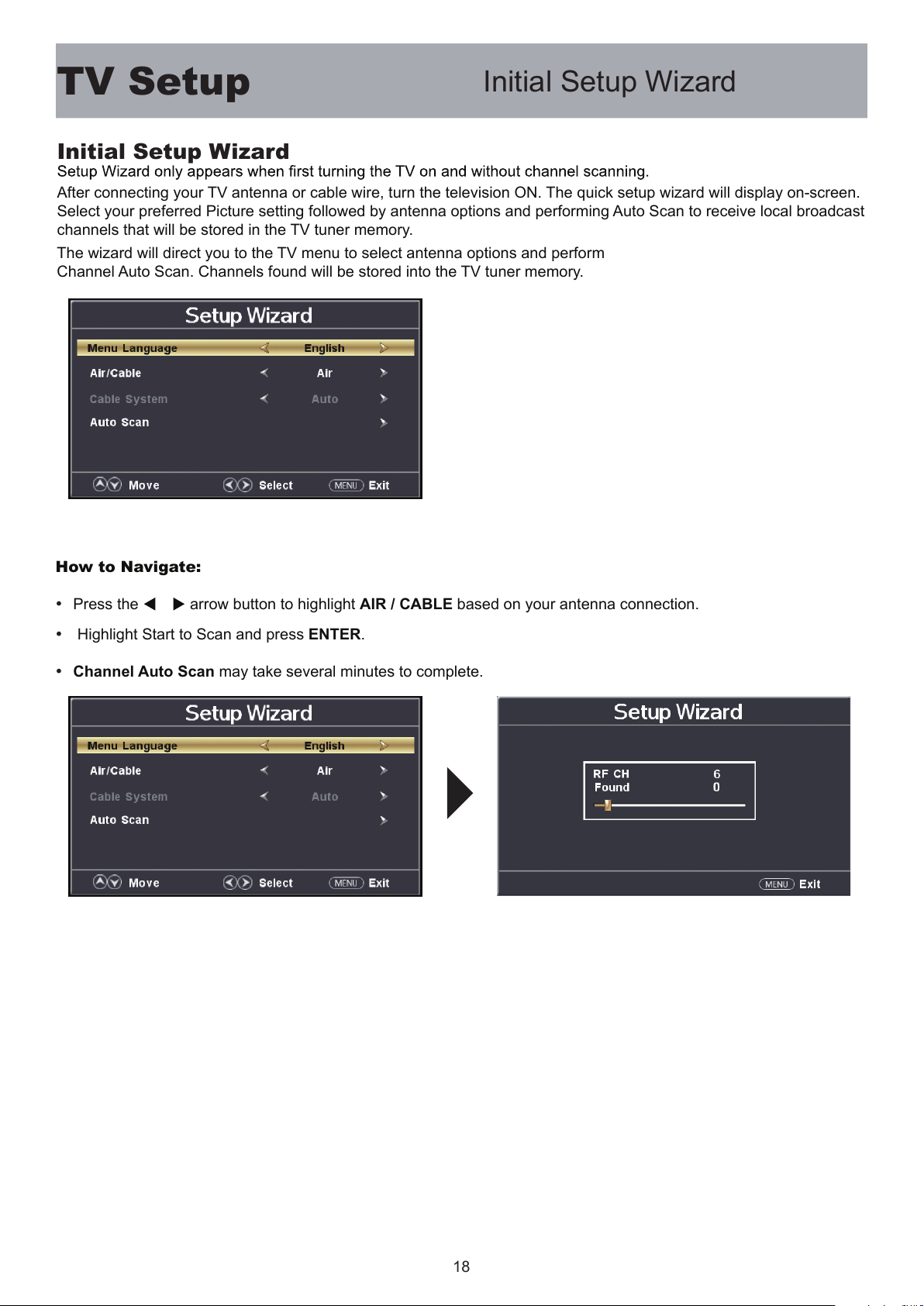

TV Setup
Initial Setup Wizard .....................................................................................................................................................18
TV Provider Setup & Channel Auto Scan ....................................................................................................................19
Picture Setting
Brightness ...................................................................................................................................................................20
Contrast ......................................................................................................................................................................20
Color ............................................................................................................................................................................20
Tint ...............................................................................................................................................................................20
Sharpness ...................................................................................................................................................................20
Color Temperature. ......................................................................................................................................................20
Audio Settings
Sound Mode ................................................................................................................................................................21
Bass .............................................................................................................................................................................21
Treble ..........................................................................................................................................................................21
Balance .......................................................................................................................................................................21
Surround sound ...........................................................................................................................................................21
SPDIF Type ................................................................................................................ ...................................................21
Audio Language...........................................................................................................................................................21
Date & Time Settings...................................................................................................................................................22
Setup Settings
Menu Languages .........................................................................................................................................................23
Transparency ...............................................................................................................................................................23
Restore Default ............................................................................................................................................................23
HDMI CEC ..................................................................................................................................................................23
Closed Captions ..........................................................................................................................................................25
Parental Control ..........................................................................................................................................................26
TV Settings
Favorite .......................................................................................................................................................................2
Show / Hide .................................................................................................................................................................28
Channel Label .............................................................................................................................................................28
USB Modes
MHL Setting
.................................................................................................................................................................29
................................................................................................................................................................
30
.............................................31
Troubleshooting ..........................................................................................................................................................382
CEC................... ..........................................................................................................................................................24
6
Introduction
What’s In The Box
Thank you for purchasing the energy efficient 32E800 television. It has been designed to enjoy today’s high definition
television experience. With a display resolution of 32”1366X768 you are assured of one of the finest quality televisions
available today.
Your television provides both analog and digital inputs including one (1) High Definition Multimedia Interface (HDMI)
interconnects for the purest audio and video digital signal when connected to compatible HD sources (ie: HD set-top
box, high definition DVD player or gaming console).
We recommend that you read the user manual thoroughly before use to familiarize yourself with the installation and
adjustment options available to you; thereby, enjoying all the features of the 32E800 for many years to come.
The 32E800 package includes the following items. Save t
he carton & packing for future shipping
• Remote Control
• AAA Batteries (2)
• Quick Start Guide
• User Manual
• Child Safety
• Pedestal Base
• Screws for Pedestal Base (4)
• User manual
• Quick Start Guide
• Child Safety
• Remote Control
• AAA
Batteries x 2
•
• Screws for Pedestal Base
Pedestal Base
Battery Install
Remote Control
Your remote control handset is powered by two (2) AAA type batteries
• Effective remote range is approximately 16 feet at an
angle of no greater than 30° to the left / right or 20° up /
down to the IR sensor.
• To avoid possible damage from battery chemical
leakage, remove the batteries if you do not plan to use
the remote for an extended period of time. Do not mix
batteries of different age and / or type. Always discard
used batteries safely.
• Do not expose the remote control to liquids, direct sun-
light or sources of excessive heat.
• The IR receiver on the TV will not work properly if the set
is in direct sunlight.
NOTE: Improper use of batteries can result in a chemical
leakage or explosion.
Comcast or Direct TV : 10030
Dish Network : 506
RCA Universal : 0030
30 30
IR Receiver
Cable / Satellite Remote Control Codes:
NOTE:
The remote control from your Cable/Satellite provider can be programmed to operate most
of the major functions of this TV model which include:
POWER, INPUT / SOURCE, VOLUME +,
VOLUME - , CHANNEL +, CHANNEL - , SELECT/OK/ENTER
(based on your remote), and
NUMBER
buttons. For non-major TV functions not listed, use the remote control included with this TV.
T
o program your Cable / Satellite remote to operate this ETEC TV, follow the programming instruc-
tions included with your providers’ remote and use the following codes.
• Turn the remote over and remove
battery cover.
• Place two (2) “AAA” batteries into
the battery compartment with the “+”
and “-“ ends facing as indicated.
• Replace the cover
AT & T (U-verse) : 1043
7
Remote Control
Overview
8
32E800
Remote Control
Overview
Button Function
1. POWER Turn the display ON or OFF (Standby).
2. DISPLAY Provides program information for program being viewed.
3.
PLAY/PAUSE (USB)
4. PREVIOUS (USB)
5. NEXT (USB)
6. STOP (USB)
7. REP REPEAT (USB)
8. CH.LIST Press to display a list of channels saved in the TV tuner memory.
9. GUIDE Press to review scheduled programming for the currently viewed channel.
10. FAV Press to display a listing of your favorite TV channels.
11. FREEZE Pause and still-frame the current image on the display. Press again for live TV.
13. TEMP Select the Color Temperature COOL - NORMAL - WARM.
14. ARROWS / ENTER
Press the navigation buttons for moving through the menu options. Press the
15. EXIT Press to exit a displayed menu.
16. RETURN Press to return to the previous menu.
17. SLEEP Press to activate the Sleep function. The TV will automatically turn off after;
18. MENU Press to display the Main menu.
19. ASPECT
Select the viewable display aspect options: NORMAL - WIDE - ZOOM - CINEMA.
20. VOLUME (+ / -) Adjust the volume up (+) or the volume down (-).
21. LAST Press to switch between the current channel and previously viewed channel.
22. MUTE Press to temporarily turn off the TV audio. Press again to resume.
23. CHANNEL ()
Change the channel up or down.
24. NUMBERS / DASH Select desired TV channel directly. For example: to select digital channel 4-1,
press “4”, press “-”, and press “1” = (4-1).
25. INPUT Press to display all of the input sources on screen.
27. MTS Press to select a program’s second audio channel (if available).
28. CCD
Press to select closed caption subtitles (if available) OFF - ON - CC ON MUTE
29. NUMBER KEYS
Press number keys to enter channel numbers.
12. PICTURE
STANDARD - DYNAMIC - SOFT - USER - POWER SAVING.
5 - 10 - 15 - 30 - 45 - 60 - 90 - 120 - 180 - 240(minutes) - OFF.
26. AUDIO
Standard - Music - Movie - User
9
10
TV Overview
Front Panel
IR Receiver
A Green/Blue light illuminates When
the television power is on.
2. INPUT - After connecting your DVD, cable box, etc. select the appropriate input source to view. Press the
INPUT button to display the input options. Press the CH+ / CH- buttons to highlight the input source and
press the VOL+ button to select.
3. MENU - Press the MENU button to display. Press VOL+ to select from the 6 menu options available.
Press the CH+ / CH- buttons to select a feature from the selected menu then press the VOL+/VOL- buttons
to adjust the volume settings.
4. Channel (-CH+) - Press the CH- / CH+ buttons to select a channel in the TV mode.
5. Volume (-VOL+) - Press the VOL- / VOL+ buttons to adjust the volume up or down.
1. POWER - Press the POWER button to turn the TV ON/ OFF (standby). The screen image will
appear within a few seconds, and the LED will turn on.
Loading...
