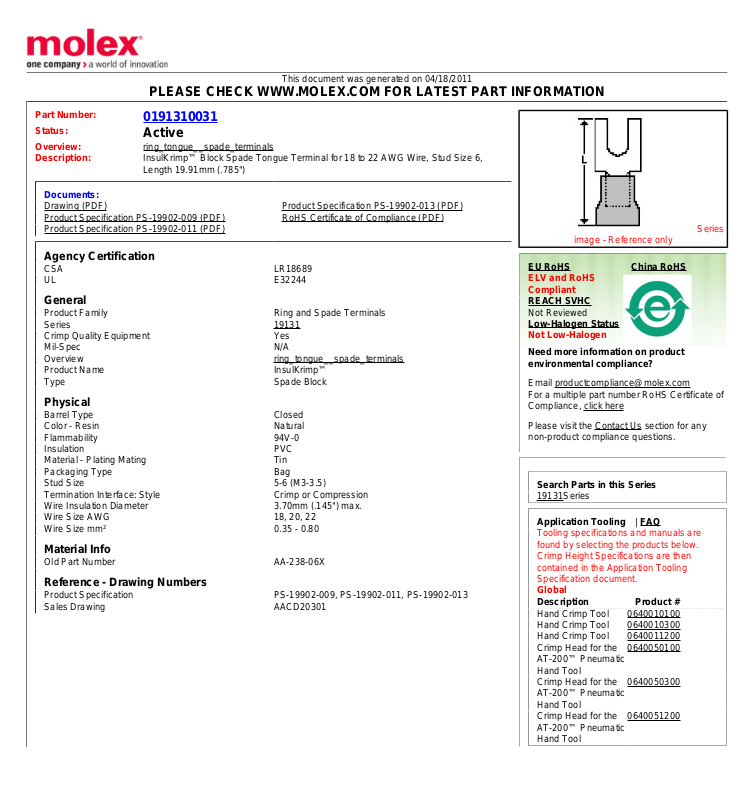

ETC-Molex 191310031 Data Sheet
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview: ring_tongue__spade_terminals
Description: InsulKrimp™ Block Spade Tongue Terminal for 18 to 22 AWG Wire, Stud Size 6,
Documents:
Drawing (PDF) Product Specification PS-19902-013 (PDF)
Product Specification PS-19902-009 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-19902-011 (PDF)
0191310031
Active
Length 19.91mm (.785")
Agency Certification
CSA LR18689
UL E32244
General
Product Family Ring and Spade Terminals
Series 19131
Crimp Quality Equipment Yes
Mil-Spec N/A
Overview ring_tongue__spade_terminals
Product Name InsulKrimp™
Type Spade Block
Physical
Barrel Type Closed
Color - Resin Natural
Flammability 94V-0
Insulation PVC
Material - Plating Mating Tin
Packaging Type Bag
Stud Size 5-6 (M3-3.5)
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 3.70mm (.145") max.
Wire Size AWG 18, 20, 22
Wire Size mm² 0.35 - 0.80
Material Info
Old Part Number AA-238-06X
Reference - Drawing Numbers
Product Specification PS-19902-009, PS-19902-011, PS-19902-013
Sales Drawing AACD20301
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19131Series
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Hand Crimp Tool 0640010100
Hand Crimp Tool 0640010300
Hand Crimp Tool 0640011200
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
0640050100
0640050300
0640051200
