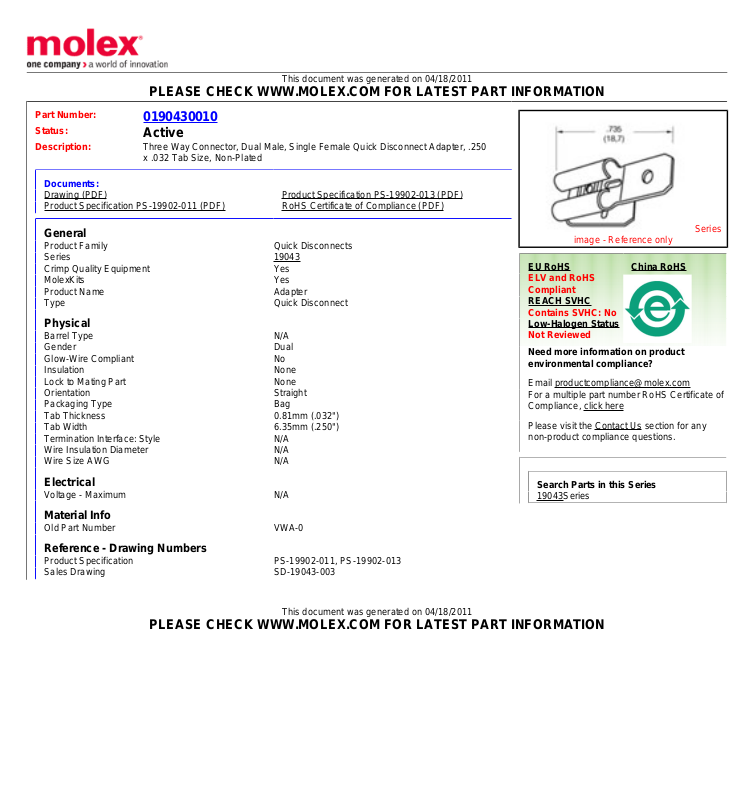

ETC-Molex 190430010 Data Sheet
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description: Three Way Connector, Dual Male, Single Female Quick Disconnect Adapter, .250
Documents:
Drawing (PDF) Product Specification PS-19902-013 (PDF)
Product Specification PS-19902-011 (PDF) RoHS Certificate of Compliance (PDF)
0190430010
Active
x .032 Tab Size, Non-Plated
General
Product Family Quick Disconnects
Series 19043
Crimp Quality Equipment Yes
MolexKits Yes
Product Name Adapter
Type Quick Disconnect
Physical
Barrel Type N/A
Gender Dual
Glow-Wire Compliant No
Insulation None
Lock to Mating Part None
Orientation Straight
Packaging Type Bag
Tab Thickness 0.81mm (.032")
Tab Width 6.35mm (.250")
Termination Interface: Style N/A
Wire Insulation Diameter N/A
Wire Size AWG N/A
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Voltage - Maximum N/A
Material Info
Old Part Number VWA-0
Reference - Drawing Numbers
Product Specification PS-19902-011, PS-19902-013
Sales Drawing SD-19043-003
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
