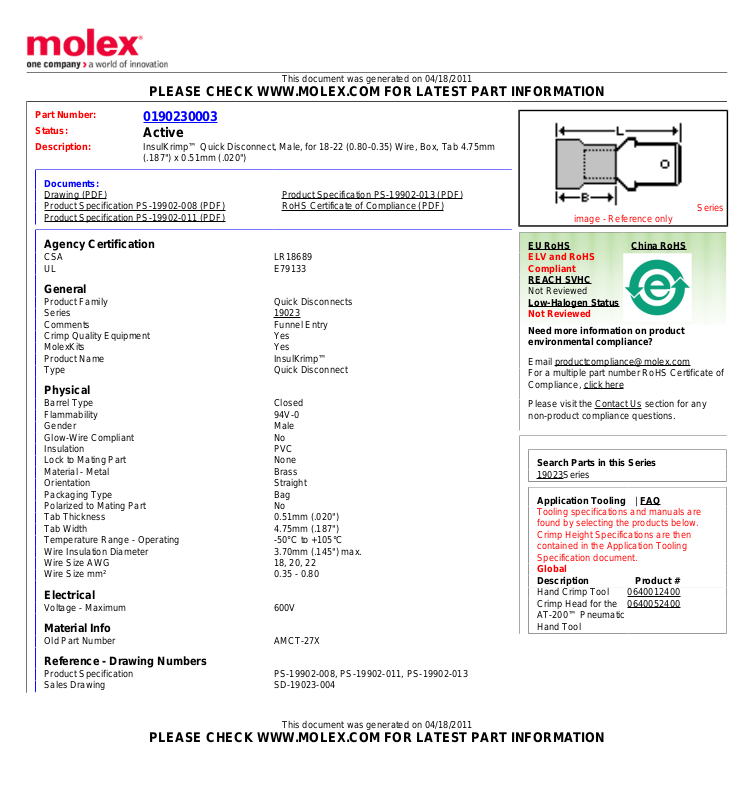

ETC-Molex 190230003 Data Sheet
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description: InsulKrimp™ Quick Disconnect, Male, for 18-22 (0.80-0.35) Wire, Box, Tab 4.75mm
Documents:
Drawing (PDF) Product Specification PS-19902-013 (PDF)
Product Specification PS-19902-008 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-19902-011 (PDF)
0190230003
Active
(.187") x 0.51mm (.020")
Agency Certification
CSA LR18689
UL E79133
General
Product Family Quick Disconnects
Series 19023
Comments Funnel Entry
Crimp Quality Equipment Yes
MolexKits Yes
Product Name InsulKrimp™
Type Quick Disconnect
Physical
Barrel Type Closed
Flammability 94V-0
Gender Male
Glow-Wire Compliant No
Insulation PVC
Lock to Mating Part None
Material - Metal Brass
Orientation Straight
Packaging Type Bag
Polarized to Mating Part No
Tab Thickness 0.51mm (.020")
Tab Width 4.75mm (.187")
Temperature Range - Operating -50°C to +105°C
Wire Insulation Diameter 3.70mm (.145") max.
Wire Size AWG 18, 20, 22
Wire Size mm² 0.35 - 0.80
Electrical
Voltage - Maximum 600V
Material Info
Old Part Number AMCT-27X
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19023Series
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Hand Crimp Tool 0640012400
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
0640052400
Reference - Drawing Numbers
Product Specification PS-19902-008, PS-19902-011, PS-19902-013
Sales Drawing SD-19023-004
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
