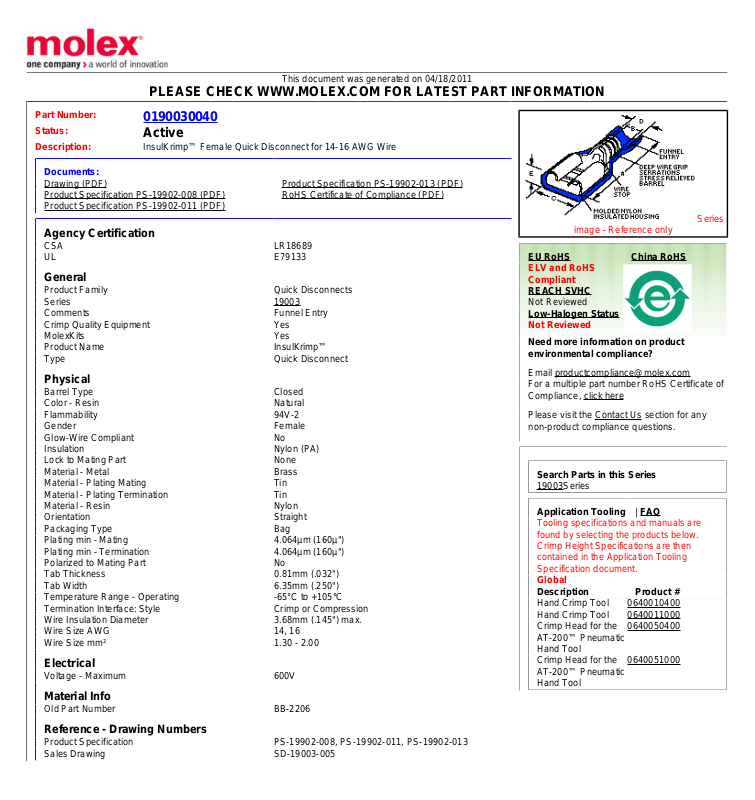

ETC-Molex 190030040 Data Sheet
This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description: InsulKrimp™ Female Quick Disconnect for 14-16 AWG Wire
Documents:
Drawing (PDF) Product Specification PS-19902-013 (PDF)
Product Specification PS-19902-008 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-19902-011 (PDF)
0190030040
Active
Agency Certification
CSA LR18689
UL E79133
General
Product Family Quick Disconnects
Series 19003
Comments Funnel Entry
Crimp Quality Equipment Yes
MolexKits Yes
Product Name InsulKrimp™
Type Quick Disconnect
Physical
Barrel Type Closed
Color - Resin Natural
Flammability 94V-2
Gender Female
Glow-Wire Compliant No
Insulation Nylon (PA)
Lock to Mating Part None
Material - Metal Brass
Material - Plating Mating Tin
Material - Plating Termination Tin
Material - Resin Nylon
Orientation Straight
Packaging Type Bag
Plating min - Mating 4.064µm (160µ")
Plating min - Termination 4.064µm (160µ")
Polarized to Mating Part No
Tab Thickness 0.81mm (.032")
Tab Width 6.35mm (.250")
Temperature Range - Operating -65°C to +105°C
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 3.68mm (.145") max.
Wire Size AWG 14, 16
Wire Size mm² 1.30 - 2.00
Electrical
Voltage - Maximum 600V
Material Info
Old Part Number BB-2206
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19003Series
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Hand Crimp Tool 0640010400
Hand Crimp Tool 0640011000
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
0640050400
0640051000
Reference - Drawing Numbers
Product Specification PS-19902-008, PS-19902-011, PS-19902-013
Sales Drawing SD-19003-005
