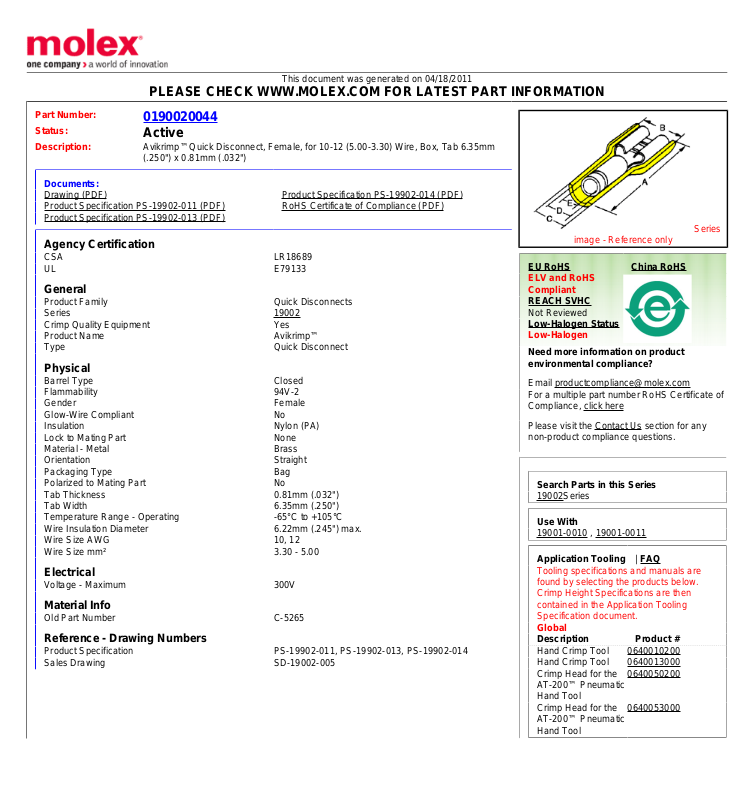

This document was generated on 04/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description: Avikrimp™Quick Disconnect, Female, for 10-12 (5.00-3.30) Wire, Box, Tab 6.35mm
Documents:
Drawing (PDF) Product Specification PS-19902-014 (PDF)
Product Specification PS-19902-011 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-19902-013 (PDF)
0190020044
Active
(.250") x 0.81mm (.032")
Agency Certification
CSA LR18689
UL E79133
General
Product Family Quick Disconnects
Series 19002
Crimp Quality Equipment Yes
Product Name Avikrimp™
Type Quick Disconnect
Physical
Barrel Type Closed
Flammability 94V-2
Gender Female
Glow-Wire Compliant No
Insulation Nylon (PA)
Lock to Mating Part None
Material - Metal Brass
Orientation Straight
Packaging Type Bag
Polarized to Mating Part No
Tab Thickness 0.81mm (.032")
Tab Width 6.35mm (.250")
Temperature Range - Operating -65°C to +105°C
Wire Insulation Diameter 6.22mm (.245") max.
Wire Size AWG 10, 12
Wire Size mm² 3.30 - 5.00
Electrical
Voltage - Maximum 300V
Material Info
Old Part Number C-5265
Reference - Drawing Numbers
Product Specification PS-19902-011, PS-19902-013, PS-19902-014
Sales Drawing SD-19002-005
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19002Series
Use With
19001-0010 , 19001-0011
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Hand Crimp Tool 0640010200
Hand Crimp Tool 0640013000
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
0640050200
0640053000
