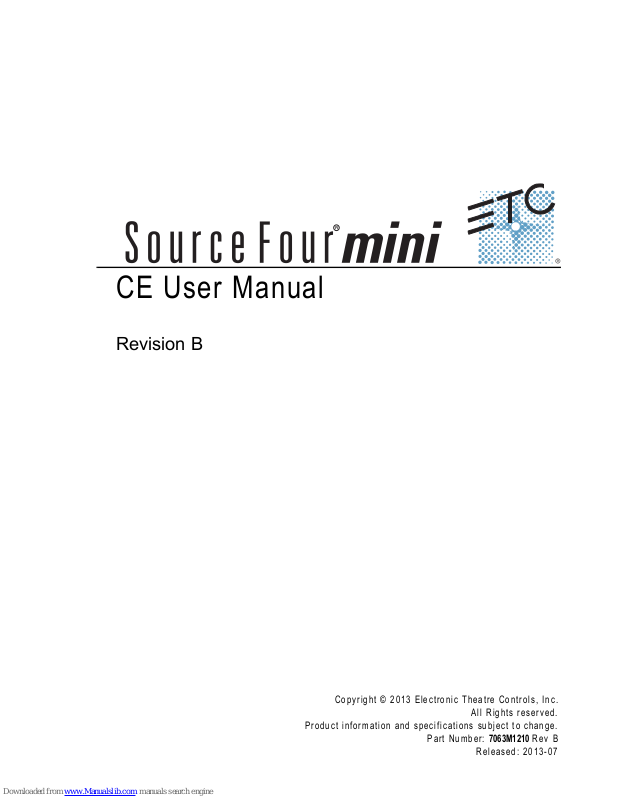

ETC Source Four Mini CE, Source Four Mini User Manual
Copyright © 2013 Electronic Theatre Controls, Inc.
All Rights reserved.
Product information and specifications subject to change.
Part Number:
7063M1210
Rev B
Released: 2013-07
CE User Manual
Revision B
Table of Contents
ETC®, Eos™,Eos Ti™, Gio®,Ion®, Element™, Emphasis®, Expression®, Insight™,
Imagine™, Focus™, Express™, Unison®, Obsession® II, ETCNet2™, EDMX™,
Revolution® and Sensor+® are either registered trademarks or trademarks of Electronic
Theatre Controls, Inc. in the United States and other countries.
ETC permits the reproduction of materials in this manual only for non-commercial
purposes. All other rights are reserved by ETC.
ETC intends this document, whether printed or electronic, to be provided in its entirety.
Source Four Mini CE Guidelines . . . . . . . . . . . . . . . . . . . . . .1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Basic Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Install Lens Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Adjusting the yoke position . . . . . . . . . . . . . . . . . . . . . . .4
Setting the angle with the yoke . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Locking the rotation in the canopy and track-mount variations. . 5
Focusing the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Shaping the Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Gobo Pattern Projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Colour Frame Holder . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Cleaning the Glass Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
DECLARATION OF CONFORMITY
London, United Kingdom Mr Adam Bennette
)nosrep desirohtua fo emaN( )eussi fo ecalP(
3102 hcraM ht11
)nosrep desirohtua fo erutangis( )eussI fo etaD(
Printed 11 Mar. 13 Page 1
Decl # 117
\\LON-FILE2\Shares\RND\DofC\Master declaration.doc
Version # A
We, Electronic Theatre Controls Limited
declare under sole responsibility that the product:
Product name: Source Four Mini luminaire
Product type/model: Source Four Mini Canopy mount, Source Four Mini
Track mount & Source Four Mini Clamp mount.
Versions fitted with tungsten lamp.
Item numbers: One sample of each type
to which this declaration relates is in conformity with the following Standards:
EN 60598-1:2008 Luminaires. General requirements and tests
EN 60598-2-6:1995 Luminaires. Particular requirements. Luminaires with built-in
transformers for filament lamps
EN 60598-2-17:1989 Luminaires. Particular requirements. Specification for luminaires
for stage lighting, television, film and photographic studios
(outside and indoor)
following the provisions of EU LV Directive(s) 2006/95/EC
EN 55015:2006 Limits and methods of measurement of radio disturbance
characteristics of electrical lighting and similar equipment
EN 61547:2009 Equipment for general lighting purposes. EMC immunity
requirements
EN 61000-3-2:2006 Electromagnetic compatibility (EMC). Limits. Limits for harmonic
current emissions (equipment input current up to and including
16 A per phase) Class C
EN 61000-3-3:2008 Electromagnetic compatibility (EMC). Limits. Limitation of
voltage changes, voltage fluctuations and flicker in public lowvoltage supply systems, for equipment with rated current <= 16 A
per phase and not subject to conditional connection
following the provisions of EU EMC Directive(s) 2004/108/EC
1
Source Four Mini CE Guidelines
Read the entire User Manual before using the equipment.
• Do not mount the Source Four Mini CE on or near a flammable
surface.
• The Source Four Mini CE is suitable for indoor use only with a
maximum ambient temperature: 40°C.
• Maximum exterior surface temperature: 125°C.
• Relative humidity 90% maximum, non-condensing
• If the external cable is damaged, it shall be replaced by ETC or our
service agents.
• Always hang the Source Four Mini CE with the colour frame held
securely behind the retaining clip.
• Always replace the lamp if it becomes damaged or thermally
deformed.
• Disconnect the unit from power before all cleaning and maintenance.
• Keep the luminaire at least 3cm away from any lit surface. Lighted
objects at this distance or greater will not exceed 90°C temperature
from projected light.
WARNING:
Please note the following safety precautions:
