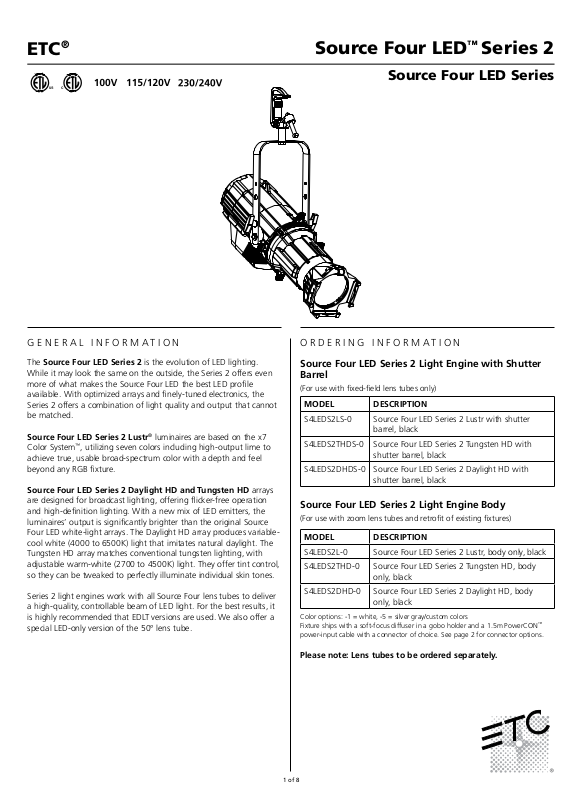

ETC Source Four LED Series 2 Tungsten HD Datasheet
ETC
®
Source Four LED™ Series 2
Source Four LED Series
GENERAL INFORMATION
The Source Four LED Series 2 is the evolution of LED lighting.
While it may look the same on the outside, the Series 2 offers even
more of what makes the Source Four LED the best LED profile
available. With optimized arrays and finely-tuned electronics, the
Series 2 offers a combination of light quality and output that cannot
be matched.
Source Four LED Series 2 Lustr
Color System
achieve true, usable broad-spectrum color with a depth and feel
beyond any RGB fixture.
Source Four LED Series 2 Daylight HD and Tungsten HD arrays
are designed for broadcast lighting, offering flicker-free operation
and high-definition lighting. With a new mix of LED emitters, the
luminaires’ output is significantly brighter than the original Source
Four LED white-light arrays. The Daylight HD array produces variablecool white (4000 to 6500K) light that imitates natural daylight. The
Tungsten HD array matches conventional tungsten lighting, with
adjustable warm-white (2700 to 4500K) light. They offer tint control,
so they can be tweaked to perfectly illuminate individual skin tones.
Series 2 light engines work with all Source Four lens tubes to deliver
a high-quality, controllable beam of LED light. For the best results, it
is highly recommended that EDLT versions are used. We also offer a
special LED-only version of the 50° lens tube.
™
, utilizing seven colors including high-output lime to
®
luminaires are based on the x7
ORDERING INFORMATION
Source Four LED Series 2 Light Engine with Shutter
Barrel
(For use with fixed-field lens tubes only)
MODEL DESCRIPTION
S4LEDS2LS-0 Source Four LED Series 2 Lustr with shutter
barrel, black
S4LEDS2THDS-0 Source Four LED Series 2 Tungsten HD with
shutter barrel, black
S4LEDS2DHDS-0 Source Four LED Series 2 Daylight HD with
shutter barrel, black
Source Four LED Series 2 Light Engine Body
(For use with zoom lens tubes and retrofit of existing fixtures)
MODEL DESCRIPTION
S4LEDS2L-0 Source Four LED Series 2 Lustr, body only, black
S4LEDS2THD-0 Source Four LED Series 2 Tungsten HD, body
only, black
S4LEDS2DHD-0 Source Four LED Series 2 Daylight HD, body
only, black
Color options: -1 = white, -5 = silver gray/custom colors
Fixture ships with a soft-focus diffuser in a gobo holder and a 1.5m PowerCON
power-input cable with a connector of choice. See page 2 for connector options.
™
Please note: Lens tubes to be ordered separately.
1 of 8
ETC
®
Source Four LED Series 2
Source Four LED Series
SPECIFICATIONS
GENERAL
• 60-LED array
• ETL listed to UL1573 – the standard for stage and studio
lighting units
• IP20-rated for indoor use
• Power and DMX in/thru connections for easy setup
• User-friendly control interface with multiple modes and
fixture settings
PHYSICAL
• Rugged die-cast all-metal housing
• Available in black (standard), white or silver gray or custom
colors (contact factory)
• C-clamp
• Positive-locking double-clutch fixture body
• Slot for glass or stainless steel patterns and soft-focus diffuser
• Wide accessory slot with sliding cover for motorized pattern
devices or optional iris
• Hanging yoke standard. Optional yoke/floor-stand available
ELECTRICAL
• 100VAC to 240VAC 50/60Hz universal power input
• Neutrik power in and thru connections
• Up to nine Lustr or seven Daylight HD/Tungsten HD luminaires
(15A max) may be linked via power thru connector (10 Lustr
or 8 Daylight HD/Tungsten HD fixtures total per circuit) when
used with R20 Relay Module or Unison
- Consult breaker-trip curves when used with other
equipment. Requires power from a non-dim source
• Inrush
- 120V: 50A (First half-cycle)
- 240V: 107A (First half-cycle)
LED*
• 20,000-hour LED life (20,000 hours to 70% intensity)
• 60 Luxeon
*See additional LED notes on page four
COLOR
• Exclusive x7 Color System seven-color LED array (Lustr)
• Selection from the x7 Color System to provide high quality,
variable-white light
- Tungsten HD (2700K-4000K)
- Daylight HD (4000K-6500K)
• Beautifully illuminates skin tones and other objects for
natural appearance and high color rendering
• Broad-spectrum color interacts seamlessly with
conventional sources
• Exclusive optional red-shift option emulates tungsten
dimming performance
OPTICAL
• Use the included soft-focus diffuser for creating washes or
soft light
• Best performance using ETC’s EDLT lens tubes
• Can use all ETC Source Four interchangeable lens barrels: 5°,
10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles, as well
as 19°, 26°, 36°, and 50° EDLT lenses
• For better performance, use the LED 50° barrel
CONTROL
• DMX512 in and thru via five-pin XLR connectors
• Multiple control options, including RGB, strobe, and console free Master/Slave mode
• See DMX Control Table for additional information
®
Rebel LED emitters
®
Echo™ Relay Panel
SPECIFICATIONS
CONTROL
• 15-bit virtual dimming engine provides smooth, high-quality
theatrical fades and minimizes color shift during dimming
• RDM functionality for address and setting changes
THERMAL
• Ambient operating temperature of 32° to 104°F (0° to 40°C)
• Active electronic thermal management for
droop-free operation
• Quiet fan cooling
• Fixture is designed for continuous operation up to 104°F
(40°C) ambient temperature and requires free flow of air
around fixture housing
ADDITIONAL ORDERING INFORMATION
Power Input Cables
Use information below to order 5’ power input leads with factory-fitted connectors
MODEL DESCRIPTION
DPA-A
DPA-B
DPA-C 5’ PowerCon to grounded 20A twistlock connector
DPA-X 5’ PowerCon to bare-end power input lead
5’ PowerCon to parallel blade U-ground
(Edison) connector
5’ PowerCon to 20A two-pin and ground
(stage pin) connector
Power Thru Jumpers
Note: Power thru jumpers connect to fixture’s output (thru) connector to provide link
to successive fixtures
MODEL DESCRIPTION
DPJ-5 5’ PowerCon-to-PowerCon
DPJ-10 10’ PowerCon-to-PowerCon
fixture-to-fixture jumper
fixture-to-fixture jumper
Diffusers
MODEL DESCRIPTION
S4LED-SFD Source Four LED - Soft Focus Diffuser (included)
S4LED-SWD6
S4LED-SWD7
S4LED-SWD12
S4LED-SWD14
The Soft Focus Diffuser fits into a standard A-Size pattern holder and delivers
beautiful homogenized light when not in sharp focus. Also, use with patterns for
dappled and soft-edge projections.
The Smooth Wash Diffuser is used when extra-smooth blending of multiple Source
Four LED fixtures is required. The smooth wash diffuser is placed into the gel-frame
slot of the lens tube.
2 of 8
Source Four LED - Smooth Wash Diffuser for
6.25” gel frame slots
Source Four LED - Smooth Wash Diffuser for 7.5”
gel frame slots
Source Four LED - Smooth Wash Diffuser for 10°
lens tubes
Source Four LED - Smooth Wash Diffuser for 5°
lens tubes
ETC
®
Source Four LED Series 2
Source Four LED Series
FIXTURE COMPARISON - LUSTR
• The data below was measured on a Source Four LED Series 2 Lustr and a Source Four LED Lustr+, both in Regulated mode. Gel colors
shown are standard selections from the Rosco Labratories Inc. and Lee Filters catalogs.
5600K
3000K
Chrome Orange
Medium Yellow
L179
L010
L106
Primary Red
R05
Rose Tint
L194
Surprise Pink
Special Lavender
R54
L019
Fire
1,118 (33W)
647 (28W)
895 (36W)
831 (30W)
575 (22W)
873 (575W)
1,103 (36W)
795 (30W)
2,031 (74W)
1,643 (575W)
1,723 (575W)
3,136 (99W)
2,726 (84W)
3,227 (106W)
2,978 (91W)
3,160 (98W)
3,952 (81 Watts)
4,181 (97W)
5,043 (127W)
3,853 (575W)
5,309 (111W)
7,489 (575W)
5,182 (105W)
5,636 (575W)
Source Four LED Series 2 Lustr
Source Four LED Lustr+
Source Four 575WX
R08
Pale Gold
R89
Moss Green
L213
White Flame
Green
R80
Primary Blue
L202
Half C.T. Blue
L328
Follies Pink
R3314
Minusgreen
4,803 (106W)
5,955 (575W)
5,838 (144W)
6,026 (575W)
5,801 (150W)
4,324 (575W)
4,926 (112W)
5,952 (575W)
698 (38W)
641 (51W)
743 (45W)
353 (575W)
938 (37W)
1,859 (71W)
2,962 (75W)
2,621 (575W)
2,082 (67W)
3,186 (95W)
1,234 (43W)
1,771 (575W)
2,352 (83W)
01,000 2,0003,000 4,0005,000 6,0007,000 8,000
Lumens
