User Manual
v1.6.0
Rev A
Profile
Source Four LED fixtures are intended for professional use only.
Read entire User Manual before using equipment.
Copyright © 2014 Electronic Theatre Controls, Inc.
Product information and specifications subject to change.
Part Number:
All rights reserved.
7460M1200-1.6.0
Released: 2014-02
Rev A
ETC ® permits the reproduction of materials in this manual only for non-commercial purposes. All other rights
are reserved by ETC.
ETC intends this document, whether printed or electronic, to be provided in its entirety.
ETC is a registered trademark of Electronic Theatre Controls, Inc. in the United States and other countries.
Other product and company names mentioned herein may be trademarks and/or service marks of their respective
owners.
This product is protected by one or more of the following U.S. Patents: 6,016,038, 6,150,774, 6,788,011,
6,806,659, 6,683,423 and 7,023,543
US and international patents pending.
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Lustr+ and Series 2 Lustr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Studio HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Daylight and Tungsten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Fixture Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Typography Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Chapter 1
Installation and User Interface . . . . . . . . . . . 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Typical Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Note About LED Fixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Color Rendering Index and Color Quality Scale Ratings . . . . . . . . .10
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Basic Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Mounting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Install Lens Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Aim Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Focusing the Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Shaping the Beam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Soft Focus Diffuser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Rotating the Shutter Barrel Assembly . . . . . . . . . . . . . . . . . . . . .16
Adjusting the C-clamp For North America. . . . . . . . . . . . . . . . . .16
Adjusting the Yoke Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cooling and Duty Cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Dimensions and Hanging Clearances . . . . . . . . . . . . . . . . . . . . . . .20
Safety Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Fixture Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Power and Data Cabling Requirements . . . . . . . . . . . . . . . . . . . . . .22
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Source Four LED Series Connections . . . . . . . . . . . . . . . . . . . .23
Source Four LED Profile v1.6.0 User Manual i
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
DMX Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Daylight and Tungsten Profiles . . . . . . . . . . . . . . . . . . . . . . . . . .28
DMX Footprints and Channel Mapping . . . . . . . . . . . . . . . . . . . . . .29
Tungsten and Daylight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Lustr+, Series 2 Lustr, and Studio HD. . . . . . . . . . . . . . . . . . . . .29
Installing Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Color Frame Holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Chapter 2
Chapter 3
Basic Menu Navigation . . . . . . . . . . . . . . . . 31
User Interface Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Keypad Lockout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Screen Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Status (Home) Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Home Screen Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
DMX Start Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
DMX Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
LED Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Presets & Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Quick Color (Lustr+, Series 2 Lustr, Studio HD) . . . . . . . . . . . . .60
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Local Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Copy All Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Studio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Lustr+, Series 2 Lustr, and Studio HD. . . . . . . . . . . . . . . . . . . . .70
Daylight and Tungsten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
ETC Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Cleaning the Field Lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Inspecting and Cleaning the Electronics . . . . . . . . . . . . . . . . . . .76
ii Source Four LED Profile v1.6.0 User Manual
Appendix A
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . 77
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Configure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Soft Focus Diffuser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Quick Color Menu (Lustr+, Series 2 Lustr, and Studio HD only).78
Quick Setups Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Appendix B
Menu Flow Chart. . . . . . . . . . . . . . . . . . . . . 81
Home and Main Menus (Lustr+, Series 2 Lustr, and Studio HD) 81
Home and Main Menus (Daylight and Tungsten) . . . . . . . . . . . .82
Advanced Menu (Lustr+, Series 2 Lustr, and Studio HD) . . . . . .83
Advanced Menu (Daylight and Tungsten) . . . . . . . . . . . . . . . . . .84
Presets Menu (Lustr+, Series 2 Lustr, and Studio HD) . . . . . . . .85
Presets Menu (Daylight and Tungsten). . . . . . . . . . . . . . . . . . . .86
Sequences Menu (all fixture types) and
Quick Color Menu (Lustr+, Series 2 Lustr, and Studio HD only).87
Diagnostics Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Diagnostics Recalibrate Fixture. . . . . . . . . . . . . . . . . . . . . . . . . .90
iii
iv Source Four LED Profile v1.6.0 User Manual
Introduction
Congratulations on your purchase of a Source Four LED Profile by ETC product.
Source Four LED Profile’s x7 Color System™ seven-hue technology produces a light and
color quality that conventional LED systems cannot duplicate. This unique color system
produces bright, broad-spectrum whites and intense colors equally well, rendering
pigments, objects, and skin tones in a natural way.
Daylight and Tungsten fixtures use high-output white LEDs for maximum brightness and
efficacy. Tungsten interacts very well with incandescent sources, while Daylight easily
replaces a variety of HMI lamps and natural sunlight.
Quick Setups
You can use any one of the Quick Setups and fine-tune settings for either console operation
via DMX protocol or standalone operation. For advanced users, an expanded user interface
provides easy navigation to all settings and options.
Lustr+ and Series 2 Lustr
Some of the options include:
• Multiple DMX profiles ranging from a simple 3-channel RGB profile to 8-channel direct
color and intensity control.
• Multiple dimming curve options.
• Preset colors and sequences for standalone operation.
• White point selection; white light and color behavior based on a specific color
temperature white light such as 3200K or 5600K.
• Loss-of-data behavior options.
• Power regulation modes; three output options that offer a choice between maximum
light output for lower duty cycles and maximum thermal stability and output consistency
for higher duty cycles.
Studio HD
• Balanced with x7 Color System for a spectrally rich, variable white light.
• Color temperatures from 2700K to 6500K.
• Onboard +/- green adjustment.
• Preset colors and sequences for stand-alone operation.
• Multiple dimming curve options.
• Power regulation modes; three output options that offer a choice between maximum
light output for lower duty cycles and maximum thermal stability and output consistency
for higher duty cycles.
Introduction 1
Daylight and Tungsten
Options include:
• Multiple dimming curve options.
• Presets and sequences for standalone operation.
• Strobe.
• Loss-of-data behavior options.
• Power regulation modes; three output options that offer a choice between maximum
light output for lower duty cycles and maximum thermal stability and output consistency
for higher duty cycles.
Models
Each member of the Source Four LED Profile product line is unique and optimized for a
specific lighting task. All models are compatible with the complete line of Source Four Lens
tubes.
Lustr+
• Specialized 7-color x7 LED array
• Broad-spectrum color optimized for the best white and light tints across the entire white
and pastel range
• Beautifully illuminates skin tones and other objects
Series 2 Lustr
All the features of the Lustr+ with exceptional saturation and higher output
Studio HD
• A mix of high-output LEDs and carefully selected colors from the x7 spectrum
• Variable color temperature from 2700K to 6500K
• Deep spectrum whites with up to 94 CRI
Daylight
• 5,600K nominal correlated color temperature
• 70 CRI typical
Tungsten
• 3,000K nominal correlated color temperature
• 85 CRI typical
2 Source Four LED Profile v1.6.0 User Manual
Fixture Components
Color frame
holder
Accessory
retainer
Safety
cable
loop
Yoke
Yoke
locking
knob
Power In
Power Thru
DMX In
DMX Thru
Status
indicators
LCD
Keypad
Light Bulb
Enter
Down
Up
Back
Home
Figure-1.1 Components of the Source Four LED Profile Fixture.
Figure-1.2 Components of the Rear Panel.
Introduction 3
Figure-1.3 Keypad Button Functions.
For information about the user interface, see User Interface Overview, page 32.
Applications
• Theaters • Convention centers
• Studios • Theme parks
• Schools • Museums
• Houses of worship • Temporary events
• Hotels
Document Conventions
Notices
Throughout this manual, the following are used to alert you to notes and safety notices.
Note:
CAUTION:
WARNING:
WARNING:
Please email comments about this manual to: TechComm@etcconnect.com
Notes are helpful hints and information that is supplemental of the main text.
A Caution statement indicates situations where there may be undefined or unwanted
consequences of an action, potential for data loss or an equipment problem.
A Warning statement indicates situations where damage may occur, people
may be harmed, or there are serious or dangerous consequences of an action.
RISK OF ELECTRIC SHOCK! This warning statement indicates situations
where there is a risk of electric shock.
Typography Used in This Guide
Menu items and commands you must perform are indicated in bold text. Keypad buttons
are indicated in bold [brackets]. Menu selections or commands appear in bold. For
example:
Press [] to select Sequences and then press [].
4 Source Four LED Profile v1.6.0 User Manual
Safety
The Source Four LED Profile fixtures are intended for professional use only. Read the
entire User Manual before using equipment.
WARNING:
Note the following safety warnings before use:
• Do not mount the Source Four LED Profile fixture on or near a flammable
surface.
• Do not use this fixture with a damaged power lead. If the power lead
(cordset) is damaged, it must be replaced.
• Do not use this fixture if glass lens is deeply scratched or cracked.
Damaged lenses must be replaced.
• Use theSource Four LED Profile fixture in dry locations only, where
humidity does not exceed 90 percent (non-condensing). These fixtures are
not intended for outdoor use.
• Mount and support the fixture only by the primary suspension holes in the
yoke or floor standing yoke.
• Suspend the fixture from a suitable structure using only the hardware rated
for the weight of the fixture.
• In addition to primary suspension, attach a safety cable (ETC Model 400SC
or other approved safety cable or device) to the fixture housing.
Appropriate attachment point (hole) is provided in the protruding tab on the
fixture housing.
• Disconnect the unit from power and DMX and allow the fixture to cool
before removing or installing the shutter barrel or other adapters, and all
cleaning and maintenance.
Note:
Introduction 5
• Maximum recommended ambient operating temperature: Ta=40°C (104°F)
• Maximum anticipated external surface temperature: Tmax=80°C (176°F)
• External temperature after 5 minutes of full-brightness operation at 25°C (77°F)
ambient: 29.9°C (85.8°F)
• External Temperature (steady state achieved) at 25°C (77°F): 41.5°C (106.7°F)
Contacts
If you have questions about your Source Four LED Profile fixture that are not answered in
this manual, please contact the supplier of your ETC equipment or ETC Technical Services.
For general information, your most convenient resources are the references provided in this
manual. To search more widely try the ETC web site at www.etcconnect.com.
For technical questions about Source Four LED Profile fixtures, contact ETC Technical
Services directly at one of the offices listed below. Emergency service is available from all
ETC offices outside of normal business hours.
Americas United Kingdom
Electronic Theatre Controls Inc. Electronic Theatre Controls Ltd.
Technical Services Department Technical Services Department
3031 Pleasant View Road 26-28 Victoria Industrial Estate
Middleton, WI 53562 Victoria Road,
800-775-4382 (USA, toll-free) London W3 6UU England
+1-608 831-4116 +44 (0)20 8896 1000
service@etcconnect.com service@etceurope.com
Asia Germany
Electronic Theatre Controls Asia, Ltd. Electronic Theatre Controls GmbH
Technical Services Department Technical Services Department
Room 1801, 18/F Ohmstrasse 3
Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany
9 Sheung Yuet Road +49 (80 24) 47 00-0
Kowloon Bay, Kowloon, Hong Kong techserv-hoki@etcconnect.com
+852 2799 1220
service@etcasia.com
Please email comments about this manual to: TechComm@etcconnect.com
6 Source Four LED Profile v1.6.0 User Manual
Chapter 1
Installation and User Interface
This chapter contains the following sections:
• Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
• Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
• Aim Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
• Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
• Dimensions and Hanging Clearances . . . . . . . . . . . . . . . . . .20
• Power and Data Cabling Requirements. . . . . . . . . . . . . . . . .22
• Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
• DMX Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
• Installing Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
1 Installation and User Interface 7
Specifications
Physical
• Rugged die-cast aluminum construction • Hanging yoke standard
• Easy-access slots for secondary lenses and standard
accessories.
• Advanced thermal management systems for long LED
life
• Ambient operating temperature
0 to 40 °C (32 to 104 °F)
• Continuous operation at 40 °C (104 °F)
Electrical
• 100V to 240V 50/60 Hz universal power input • 5 foot Neutrik PowerCon to bare-end power input lead
• Includes Neutrik
• No more than nine total Source Four LED (four total
Series 2 Lustr) fixtures on Power Thru
®
PowerCon® in and thru connectors
LEDs
• 60 Luxeon Rebel LED emitters (Lustr+ and Series 2
Lustr)
• 33 Osram OSLON Square and 27 Luxeon Rebel LEDs
(Studio HD)
• 50,000 hr. LED life
• 20,000 hr. LED life (Series 2 Lustr)
• Available in black (standard), white (optional), silver, or
custom colors (contact factory)
• Features ultra-quiet cooling fan
• See Fixture Weight, page 21
or parallel blade U-ground (Edison) connector
• Optional 5 foot PowerCon to 20A two pin and ground
(stage pin) or grounded 20A twistlock connector
• Requires power from non-dim source
• 60 Luxeon Rebel ES LED emitters (Daylight and
Tungsten)
• See Note About LED Fixtures, page 10
Optical
• Compatible with all ETC Source Four lens tubes. For
best results, use the preferred lens tubes. See
Preferred Lensing Options, page 12
Control
• DMX512-A compliant • Optional strobe channel
• DMX in and thru via 5-pin XLR connectors • Standalone, studio standalone, and console-free
presets and sequences
• Onboard user interface with a high-resolution LCD • Master/slave mode
• Multiple profile options for different levels of control • 15-bit virtual dimming engine for smooth, high-quality
theatrical fades
• Optional DMX-based fan control for predictable noise
levels
• See DMX Profile, page 24
8 Source Four LED Profile v1.6.0 User Manual
Typical Power Consumption
Lustr+
Idle Power / Current 4.27W / 0.084A 4.38W / 0.079A 4.2W / 0.068A
100% Boost Power / Current 130.8W / 1.48A 129.9W / 1.11A 126.4W / 0.576A
Series 2 Lustr
Idle Power / Current 6.77W / 0.144A 6.9W / 0.149A 6.5W / 0.155A
100% Boost Power / Current 173.0W / 1.94A 171.0W / 1.44A 168.0W / 0.783A
Studio HD
Idle Power / Current 5.69W / 0.096A 5.71W / 0.091A 5.35W / 0.073A
100% Boost Power / Current 129.2W / 1.3A 127.1W / 1.07A 126.2W / 0.564A
Daylight
Idle Power / Current 4.3W / 0.083A 4.35W / 0.077A 4.04W / 0.066A
100% Boost Power / Current 165.2W / 1.87A 163.3W / 1.39A 160.3W / 0.718A
Tungsten
90V 120V 240V
90V 120V 240V
100V 120V 240V
90V 120V 240V
100V 120V 240V
Idle Power / Current 4.3W / 0.085A 4.35W / 0.078A 4.0W / 0.065A
100% Boost Power / Current 159.8W / 1.81A 157.4W / 1.35A 154.8W / 0.695A
1 Installation and User Interface 9
Note About LED Fixtures
All LED sources experience some lessening of light output and some color shift over time.
Source Four LED Profile fixtures have complex thermal management systems to minimize
these changes. With typical usage, a Series 1 fixture will still achieve at least 70% of its
initial output after 50,000 hours of use (B50, L70). A Series 2 fixture will achieve 70% of its
initial output after 25,000 hours of use (B50, L70). In individual situations, LEDs will be used
for different durations and different levels. This can eventually lead to minor alterations in
color performance, necessitating slight adjustment to presets, cues, or programs.
All LEDs may exhibit a slight shift in output as they rise to full operating temperature. Source
Four LED Profile fixtures allow the selection of different power settings in order to balance
the competing requirements of thermal stability and brightness. Depending on the selected
setting, changes in output as fixtures warm up may or may not be visible to the eye.
Color Rendering Index and Color Quality Scale Ratings
Source Four LED Profile fixtures are evaluated for Color Rendering Index (CRI) and Color
Quality Scale (CQS) performance using measured output spectrum and optimized mix
solutions for a best spectral match to black body sources at 3200K and 5600K. Color fidelity
was also measured. These numbers may fluctuate slightly from fixture to fixture. This is a
normal characteristic of white LEDs, and this kind of variation is highly unlikely to be
apparent in most applications. The performance is the same for all fixture versions.
Fixture CRI CQS Color Fidelity Duv
Lustr+ Reg at 3200K 84 87 87 0.000
Lustr+ Reg at 5600K 92 92 92 0.000
Series 2 Lustr at 3200K 86 88 88 0.000
Series 2 Lustr at 5600K 90 91 91 0.000
Studio HD at 3200K 94 95 93 0.000
Studio HD at 5600K 91 87 86 0.000
Tungsten at 3000K 86 86 86 0.001
Daylight at 5600K 71 70 69 0.001
Source Four LED Profile luminaires provide excellent color rendering, particularly the colormixing versions. A Duv rating of 0.000 indicates that the color mix used was exactly on the
black body line, with no green or magenta tint.
Daylight and Tungsten fixtures use only white-type LEDs at a fixed color temperature in
order to maximize output and efficacy.
10 Source Four LED Profile v1.6.0 User Manual
Hardware
Color frame holder
Beam focus knob
Color frame
Lens tube
Shutter barrel
assembly
Barrel rotation knob
Yoke locking knob
Light engine
body
Yoke
Retainer bolt
Shutters
Pattern holder slot
Drop-in iris slot
NOTE: Safety cable is not included.
Safety
cable
loop
Basic Assembly
Figure-1.1 Basic assembly.
WARNING:
Mounting Hardware
A yoke is available for mounting fixtures.
Please note the following safety warnings before use:
Do not mount the fixture on or near combustible surfaces.
Do not operate the fixture without a lens installed.
Always hang the fixture with the color frame retaining clip in the locked
position.
Always use a properly installed safety cable.
Disconnect the unit from power and DMX and allow the fixture to cool before
removing or installing the shutter barrel or other adapters, and all cleaning
and maintenance.
1 Installation and User Interface 11
Install Lens Tube
Beam focus knob
Phillips screw
Any of the ETC Source Four lens tubes can be installed into the shutter barrel of the Source
Four LED Profile. For better results, use one of the preferred lens tubes listed below.
Figure-1.2 Secure lens tube with zoom knob and Phillips screw.
Step 1: Slide the lens tube into shutter barrel.
Step 2: Install the lens zoom knob.
Step 3: Install the Phillips screw in the top of the lens barrel.
Preferred Lensing Options
Fixed Beam Lenses
Model Description
LED50LT LED specific 50° EDLT with lenses installed
LED50LT-1 LED specific 50° EDLT (white) with lenses installed
436EDLT 36° EDLT w/lens installed
436EDLT-1 36° EDLT (white) w/lens installed
426EDLT 26° EDLT w/lens installed
426EDLT-1 26° EDLT (white) w/lens installed
419EDLT 19° EDLT w/lens installed
419EDLT-1 19° EDLT (white) w/lens installed
490LT 90° w/lens installed
490LT-1 90° (white) w/lens installed
470LT 70° w/lens installed
470LT-1 70° (white) w/lens installed
414LT 14° w/lens installed
414LT-1 14° (white) w/lens installed
410LT 10° w/lens installed
410LT-1 10° (white) w/lens installed
405LT 5° w/lens installed
405LT-1 5° (white) w/lens installed
Zoom Lens Assemblies
Use with light engine body without the shutter barrel.
Model Description
41530LT Source Four 15-30 Zoom lens assembly
42550LT Source Four 25-50 Zoom lens assembly
12 Source Four LED Profile v1.6.0 User Manual
Aim Adjustments
Yoke locking
knob
The fixture can be tilted up and down to aim the light where it is needed. The adjustment is
the same for the yoke or floor stand. To assist aiming the fixture, you can turn it on without
having to be connected to DMX control or enabling a preset. For more information, see
Focus, page 50.
Figure-1.3 Tilting the Fixture on the Yoke.
Turning the Fixture On
Step 1: Apply power to the fixture.
Step 2: On the back of the fixture press [].
Step 3: With Focus selected, press [].
Adjusting the Tilt
Step 1: Loosen the yoke locking knobs. Do not remove them.
Step 2: Tilt the fixture to the desired position.
Step 3: Tighten the yoke locking knobs to secure in position.
Adjusting the Pan
The pan is adjusted at the hanging clamp. Please consult the clamp manufacturer’s
documentation for instructions on loosening and rotating the yoke at the clamp.
WARNING:
A safety cable (or other approved safety device) must be securely attached to
the safety cable loop before loosening the clamp.
1 Installation and User Interface 13
Focusing the Beam
Beam focus knob
A-Size Pattern holder: holds 3”
diameter patterns
B-Size Pattern holder:
holds 2.5” and 2.75”
diameter patterns
Figure-1.4 Focusing the beam.
Step 1: Loosen the beam focus knob located under the barrel as shown in Figure-1.4.
Step 2: Slide the lens tube forward or backward to achieve the desired beam edge.
Step 3: Once the fixture is focused, tighten the beam focus knob.
Shaping the Beam
The beam can be shaped using the shutters (see Figure-1.1), a pattern, an optional drop-in iris, or
by rotating the barrel.
Pattern Projection
The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates
A-size, B-size, and glass pattern holders.
3.12" Diameter
2.75" Diameter
3.70"
3.70"
Figure-1.5 Pattern holders.
Note:
Pattern projections generally look best when used with the included Soft Focus
diffuser.
Note:
14 Source Four LED Profile v1.6.0 User Manual
Because the Source Four aperture is 3 inches wide, ETC recommends using A-size
patterns for maximum pattern effectiveness.
Soft Focus Diffuser
Accessory slot
Iris
To clean up edge effects, use the soft focus diffuser in the A-size pattern holder. If
combining the diffuser with a pattern, put the diffuser behind the pattern. The soft focus
diffuser allows you to maintain sharp focus of the pattern while eliminating edge effects. The
diffuser is intended for Source Four LED fixtures only.
A permanent install kit is available.
Figure-1.6 Soft Focus diffuser.
Step 1: Install the diffuser into an A-Sized Pattern holder.
Step 2: Install a pattern in front of the diffuser, if needed.
Step 3: Insert the pattern holder and diffuser into the Pattern holder slot, making sure the
writing on the diffuser faces the front of the fixture.
Also see Smooth Wash Diffuser, page 30.
Note:
Enhanced Definition Lens Tubes (EDLT) are highly recommend for use with Source
Four LED Profile luminaires to provide a crisper pattern projection.
Accessory Slot
Figure-1.7 Accessory slot
The accessory slot is located on the top of the shutter barrel and in front of the pattern holder slot.
It accommodates either a drop-in iris or a motorized pattern device. When the slot is not in use, a
small sheet metal cover secured with two Phillips screws prevents light leakage.
1 Installation and User Interface 15
Step 1: Use a Phillips screwdriver to loosen the screws on the drop-in iris slot cover. Do
Barrel rotation knob
C-clamp
Pipe bolt
Pan screw
Yoke bolt and lock
washer
not remove screws.
Step 2: Slide the cover completely forward to expose the slot.
Step 3: Insert the iris or motorized pattern device. For an iris, install the flat side toward
the shutters and make sure the iris handle extends from the slot.
Step 4: Slide the slot cover back toward the shutters until it meets the iris handle. Leave
enough space to move the iris handle.
Step 5: Secure the accessory slot cover by tightening the screws.
Rotating the Shutter Barrel Assembly
Figure-1.8 Rotating the shutter barrel assembly
Step 1: Loosen the shutter barrel rotation knob directly behind the shutters on the
underside of the reflector housing. Do not remove the barrel rotation knob.
Step 2: Rotate the shutter barrel to the desired position (up to 25° in either direction from
the centered position).
Step 3: Once the shutter barrel is positioned, tighten it’s rotation knob to lock it in place.
Adjusting the C-clamp For North America
Figure-1.9 Adjusting the C-clamp.
The C-clamp attaches the fixture to the mounting pipe and allows fixture adjustments when
mounted.
16 Source Four LED Profile v1.6.0 User Manual
Step 1: Secure the C-clamp to the yoke with the provided yoke bolt and lock washer.
Step 2: Place the C-clamp on the mounting pipe and secure by tightening the pipe bolt.
Step 3: Loosen the C-clamp pan screw and rotate the yoke to the desired position.
Step 4: Retighten the pan screw to lock the fixture.
CAUTION:
Tighten C-clamp pipe bolt to 15-20 ft./lbs. (approximately finger tight plus up to
one-quarter turn). Do not exceed 25 ft./lbs. Do not use excessive force.
Tighten the yoke pivot bolt to 5-10 ft./lbs. (approximately finger tight plus up to
one-eighth turn). Do not exceed 15 ft./lbs. Do not use excessive force.
1 Installation and User Interface 17
Adjusting the Yoke Position
Low clearance position
General use position
The Source Four provides multi-positioning capabilities within its yoke for overall fixture height and
angle.
Setting the Fixture Height Within the Yoke
The Source Four has a two-position yoke for modifying the overall mounting height.
.
Figure-1.10 Adjusting the yoke position.
To change the fixture yoke position:
Step 1: Remove the yoke locking knobs, washers, and hex bolts from either side of the
fixture.
Step 2: Raise or lower the fixture to the desired position within the yoke.
Step 3: Reinstall the yoke’s hex bolts, washers, and locking knobs.
Step 4: Tighten the yoke knobs to secure in position.
18 Source Four LED Profile v1.6.0 User Manual
Installation Clearances
Cooling and Duty Cycle
Source 4 LED fixtures are fan cooled and can operate all channels at full power
continuously in ambient temperatures up to 40°C (104°F).
If ambient conditions exceed 40°C (104°F) or fail to allow sufficient airflow, over a long
period of time, the fixtures may shut down and remain off until they return to a safe
operating temperature. The fixtures provide two methods to indicate over temperature that
can be set up on the Local Settings menu. The over temperature indicators are:
Visible
The LED array glows in a dull, low intensity with only some emitters illuminated, the LCD
backlight is turned on, the LCD displays Overtemp Activated, and the Error Indicator light
turns on.
Dark
The LED array turns off and the LCD displays Overtemp Activated. The LCD backlight is
not turned on.
CAUTION:
LED life is adversely affected by high-temperature operation. When operating under
elevated ambient temperatures, avoid turning all channels to 100% for extended periods,
such as channel checks or focusing.
Duty Cycle
Operating the fixtures in higher ambient temperatures or low-airflow situations may
cause the power supply to shut down. Following a cool-down period, the power
supply will automatically reset and the fixture will return to operation.
It is good practice to power down any device with on-board electronics to limit
unnecessary wear on the devices and eliminate residual use of electricity.
1 Installation and User Interface 19
Dimensions and Hanging Clearances
Use the following dimensions to allow proper clearances around the fixture. Allow additional
space for cables.
12.1”
308mm
17.1”
434mm
24.2”
615mm
10.6”
268mm
7.9”
200mm
10.8”
274mm
9.2”
233mm
19.56”
497mm
25.9”
659mm
12.9”
328mm
13.1”
333mm
22.3”
566mm
30.7”
779mm
6.9”
174mm
13.3”
338mm
Figure-1.11 Dimensions with typical 19°, 26° or 36° lens tube fully extended. Other lens tubes
available, but not shown.
20 Source Four LED Profile v1.6.0 User Manual
Safety Cable
Safety cable
loop
A safety cable (or other approved safety device) should be attached to the fixture housing
and wrapped around the hanging structure (pipe). An appropriate attachment loop is
provided on the protruding tab of the fixture housing. Take care to leave as little slack as
possible in the safety cable to avoid the cable catching the yoke of the fixture.
Figure-1.12 Safety Cable Loop on Fixture Housing.
Fixture Weight
Total weight depends on how the individual fixture is configured.
With barrel
Without barrel
Model
Lbs.Kg.Lbs.Kg.
19.0 8.6 28.7 13.0
15.0 6.8 23.7 10.8
a) Does not include mounting hardware.
Weight
a
Shipping Weight
1 Installation and User Interface 21
Power and Data Cabling Requirements
Power
The Source 4 LED fixture operates on AC power, 100 to 240VAC/50-60Hz. The fixture must
be connected to a non-dimmable power source in order to avoid damage to its internal
power supply and other electrical components.
WARNING:
Data
The Source 4 LED fixtures operate on a DMX control signal or as standalone fixtures. The
fixture is supplied with a 5-pin XLR DMX input connector and a 5-pin DMX Thru connector.
DMX cables should be acceptable for DMX data transmission (not microphone cable) and
should follow the standard pinout. The optional secondary data pair is not used by the
Source 4 LED fixtures. The maximum DMX data run from any DMX source to the last fixture
in a chain is 1000 feet (300m). Source 4 LED fixtures are self-terminated.
See DMX Profile, page 24 for additional information on DMX addressing of Source Four
LED Profile fixtures.
The fixture must be connected to a non-dimmable power source in order to
avoid damage to its internal power supply and other electrical components.
Dimming will damage the fixture and void the warranty.
DMX512 pinout for five-pin XLR female
1 Common (Shield)
5
4
3
2
1
2 Data –
Push
3 Data +
4 not connected
5 not connected
22 Source Four LED Profile v1.6.0 User Manual
Connections
Power In
Power Thru
DMX In
DMX Thru
Status indicators
All connections and user controls are located on the back of the fixture.
Figure-1.13 Power and DMX Connections on Back of Fixture.
Connect AC input power and DMX data cables to the appropriate ports. Connect the
incoming DMX data cable to the DMX Input connector. If you are daisy-chaining the data
to other fixtures or DMX-controlled devices, connect the next DMX cable to the DMX Thru
connector. Up to 32 fixtures can be connected together into a data daisy-chain.
For information about the user interface, refer to User Interface Overview, page 32.
Source Four LED Series Connections
AC cable
Connect:
Align and insert the power connector. Twist the connector clockwise until it locks into place.
Disconnect:
Slide back the locking tab to unlock, twist the connector counterclockwise, and then pull and
disconnect the power connector.
DMX cable
Connect:
Align and insert the DMX connector.
Disconnect:
Press the release button on the connector or on the fixture and pull the connector out.

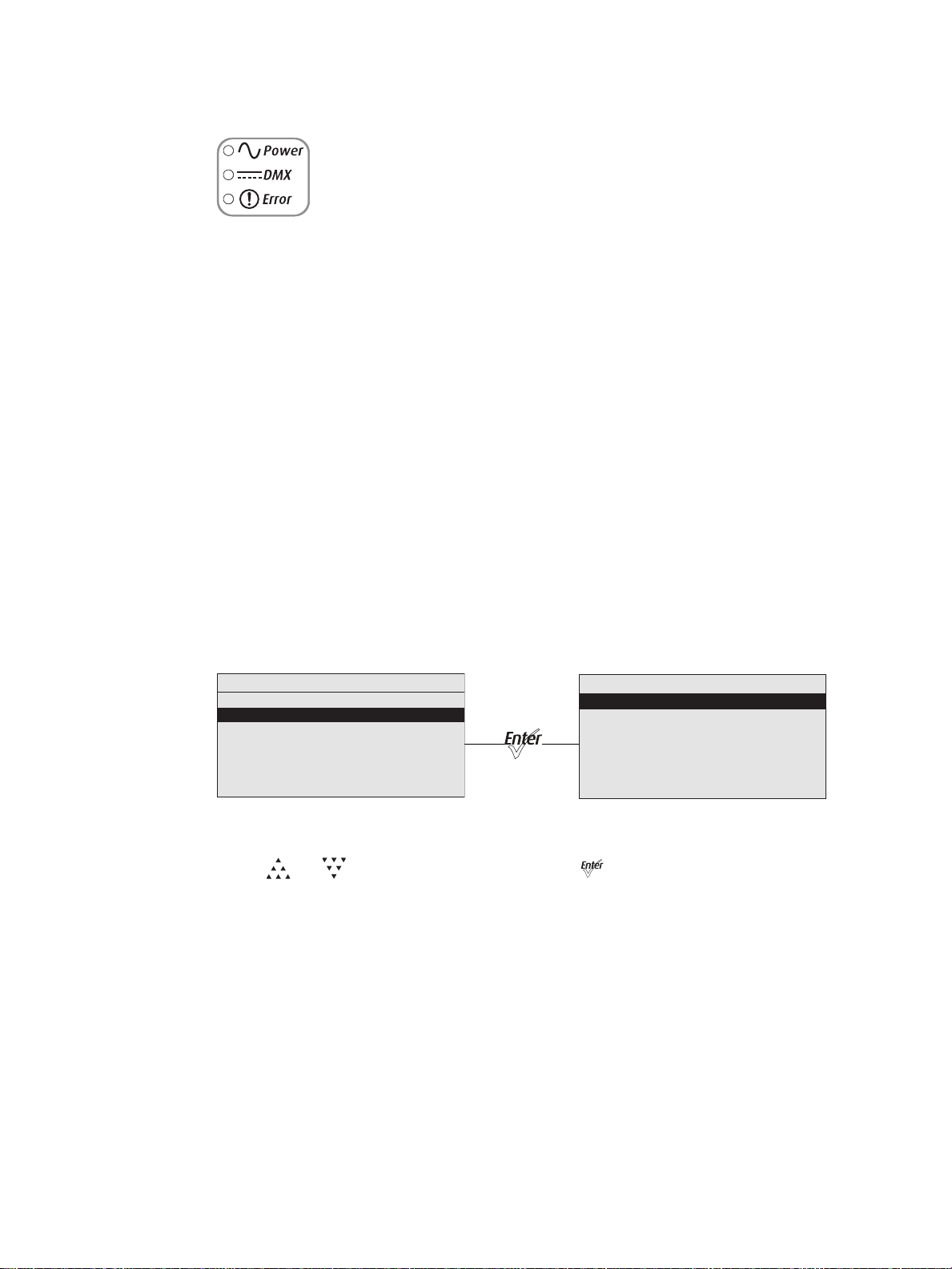

Indicator Lights
The indicator lights show the status of power input (blue), DMX input (green) and fixture
errors (red). When the DMX signal is lost, the green indicator flashes.
If the fixture status indicator is configured to Off, the indicator lights will not illuminate. For
more information, see Local Settings, page 66.
1 Installation and User Interface 23
DMX Profile
Addressing
Addresses must be set between 1 and 510.
Each Source Four LED Profile fixture must be considered a separate DMX device for
the purpose of DMX line-loading calculations.
DMX line-loading practice dictates that no more than 32 devices can be daisy-chained
together. Consequently, no combination of Source Four LED Profile fixtures totaling more
than 32 DMX devices should be configured in one DMX line. For runs of fixtures totaling
more than 32 DMX devices, split the DMX runs by using a DMX splitter.
Note:
Depending on the selected fixture profile and activated features, a fixture with a
starting address higher than 499 may not have control of all parameters, even though
the highest address shown on the user interface is 512.
Addressing is not required for standalone operation.
Profiles
Source Four LED Profile fixtures occupy 1 to 15 DMX channels depending on the profile
and which features are turned on. The tables below describe the order and function of each
channel.
Lustr+, Series 2 Lustr, and Studio HD Profile
Direct Control
Direct Control uses one DMX channel per individual color within the LED array for a total of
seven color channels, arranged according to the Color Mixes table. Each controls the
intensity of the color from 0 to 100%. An additional, 8th DMX channel is used as a master
intensity fader for controlling the brightness of the overall fixture. Channel 9 is for strobe
when enabled.
Data Channel Control Value Function
1 Fixture address
2 Fixture address + 1
3 Fixture address + 2
4 Fixture address + 3
5 Fixture address + 4
6 Fixture address + 5
7 Fixture address + 6
8 Fixture address + 7 Intensity
9 Fixture address + 8 Strobe Variable strobe control
a) See Color Mixes, page 25.
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
a
a
a
a
a
a
a
0 to 255
Color intensity 0 to100%
Overall intensity 0 to
100%
24 Source Four LED Profile v1.6.0 User Manual
Color Mixes
The following table shows the color mixes for the fixture.
Color Lustr+ Series 2 Lustr Studio HD
1Red Red Red
2 White Lime Red Orange
3Amber Amber Mint
4 Green Green Blue
5CyanCyanIndigo
6 Blue Blue —
7 Indigo Indigo —
Terminology:
• White Point - The color temperature of a white light when saturation is at zero%.
• Tint - The balance between green and magenta within a fixture.
HSI and HSIC:
The HSI profile (Hue, Saturation, Intensity) uses four channels of DMX input, corresponding
to 16-bit hue (two channels: coarse and fine), saturation, and intensity. The HSI profile
makes Source Four LED Profile fixtures compatible with conventional HSI console profiles
while capitalizing on fixtures' expanded color capabilities. Channel 5 is for Strobe, when
enabled. Also see Color Matching, page 27.
The HSIC profile (Hue, Saturation, Intensity, Color Temperature (White Point)) is similar to
HSI, except that it uses an additional sixth channel to control the color temperature of the
white point. The Red Shift function is automatically disabled in the HSIC profile.
Data Channel Control Value Function
1 Fixture address Hue coarse
2 Fixture address + 1 Hue fine
3 Fixture address + 2 Saturation
4 Fixture address + 3 Intensity Intensity 0 to 100%
5 Fixture address + 4 Strobe Variable strobe control
6 Fixture address + 5 Fan control
7 Fixture address + 6 White point
Note:
The HSI profile is optimized for maximum brightness at all settings.
0 to 65535
0 to 255
Hue 0
Saturation 0 to 100%
Force fan on various
speeds
Color temperature 2700 to
6500K
1 Installation and User Interface 25
RGB
Effectively addresses all seven colors via three channels of control. The RGB profile
produces medium-quality color crossfades. It makes the Source Four LED Profile fixtures
compatible with conventional RGB console profiles while maintaining enhanced color
production from the fixture. Also see Color Matching, page 27
.
Data Channel Control Value Function
1 Fixture address Red
0 to 255
3 Fixture address + 2 Blue
4 Fixture address + 3 — — —
5 Fixture address + 4 Strobe
6 Fixture address + 5 Fan control
0 to 255
Intensity 0 to 100%2 Fixture address + 1 Green
Variable strobe control
Force fan on various
speeds
Note:
The RGB profile is optimized for maximum brightness at all settings. Occasionally
small changes in RGB values may produce unexpected jumps in brightness.
Shifts in brightness may be perceived during color crossfades in cues and presets.
Studio
The fixture produces only white-type light, which is adjustable from 2700 to 6500K. The
Studio profile uses three DMX channels to control Intensity, white point, and tint. Tint is
adjustable without affecting the white point. All three control parameters are adjustable via
DMX as well as onboard with instant access via UI buttons.
For more information, see Studio Settings, page 70. Also see Color Matching, page 27.
Data Channel Control Value Function
1 Fixture address Intensity
2 Fixture address + 1 White point: 2700 to 6500K
0 to 255
3 Fixture address + 2 Tint
4 Fixture address + 3 — — —
5 Fixture address + 4 Strobe
6 Fixture address + 5 Fan control
0 to 255
Intensity 0 to 100%
0 = 3200K
1 to 254 = 2700K to 6500K
255 = 5600K
0 = neutral white
1 to 127 = full plus-green
to neutral white
128 = neutral white
129 to 255 = neutral white
to full minus-green (full
magenta)
Variable strobe control
Force fan on various
speeds
26 Source Four LED Profile v1.6.0 User Manual
Strobe
In most profiles, strobe is assigned to channel 5. It adds another channel to any of the DMX
profiles. Under the Advanced Settings menu, the strobe function may be disabled and the
additional channel for strobe will not be used by the fixture. With strobe at either DMX value
0 or 255, the fixture output is constantly on. At DMX 1, the fixture strobes slowly and
increases in speed toward DMX 254.
Plus 7
Plus 7 adds precision color-control channels to the HSI, HSIC, RGB, and Studio profiles.
For example, HSI with Plus 7 enabled becomes a 15-channel profile. Placing channel 7 at
a value over 51% activates the 15-channel profile within the fixture. The desired color and
intensity is achieved by using the HSI or RGB channels as a starting point. Channels 8 to
14 represent the native LED colors of the fixture and allow you to adjust each color up or
down in order to fine-tune the overall color output.
Note:
Depending on the initial color mix, some LED colors may begin at full intensity.
Moving the individual control channels for these colors from 128 to 255 will produce
no effective change from the initial color mix. Conversely, some LED colors may
begin at zero intensity, and moving individual control channels from 128 to 0 will
produce no change.
Data Channel Control Value Function
8 Fixture address + 7 Plus 7 control
9 Fixture address + 8
10 Fixture address + 9
11 Fixture address + 10
12 Fixture address + 12
13 Fixture address + 13
14 Fixture address + 14
15 Fixture address + 15
a) See Color Mixes, page 25.
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
a
a
a
a
a
a
a
Color Matching
The color output of all Source Four LED Profile fixtures is calibrated at the factory. When
operating in the RGB, HSI, HSIC, or Studio profile, each fixture makes accommodations for
the specific LEDs in its array and produces output that is consistent with other fixtures,
whether or not they utilize LEDs from the same production batch. Operating in the Direct
Control profile or with Plus 7 settings adjustments bypasses this calibration and multiple
fixtures may produce slightly different outputs when controlled as a group.
0 to 129 = Plus 7 disabled
130 to 255 = Plus 7 enabled
128 = No change from initial color
mix
129-255 = Increase from starting
value to full intensity
127-0 = Decrease from starting
value to zero intensity
Disable or enable Plus 7
control
Alter the individual LED
colors within the array to a
maximum of full intensity
or a minimum of zero
intensity.
1 Installation and User Interface 27
Daylight and Tungsten Profiles
Direct Control
The first DMX channel always controls Intensity from 0 to 100%.
Data Channel Control Value Function
1 Fixture address Intensity
2 Fixture address + 1 Strobe Variable strobe control
3 Fixture address + 2 Fan control
0 to 255
Fan Control
The Fan setting allows four options: DMX, Slow, Fast, and Automatic.
With Fan set to DMX, an additional channel of DMX control is added to the fixture profile.
This channel immediately follows the channel for Strobe. Control is as follows:
• DMX 0 — Fan turns on and off automatically, as needed for cooling. Fan remains off
when not required by the fixture.
• DMX 1 to 254 — Fan is forced on at a continuously variable speed from low to high.
Occasionally, the fan speed may be increased automatically by the fixture for additional
cooling power when required.
• DMX 255 — Fan is forced on at its highest, loudest speed for maximum consistency of
noise produced by the fixture.
When Fan is set to Slow, Fast, or Automatic, there is not a channel designated for control
within the DMX profile. At Slow and Fast settings, the fan operates whenever the fixture is
powered on, independent of other fixture settings or control.
Intensity 0 to 100%
Force fan on at various
speeds
• Slow — Fan runs continuously at a low-noise speed. When deemed necessary by the
fixture, the fan speed may be increased automatically for additional cooling power.
• Fast — Fan runs continuously at its highest and loudest speed, and never increases
automatically.
• Automatic — Fan operation is intermittent and based on the fixture's internally
calculated cooling requirements.
28 Source Four LED Profile v1.6.0 User Manual
DMX Footprints and Channel Mapping
Tungsten and Daylight
Channel Control
1 Intensity
2
3
Lustr+, Series 2 Lustr, and Studio HD
Channel HSI HSIC RGB Studio Direct
1 Hue Hue Red Intensity Color 1
2 Hue fine Hue fine Green Color temp Color 2
3 Saturation Saturation Blue Tint Color 3
4 Intensity Intensity N/A N/A Color 4
5 Strobe* Strobe* Strobe* Strobe* Color 5
6
7 N/A Color temp N/A N/A Color 7
8
9
10
11
12
13
14
15
*
Strobe
Fan control
Fan control
Plus7 on/off
Plus7 - (1)
Plus7 - (2)
Plus7 - (3)
Plus7 - (4)
Plus7 - (5)
Plus7 - (6)
Plus7 - (7)
*
*
*
*
*
*
*
*
*
*
Fan control
Plus7 on/off
Plus7 - (1)
Plus7 - (2)
Plus7 - (3)
Plus7 - (4)
Plus7 - (5)
Plus7 - (6)
Plus7 - (7)
*
*
*
*
*
*
*
*
*
Fan control
Plus7 on/off
Plus7 - (1)
Plus7 - (2)
Plus7 - (3)
Plus7 - (4)
Plus7 - (5)
Plus7 - (6)
Plus7 - (7)
*
*
*
*
*
*
*
*
*
Fan control
Plus7 on/off
Plus7 - (1)
Plus7 - (2)
Plus7 - (3)
Plus7 - (4)
Plus7 - (5)
Plus7 - (6)
Plus7 - (7)
*
*
*
*
*
*
*
*
*
Color 6
Intensity
*
Strobe
Fan control
N/A
N/A
N/A
N/A
N/A
*
* When this feature is enabled.
1 Installation and User Interface 29
Installing Accessories
Retaining clip
shown in the
locked position
Color Frame Holder
Figure-1.14 Color frame holder and retaining clip.
The gel frame holder is equipped with a spring-loaded retaining clip that prevents gel frames and
accessories from falling out.
WARNING:
Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.
Step 2: Insert the color frame or other accessory.
Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.
Make sure all color frames and accessories are locked in position with the
retaining clip before hanging the fixture.
Smooth Wash Diffuser
To reduce edge effects and provide better overlap when using the fixture for wash, use a
smooth wash diffuser. If this diffuser is used, it recommended to not use the soft focus
diffuser in the pattern holder. See Soft Focus Diffuser, page 15.
30 Source Four LED Profile v1.6.0 User Manual
Chapter 2
Basic Menu Navigation
This chapter contains the following sections:
• User Interface Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
• LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
• Screen Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
• Status (Home) Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
• Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
2 Basic Menu Navigation 31
User Interface Overview
Status indicators
LCD
Keypad
The Source Four LED Profile user interface (UI) consists of an LCD and keypad. All of the
basic information is displayed on the LCD and the keypad is used to navigate through the
menus. Use the LCD and keypad to program the fixture for your specific application.
LCD
Figure-2.1 User Interface on back of fixture.
The Source Four LED Profile fixture features a backlit LCD capable of displaying 8 rows of
text with 21 characters per line. The first row is reserved for the menu title.
To adjust the contrast of the LCD:
Press and hold [] and then press [] or [] repeatedly until the desired contrast
is achieved.
32 Source Four LED Profile v1.6.0 User Manual
Keypad
Use the keypad buttons to access and navigate the menus on the LCD.
Figure-2.2 Keypad buttons.
Home
Opens the home screen.
Back
Cancels the current operation and returns to the previous screen.
Multiple presses of the back button will eventually take you to the
status display.
Up
Increases a value or menu choice by one. Pressing and holding the
push button increases the rate of change.
Down
Decreases a value or menu choice by one. Pressing and holding the
push button increases the rate of change.
Note:
When the fixture is in the stand-alone mode of the Studio profile, the functionality of
the buttons changes. For more information, see Operation From Home Status Screen
(Studio Standalone), page 70.
Keypad Lockout
The keypad may be locked to prevent unauthorized access to fixture settings. Press []
and [] simultaneously for approximately 3 seconds. A small padlock icon appears in the
corner of the UI screen to indicate that the keypad is locked. To unlock, again press []
and [] simultaneously for approximately 3 seconds. The padlock icon disappears. The
locked or unlocked status of the keypad persists through on/off power cycles. Keypad
lockout does not affect access to fixture settings via RDM.
Light Bulb
Opens the Presets and Sequences menu.
Enter
• Activates a menu selection or stores a value. For most settings,
push [] repeatedly to scroll through available options while the
setting is highlighted, and then push [] or [] to commit the
change and move to a different setting.
• Certain settings require the selection of a numeric value. Press
Enter once to highlight the number, push [] or [] to reach
the desired value, and then press [] to commit the change.
2 Basic Menu Navigation 33
Status Indicators
Figure-2.3 Status Indicators on the back of the fixture.
The status indicators are three, small, colored LEDs on the User Interface that indicate the
status of:
• Power — Illuminated blue when AC power is supplied to the fixture.
• DMX — Illuminates solid green when an active DMX signal is being received by the
fixture. The LED blinks when no DMX is present.
• Error — Illuminates red only when the fixture is experiencing a data error, high
internal temperature, or other abnormal condition.
Status indicators are on by default. You can turn them off through the Local Settings menu.
For more information, see Local Settings, page 66.
Screen Navigation
When the Source Four LED Profile fixture is powered up, a splash screen briefly displays,
followed by a status screen.
The menu system and LCD backlight are set, by default, to “sleep” after one minute of
inactivity. Any button press wakes the LCD backlight. You can set the inactivity time on the
Local Settings menu. To “wake up” the display and go to the button’s respective function,
press any keypad button. For example, if you press [Enter], the LCD backlight comes on
and the Main Menu displays. For more information, see Local Settings, page 66.
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Figure-2.4 Main Menu with Quick Setups selected and the result of pressing enter.
Lustr+ screen shown.
Quick Setups
*General
Stage
XT Arch
High Impact
Studio
2/15 Hu e Fine
Press [] or [] to highlight a menu item. Press [] to select the item. The asterisk (*)
indicates that the item is currently active.
34 Source Four LED Profile v1.6.0 User Manual
Status (Home) Screens
DMX address
Input settings
System message area
Status bar
Display title
The status (home) screens display when you press [] or when there is no activity for a
specific time, which you set in Local Settings. For more information, see Local Settings,
page 66. The home screens display the status of multiple fixture settings. These may or
may not include:
• Quick Setup
• Input settings
• DMX address
• LED settings
• Preset or Sequence that may be active
• Master or Slave status, when applicable
• Diagnostic messages
• DMX signal status
• Software version
Most of the settings can be adjusted either on the home screen or within a short series of
menus. When a quick setup is selected, the settings of the setup are displayed on the home
screen.
For more information about status screens, see Home Screen Displays, page 38.
Stage
HSI Reg Incd RS ––
001
Power Budgeting 75%
8Ch Reg Stnd RS Strb
Figure-2.5 Examples of status screens.
Display Title
A menu’s title appears in the first row of every display for easy navigation.
Input Settings
Displays the parameters for the Quick Setup that is active. For more information, see Home
Screen Displays, page 38.
DMX Address
Indicates the DMX address when the fixture is receiving DMX. For more information, see
DMX Start Address, page 40.
Error!
11/15 +7 Amber Adj
XT Arch
Master
Sequence 5 Active
Step 4: Preset 3
Error!
Overtemp Activated
3/15 S a t urati o n
2 Basic Menu Navigation 35
System Message Area
Displays status messages, which vary depending on the function that is currently active.
Master or Slave
Indicates if the fixture is the master or slave when the a string of fixtures is running together
in standalone operation. For more information, see Master/Slave Operation, page 60.
Sequence
Indicates whether or not a sequence is active and if so, which sequence is active. For more
information, see Presets & Sequences, page 50.
Step
Indicates whether or not a preset is active and if so, which step and preset is active. For
more information, see Presets & Sequences, page 50.
Preset
Indicates which preset is currently active. For more information, see Presets & Sequences,
page 50.
Error
Displays error messages. Refer to Error Messages, page 73 for a complete listing of
possible errors and the actions required to clear them.
Status Bar
Indicates the DMX channels, type, and effect the setup uses.
Menu Navigation
The menu is designed with consistent navigation from the user interface (UI) using the
keypad.
The Main Menu is the root for all menu navigation. When an item is selected from the Main
Menu, a secondary menu displays, which includes multiple functions for selection. Some
secondary menus lead to additional menus. Select a menu item to edit its settings or to
proceed to a deeper menu. Items that may be edited are indicated with descriptive text
followed by a colon (:) and a value.
The keypad is used to edit specific objects on the operation menu, such as DMX address,
Preset and Sequence numbers, fade and delay times, etc. Once an edit has been made,
press [] to accept the selection.
Use [] to navigate to the next object for action or edit. To return to the previous
operation, press []. Continue pressing [] to return to the menu list and then the Main
Menu.
[] may also be used with any Yes or No dialog box. Pressing [] is the same as
selecting No.
36 Source Four LED Profile v1.6.0 User Manual
Chapter 3
Operation
This chapter contains the following sections:
• Home Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
• Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
• Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
• Studio Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
• Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
• Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
• Routine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
3 Operation 37
Home Screen Displays
Depending on the fixture settings, the following are displayed in the system message area
on the respective home (status) screens.
Lustr+, Series 2 Lustr, and Studio HD
Parameter Stage XT Arch High Impact Studio General
Profile HSI HSI RGB Studio
Output Setting
Dimming Curve
Red Shift (RS) Enabled Disabled Disabled Disabled Disabled
Strobe (Str) On On On On On
Daylight and Tungsten
Parameter Studio Stage Single Channel
Profile Studio Direct Direct
Output Setting Regulated (Reg) Regulated (Reg) Regulated (Reg)
Dimming Curve Linear (Lin) Incandescent (Incd) Standard (Std)
Strobe (Str) On On Off
Fan Control DMX DMX Automatic (Auto)
Regulated
(Reg)
Incandescent
(Incd)
Protected
(Prt)
Standard
(Stnd)
Boost
(Bst)
Quick
(Qik)
Regulated
(Reg)
Linear
(Lin)
Direct Control
(Dir)
Regulated
(Reg)
Standard
(Std)
Profile Lustr+, Series 2 Lustr, and Studio HD
The control profile defines the number and control parameter assignments of input
channels for intensity and color-control. For more information, see Profiles, page 24.
Profile (Daylight and Tungsten)
The control profile for Daylight and Tungsten includes only the Direct or Studio options. The
first channel of DMX control adjusts fixture Intensity from 0 to 100%. For more information,
see Daylight and Tungsten Profiles, page 28.
Output Setting
Output is the way and amount to which the fixture constrains the overall power going to the
LED array, which determines how consistent the fixture’s brightness may be. For more
information, see Output, page 46.
Dimming Curve
Dimming curve is the way that the fixture responds to changes in the control signal for
overall intensity. For more information, see Curve, page 47
Red Shift
Red shift replicates the warming of an incandescent filament’s color temperature change
as it dims. For more information, see Red Shift, page 49.
Strobe
Strobe flashes the output of the LED array. For more information, see Strobe, page 43.
38 Source Four LED Profile v1.6.0 User Manual
Fan Control
The fan can be forced on via DMX control or by adjusting settings under the Advanced
Settings menu. For more information, see Fan Control, page 28.
Thermal Shutdown Warning
Displayed as OverTemp, it is what the fixture does to visibly warn you that it has become
overheated and has gone into a shut-down status, which is maintained until the fixture
returns to a safe operating temperature. For more information, see OverTemp, page 68.
Data Loss Behavior
What happens to the fixture's output when the external control signal is lost. For more
information, see Data Loss, page 44.
Status Indicators
Status Indicators are on by default. For more information, see Status Indicators, page 67.
3 Operation 39
Main Menu
The Main Menu can be accessed at any time while viewing other screens. To access the
Main Menu, press [] and then press [].
DMX Start Address
Use the DMX Start Address to set the DMX address of the fixture. Also see DMX Settings,
page 42.
DMX Start Address: 001
Quick Setups
Advanced Settings
Figure-3.1 Selecting DMX Start Address on the Main Menu.
Step 1: On the Main Menu, scroll to DMX Start Address.
Step 2: Press [] to select the address number.
Step 3: Use [] or [] to scroll to the desired address.
Step 4: Press [].
Step 5: Press [] to return to the home screen.
Quick Setups
Quick Setups are groupings of predefined fixture performance settings, based on typical
applications.
Use the Quick Setups menu to select the desired setup. When a setup is active, the status
bar at the bottom of the screen indicates the DMX channels, their functions, and
arrangements that the setup uses.
Main Menu
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Figure-3.2 Selecting Quick Setup on the Main Menu.
Quick Setups
*General
Stage
XT Arch
High Impact
Studio
1/15 Hue Coarse
Step 1: On the Main Menu, scroll to Quick Setups.
Step 2: Press [].
Step 3: Scroll to the desired profile and then press [].
An asterisk (*) next to the profile name indicates that profile is active.
Step 4: Press [] to return to the home screen.
The top line of the home screen displays the name of the active profile.
40 Source Four LED Profile v1.6.0 User Manual
Advanced Settings
The Advanced Settings menu is for experienced users or for applications that entail very
carefully defined performance parameters. You can make individual adjustments of all
fixture settings for customized control.
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Figure-3.3 Advanced Menu from the Main Menu.
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
When opening Advanced Settings, all fixture settings remain at their most recent values
until readjusted. The fixture automatically goes into Advanced Settings when any settings
are altered from one of the preset Quick Setups. Copy All Settings appears on the screen
only when DMX is not present.
3 Operation 41
Advanced Menu
The Advanced Menu provides access to various fixture settings and specific operations.
The Advanced Menu is accessed from the Main Menu by pressing [] or [] to select
Advanced Settings and then pressing [].
Copy All Settings appears on the screen only when DMX is not present. See Copy All
Settings, page 69.
DMX Settings
The current DMX settings are shown in the DMX Settings screen. Use the DMX Settings
screen to customize the following:
• DMX start address
• DMX profile
•Strobe
• Data loss
• Plus Seven (Lustr+, Series 2 Lustr, and Studio HD)
The two lower lines of the DMX Settings screen display the number of DMX channels used
by the fixture, according to the options selected, and their arrangement, in order.
Note:
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Figure-3.4 Selecting DMX Settings from the Advanced Menu.
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: En able d
DMX Profile: 6 chan
DMX Settings
1/15 Hue Coarse
DMX Start Address
The DMX start address is selectable from 1 to 512.
Step 1: On the Advanced Menu, scroll to DMX Settings.
Step 2: Press [].
Step 3: With DMX Start Address selected, press [] to select the value.
Step 4: Then press [] or [] to set the desired address.
Step 5: Press [].
Step 6:
A change to the DMX start address on this screen will override and update the DMX
start address selected on the Home screen.
42 Source Four LED Profile v1.6.0 User Manual
DMX Profile
The current DMX profile is displayed on the DMX Settings menu. You can customize the
setting by selecting a different profile. For detailed information about each profile, see
Profiles, page 24.
Step 1: On the DMX Settings menu, scroll to DMX Profile.
DMX Settings
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: En able d
DMX Profile: 6 chan
Figure-3.5 Selecting DMX Profile on the DMX Settings Menu.
3/15 S a t urati o n
Step 2: Press [] to set the desired profile.
Strobe
Strobe adds another DMX channel of control at channel 5 (or channel 9 when operating in
Direct Control profile). When enabled, the Strobe channel controls the fixture output as
follows.
DMX Value Strobe Effect
0 Full on
1 to 254 Variable rate from slow to fast
255 Full on
Step 1: On the DMX Settings menu, scroll to Strobe.
DMX Settings
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: En able d
DMX Profile: 6 chan
Figure-3.6 Enabling Strobe on the DMX Settings Menu.
5/15 S t r o b e
Step 2: Press [] to toggle between On and Off.
Step 3: Press [] or [] to commit the option.
3 Operation 43
Fan Control
Fan Control adds another DMX channel of control when set to DMX. Alternate settings are
Slow, Fast, and Automatic. For more information, see Fan Control, page 28.
Step 1: On the DMX Settings menu, scroll to Fan.
DMX Settings
DMX Start Address: 101
DMX Profile: Direct
Strobe Mode: Enabled
Data Loss: Instant
Fan Mode: Auto
6/15 Fan
Figure-3.7 Setting the Fan Mode on the DMX Settings Menu.
Step 2: Press [] to scroll through the available options.
Step 3: Press [] or [] to commit the option.
Data Loss
Data Loss is what happens to the fixture's output when the external control signal (either
DMX or data from the Master fixture in a Master/Slave configuration) is lost. The choices
are as follows:
Instant
As soon as the control signal is lost, the fixture shuts off output and the LED array goes
black.
HLL-2Min
Hold last look for 2 minutes. The fixture retains its last setting for 2 minutes after the control
signal is lost, after which it shuts off output.
Cycling power to the fixture before the 2 minutes have passed will clear the last look and
the LEDs will remain off until control signal is restored.
HLL-4ever
Hold last look forever. After data is lost, the fixture maintains its last look until power is
removed from the fixture or control signal is restored. The last look will not be restored after
power has been cycled.
Step 1: On the DMX Settings menu, scroll to Data Loss.
DMX Settings
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: En able d
DMX Profile: 6 chan
Figure-3.8 Setting the Data Loss Type on the DMX Settings Menu.
Step 2: Press [] to toggle through the three options.
Step 3: Press [] or [] to commit the option.
2/15 Hue Fine
44 Source Four LED Profile v1.6.0 User Manual
Plus Seven (Lustr+, Series 2 Lustr, and Studio HD)
Plus Seven allows enhanced color-mixing precision when using the RGB, HSI, HSIC, or
Studio profile as a starting point for color selection. Enabling Plus Seven adds another 8
DMX channels of control at the end of the control channels already in use by the fixture. For
example, in the HSIC profile, with Strobe enabled, the fixture uses 6 channels of control.
Enabling Plus Seven adds another 8 channels to the fixture, for a total of 14 channels of
control.
The first additional channel is an activation channel for the Plus Seven function. A value of
0 to 50% (DMX 0 to 129) deactivates Plus Seven. A value of 51 to 100% (DMX 130 to 255)
activates Plus Seven. The remaining 7 additional channels correspond to the individual
colors within the fixture's LED array.
Step 1: On the DMX Settings menu, scroll to Plus Seven.
DMX Settings
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: Enabled
DMX Profile: 6 chan
Figure-3.9 Enabling Plus 7 on the DMX Settings Menu.
Step 2: Press [] to toggle between On and Off.
1/15 Hue Coarse
Note:
Step 3: Press [] or [] to commit the option.
Using Plus Seven Control
The following procedure is performed on your lighting console.
Step 1: Select a starting color point for the fixture output using the standard control
channels for RGB, HSI, etc.
Step 2: Set the first additional channel to a value between 51 and 100% to activate Plus
Seven.
Step 3: Refine the fixture output by altering one or more of the 7 individual color
channels.
• The starting point for each color is defined by the original color selection in
step 1.
• The brightness of each color can be increased or decreased from the starting
point to any value between zero and full output.
• Colors already at full output will not change when the Plus 7 channels are
moved up from the starting point, and colors already at zero output will not
change when the Plus 7 channels are moved down from the starting point.
Once any one of the seven individual color channels is altered from its neutral
starting position, the settings for the original color point may no longer reflect the
actual output of the fixture.
When using RGB, HSI, HSIC, or Studio profile for color selection, each fixture makes
accommodations for the specific LEDs in its array and produces output that is
consistent with other fixtures, whether or not they use LEDs from the same
production batch.
Operating with Plus Seven enabled can override this calibration, and multiple fixtures
may produce slightly different outputs when individual color channels are altered
from their neutral starting points.
3 Operation 45
LED Settings
Use the LED Settings menu to adjust fixture performance. From the LED Settings menu,
you can set the following.
• Output
•Curve
• Output Frequency
•Red Shift
• White Point
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Figure-3.10 Selecting LED Settings on the Advanced Menu.
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
LED Settings
Output
Use Output to choose the optimal balance between two competing performance
parameters, maximum brightness and output consistency, by adjusting:
• How much the fixture limits the overall power to the LED array.
• How the fixture reduces output as internal fixture components heat up during use or in
high ambient temperatures.
The output options are as follows.
Regulated
Regulated is a moderately constrained power or brightness with consistent output under
typical use. Power to the LEDs is separately regulated in order to maintain consistent
brightness during the initial fixture warm-up period. This is recommended for most indoor
applications.
Protected
Protected provides the most consistent output possible with the greatest potential for
reduced overall brightness. This is best for changing environmental temperatures, and
applications with high requirements for consistency in extreme operating conditions.
Boost
Boost provides the brightest possible output, with least guarantee of consistency. This is
best for applications with low duty cycles, loose brightness requirements, or where ambient
temperature is low.
46 Source Four LED Profile v1.6.0 User Manual
Step 1: On the Advanced Menu, scroll to LED Settings.
Step 2: Press [].
Step 3: With Output selected, press [] to toggle between the options.
Step 4: Press [] or [] to commit the option.
Note:
All Output settings, if the fixture gets too warm and internal components approach
unsafe operating temperatures, the total power to the LED array is gradually reduced
and proportionate brightness levels between the various colors of LEDs are
maintained as much as possible in order to preserve the overall color mix; however,
some minor shifts in output may occur. Power continues to ramp down as much as
necessary until internal fixture components return to a safe temperature. The fixture
displays a warning message on the home screen indicating that power budgeting is
in place, showing the percent of total power that is currently used.
If the fixture exceeds its maximum internal temperature, the fixture enters a cooldown state, stops responding to the control signal, and it shuts down most or all
power to the LED array and displays its over-temperature status according to its
setting for over-temperature warning.

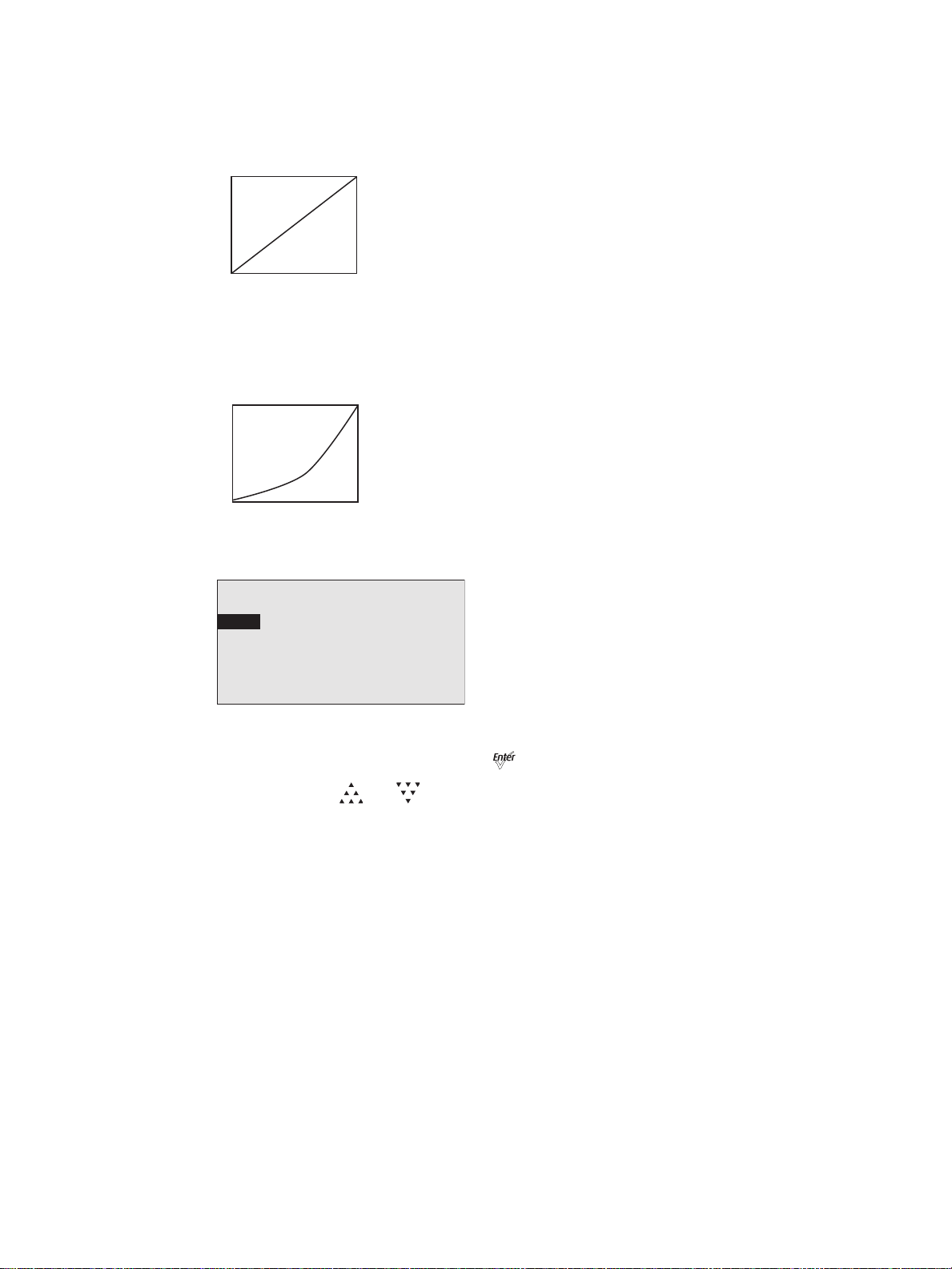

Curve
The dimming curve, commonly called curve, is the correlation between the change in the
value of the dimming control signal and the actual change in the fixture's brightness. Curve
is also the extent to which the fixture lags in its response time to the control signal in order
to facilitate smoothness in dimming.
Standard
Standard is a modest curve for intuitive brightness changes at both high and low ends of
the dimming range. Moderate lag in response for good smoothness. It allows quick jumps
in brightness. Suitable for most applications.
Intensity
0 255
DMX
Incandescent
Exaggerated curve mimics the response of tungsten on a conventional dimmer. Lag is quite
pronounced and present even in full on or off bumps. Extreme smoothness with no instant
changes. Best when fixtures must operate in sync with incandescent sources.
Intensity
0 255
DMX
3 Operation 47
Linear
Linear has no curve. Brightness levels correlate exactly with the value of the dimming
control signal. Moderate lag in response for good dimming smoothness. Linear allows quick
jumps in brightness. It is best for studio lighting and applications with static scenes or looks.
Intensity
0 255
DMX
Quick
Quick uses the standard dimming curve but with no lag or smoothing. All changes are
instant and correlated exactly with the control input signal. Quick is best for extreme high
impact and video-based control.
Intensity
0 255
Step 1: On the LED Settings menu, scroll to Curve.
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
Figure-3.11 Selecting Curve on the LED Settings Menu.
DMX
LED Settings
Step 2: With Curve selected, press [] to toggle between the options.
Step 3: Press [] or [] to commit the option.
48 Source Four LED Profile v1.6.0 User Manual
Output Freq
Output Frequency is the frequency in Hz at which the LED array pulses, or blinks, as a
function of Pulse-Width Modulation (PWM). The frequency is adjustable in order to avoid
visible flicker on video and film. When altering the frequency in order to reduce noticeable
flicker on camera, often only a small change is required. The range is 920 to 1500 Hz in
increments of 10. The default value is 1200 Hz.
For high speed exposure or rolling shutter cameras, use the High 25K mode. This increases
the PWM to 25,000 Hz and will result in flicker-free operation in most circumstances. To
access the High 25K, press the up arrow after reaching 1500 Hz in the Output Freq: field.
Changing the frequency from the default value can have a slight impact on the smoothness,
or color-mix consistency, or both when dimming.
Step 1: On the LED Settings menu, scroll to Output Freq.
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
Figure-3.12 Selecting Output Frequency on the LED Settings Menu.
LED Settings
Step 2: Press [] to select the value.
Step 3: Press [] or [] to set the desired value.
Step 4: Press [].
Step 5: When asked if you are sure, select Yes and press [].
Red Shift
Red shift allows the fixture to match its dimming performance to that of a conventional
tungsten lamp. The fixture automatically changes its apparent White Point, or color
temperature, as a function of overall intensity. Red shift works with both white-light and
colored-light output settings. It is also known as amber drift and tungsten shift. Red shift is
available only in the HSI and RGB profiles. It is not available on Daylight and Tungsten
fixtures.
Step 1: On the LED Settings menu, scroll to Red Shift.
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
Figure-3.13 Selecting Red Shift on the LED Settings Menu.
LED Settings
Step 2: With Red Shift selected, press [] to toggle between On and Off.
Step 3: Press [] or [] to commit the option.
3 Operation 49
White Point (Lustr+, Series 2 Lustr, and Studio HD)
White Point controls the appearance (color temperature) of white-light output when
saturation is at or near zero. This option is available when using the HSI and RGB profiles.
The choices are 2950K, 3200K, 5600K, and 6500K.
Step 1: On the LED Settings menu, scroll to White Point.
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
Figure-3.14 Selecting White Point on the LED Settings Menu.
LED Settings
Step 2: With White Point selected, press [] to toggle between the options.
Step 3: Press [] or [] to commit the option.
Presets & Sequences
When no external control signal is connected to the fixture, it can be set to run a preset color
mix or a sequence of presets in a stand-alone operation. The Presets and Sequences
screen provides access to the edit screens for Presets and for Sequences, and it indicates
which Preset or Sequence is active, if any. You can access the Presets and Sequences
menu by doing either of the following.
•On the Advanced Menu, scroll to Presets and Sequences and press [].
• From any menu, except when operating in Studio profile, press [].
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Figure-3.15 Selecting Presets and Sequences on the Advanced Menu.
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Focus
Focus is independent of any of the other settings or presets and works whether or not the
fixture is receiving DMX data from a console or is in a Preset or stand-alone state. Focus
stays on until you disable it or power is disconnected. It turns every LED in the fixture on at
70% so you can:
• Focus (aim) the fixture prior to console set-up or when there is no one at the console
to give the fixture intensity.
• Double-check that the fixture is working and that all LEDs are operational.
Step 1: From the Advanced Menu select Presets and Sequences or press [].
Step 2: With Focus selected, press [] to turn the fixture On.
Step 3: When finished, press [] to turn the fixture Off.
50 Source Four LED Profile v1.6.0 User Manual
Presets (Lustr+, Series 2 Lustr, and Studio HD)
A Preset is a single, static look or color mix. The Source Four LED Profile fixture comes with
24 default configurations. Only one Preset can be active at a time. You can activate any of
the Preset color mixes and customize each one.The following table lists the default Preset
color mixes, most of which are also available as Quick Color options. See “Quick Color
(Lustr+, Series 2 Lustr, Studio HD)” on page 60.
Preset Default Color Available as Quick Color
1White Yes
2Warm Yes
3 Cool Yes
4 Minus Green Yes
5 Lite Pink Yes
6 Lite Gold Yes
7 Yellow Yes
8 Dark Straw Yes
9 Dark Amber Yes
10 Orange Yes
11 Re d -12 Med Pink Yes
13 Dark Pink Yes
14 Magenta -15 Purple Yes
16 Dark Lavender Yes
17 Deep Purple Yes
18 Clear Blue Yes
19 Lite Blue Yes
20 Med Blue Yes
21 Primary Blue Yes
22 Blue-Green Yes
23 Lite Green Yes
24 Green --
Presets (Daylight and Tungsten)
The Daylight and Tungsten fixtures come with 24 available slots for Presets. Only one
Preset can be active at a time. You can activate any of the Presets and customize each
one. Daylight and Tungsten fixtures have Presets that can define both Intensity and Strobe
values. There are no default Presets that come pre-configured from the factory.
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Figure-3.16 Selecting Presets on the Presets and Sequences Menu.
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Save DMX as Preset
Presets
3 Operation 51
Step 1: On the Presets and Sequences menu, scroll to Presets.
Step 2: Press [].
Step 3: With Preset selected, press [].
Step 4: Press [] or [] to set the desired preset number.
Step 5: Press [].
Step 6: Press [] to select Status.
Step 7: Press [] to activate the Preset.
The action changes to Active and an asterisk (*) displays in front of the preset
number.
Note:
You cannot activate a Preset if the fixture is receiving an external DMX control signal.
Fade Time
Fade time is the length of time the fixture takes to crossfade from the previous setting to the
Preset. The format is MM:SS. The default is 2 seconds.
Step 1: On the Presets menu, scroll to Fade Time and press [].
Presets
Preset: * 23
Status: Active
Fade Time: 00:0 2
Del a y Ti m e: 0 0:0 0
Edit Color
Copy to Other Fixture
Save DMX as Preset
Figure-3.17 Selecting Fade Time on the Presets Menu.
Step 2: Press [] or [] to set the desired time in minutes.
Step 3: Press [].
Step 4: Press [] or [] to set the desired time in seconds.
Step 5: Press [].
Delay Time
Delay time is the length of time the fixture waits on the previous setting before initiating the
crossfade to the Preset. The default is 0 seconds.
Step 1: On the Presets menu, scroll to Delay Time and press [].
52 Source Four LED Profile v1.6.0 User Manual
Presets
Preset: * 23
Status: Active
Fa d e Ti m e: 00:02
Delay Time: 00:00
Edit Color
Copy to Other Fixture
Save DMX as Preset
Figure-3.18 Selecting Delay Time on the Presets Menu.
Step 2: Press [] or [] to set the desired time in minutes.
Step 3: Press [].
Step 4: Press [] or [] to set the desired time in seconds.
Step 5: Press [].
Edit Color (Lustr+, Series 2 Lustr, and Studio HD)
Use Edit Color to change the overall brightness settings of all colors within the LED array.
You can change the predefined color mixes for the Preset. Refer to the table in Presets
(Lustr+, Series 2 Lustr, and Studio HD), page 51. You can also change the hue, saturation
and intensity of the predefined colors.
To keep your changes, be sure to select Save Changes and then press
changes press [] at any time.
If the Preset is currently active, the changes made on the Preset Color Edit screen update
to the fixture output immediately.
[]. To discard
Step 1: On the Presets menu, scroll to Edit Color and press [].
Preset 23 Color Edit
Color:
Int: 100%
Strobe: 255
Save Changes
Figure-3.19 Edit Preset Color Screen.
Step 2: With Color selected, press [].
Step 3: Press [] or [] to set the desired predefined color mix.
Step 4: Alternatively, to edit the predefined color mix, scroll to any of the parameters on
the screen and press [].
Step 5: Press [] or [] to change the values.
Step 6: Press [].
Step 7: Do one of the following:
• Scroll to Save Changes and press [].
• Press [] to exit the screen without saving the changes.
3 Operation 53
Edit (Daylight and Tungsten)
Use Edit to change the brightness and strobe settings of the LED array.
To keep your changes, be sure to select Save Changes and then press
[]. To discard
changes press [] at any time.
If the Preset is currently active, the changes made on the Preset Edit screen update to the
fixture output immediately.
Step 1: On the Presets menu, scroll to Edit and press [].
Preset 23 Edit
Color:
Int: 255
Strobe: 0
Save Changes
Figure-3.20 Edit Preset Screen.
Step 2: Scroll to any of the parameters on the screen and press [].
Step 3: Press [] or [] to change the values.
Step 4: Press [].
Step 5: Do one of the following
• Scroll to Save Changes and press [].
• Press [] to exit the screen without saving the changes.
Copy to Other Fixtures
If other fixtures are connected to the same data chain, you can copy the Preset values to
the other fixtures. The fixture automatically becomes the Master and controls all the other
fixtures (Slaves) in the chain until another fixture has its Preset or Sequence settings
selected or activated. For more information, see Master/Slave Operation, page 60.
Step 1: On the Presets screen, scroll to Copy to Other Fixtures.
Presets
Preset: * 23
Status: Active
Fa d e Ti m e: 00:02
Del a y Ti m e: 00:00
Edit Color
Copy to Other Fixture
Save DMX as Preset
Figure-3.21 Copy the Preset to Other Fixtures.
Step 2: Press [].
Step 3: When asked if you are sure, select Yes and press [].
54 Source Four LED Profile v1.6.0 User Manual
Save DMX as Preset
You can take a snapshot of the incoming DMX signal when the fixture is in HSI mode and
save it as a preset value.
Step 1: On the Presets screen, scroll to Preset and press [].
Presets
Preset: * 23
Status: Active
Fa d e Ti m e: 00:02
Delay Time: 00:00
Edit Color
Copy to Other Fixture
Save DMX as Preset
Figure-3.22 Save the DMX as a Preset.
Step 2: With Preset selected, press [].
Step 3: Press [] or [] to set the desired preset number.
Step 4: Press [].
Step 5: Scroll to Save DMX as Preset and press [].
3 Operation 55
Sequences
A Sequence is a timed series of presets. Up to 12 different Sequences may be altered for
Preset selections, crossfade rate, and link time. Only one Preset can be active at a time.
The sequences can be copied to other fixtures in the same data chain.
You can create your own custom sequence that includes two or more Presets. For
example, you may want to sequence through Presets 2, 4, 23, and 1, in that order. As you
enter these into the sequence, you also can set the rate and link time for each step.
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Figure-3.23 Selecting Sequences on the Presets and Sequences Menu.
Sequence: * 3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequences
Step 1: From the Advanced Menu select Presets and Sequences or press [].
Step 2: On the Presets and Sequences menu, scroll to Sequences.
Step 3: Press [].
Step 4: On the Sequences menu, with Sequence selected, press [].
Step 5: Press [] or [] to set the desired Sequence number.
Step 6: Press [].
Step 7: Scroll to Status.
Step 8: Press [] to activate the Sequence.
The screen changes to Active and an asterisk (*) displays in front of the preset
number.
Step 9: Press [] to scroll to Rate.
Rate
Rate is the execution of the Presets' Fade Times and Delay Times within the Sequence,
relative to their settings within the actual Presets. The available Rate range is 2 to 500%.
The default is 100%.
A Rate of 100% represents running the Sequence with timing exactly as specified within
the Presets. A Rate above 100% represents running the Sequence with faster timing than
specified within the Presets. For example, with a Rate of 200%, a Preset with a Fade Time
of 6 seconds would actually be run within the Sequence in only 3 seconds.
A Rate below 100% represents running the Sequence with slower timing than specified
within the Presets. For example, with a Rate of 50%, a Preset with a Fade Time of 6
seconds would actually be run within the Sequence in 12 seconds.
Any change to the Rate is updated live in the fixture memory. Pressing [] does not undo
a change to Rate.
56 Source Four LED Profile v1.6.0 User Manual
Step 1: On the Sequences menu, scroll to Rate and press [].
Sequences
Sequence: * 3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Figure-3.24 Selecting Rate on the Sequences Menu.
Step 2: Press [] or [] to set the desired percent.
Step 3: Press [].
Step 4: Press [] to scroll to Step.
Step
You enter the number of the step in the sequence to be edited. In our example, you select
step 1. After setting the Preset and Link time, return to Step and select step 2. Repeat this
process until you have entered all the steps in the sequence.
Any change to Step is updated live in the fixture memory. Pressing [] does not undo a
change to Step.
Step 1: On the Sequences menu, scroll to Step and press [].
Sequences
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Figure-3.25 Selecting Step on the Sequences Menu.
Step 2: Press [] or [] to set the desired Step number.
Step 3: Press [].
Step 4: Press [] to scroll to Preset.
3 Operation 57
Preset
Preset is the number of a Preset, whether it is a predefined or a custom color mix.
Step 1: On the Sequences menu, scroll to Preset and press [].
Sequences
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Step 2: Press [] or [] to set the desired Preset number.
Step 3: Press [].
Step 4: Press [] to scroll to Link Time.
Link Time
Link Time is the length of time the fixture waits before moving from one Preset to the next.
The format is MM:SS. The default is 2 seconds.
Step 1: On the Sequences menu, scroll to Link Time and press [].
Sequences
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Figure-3.26 Selecting Link Time on the Sequences Menu.
Step 2: Press [] or [] to set the desired time in minutes.
Step 3: Press [].
Step 4: Press [] or [] to set the desired time in seconds.
Step 5: Press [] to commit the values.
Finishing the Sequence
After each of the steps have been configured, set the End State. End state is what the
fixture does once it completes the Sequence. Two end state options are available and both
options repeat indefinitely until the Sequence is deactivated. To access the end state
options, you must first program an additional and final step within the sequence using
Preset 0. Preset 0 marks the end of the Sequence and opens the End State menu line.
Preset 0 may only be used once within a Sequence. If you want the Sequence to repeat
automatically, you may only define up to 23 steps with Presets 1 through 24, since the final
step must be reserved for Preset 0.
Loop
Once the fixture completes the entire sequence, it immediately returns to the beginning and
starts the sequence over again, in order.
58 Source Four LED Profile v1.6.0 User Manual
Bounce
Once the fixture completes the entire sequence, it reverses the order of the presets and
steps backward through them until reaching the starting step, at which point it starts the
Sequence over again, in the original order.
Sequences
Sequence: * 3
Status: Active
Rate: 100%
Step: 01
Preset: 0
End State: Loop
Copy to Other Fixture
Figure-3.27 Setting Sequences End State.
Step 1: On the Sequences menu, scroll to Preset and press [].
Step 2: With the Preset number selected Press [] or [] until you reach 0.
Step 3: Press [].
Link Time on the screen is replaced with End State.
Step 4: Scroll to End State and press [] to toggle between the options.
Step 5: If the Sequence is not active, scroll up to Status and press [].
Copy to Other Fixtures
If other fixtures are connected to the same data chain, you can copy the Sequences
settings to the other fixtures. The fixture automatically becomes the Master and controls all
the other fixtures (Slaves) in the chain until another fixture has its Preset or Sequence
settings selected or activated. For more information, see Master/Slave Operation, page 60.
Step 1: On the Sequences screen, scroll to Copy to Other Fixtures.
Note:
Sequences
Sequence: * 3
Status: Active
Rate: 100%
Step: 01
Preset: 0
End State: Loop
Copy to Other Fixture
Figure-3.28 Selecting Copy to Other Fixtures.
Step 2: Press [].
Step 3: When asked if you are sure, select Yes and press [].
This option only copies Sequence data; it does not copy changes to the Preset
settings or color mixes used within the Sequence.
3 Operation 59
Quick Color (Lustr+, Series 2 Lustr, Studio HD)
Quick Color allows you to easily select a color and its intensity from a predefined menu.
This feature overrides any presets or sequences previously selected and is only available
when there is no external DMX signal to the fixture. For a list of available colors, see the
table on page 51.
Note:
Exiting the Quick Color menu will return the fixture to the state it was in before
entering the menu.
To select a Quick Color:
Step 1: Scroll to Quick Color within the Presets and Sequences screen.
Step 2: Press [].
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Figure-3.29 Selecting Quick Color on the Presets and Sequences Menu.
Intensity: 100%
Color:
Quick Color
Step 3: Scroll to Color and press [].
Step 4: Press [] or [] to select the desired color
Step 5: Press [] to commit the selection.
Step 6: Scroll to Intensity and press [].
Step 7: Press and hold [] or [] to adjust the fixture’s intensity.
–––
Step 8: Press [] to commit the selection.
• To set the Intensity to 0, press the []. Pressing [] a second time will
return the fixture to its previously set Intensity.
• If power to the fixture is lost while in Quick Color mode, the fixture will return
to the Quick Color menu once power is restored.
Master/Slave Operation
When similar fixtures' DMX or data connections are linked together and there is no external
DMX signal going to them, one fixture automatically controls all other fixtures in the chain
when a Preset or Sequence is initiated.
Master
Master is the one fixture that controls all fixtures in the daisy chain. By default, it is
whichever fixture had its Preset or Sequence selected or adjusted most recently. The
Master fixture can only control Slave fixtures to produce identical output at the same time
as itself. The Master fixture cannot control Slave fixtures to operate individually or to run
chase-type or time-offset sequences.
Changes and edits to Presets or Sequences that are made to the Master fixture may be
copied to the internal memory of all Slave fixtures for later use when these fixtures are
disconnected from the data daisy chain.
60 Source Four LED Profile v1.6.0 User Manual
When operating as the Master fixture, the fixture displays Master on its home screen.
Studio Prt Lin – – Str
No Sequence is Active
Preset 1 is Active
Figure-3.30 XYZ Status Screen Showing Master.
Slave
Any fixture in the data chain that is being controlled by the master fixture. By default, all
fixtures are slaves, except the one that had its Preset or Sequence altered most recently.
A Slave fixture can only directly imitate the performance of the Master fixture.
When operating as a Slave fixture, the fixture displays Slave on its home screen.
Diagnostics
The Diagnostics menu provides access to detailed information about various aspects of the
fixture’s performance. Diagnostics also provides access to test functions and fixture
recalibration. Much of the Diagnostics menu is used by service technicians to troubleshoot
problems.
Step 1: From the home screen, press [] to open the Main Menu.
Studio
Master
System OK
1/5 In te n s i t y
Step 2: Scroll to Advanced Settings.
Step 3: Press [].
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Figure-3.31 Selecting Diagnostics on the Advanced Menu.
Current DMX In
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Diagnostics
Current DMX In
The Current DMX In screen displays the values of the current DMX input by channels. The
values dynamically change as the DMX input changes. This screen is a read-only screen,
which displays the following.
• The Control Input setting.
• The DMX channel assignment, in order.
• The current DMX value (0-255) of each control channel in use by the fixture.
• The current brightness (0 to full or 00 to FL) of each series of LEDs in the fixture's LED
array.
3 Operation 61
Step 1: On the Diagnostics screen, scroll to Current DMX In.
DMX channel
DMX value
Brightness
LED series
Step 2: Press [].
Current DMX In
DMX Ch Level
2 107
3 14
4 82
5 0
G O R A O R I
11 02 00 10 00 00 01
Figure-3.32 Current DMX In Screen with Dynamic Values.
Step 3: Press [] or [] to scroll through the channels. Arrows on the left indicate that
you can scroll up or down.
Step 4: Press [] to return to the Diagnostics screen.
Network Statistics
The Network Statistics screen displays the statistics of the network. The DMX input values
dynamically change. This screen is read-only.
Step 1: On the Diagnostics screen, scroll to Network Statistics.
Step 2: Press [].
When you access the screen, the dynamic values start at 0 and continue to
increase.
Diagnostics
Overruns: 0
Received: 47835
Breaks: 15490
Bad Starts: 0
DMX Starts: 27120
RDM Starts: 0
Figure-3.33 Network Statistics Screen with Dynamic values.
Network Statistics
Step 3: To reset the counters, press [].
Step 4: Press [] to return to the Diagnostics screen.
62 Source Four LED Profile v1.6.0 User Manual
Test
Brightness
LED series
Test is used to test the fixture and display its output values. Test overrides all other control
to the fixture. The action options are All Off, All On, Chase, and Ind Cntl (Individual control).
The default is All Off.
To exit the Test screen, press [] twice. The fixture will revert to its previous state.
Step 1: On the Diagnostics screen, scroll to Test.
Step 2: Press [].
Diagnostics
Action: Chase
Chase: 15 steps/sec
Individual Control
G O R A O R I
00 00 48 00 00 00 00
Figure-3.34 Test Screen in Chase Mode.
Tes t
Step 3: With Action selected, press [] to toggle between the options.
Step 4: Press [] or []to commit the option.
Chase
Chase automatically sequences through each LED color and starts each at 0% intensity
and steps up to 100% before moving to the next color. You can set the number of steps per
second for sequencing through all LED colors individually.
Step 1: On the Test screen, scroll to Action.
Step 2: Press [] until the Chase option displays.
The fixture begins to sequence through the LEDs.
Step 3: Press [] to select Chase.
Step 4: Press [[ ] to select the values.
Step 5: Press []or [] to set the number of steps per second.
The range is 10 to 20.
Step 6: Press [] to commit the value.
The percent of intensity is displayed for each color as the fixture sequences
through them.
Step 7: To stop the test, do one of the following.
• Press [] or [] to select Action and then press [] until All Off displays.
• Press [Back] to return to Action and then press []until All Off displays.
3 Operation 63
Individual Control (Ind Cntl)
Use Individual Control to select each LED series and then adjust its intensity.
Step 1: On the Test screen, scroll to Action.
Step 2: Press []until the Ind Cntr option displays.
One of the LED series will illuminate.
Step 3: Press []to select the series.
Diagnostics
Action: Ind Cntr
Chase: 15 steps/sec
Individual Control
G O R A O R I
56 00 00 00 00 00 00
Figure-3.35 Test Screen in Individual Control Mode.
Step 4: Press []or [] to set the intensity of the series.
Step 5: Press [] to move to the next series.
Step 6: Press [] or [] to change the intensity of the series.
Tes t
The value you entered for the first series is applied to the next series.
Step 7: Press [] to return to Action.
64 Source Four LED Profile v1.6.0 User Manual
Recalibrate Fixture
Service technicians may use this option to calibrate the constant current driver electronics
for the LEDs. The calibration process goes through each series of LEDs, starting at 0
intensity and stepping up to 100%. The calibration is automatic and takes a few minutes.
During this time, do not exit the screen until it is complete.
CAUTION:
Step 1: On the Diagnostics screen, scroll to Recalibrate Fixture.
Step 2: Press [].
Step 3: When asked if you are sure, select Yes and press [].
Figure-3.36 LED Calibration Screen with Calibration in Process.
Step 4: Press [] or [] to return to the Diagnostics screen.
About Fixture
The About screen displays the following information. This is a read-only screen.
• The software version number
This calibration process does not measure or recalibrate the light output of the LEDs.
Under normal use, it is not necessary to recalibrate the fixture, and doing so will likely
have no beneficial effect on fixture performance. It is therefore NOT recommended
to recalibrate the fixture without express instruction from an authorized technician.
Diagnostics
Recalibrate Fixture
This Will Calibrate
LED Array
Are You Sure?
Yes
No
LED 1 .......Pass
LED 2 .......Pass
LED 3 .......Pass
LED 4 .......Working
LED 5 .......Working
LED 6 .......Working
LED 7 .......Working
LED Calibration
• The fixture serial number
• The assigned fixture RDM number
• The color bias of the LED array
About Fixture
DMX START: 001
Ve r: 1.5.0.0.0.05 (0)
Ser: 000021xxx
RDM: 6574:12345678
Desire Lustr+ 22
RDM Label
Figure-3.37 About Fixture screen.
Step 1: On the Diagnostics screen, scroll to About Fixture.
Step 2: Press [].
Step 3: Press [] or [] to return to the Diagnostics screen.
3 Operation 65
Local Settings
The Local Settings menu gives you several options that affect the LCD and other functions
of the fixture.
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Figure-3.38 Selecting Local Settings on the Advanced Menu.
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Local Settings
Step 1: On the Advanced Menu, scroll to Local Settings.
Step 2: Press [].
Step 3: Scroll to any of the menu choices and press [].
Backlight
You can change the brightness of the LCD backlight. The brightness level is 10 to 100%.
The default is 100%.
Step 1: With Backlight selected, press []to select the value.
Step 2: Press [] or [] to set the desired brightness percentage. The effect can be
seen as you make the adjustment.
Step 3: Press [].
BLght time out
You can change the length of time the LCD backlight remains on after a UI button has been
pressed. The options are 30 seconds, 1 minute, 5 minutes, 15 minutes, and never. The
default is 1 minute.
Step 1: With BLght time out selected, press [].
Local Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Figure-3.39 Setting Backlight Timeout.
Step 2: Continue to press [] until the desired time is indicated.
Step 3: Press []or [] to commit the option.
66 Source Four LED Profile v1.6.0 User Manual
Language
English is used for all menus. No other languages are offered at this time.
Local Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Figure-3.40 Setting the Screen Language.
Status Indicators
You can turn the status indicators on or off. The default is on.
Step 1: With Status Indicators selected, press [].
Local Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Figure-3.41 Setting the Status Indicator display.
Step 2: Continue to press [] to toggle between ON and OFF.
Step 3: Press [] or [] to commit the option.
CAUTION:
Although it may be desirable in some applications to eliminate all stray light from the
back of the fixture, turning the Status Indicators OFF prevents them from
communicating potentially critical information. Use discretion when selecting the
OFF setting.
3 Operation 67
OverTemp
You can change how an over-temperature situation is indicated in order to control stray
light.
Visible (Lustr+, Series 2 Lustr, and Studio HD)
The fixture produces a low-level, red light from the LED array, displays a warning message
on the LCD, turns on the LCD backlight, and turns on the error indicator light.
Visible (Daylight and Tungsten)
The fixture produces a low-level light from only some of the LEDs in the LED array, displays
a warning message on the LCD, turns on the LCD backlight, and turns on the error indicator
light.
Dark
The fixture turns off the LED array entirely and displays a warning message on the LCD
without turning on the LCD backlight.
Step 1: With OverTemp selected, press [].
Local Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Note:
Figure-3.42 Setting Over Temperature Indication.
Step 2: Continue to press [] to toggle between the two options.
Step 3: Press [] or []to commit the option.
For more information, see Thermal Shutdown Warning, page 39.
When returning to normal operation, after the fixture has been in a shut-down status,
the LED array automatically transitions its output back to the current control signal
or stand-alone operation over a 10-second crossfade. There is no required reset
function once the fixture temperature returns to a safe level.
Restore Defaults
You can restore the fixture to the factory settings. This function clears all custom settings
including all changes to Presets and Sequences.
Step 1: With Restore Defaults selected, press [].
Step 2: When asked if you are sure, select Yes and press [].
Step 3: Press [].
68 Source Four LED Profile v1.6.0 User Manual
Copy All Settings
When DMX is not applied you can copy all, except DMX address, settings globally to all of
the other fixtures in the same data chain in one step. This includes everything from Presets
and Sequences to Quick Setups and Advanced options.
This feature is not available when DMX is applied to the fixture.
Figure-3.43 Copy All Settings on the Advanced Menu.
Step 1: With Copy All Settings selected, press [].
Step 2: When asked if you are sure, select Yes and press [].
Step 3: Press [].
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
3 Operation 69
Studio Settings
Lustr+, Series 2 Lustr, and Studio HD
The Studio profile produces only white light that is adjustable in brightness, white point, and
tint (green/magenta balance). The Studio profile can be operated in a stand-alone mode
from the user interface or can be controlled via DMX.
Note:
Studio profile is the default Quick Setup for fixtures containing the Studio HD LED
array. Fixtures with other LED arrays may also be operated in Studio profile by
selecting this setting from Quick Setups or DMX Settings. Fixtures with Studio HD
LED arrays may also be operated in other setups.
Operation From Home Status Screen (Studio Standalone)
When operating without an external control signal, the intensity of the white light can be
adjusted immediately and directly by pressing the UI buttons on the fixture while on the
home screen. In this setup, all the UI buttons change their functions from other setups.
Icons on the screen indicate which buttons to use for the settings.
When fixtures are connected together and there is no control signal, all adjustments that
you make on one fixture are automatically made on the connected fixtures.
Studio
Intensity:
WhitePoint: 3200K
Tin t:
Figure-3.44 Studio Status Home screen (Vivid, Lustr+, Series 2 Lustr, and Studio HD).
• To adjust the Intensity, select it in the menu and press [] and then [] or []. The
range is 0 to 100%.
STUDIO MOD E
100 %
80%
System OK
4/5 Inte n s it y
• To immediately set the Intensity to 0, press the [] button. Pressing it again will return
it to the previously-set Intensity.
• To adjust the White Point, select it in the menu and press [] and then []or [].
The range is 2700 to 6500K.
• To adjust the Tint, press select it in the menu and press []and then [] or [].
Pressing [] increases magenta and []increases green.
• To return to the Main Menu, press [].
• To return to the Studio status screen from the Main Menu, press [].
70 Source Four LED Profile v1.6.0 User Manual
Studio DMX Control
When controlled via DMX, the first three channels adjust the output in the following order.
Channel 5 controls strobe.
Channel Output
1 Intensity (Brightness)
2 White Point
3Tint
5 Strobe
When adjusting white point via DMX, the full gamut of 2700 to 6500K is available, but
common settings of 3200K and 5600K are quickly accessible at the lowest and highest
DMX values, respectively. The range of control on channel 2 is distributed as follows.
DMX Value White Point
000 3200K
001 to 254 Continuous adjustment from 2700 to 6500K
255 5600K
When adjusting tint via DMX, the range of control on channel 3 is distributed as follows.
DMX Value Tint
000 Neutral white (at the specified white point)
001 Extreme green (approximately 2x plus green)
002 to 127 Moving from green toward neutral white
128 Neutral white
129 to 254 Moving from neutral white toward magenta
255 Extreme magenta (approximately 2x minus green)
Note:
Additional channels for other functions, such as strobe and Plus 7, can also be activated, if
desired, starting with channel 4.
When using DMX to control the fixture in Studio mode, the default data-loss behavior
is different than in other operational modes. If the DMX signal is lost, the fixture
automatically holds the last look forever (HLL-4ever) and this look persists through
infinite off/on power cycles, until the DMX signal is restored or the fixture settings are
adjusted manually via the User Interface.
3 Operation 71
Daylight and Tungsten
The Studio profile allows quick adjustment of Intensity. The Studio profile can be operated
in a stand-alone mode from the user interface or can be controlled via DMX.
Operation From Home Status Screen (Studio Standalone)
When operating without an external control signal, the quality of the white light can be
adjusted immediately and directly by pressing the UI buttons on the fixture while on the
home screen. In this setup, all the UI buttons change their functions from other setups.
Icons on the screen indicate which buttons to use for the settings.
Studio
Intensity: 100%
Figure-3.45 Studio Status Home screen.
• To adjust the Intensity, press [] and then []or []. The range is 0 to 100%.
• To return to the Main Menu, press [].
• To return to the Studio status screen, from the Main Menu, press [], [], or allow
the UI to time out and automatically return to the status screen.
STUDIO MOD E
System OK
1/3 In t e ns i t y
Studio DMX Control
When controlled via DMX, the channels adjust the following.
Channel Output
1 Intensity (Brightness)
2 Strobe
3Fan
72 Source Four LED Profile v1.6.0 User Manual
Error Messages
When a system error is detected, a message displays on the home screen. The message
changes to reflect the specific error type. When multiple errors are detected, each error
message cycles, in increasing numerical order on the display for 1 second each. The
following table lists the error messages.
Error Message Description
LED Ambient Overtemp
LED Ambient High The LED head ambient is getting hot. Let the fixture cool.
LED Ambient Low The LED head ambient is too cold. Improper operating conditions.
Color System Fail
LED Over Temp A specific LED is over-temp and the fixture has been shut down.
Internal Temp High Fixture internal temp is too hot.
Power Budget Active The fixture is reducing the LED output due to hot temperatures.
Internal Overtemp
Configuration Error
The LED head ambient temp is too hot and has been shut down, let
fixture cool down
Fixture does not have its color information loaded. Most likely
represents a hardware failure.
The internal temperature is too hot, the fixture has been shut down.
Let the fixture cool.
The stored configuration has been compromised. The fixture will
return to a default configuration.
3 Operation 73
Software Updates
The software can be updated with UpdatorAtor Software. UpdatorAtor allows you to
remotely update the Source Four LED fixture. UpdatorAtor is installed on your computer
and connected from the computer to the fixture with a special cable. For more information,
contact ETC’s Technical service department.
ETC Technical Support
Any time, any day–15 minute response time—that’s our service commitment. ETC’s
Technical Service is unparalleled in the industry. With over 60 service employees
worldwide, not to mention our extensive Authorized Service Center network, we are
uniquely positioned to be able to help you anywhere, anytime. Call on our years of expertise
for help with any lighting situation. Our commitment is to make your day shine brighter.
Americas
608/831-4116
or toll-free in the U.S. at 800/688-4116
Europe
(+44) 20 8896 1000
Germany
(+49) 8024 4700-0
Asia
(+852) 2799 1220
74 Source Four LED Profile v1.6.0 User Manual
Routine Maintenance
Retainer bolt
Field lens
Lens rotation knob
To ensure optimum performance of your Source Four LED Profile fixture, you should
perform the following inspections and cleaning at least once a year. You may need to
inspect or clean the fixture more often, depending on the type and amount of use your
fixture experiences during the year.
WARNING:
Allow fixture to cool down completely prior to cleaning.
Disconnect all power and DMX cables prior to cleaning.
Check for excessive dust or debris in the heat-dissipating fins around the
entire fixture enclosure. Clean using compressed air or a soft cloth. Keeping
the components of the enclosure clean facilitates efficient cooling and
extends LED longevity.
NEVER spray liquids into the fixture.
NEVER spray compressed air into a fixture that is powered-up.
Cleaning the Field Lens
The field lens is accessed by removing the shutter barrel from the light engine body.
Use a clean micro-fiber cloth to clean the lens. Isopropyl alcohol may be used on the cloth.
Do not spray the cleaning solution directly onto the lens or the interior of the fixture.
Step 1: Remove the retainer bolt and lens rotation knob.
Figure-3.46 Removing the shutter barrel to expose the field lens.
Step 2: Slide the electronics and lens out of the fixture.
Step 3: Use a clean, soft cloth as described above to clean the lens.
Note:
Do not remove the field lens from the electronics or attempt to disassemble the field
lens. The lens or electronics contain no serviceable parts.
Step 4: Install and tighten the retainer bolt and lens rotation knob.
3 Operation 75
Inspecting and Cleaning the Electronics
A can of compressed air or oil-free air from an air compressor set at a low setting can
be used to blow through the vent holes and remove dust or other debris from the
interior of the fixture. Dust buildup can cause overheating and premature shutdown.
Remove the secondary lenses (if used) and clean out any dust and debris. All
components, including the secondary lenses, can be cleaned using compressed,
oil-free air as described above or a clean micro-fiber cloth. Isopropyl alcohol may be
used.
Inspect all mounting hardware for wear and, if necessary, clean using compressed,
oil-free air or a soft, lint-free cloth.
Step 1: Use a 5/32" hex driver to remove the two screws that secure the back of the
electronics to the housing.
Note:
Figure-3.47 Electronics pulled out of housing.
Step 2: Slide the electronics and lens assembly out of the housing.
Do not remove the field lens from the electronics or attempt to disassemble the field
lens. The lens contains no serviceable parts.
Step 3: While the electronic component body is separated from the housing, visually
inspect the interior of the body and ensure there is no dust build up on the
components. If there is, use canned compressed air or oil-free air from an air
compressor set at a low setting to remove dust or other debris from the interior
of the fixture.
Step 4: To reassemble, align the mating groves in the shutter barrel with the clips on the
electronics assembly and join the two.
Step 5: Install and tighten the hex head screws.
76 Source Four LED Profile v1.6.0 User Manual
Appendix A
Quick Start
This section will help users to quickly use the Source Four LED fixture. For complete,
detailed information and step-by-step instructions, see Operation, page 37.
Install
Step 1: Hang or mount the fixture using the provided hardware and approved hardware
accessories.
Step 2: Attach an approved safety cable when applicable.
Step 3: Insert additional accessories (top hat, etc.) into the holder, if desired.
Connect
Step 1: Attach the power cable to the Power In connector.
Step 2: Attach 5-pin XLR cable to the DMX In connector (if using external control).
Step 3: Plug the power cable into AC power (100 to 240VAC, 50/60 Hz) on a
non-dimmable circuit.
CAUTION:
Focus
The fixture must be connected to a non-dimmable power source in order to avoid
damage to its internal power supply and other electrical components. Dimming will
damage the fixture and void the warranty.
Step 4: Plug the XLR cable (if using) into the DMX source or data daisy-chain.
Step 5: Link additional fixtures via the Power Out and DMX Out connectors using the
following guidelines.
• No more than nine total Source Four LED (four total Series 2 Lustr) fixtures
on Power Thru.
• Up to 32 device loads on the DMX daisy-chain.
Step 1: With power supplied, wait for the fixture to boot up. This will take approximately
ten seconds.
Step 2: Press [] to open the Presets & Sequences menu.
Step 3: Select Focus and then press []. This turns the LED array on to enable
focusing.
Step 4: Adjust the fixture's position as needed.
Step 5: When focusing is complete, press [] to restore the fixture to its original preset.
Step 6: Select [] to return to the home screen.
For information about the user interface, see User Interface Overview, page 32.
Quick Start 77
Configure
Set DMX Address
Step 1: From the main screen, press [] to open the Main Menu.
Step 2: On the Main Menu, scroll to DMX Start Address and then press [].
Step 3: Use [] or [] to scroll to the desired address.
Step 4: Press [] to select the address number.
Step 5: Press [] to return to the home screen.
A DMX address is not required if using standalone or master/slave control.
Soft Focus Diffuser
Step 1: Install the Soft Focus diffuser into an A-Sized Pattern holder.
Step 2: Insert the Pattern holder and diffuser into the Pattern holder slot, making sure the
writing on the diffuser faces away from the Light engine.
For more information, see Soft Focus Diffuser, page 15.
Quick Color Menu (Lustr+, Series 2 Lustr, and Studio HD only)
When there is no DMX signal to the fixture:
Note:
Quick Color allows you to easily select a color and its intensity from a predefined menu.
This feature overrides any presets or sequences previously selected and is only available
when there is no external DMX signal to the fixture. For a list of available colors, see Color
Mixes, page 25.
Exiting the Quick Color menu will return the fixture to the state it was in prior to
entering the menu.
To select a Quick Color:
Step 1: Scroll to Quick Color within the Presets and Sequences screen.
Step 2: Press [].
Step 3: Scroll to Color and press [].
Step 4: Press [] or [] to select the desired color
Step 5: Press [] to commit the selection.
Step 6: Scroll to Intensity and press [].
Step 7: Press and hold [] or [] to adjust the fixture’s intensity.
Step 8: Press [] to commit the selection.
• To set the Intensity to 0, press the []. Pressing [] a second time will
return the fixture to its previously set intensity.
• If power to the fixture is lost while in Quick Color mode, the fixture will return
to the Quick Color menu when power is restored.
78 Source Four LED Profile v1.6.0 User Manual
Quick Setups Menu
Various pre-programmed combinations of operational settings are available to quickly get
you started. These settings are specifically created for different situations and are easily
accessible on the fixture’s user interface. Individual settings within each quick setup can be
accessed via the Advanced menu in order to take advantage of all the possible control
features.
Quick Setups (Lustr+, Series 2 Lustr, and Studio HD)
Step 1: On the Main Menu, scroll to Quick Setups.
Step 2: Press [].
Step 3: Scroll to the desired setup and then press [].
An asterisk (*) next to the setup name indicates that setup is active.
Step 4: Press [] to return to the home screen.
The top line of the home screen displays the name of the active setup.
Quick Setup Description Profile Features
• Standard dimming curve
• Regulated output for brightness
consistency
• Individual color channels plus master
intensity control
• Allows for native color space
crossfades
• Output is NOT color-calibrated
• Incandescent dimming curve
• Regulated output for brightness
consistency
• White point: 3200K
• Standard dimming curve
• Protected output for high-heat
environments
• Reduced overall brightness
• White point: 3200K
• Quick dimming response
• Boosted output for maximum intensity
• Reduced consistency of output
• White point: 5600K
• Linear dimming curve
• Regulated output for brightness
consistency
• Variable white point 2700-6500K
• Variable + or – green (tint) with the
Lustr+, Series 2 Lustr, and Studio HD
General
Stage
XT Arch
High Impact
Studio
General lighting:
All-purpose settings for most lighting
applications.
The default setup for the Lustr+ and Lustr
2.
Theatrical lighting:
Tungsten-like performance and precise
color-control.
Uses the most DMX channels of all quick
setups.
Longevity and reliability in applications
with limited access and extreme
environments.
High degree of output consistency and
protection against temperature swings.
Concerts and High Impact lighting:
Enables quickest response, simple RGB
control and strobe channel for maximum
effect usage.
Video or film lighting:
Enables quick, comprehensive control of
white light via DMX or the fixture’s
onboard user interface.
High-quality white-light output.
The Studio Quick Setup is operational in
all fixtures for excellent white light
performance. It is the default setting for
Daylight, Tungsten and Studio HD
fixtures. In addition, Studio Quick Setup
enables stand-alone operation from the
User Interface on the back of the fixture if
no console is present.
For more information, see Studio
Settings, page 70.
Direct
control
HSI
Plus 7
enabled
HSI
RGB
Studio
Quick Start 79
Quick Setups (Daylight and Tungsten)
Step 1: On the Main Menu, scroll to Quick Setups.
Step 2: Press [].
Step 3: Scroll to the desired setup and then press [].
An asterisk (*) next to the setup name indicates that setup is active.
Step 4: Press [] to return to the home screen.
The top line of the home screen displays the name of the active setup.
Quick Setup Description
Video or film:
The default setting for Daylight and
Tungsten fixtures.Studio Quick Setup
Studio
Stage
Single
Channel
enables stand-alone operation from the
User Interface on the back of the fixture if
no console is present. For more
information, see Studio Settings, page 70.
Theatrical lighting:
Behaves like a theatrical fixture in control
and dimming performance.
Architectural installations:
Most streamlined settings for applications
with limited control options.
Studio Quick Setup
From the home screen:
• To adjust the Intensity, press [] or [].
The range is 0 to 100%.
• To adjust the White Point, press [] or [].
The range is 2700 to 6500K.
Control
Channels
3 –
Intensity,
Strobe, Fan
Control
3 –
Intensity,
Strobe, Fan
Control
1 – Intensity
Features
• Linear dimming curve
• Regulated output for brightness
consistency
• Strobe enabled
• Incandescent dimming curve
• Regulated output for brightness
consistency
• Strobe enabled
• Standard dimming curve
• Regulated output for brightness
consistency
• Automatic fan control
• To adjust the Tint, press [] & [] or [].
[] increases magenta and [] increases green.
• To return to the Main Menu, press [].
Advanced Settings
Step 1: From the Main Menu press [] to scroll to Advanced Settings.
Step 2: Press [].
Step 3: Access the individual settings via additional menus.
Step 4: Press [] to return to the home screen.
Once you are familiar with your fixture, you may alter any of the numerous individual
settings from the Advanced Settings menu. For more information, see Advanced Menu,
page 42.
80 Source Four LED Profile v1.6.0 User Manual
Appendix B
Menu Flow Chart
The following illustrations show each of the menus that are displayed on the Source Four
LED fixture LCD and the path to each one.
Home and Main Menus (Lustr+, Series 2 Lustr, and Studio HD)
General
HSI Reg Stnd –– Str
No Sequence is Active
No Preset is Active
DMX Start Address: 001
Quick Setups
Advanced Settings
Master
System OK
4/5 Inte n s it y
Main Menu
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Quick Setups
*General
Stage
XT Architectural
High Impact
Studio
2/15 Hue Fine
To Advanced
Menu
B Menu Flow Chart 81
Home and Main Menus (Daylight and Tungsten)
Stage
Dir Reg Stnd –– Str
No Sequence is Active
No Preset is Active
DMX Start Address: 001
Quick Setups
Advanced Settings
Master
System OK
1/3 Intensity
Main Menu
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Quick Setups
*Studio
Stage
Single Channel
1/3 Intensity
To Advanced
Menu
82 Source Four LED Profile v1.6.0 User Manual
Advanced Menu (Lustr+, Series 2 Lustr, and Studio HD)
To Presets and
Sequenses Menu
To Diagnostics
Menu
To
Confirmation
*
*
*
*
*
*
Copy All Settings appears only when DMX is not present.
To
Confirmation
***Press the Light Bulb button
at any time for quick
access to the Presets and
Sequences Menu.
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
DMX Start Address: 101
DMX Profile: HSIC
Strobe: Enabled
Data Loss: Instant
Plus Seve n: En able d
Output: Regulated
Curve: Standard
Output Freq: 1200
Red Shift: Off
White Point: 3200K
DMX Settings
DMX Profile: 6 chan
1/15 Hue Coarse
LED Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Local Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
B Menu Flow Chart 83
Advanced Menu (Daylight and Tungsten)
Main Menu
DMX Start Address: 001
Quick Setups
Advanced Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
DMX Settings
DMX Start Address: 101
DMX Profile: Direct
Strobe Mode: Enabled
Data Loss: Instant
Fan Mode: Auto
*
Output: Regulated
Curve: Standard
Output Freq: 1200
1/15 I n te n s i t y
LED Settings
*
To Presets and
Sequenses Menus
*
To Diagnostics
Menu
*
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Backlight: 100%
BLght time out: 1 min
Language: English
Status Indicators: Off
OverTemp: Visible
Restore Defaults
Local Settings
To
Confirmation
*
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
84 Source Four LED Profile v1.6.0 User Manual
*
Copy All Settings appears only when DMX is not present.
To
Confirmation
Presets Menu (Lustr+, Series 2 Lustr, and Studio HD)
* Copy All Settings appears only
when DMX is not present.
Advanced Menu
DMX Settings
LED Settin gs
Presets and Sequences
Diagn ostic s
Local Settings
Copy All Settings
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Ac tive
No Sequence is Active
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Ac tive
No Sequence is Active
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Preset: * 23
Status: Active
Fade Tim e: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:0 0
Edit
Copy to Other Fixture
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Presets
Presets
Presets
Presets
Preset 23 Edit
Color:
Hue Course: 0
Hue Fine: 0
Sat: 0
Int: 100%
Strobe: 255
Save Changes
White
Preset: * 23
Status: Active
Fa de Ti m e: 0 0:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Presets
Copy Preset
This Will Copy
Preset Data
From This Fixture to
All other Fixtures
Are You Sure?
Yes
No
B Menu Flow Chart 85
Presets Menu (Daylight and Tungsten)
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
* Copy All Settings appears only when DMX is not present.
Presets and Sequences
Focus: Off
Presets
Sequences
Preset 1 is Active
No Sequence is Active
Presets and Sequences
Focus: Off
Presets
Sequences
Preset 1 is Active
No Sequence is Active
Presets
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Save DMX as Preset
Presets
Preset: * 23
Status: Active
Fa d e Ti m e: 0 0:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Presets
Preset: * 23
Status: Active
Fade Time: 00:0 2
Delay Time: 00:00
Edit
Copy to Other Fixture
Presets
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Preset 23 Edit
Preset: 23
Int: 100%
Strobe: 0
Save Changes
Presets
Preset: * 23
Status: Active
Fade Time: 00:02
Delay Time: 00:00
Edit
Copy to Other Fixture
Copy Preset
This Will Copy
Preset Data
From This Fixture to
All other Fixtures
Are You Sure?
Yes
No
86 Source Four LED Profile v1.6.0 User Manual
Sequences Menu (all fixture types) and Quick Color Menu (Lustr+, Series 2 Lustr, and Studio HD only)
The Quick Color menu is only available on
Lustr+ and Studio HD xtures
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Sequence: * 3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequence: * 3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequences
Sequences
Sequences
Presets and Sequences
Focus: Off
Presets
Sequences
Quick Color
Preset 1 is Active
No Sequence is Active
Press the Light Bulb button
for immediate access to
the Quick Color menu.
Intensity: 0%
Color: LIT BLUE
Quick Color
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequence: *3
Action: Not Active
Rate: 100%
Step: 01
Preset: 1
Link Time: 00:02
Copy to Other Fixture
Sequence: * 3
Status: Active
Rate: 100%
Step: 01
Preset: 0
End State: Loop
Copy to Other Fixture
Sequences
Sequences
Sequences
Sequences
If Preset is
set to ‘0’
Sequence: * 3
Status: Active
Rate: 100%
Step: 01
Preset: 0
End State: Loop
Copy to Other Fixture
Sequences
Copy Sequence
This Will Copy
Preset Data
From This Fixture to
All other Fixtures
Are You Sure?
Yes
No
B Menu Flow Chart 87
Diagnostics Menu
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Copy All Settings
Current DMX In
Diagnostics
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Diagnostics
Current DMX In
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Diagnostics
Current DMX In
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Current DMX In
DMX Ch Level
2 107
3 14
4 82
5 0
G O R A O R I
11 02 00 10 00 00 01
Diagnostics
Overruns: 0
Received: 47835
Breaks: 15490
Bad Starts: 0
DMX Starts: 27120
RDM Starts: 0
Network Statistics
To Te st
Current DMX In
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Current DMX In
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
88 Source Four LED Profile v1.6.0 User Manual
Diagnostics
Diagnostics
To Recalibrate
Fixture
About Fixture
DMX START: 001
Ve r: 1.4.1.0.0.2 0 (1)
Ser: 000021xxx
RDM: 6574:12345678
Desire Vivid 22
RDM Label
Diagnostics Test
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Current DMX In
Diagnostics
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Diagnostics
Action: Chase
Chase: 15 steps/sec
Individual Control
G O R A O R I
00 00 48 00 00 00 00
Action: Chase
Chase: 15 steps/sec
Individual Control
G O R A O R I
00 00 48 00 00 00 00
Action: Ind Cntr
Chase: 15 steps/sec
Individual Control
G O R A O R I
56 00 00 00 00 00 00
Tes t
Diagnostics
Tes t
Diagnostics
Tes t
B Menu Flow Chart 89
Diagnostics Recalibrate Fixture
Advanced Menu
DMX Settings
LED Settings
Presets and Sequences
Diagnostics
Local Settings
Current DMX In
Diagnostics
Network Statistics
Tes t
Recalibrate Fixture
About Fixture
Diagnostics
Recalibrate Fixture
This Will Calibrate
LED Array
Are You Sure?
Yes
No
LED Calibration
LED 1 .......Pass
LED 2 .......Pass
LED 3 .......Pass
LED 4 .......Working
LED 5 .......Working
LED 6 .......Working
LED 7 .......Working
90 Source Four LED Profile v1.6.0 User Manual
B Menu Flow Chart 91
92 Source Four LED Profile v1.6.0 User Manual
Corporate Headquarters
London, UK
Rome, IT
Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel +44 (0)20 8896 1000 Fax +44 (0)20 8896 2000
Via Pieve Torina, 48, 00156 Rome, Italy Tel +39 (06) 32 111 683 Fax +44 (0) 20 8752 8486
Holzkirchen, DE
3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel +608 831 4116 Fax +608 836 1736
Ohmstrasse 3, 83607 Holzkirchen, Germany Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00
Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325
Service:
(Americas) service@etcconnect.com
Web:
www.etcconnect.com
7460M1200-1.6.0
Rev A Released 2014-02
Copyright © 2014 ETC. All Rights Reserved. Product information and specifications subject to change.
(UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com
ETC intends this document to be provided in its entirety.
(Asia) service@etcasia.com
Loading...
