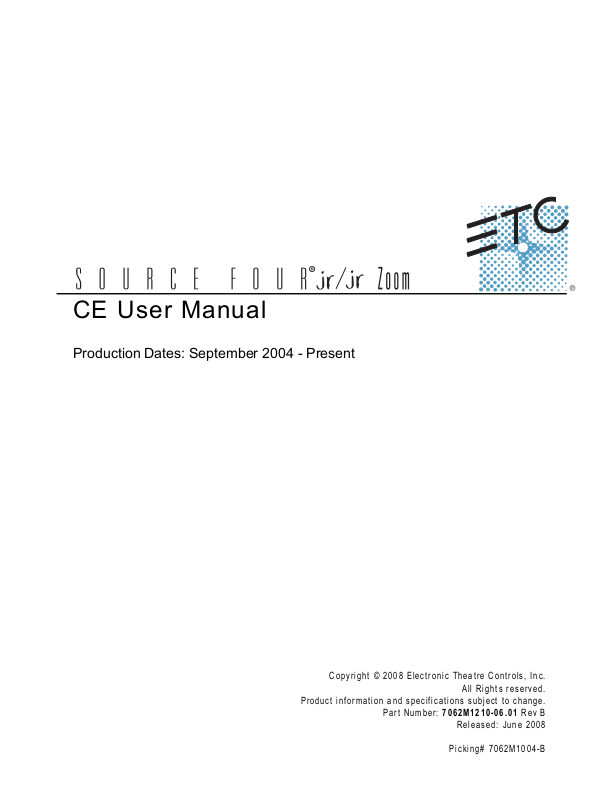

ETC Source Four jr and jr Zoom CE User Manual

CE User Manual

Production Dates: September 2004 - Present

Copyright © 2008 Electronic Theatre Controls, Inc.

All Rights reserved.

Product information and specifications subject to change.

Part Number:

7062M1210-06.01

Released: June 2008

Picking# 7062M1004-B

Rev B

Table of Contents

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Source Four jr / jr Zoom CE Guidelines . . . . . . . . . . . . . . . . . . . . . . .2

Basic Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Luminaire information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Colour frame holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

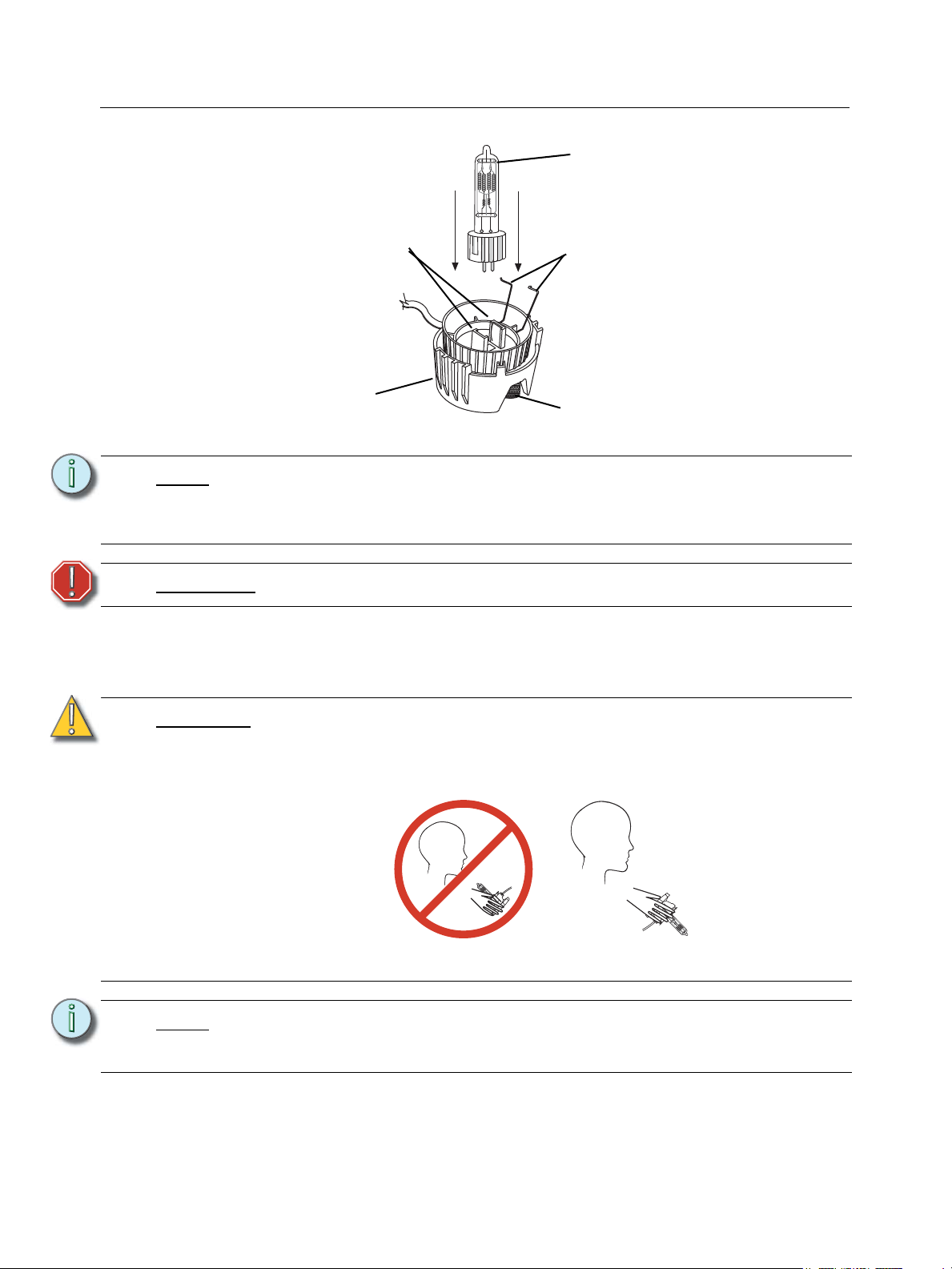

Replacing the HPL lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

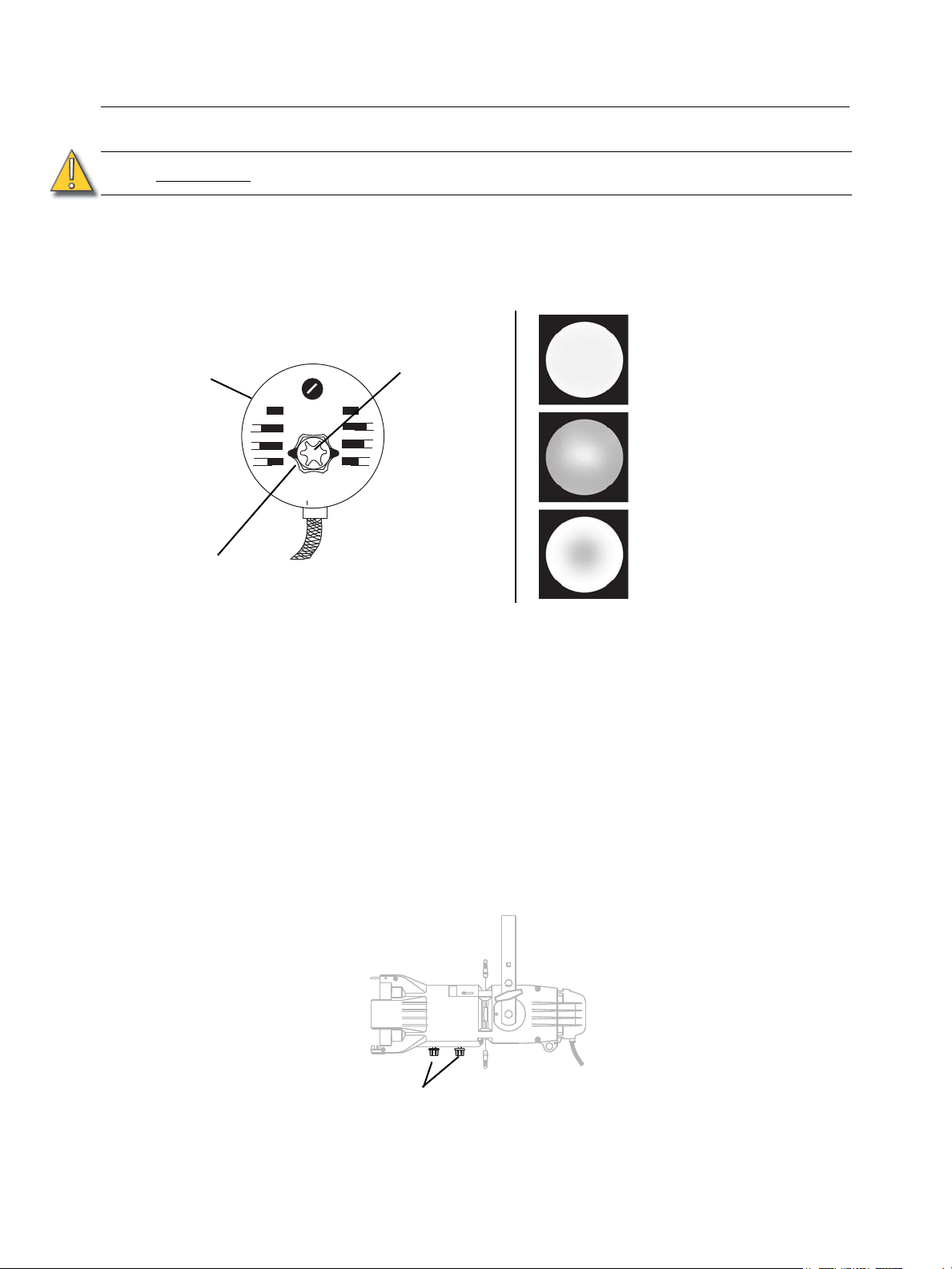

Centering lamp and adjusting the field . . . . . . . . . . . . . . . . . . . .6

Focusing the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Shaping the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

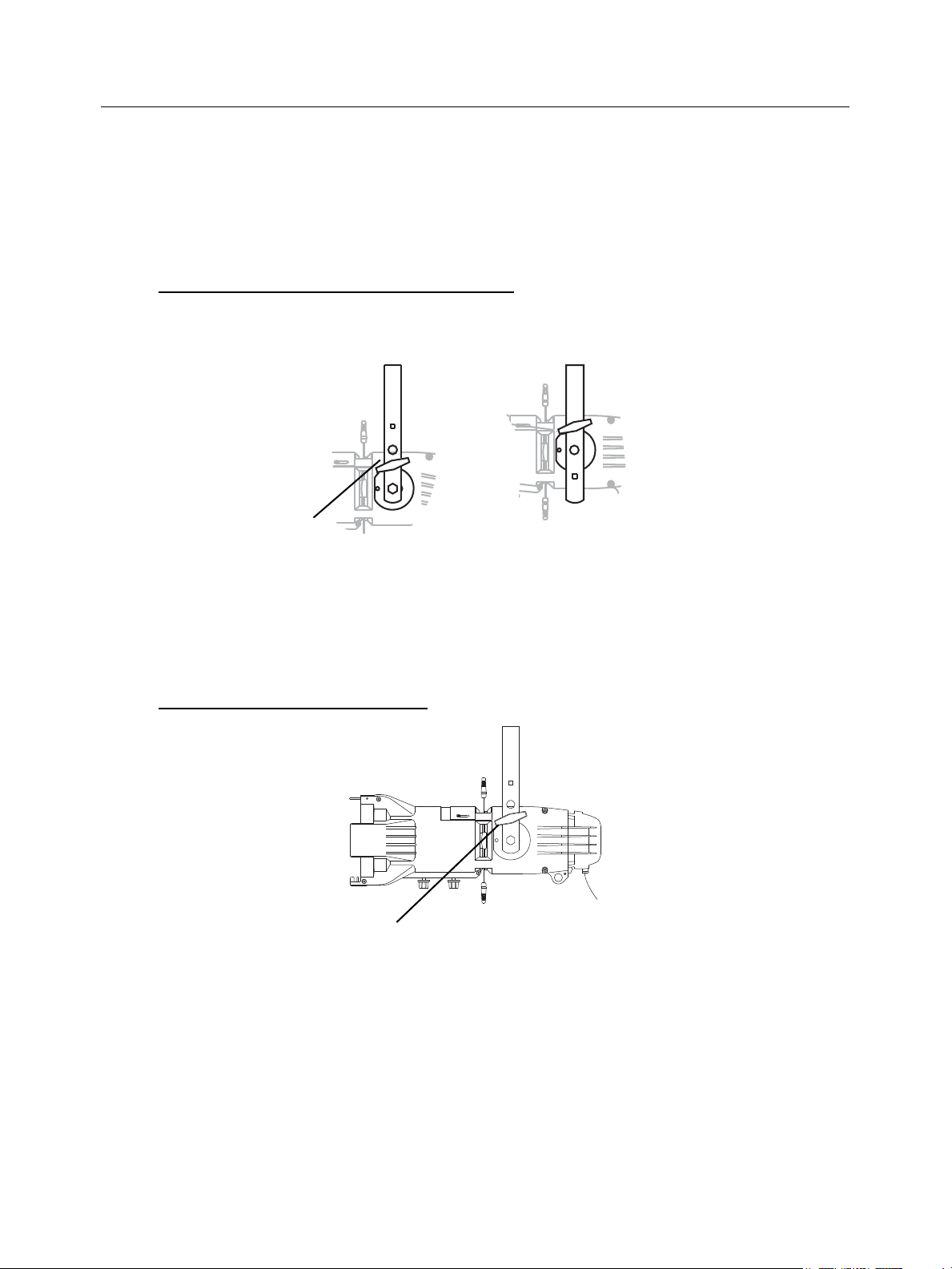

Adjusting the yoke position . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Switching lens assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Cleaning glass lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Cleaning the reflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Portable appliance test (PAT) . . . . . . . . . . . . . . . . . . . . . . . . . .11

ETC®, Emphasis®, Expression®, Insight™, Imagine™, Focus™, Express™, Unison®, Obsession® II, ETCNet2™,
EDMX™, Source Four
of Electronic Theatre Controls, Inc. in the United States and other countries.

All other trademarks, both marked and not marked, are the property of their respective owners.

i

®

, Revolution®, Sensor®, and WYSILink™ are either registered trademarks or trademarks

Declaration of Conformity

We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product:

Product name: Source Four fixed focus luminaries

Product type/model: S405, S410, S426, S450, S4jr26, S4jr36, Srjr50

Lot: n/a

Batch/Serial number: n/a

Item numbers: one of each model

to which this declaration relates in conformity with the following standards:

EN60598-1:2000 Luminaires, General requirements and tests

EN60598-2-17:1990 Specification for luminaires for stage lighting, television, film, and

photographic studios (outside and indoor) - equiv. BS 4533-

102.17:1990

English

following the provisions of EU LV Directive(s) 73/23/EEC

London, United Kingdom

Mr. Adam Bennette

(Place of issue) (Name of authorised person)

(Date of issue) (signature of authorised person)

Electronic Theatre Controls Europe, Ltd. Registered office:
Unit 26-28, Victoria Industrial Estate, Grant Thornton House
Victoria Road, London W3 6UU U.K. Melton St., London NW1 28W, England
Telephone (+44) (0)20 896 1000 Registered in England No. 3057796
Fax (+44) (0)20 896 2000 VAT No. 6629487 90

1

English

0.6m

Source Four jr / jr Zoom CE Guidelines

The Source Four jr / jr Zoom CE is intended for professional use only. Read the entire User Guide
before using equipment.

WARNING:

• Do not mount the Source Four jr / jr Zoom CE on or near a flammable surface.

• Use the Source Four jr / jr Zoom CE in dry locations only, where humidity does not

• The luminaire is for indoor use only and is not intended for outdoor use.

• For temporary installations, mount and support the Source Four jr / jr Zoom CE only by

• In addition to primary suspension, attach a safety cable (ETC part #7060A1022)) or

• If the external cable is damaged, it shall be replaced by ETC or our service agents.

• Always hang the Source Four jr / jr Zoom CE with the colour frame held securely behind

• Always replace the lamp if it becomes damaged or thermally deformed.

• Disconnect the unit from power before all cleaning and maintenance.

• The Source Four jr / jr Zoom CE is suitable for indoor use with a maximum ambient

• Maximum exterior surface temperature: T

• A multilingual label sheet is included with this manual. Affix the label of the appropriate

Please note the following safety precautions.

exceed 90 percent.

the primary suspension yoke holes. Suspend the luminaire from a hook clamp or a
stand mount, using a securely tightened steel bolt (up to Ø 12 mm), flat washer and
locking washer.

chain to the secondary suspension point on the Source Four jr / jr Zoom CE.

the retaining clip.

temperature: T

language over the existing warning label on the extension yoke. Do not cover ETC
trademark or CE mark.

=45°C

a

=235ºC

max

• The Source Four jr / jr Zoom CE contains a CE safety screen that covers the lens to
prevent injury from broken glass due to lamp failure. Do not remove the safety screen.

• Keep the luminaire at least 0.6 meters away from any lit surface. Lighted objects at this
distance or greater will not exceed 90ºC temperature from projected light.

2 Source Four jr/jr Zoom CE User Manual

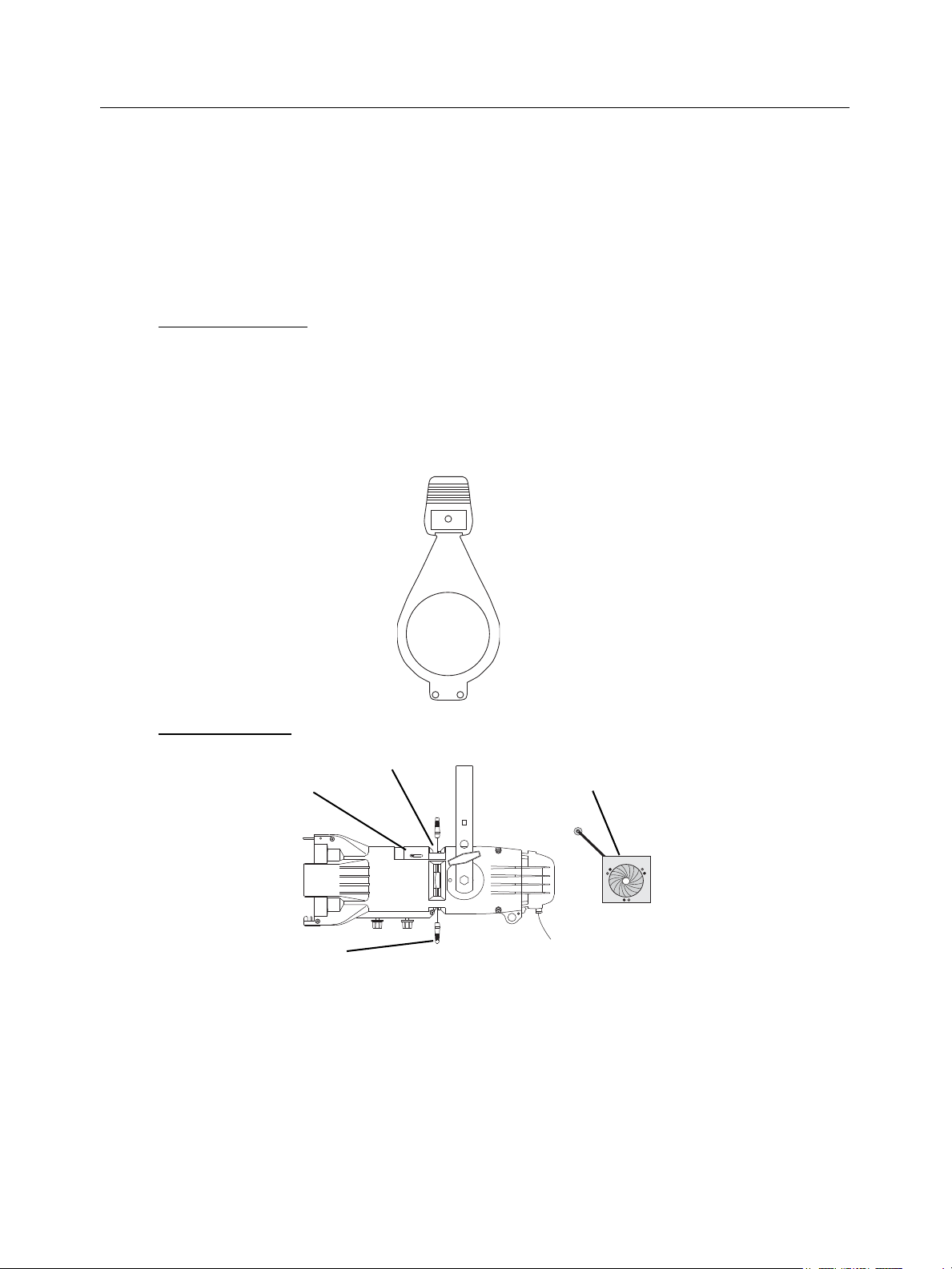

Basic Assembly

Figure 1

Lamp housing

C-clamp mounting

Barrel

Drop-in iris
slot cover

Pattern holder slot

Gel frame

Zoom rear focus knob

Beam focus knob
(Zoom front focus)

Yoke

Yoke locking knob

Color frame
retaining gel clip

t 180 °c

English

WARNING:

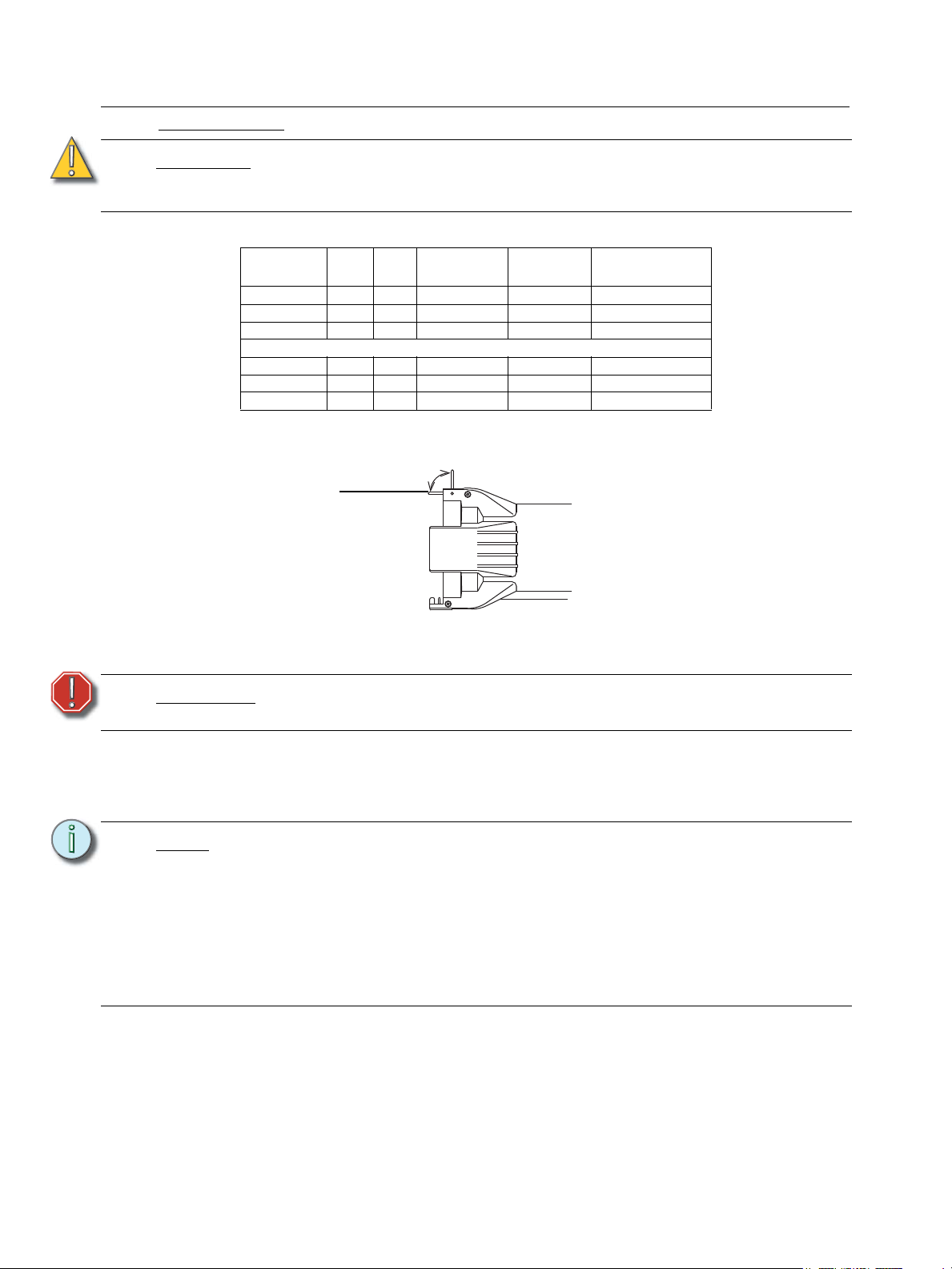

Luminaire information

Wiring and power information

A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire’s mains lead. The
wires in the mains lead are 1.55mm

Green and Yellow: Earth

Blue: Neutral

Brown: Live

WARNING:

Current rating: 120V/5 amp maximum

Operating frequency: 50/60 Hz

Please note the following safety warnings before use:

Do not mount the luminaire on or near combustible surfaces.

Do not operate the luminaire without a lens installed.

Always hang the luminaire with the colour frame retaining clip in the locked
position.

This luminaire must be earthed.

240V/2.5 amp maximum

2

each and coloured in accordance with the following code:

3
