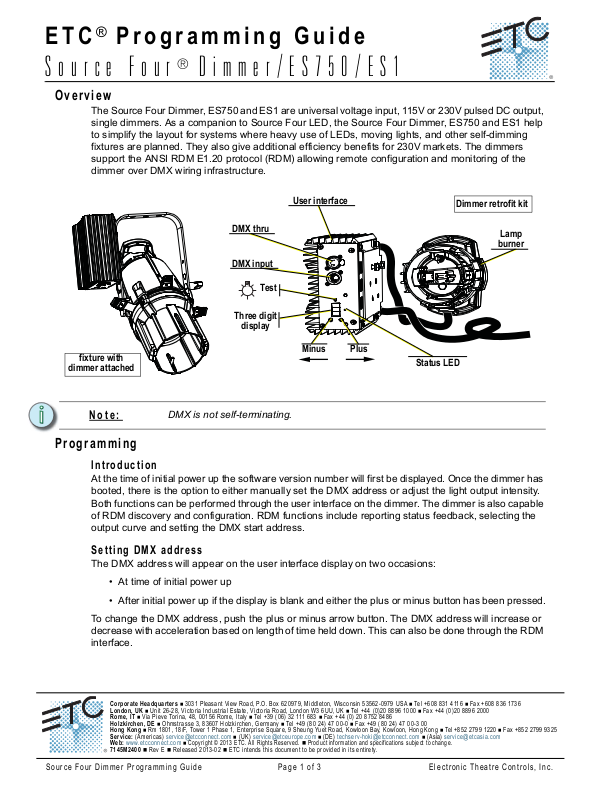

ETC Source Four Dimmer Programming Guide

ETC® Programming Guide

fixture with

dimmer attached

Dimmer retrofit kit

User interface

Three digit

display

DMX input

DMX thru

Status LED

Test

Plus

Minus

Lamp

burner

Source Four® Dimmer/ES750/ES1

Overview

The Source Four Dimmer, ES750 and ES1 are universal voltage input, 115V or 230V pulsed DC output,
single dimmers. As a companion to Source Four LED, the Source Four Dimmer, ES750 and ES1 help
to simplify the layout for systems where heavy use of LEDs, moving lights, and other self-dimming
fixtures are planned. They also give additional efficiency benefits for 230V markets. The dimmers
support the ANSI RDM E1.20 protocol (RDM) allowing remote configuration and monitoring of the
dimmer over DMX wiring infrastructure.

Programming

Source Four Dimmer Programming Guide Page 1 of 3 Electronic Theatre Controls, Inc.

Note:

DMX is not self-terminating.

Introduction

At the time of initial power up the software version number will first be displayed. Once the dimmer has
booted, there is the option to either manually set the DMX address or adjust the light output intensity.
Both functions can be performed through the user interface on the dimmer. The dimmer is also capable
of RDM discovery and configuration. RDM functions include reporting status feedback, selecting the
output curve and setting the DMX start address.

Setting DMX address

The DMX address will appear on the user interface display on two occasions:

• At time of initial power up

• After initial power up if the display is blank and either the plus or minus button has been pressed.

To change the DMX address, push the plus or minus arrow button. The DMX address will increase or
decrease with acceleration based on length of time held down. This can also be done through the RDM
interface.

Corporate Headquarters
London, UK
Rome, IT 
Holzkirchen, DE
Hong Kong  Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong  Tel [phone]  Fax [phone]
Service:
Web:
7145M2400

 Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK  Tel [phone]  Fax [phone]

Via Pieve Torina, 48, 00156 Rome, Italy  Tel [phone]  Fax [phone]

(Americas) [e-mail] 

www.etcconnect.com 

 Rev E  Released 2013-02 

 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA  Tel [phone]  Fax [phone]

 Ohmstrasse 3, 83607 Holzkirchen, Germany  Tel [phone]  Fax [phone]

Copyright © 2013 ETC. All Rights Reserved.  Product information and specifications subject to change.

(UK) [e-mail]  (DE) [e-mail] 

ETC intends this document to be provided in its entirety.

(Asia) [e-mail]

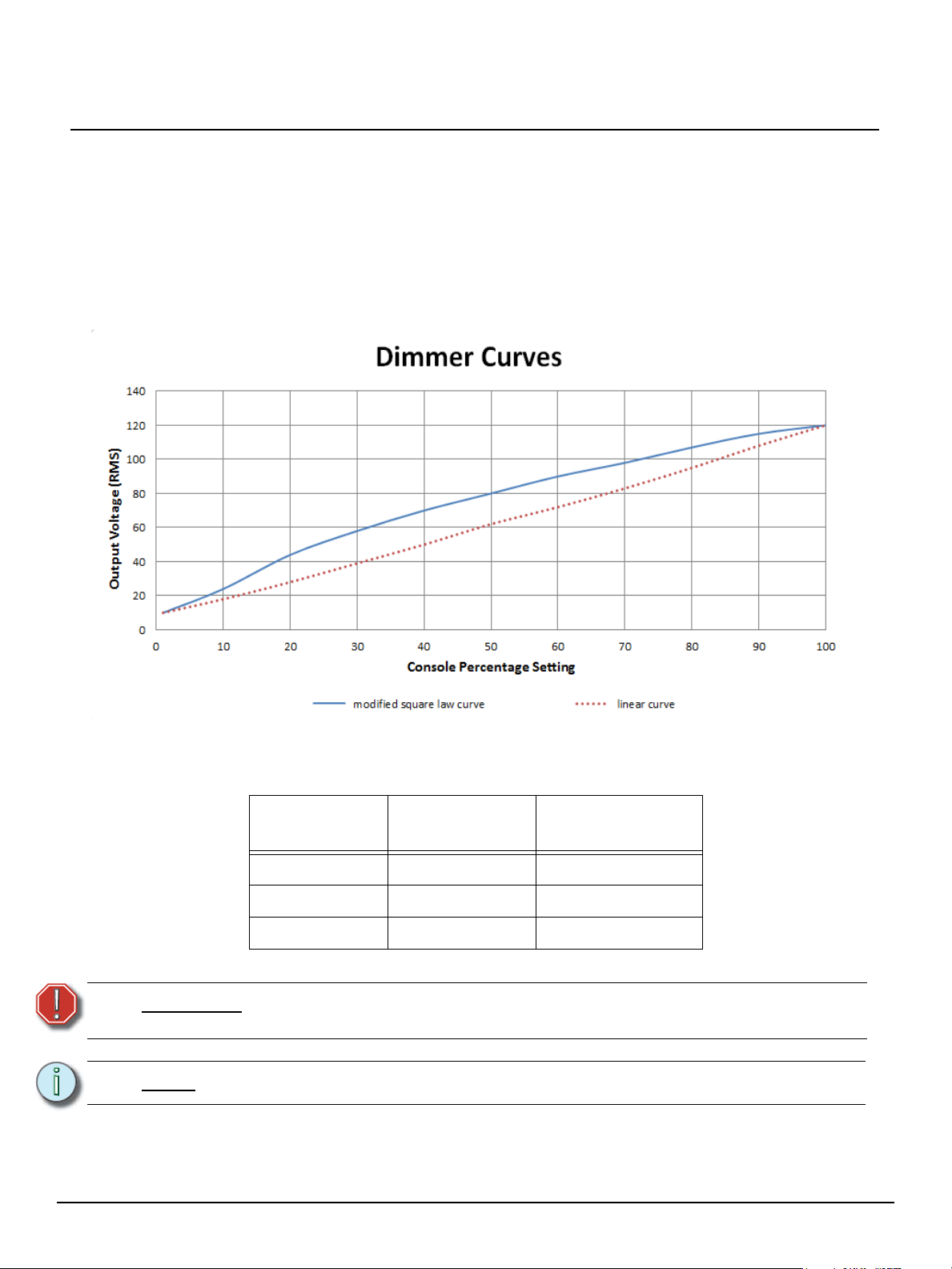

ETC Programming Guide

Source Four Dimmer/ES750/ES1

Note:

If data loss is detected, the lamp output will be held at the last level specified.

Setting Intensity Level

• Pushing the test button will cause the fixture to enter test mode. This is true even if the current user
interface is showing the DMX channel on the display. The current 0-100% light output level will be
shown on the three digit screen. There is no time-out for test mode.

• Pressing and holding the test button will execute a test fade from 0-100%

• To exit test mode, press and release the test button. When exiting test mode the screen will go
blank, DMX control will be restored and the dimmer will return to the current DMX address.

RDM and User Interface Error Notifications

• Over Current Notification - Output wiring short

• No Load Notification - Lamp has burned out or has been removed

• Over-temp - Fixture has exceeded operating temperatures and will shut down

Note:

Dimmer will automatically re-enable when fixture is back within operational
temperature range. No user intervention is required to clear the error.

LED Status Indicator

LED Color Description

Solid Green Normal operation

Slow Blinking Green No DMX detected

Fast Blinking Green Invalid or incorrectly wired DMX

Solid Red Error condition exists

Switching Output Voltage

The dimmer can be configured to output 230V in place of the default 115V.

To view the current output voltage:

Step 1: Press and hold both the plus and minus buttons. The output voltage will be shown on the

three digit display.

To change the current output voltage:

Step 1: Press and hold both the plus and minus buttons.
Step 2: While holding the plus and minus buttons, hold down the test button. The voltage that you

will be changing to will appear blinking, then a 5-count, count down will be shown.

Once the countdown is complete, the new voltage will be applied and saved.

WARNING:

Make sure your lamp voltage matches your dimmer voltage. Default dimmer output
regulates to 115V at 100%. A dimmer set to 230V will damage a 115V lamp.
