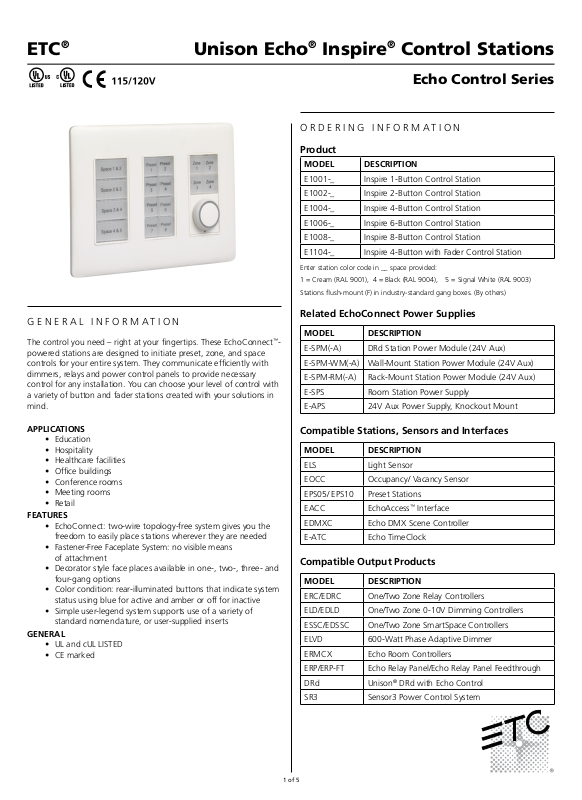

ETC E1006 Datasheet

®

Unison Echo® Inspire® Control StationsETC

Echo Control Series

ORDERING INFORMATION

Product

MODEL DESCRIPTION

E1001-_ Inspire 1-Button Control Station

E1002-_ Inspire 2-Button Control Station

E1004-_ Inspire 4-Button Control Station

E1006-_ Inspire 6-Button Control Station

E1008-_ Inspire 8-Button Control Station

E1104-_ Inspire 4-Button with Fader Control Station

Enter station color code in __ space provided:

1 = Cream (RAL 9001), 4 = Black (RAL 9004), 5 = Signal White (RAL 9003)

Stations flush-mount (F) in industry-standard gang boxes. (By others)

GENERAL INFORMATION

The control you need – right at your fingertips. These EchoConnect™­powered stations are designed to initiate preset, zone, and space
controls for your entire system. They communicate efficiently with
dimmers, relays and power control panels to provide necessary
control for any installation. You can choose your level of control with
a variety of button and fader stations created with your solutions in
mind.

APPLICATIONS

• Education

• Hospitality

• Healthcare facilities

• Office buildings

• Conference rooms

• Meeting rooms

• Retail

FEATURES

• EchoConnect: two-wire topology-free system gives you the
freedom to easily place stations wherever they are needed

• Fastener-Free Faceplate System: no visible means
of attachment

• Decorator style face places available in one-, two-, three- and
four-gang options

• Color condition: rear-illuminated buttons that indicate system
status using blue for active and amber or off for inactive

• Simple user-legend system supports use of a variety of
standard nomenclature, or user-supplied inserts

GENERAL

• UL and cUL LISTED

• CE marked

Related EchoConnect Power Supplies

MODEL DESCRIPTION

E-SPM(-A) DRd Station Power Module (24V Aux)

E-SPM-WM(-A) Wall-Mount Station Power Module (24V Aux)

E-SPM-RM(-A) Rack-Mount Station Power Module (24V Aux)

E-SPS Room Station Power Supply

E-APS 24V Aux Power Supply, Knockout Mount

Compatible Stations, Sensors and Interfaces

MODEL DESCRIPTION

ELS Light Sensor

EOCC Occupancy/ Vacancy Sensor

EPS05/ EPS10 Preset Stations

EACC EchoAccess

EDMXC Echo DMX Scene Controller

E-ATC Echo TimeClock

™

Interface

Compatible Output Products

MODEL DESCRIPTION

ERC/EDRC One/Two Zone Relay Controllers

ELD/EDLD One/Two Zone 0-10V Dimming Controllers

ESSC/EDSSC One/Two Zone SmartSpace Controllers

ELVD 600-Watt Phase Adaptive Dimmer

ERMCX Echo Room Controllers

ERP/ERP-FT Echo Relay Panel/Echo Relay Panel Feedthrough

DRd Unison

SR3 Sensor3 Power Control System

®

DRd with Echo Control

1 of 5

Unison Echo Inspire Control Stations ETC

Echo Control Series

SPECIFICATIONS

FUNCTIONAL

• Button and fader functions include: preset activation/ deactivation, record, raise, lower, zone on/off control and room combine

• Blue button illumination for active status

• Amber or no button illumination for inactive status

• Fader halo-illumination displays actual output level

• Zone or preset control from any station with real-time user toggle

MECHANICAL

• Standard configurations with 1, 2, 4, 6 and 8 buttons or 4 buttons and rotary fader

• Gangable for custom applications

• Enclosed electronics assembly and faceplate included

• Cantilevered switch arrays with removable button caps

• No visible means of attachment

• Flush-mount in industry standard backbox, RACO 690 or equivalent

• Surface-mount backboxes available from ETC upon request

• Constructed of injection-molded, ABS plastic in three RAL standard colors Cream (RAL 9001), Black (RAL 9004), and White (RAL 9003)

• User configurable legends on each button, or use standard legends that come with each station. Field configurable without the use
of tools

• Integral LED response indicator for each button with indication of active(blue) and inactive(amber or off) state

ELECTRICAL

• Connect via the EchoConnect control network via low-voltage Class 2 wiring

• Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire

• Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories

• Wiring may be bus, loop, homerun or any combination of these

• Supports up to 500 meters (1640 feet) of control wiring

- Up to 1000’ using CAT5

• All station terminations utilize removable connectors

• UL and cUL LISTED, CE marked

THERMAL

• Ambient room temperature: 0-50°C / 32-122°F

• Ambient humidity: 5-95% non-condensing

2 of 5

Unison Echo Inspire Control Stations ETC

Echo Control Series

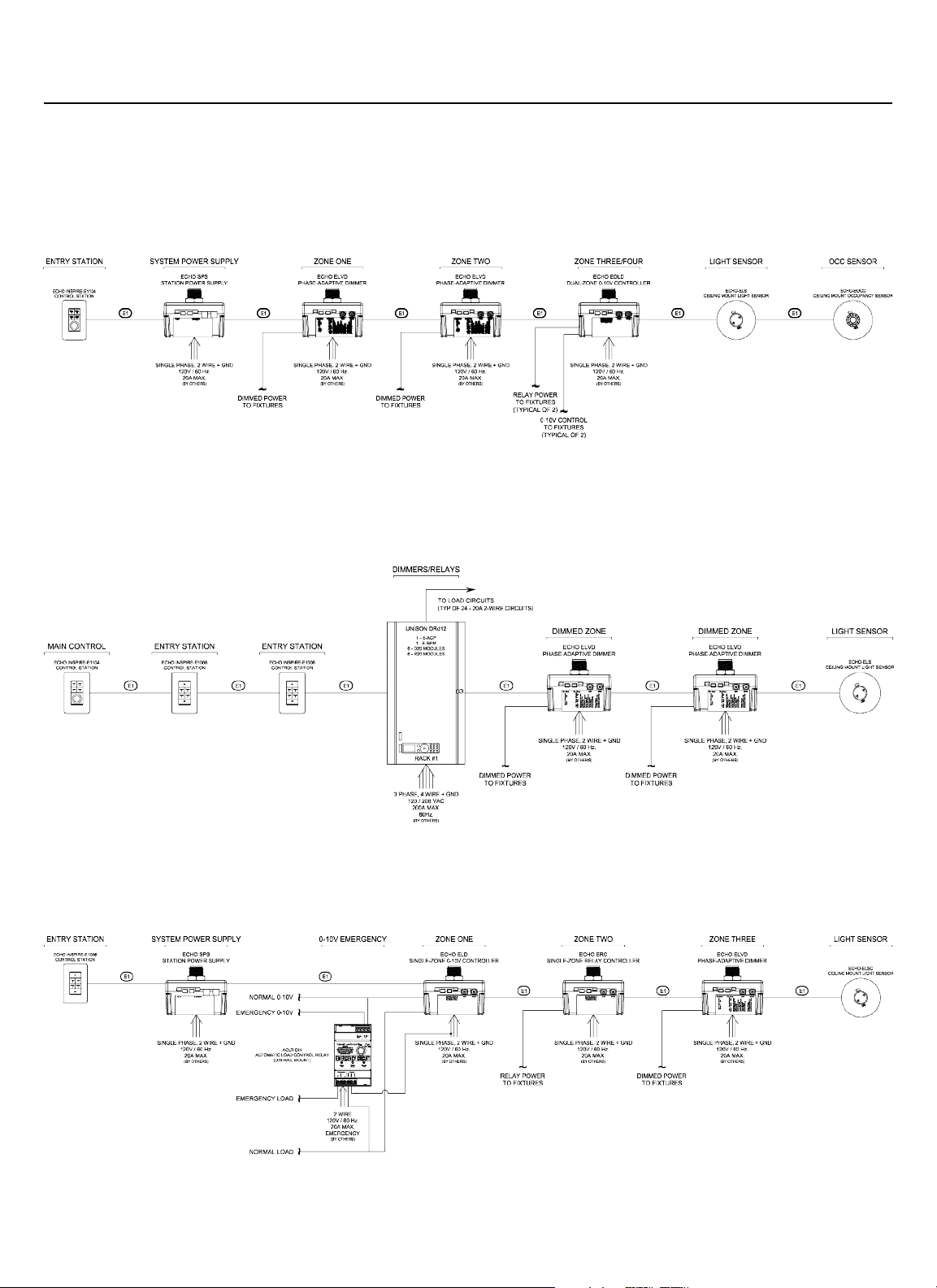

SMALL SYSTEM

MEDIUM SYSTEM

CONFERENCE ROOM

3 of 5

Unison Echo Inspire Control Stations ETC

Echo Control Series

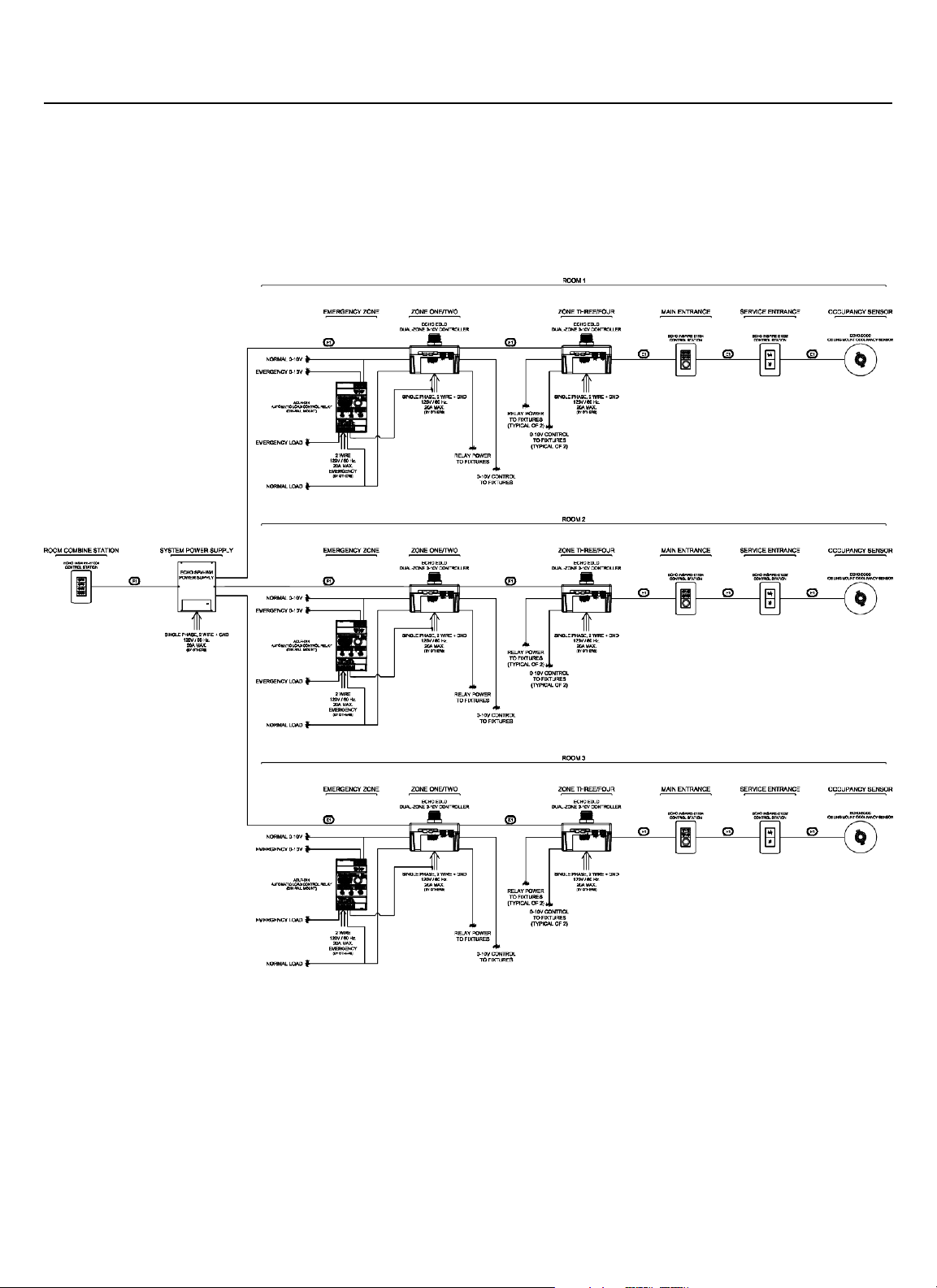

MEDIUM BALLROOM

4 of 5

Unison Echo Inspire Control Stations ETC

2.76”

70.1mm

2.63”

66.8mm

2.50”

63.5mm

3.75”

95.3mm

4.52”

114.9mm

1.32”

33.6mm

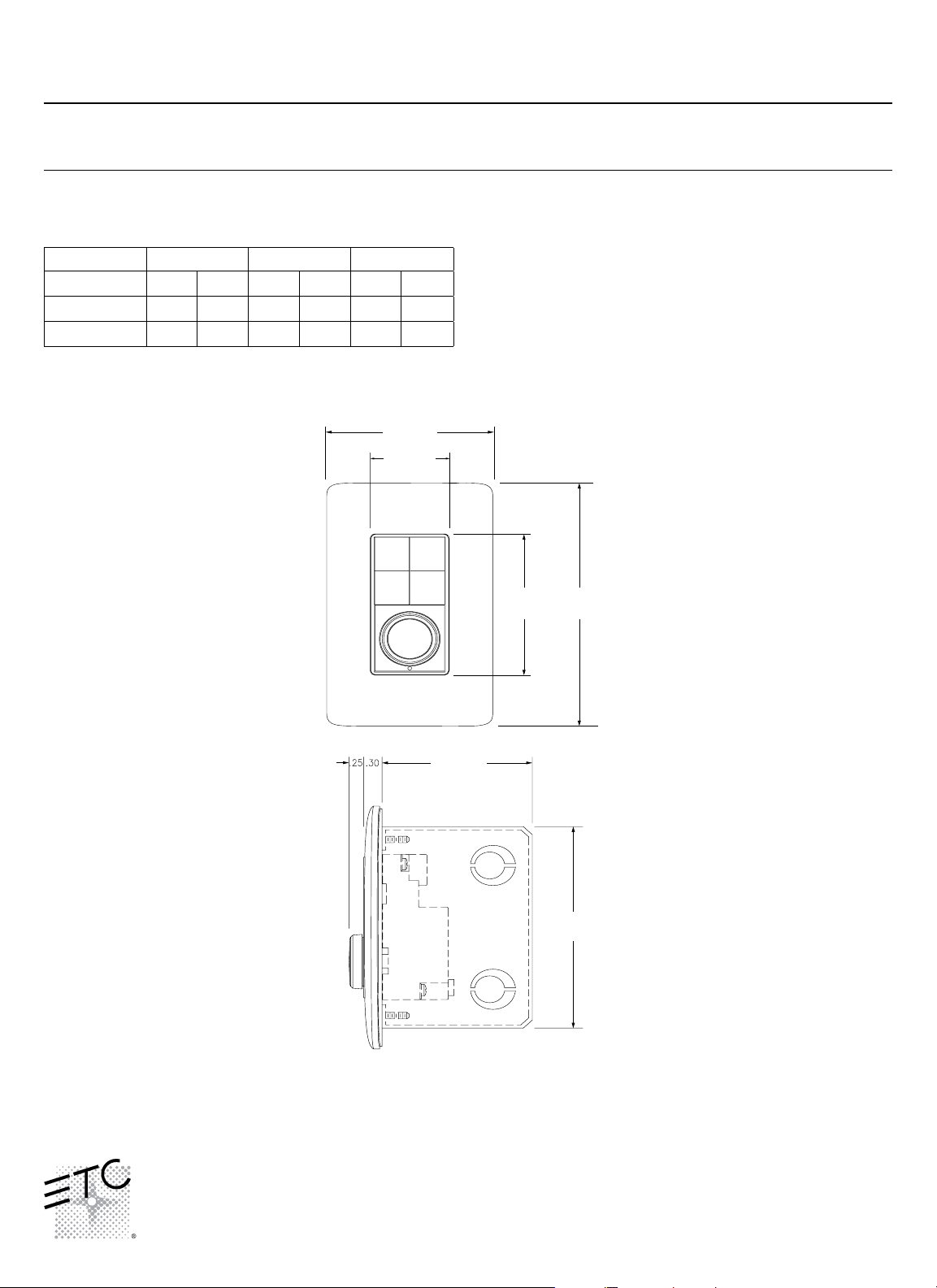

PHYSICAL

Product Dimensions

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

E100X 4.52 115 2.76 71 0.30 8

E1104 4.52 115 2.76 71 0.55 14

Echo Control Series
