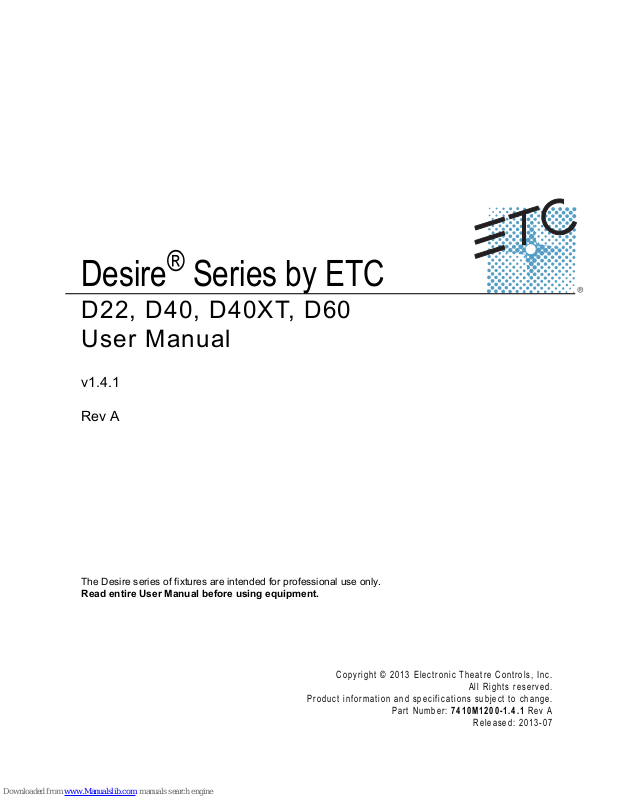

D22, D40, D40XT, D60 User Manual

v1.4.1

Rev A

The Desire series of fixtures are intended for professional use only.

Read entire User Manual before using equipment.

Desire® Series by ETC

Product information and specifications subject to change.

Part Number:

7410M1200-1.4.1

Rev A

Released: 2013-07

Page 2

ETC permits the reproduction of materials in this manual only for non-commercial purposes. All other rights are reserved by ETC.

ETC intends this document, whether printed or electronic, to be provided in its entirety.

ETC is a registered trademark of Electronic Theatre Controls, Inc. in the United States and other countries.

Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners.

This product is protected by one or more of the following U.S. Patents: 6,016,038, 6,150,774, 6,788,011, 6,806,659, 6,683,423 and 7,023,543

Page 3

Desire Series User Manual i

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Vivid, Lustr+, Fire and Ice, Studio HD . . . . . . . . . . . . . . . . . . . . . .1

Studio Daylight and Studio Tungsten . . . . . . . . . . . . . . . . . . . . . .1

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Typography Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connect (D40, D40XT, D60) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connect (D22 Portable). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connect (D22 Canopy and Track). . . . . . . . . . . . . . . . . . . . . . . . .7

Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Configure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Quick Setups Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Installation and User Interface Overview . . 11

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Typical Power Consumption (D22). . . . . . . . . . . . . . . . . . . . . . . . . .14

Typical Power Consumption (D40 and D40XT) . . . . . . . . . . . . . . . .15

Typical Power Consumption (D60). . . . . . . . . . . . . . . . . . . . . . . . . .16

Note About LED Fixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Color Rendering Index and Color Quality Scale Ratings . . . . . . . . .17

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Mounting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Aim Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

D40, D40XT, D60, D22 Portable . . . . . . . . . . . . . . . . . . . . . . . . .19

D22 Canopy and Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Cooling and Duty Cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Dimensions and Hanging Clearances . . . . . . . . . . . . . . . . . . . . . . .22

Safety Cable (D22, D40, D40XT, D60) . . . . . . . . . . . . . . . . . . . . . .23

Fixture Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Power and Data Cabling Requirements . . . . . . . . . . . . . . . . . . . . . .24

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Page 4

ii Desire Series User Manual

Data (D40, D40XT, D60) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Data (D22). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

D40, D60 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

D40XT Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

D22 Portable DMX/RDM Connections . . . . . . . . . . . . . . . . . . . .27

Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

DMX Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

DMX Footprints and Channel Mapping . . . . . . . . . . . . . . . . . . . . . .34

D22, D40, D40XT and D60 (Studio Tungsten and Daylight). . . .34

D22 (Lustr+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

D40 (Vivid, Lustr+, Fire, Ice, Studio HD) . . . . . . . . . . . . . . . . . . .35

D60 (Vivid, Lustr+, Fire, Ice, Studio HD) . . . . . . . . . . . . . . . . . . .35

Installing Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Basic Menu Navigation . . . . . . . . . . . . . . . . 37

User Interface Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Keypad Lockout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Screen Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Status (Home) Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Home Screen Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

DMX Start Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

DMX Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

LED Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Presets & Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Local Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Copy All Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Studio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Vivid, Lustr+, Fire and Ice, Studio HD . . . . . . . . . . . . . . . . . . . . .74

Studio Daylight and Studio Tungsten . . . . . . . . . . . . . . . . . . . . .76

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

ETC Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Page 5

iii

Menu Flow Chart. . . . . . . . . . . . . . . . . . . . . 79

Home and Main Menus (Vivid, Lustr+, Fire and Ice, Studio HD) 79 Home and Main Menus (Studio Daylight and Studio Tungsten) .80

Advanced Menu (Vivid, Lustr+, Fire and Ice, Studio HD) . . . . . .81

Advanced Menu (Studio Daylight and Studio Tungsten). . . . . . .82

Presets Menu (Vivid, Lustr+, Fire and Ice, Studio HD) . . . . . . . .83

Presets Menu (Studio Daylight and Studio Tungsten) . . . . . . . .84

Sequences Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Diagnostics Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Diagnostics Recalibrate Fixture. . . . . . . . . . . . . . . . . . . . . . . . . .88

Page 6

iv Desire Series User Manual

Page 7

Introduction 1

Introduction

Congratulations on your purchase of a Desire Series by ETC product.

Desire’s x7 Color System™ seven-hue technology produces a light and color quality that conventional LED systems cannot duplicate. This unique color system produces bright, broad-spectrum whites and intense colors equally well, rendering pigments, objects, and skin tones in a natural way.

Fire and Ice fixtures use elements of the x7 Color System for superior performance in deep saturated colors.

Studio Daylight and Studio Tungsten fixtures use high-output white LEDs for maximum brightness and efficacy. Studio Tungsten interacts very well with incandescent sources, while Studio Daylight easily replaces a variety of HMI lamps and natural sunlight.

Quick Setups

You can use any one of the Quick Setups and fine-tune settings for either console operation via DMX protocol or standalone operation. For advanced users, an expanded user interface provides easy navigation to all settings and options.

Vivid, Lustr+, Fire and Ice, Studio HD

Some of the options include:

• Multiple DMX profiles ranging from a simple 3-channel RGB profile to 8-channel native color and intensity control.

• Multiple dimming curve options.

• Preset colors and sequences for standalone operation.

• White point selection; white light and color behavior based on a specific color temperature white light such as 3200K or 5600K.

• Loss-of-data behavior options.

• Power regulation modes; three output options that offer a choice between maximum light output for lower duty cycles and maximum thermal stability and output consistency for higher duty cycles.

Studio Daylight and Studio Tungsten

Some of the options include:

• Multiple dimming curve options.

• Presets and sequences for standalone operation.

• Strobe.

• Loss-of-data behavior options.

• Power regulation modes; three output options that offer a choice between maximum light output for lower duty cycles and maximum thermal stability and output consistency for higher duty cycles.

Page 8

2 Desire Series v1.4.1 User Manual

Figure-1.1 Components of a D40 Fixture.

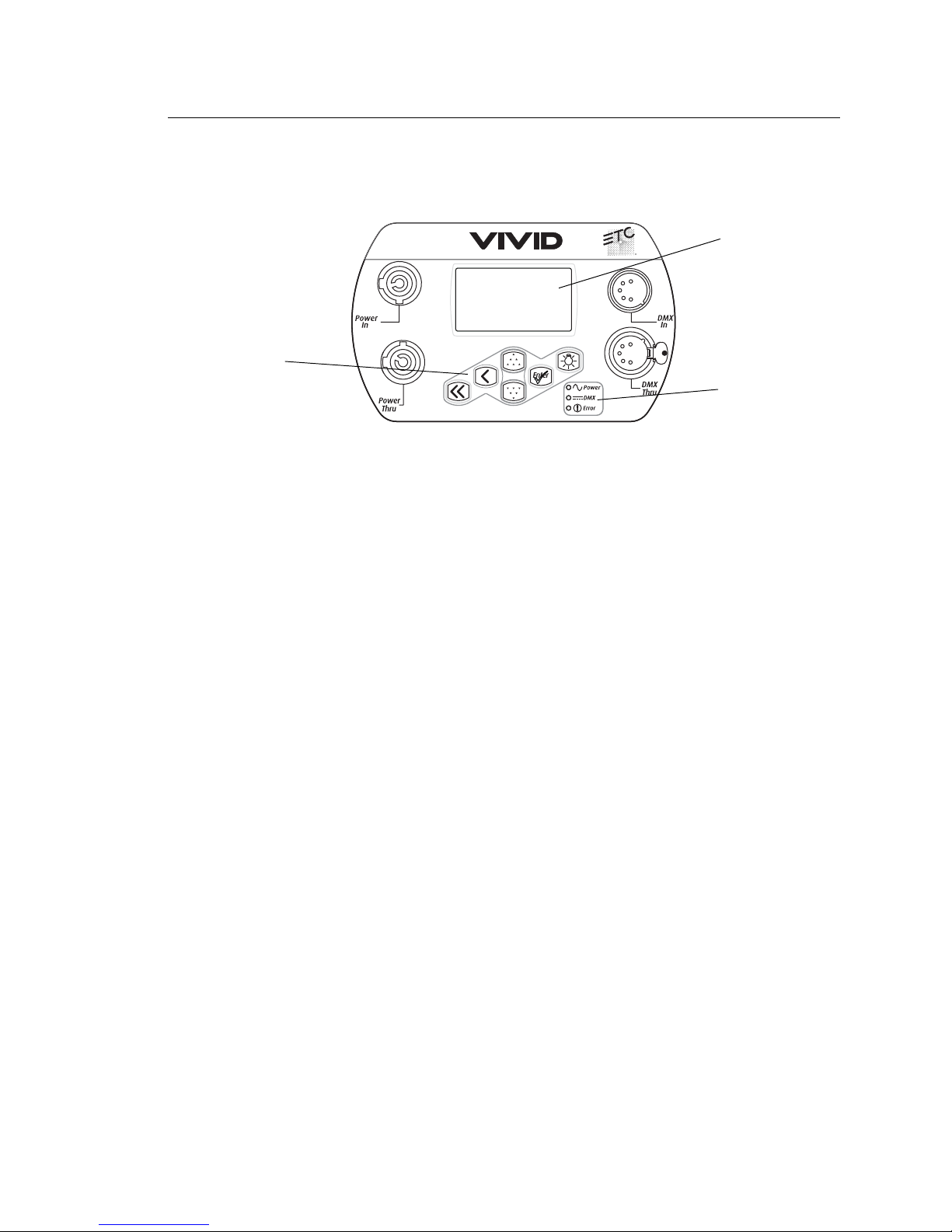

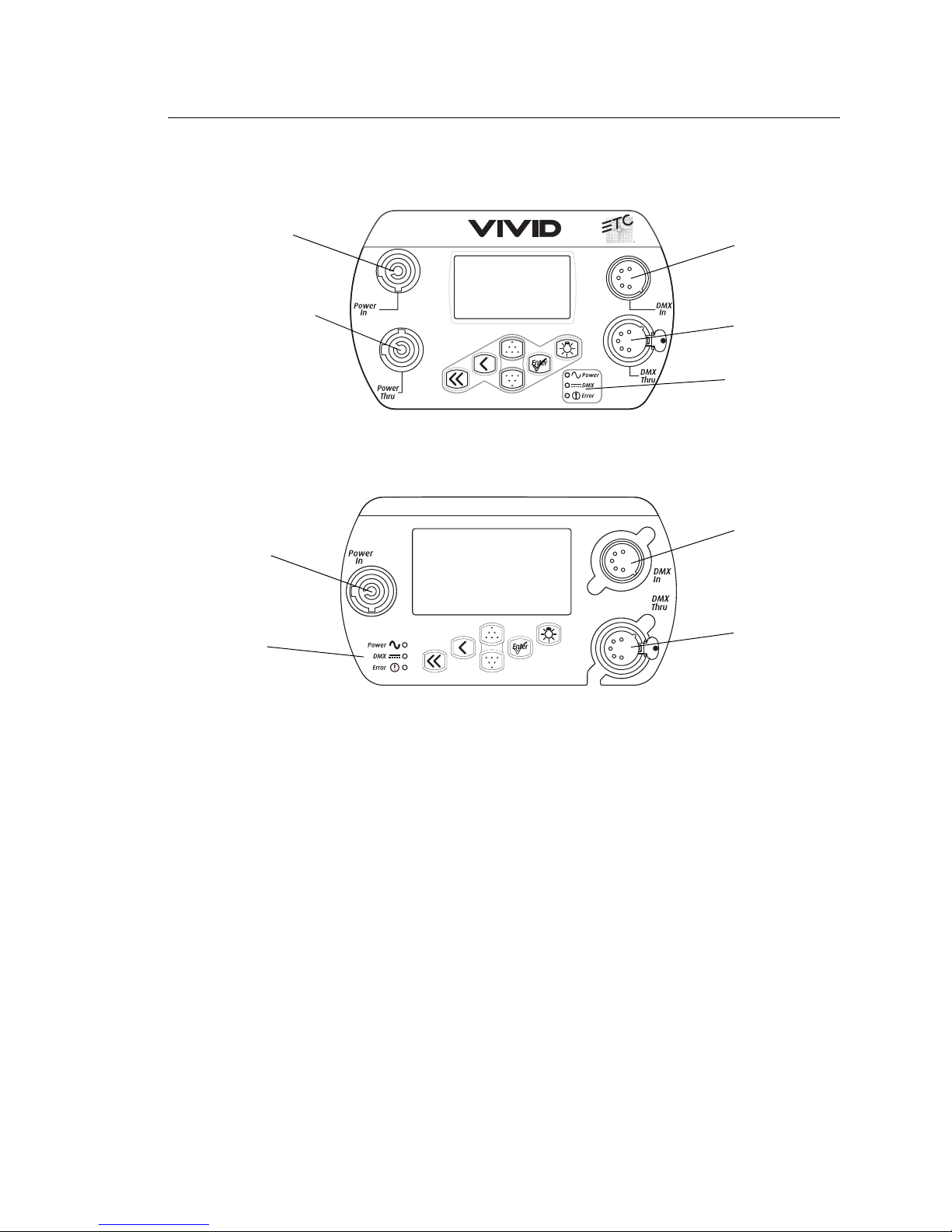

Figure-1.2 Components of the Rear Panel. D40 and D60 shown.

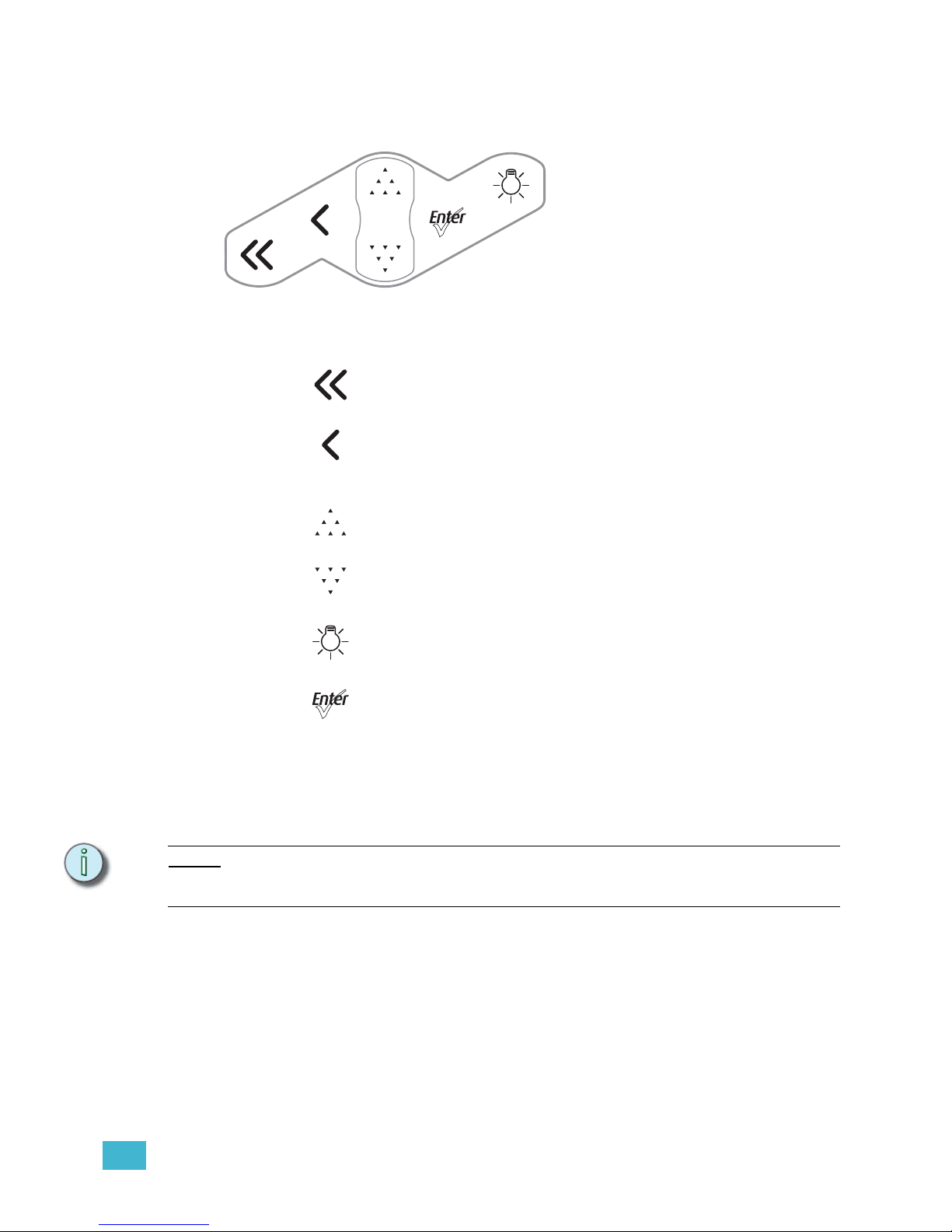

Figure-1.3 Keypad Button Functions.

For more information about the user interface, see User Interface Overview, page 38.

LED array

Accessory holder

Yoke

Accessory retainer

Yoke locking knob

Safety cable loop

PUSH

Power In

Power Thru

DMX In

DMX Thru

Status indicators

LCD

Keypad

Light Bulb

Enter

Down

Back

Home

Page 9

Introduction 3

Models

Each member of the Desire Series product line is unique and optimized for a specific lighting task. All fixtures feature narrow optics for the longest throws.

Vivid (D40, D40XT, D60)

• Full 7-color x7 LED array

• Optimized for high-output deep pastels and strong saturated colors—an all-around workhorse for vibrant color washes

Lustr+ (D22, D40, D40XT, D60)

• Specialized x7 LED array with 6 colors plus white

• Broad-spectrum color optimized for the best white and light tints across the entire white and pastel range

• Beautifully illuminates skin tones and other objects—ideal for theatrical lighting

Fire and Ice (D40, D40XT, D60)

• Optimized for saturated colors at the red end (Fire) or blue end (Ice) of the spectrum

• Strongest output for high-intensity washes and theatrical environments

Studio HD (D40, D40XT, D60)

• Precise mix of warm white and cool white LEDs plus additional strategic colors for fuller spectral power

• Continuously variable color temperature white light

• Extreme CRI and high-definition illumination of skin tones from 2700K to 6500K

Studio Daylight (D22, D40, D40XT, D60)

• 5,700K nominal correlated color temperature

• 70 CRI typical

Studio Tungsten (D22, D40, D40XT, D60)

• 3,000K nominal correlated color temperature

• 85 CRI typical

Applications

• Theaters • Convention centers

• Studios • Theme parks

• Schools • Museums

• Houses of worship

•

Temporary events

• Hotels • Outdoor (D40XT only)

Page 10

4 Desire Series v1.4.1 User Manual

Document Conventions

Notices

Throughout this manual, the following are used to alert you to notes and safety notices.

Note:

Notes are helpful hints and information that is supplemental to the main text.

CAUTION:

A Caution statement indicates situations where there may be undefined or unwanted consequences of an action, potential for data loss or an equipment problem.

WARNING:

A Warning statement indicates situations where damage may occur, people may be harmed, or there are serious or dangerous consequences of an action.

WARNING:

RISK OF ELECTRIC SHOCK! This warning statement indicates situations where there is a risk of electric shock.

Typography Used in This Guide

Menu items and commands you must perform are indicated in bold text. Keypad buttons are indicated in bold [brackets]. Menu selections or commands appear in bold. For example:

Press [Down] to select Sequences and then press [Enter].

Page 11

Introduction 5

Safety

The Desire series fixtures are intended for professional use only. Read entire User Manual before using equipment.

WARNING:

Note the following safety warnings before use:

• Do not mount the Desire series fixture on or near a flammable surface.

• Use the D22, D40, and D60 fixtures in dry locations only, where humidity does not exceed 90 percent (non-condensing). These fixtures are not intended for outdoor use. (Only the D40XT is approved for outdoor use.)

• Mount and support the fixture only by the primary suspension holes in the yoke or floor standing yoke.

• Suspend the fixture from a suitable structure using only the hardware rated for the weight of the fixture.

• In addition to primary suspension, attach a safety cable (ETC Model 400SC or other approved safety cable or device) to the fixture housing. Appropriate attachment point (hole) is provided in the protruding tab on the fixture housing.

• Disconnect the unit from power and from DMX before all cleaning and maintenance.

• Maximum recommended ambient operating temperature: Ta=40°C (104°F)

• Maximum anticipated external surface temperature: Tmax=80°C (158°F)

• External temperature after 5 minutes of full-brightness operation and 23°C (74°F) ambient: 38°C (100°F)

• External Temperature (steady state achieved) at 23°C (74°F): 70°C (158°F)

Page 12

6 Desire Series v1.4.1 User Manual

Contacts

If you have questions about your Desire series fixture that are not answered in this manual, please contact the supplier of your ETC equipment or ETC Technical Services. For general information, your most convenient resources are the references provided in this manual. To search more widely try the ETC web site at www.etcconnect.com.

For technical questions about Desire series fixtures, contact ETC Technical Services directly at one of the offices listed below. Emergency service is available from all ETC offices outside of normal business hours.

Please email comments about this manual to: TechComm@etcconnect.com

Americas United Kingdom

Electronic Theatre Controls Inc. Electronic Theatre Controls Ltd. Technical Services Department Technical Services Department 3031 Pleasant View Road 26-28 Victoria Industrial Estate Middleton, WI 53562 Victoria Road, 800-775-4382 (USA, toll-free) London W3 6UU England +1-608 831-4116 +44 (0)20 8896 1000 service@etcconnect.com service@etceurope.com

Asia Germany

Electronic Theatre Controls Asia, Ltd. Electronic Theatre Controls GmbH Technical Services Department Technical Services Department Room 1801, 18/F Ohmstrasse 3 Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany 9 Sheung Yuet Road +49 (80 24) 47 00-0 Kowloon Bay, Kowloon, Hong Kong techserv-hoki@etcconnect.com +852 2799 1220 service@etcasia.com

Page 13

Quick Start 7

Quick Start

This section will help users to quickly use the Desire fixture. For complete, detailed information and step-by-step instructions, see Operation, page 43.

Install

Step 1: Hang or mount the fixture using the provided hardware and approved hardware

accessories.

Step 2: Attach an approved safety cable when applicable.

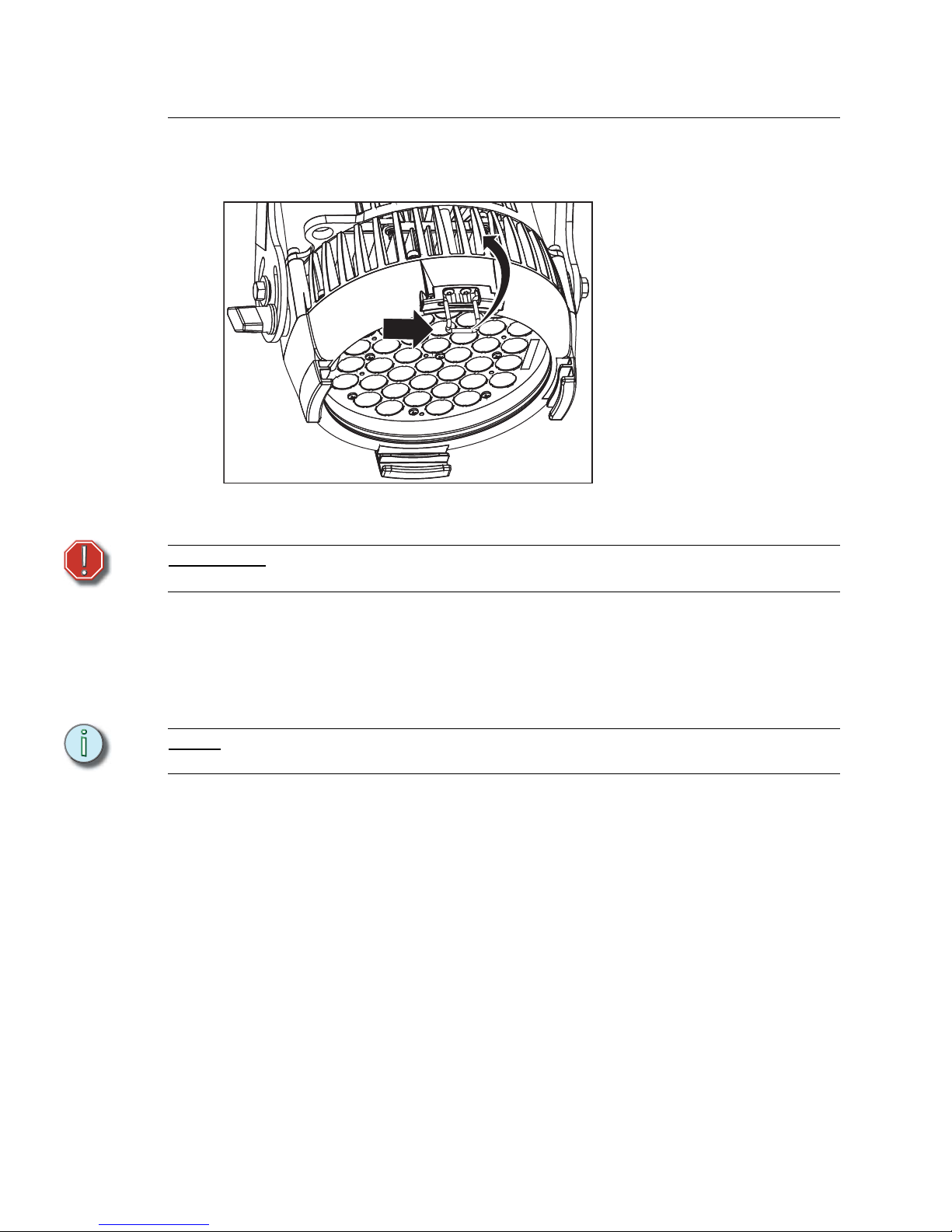

Step 3: Insert secondary lenses with the smooth side out, if desired.

Step 4: Insert additional accessories (top hat, egg crate, etc.) into the holder, if desired.

Connect (D40, D40XT, D60)

Step 1: Attach the power cable to the Power In connector.

Step 2: Attach 5-pin XLR cable to the DMX In connector (if using external control).

Step 3: Plug the power cable into AC power (100 to 240VAC, 50/60 Hz) on a

non-dimming circuit.

Step 4: Plug the XLR cable (if using) into the DMX source or data daisy-chain.

Step 5: Link additional fixtures via the Power Out and DMX Out connectors using the

following guidelines.

• No more than 10 total D40 or D40XT fixtures on Power Thru.

• Up to 32 device loads on the DMX daisy-chain.

Connect (D22 Portable)

Step 1: Attach 5-pin XLR cable to the DMX In connector (if using external control).

Step 2: Plug the power cable into AC power (100 to 240VAC, 50/60 Hz) on a

non-dimming circuit.

Step 3: Plug the XLR cable (if using) into the DMX source or data daisy-chain.

Step 4: Link up to 32 device loads on the DMX daisy-chain via the DMX/RDM Out

connectors.

Connect (D22 Canopy and Track)

For installation and connection information, refer to Desire Series D22 Installation Guide. ETC manuals are available for download at http://www.etcconnect.com/downloads.aspx

Focus

Step 1: With power supplied, wait for the fixture to boot up (approximately 10 sec.).

Step 2: Press [Light Bulb] to open the Presets & Sequences menu.

Step 3: Select Focus and then press [Enter]. This turns the LED array on to enable

focusing.

Step 4: Adjust the fixture's position as needed.

Step 5: When focusing is complete, return the fixture to normal operation by pressing

[Enter] to return to the home screen.

For information about the user interface, see User Interface Overview, page 38.

Page 14

8 Desire Series v1.4.1 User Manual

Configure

Set DMX Address

Step 1: From the main screen, press [Enter] to open the Main Menu.

Step 2: On the Main Menu, scroll to DMX Start Address and then press [Enter].

Step 3: Use [Up] or [Down] to scroll to the desired address.

Step 4: Press [Enter] to select the address number.

Step 5: Press [Home] to return to the home screen.

A DMX address is not required if using standalone or master/slave control.

Page 15

Quick Start 9

Quick Setups Menu

Various pre-programmed combinations of operational settings are available to quickly get you started. These settings are specifically created for different situations and are easily accessible on the fixture’s user interface. Individual settings within each quick setup can be accessed via the Advanced menu in order to take advantage of all the possible control features.

Quick Setups (Vivid, Lustr+, Fire and Ice, Studio HD)

Step 1: On the Main Menu, scroll to Quick Setups.

Step 2: Press [Enter].

Step 3: Scroll to the desired setup and then press [Enter].

An asterisk (*) next to the setup name indicates that setup is active.

Step 4: Press [Enter] to return to the home screen.

The top line of the home screen displays the name of the active setup.

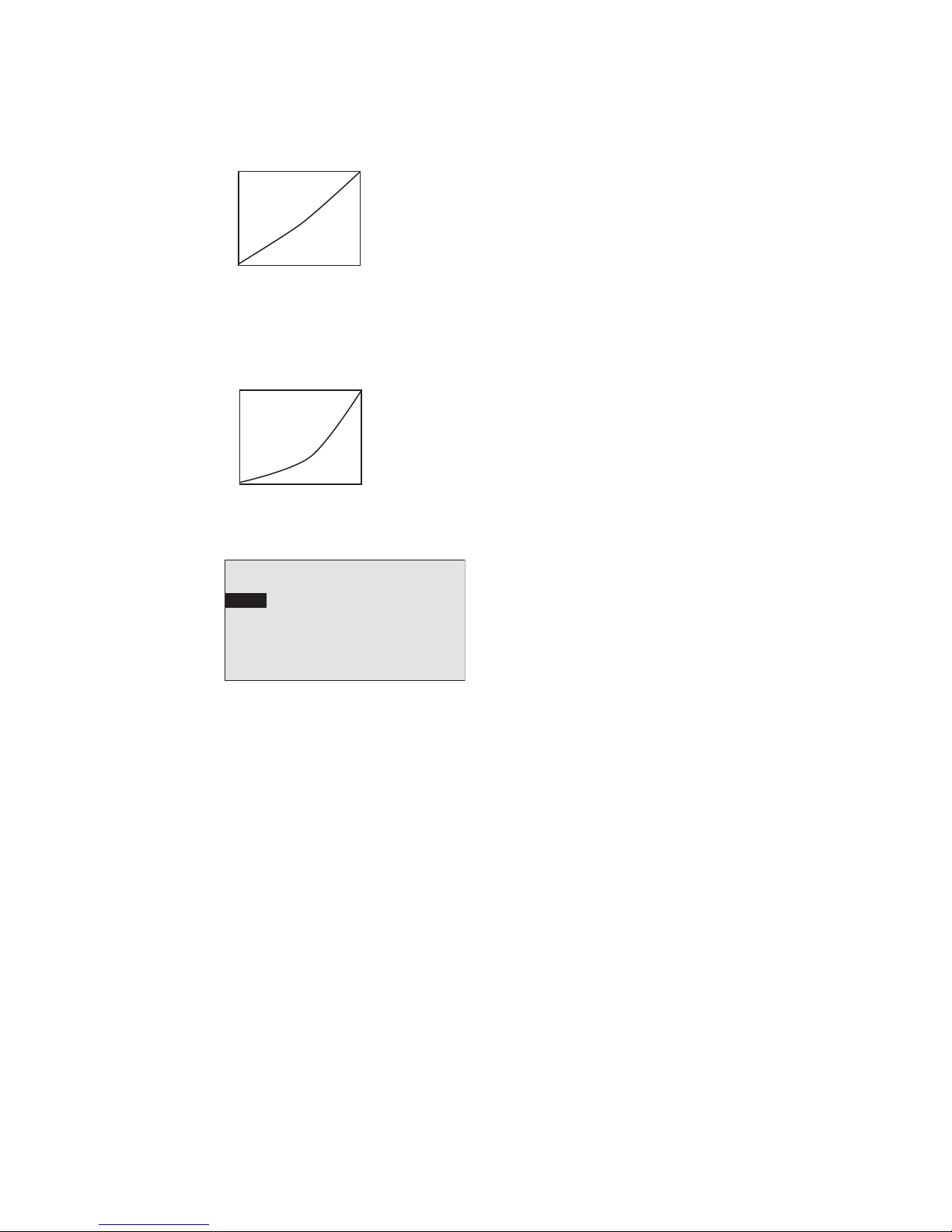

Quick Setup Description Profile Features

General

General lighting: All-purpose settings for most lighting applications. The default setup except for fixtures with Studio LED arrays. The Studio fixtures return to the General setup after a reset.

Direct control

• Standard dimming curve

• Regulated output for brightness

consistency

• Individual color channels plus master intensity control

• Allows for native color space crossfades

• Output is NOT color-calibrated

Stage

Theatrical lighting: Tungsten-like performance and precise color-control. Uses the most DMX channels of all quick setups.

HSI

Plus 7 enabled

• Incandescent dimming curve

• Regulated output for brightness

consistency

• White point: 3200K

XT Arch

Outdoor (D40XT only) and extreme environments: Longevity and reliability in applications with limited access. High degree of output consistency and protection against temperature swings.

HSI

• Standard dimming curve

• Protected output for high-heat

environments

• Reduced overall brightness

• White point: 3200K

High Impact

Concerts and High Impact lighting: Enables quickest response, simple RGB control and strobe channel for maximum effect usage.

RGB

• Quick dimming response

• Boosted output for maximum intensity

• Reduced consistency of output

• White point: 5600K

Studio

Video or film lighting: Enables quick, comprehensive control of white light via DMX or the fixture’s onboard user interface. High-quality white-light output.

Studio

• Linear dimming curve

• Regulated output for brightness

consistency

• Variable white point 2700-6500K

• Variable green/magenta balance (tint)

The Studio Quick Setup is operational in all fixtures for excellent white light performance. It is the default setting for Studio and Studio XT fixtures. In addition, Studio Quick Setup enables stand-alone operation from the User Interface on the back of the fixture if no console is present. For more information, see Studio

Settings, page 74.

Page 16

10 Desire Series v1.4.1 User Manual

Quick Setups (Studio Daylight and Studio Tungsten)

Step 1: On the Main Menu, scroll to Quick Setups.

Step 2: Press [Enter].

Step 3: Scroll to the desired setup and then press [Enter].

An asterisk (*) next to the setup name indicates that setup is active.

Step 4: Press [Enter] to return to the home screen.

The top line of the home screen displays the name of the active setup.

Studio Quick Setup

From the home screen, do any of the following.

• To adjust the Intensity, press [Up] or [Down]. The range is 0 to 100%.

• To adjust the White Point, press [Back] or [Enter]. The range is 2700 to 6500K.

• To adjust the Tint, press [Light bulb] & [Back] or [Enter]. [Back] increases magenta and [Enter] increases green.

• To return to the Main Menu, press [Home]. For advanced settings, refer to the next procedure.

Advanced Settings

Step 1: From the Main Menu press [Up] or [Down] to select Advanced Settings.

Step 2: Press [Enter].

Step 3: Access the individual settings via additional menus.

Step 4: Press [Enter] to return to the home screen.

Once you are familiar with your Desire fixture, you may alter any of the numerous individual settings from the Advanced Settings menu. For more information, see Advanced Menu,

page 48.

Quick Setup Description

Control

Channels

Features

Studio

Video or film: The default setting for Studio Daylight, Studio Tungsten, and Studio HD fixtures. Studio Quick Setup enables stand-alone operation from the User Interface on the back of the fixture if no console is present. The fixture returns to the General setup after a reset. For more information, see

Studio Settings, page 74.

3 – Intensity, Strobe, Fan Control (D60 only)

• Linear dimming curve

• Regulated output for brightness

consistency

• Strobe enabled

Stage

Theatrical lighting: Behaves like a theatrical fixture in control and dimming performance.

3 – Intensity, Strobe, Fan Control (D60 only)

• Incandescent dimming curve

• Regulated output for brightness

consistency

• Strobe enabled

Single

Channel

Architectural installations: Most streamlined settings for applications with limited control options.

1 – Intensity

• Standard dimming curve

• Regulated output for brightness

consistency

• Automatic fan control (D60 only)

Page 17

2 Installation and User Interface Overview 11

Chapter 2

Installation and User Interface Overview

This chapter contains the following sections:

• Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

• Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

• Power and Data Cabling Requirements. . . . . . . . . . . . . . . . .24

• Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

• DMX Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

• Installing Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Page 18

12 Desire Series v1.4.1 User Manual

Specifications

Physical

• Rugged die-cast aluminum construction • Hanging yoke standard. Optional yoke and floor stand available

• Easy-access slots for secondary lenses and standard

7.5 inch PAR accessories (D40 and D40XT)

• 5.5 inch accessories (D22)

• 8.875 inch accessories (D60)

• D22, D40, and D40XT models feature noise-free, fan-less convection cooling for acoustically sensitive installations.

• Advanced thermal management systems for long LED life

• Available in black (standard), white (optional), silver, or custom colors (contact factory)

• Ambient operating temperature

• D22: 0 to 40 °C (32 to 104 °F)

• D40XT: -20 to 40 °C (-4 to 104 °F)

• D40 and D60: 0 to 40 °C (32 to 104 °F)

• D60 model features ultra-quiet cooling fan for use in high ambient temperature situations.

• Continuous operation at 40 °C (104 °F) • See Fixture Weight, page 23

• D40XT rated IP66 for exterior use • See Dimensions and Hanging Clearances, page 22

Electrical

• 100V to 240V 50/60 Hz universal power input • 5 foot Neutrik PowerCon to bare-end power input lead or parallel blade U-ground (Edison) connector (D40, D60)

• D40 and D60 models include Neutrik® PowerCon® in

and thru connectors

• Optional 5 foot PowerCon to 20A two pin and ground (stage pin) or grounded 20A twistlock connector

• D22 has 1.8m flying lead with an Edison connector, no thru

• D40XT model includes a 5 foot power cable with waterproof IP66 connector

• Up to 10 D40 or D40XT fixtures (15A max) may be linked on Power Thru

• Note: D40XT has optional power leads available including Molex to bare end. Please see the D40XT datasheet for more information.

• Up to 9 D60 fixtures (15A max) may be linked on Power Thru

• Requires power from non-dim source

LEDs

• 22 Luxeon® Rebel™ ES LED emitters (D22 Studio Daylight and Studio Tungsten)

• 40 Luxeon Rebel ES LED emitters (D40 and D40XT Studio Daylight and Studio Tungsten)

• 40 Luxeon

Rebel LED emitters (D40 and D40XT Vivid,

Lustr+, Fire and Ice, Studio HD)

• 60 Luxeon Rebel ES LED emitters (D60 Studio Daylight and Studio Tungsten)

• 60 Luxeon

Rebel LED emitters (D60 Vivid, Lustr+, Fire

and Ice, Studio HD)

• See Note About LED Fixtures, page 17

• 50,000 hr. LED life

Optical

• Tight primary field angle of 17° (Vivid, Lustr+, Fire and Ice, Studio HD)

• Secondary lenses available for multiple beam spread options including round, oblong, and linear patterns

• Tight primary field angle of 24° (Studio Daylight and Studio Tungsten)

• Slots for secondary lenses

• Combine linear lenses for desired beam spread

Page 19

2 Installation and User Interface Overview 13

Color

• Specialized capabilities from different LED array options based on x7 color-mixing expertise: – Vivid – Optimized for strong, saturated colors at

maximum brightness

– Lustr+ – x7 Color System array with a high-intensity

white LED for an ideal theatrical wash light Full range color, with an emphasis on lighter colors and white

– Fire and Ice – Optimized for high-intensity

saturated colors in either the warm, red end of the spectrum (Fire) or the cool, blue end of the spectrum (Ice)

– Studio HD — Optimized for variable color

temperature white light

• Interacts seamlessly with conventional sources

• Achieves excellent 3200° or any other Correlated Color Temperature white light from 2000 to 10,000°K (except Fire or Ice) (CCT adjustment not available on Studio Daylight and Studio Tungsten)

• Beautifully illuminates skin tones and other objects

• Deeply saturated colors across an exceptionally wide gamut

Control

• DMX512-A compliant • Optional strobe channel

• DMX in and thru via 5-pin XLR connectors (D40, D40XT, D60)

• DMX in and thru via 5-pin XLR connectors (Portable) or DMX termination board (Canopy). DMX in via Eutrac MultiAdapter track adapter (Track). (D22)

• Standalone, studio standalone, and console-free presets and sequences

• Master/slave mode

• Onboard user interface with a high-resolution LCD • Multiple profile options for different levels of control

• Optional DMX-based fan control (D60 only) for predictable noise levels

• 15-bit virtual dimming engine for smooth, high-quality theatrical fades

• See DMX Profile, page 29

Page 20

14 Desire Series v1.4.1 User Manual

Typical Power Consumption (D22)

Lustr+

Studio Daylight

Studio Tungsten

100V 120V 230V

Idle Power / Current 7.8W / 0.111A 7.6W / 0.111A 7.4W / 0.094A

100% Boost Power / Current 56.8W / 0.578A 56.5W / 0.475 55.1 W / 0.288

100V 120V 230V

Idle Power / Current 7.3W / 0.093A 7.2W / 0.091A 7.3W / 0.124A

100% Boost Power / Current 55.2W / 0.556A 55W / 0.462A 53.8W / 0.268A

100V 120V 230V

Idle Power / Current 7.6W / 0.011A 7.6W / 0.011A 7.2W / 0.094A

100% Boost Power / Current 52.4W / 0.532A 51.8W / 0.445A 50.9W / 0.276A

Page 21

2 Installation and User Interface Overview 15

Typical Power Consumption (D40 and D40XT)

Vivid

Lustr+

Fire

Ice

Studio HD

Studio Daylight

Studio Tungsten

100V 120V 240V

Idle Power / Current 10.5W / 0.135A 11W / 0.098A 12.7W / 0.078A

100% Boost Power / Current 102W / 1.12A 98W / 0.82A 95.6W / 0.403

100V 120V 240V

Idle Power / Current 10.3W / 0.125A 10.5W / 0.094A 12.2W / 0.074A

100% Boost Power / Current 104W / 1.16A 102W / 0.861 99.7 W / 0.418

100V 120V 240V

Idle Power / Current 10.5W / 0.125A 10.8W / 0.096A 12.5W / 0.076A

100% Boost Power / Current 91.2W / 1.02A 88.2W / 0.74A 87.2W / 0.369A

100V 120V 240V

Idle Power / Current 11.0W / 0.123A 11.2W / 0.099A 12.8W / 0.077A

100% Boost Power / Current 104.2W / 1.17A 102.2W / 0.867A 99.5W / 0.42A

100V 120V 240V

Idle Power / Current 11.1W / 0.134A 11W / 0.097A 12.8W / 0.077A

100% Boost Power / Current 106.2W / 1.19A 103.5W / 0.883A 101.3W / 0.426A

100V 120V 240V

Idle Power / Current 10.6W / 0.123A 10.6W / 0.095A 12.4W / 0.076A

100% Boost Power / Current 105.1W / 1.12A 103.3W / 0.878A 100.8W / 0.424A

100V 120V 240V

Idle Power / Current 10W / 0.111A 10.1W / 0.093A 11.9W / 0.075A

100% Boost Power / Current 104W / 1.05A 103.1W / 0.872A 100.3W / 0.422A

Page 22

16 Desire Series v1.4.1 User Manual

Typical Power Consumption (D60)

Vivid

Lustr+

Fire

Ice

Studio HD

Studio Daylight

Studio Tungsten

100V 120V 240V

Idle Power / Current 7.6W / 0.083A 7.7W / 0.083A 9.2W / 0.087A

100% Boost Power / Current 139W / 1.41A 136.1W / 1.15A 130.3W / 0.549A

100V 120V 240V

Idle Power / Current 7.3W / 0.1A 7.4W / 0.77A 9W / 0.086A

100% Boost Power / Current 143W / 1.46A 140.1W / 0.97A 135.1W /

100V 120V 240V

Idle Power / Current 7.9W / 0.105A 7.9W / 0.086A 9.4W / 0.089A

100% Boost Power / Current 129W / 1.35A 126.5W / 1.35A 122.7W / 0.52A

100V 120V 240V

Idle Power / Current 7.3W / 0.095A 7.4W / 0.081A 9W / 0.085A

100% Boost Power / Current 148.5W / 1.53A 147W / 1.28A 140.2W / 0.592A

100V 120V 240V

Idle Power / Current 7.2W / 0.086A 7.3W / 0.082A 8.9W / 0.086A

100% Boost Power / Current 146W / 1.5A 143.7W / 1.24A 138.2W / 0.58A

100V 120V 240V

Idle Power (W) 7.5W / 0.09A 7.6W / 0.084A 9.3W / 0.089A

100% Boost Power (W) 145.5W / 1.48A 142.8W / 1.22A 136W / 0.573A

100V 120V 240V

Idle Power (W) 7.4W / 0.088A 7.5W / 0.083A 9.1W / 0.088A

100% Boost Power (W) 145.8W / 1.49A 143.3W / 1.23A 137.1W / 0.577A

Page 23

2 Installation and User Interface Overview 17

Note About LED Fixtures

All LED sources experience some lessening of light output and some color shift over time. Desire Series fixtures have complex thermal management systems to minimize these changes. With typical usage, a Desire fixture will still achieve at least 70% of its initial output after 50,000 hours of use (B50, L70). In individual situations, LEDs will be used for different durations and different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustment to presets, cues, or programs.

All LEDs may exhibit a slight shift in output as they rise to full operating temperature. Desire Series fixtures allow the selection of different power settings in order to balance the competing requirements of thermal stability and brightness. Depending on the selected setting, changes in output as fixtures warm up may or may not be visible to the eye.

Color Rendering Index and Color Quality Scale Ratings

Desire fixtures are evaluated for Color Rendering Index (CRI) and Color Quality Scale (CQS) performance using measured output spectrum and optimized mix solutions for a best spectral match to black body sources at 3200K and 5600K. Color fidelity was also measured. These numbers may fluctuate slightly from fixture to fixture. This is a normal characteristic of white LEDs, and this kind of variation is highly unlikely to be apparent in most applications. The performance is the same for all fixture versions.

Desire luminaires provide excellent color rendering, particularly the color-mixing versions. A Duv rating of 0.000 indicates that the color mix used was exactly on the black body line, with no green or magenta tint.

Studio Daylight and Studio Tungsten fixtures use only white-type LEDs at a fixed color temperature in order to maximize output and efficacy.

Fixture CRI CQS Color Fidelity TLCI Duv

Vivid at 3200K 87 89 89 65 0.000 Vivid at 5600K 90 92 92 74 0.000 Lustr+ at 3200K 86 88 88 66 0.000 Lustr+ at 5600K 93 92 90 86 0.000 Studio HD at 3200K 89 90 91 85 0.000 Studio HD at 5600K 92 94 94 91 0.000 Studio Tungsten at 3000K 86 86 86 56 0.001 Studio Daylight at 5600K 71 70 69 43 0.001

Page 24

18 Desire Series v1.4.1 User Manual

Installation

Mounting Hardware

Four options are available for mounting Desire fixtures.

• Yoke with C-clamp

• Floor stand (D40, D40XT, D60)

• Canopy (D22)

• Track mount (D22)

Installing the Floor Stand (D40, D40XT, D60)

The floor standing yoke assembly replaces the included standard yoke so that the fixture can be placed on a floor and tilted to the desired angle.

Figure-2.1 Fixture with Floor Stand.

Step 1: Remove the yoke locking knob with the flat washer.

Step 2: Remove the yoke bolts and flat washers that attach the yoke on each side of the

fixture.

Step 3: Attach the yoke and floor standing yoke assembly to the fixture with the two yoke

bolts and two flat washers.

Step 4: Insert the yoke locking knob and flat washer and tighten.

Installing D22

For detailed installation information, reference the Desire Series D22 Installation Guide. ETC manuals are available for download at http://www.etcconnect.com/downloads.aspx

Yoke locking knob

Yoke bolt

Floor standing yoke

Main yoke

Page 25

2 Installation and User Interface Overview 19

Aim Adjustment

D40, D40XT, D60, D22 Portable

The fixture can be tilted up and down and rotated (panned) to aim the light where it is needed. The adjustment is the same for the yoke or floor stand. To assist aiming the fixture, you can turn it on without having to be connected to DMX control or enabling a preset. For more information, see Focus, page 56.

Figure-2.2 Tilting the Fixture on a Yoke.

Turning the Fixture On

Step 1: Apply power to the fixture.

Step 2: On the back of the fixture press [Light Bulb].

Step 3: With Focus selected, press [Enter].

Adjusting the Tilt

Step 1: Loosen the yoke locking knob. Do not remove the knob.

Step 2: Tilt it to the desired angle.

Step 3: Tighten the yoke locking knob.

Adjusting the Pan

The pan is adjusted at the hanging clamp. Please consult the clamp manufacturer’s documentation for instructions on loosening and rotating the yoke at the clamp.

WARNING:

The safety cable (or other approved safety device) must be securely attached to the safety cable loop before loosening the clamp.

Yoke locking knob

Page 26

20 Desire Series v1.4.1 User Manual

D22 Canopy and Track

The Portable and Track mounted fixtures can tilted up and down and panned to aim the light where it is needed.

Step 1: Pan the fixture to the desired position. The fixture is prevented from rotating

completely around to protect the wiring.

Step 1: To adjust the tilt, loosen the yoke locking knob. Do not remove the knob.

Refer to Figure-2.2.

Step 2: Tilt it to the desired angle.

Step 3: Tighten the yoke locking knob.

Page 27

2 Installation and User Interface Overview 21

Installation Clearances

Cooling and Duty Cycle

Desire D22 and D40 Series fixtures are convection cooled and can operate all channels at full power continuously in ambient temperatures up to 40°C (104°F). The Desire D60 is equipped with a cooling fan, which is automatically controlled.

If ambient conditions exceed 40°C (104°F) or fail to allow sufficient airflow, over a long period of time, the fixtures may shut down and remain off until they return to a safe operating temperature. The fixtures provide two methods to indicate over temperature that can be set up on the Local Settings menu. The over temperature indicators are:

Visible

The LED array glows in a dull, low intensity with only some emitters illuminated, the LCD backlight is turned on, the LCD displays Overtemp Activated, and the Error Indicator light turns on.

Dark

The LED array turns off and the LCD displays Overtemp Activated. The LCD backlight is not turned on.

CAUTION:

Duty Cycle

Operating the fixtures in higher ambient temperatures or low-airflow situations may cause the power supply to shut down. Following a cool-down period, the power supply will automatically reset and the fixture will return to operation.

It is good practice to power down any device with on-board electronics to limit unnecessary wear on the devices and eliminate residual use of electricity. When not in use, Desire fixtures should be powered down by disconnecting from power either at the breaker or by unplugging.

LED life is adversely affected by high-temperature operation. When operating under elevated ambient temperatures, avoid turning all channels to 100% for extended periods, such as channel checks or focusing.

Page 28

22 Desire Series v1.4.1 User Manual

Dimensions and Hanging Clearances

Use the following dimensions to allow proper clearances around the fixture. Allow additional space for cables.

Figure-2.3 Dimensions.

14.8” 375mm

11. 7” 300mm

5.7” 145mm

4.5” 115mm

6.4” 165mm

10.4” 265mm

4.2” 105mm

8.3” 210mm

13.3” 340mm

8.5” 215mm

9.2” 235mm

10.6” 270mm

16.1” 409mm

12.9” 328mm

6.7” 170mm

4.5” 115mm

6.6” 168mm

11. 4” 290mm

4.7” 119mm

9.5” 241mm

14.1 358mm

9.9” 250mm

10.6” 269mm

12.2” 310mm

11. 7”

294.6mm

8.9”

227.3mm

4.3”

109.7mm

3.3”

82.8mm

8.2”

207.5mm

3.1”

77.5mm

6.1” 105mm

10.4” 105mm

6.3”

160.5mm

6.6”

166.6mm

7.7”

195.6mm

D60

D40 & D40XT

D22

Page 29

2 Installation and User Interface Overview 23

Safety Cable (D22, D40, D40XT, D60)

The safety cable (or other approved safety device) should be attached to the fixture housing and wrapped around the hanging structure (pipe). An appropriate attachment loop is provided on the protruding tab of the fixture housing. Take care to leave as little slack as possible in the safety cable to avoid the cable catching the yoke of the fixture.

Figure-2.4 Safety Cable Loop on Fixture Housing.

Fixture Weight

Total weight depends on how the individual fixture is configured.

Model

Weight

a) Does not include mounting hardware.

Shipping Weight

Lbs.Kg.Lbs.Kg.

D22 Portable 6.9 3.2 8.5 3.9 D22 Canopy 6.8 3.1 8.4 3.8 D22 Track 6.4 2.9 8.0 3.6 D40 14.4 6.5 19.3 8.8 D40XT 16.5 7.5 21.4 9.7 D60 20.2 9.2 25 11.3

Safety cable loop

Page 30

24 Desire Series v1.4.1 User Manual

Power and Data Cabling Requirements

Power

The Desire series fixture operates on AC power, 100 to 240VAC/50-60Hz. The fixture must be connected to a non-dimmable power source in order to avoid damage to its internal power supply and other electrical components.

Data (D40, D40XT, D60)

The Desire series fixtures operate on a DMX control signal or as standalone fixtures. The fixture is supplied with a 5-pin XLR DMX input connector and a 5-pin DMX Thru connector. DMX cables should be acceptable for DMX data transmission (not microphone cable) and should follow the standard pinout. The optional secondary data pair is not used by the Desire series fixtures. The maximum DMX data run from any DMX source to the last fixture in a chain is 1000 feet (300m). Termination is required for the D40XT in the data thru port of the last fixture in each data chain. The D40 and D60 are self-terminated.

See DMX Profile, page 29 for additional information on DMX addressing of Desire Series fixtures.

Mains Europe North America

Line Brown Black Neutral Blue White Ground (Earth) Green/Yellow Green

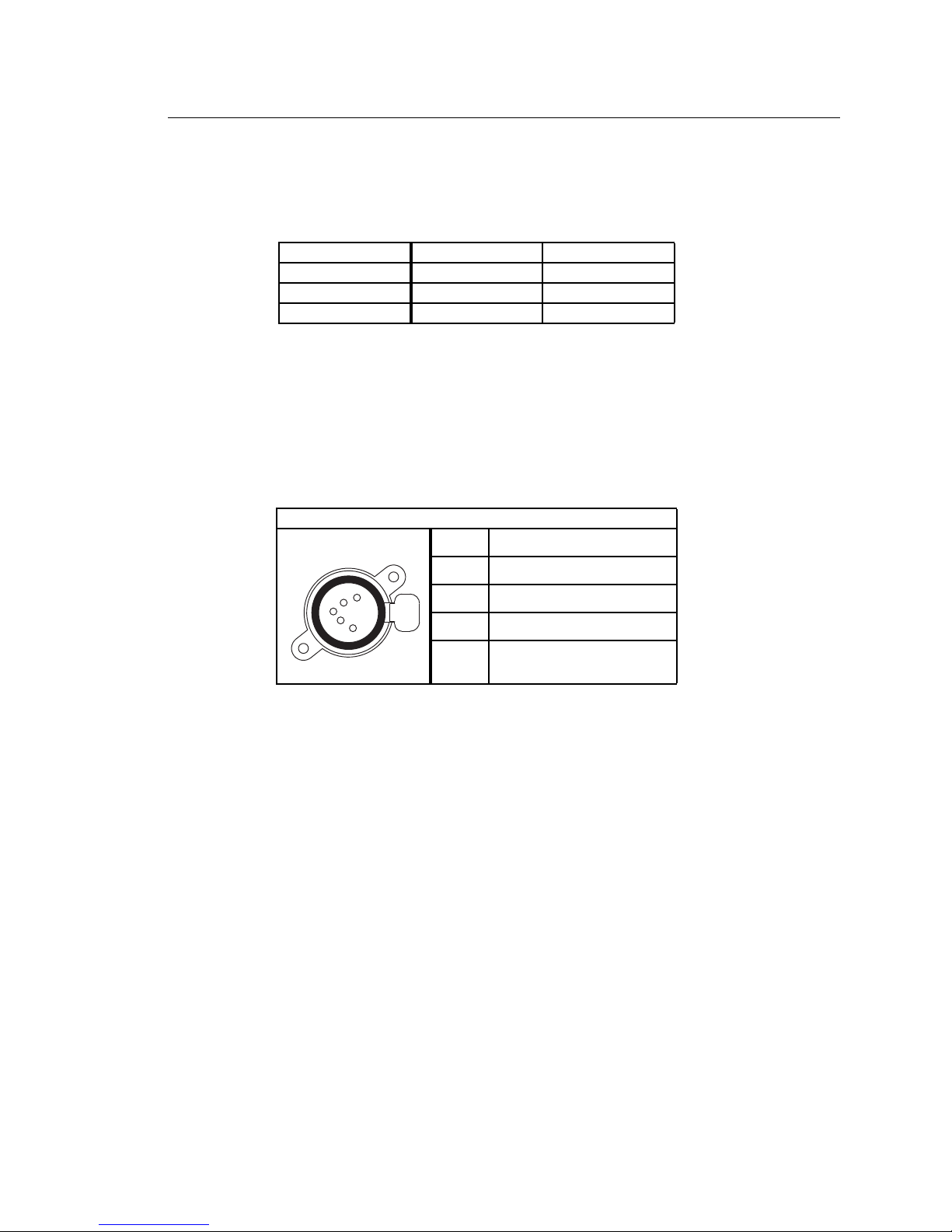

DMX512 pinout for five-pin XLR female

1 Common (Shield)

2 Data –

3 Data +

4 not connected

5 not connected

Push

Page 31

2 Installation and User Interface Overview 25

Data (D22)

Portable Model

The Portable D22 is provided with 5-pin XLR connectors on the back for data in and thru connection to a DMX/RDM control network.

Canopy Mount

The D22 Canopy Mount fixture is provided with an attached power and Cat5 data cable.

A termination board is incorporated into the mounting plate for installation onto a voltage separated junction box (provided by others) and provides termination for control wiring.

Figure-2.5 Termination Connectors.

• Connection of the D22 data cable to a provided screw-down connector, which is pre-wired at the factory. The connector is plugged into the termination board. The braided shield is connected inside the fixture and should not be connected in the canopy.

• Connection of DMX/RDM input from the control source. This connection can be cable type Belden 9729 (or equivalent) to the provided screw terminal. When using Cat5 (or equivalent) cable type for DMX/RDM input, order a Cat5 termination kit from ETC (part number 4100A1013). Cat5 termination instructions and an IDC connector are provided with the termination kit.

• Connection of DMX/RDM thru to the next DMX device. This connection may also be either Belden 9729 or Cat5. Order the appropriate DMX termination kit for the cable type used from ETC (Belden 9729 use 4100A1012 or Cat5 use 4100A1013). Termination instructions and the appropriate connector is provided with the termination kit. Up to 32 DMX/RDM devices can be daisy-chained together per data run.

Track Mount

The Track Mount fixture power and data connections are made through the track mounting adapter. No further wiring to the fixture is required. Refer to the Track installation instructions for more information. ETC manuals are available for download at

http://www.etcconnect.com/downloads.aspx

Data – (ORG)

Data + (W/ORG)

Cat5 (or equivalent) wire termination to IDC connector

COM

BRN

GRN

W/GRN

BLU

W/BLU

From a DMX/RDM source

Data – (Black)

Data + (Red)

Belden 9729 (or equivalent) wire termination to screw connector

4 to 8 = n/c

COM

Page 32

26 Desire Series v1.4.1 User Manual

Connections

All connections and user controls are located on the back of the fixture, depending on the model.

Figure-2.6 Power and DMX Connections on Back of D40 or D60 Fixture.

Figure-2.7 Power and DMX/RDM Connections on Back of the D22 Portable Fixture.

Depending on the fixture model, connect AC input power and DMX data cables to the appropriate ports. Connect the incoming DMX data cable to the DMX Input connector. If you are daisy-chaining the data to other fixtures or DMX-controlled devices, connect the next DMX cable to the DMX Thru connector. Up to 32 fixtures can be connected together into a data daisy-chain.

For information about the user interface, refer to User Interface Overview, page 38.

PUSH

Power In

Power Thru

DMX In

DMX Thru

Indicator lights

PUSH

DMX/RDM

DMX/RDM Thru

Indicator lights

Power In

Page 33

2 Installation and User Interface Overview 27

D40, D60 Connections

Connect the AC cable:

Align and insert the power connector. Twist the connector clockwise until it locks into place.

Disconnect the AC cable:

Slide back the locking tab to unlock, twist the connector counterclockwise, and then pull and disconnect the power connector.

Connect the DMX cable:

Align and insert the DMX connector.

Disconnect the DMX cable:

Press the release button on the connector or on the fixture and pull the connector out.

D40XT Connections

Connect the AC cable:

Align and insert the connector on the fixture's power cord to the mating connector on the extension cord or adjacent fixture. Twist the enclosure rings together to form a tight seal.

Disconnect the AC cable:

Loosen the enclosure rings around the connectors until fully separated, and then pull apart the two connectors.

Connect the DMX cable:

Align and connect the DMX connectors, pushing firmly until the locking tabs are fully activated.

Disconnect the DMX cable:

Press the release button on the connectors and pull the connectors apart.

D22 Portable DMX/RDM Connections

Connect the DMX cable:

Align and connect the DMX connectors, pushing firmly until the locking tabs are fully activated.

Disconnect the DMX cable:

Press the release button on the connectors and pull the connectors apart.

Page 34

28 Desire Series v1.4.1 User Manual

Termination

D40XT – The last fixture on a DMX line must be terminated with a 120 ohm resistor between pins 2 and 3.

D22 – The last fixture on a DMX/RDM line must be terminated with a 120 ohm resistor, which is accomplished by one of the following.

• Portable – The fixture is self terminated, therefore does not require other termination.

• Canopy – Terminate with the S1 switch on the Termination Board. Set the switch to the ON position to terminate the last fixture. All others on the DMX/RDM line must be set to OFF.

• Track Mount – Terminate with a DataTrack DMX Term Block, ETC Part # 7066A1030 installed at end of the track.

Indicator Lights

The indicator lights show the status of power input (blue), DMX input (green) and fixture errors (red). When the DMX signal is lost, the green indicator flashes.

If the fixture status indicator is configured to Off, the indicator lights will not illuminate. For more information, see Local Settings, page 70.

Page 35

2 Installation and User Interface Overview 29

DMX Profile

Addressing

Addresses must be set between 1 and 510.

Each Desire fixture must be considered a separate DMX device for the purpose of DMX line-loading calculations.

DMX line-loading practice dictates that no more than 32 devices can be daisy-chained together. Consequently, no combination of Desire fixtures totaling more than 32 DMX devices should be configured in one DMX line. For runs of fixtures totaling more than 32 DMX devices, split the DMX runs by using a DMX splitter.

NOTE:

Depending on the selected fixture profile and activated features, a fixture with a starting address higher than 499 may not have control of all parameters, even though the highest address shown on the user interface is 512.

Addressing is not required for standalone operation.

Profiles

Desire D22, D40, D40XT fixtures occupy 1 to 14 DMX channels depending on the profile and which features are turned on. Desire D60 can occupy up to 15 DMX channels depending on the profile and which features are turned on. The tables below describe the order and function of each channel.

Vivid, Lustr+, Fire and Ice, and Studio HD Profiles

Direct Control

Direct Control uses one DMX channel per individual color within the LED array for a total of seven color channels, arranged according to the Color Mixes table. Each controls the intensity of the color from 0 to 100%. An additional, 8th DMX channel is used as a master intensity fader for controlling the brightness of the overall fixture. Channel 9 is for strobe when enabled.

Data Channel Control Value Function

1 Fixture address

Color 1

a) See Color Mixes, page 30.

0 to 255 Color intensity 0 to100%

2 Fixture address + 1

Color 2

3 Fixture address + 2

Color 3

4 Fixture address + 3

Color 4

5 Fixture address + 4

Color 5

6 Fixture address + 5

Color 6

7 Fixture address + 6

Color 7

8 Fixture address + 7 Intensity

Overall intensity 0 to 100%

9 Fixture address + 8 Strobe Variable strobe control

Page 36

30 Desire Series v1.4.1 User Manual

Color Mixes

The following table shows the color mixes for each fixture type.

HSI (Hue Saturation Intensity) and HSIC (Hue, Saturation, Intensity, Color Temperature (White Point))

The HSI profile uses 4 channels of DMX input, corresponding to 16-bit hue (two channels: coarse and fine), saturation, and intensity. The HSI profile makes Desire fixtures compatible with conventional HSI console profiles while capitalizing on fixtures' expanded color capabilities. Channel 5 is for Strobe, when enabled. Also see Color Matching, page

32.

HSIC is similar to HSI, except that it uses an additional 6th channel to control the color temperature of the white point. White point is the color temperature of the white-light output when saturation is at zero. The Red Shift function is automatically disabled in the HSIC profile. The white point address of the D60 occupies a different address. For information about the D60 DMX footprint, refer to D60 (Vivid, Lustr+, Fire, Ice, Studio HD), page 35.

NOTE:

The HSI profile is optimized for maximum brightness at all settings.

At some settings, small changes in hue and saturation may produce unexpected jumps in brightness.

Shifts in brightness may be perceived during fades across hue, saturation, or both in cues and presets.

RGB

Effectively addresses all 7 colors via three channels of control. The RGB profile produces medium-quality color crossfades. It makes the Desire fixtures compatible with conventional RGB console profiles while maintaining enhanced color production from the fixture. Also see Color Matching, page 32.

Color Fire Ice Lustr+ Vivid Studio HD

1 Red Red Red Red Red 2 Red-orange — White Red-orange Amber 3 Amber — Amber Amber Green-cyan 4 Green Green Green Green Blue 5 — Cyan Cyan Cyan Warm white 6 — Blue Blue Blue Cool white 7 Indigo Indigo Indigo Indigo —

Data Channel Control Value Function

1 Fixture address Hue coarse

0 to 65535 Hue 0

2 Fixture address + 1 Hue fine 3 Fixture address + 2 Saturation

0 to 255

Saturation 0 to 100% 4 Fixture address + 3 Intensity Intensity 0 to 100% 5 Fixture address + 4 Strobe Variable strobe control

6 Fixture address + 5 White point

Color temperature 2700 to

6500K

Data Channel Control Value Function

1 Fixture address Red

0 to 255 Intensity 0 to 100%2 Fixture address + 1 Green 3 Fixture address + 2 Blue 4 Fixture address + 3 — — — 5 Fixture address + 4 Strobe 0 to 255 Variable strobe control

Page 37

2 Installation and User Interface Overview 31

NOTE:

The RGB profile is optimized for maximum brightness at all settings. Sometimes small changes in RGB values may produce unexpected jumps in brightness.

Shifts in brightness may be perceived during color crossfades in cues and presets.

Studio

The fixture produces only white-type light, which is adjustable from 2700 to 6500K. The Studio profile uses 3 DMX channels to control Intensity, white point, and tint, (the green/magenta balance). Tint is adjustable without affecting the white point. All three control parameters are adjustable via DMX as well as onboard with instant access via UI buttons (no menus to scroll).

Studio is the default mode for Studio HD fixtures. The Studio profile is also available on all other Desire Series fixtures. For more information, see Studio Settings, page 74. Also see

Color Matching, page 32.

Strobe

In most profiles (Vivid, Lustr+, Fire and Ice, Studio HD), strobe is assigned to channel 5. It adds another channel to any of the DMX profiles. Under the Advanced Settings menu, the strobe function may be disabled and the additional channel for strobe will not be used by the fixture. With strobe at either DMX value 0 or 255, the fixture output is constantly on. At DMX 1, the fixture strobes slowly and increases in speed toward DMX 254.

Data Channel Control Value Function

1 Fixture address Intensity

0 to 255

Intensity 0 to 100%

2 Fixture address + 1 White point: 2700 to 6500K

0 = 3200K 1 to 254 = 2700K to 6500K 255 = 5600K

3 Fixture address + 2 Tint

0 = neutral white 1 to 127 = full plus-green to neutral white 128 = neutral white 129 to 255 = neutral white to full minus-green (full

magenta) 4 Fixture address + 3 — — — 5 Fixture address + 4 Strobe 0 to 255 Variable strobe control

Page 38

32 Desire Series v1.4.1 User Manual

Plus 7

Plus 7 adds precision color-control channels to the HSI, HSIC, RGB, and Studio profiles. For example, HSI with Plus 7 enabled becomes a 14-channel (D22, D40, D40XT) or 15-channel (D60) profile. Placing channel 7 at a value over 51% activates the 14- or 15-channel profile within the fixture. The desired color and intensity is achieved by using the HSI or RGB channels as a starting point. Channels 8 to 14, or 15, represent the native LED colors of the fixture and allow you to adjust each color up or down in order to fine-tune the overall color output.

The D60 Plus 7 addresses occupy different addresses. For information about the D60 DMX footprint, refer to D60 (Vivid, Lustr+, Fire, Ice, Studio HD), page 35.

Note:

Depending on the initial color mix, some LED colors may begin at full intensity. Moving the individual control channels for these colors from 128 to 255 will produce no effective change from the initial color mix. Conversely, some LED colors may begin at zero intensity, and moving individual control channels from 128 to 0 will produce no change.

Color Matching

The color output of all Desire fixtures is calibrated at the factory. When operating in the RGB, HSI, HSIC, or Studio profile, each fixture makes accommodations for the specific LEDs in its array and produces output that is consistent with other fixtures, whether or not they utilize LEDs from the same production batch. Operating in the Direct Control profile or with Plus 7 settings adjustments bypasses this calibration and multiple fixtures may produce slightly different outputs when controlled as a group.

Data Channel Control Value Function

7 Fixture address + 6 Plus 7 control

0 to 129 = Plus 7 disabled 130 to 255 = Plus 7 enabled

Disable or enable Plus 7

control

8 Fixture address + 7

Color 1

a) See Color Mixes, page 30.

128 = No change from initial color mix 129-255 = Increase from starting value to full intensity 127-0 = Decrease from starting value to zero intensity

Alter the individual LED

colors within the array to a

maximum of full intensity

or a minimum of zero

intensity.

9 Fixture address + 8

Color 2

10 Fixture address + 9

Color 3

11 Fixture address + 10

Color 4

12 Fixture address + 11

Color 5

13 Fixture address + 12

Color 6

14 Fixture address + 13

Color 7

Page 39

2 Installation and User Interface Overview 33

Studio Daylight and Studio Tungsten Profiles

Direct Control

The first DMX channel always controls Intensity from 0 to 100%.

Fan Control (D60)

Only the D60 fixtures have a fan. Thus, options for Fan Control are available only on D60 fixtures. The Fan setting allows four options: DMX, Slow, Fast, and Automatic.

With Fan set to DMX, an additional channel of DMX control is added to the fixture profile, immediately following the channel for Strobe. Control is as follows:

• DMX 0 — Fan turns on and off automatically, as needed for cooling. Fan remains off when not required by the fixture.

• DMX 1 to 254 — Fan is forced on at a continuously variable speed from low to high. Occasionally, the fan speed may be increased automatically by the fixture for additional cooling power when required.

• DMX 255 — Fan is forced on at its highest, loudest speed for maximum consistency of noise produced by the fixture.

With Fan set to Slow, Fast, or Automatic, there is no channel for fan control within the DMX profile. At Slow and Fast settings, the fan operates whenever the fixture is powered on, independent of other fixture settings or control.

• Slow — Fan runs continuously at a low-noise speed. When necessary, the fan speed may be increased automatically by the fixture for additional cooling power.

• Fast — Fan runs continuously at its highest, loudest speed, which never increases automatically.

• Automatic — Fan operation is intermittent and based entirely on the fixture's internally calculated cooling requirements.

Data Channel Control Value Function

1 Fixture address Intensity 0 to 255 Intensity 0 to 100% 2 Fixture address + 1 Strobe 0 to 255 Variable strobe control

Page 40

34 Desire Series v1.4.1 User Manual

DMX Footprints and Channel Mapping

D22, D40, D40XT and D60 (Studio Tungsten and Daylight)

D22 (Lustr+)

Channel Control

1 Intensity

Strobe

Fan control

Channel HSI HSIC RGB Studio Direct

1 Hue Hue Red Intensity Color 1 2 Hue fine Hue fine Green Color temp Color 2 3 Saturation Saturation Blue Tint Color 3 4 Intensity Intensity N/A N/A Color 4 5 Strobe* Strobe* Strobe* Strobe* Color 5 6 N/A Color temp N/A N/A Color 6

Plus7 on/off

Color 7

Plus7 - (1)

Intensity

Plus7 - (2)

Strobe

Plus7 - (3)

N/A

Plus7 - (4)

N/A

Plus7 - (5)

N/A

Plus7 - (6)

N/A

Plus7 - (7)

N/A

Page 41

2 Installation and User Interface Overview 35

D40 (Vivid, Lustr+, Fire, Ice, Studio HD)

D60 (Vivid, Lustr+, Fire, Ice, Studio HD)

* When this feature is enabled.

Channel HSI HSIC RGB Studio Direct

Plus7 on/off

Color 7

Plus7 - (1)

Intensity

Plus7 - (2)

Strobe

Plus7 - (3)

N/A

Plus7 - (4)

N/A

Plus7 - (5)

N/A

Plus7 - (6)

N/A

Plus7 - (7)

N/A

Channel HSI HSIC RGB Studio Direct

1 Hue Hue Red Intensity Color 1 2 Hue fine Hue fine Green Color temp Color 2 3 Saturation Saturation Blue Tint Color 3 4 Intensity Intensity N/A N/A Color 4 5 Strobe* Strobe* Strobe* Strobe* Color 5

Fan control

Color 6

7 N/A Color temp N/A N/A Color 7

Plus7 on/off

Intensity

Plus7 - (1)

Strobe

Plus7 - (2)

Fan control

Plus7 - (3)

N/A

Plus7 - (4)

N/A

Plus7 - (5)

N/A

Plus7 - (6)

N/A

Plus7 - (7)

N/A

Page 42

36 Desire Series v1.4.1 User Manual

Installing Accessories

The accessory holder is equipped with a spring-loaded retaining clip that prevents secondary lenses and accessories from falling out.

Figure-2.8 Retaining Clip in the Locked Position.

WARNING:

Make sure all accessories are locked into position with the retaining clip before hanging the fixture.

Step 1: Release the retaining clip by pushing it sideways while gently pushing it towards the back

of the fixture.

Step 2: Insert the accessory or secondary lens in either of the two slots.

Step 3: Lock the retaining clip by pushing forward and sliding left as viewing the fixture shown in

Figure-2.8.

Note:

For D40 and D40XT, use only secondary lenses or accessories with a 7.5 inch mounting flange.

Page 43

3 Basic Menu Navigation 37

Chapter 3

Basic Menu Navigation

This chapter contains the following sections:

• User Interface Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

• LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

• Screen Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

• Status (Home) Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

• Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Page 44

38 Desire Series v1.4.1 User Manual

User Interface Overview

The Desire Series user interface (UI) consists of an LCD and keypad. All of the basic information is displayed on the LCD and the keypad is used to navigate through the menus. Use the LCD and keypad to program the fixture for your specific application.

Figure-3.1 User Interface on Back of D40 or D60 Fixture.

LCD

The Desire features a backlit LCD capable of displaying 8 rows of text with 21 characters per line. The first row is reserved for the menu title.

To adjust the contrast of the LCD, press and hold [Back] and then press [Up] or [Down].

PUSH

Keypad

LCD

Status indicators

Page 45

3 Basic Menu Navigation 39

Keypad

Use the keypad buttons to access and navigate the menus on the LCD.

Figure-3.2 Keypad Buttons.

Note:

When the fixture is in the stand-alone mode of the Studio profile, the functionality of the buttons changes. For more information, see Operation From Home Status Screen

(Studio Standalone), page 74.

Keypad Lockout

The keypad may be locked to prevent unauthorized access to fixture settings. Press [Up] and [Down] simultaneously for approximately 3 seconds. A small padlock icon appears in the corner of the UI screen to indicate that the keypad is locked. To unlock, again press [Up] and [Down] simultaneously for approximately 3 seconds. The padlock icon disappears. The locked or unlocked status of the keypad persists through on/off power cycles. Keypad lockout does not affect access to fixture settings via RDM.

Home

Opens the home screen.

Back

Cancels the current operation and returns to the previous screen. Multiple presses of the back button will eventually take you to the status display.

Increases a value or menu choice by one. Pressing and holding the push button increases the rate of change.

Down

Decreases a value or menu choice by one. Pressing and holding the push button increases the rate of change.

Light Bulb

Opens the Presets and Sequences menu.

Enter

• Activates a menu selection or stores a value. For most settings,

push [Enter] repeatedly to scroll through available options while the setting is highlighted, and then push [Up] or [Down] to commit the change and move to a different setting.

• Certain settings require the selection of a numeric value. Press Enter once to highlight the number, push [Up] or [Down] to reach the desired value, and then press [Enter] to commit the change.

Page 46

40 Desire Series v1.4.1 User Manual

Status Indicators

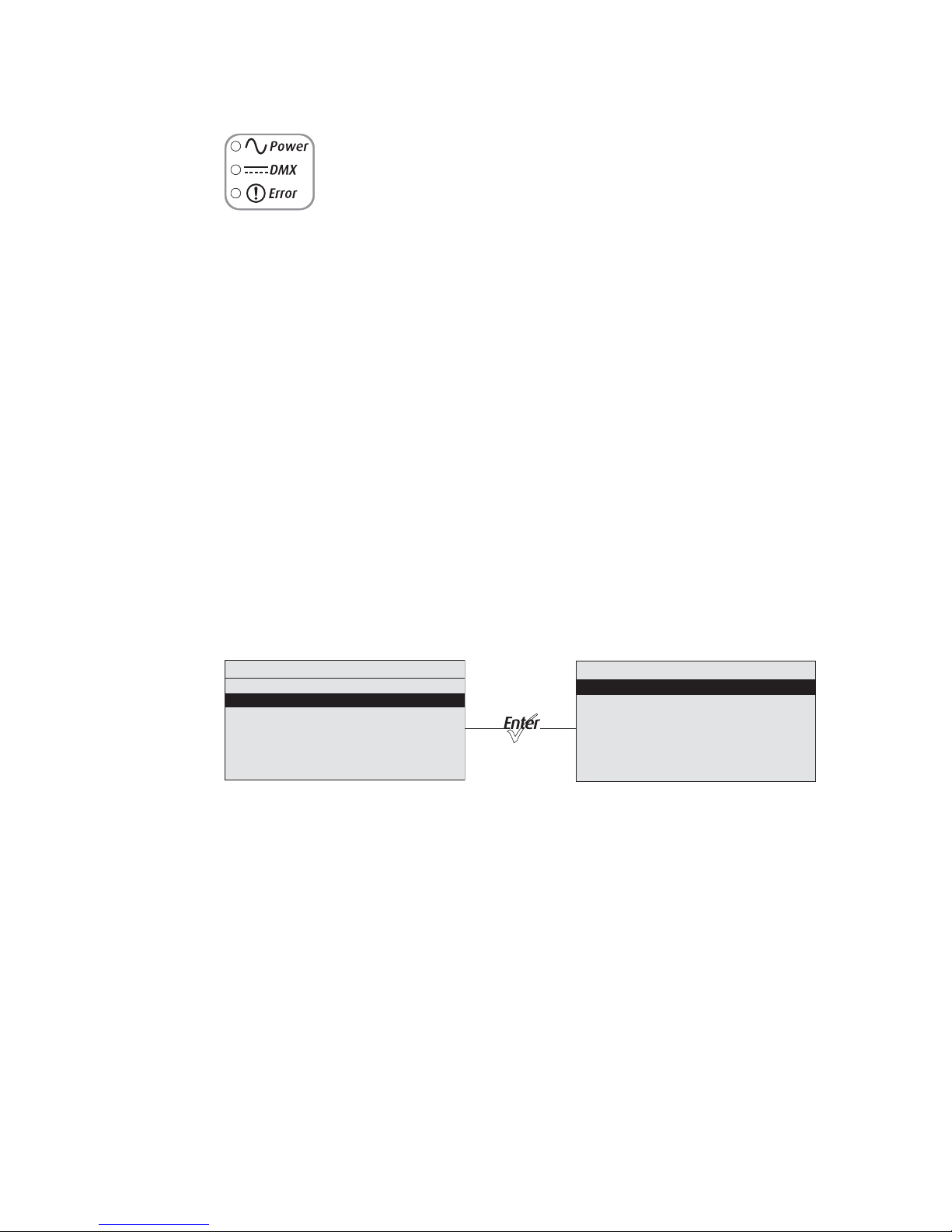

Figure-3.3 Status Indicators on the Back of the Fixture.

The status indicators are three, small, colored LEDs on the User Interface that indicate the status of:

• Power — Illuminated blue when AC power is supplied to the fixture.

• DMX — Illuminates green when an active DMX signal is being received by the fixture.

• Error — Illuminates red only when the fixture is experiencing a data error, high internal temperature, or other abnormal condition.

Status indicators are on by default. You can turn them off through the Local Settings menu. For more information, see Local Settings, page 70.

Screen Navigation

When the Desire fixture is powered up, a splash screen briefly displays, followed by a status screen.

The menu system and LCD backlight are set, by default, to “sleep” after one minute of inactivity. Any button press wakes the LCD backlight. You can set the inactivity time on the Local Settings menu. To “wake up” the display and go to the button’s respective function, press any keypad button. For example, if you press [Enter], the LCD backlight comes on and the Main Menu displays. For more information, see Local Settings, page 70.

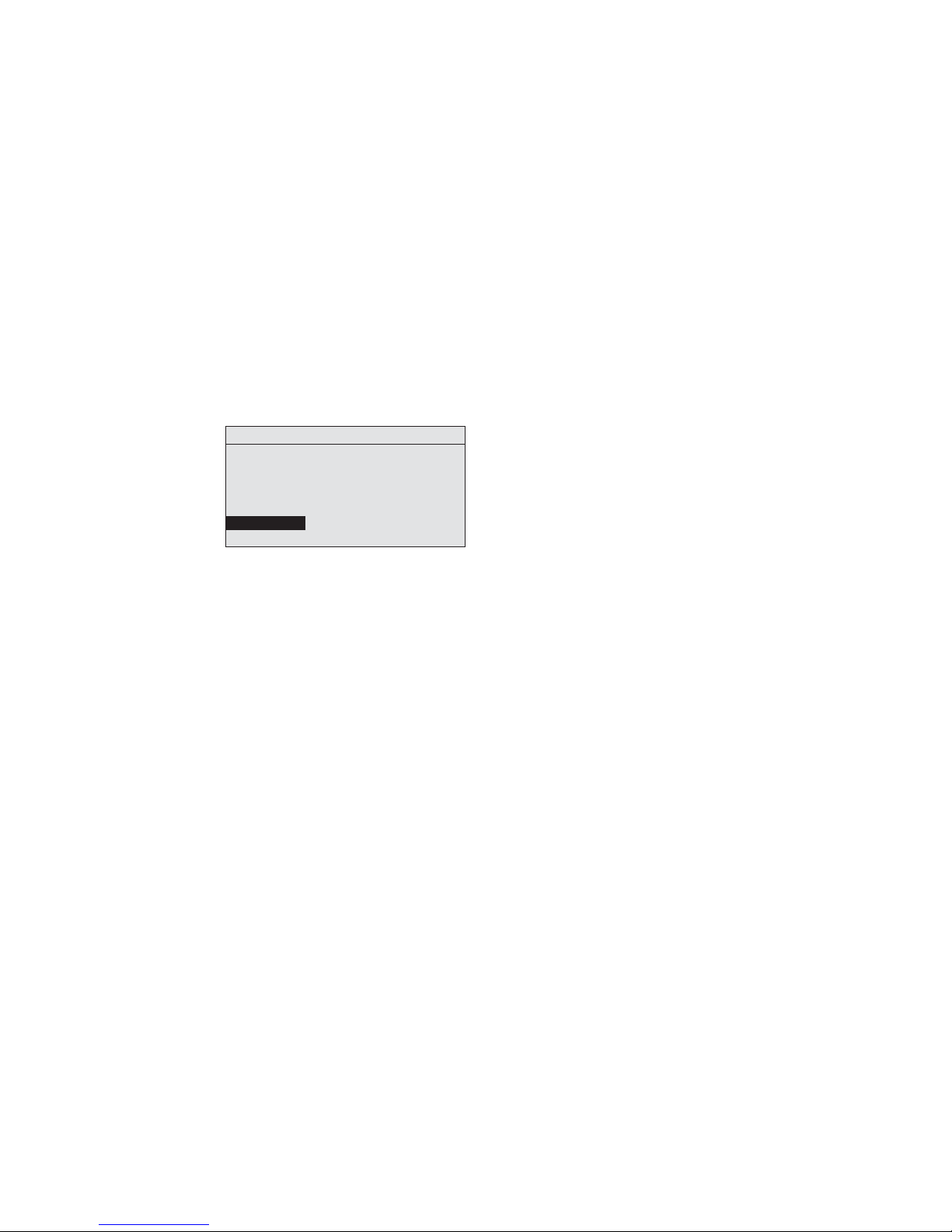

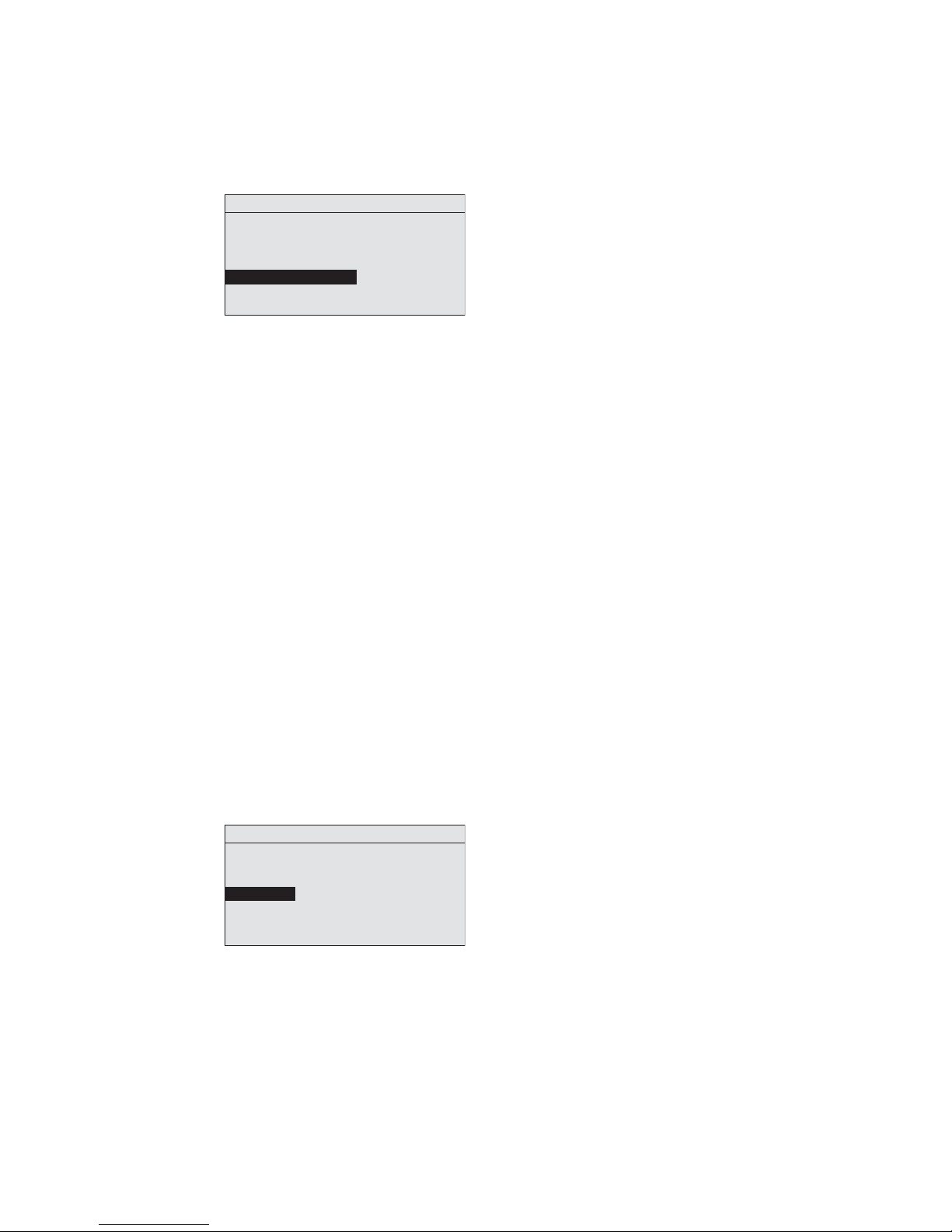

Figure-3.4 Main Menu with Quick Setups Selected and the Result of Pressing Enter.

Vivid, Lustr+, Fire and Ice, Studio HD screen shown.

Press [Up] or [Down] to highlight a menu item. Press [Enter] to select the item. The asterisk (*) indicates that the item is currently active.

Quick Setups

*General

Stage

High Impact

Studio

2/15 Hu e Fine

XT Arch

Main Menu

DMX Start Address: 001

Quick Setups

Advanced Settings

Page 47

3 Basic Menu Navigation 41

Status (Home) Screens

The status (home) screens display when you press [Home] or when there is no activity for a specific time. The home screens display the status of multiple fixture settings. These may or may not include:

• Quick Setup

• Input settings

• DMX address

• LED settings

• Preset or Sequence that may be active

• Master or Slave status, when applicable

• Diagnostic messages

• DMX signal status

• Software version

Most of the settings can be adjusted either on the home screen or within a short series of menus. When a quick setup is selected, the settings of the setup are displayed on the home screen.

For more information about status screens, see Home Screen Displays, page 44.

Figure-3.5 Examples of Status Screens.

Display Title

A menu’s title appears in the first row of every display for easy navigation.

Input Settings

Displays the parameters for the Quick Setup that is active. For more information, see Home

Screen Displays, page 44.

DMX Address

Indicates the DMX address when the fixture is receiving DMX. For more information, see

DMX Start Address, page 46.

Stage

HSI Reg Incd RS ––

Power Budgeting 75%

001

Error!

11/15 +7 Amber Adj

XT Arch

Master

Step 4: Preset 3

3/15 S a t urati o n

Sequence 5 Active

8Ch Reg Stnd RS Strb

Error!

Overtemp Activated

DMX address

Input settings

System message area

Status bar

Display title

Page 48

42 Desire Series v1.4.1 User Manual

System Message Area

Displays status messages, which vary depending on the function that is currently active.

Master or Slave

Indicates if the fixture is the master or slave when the a string of fixtures is running together in standalone operation. For more information, see Master/Slave Operation, page 65.

Sequence

Indicates whether or not a sequence is active and if so, which sequence is active. For more information, see Presets & Sequences, page 56.

Step

Indicates whether or not a preset is active and if so, which step and preset is active. For more information, see Presets & Sequences, page 56.

Preset

Indicates which preset is currently active. For more information, see Presets & Sequences,

page 56.

Error

Displays error messages. Refer to Error Messages, page 77 for a complete listing of possible errors and the actions required to clear them.

Status Bar

Indicates the DMX channels, type, and effect the setup uses.

Menu Navigation

The Desire menu is designed with consistent navigation from the user interface (UI) using the keypad.

The Main Menu is the root for all menu navigation. When an item is selected from the Main Menu, a secondary menu displays, which includes multiple functions for selection. Some secondary menus lead to additional menus. Select a menu item to edit its settings or to proceed to a deeper menu. Items that may be edited are indicated with descriptive text followed by a colon (:) and a value.

The keypad is used to edit specific objects on the operation menu, such as DMX address, Preset and Sequence numbers, fade and delay times, etc. Once an edit has been made, press [Enter] to accept the selection.

Use [Enter] to navigate to the next object for action or edit. To return to the previous operation, press [Back]. Continue pressing [Back] to return to the menu list and then the Main Menu.

[Back] may also be used with any Yes or No dialog box. Pressing [Back] is the same as selecting No.

Page 49

4 Operation 43

Chapter 4

Operation

This chapter contains the following sections:

• Home Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

• Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

• Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

• Studio Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

• Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

• Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

• Routine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Page 50

44 Desire Series v1.4.1 User Manual

Home Screen Displays

Depending on the fixture settings, the following are displayed in the system message area on the respective home (status) screens.

Vivid, Lustr+, Fire and Ice, Studio HD

Studio Daylight and Studio Tungsten

Profile (Vivid, Lustr+, Fire and Ice, Studio HD)

The control profile defines the number and control parameter assignments of input channels for intensity and color-control. For more information, see Profiles, page 29.

Profile (Studio Daylight and Studio Tungsten)

The control profile for Studio Daylight and Studio Tungsten includes only the Direct option. The first channel of DMX control adjusts fixture Intensity from 0 to 100%. For more information, see Studio Daylight and Studio Tungsten Profiles, page 33.

Output Setting

Output is the way and amount to which the fixture constrains the overall power going to the LED array, which determines how consistent the fixture’s brightness may be. For more information, see Output, page 52.

Dimming Curve

Dimming curve is the way that the fixture responds to changes in the control signal for overall intensity. For more information, see Curve, page 53

Red Shift

Red shift replicates the warming of an incandescent filament’s color temperature change as it dims. For more information, see Red Shift, page 55.

Strobe

Strobe flashes the output of the LED array. For more information, see Strobe, page 49.

Parameter Stage XT Arch High Impact Studio General

Profile HSI HSI RGB Studio

Direct Control (Dir)

Output Setting

Regulated (Reg)

Protected (Prt)

Boost (Bst)

Regulated (Reg)

Dimming Curve

Incandescent (Incd)

Standard (Stnd)

Quick (Qik)

Linear (Lin)

Standard

(Std) Red Shift (RS) Disabled Disabled Disabled Disabled Disabled Strobe (Str)OnOnOnOnOn

Parameter Studio Stage Single Channel

Profile Direct Direct Direct Output Setting Regulated (Reg) Regulated (Reg) Regulated (Reg) Dimming Curve Linear (Lin) Incandescent (Incd) Standard (Std) Strobe (Str) On On Off Fan Control (D60 only) DMX DMX Automatic (Auto)

Page 51

4 Operation 45

Fan Control (D60)

The fan on D60 fixtures can be forced on via DMX control or by adjusting settings under the Advanced Settings menu. For more information, see Fan Control (D60), page 33.

Thermal Shutdown Warning

Displayed as OverTemp, it is what the fixture does to visibly warn you that it has become overheated and has gone into a shut-down status, which is maintained until the fixture returns to a safe operating temperature. For more information, see OverTemp, page 72.

Data Loss Behavior

What happens to the fixture's output when the external control signal is lost. For more information, see Data Loss, page 50.

Status Indicators

Status Indicators are on by default. For more information, see Status Indicators, page 71.

Page 52

46 Desire Series v1.4.1 User Manual

Main Menu

The Main Menu can be accessed at any time while viewing other screens. To access the Main Menu, press [Home] and then press [Enter].

DMX Start Address

Use the DMX Start Address to set the DMX address of the fixture. Also see DMX Settings,

page 48.

Figure-4.1 Selecting DMX Start Address on the Main Menu.

Step 1: On the Main Menu, scroll to DMX Start Address.

Step 2: Press [Enter] to select the address number.

Step 3: Use [Up] or [Down] to scroll to the desired address.

Step 4: Press [Enter].

Step 5: Press [Home] to return to the home screen.

Quick Setups

Quick Setups are groupings of predefined fixture performance settings, based on typical applications.

Use the Quick Setups menu to select the desired setup. When a setup is active, the status bar at the bottom of the screen indicates the DMX channels, their functions, and arrangements that the setup uses.

Figure-4.2 Selecting Quick Setup on the Main Menu.

Step 1: On the Main Menu, scroll to Quick Setups.

Step 2: Press [Enter].

Step 3: Scroll to the desired profile and then press [Enter].

An asterisk (*) next to the profile name indicates that profile is active.

Step 4: Press [Home] to return to the home screen.

The top line of the home screen displays the name of the active profile.

Main Menu

DMX Start Address: 001

Quick Setups Advanced Settings

Main Menu

DMX Start Address: 001 Quick Setups Advanced Settings

Main Menu

DMX Start Address: 001

Quick Setups

Advanced Settings

Quick Setups

*General

Stage

High Impact

Studio

1/15 Hue Coarse

XT Arch

Page 53

4 Operation 47

Advanced Settings

The Advanced Settings menu is for experienced users or for applications that entail very carefully defined performance parameters. You can make individual adjustments of all fixture settings for customized control.

Figure-4.3 Advanced Menu From from the Main Menu.

When opening Advanced Settings, all fixture settings remain at their most recent values until readjusted. The fixture automatically goes into Advanced Settings when any settings are altered from one of the preset Quick Setups.

Main Menu

DMX Start Address: 001 Quick Setups

Advanced Settings

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Page 54

48 Desire Series v1.4.1 User Manual

Advanced Menu

The Advanced Menu provides access to various fixture settings and specific operations. The Advanced Menu is accessed from the Main Menu by pressing [Up] or [Down] to select Advanced Settings and then pressing [Enter].

DMX Settings

The current DMX settings are shown in the DMX Settings screen. Use the DMX Settings screen to customize the following:

• DMX start address

• DMX profile

•Strobe

• Data loss

• Plus Seven (Vivid, Lustr+, Fire and Ice, Studio HD)

The two lower lines of the DMX Settings screen display the number of DMX channels used by the fixture, according to the options selected, and their arrangement, in order.

Figure-4.4 Selecting DMX Settings From the Advanced Menu.

DMX Start Address

The DMX start address is selectable from 1 to 512.

Step 1: On the Advanced Menu, scroll to DMX Settings.

Step 2: Press [Enter].

Step 3: With DMX Start Address selected, press [Enter] to select the value.

Step 4: Then press [Up] or [Down] to set the desired address.

Step 5: Press [Enter].

Note:

A change to the DMX start address on this screen will override and update the DMX start address selected on the Home screen.

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

DMX Settings

DMX Start Address: 101

DMX Profile: HSIC Strobe: Enabled Data Loss: Instant Plus Seve n: Enabled

DMX Profile: 6 chan

1/15 Hue Coarse

Page 55

4 Operation 49

DMX Profile

The current DMX profile is displayed on the DMX Settings menu. You can customize the setting by selecting a different profile. For detailed information about each profile, see

Profiles, page 29.

Step 1: On the DMX Settings menu, scroll to DMX Profile.

Figure-4.5 Selecting DMX Profile on the DMX Settings Menu.

Step 2: Press [Enter] to set the desired profile.

Strobe

Strobe adds another DMX channel of control at channel 5 (or channel 9 when operating in Direct Control profile). When enabled, the Strobe channel controls the fixture output as follows.

Step 1: On the DMX Settings menu, scroll to Strobe.

Figure-4.6 Enabling Strobe on the DMX Settings Menu.

Step 2: Press [Enter] to toggle between Enable and Disable.

Step 3: Press [Up] or [Down] to commit the option.

DMX Value Strobe Effect

0 Full on 1 to 254 Variable rate from slow to fast 255 Full on

DMX Settings

DMX Start Address: 101

DMX Profile: HSIC

Strobe: Enabled Data Loss: Instant Plus Seve n: Enabled

DMX Profile: 6 chan

3/15 S a t urati o n

DMX Settings

DMX Start Address: 101 DMX Profile: HSIC

Strobe: Enabled

Data Loss: Instant Plus Seve n: Enabled

DMX Profile: 6 chan

5/15 S t r o b e

Page 56

50 Desire Series v1.4.1 User Manual

Fan Control (D60)

Fan Control adds another DMX channel of control when set to DMX. Alternate settings are Slow, Fast, and Automatic. For more information, see Fan Control (D60), page 33.

Step 1: On the DMX Settings menu, scroll to Fan.

Figure-4.7 Setting the Fan Mode on the DMX Settings Menu.

Step 2: Press [Enter] to scroll through the available options.

Step 3: Press [Up] or [Down] to commit the option.

Data Loss

Data Loss is what happens to the fixture's output when the external control signal (either DMX or data from the Master fixture in a Master/Slave configuration) is lost. The choices are as follows:

Instant

As soon as the control signal is lost, the fixture shuts off output and the LED array goes black.

HLL-2Min

Hold last look for 2 minutes. The fixture retains its last setting for 2 minutes after the control signal is lost, after which it shuts off output.

Cycling power to the fixture before the 2 minutes have passed will clear the last look and the LEDs will remain off until control signal is restored.

HLL-4ever

Hold last look forever. After data is lost, the fixture maintains its last look until power is removed from the fixture or control signal is restored. The last look will not be restored after power has been cycled.

Step 1: On the DMX Settings menu, scroll to Data Loss.

Figure-4.8 Setting the Data Loss Type on the DMX Settings Menu.

Step 2: Press [Enter] to toggle through the three options.

Step 3: Press [Up] or [Down].

DMX Settings

DMX Start Address: 101 DMX Profile: Direct Strobe Mode: Enabled Data Loss: Instant

Fan Mode: Auto

6/15 Fan

DMX Settings

DMX Start Address: 101 DMX Profile: HSIC Strobe: Enabled

Data Loss: Instant

Plus Seve n: Enabled

DMX Profile: 6 chan

2/15 Hue Fine

Page 57

4 Operation 51

Plus Seven (Vivid, Lustr+, Fire and Ice, Studio HD)

Plus Seven allows enhanced color-mixing precision when using the RGB, HSI, HSIC, or Studio profile as a starting point for color selection. Enabling Plus Seven adds another 8 DMX channels of control at the end of the control channels already in use by the fixture. For example, in the HSIC profile, with Strobe enabled, the D22, D40, D40XT fixtures use 6 channels of control. Enabling Plus Seven adds another 8 channels to the fixture, for a total of 14 channels of control.

The D60 fixture uses 7 channels of control. With Plus Seven, the total is 15 channels of control.

The first additional channel is an activation channel for the Plus Seven function. A value of 0 to 50% (DMX 0 to 129) deactivates Plus Seven. A value of 51 to 100% (DMX 130 to 255) activates Plus Seven. The remaining 7 additional channels correspond to the individual colors within the fixture's LED array.

Step 1: On the DMX Settings menu, scroll to Plus Seven.

Figure-4.9 Enabling Plus 7 on the DMX Settings Menu.

Step 2: Press [Enter] to toggle between Enable and Disable.

Step 3: Press [Up] or [Down] to commit the option.

Using Plus Seven Control

The following procedure is performed on your lighting console.

Step 1: Select a starting color point for the fixture output using the standard control

channels for RGB, HSI, etc.

Step 2: Set the first additional channel to a value between 51 and 100% to activate Plus

Seven.

Step 3: Refine the fixture output by altering one or more of the 7 individual color

channels.

• The starting point for each color is defined by the original color selection in step 1.

• The brightness of each color can be increased or decreased from the starting point to any value between zero and full output.

• Colors already at full output will not change when the Plus 7 channels are moved up from the starting point, and colors already at zero output will not change when the Plus 7 channels are moved down from the starting point.

• The starting point on the Plus 7 color channels is 50% control level. If all the Plus Seven color adjust channels are at 50%, the colors are at the original colors.

DMX Settings

DMX Start Address: 101 DMX Profile: HSIC Strobe: Enabled Data Loss: Instant

Plus Seve n: Enabled

DMX Profile: 6 chan

1/15 Hue Coarse

Page 58

52 Desire Series v1.4.1 User Manual

NOTE:

Once any one of the seven individual color channels is altered from its neutral starting position, the settings for the original color point may no longer reflect the actual output of the fixture.

When using RGB, HSI, HSIC, or Studio profile for color selection, each fixture makes accommodations for the specific LEDs in its array and produces output that is consistent with other fixtures, whether or not they use LEDs from the same production batch.

Operating with Plus Seven enabled can override this calibration, and multiple fixtures may produce slightly different outputs when individual color channels are altered from their neutral starting points.

LED Settings

Use the LED Settings menu to adjust fixture performance. From the LED Settings menu, you can set the following.

• Output

•Curve

• Output Frequency

•Red Shift

• White Point

Figure-4.10 Selecting LED Settings on the Advanced Menu.

Output

Use Output to choose the optimal balance between two competing performance parameters, maximum brightness and output consistency, by adjusting:

• How much the fixture limits the overall power to the LED array.

• How the fixture reduces output as internal fixture components heat up during use or in high ambient temperatures.

The output options are as follows.

Regulated

Regulated is a moderately constrained power or brightness with consistent output under typical use. Power to the LEDs is separately regulated in order to maintain consistent brightness during the initial fixture warm-up period. This is recommended for most indoor applications.

Protected

Protected provides the most consistent output possible with the greatest potential for reduced overall brightness. This is best for outdoor use, changing environmental temperatures, and applications with high requirements for consistency in extreme operating conditions.

LED Settings

Output: Regulated

Curve: Standard Output Freq: 1200 Red Shift: Off White Point: 3200K

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Page 59

4 Operation 53

Boost

Boost provides the brightest possible output, with least guarantee of consistency. This is best for applications with low duty cycles, loose brightness requirements, or where ambient temperature is low.

Step 1: On the Advanced Menu, scroll to LED Settings.

Step 2: Press [Enter].

Step 3: With Output selected, press [Enter] to toggle between the options.

Step 4: Press [Up] or [Down] to commit the option.

NOTE:

In all Output settings, if the fixture gets too warm and internal components approach unsafe operating temperatures, the total power to the LED array is gradually reduced and proportionate brightness levels between the various colors of LEDs are maintained as much as possible in order to preserve the overall color mix; however, some minor shifts in output may occur. Power continues to ramp down as much as necessary until internal fixture components return to a safe temperature. The fixture displays a warning message on the home screen indicating that power budgeting is in place, showing the percent of total power that is currently used.

If the fixture exceeds its maximum internal temperature, the fixture enters a cool-down state, stops responding to the control signal, and it shuts down most or all power to the LED array and displays its over-temperature status according to its setting for over-temperature warning.

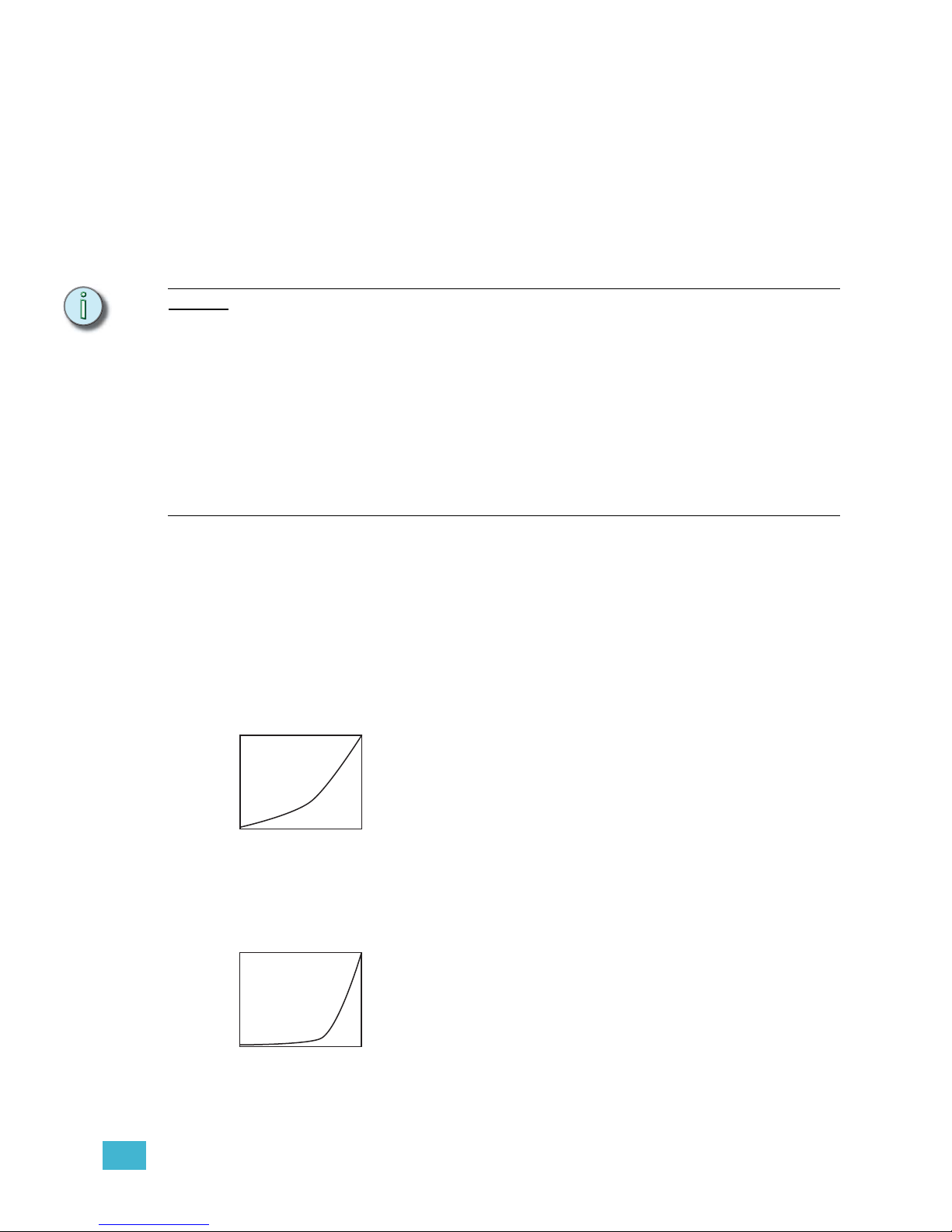

Curve

The dimming curve, commonly called curve, is the correlation between the change in the value of the dimming control signal and the actual change in the fixture's brightness. Curve is also the extent to which the fixture lags in its response time to the control signal in order to facilitate smoothness in dimming.

Standard

Standard is a modest curve for intuitive brightness changes at both high and low ends of the dimming range. Moderate lag in response for good smoothness. It allows quick jumps in brightness. Suitable for most applications.

Incandescent

Exaggerated curve mimics the response of tungsten on a conventional dimmer. Lag is quite pronounced and present even in full on or off bumps. Extreme smoothness with no instant changes. Best when fixtures must operate in sync with incandescent sources.

DMX

0 255

Intensity

DMX

0 255

Intensity

Page 60

54 Desire Series v1.4.1 User Manual

Linear

Linear has no curve. Brightness levels correlate exactly with the value of the dimming control signal. Moderate lag in response for good dimming smoothness. Linear allows quick jumps in brightness. It is best for studio lighting and applications with static scenes or looks.

Quick

Quick uses the standard dimming curve but with no lag or smoothing. All changes are instant and correlated exactly with the control input signal. Quick is best for extreme high impact and video-based control.

Step 1: On the LED Settings menu, scroll to Curve.

Figure-4.11 Selecting Curve on the LED Settings Menu.

Step 2: With Curve selected, press [Enter] to toggle between the options.

Step 3: Press [Up] or [Down] to commit the option.

DMX

0 255

Intensity

DMX

0 255

Intensity

LED Settings Output: Regulated

Curve: Standard

Output Freq: 1200 Red Shift: Off White Point: 3200K

Page 61

4 Operation 55

Output Freq

Output Frequency is the frequency in Hz at which the LED array pulses, or blinks, as a function of Pulse-Width Modulation (PWM). The frequency is adjustable in order to avoid visible flicker on video and film. When altering the frequency in order to reduce noticeable flicker on camera, often only a small change is required. The range is 920 to 1500 Hz in increments of 10. The default value is 1200 Hz.

For high speed exposure or rolling shutter cameras, use the High 25K mode. This increases the PWM to 25,000 Hz and will result in flicker-free operation in most circumstances. To access the High 25K, press the up arrow after reaching 1500 Hz in the Output Freq: field.

Changing the frequency from the default value can have a slight impact on the smoothness, or color-mix consistency, or both when dimming.

Step 1: On the LED Settings menu, scroll to Output Freq.

Figure-4.12 Selecting Output Frequency on the LED Settings Menu.

Step 2: Press [Enter] to select the value.

Step 3: Press [Up] or [Down] to set the desired value.

Step 4: Press [Enter].

Step 5: When asked if you are sure, select Yes and press [Enter].

Red Shift

Red shift allows the fixture to match its dimming performance to that of a conventional tungsten lamp. The fixture automatically changes its apparent White Point, or color temperature, as a function of overall intensity. Red shift works with both white-light and colored-light output settings. It is also known as amber drift and tungsten shift. Red shift is available only in the HSI and RGB profiles. It is not available on Studio Daylight and Studio Tungsten fixtures.

Step 1: On the LED Settings menu, scroll to Red Shift.

Figure-4.13 Selecting Red Shift on the LED Settings Menu.

Step 2: With Red Shift selected, press [Enter] to toggle between On and Off.

Step 3: Press [Up] or [Down] to commit the option.

LED Settings Output: Regulated Curve: Standard

Output Freq: 1200

Red Shift: Off White Point: 3200K

LED Settings Output: Regulated Curve: Standard Output Freq: 1200

Red Shift: Off

White Point: 3200K

Page 62

56 Desire Series v1.4.1 User Manual

White Point (Vivid, Lustr+, Fire and Ice, Studio HD)

White Point controls the appearance (color temperature) of white-light output when saturation is at or near zero. This option is available when using the HSI and RGB profiles. The choices are 2950K, 3200K, 5600K, and 6500K.

Step 1: On the LED Settings menu, scroll to White Point.

Figure-4.14 Selecting White Point on the LED Settings Menu.

Step 2: With White Point selected, press [Enter] to toggle between the options.

Step 3: Press [Up] or [Down] to commit the option.

Presets & Sequences

When no external control signal is connected to the fixture, it can be set to run a preset color mix or a sequence of presets in a stand-alone operation. The Presets and Sequences screen provides access to the edit screens for Presets and for Sequences, and it indicates which Preset or Sequence is active, if any. You can access the Presets and Sequences menu by doing either of the following.

•On the Advanced Menu, scroll to Presets and Sequences and press Enter].

• From any menu, except when operating in Studio profile, press [Light Bulb].

Figure-4.15 Selecting Presets and Sequences on the Advanced Menu.

Focus

Focus is independent of any of the other settings or presets and works whether or not the fixture is receiving DMX data from a console or is in a Preset or stand-alone state. Focus stays on until you disable it or power is disconnected. It turns every LED in the fixture on at 70% so you can:

• Focus (aim) the fixture prior to console set-up or when there is no one at the console to give the fixture intensity.

• Double-check that the fixture is working and that all LEDs are operational.

Step 1: From the Advanced Menu select Presets and Sequences or press [Light

Bulb].

Step 2: With Focus selected, press [Enter] to turn the fixture On.

Step 3: When finished, press [Enter] to turn the fixture Off.

LED Settings Output: Regulated Curve: Standard Output Freq: 1200 Red Shift: Off

White Point: 3200K

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Presets and Sequences

Focus: Off

Presets Sequences

Preset 1 is Active No Sequence is Active

Page 63

4 Operation 57

Presets (Vivid, Lustr+, Fire and Ice, Studio HD)

A Preset is a single, static look or color mix. The Desire Series fixture comes with 24 default configurations. Only one Preset can be active at a time. You can activate any of the Preset color mixes and customize each one. The following table lists the default Preset color mixes.

Presets (Studio Daylight and Studio Tungsten)

The Desire Studio Daylight and Studio Tungsten fixtures come with 24 available slots for Presets. Only one Preset can be active at a time. You can activate any of the Presets and customize each one. Studio Daylight and Studio Tungsten fixtures have Presets that can define both Intensity and Strobe values. There are no default Presets that come preconfigured from the factory.

Preset Default Color

1White 2Warm 3Cool 4 Minus Green 5 Lite Pink 6 Lite Gold 7 Yellow 8 Dark Str 9 Dark Amber 10 Orange 11 Red 12 Med Pink 13 Dark Pink 14 Magenta 15 Purple 16 Dark Lavender 17 Deep Purple 18 Clear Blue 19 Lite Blue 20 Med Blue 21 Primary Blue 22 Blue-Green 23 Lite Green 24 Green

Page 64

58 Desire Series v1.4.1 User Manual

Figure-4.16 Selecting Presets on the Presets and Sequences Menu.

Step 1: On the Presets and Sequences menu, scroll to Presets.

Step 2: Press [Enter].

Step 3: With Preset selected, press [Enter].

Step 4: Press [Up] or [Down] to set the desired preset number.

Step 5: Press [Enter].

Step 6: Press [Down] to select Status.

Step 7: Press [Enter] to activate the Preset.

The action changes to Active and an asterisk (*) displays in front of the preset number.

Note:

You cannot activate a Preset if the fixture is receiving a DMX control signal.

Fade Time

Fade time is the length of time the fixture takes to crossfade from the previous setting to the Preset. The format is MM:SS. The default is 2 seconds.

Step 1: On the Presets menu, scroll to Fade Time and press [Enter].

Figure-4.17 Selecting Fade Time on the Presets Menu.

Step 2: Press [Up] or [Down] to set the desired time in minutes.

Step 3: Press [Enter].

Step 4: Press [Up] or [Down] to set the desired time in seconds.

Step 5: Press [Enter].

Presets

Preset: * 23

Status: Active Fade Time: 00:02 Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Presets and Sequences

Focus: Off

Presets

Sequences

Preset 1 is Active No Sequence is Active

Presets

Preset: * 23 Status: Active

Fade Time: 00:0 2

Del a y Ti m e: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Page 65

4 Operation 59

Delay Time

Delay time is the length of time the fixture waits on the previous setting before initiating the crossfade to the Preset. The default is 0 seconds.

Step 1: On the Presets menu, scroll to Delay Time and press [Enter].

Figure-4.18 Selecting Delay Time on the Presets Menu.

Step 2: Press [Up] or [Down] to set the desired time in minutes.

Step 3: Press [Enter].

Step 4: Press [Up] or [Down] to set the desired time in seconds.

Step 5: Press [Enter].

Edit Color (Vivid, Lustr+, Fire and Ice, Studio HD)

Use Edit Color to change the overall hue, saturation, intensity, and strobe settings of the Preset. You can change the predefined color mixes for the Preset. Refer to the table in

Presets (Vivid, Lustr+, Fire and Ice, Studio HD), page 57.

To keep your changes, be sure to select Save Changes and then press

[Enter]. To discard

changes press [Back] at any time.

If the Preset is currently active, the changes made on the Preset Color Edit screen update to the fixture output immediately.

Step 1: On the Presets menu, scroll to Edit Color and press [Enter].

Figure-4.19 Edit Preset Color Screen.

Step 2: With Color selected, press [Enter].

Step 3: Press [Up] or [Down] to set the desired predefined color mix.

Step 4: Alternatively, to edit the predefined color mix, scroll to any of the parameters on

the screen and press [Enter].

Step 5: Press [Up] or [Down] to change the values.

Step 6: Press [Enter].

Step 7: Do one of the following

• Scroll to Save Changes and press [Enter].

• Press [Back] to exit the screen without saving the changes.

Presets

Preset: * 23 Status: Active Fa d e Ti m e: 00:02

Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Preset 23 Edit Color: Hue Course: 0 Hue Fine: 0 Sat: 0 Int: 100% Strobe: 255

Save Changes

White

Page 66

60 Desire Series v1.4.1 User Manual

Edit (Studio Daylight and Studio Tungsten)

Use Edit to change the brightness and strobe settings of the LED array.

To keep your changes, be sure to select Save Changes and then press

[Enter]. To discard

changes press [Back] at any time.

If the Preset is currently active, the changes made on the Preset Edit screen update to the fixture output immediately.

Step 1: On the Presets menu, scroll to Edit and press [Enter].

Figure-4.20 Edit Preset Screen.

Step 2: Scroll to any of the parameters on the screen and press [Enter].

Step 3: Press [Up] or [Down] to change the values.

Step 4: Press [Enter].

Step 5: Do one of the following

• Scroll to Save Changes and press [Enter].

• Press [Back] to exit the screen without saving the changes.

Copy to Other Fixtures

If other fixtures are connected to the same data chain, you can copy the Preset values to the other fixtures. The fixture automatically becomes the Master and controls all the other fixtures (Slaves) in the chain until another fixture has its Preset or Sequence settings selected or activated. For more information, see Master/Slave Operation, page 65.

Step 1: On the Presets screen, scroll to Copy to Other Fixtures.

Figure-4.21 Copy the Preset to Other Fixtures.

Step 2: Press [Enter].

Step 3: When asked if you are sure, select Yes and press [Enter].

Preset 23 Edit

Preset: 23

Int: 100%

Strobe: 0 Save Changes

Presets

Preset: * 23 Status: Active Fa d e Ti m e: 00:02 Del a y Ti m e: 0 0:0 0

Edit Color

Copy to Other Fixture

Save DMX as Preset

Page 67

4 Operation 61

Save DMX as Preset

You can take a snapshot of the incoming DMX signal when the fixture is in HSI mode and save it as a preset value.

Step 1: On the Presets screen, scroll to Preset and press [Enter].

Figure-4.22 Save the DMX as a Preset.

Step 2: With Preset selected, press [Enter].

Step 3: Press [Up] or [Down] to set the desired preset number.

Step 4: Press [Enter].

Step 5: Scroll to Save DMX as Preset and press [Enter].

Sequences

A Sequence is a timed series of presets. Up to 12 different Sequences may be altered for Preset selections, crossfade rate, and link time. Only one Preset can be active at a time. The sequences can be copied to other fixtures in the same data chain.

You can create your own custom sequence that includes two or more Presets. For example, you may want to sequence through Presets 2, 4, 23, and 1, in that order. As you enter these into the sequence, you also can set the rate and link time for each step.

Figure-4.23 Selecting Sequences on the Presets and Sequences Menu.

Step 1: From the Advanced Menu select Presets and Sequences or press [Light

Bulb].

Step 2: On the Presets and Sequences menu, scroll to Sequences.

Step 3: Press [Enter].

Step 4: On the Sequences menu, with Sequence selected, press [Enter].

Step 5: Press [Up] or [Down] to set the desired Sequence number.

Step 6: Press [Enter].

Step 7: Scroll to Status.

Step 8: Press [Enter] to activate the Sequence.

The screen changes to Active and an asterisk (*) displays in front of the preset number.

Step 9: Press [Down] to scroll to Rate.

Presets

Preset: * 23 Status: Active Fa d e Ti m e: 00:02 Delay Time: 00:00

Edit Color

Copy to Other Fixture

Save DMX as Preset

Sequences

Sequence: * 3

Status: Active Rate: 100% Step: 01

Preset: 1 Link Time: 00:02

Copy to Other Fixture

Presets and Sequences

Focus: Off Presets

Sequences

Preset 1 is Active No Sequence is Active

Page 68

62 Desire Series v1.4.1 User Manual

Rate

Rate is the execution of the Presets' Fade Times and Delay Times within the Sequence, relative to their settings within the actual Presets. The available Rate range is 2 to 500%. The default is 100%.

A Rate of 100% represents running the Sequence with timing exactly as specified within the Presets. A Rate above 100% represents running the Sequence with faster timing than specified within the Presets. For example, with a Rate of 200%, a Preset with a Fade Time of 6 seconds would actually be run within the Sequence in only 3 seconds.

A Rate below 100% represents running the Sequence with slower timing than specified within the Presets. For example, with a Rate of 50%, a Preset with a Fade Time of 6 seconds would actually be run within the Sequence in 12 seconds.

Any change to the Rate is updated live in the fixture memory. Pressing [Back] does not undo a change to Rate.

Step 1: On the Sequences menu, scroll to Rate and press [Enter].

Figure-4.24 Selecting Rate on the Sequences Menu.

Step 2: Press [Up] or [Down] to set the desired percent.

Step 3: Press [Enter].

Step 4: Press [Down] to scroll to Step.

Step

You enter the number of the step in the sequence to be edited. In our example, you select step 1. After setting the Preset and Link time, return to Step and select step 2. Repeat this process until you have entered all the steps in the sequence.

Any change to Step is updated live in the fixture memory. Pressing [Back] does not undo a change to Step.

Step 1: On the Sequences menu, scroll to Step and press [Enter].

Figure-4.25 Selecting Step on the Sequences Menu.

Step 2: Press [Up] or [Down] to set the desired Step number.

Step 3: Press [Enter].

Step 4: Press [Down] to scroll to Preset.

Sequences

Sequence: * 3 Status: Active

Rate: 100%

Step: 01

Preset: 1 Li n k Ti m e: 0 0:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100%

Step: 01

Preset: 1 Li n k Ti m e: 0 0:02

Copy to Other Fixture

Page 69

4 Operation 63

Preset

Preset is the number of a Preset, whether it is a predefined or a custom color mix.

Step 1: On the Sequences menu, scroll to Preset and press [Enter].

Figure-4.26 Selecting Preset on the Sequences Menu.

Step 2: Press [Up] or [Down] to set the desired Preset number.

Step 3: Press [Enter].

Step 4: Press [Down] to scroll to Link Time.

Link Time

Link Time is the length of time the fixture waits before moving from one Preset to the next. The format is MM:SS. The default is 2 seconds.

Step 1: On the Sequences menu, scroll to Link Time and press [Enter].

Figure-4.27 Selecting Link Time on the Sequences Menu.

Step 2: Press [Up] or [Down] to set the desired time in minutes.

Step 3: Press [Enter].

Step 4: Press [Up] or [Down] to set the desired time in seconds.

Step 5: Press [Enter] to commit the values.

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 1

Li n k Ti m e: 0 0:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 1

Link Time: 00:02

Copy to Other Fixture

Page 70

64 Desire Series v1.4.1 User Manual

Finishing the Sequence

After each of the steps have been configured, set the End State. End state is what the fixture does once it completes the Sequence. Two end state options are available and both options repeat indefinitely until the Sequence is deactivated. To access the end state options, you must first program an additional and final step within the sequence using Preset 0. Preset 0 marks the end of the Sequence and opens the End State menu line. Preset 0 may only be used once within a Sequence. If you want the Sequence to repeat automatically, you may only define up to 23 steps with Presets 1 through 24, since the final step must be reserved for Preset 0.

Loop

Once the fixture completes the entire sequence, it immediately returns to the beginning and starts the sequence over again, in order.

Bounce

Once the fixture completes the entire sequence, it reverses the order of the presets and steps backward through them until reaching the starting step, at which point it starts the Sequence over again, in the original order.

Figure-4.28 Setting Sequences End State.

Step 1: On the Sequences menu, scroll to Preset and press [Enter].

Step 2: With the Preset number selected Press [Up] or [Down] until you reach 0.

Step 3: Press [Enter].

Link Time on the screen is replaced with End State.

Step 4: Scroll to End State and press [Enter] to toggle between the options.

Step 5: If the Sequence is not active, scroll up to Status and press [Enter].

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 0

End State: Loop

Copy to Other Fixture

Page 71

4 Operation 65

Copy to Other Fixtures

If other fixtures are connected to the same data chain, you can copy the Sequences settings to the other fixtures. The fixture automatically becomes the Master and controls all the other fixtures (Slaves) in the chain until another fixture has its Preset or Sequence settings selected or activated. For more information, see Master/Slave Operation, page 65.

Step 1: On the Sequences screen, scroll to Copy to Other Fixtures.

Figure-4.29 Selecting Copy to Other Fixtures.

Step 2: Press [Enter].

Step 3: When asked if you are sure, select Yes and press [Enter].

Note:

This option only copies Sequence data; it does not copy changes to the Preset settings or color mixes used within the Sequence.

Master/Slave Operation

When similar fixtures' DMX or data connections are linked together and there is no external DMX signal going to them, one fixture automatically controls all other fixtures in the chain when a Preset or Sequence is initiated.

Master

Master is the one fixture that controls all fixtures in the daisy chain. By default, it is whichever fixture had its Preset or Sequence selected or adjusted most recently. The Master fixture can only control Slave fixtures to produce identical output at the same time as itself. The Master fixture cannot control Slave fixtures to operate individually or to run chase-type or time-offset sequences.

Changes and edits to Presets or Sequences that are made to the Master fixture may be copied to the internal memory of all Slave fixtures for later use when these fixtures are disconnected from the data daisy chain.

When operating as the Master fixture, the fixture displays Master on its home screen.

Figure-4.30 XYZ Status Screen Showing Master.

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 0 End State: Loop

Copy to Other Fixture

Studio

Master

Preset 1 is Active

System OK

No Sequence is Active

Studio Prt Lin – – Str

1/5 In te n s i t y

Page 72

66 Desire Series v1.4.1 User Manual

Slave

Any fixture in the data chain that is being controlled by the master fixture. By default, all fixtures are slaves, except the one that had its Preset or Sequence altered most recently. A Slave fixture can only directly imitate the performance of the Master fixture.

When operating as a Slave fixture, the fixture displays Slave on its home screen.

Diagnostics

The Diagnostics menu provides access to detailed information about various aspects of the fixture’s performance. Diagnostics also provides access to test functions and fixture recalibration. Much of the Diagnostics menu is used by service technicians to troubleshoot problems.

Step 1: From the home screen, press [Enter] to open the Main Menu.

Step 2: Scroll to Advanced Settings.

Step 3: Press [Enter].

Figure-4.31 Selecting Diagnostics on the Advanced Menu.

Current DMX In

The Current DMX In screen displays the values of the current DMX input by channels. The values dynamically change as the DMX input changes. This screen is a read-only screen, which displays the following.

• The Control Input setting.

• The DMX channel assignment, in order.

• The current DMX value (0-255) of each control channel in use by the fixture.

• The current brightness (0 to full or 00 to FL) of each series of LEDs in the fixture's LED array.

Step 1: On the Diagnostics screen, scroll to Current DMX In.

Step 2: Press [Enter].

Figure-4.32 Current DMX In Screen with Dynamic Values.

Step 3: Press [Up] or [Down] to scroll through the channels. Arrows on the left indicate

that you can scroll up or down.

Step 4: Press [Back] to return to the Diagnostics screen.

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Diagnostics

Current DMX In

Network Statistics Tes t Recalibrate Fixture About Fixture

Current DMX In

DMX Ch Level 2 107 3 14 4 82 5 0 G O R A O R I 11 02 00 10 00 00 01

DMX channel

DMX value

Brightness

LED series

Page 73

4 Operation 67

Network Statistics

The Network Statistics screen displays the statistics of the network. The DMX input values dynamically change. This screen is read-only.

Step 1: On the Diagnostics screen, scroll to Network Statistics.

Step 2: Press [Enter].

When you access the screen, the dynamic values start at 0 and continue to increase.

Figure-4.33 Network Statistics Screen with Dynamic Values.

Step 3: To reset the counters, press [Enter].

Step 4: Press [Back] to return to the Diagnostics screen.

Test

Test is used to test the fixture and display its output values. Test overrides all other control to the fixture. The action options are All Off, All On, Chase, and Ind Cntl (Individual control). The default is All Off.

To exit the Test screen, press [Back] twice. The fixture reverts to the previous control.

Step 1: On the Diagnostics screen, scroll to Test.

Step 2: Press [Enter].

Figure-4.34 Test Screen in Chase Mode.

Step 3: With Action selected, press [Enter] to toggle between the options.

Step 4: Press [Up] or [Down] to commit the option.

Diagnostics

Breaks: 15490

Network Statistics

Overruns: 0 Received: 47835

Bad Starts: 0 DMX Starts: 27120 RDM Starts: 0

Diagnostics

Individual Control

Tes t

Action: Chase

Chase: 15 steps/sec

G O R A O R I 00 00 48 00 00 00 00

Brightness

LED series

Page 74

68 Desire Series v1.4.1 User Manual

Chase

Chase automatically sequences through each LED color and starts each at 0% intensity and steps up to 100% before moving to the next color. You can set the number of steps per second for sequencing through all LED colors individually.

Step 1: On the Test screen, scroll to Action.

Step 2: Press [Enter] until the Chase option displays.

The fixture begins to sequence through the LEDs.

Step 3: Press [Down] to select Chase.

Step 4: Press [Enter] to select the values.

Step 5: Press [Up] or [Down] to set the number of steps per second.

The range is 10 to 20.

Step 6: Press [Enter] to commit the value.

The percent of intensity is displayed for each color as the fixture sequences through them.

Step 7: To stop the test, do one of the following.

• Press [Up] or [Down] to select Action and then press [Enter] until All Off displays.

• Press [Back] to return to Action and then press [Enter] until All Off displays.

Individual Control (Ind Cntl)

Use Individual Control to select each LED series and then adjust its intensity.

Step 1: On the Test screen, scroll to Action.

Step 2: Press [Enter] until the Ind Cntr option displays.

One of the LED series will illuminate.

Step 3: Press [Down] to select the series.

Figure-4.35 Test Screen in Individual Control Mode.

Step 4: Press [Up] or [Down] to set the intensity of the series.

Step 5: Press [Enter] to move to the next series.

The value you entered for the first series is applied to the next series.

Step 6: Press [Up] or [Down] to change the intensity of the series.

Step 7: Press [Back] to return to Action.

Diagnostics

Individual Control

Tes t

Action: Ind Cntr Chase: 15 steps/sec

G O R A O R I

56 00 00 00 00 00 00

Page 75

4 Operation 69

Recalibrate Fixture

Service technicians may use this option to calibrate the constant current driver electronics for the LEDs. The calibration process goes through each series of LEDs, starting at 0

intensity and stepping up to 100%. The calibration is automatic and takes a few minutes. During this time, do not exit the screen until it is complete.

CAUTION:

This calibration process does not measure or recalibrate the light output of the LEDs.

Under normal use, it is not necessary to recalibrate the fixture, and doing so will likely have no beneficial effect on fixture performance. It is therefore NOT recommended to recalibrate the fixture without express instruction from an authorized technician.

Step 1: On the Diagnostics screen, scroll to ReCalibrate Fixture.

Step 2: Press [Enter].

Step 3: When asked if you are sure, select Yes and press [Enter].

A new screen shows that the calibration is in progress and whether the LEDs pass the calibration.

Figure-4.36 LED Calibration Screen with Calibration in Process.

Step 4: Press [Enter] or [Back] to return to the Diagnostics screen.

About Fixture

The About screen displays the following information. This is a read-only screen.

• The software version number

• The fixture serial number

• The assigned fixture RDM number

• The color bias of the LED array

Figure-4.37 About Fixture Screen.

Step 1: On the Diagnostics screen, scroll to About Fixture.

Step 2: Press [Enter].

Step 3: Press [Enter] or [Back] to return to the Diagnostics screen.

LED Calibration

LED 1 .......Pass

LED 2 .......Pass

LED 3 .......Pass

LED 4 .......Working

LED 5 .......Working

LED 6 .......Working

LED 7 .......Working

Diagnostics Recalibrate Fixture This Will Calibrate

LED Array

Are You Sure?

Yes

About Fixture

RDM: 6574:12345678

Ve r: 1.4.1.0.0.2 0 (1) Ser: 000021xxx

Desire Vivid 22

DMX START: 001

RDM Label

Page 76

70 Desire Series v1.4.1 User Manual

Local Settings

The Local Settings menu gives you several options that affect the LCD and other functions of the fixture.

Figure-4.38 Selecting Local Settings on the Advanced Menu.

Step 1: On the Advanced Menu, scroll to Local Settings.

Step 2: Press [Enter].

Step 3: Scroll to any of the menu choices and press [Enter].

Backlight

You can change the brightness of the LCD backlight. The brightness level is 10 to 100%. The default is 100%.

Step 1: With BackLight selected, press [Enter] to select the value.

Step 2: Press [Up] or [Down] to set the desired brightness percentage. The effect can

be seen as you make the adjustment.

Step 3: Press [Enter].

BLght time out

You can change the length of time the LCD backlight remains on after a UI button has been pressed. The options are 30 seconds, 1 minute, 5 minutes, 15 minutes, and never. The default is 1 minute.

Step 1: With BLght time out selected, press [Enter].

Figure-4.39 Setting Backlight Timeout.

Step 2: Continue to press [Enter] until the desired time is indicated. The default is 1

minute.

Step 3: Press [Up] or [Down] to commit the option.

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Local Settings

Backlight: 100%

BLght time out: 1 min Language: English Status Indicators: Off OverTemp: Visible Restore Defaults

Local Settings Backlight: 100%

BLght time out: 1 min

Language: English Status Indicators: Off OverTemp: Visible

Restore Defaults

Page 77

4 Operation 71

Language

The screen language is English.

Figure-4.40 Screen Language Set to English.

Status Indicators

You can turn the status indicators on or off. The default is on.

Step 1: With Status Indicators selected, press [Enter].

Figure-4.41 Setting the Status Indicator Display.

Step 2: Continue to press [Enter] to toggle between ON and OFF.

Step 3: Press [Up] or [Down] to commit the option.

CAUTION:

Although it may be desirable in some applications to eliminate all stray light from the back of the fixture, turning the Status Indicators OFF prevents them from communicating potentially critical information. Use discretion when selecting the OFF setting.

Local Settings Backlight: 100% BLght time out: 1 min

Language: English

Status Indicators: Off OverTemp: Visible

Restore Defaults

Local Settings Backlight: 100% BLght time out: 1 min Language: English

Status Indicators: Off

OverTemp: Visible Restore Defaults

Page 78

72 Desire Series v1.4.1 User Manual

OverTemp

You can change how an over-temperature situation is indicated in order to control stray light.

Visible (Vivid, Lustr+, Fire and Ice, Studio HD)

The fixture produces a low-level, red light from the LED array, displays a warning message on the LCD, turns on the LCD backlight, and turns on the error indicator light.

Visible (Studio Daylight and Studio Tungsten)

The fixture produces a low-level light from only some of the LEDs in the LED array, displays a warning message on the LCD, turns on the LCD backlight, and turns on the error indicator light.

Dark

The fixture turns off the LED array entirely and displays a warning message on the LCD without turning on the LCD backlight.

Step 1: With OverTemp selected, press [Enter].

Figure-4.42 Setting Over Temperature Indication.

Step 2: Continue to press [Enter] to toggle between the two options.

Step 3: Press [Up] or [Down] to commit the option.

For more information, see Thermal Shutdown Warning, page 45.

Note:

When returning to normal operation, after the fixture has been in a shut-down status, the LED array automatically transitions its output back to the current control signal or stand-alone operation over a 10-second crossfade. There is no required reset function once the fixture temperature returns to a safe level.

Restore Defaults

You can restore the fixture to the factory settings. This function clears all custom settings including all changes to Presets and Sequences.

Step 1: With Restore Defaults selected, press [Enter].

Step 2: When asked if you are sure, select Yes and press [Enter].

Step 3: Press [Enter].

Local Settings Backlight: 100% BLght time out: 1 min Language: English Status Indicators: Off

OverTemp: Visible

Restore Defaults

Page 79

4 Operation 73

Copy All Settings

When DMX is not applied you can copy all settings, except DMX address, globally to all of the other fixtures in the same data chain in one step. This includes everything from Presets and Sequences to Quick Setups and Advanced options.

This feature is not available when DMX is applied to the fixture.

Figure-4.43 Copy All Settings on the Advanced Menu.

Step 1: With Copy All Settings selected, press [Enter].

Step 2: When asked if you are sure, select Yes and press [Enter].

Step 3: Press [Enter].

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Page 80

74 Desire Series v1.4.1 User Manual

Studio Settings

Vivid, Lustr+, Fire and Ice, Studio HD

The Studio profile produces only white light that is adjustable in brightness, white point, and tint (green/magenta balance). The Studio profile can be operated in a stand-alone mode from the user interface or can be controlled via DMX.

Note:

Studio profile is the default Quick Setup for fixtures containing the Studio HD LED array. Fixtures with other LED arrays may also be operated in Studio profile by selecting this setting from Quick Setups or DMX Settings. Fixtures with Studio HD LED arrays may also be operated in other setups.

Operation From Home Status Screen (Studio Standalone)

When operating without an external control signal, the quality of the white light can be adjusted immediately and directly by pressing the UI buttons on the fixture while on the home screen. In this setup, all the UI buttons change their functions from other setups. Icons on the screen indicate which buttons to use for the settings.

When fixtures are connected together and there is no control signal, all adjustments that you make on one fixture are automatically made on the connected fixtures.

Figure-4.44 Studio Status Home Screen (Vivid, Lustr+, Fire and Ice, Studio HD).

• To adjust the Intensity, press [Up] or [Down]. The range is 0 to 100%.

• To adjust the White Point, press [Back] or [Enter]. The range is 2700 to 6500K.

• To adjust the Tint, press [Light bulb] & [Back] or [Enter]. [Back] increases magenta and [Enter] increases green.

• To return to the Main Menu, press [Home].

• To return to the Studio status screen, from the Main Menu, press [Home] or allow the UI to time out and automatically return to status screen or press [Back].

Studio

Int = 100%

System OK

STUDIO MOD E

4/5 Inte n s it y

WhitePoint = 3200

Tint = 50%

Page 81

4 Operation 75

Studio DMX Control

When controlled via DMX, the first three channels adjust the output in the following order. Channel 5 controls strobe.

When adjusting white point via DMX, the full gamut of 2700 to 6500K is available, but common settings of 3200K and 5600K are quickly accessible at the lowest and highest DMX values, respectively. The range of control on channel 2 is distributed as follows.

When adjusting tint via DMX, the range of control on channel 3 is distributed as follows.

Additional channels for other functions, such as strobe and Plus 7, can also be activated, if desired, starting with channel 4.

Note:

When using DMX to control the fixture in Studio mode, the default data-loss behavior is different than in other operational modes. If the DMX signal is lost, the fixture automatically holds the last look forever (HLL-4ever) and this look persists through infinite off/on power cycles, until the DMX signal is restored or the fixture settings are adjusted manually via the User Interface.

Channel Output

1 Intensity (Brightness) 2 White Point 3Tint 5 Strobe

DMX Value White Point

000 3200K 001 to 254 Continuous adjustment from 2700 to 6500K 255 5600K

DMX Value Tint

000 Neutral white (at the specified white point) 001 Extreme green (approximately 2x plus green) 002 to 127 Moving from green toward neutral white 128 Neutral white 129 to 254 Moving from neutral white toward magenta 255 Extreme magenta (approximately 2x minus green)

Page 82

76 Desire Series v1.4.1 User Manual

Studio Daylight and Studio Tungsten

The Studio profile allows quick adjustment of Intensity. The Studio profile can be operated in a stand-alone mode from the user interface or can be controlled via DMX.

Operation From Home Status Screen (Studio Standalone)

When operating without an external control signal, the intensity of the white light can be adjusted immediately and directly by pressing the UI buttons on the fixture while on the home screen. In this setup, all the UI buttons change their functions from other setups. Icons on the screen indicate which buttons to use for the settings.

Figure-4.45 Studio Status Home Screen.

• To adjust the Intensity, press [Up] or [Down]. The range is 0 to 100%.

• To return to the Main Menu, press [Home].

• To return to the Studio status screen, from the Main Menu, press [Home] or allow the UI to time out and automatically return to status screen or press [Back].

Studio DMX Control

When controlled via DMX, the channels adjust the following.

Channel Output

1 Intensity (Brightness) 2 Strobe 3 Fan (D60 only)

Studio

Intensity = 100%

System OK

1/3 In t e ns i t y

STUDIO MOD E

Page 83

4 Operation 77

Error Messages

When a system error is detected, a message displays on the home screen. The message changes to reflect the specific error type. When multiple errors are detected, each error message cycles, in increasing numerical order on the display for 1 second each. The following table lists the error messages.

Software Updates

The software can be updated with UpdatorAtor Software. UpdatorAtor allows you to remotely update the Source Four LED fixture. UpdatorAtor is installed on your computer and connected from the computer to the fixture with a special cable or through a gateway. For more information, contact ETC’s Technical service department.

ETC Technical Support

Any time, any day–15 minute response time—that’s our service commitment. ETC’s Technical Service is unparalleled in the industry. With over 60 service employees worldwide, not to mention our extensive Authorized Service Center network, we are uniquely positioned to be able to help you anywhere, anytime. Call on our years of expertise for help with any lighting situation. Our commitment is to make your day shine brighter.

Americas

608/831-4116

or toll-free in the U.S. at 800/688-4116

Europe

(+44) 20 8896 1000

Germany

(+49) 8024 4700-0

Asia

(+852) 2799 1220

Error Message Description

LED Ambient Overtemp

The LED head ambient temp is too hot and has been shut down, let

fixture cool down LED Ambient High The LED head ambient is getting hot. Let the fixture cool. LED Ambient Low The LED head ambient is too cold. Improper operating conditions.

Color System Fail

Fixture does not have its color information loaded. Most likely

represents a hardware failure. LED Over Temp A specific LED is over-temp and the fixture has been shut down. Internal Temp High Fixture internal temp is too hot. Power Budget Active The fixture is reducing the LED output due to hot temperatures.

Internal Overtemp

The internal temperature is too hot, the fixture has been shut down.

Let the fixture cool.

Configuration Error

The stored configuration has been compromised. The fixture will

return to a default configuration.

Page 84

78 Desire Series v1.4.1 User Manual

Routine Maintenance

To ensure optimum performance of your Desire series fixture, you should perform the following inspections and cleaning at least once a year. You may need to inspect or clean the fixture more often, depending on the type and amount of use your fixture experiences during the year.

CAUTION:

Allow fixture to cool down completely prior to cleaning.

Disconnect all power and DMX cables prior to cleaning.

Check for excessive dust or debris in the heat-dissipating fins around the entire fixture enclosure. Clean using compressed air or a soft cloth. Keeping the components of the enclosure clean facilitates efficient cooling and extends LED longevity.

NEVER spray liquids into the fixture.

NEVER spray compressed air into a fixture that is powered-up.

A can of compressed air or oil-free air from an air compressor set at a low setting can

be used to blow through the vent holes and remove dust or other debris from the interior of the fixture. Dust buildup can cause overheating and premature shutdown.

Remove the secondary lenses (if used) and clean out any dust and debris. All

components, including the secondary lenses, can be cleaned using compressed, oil-free air as described above or a clean micro-fiber cloth. The use of any liquid cleaning solution is not recommended for Desire fixtures.

Inspect all mounting hardware for wear and, if necessary, clean using compressed,

oil-free air or a soft, lint-free cloth.

Page 85

5 Menu Flow Chart 79

Appendix 5

Menu Flow Chart

The following illustrations show each of the menus that are displayed on the Desire fixture LCD and the path to each one.

Home and Main Menus (Vivid, Lustr+, Fire and Ice, Studio HD)

To Advanced Menu

Main Menu

DMX Start Address: 001

Quick Setups Advanced Settings

General

HSI Reg Stnd –– Str

No Sequence is Active

4/5 Inte n s it y

Master

System OK

No Preset is Active

Main Menu

DMX Start Address: 001

Quick Setups

Advanced Settings

Quick Setups

*General

Stage

High Impact

Studio

2/15 Hue Fine

XT Architectural

Main Menu

DMX Start Address: 001 Quick Setups

Advanced Settings

Page 86

80 Desire Series v1.4.1 User Manual

Home and Main Menus (Studio Daylight and Studio Tungsten)

To Advanced Menu

Main Menu

DMX Start Address: 001

Quick Setups Advanced Settings

Main Menu

DMX Start Address: 001

Quick Setups

Advanced Settings

Main Menu

DMX Start Address: 001 Quick Setups

Advanced Settings

Quick Setups

*Studio

Stage

1/3 Intensity

Single Channel

Stage

Dir Reg Stnd –– Str

No Sequence is Active

1/3 Intensity

Master

System OK

No Preset is Active

Page 87

5 Menu Flow Chart 81

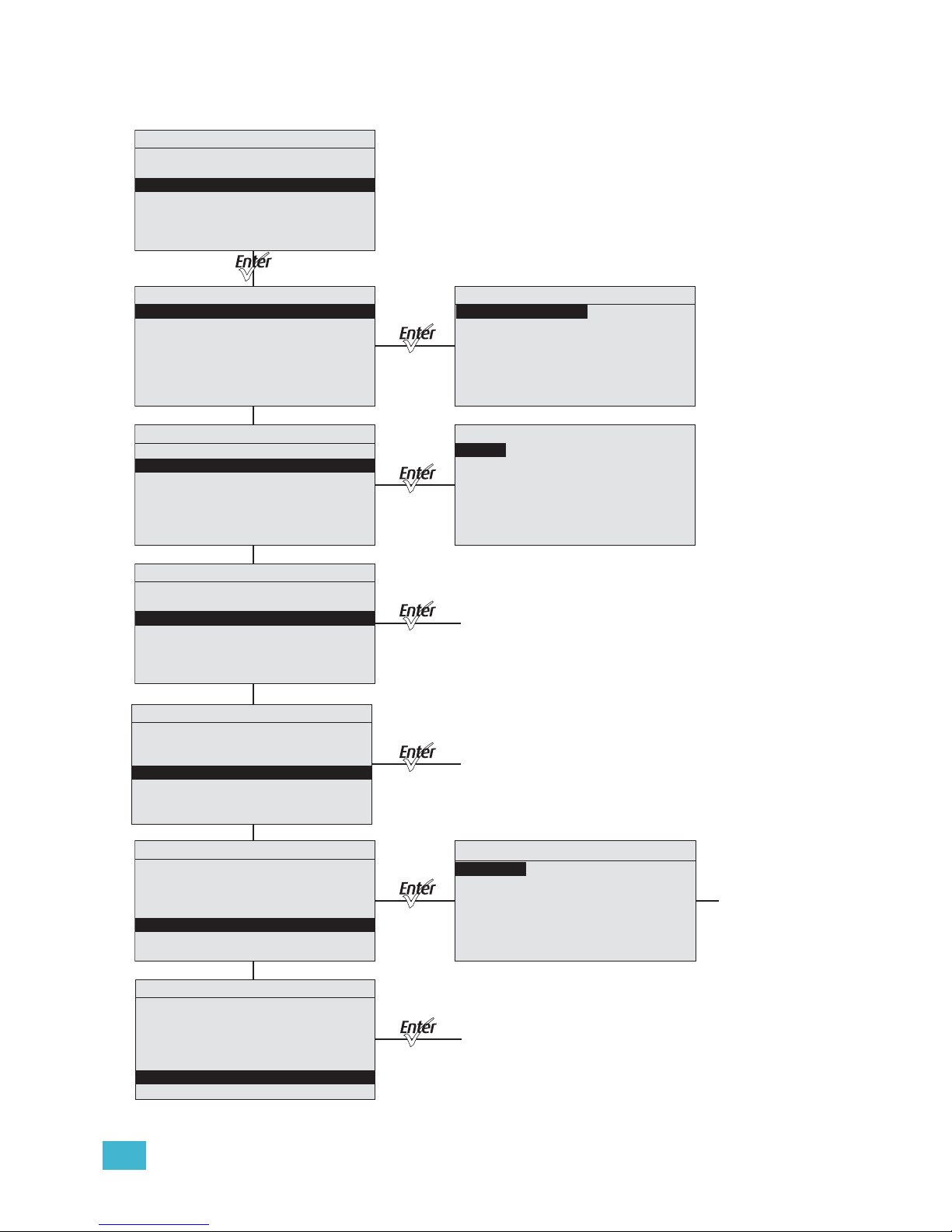

Advanced Menu (Vivid, Lustr+, Fire and Ice, Studio HD)

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

DMX Settings

DMX Start Address: 101

DMX Profile: HSIC Strobe: Enabled Data Loss: Instant Plus Seve n: Enabled

DMX Profile: 6 chan

1/15 Hue Coarse

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

LED Settings

Output: Regulated

Curve: Standard Output Freq: 1200 Red Shift: Off White Point: 3200K

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Main Menu

DMX Start Address: 001 Quick Setups

Advanced Settings

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Local Settings

Backlight: 100%

BLght time out: 1 min Language: English Status Indicators: Off OverTemp: Visible Restore Defaults

To Presets and Sequenses Menu

To Diagnostics Menu

To Confirmation

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Copy All Settings appears only when DMX is not present.

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

To Confirmation

Page 88

82 Desire Series v1.4.1 User Manual

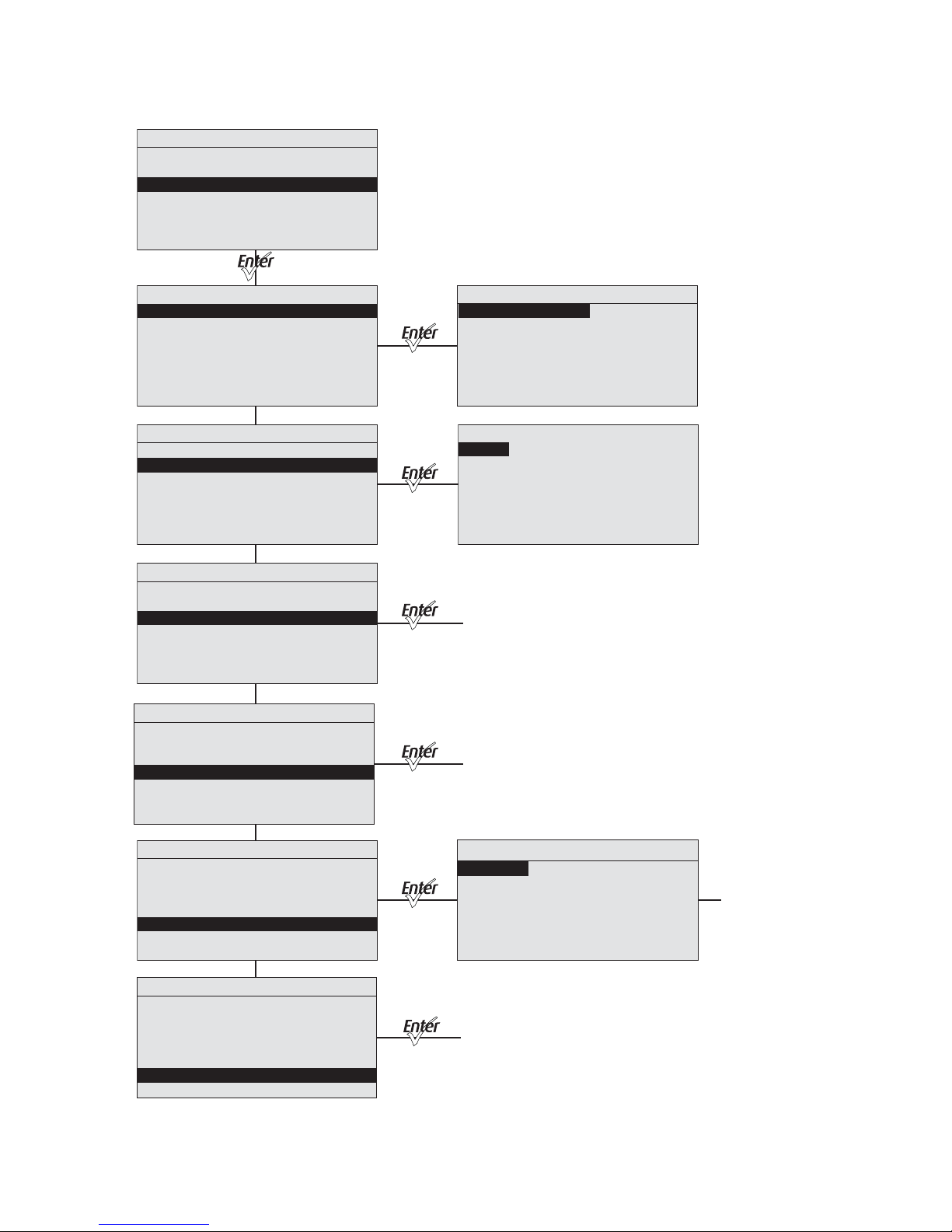

Advanced Menu (Studio Daylight and Studio Tungsten)

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Main Menu

DMX Start Address: 001 Quick Setups

Advanced Settings

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Local Settings

Backlight: 100%

BLght time out: 1 min Language: English Status Indicators: Off OverTemp: Visible Restore Defaults

To Presets and Sequenses Menu

To Diagnostics Menu

To Confirmation

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Advanced Menu

DMX Settings

LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

To Confirmation

DMX Settings

DMX Start Address: 101

DMX Profile: Direct Strobe Mode: Enabled Data Loss: Instant Fan Mode: Auto

1/15 I n te n s i t y

LED Settings

Output: Regulated

Curve: Standard Output Freq: 1200

Copy All Settings appears only when DMX is not present.

Page 89

5 Menu Flow Chart 83

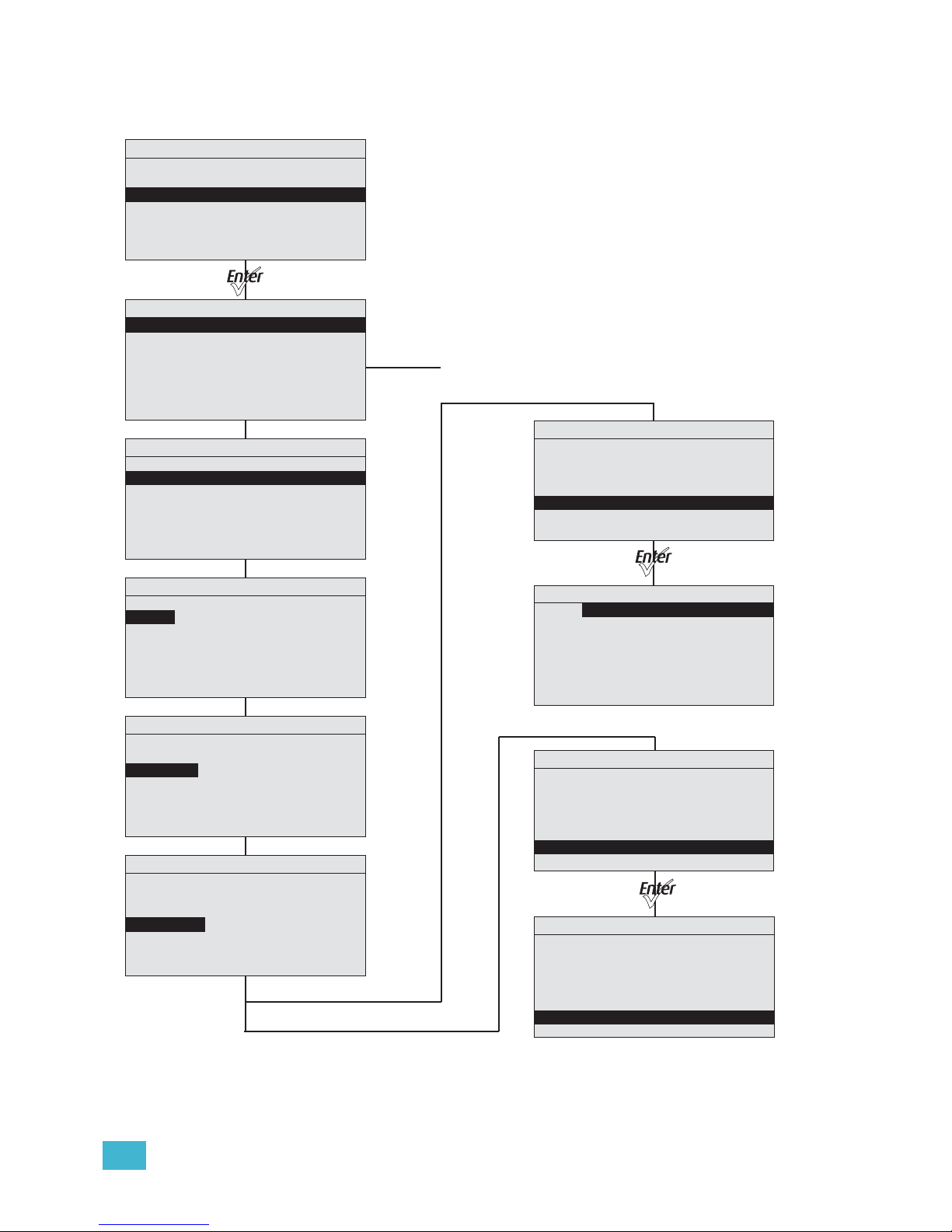

Presets Menu (Vivid, Lustr+, Fire and Ice, Studio HD)

Presets and Sequences

Focus: Off

Presets Sequences

Preset 1 is Active No Sequence is Active

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

To Sequences Menu

Presets and Sequences

Focus: Off

Presets

Sequences

Preset 1 is Active No Sequence is Active

Presets

Preset: * 23

Status: Active

Fade Time: 00:02 Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Presets

Preset: * 23 Status: Active Fade Time: 00:02 Delay Time: 00:00

Edit Color

Copy to Other Fixture

Save DMX as Preset

Presets

Preset: * 23 Status: Active

Fade Time: 00:0 2

Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Presets

Preset: * 23 Status: Active Fade Time: 00:02

Delay Time: 0 0:0 0

Edit Color Copy to Other Fixture Save DMX as Preset

Copy Preset

This Will Copy

Preset Data

From this Fixture to

All Other Fixtures

Are You Sure?

Yes

Preset 23 Edit Color: Hue Course: 0 Hue Fine: 0 Sat: 0 Int: 100% Strobe: 255

Save Changes

White

Presets

Preset: * 23 Status: Active Fade Time: 00:02 Delay Time: 00:00

Edit Color

Copy to Other Fixture Save DMX as Preset

* Copy All Settings appears only when DMX is not present.

Page 90

84 Desire Series v1.4.1 User Manual

Presets Menu (Studio Daylight and Studio Tungsten)

Presets and Sequences

Focus: Off

Presets Sequences

Preset 1 is Active No Sequence is Active

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

To Sequences Menu

Presets and Sequences

Focus: Off

Presets

Sequences

Preset 1 is Active No Sequence is Active

Presets

Preset: * 23

Status: Active

Fade Time: 00:02 Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Presets

Preset: * 23 Status: Active Fa d e Ti m e: 00:0 2 Delay Time: 00:00

Edit Color

Copy to Other Fixture

Save DMX as Preset

Presets

Preset: * 23 Status: Active

Fade Time: 00:0 2

Delay Time: 00:00

Edit Color Copy to Other Fixture Save DMX as Preset

Presets

Preset: * 23 Status: Active Fade Time: 00:02

Delay Time: 0 0:0 0

Edit Color Copy to Other Fixture Save DMX as Preset

Copy Preset

This Will Copy

Preset Data

From this Fixture to

All Other Fixtures

Are You Sure?

Yes

Preset 23 Edit

Preset: 23

Int: 100%

Strobe: 0 Save Changes

Presets

Preset: * 23 Status: Active Fa d e Ti m e: 00:0 2 Delay Time: 00:00

Edit

Copy to Other Fixture Save DMX as Preset

Copy All Settings appears only when DMX is not present.

Page 91

5 Menu Flow Chart 85

Sequences Menu

Copy Preset

This Will Copy

Preset Data

From this Fixture to

All Other Fixtures

Are You Sure?

Yes

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 1

Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 1

Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active

Rate: 100%

Step: 01

Preset: 1 Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3

Status: Active Rate: 100% Step: 01

Preset: 1 Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 0 End State: Loop

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 0

End State: Loop

Copy to Other Fixture

Presets and Sequences

Focus: Off Presets

Sequences

Preset 1 is Active No Sequence is Active

Sequences

Sequence: * 3

Status: Active

Rate: 100% Step: 01

Preset: 1 Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100%

Step: 01

Preset: 1 Link Time: 00:02

Copy to Other Fixture

Sequences

Sequence: * 3 Status: Active Rate: 100% Step: 01

Preset: 0 Link Time: 00:02

Copy to Other Fixture

Page 92

86 Desire Series v1.4.1 User Manual

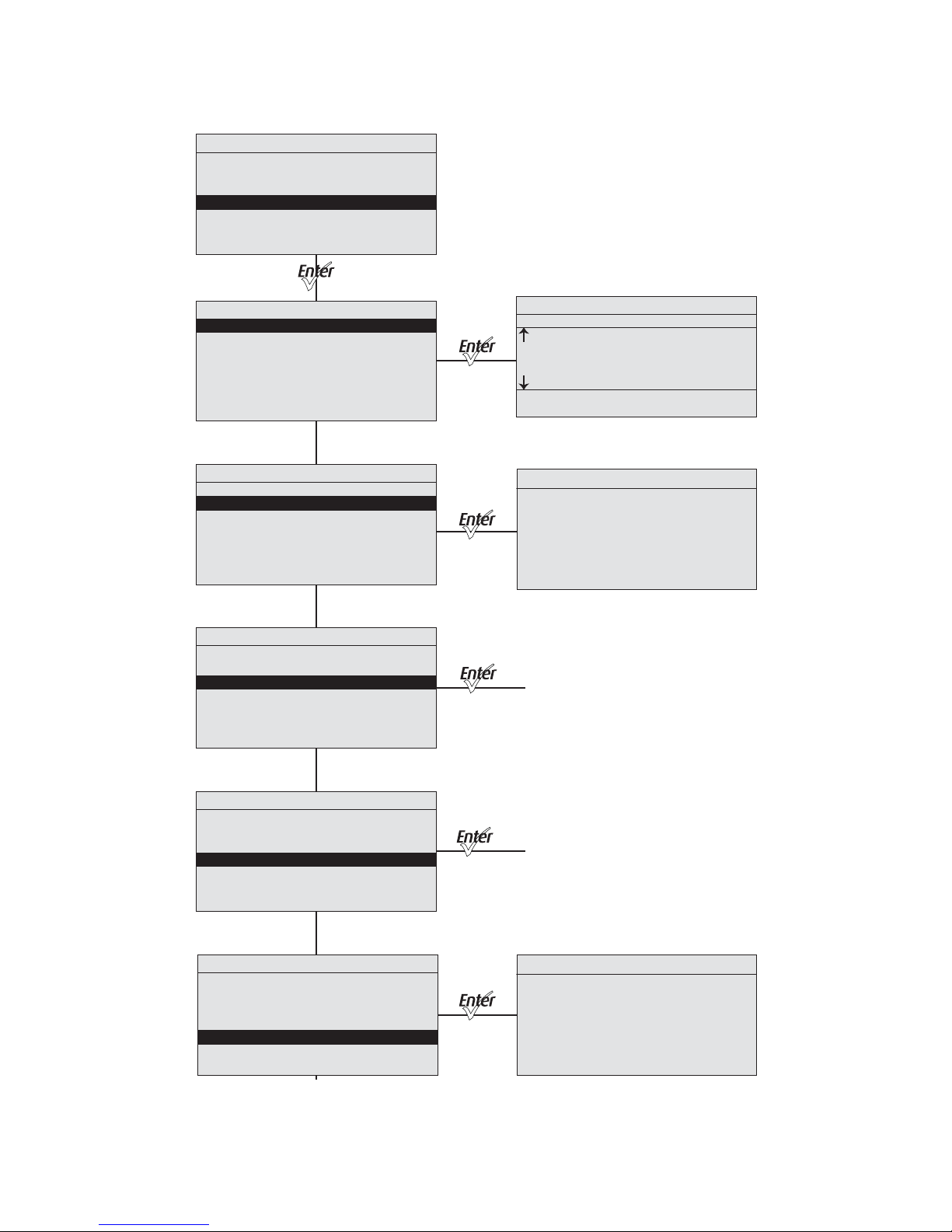

Diagnostics Menu

About Fixture

RDM: 6574:12345678

Ve r: 1.4.1.0.0.2 0 (1) Ser: 000021xxx

Desire Vivid 22

DMX START: 001

RDM Label

Diagnostics

Current DMX In

Network Statistics Tes t Recalibrate Fixture About Fixture

Current DMX In

DMX Ch Level 2 107 3 14 4 82 5 0 G O R A O R I 11 02 00 10 00 00 01

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Copy All Settings

Diagnostics

Breaks: 15490

Network Statistics

Overruns: 0 Received: 47835

Bad Starts: 0 DMX Starts: 27120 RDM Starts: 0

Diagnostics Current DMX In Network Statistics

Tes t

Recalibrate Fixture About Fixture

Diagnostics Current DMX In Network Statistics Tes t

Recalibrate Fixture

About Fixture

Diagnostics Current DMX In Network Statistics Tes t Recalibrate Fixture

About Fixture

Diagnostics Current DMX In

Network Statistics

Tes t Recalibrate Fixture About Fixture

To Te st

To Recalibrate Fixture

Page 93

5 Menu Flow Chart 87

Diagnostics Test

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Diagnostics Current DMX In Network Statistics

Tes t

Recalibrate Fixture About Fixture

Diagnostics

Individual Control

Tes t

Action: Chase Chase: 15 steps/sec

G O R A O R I 00 00 48 00 00 00 00

Diagnostics

Individual Control

Tes t

Action: Ind Cntr Chase: 15 steps/sec

G O R A O R I

56 00 00 00 00 00 00

Diagnostics

Individual Control

Tes t

Action: Chase

Chase: 15 steps/sec

G O R A O R I 00 00 48 00 00 00 00

Page 94

88 Desire Series v1.4.1 User Manual

Diagnostics Recalibrate Fixture

Advanced Menu

DMX Settings LED Settings

Presets and Sequences

Diagnostics

Local Settings

Diagnostics Current DMX In Network Statistics Tes t

Recalibrate Fixture

About Fixture

Diagnostics Recalibrate Fixture This Will Calibrate

LED Array

Are You Sure?

Yes

LED Calibration

LED 1 .......Pass

LED 2 .......Pass

LED 3 .......Pass

LED 4 .......Working

LED 5 .......Working

LED 6 .......Working

LED 7 .......Working

Page 95

Page 96

Corporate Headquarters

 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA  Tel +608 831 4116  Fax +608 836 1736

London, UK

 Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK  Tel +44 (0)20 8896 1000  Fax +44 (0)20 8896 2000

Rome, IT 

Via Pieve Torina, 48, 00156 Rome, Italy  Tel +39 (06) 32 111 683  Fax +44 (0) 20 8752 8486

Holzkirchen, DE

 Ohmstrasse 3, 83607 Holzkirchen, Germany  Tel +49 (80 24) 47 00-0  Fax +49 (80 24) 47 00-3 00

Hong Kong  Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong  Tel +852 2799 1220  Fax +852 2799 9325 Service:

(Americas) service@etcconnect.com 

(UK) service@etceurope.com  (DE) techserv-hoki@etcconnect.com 

(Asia) service@etcasia.com

Web:

www.etcconnect.com 

7410M1200-1.4.1

 Rev A  Released 2013-07

 ETC intends this document to be provided in its entirety.
