Page 1
Copyright © 2015 Electronic Theatre Controls, Inc.
All rights reserved. Product information and specifications subject to change.
Part Number: 7410M1250-1.8.0
Released: October 2015
This product is intended for professional use only.
Read this entire document before using this product.
D40/D60 XTI
User Manual
v1.8
Rev A
Desire® Series by ETC
Page 2
ETC permits the reproduction of materials in this manual only for non-commercial
purposes. All other rights are reserved by ETC.
ETC intends this document, whether printed or electronic, to be provided in its
entirety.
ETC®, Selador®, and Desire® are registered trademarks of Electronic Theatre Controls,
Inc. in the United States and other countries.
Other product and company names mentioned herein may be trademarks and/or service
marks of their respective owners.
This product is protected by one or more of the following U.S. Patents: 6,016,038,
6,150,774, 6,788,011, 6,806,659, 6,683,423 and 7,023,543
Page 3
Table of Contents i
Table of Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . 1
Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Vivid, Lustr+, Fire, Ice and Studio HD . . . . . . . . . . . . . . . . . . . .1
Studio Daylight, Studio Tungsten . . . . . . . . . . . . . . . . . . . . . . .2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Typography Used in This Guide. . . . . . . . . . . . . . . . . . . . . . . . .4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Chapter 1
Installation and DMX Profiles. . . . . . . . . . .6
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Dimensions and Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Fixture Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Typical Power Consumption D40XTI . . . . . . . . . . . . . . . . . . . .10
Typical Power Consumption D60XTI . . . . . . . . . . . . . . . . . . . .11
Note About LED Fixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Color Rendering Index and Color Quality Scale Ratings . . . .12
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installation on a Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

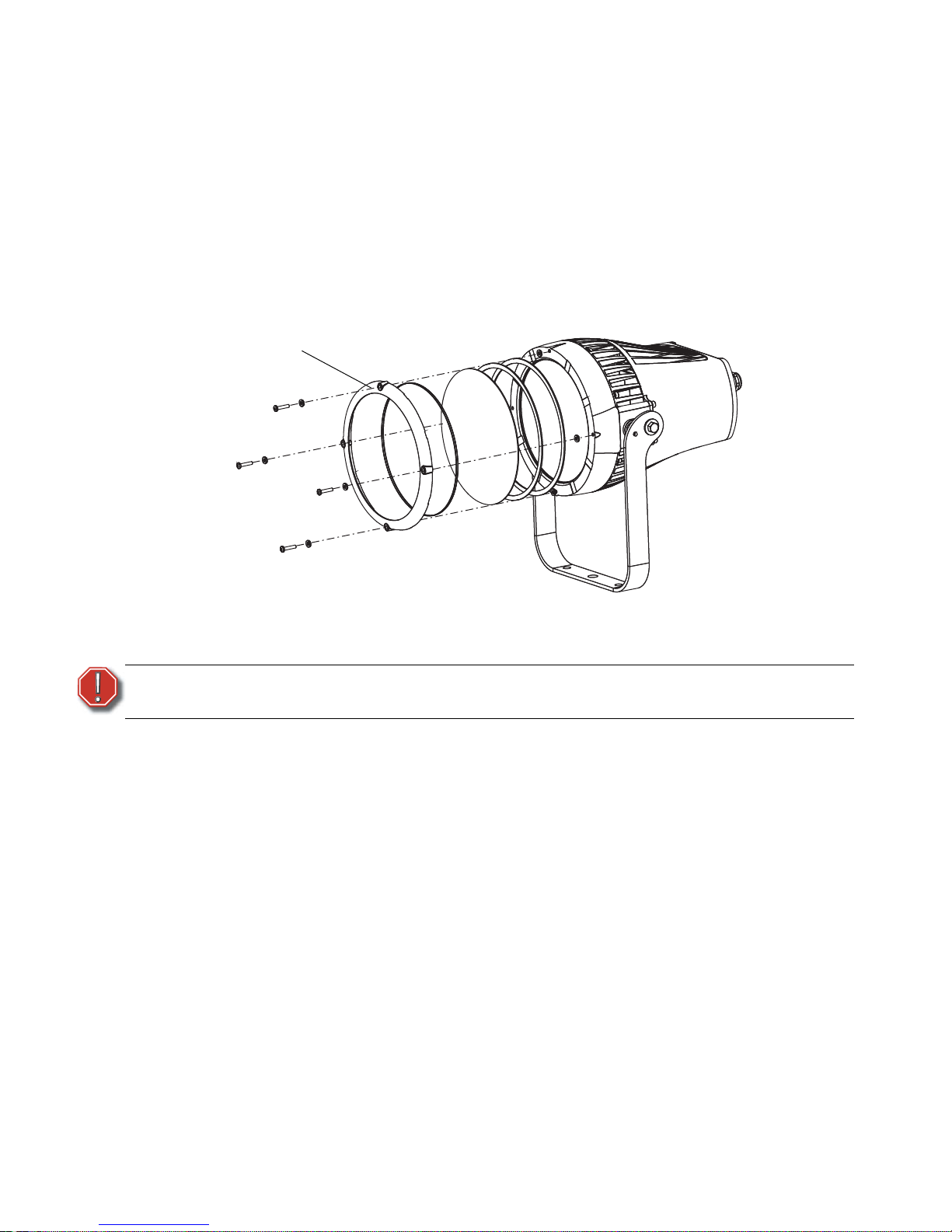

Accessory Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installation on a Permanent Base . . . . . . . . . . . . . . . . . . . . . .15
Installation on a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installation on a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

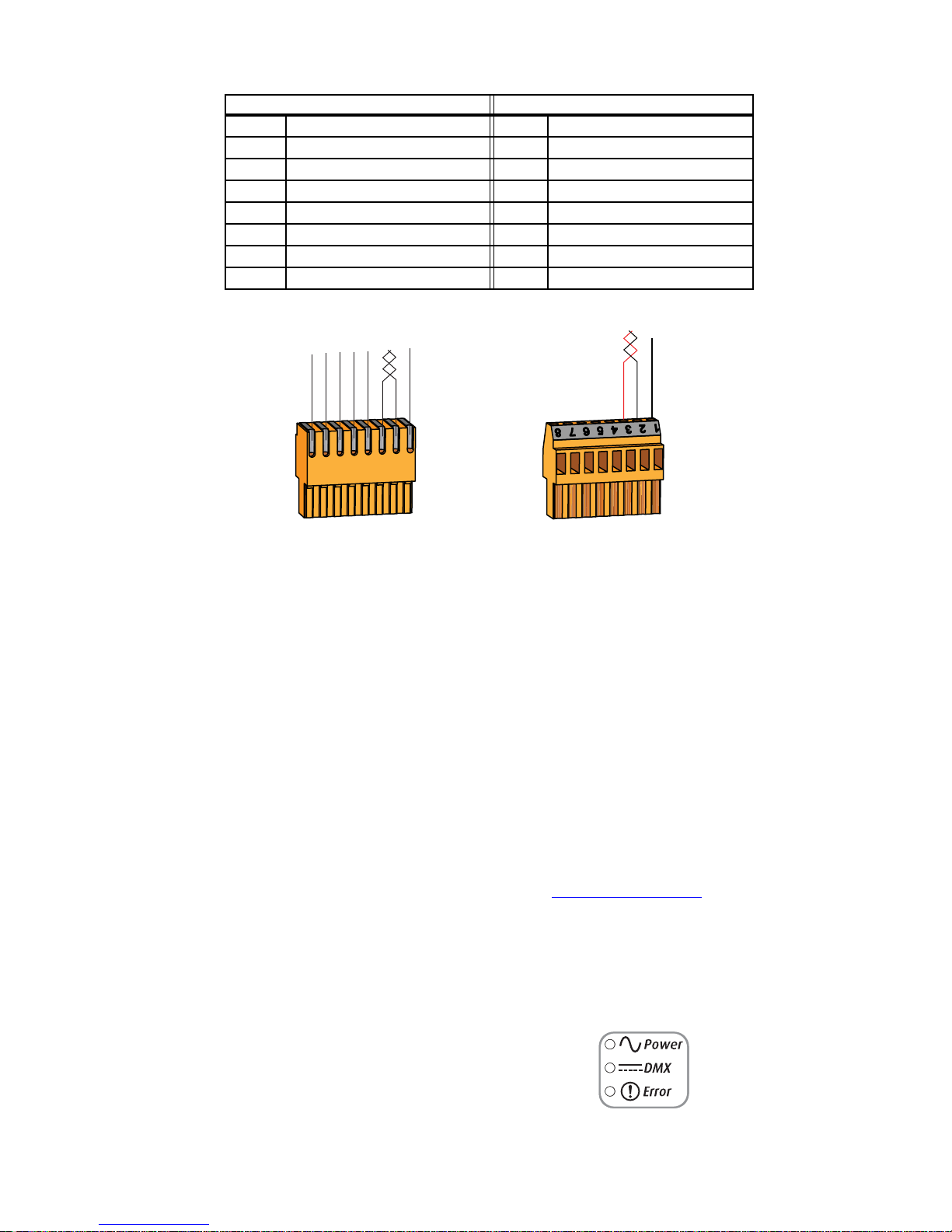

Power and Data Cabling Requirements . . . . . . . . . . . . . . . . .16

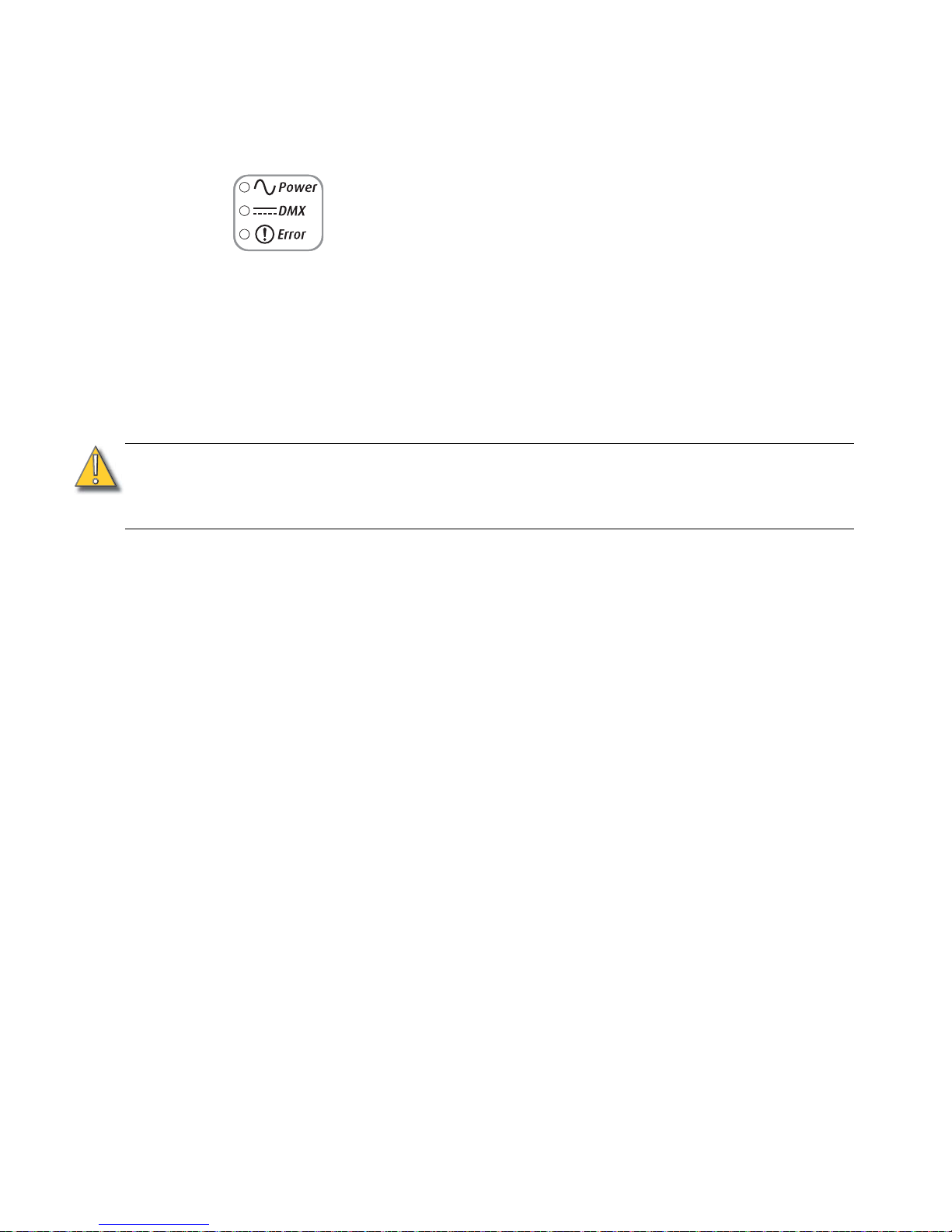

Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
DMX Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Channel Mapping and DMX Input Profiles . . . . . . . . . . . . . . . . . .22
Vivid, Lustr+, Fire, Ice, Studio HD . . . . . . . . . . . . . . . . . . . . . .22
Studio Tungsten and Daylight. . . . . . . . . . . . . . . . . . . . . . . . .22
Vivid, Lustr+, Fire, Ice, Studio HD . . . . . . . . . . . . . . . . . . . . . .23
Studio Tungsten and Daylight. . . . . . . . . . . . . . . . . . . . . . . . .24
Page 4
ii Desire D40/D60 XTI v1.8.0 User Manual
Chapter 2
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Gadget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

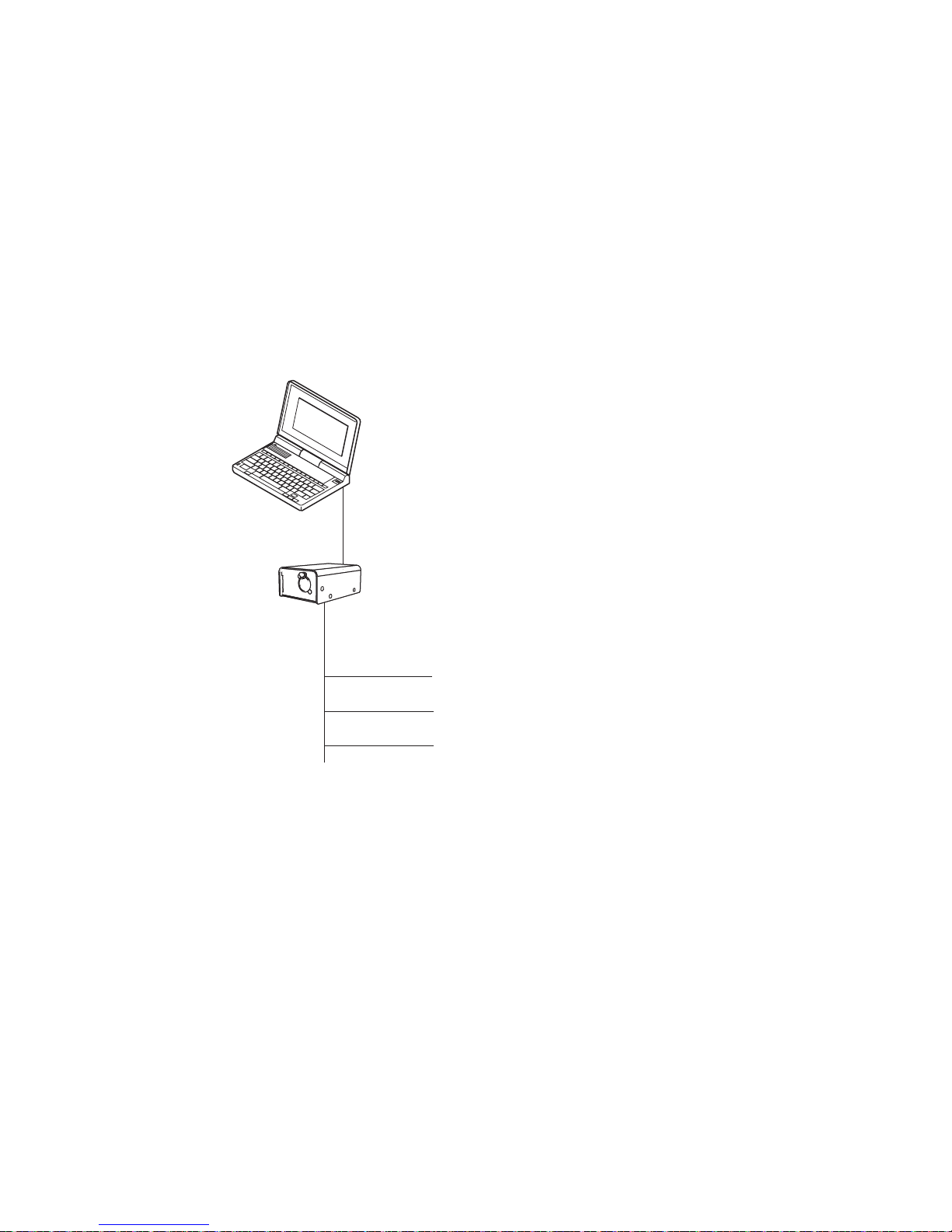

DMX/RDM Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
DMX Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Data Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Plus 7 (Vivid, Lustr+, Fire, Ice, and Studio HD) . . . . . . . . . . . .29
LED Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Over Temp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Restore Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Software Update Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Presets and Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Appendix A
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . 37
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Quick Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Appendix B
RDM Commands . . . . . . . . . . . . . . . . . . . . 40
Page 5
Introduction 1
Introduction
Congratulations on your purchase of a Desire Series D40/D60 XTI fixture by ETC.
The Desire XTI Series is designed for permanent installations indoors or outdoors, with an IP66 rating,
rugged die-cast enclosure, and noiseless fan-free operation. Up to 32 Desire XTI fixtures can be linked
together on one data chain and configured over a DMX/RDM network.
Desire’s x7 Color System™ seven-hue technology produces a light and color quality that conventional
LED systems cannot duplicate. This unique color system produces bright, broad-spectrum whites and
intense colors equally well, rendering pigments, objects, and skin tones in a natural way.
Fire and Ice fixtures use elements of the x7 Color System for superior performance in deep saturated
colors.
Studio Daylight and Studio Tungsten fixtures use high-output white LEDs for maximum brightness and
efficacy. Studio Tungsten interacts very well with incandescent sources, while Studio Daylight easily
replaces a variety of HMI lamps and natural sunlight.
Quick Setups
You can use any one of the Quick Setups and fine-tune settings for operation via
DMX/RDM protocol.
Vivid, Lustr+, Fire, Ice and Studio HD
Some of the options include:
• Multiple DMX profiles ranging from a simple 3-channel RGB profile to 8-channel native
color and intensity control.

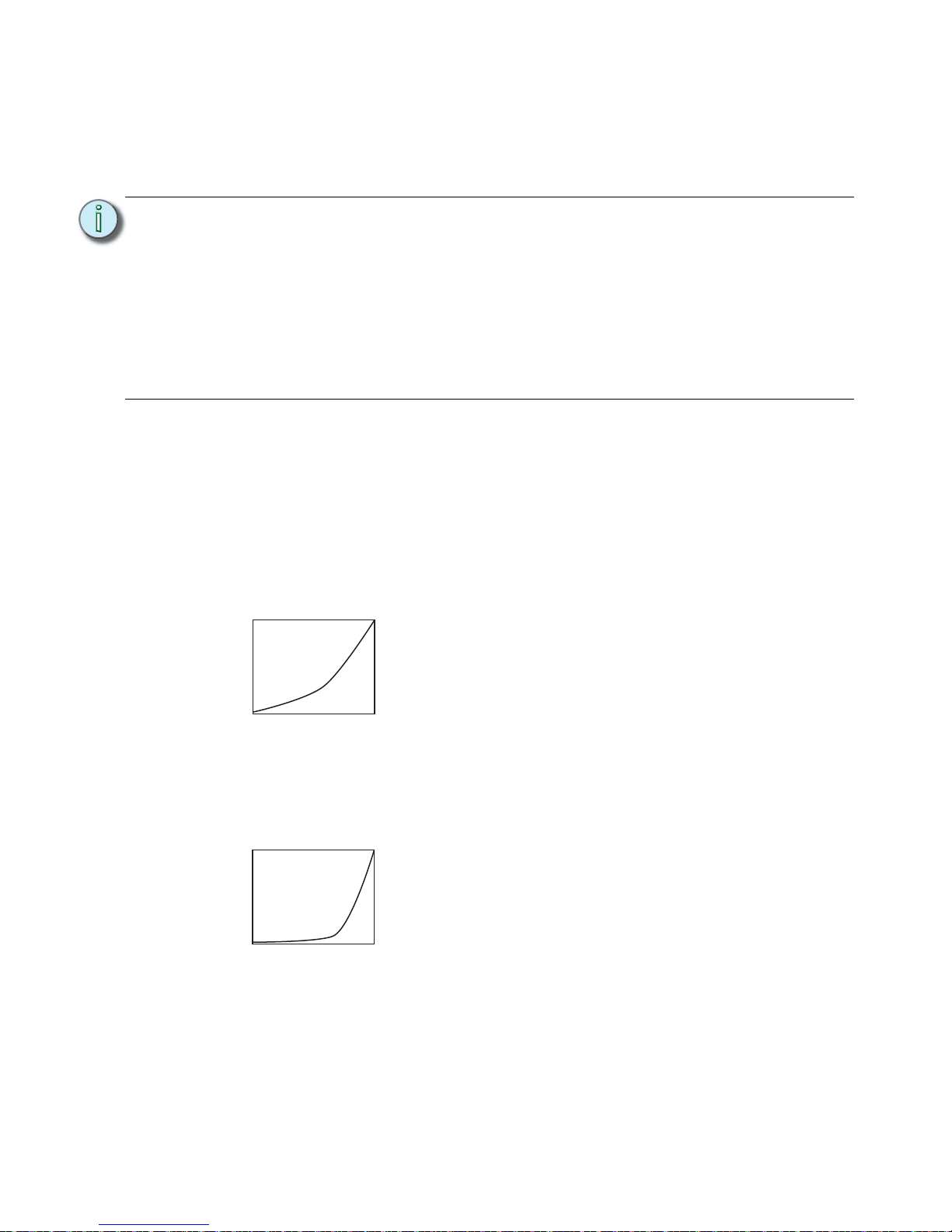

• Multiple dimming curve options.
• Preset colors and sequences for standalone operation.
• White point selection; white light and color behavior based on a specific color temperature
white light such as 3200K or 5600K.
• Loss-of-data behavior options.
• Power regulation modes; three output options that offer a choice between maximum light
output for lower duty cycles and maximum thermal stability and output consistency for
higher duty cycles.
Page 6
2 Desire D40/D60 XTI v1.8.0 User Manual
Studio Daylight, Studio Tungsten
Some of the options include:
• Multiple dimming curve options.
• Presets and sequences for standalone operation.
•Strobe.
• Loss-of-data behavior options.
• Power regulation modes; three output options that offer a choice between maximum light
output for lower duty cycles and maximum thermal stability and output consistency for
higher duty cycles.

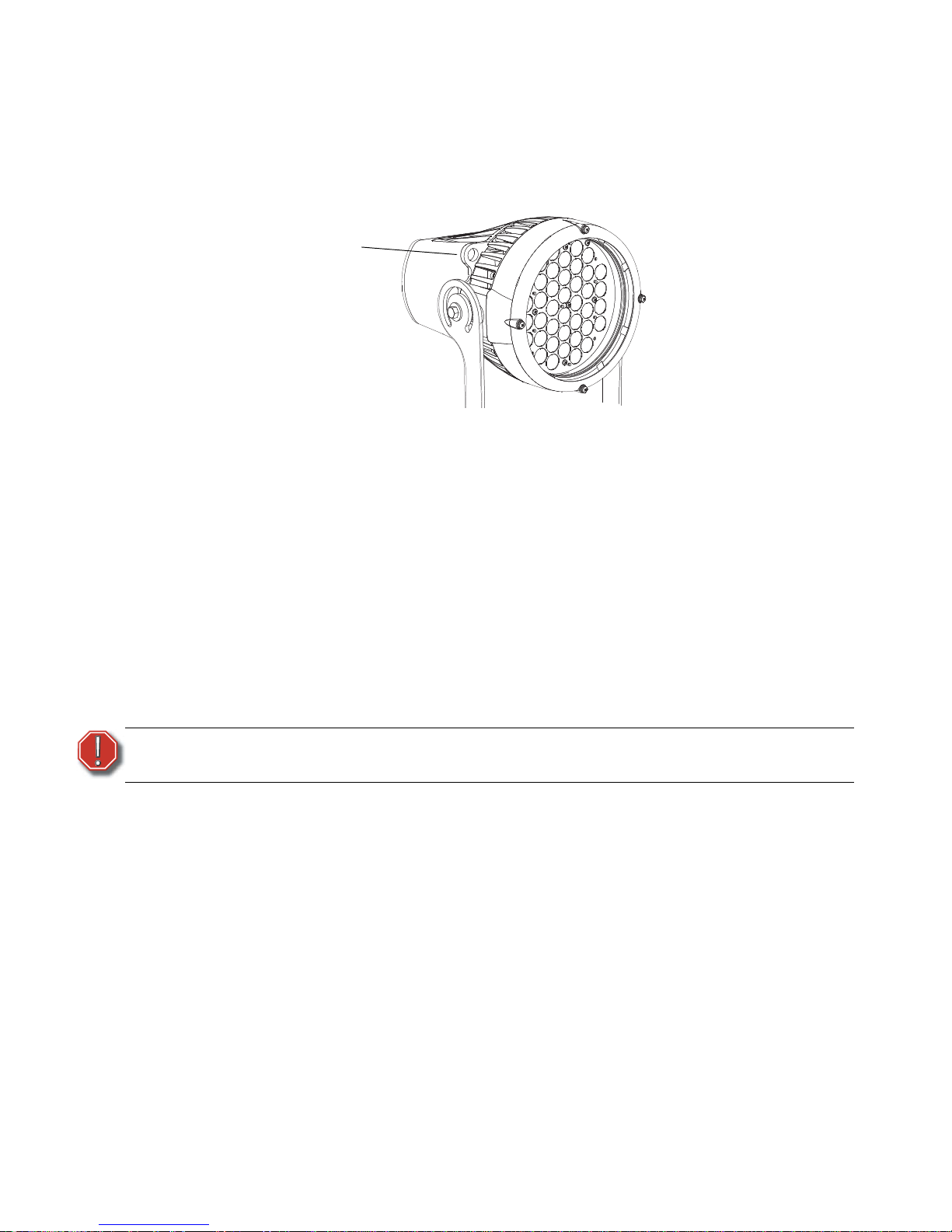

Figure-1.1 Components of a D40/D60 XTI Fixture.
Figure-1.2 Components of the Rear Panel.
LED array
Yoke
Trim ring
Yoke
locking
bolt
Safety
cable
loop
Power in
DMX/RDM in
and thru
Status indicators
Page 7
Introduction 3
Models
Each member of the Desire Series product line is unique and optimized for a specific lighting task. All
fixtures feature narrow optics for the longest throws.
Vivid
• Full 7-color x7 LED array
• Optimized for high-output deep pastels and strong saturated colors—an all-around
workhorse for vibrant color washes
Lustr+
• Specialized x7 LED array with 6 colors plus white
• Broad-spectrum color optimized for the best white and light tints across the entire white
and pastel range
• Beautifully illuminates skin tones and other objects—ideal for theatrical lighting
Fire (discontinued)
• Optimized for saturated colors at the red end of the spectrum
• Strongest output for high-intensity washes and theatrical environments
Ice (discontinued)
• Optimized for saturated colors at the blue end of the spectrum
• Strongest output for high-intensity washes and theatrical environments
Studio HD
• Precise mix of warm white and cool white LEDs plus additional strategic colors for more
spectral power
• Continuously variable color temperature white light
• Extreme CRI and high-definition illumination of skin tones from 2700K to 6500K
Studio Daylight
• 5,700K nominal correlated color temperature
•70 CRI typical
Studio Tungsten
• 3,000K nominal correlated color temperature
•85 CRI typical
Applications
• Houses of worship • Outdoor signage
• Museums • Outdoor performance venues
• Theme parks • Public sculptures
• Commercial buildings
Page 8
4 Desire D40/D60 XTI v1.8.0 User Manual
Compliance
The Desire D40/D60XTI Series fixture complies with and has been tested to the following regulatory
standards:
• ETL Listed to UL 1598 USA / CSA C22.2 No. 250.0-08 Canada
• CE EN55015:2006 + A1:2007 / EN55022:2006 + A1:2007 Class B / EN61000-3-2:2006 +
A2:2009 / EN61000-3-3:2008 / EN61547:1996 + A1:2000
Document Conventions
Notices
Throughout this manual, the following are used to alert you to notes and safety notices.
Typography Used in This Guide
Menu items and commands you must perform are indicated in bold text. For example:
Using an RDM configuration tool, select Off to turn the Status Indicators off.
Safety
The Desire series fixtures are intended for professional use only. Read entire User Manual before
using equipment.
Note:
Notes are helpful hints and information that is supplemental to the main text.
CAUTION:
A Caution statement indicates situations where there may be undefined or unwanted
consequences of an action, potential for data loss or an equipment problem.
WARNING:
Warning statement indicates situations where damage may occur, people
may be harmed, or there are serious or dangerous consequences of an
action.
WARNING:
RISK OF ELECTRIC SHOCK! This warning statement indicates situations where
there is a risk of electric shock.
Page 9
Introduction 5
Contacts
If you have questions about your Desire series fixture that are not answered in this manual, please
contact the supplier of your ETC equipment or ETC Technical Services. For general information, your
most convenient resources are the references provided in this manual. To search more widely try the
ETC web site at www.etcconnect.com
.
For technical questions about Desire Series fixtures, contact ETC Technical Services directly at one of
the offices listed below. Emergency service is available from all ETC offices outside of normal business
hours.
Please email comments about this manual to: TechComm@etcconnect.com
WARNING:
Note the following safety warnings before use:
• Do not mount the Desire XTI fixture on or near a flammable surface.
• Mount and support the fixture only by the primary suspension holes in the yoke or
mounting brackets.
• Mount the fixture from a suitable structure using only the hardware rated for the weight
of the fixture.
• In addition to primary suspension, attach a safety cable (ETC Model 400SC or other
approved safety cable or device) to the fixture housing. Appropriate attachment point
(hole) is provided in the protruding tab on the fixture housing.
• Disconnect the unit from power before all cleaning and maintenance.
• Maximum recommended ambient operating temperature: Ta=40°C (104°F)
• Maximum anticipated external surface temperature: Tmax=80°C (158°F)
• External temperature after 5 minutes of full-brightness operation and 23°C (74°F)
ambient: 38°C (100°F)
• External Temperature (steady state achieved) at 23°C (74°F): 70°C (158°F)
Americas United Kingdom
Electronic Theatre Controls Inc. Electronic Theatre Controls Ltd.
Technical Services Department Technical Services Department
3031 Pleasant View Road 26-28 Victoria Industrial Estate
Middleton, WI 53562 Victoria Road,
800-775-4382 (USA, toll-free) London W3 6UU England
+1-608 831-4116 +44 (0)20 8896 1000
service@etcconnect.com service@etceurope.com
Asia Germany
Electronic Theatre Controls Asia, Ltd. Electronic Theatre Controls GmbH
Technical Services Department Technical Services Department
Room 1801, 18/F Ohmstrasse 3
Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany
9 Sheung Yuet Road +49 (80 24) 47 00-0
Kowloon Bay, Kowloon, Hong Kong techserv-hoki@etcconnect.com
+852 2799 1220
service@etcasia.com
Page 10
6 Desire D40/D60 XTI v1.8.0 User Manual
Chapter 1
Installation and DMX Profiles
This chapter contains the following sections:
• Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
• DMX Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• Channel Mapping and DMX Input Profiles . . . . . . . . . . . . . . . . . . . 22
Page 11
Installation and DMX Profiles 7
Specifications
Physical
• Rugged die-cast aluminum construction • Stainless steel mounting yoke
• Advanced thermal management systems for long LED
life
• Available in black (standard), white (optional), silver, or
custom colors (contact factory)
• Easy-to-remove trim ring for accessories • Rated IP66 for exterior use
• Ambient operating temperature
-20 to 40 °C (-4 to 104 °F)
• No-noise, fan-free convection cooling for acoustically
sensitive installations
• Continuous operation at 40 °C (104 °F) • See Fixture Weight on page 8
Electrical
• 100V to 240V 50/60 Hz universal power input • Up to 32 fixtures may be linked on one data chain
• Requires power from non-dim source •
LEDs
• 40 or 60 Luxeon® Rebel™ LED emitters (Vivid, Lustr+,
Fire, Ice, and Studio HD)
• 40 or 60 Luxeon® Rebel™ ES LED emitters (Studio
Daylight and Studio Tungsten)
• 50,000 hr. LED life (50,000 hours to 70% intensity) • See Note About LED Fixtures on page 12
Optical
• Tight primary field angle of 17°
(Vivid, Lustr+, Fire, Ice, and Studio HD)
• Secondary lenses available for multiple beam spread
options including round, oblong, and linear patterns
• Tight primary field angle of 24°
(Studio Daylight and Studio Tungsten)
• Combine linear lenses for desired beam spread
Color
• Specialized capabilities from different LED array options
based on x7 color-mixing expertise:
– Vivid – Optimized for strong, saturated colors at
maximum brightness
– Lustr+ – x7 Color System array with a high-intensity
white LED for an ideal theatrical wash light
Full range color, with an emphasis on lighter colors
and white
– Fire and Ice (discontinued) – Optimized for high-
intensity saturated colors in either the warm, red end
of the spectrum (Fire) or the cool, blue end of the
spectrum (Ice)
– Studio HD — Optimized for variable color
temperature white light
• Interacts seamlessly with conventional sources
• Achieves excellent 3200° or any other Correlated Color
Temperature white light from 2000 to 10,000°K (except
Fire or Ice) (CCT adjustment not available on Studio
Daylight and Studio Tungsten)
• Beautifully illuminates skin tones and other objects
• Deeply saturated colors across an exceptionally wide
gamut
Control
• DMX512-A compliant • Optional strobe channel
• DMX in via 6 foot cord and supplied DMX termination
board
• Master/slave mode
• RDM functionality for address and setting changes and
playing presets
• 15-bit virtual dimming engine for smooth, high-quality
theatrical fades
• Console-free presets and sequences via RDM device • See DMX Profile on page 18
• Multiple profile options for different levels of control
Page 12
8 Desire D40/D60 XTI v1.8.0 User Manual
Dimensions and Clearances
Use the following dimensions to allow proper clearances around the fixture. Allow additional space for
cables.
Figure-1.1 D40/D60 XTI Dimensions.
Fixture Weight
Total weight depends on how the individual fixture is configured.
Model
Weight
a
a) Does not include mounting hardware.
Shipping Weight
Lbs.Kg.Lbs.Kg.
D40XTI 15 6.8 18 8.2
D60XTI 23 10.43 24.7 11.2
7.1"
180mm
5.6"
141mm
14.7"
373mm
11. 6"
294mm
19.1"
486mm
4.5"
114 mm
11.0"
278mm
4.1"
105mm
8.3"
211mm
13.3"
338mm
17.7"
450mm
9.2"
234mm
8.5"
216mm
20.5"
521mm
16.1"
408mm
12.8"
325mm
114mm
4.5"
12.0"
305mm
7.3"
186mm
4.8"
9.7"
246mm
123mm
14.2"
18.6"
361mm
474mm
10.6"
9.9"
270mm
251mm
D40XTI
D60XTI
Page 13
Installation and DMX Profiles 9
Installation Clearances
Cooling and Duty Cycle
The D40/D60 XTI fixture is convection cooled and can operate all channels at full power continuously
in ambient temperatures up to 40°C (104°F).
If ambient conditions exceed 40°C (104°F) or fail to allow sufficient airflow, over a long period of time,
the fixture may shut down and remain off until they return to a safe operating temperature. The fixture
provides two methods to indicate over temperature:
• Visible: The LED array glows in a dull, low intensity with only some emitters illuminated
and the Error Indicator light turns on.
• Dark: The LED array turns off.
LED life is adversely affected by high-temperature operation. When operating under elevated ambient
temperatures, avoid turning all channels to 100% for extended periods, such as channel checks or
focusing.
CAUTION:
Duty Cycle
Operating the fixture in higher ambient temperatures or low-airflow situations may
cause the power supply to shut down. Following a cool-down period, the power
supply will automatically reset and the fixture will return to operation.
It is good practice to power down any device with on-board electronics to limit
unnecessary wear on the devices and eliminate residual use of electricity. When not
in use, Desire fixtures should be powered down by disconnecting from power at the
breaker.
Page 14
10 Desire D40/D60 XTI v1.8.0 User Manual
Typical Power Consumption D40XTI
Vivid
Lustr+
Fire
Ice
Studio HD
Studio Daylight
Studio Tungsten
100V 120V 240V
Idle Power / Current 10.5W / 0.135A 11W / 0.098A 12.7W / 0.078A
100% Boost Power / Current 102W / 1.12A 98W / 0.82A 95.6W / 0.403
100V 120V 240V
Idle Power / Current 10.3W / 0.125A 10.5W / 0.094A 12.2W / 0.074A
100% Boost Power / Current 104W / 1.16A 102W / 0.861 99.7 W / 0.418
100V 120V 240V
Idle Power / Current 10.5W / 0.125A 10.8W / 0.096A 12.5W / 0.076A
100% Boost Power / Current 91.2W / 1.02A 88.2W / 0.74A 87.2W / 0.369A
100V 120V 240V
Idle Power / Current 11.0W / 0.123A 11.2W / 0.099A 12.8W / 0.077A
100% Boost Power / Current 104.2W / 1.17A 102.2W / 0.867A 99.5W / 0.42A
100V 120V 240V
Idle Power / Current 11.1W / 0.134A 11W / 0.097 A 12.8W / 0.077A
100% Boost Power / Current 106.2W / 1.19A 103.5W / 0.883A 101.3W / 0.426A
100V 120V 240V
Idle Power / Current 10.6W / 0.123A 10.6W / 0.095A 12.4W / 0.076A
100% Boost Power / Current 105.1W / 1.12A 103.3W / 0.878A 100.8W / 0.424A
100V 120V 240V
Idle Power / Current 10W / 0.111A 10.1W / 0.093A 11.9W / 0.075A
100% Boost Power / Current 104W / 1.05A 103.1W / 0.872A 100.3W / 0.422A
Page 15
Installation and DMX Profiles 11
Typical Power Consumption D60XTI
Vivid
Lustr+
Fire
Ice
Studio HD
Studio Daylight
Studio Tungsten
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.075A 4.1W / 0.067A
100% Boost Power / Current 117.9W / 1.19A 118W / 1A 115.6W / 0.526
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.2W / 0.075A 4.3W / 0.069A
100% Boost Power / Current 123.7W / 1.24A 123.6W / 1.04 121W / 0.546
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.075A 4.2W / 0.067A
100% Boost Power / Current 108.8W /1.1A 108.4W / 0.92A 106.2W/ 0.491A
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.2W /0.075A 4.3W / 0.068A
100% Boost Power / Current 129.W / 1.26A 124.4W / 1.05A 121.8W / 0.55A
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.76 A 4.3W / 0.068A
100% Boost Power / Current 125.1W / 1.26A 124.7W / 1.05A 122.5W / 0.552A
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.76 A 4.2W / 0.068A
100% Boost Power / Current 125.1W / 1.26A 124.7W / 1.05A 122.5W / 0.552A
100V 120V 240V
Idle Power / Current 4.3W / 0.08A 4.2W / 0.073A 4.2W / 0.065A
100% Boost Power / Current 124.4W / 1.25A 123.7W / 1.04A 121.2W / 0.545A
Page 16
12 Desire D40/D60 XTI v1.8.0 User Manual
Note About LED Fixtures
All LED sources experience some lessening of light output and some color shift over time. Desire Series
fixtures have complex thermal management systems to minimize these changes. With typical usage, a
Desire fixture will still achieve at least 70% of its initial output after 50,000 hours of use (B50, L70). In
individual situations, LEDs will be used for different durations and different levels. This can eventually
lead to minor alterations in color performance, necessitating slight adjustment to presets, cues, or
programs.
All LEDs may exhibit a slight shift in output as they rise to full operating temperature. Desire Series
fixtures allow the selection of different power settings in order to balance the competing requirements
of thermal stability and brightness. Depending on the selected setting, changes in output as fixtures
warm up may or may not be visible to the eye.
Color Rendering Index and Color Quality Scale Ratings
Desire fixtures are evaluated for Color Rendering Index (CRI) and Color Quality Scale (CQS)
performance using measured output spectrum and optimized mix solutions for a best spectral match
to black body sources at 3200K and 5600K. Color fidelity was also measured. These numbers may
fluctuate slightly from fixture to fixture. This is a normal characteristic of white LEDs, and this kind of
variation is highly unlikely to be apparent in most applications. The performance is the same for all
fixture versions.
Desire luminaires provide excellent color rendering, particularly the color-mixing versions. A Duv rating
of 0.000 indicates that the color mix used was exactly on the black body line, with no green or
magenta tint.
Studio Daylight and Studio Tungsten fixtures use only white-type LEDs at a fixed color temperature in
order to maximize output and efficacy.
Fixture CRI CQS Color Fidelity Duv
Vivid at 3200K 87 89 89 0.000
Vivid at 5600K 90 92 92 0.000
Lustr+ at 3200K 86 88 88 0.000
Lustr+ at 5600K 93 92 90 0.000
Studio HD at 3200K 89 90 91 0.000
Studio HD at 5600K 92 94 94 0.000
Studio Tungsten at 3000K 86 86 86 0.001
Studio Daylight at 5600K 71 70 69 0.001
Page 17
Installation and DMX Profiles 13
Installation
The D40/D60 XTI fixtures can be mounted four ways.
• On a pipe with a C-clamp
• On a permanent base
•On a pole
•On a wall
Install on pipe or a suitable, rigid, permanent base with secured bolts. This can include poured concrete
pads, factory-supplied pole-top and wall-mount brackets, and other attachments which meet the
published weight and wind-load requirements for the fixture.
Detailed installation information is packaged with the fixture. Refer to D40/D60 XTI Installation
Instructions.
Installation on a Pipe
The D40/D60 XTI fixtures can be hung from a pipe using a C-clamp. The C-clamp attaches the fixture
to the mounting pipe and allows you to adjust the position of the fixture once it is mounted.
Step 1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer.
Step 2: Place the C-clamp on mounting pipe, then tighten the pipe bolt to secure it.
Step 3: Loosen the C-clamp pan screw and rotate the yoke to the desired position.
Step 4: Tighten the pan screw to lock the fixture.
Model
Weight
a
a) Does not include mounting hardware.
Shipping Weight
Wind
Rating
Lbs.Kg.Lbs.Kg.
D40XTI 15 6.8 18 8.2 .72 EPA
D60XTI 23 10.43 24.7 11.2 .95 EPA
Note:
The EPA number is obtained by estimating Cd(Wind Drag Coefficient) and
multiplying it with the projected area of the object. Wind Drag Coefficients were
obtained from AASHTO Sixth Edition 2013.
WARNING:
Do not use this fixture with a damaged power lead. If the power lead (cord
set) is damaged, it must be replaced. Failure to follow this warning can result
in serious injury or death.
WARNING:
All third-party mounting hardware should be corrosion-resistant and
designed for use where installed.
CAUTION:
Tighten the C-clamp pipe bolt to 15-20 ft./lbs. (approximately finger tight plus up to
one-quarter turn). Do not exceed 25 ft./lbs. Do not use excessive force.
Tighten the yoke pivot bolt to 5-10 ft./lbs. (approximately finger tight plus up to oneeighth turn). Do not exceed 15 ft./lbs. Do not use excessive force.
Page 18
14 Desire D40/D60 XTI v1.8.0 User Manual
Safety Cable
The safety cable (or other approved safety device) should be attached to the fixture housing and
wrapped around the hanging structure (pipe). An appropriate attachment loop is provided on the
protruding tab of the fixture housing. Take care to leave as little slack as possible in the safety cable to
avoid the cable catching the yoke of the fixture.
Focus Adjustment
The fixture can be tilted up and down to focus the light where it is needed. Upon powering the fixture,
all colors are automatically on so you can focus the fixture. This preset remains active until it is changed
with an RDM configuration tool or DMX/RDM lighting control device.
Adjusting the Tilt
Step 1: Loosen the yoke locking bolt.
Step 2: With the fixture turned on, tilt it to the desired angle.
Step 3: Tighten the yoke locking bolt.
Adjusting the Pan
The pan is adjusted at the hanging clamp or the mounting base. Consult the clamp manufacturer’s
documentation for instructions on loosening and rotating the yoke at the clamp or refer to the
appropriate installation instructions.
WARNING:
The safety cable (or other approved safety device) must be securely attached
to the safety cable loop before loosening the clamp.
Safety
cable loop
Page 19
Installation and DMX Profiles 15
Accessory Installation
Accessories, such as grid louver, half shield, and lenses, are installed on the front of the fixture without
compromising the integrity of the water-tight seal. Secondary lenses are secured with the trim ring and
can be rotated while they are on the fixture, allowing you to focus the beam precisely.
For detailed information, refer to the following accessory installation instructions that are packaged
with the accessory.
• D40/D60 XTI Grid Louver Installation Instructions
• D40/D60 XTI Half Shield Installation Instructions
• D40/D60 XTI Secondary Lens Installation Instructions
Figure-1.2 Trim Ring and secondary lens installation.
Installation on a Permanent Base
Install on a suitable, rigid, permanent base with secured bolts. This can include poured concrete pads
on the ground or a solid structure such as on top of a concrete wall. For mounting, use the full-sized
template that is included in the installation instructions or download the template at
www.etcconnect.com.
Refer to the D40/D60 XTI Installation Instructions.
Installation on a Pole
A Single fixture or Twin fixture pole mount is used to attach the D40/D60 XTI fixture to a pole. The
Single fixture pole mount fits nominal 2-3/8 inch poles and the twin pole mount fits nominal 4 inch
poles. Both mounts can be rotated for focusing. The twin mount allows you to attach two fixtures sideby-side on one pole.
Refer to the D40/D60 XTI Pole Mounts Installation Instructions.
WARNING:
Make sure all accessories are securely in position before installing the
fixture.
Trim Ring
Page 20
16 Desire D40/D60 XTI v1.8.0 User Manual
Installation on a Wall
The Wall Mount Bracket accessory for the D40/D60 XTI fixture provides a stable mounting position for
the fixture, while providing a wire way for a clean and functional installation to walls and other vertical
surfaces.
Refer to the D40/D60 XTI Wall Mount Installation Instructions.
Power and Data Cabling Requirements
Power
The D40/D60 XTI fixture operates on AC power, 100 to 240VAC/50-60Hz. The fixture must be
connected to a non-dimmable power source in order to avoid damage to its internal power supply and
other electrical components. Dimming will damage the fixture and void the warranty.
The fixture is completely pre-wired at the factory and there is no need for entry into the housing.
Refer to D40/D60 XTI Installation Instructions for detailed information about installation.
Data
The D40/D60 XTI fixture operates on a DMX control signal or as a standalone fixture. The fixture is
supplied with cable that includes DMX input and thru. DMX cables should be acceptable for DMX data
transmission (not microphone cable) and should follow the standard pinout. The optional secondary
data pair is not used by the D40/D60 XTI fixtures. The maximum DMX data run from any DMX source
to the last fixture in a chain is 1000 feet (300m).
Use Belden
®
9729, CAT-5e, or equivalent Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP)
cable to connect the D40/D60 XTI into an IDC (Insulation Displacement Connector) style connector.
Europe North America Mains
Brown Black Live
Blue White Neutral
Yellow/green Green Ground
CAUTION:
The fixture must be grounded and wired in accordance with national, state and local
electrical codes. Failure to do so may result in serious personal injury.
Page 21
Installation and DMX Profiles 17
See DMX Profile on page 18 for information on DMX addressing of D40/D60 XTI fixtures.
Termination Board Installation
Each D40/D60 XTI fixture is connected to the network through a Termination board which is installed
in a junction box that is suitable for outdoor use. The DMX cable from the fixture is connected to the
Termination board.
Termination
The Desire D40/D60 XTI Series requires that the last fixture on a DMX/RDM line be terminated with a
120 ohm resistor, which is accomplished with the S1 switch on the Termination board. Set the switch
to the ON position to terminate the last fixture. All others on the DMX/RDM line must be set to OFF.
Pass Thru Plug
Removing a fixture from the middle of a data run will eliminate DMX/RDM for the subsequent fixtures.
To allow DMX to continue down the fixture line you will need to replace this fixture with a Pass Thru
Plug. To purchase this Pass Thru Plug, contact an ETC dealer and request part number 7410K4006. For
instructions on building your own Pass Thru Plug, go to www.etcconnect.com
and search the wiki
articles for “Desire DMX Pass Thru Plug”.
Indicator Lights
The indicator lights on the back of D40/D60 XTI fixture show the status of power input (blue), DMX
input (green) and fixture errors (red). When the DMX/RDM signal is lost, the green indicator flashes. For
more information, refer to Status Indicators on page 33.
Figure-1.3 Indicator lights on the D40/D60 XTI fixture.
Cat 5e: DMX 512 Pinout Belden 9729: DMX 512
1
Common Shield
1
Common Shield
2
Data -
2
Data -
3
Data +
3
Data +
4
Unused Conductor
4
Not Connected
5
Unused Conductor
5
Not Connected
6
Unused Conductor
6
Not Connected
7
Unused Conductor
7
Not Connected
8
Unused Conductor
8
Not Connected
Data – (ORG)
Data + (W/ORG)
Cat5 (or equivalent) wire
termination to IDC connector
COM
BRN
GRN
W/GRN
BLU
W/BLU
From a DMX/RDM source
Data – (Black)
Data + (Red)
Belden 9729 (or equivalent) wire
termination to screw connector
4 to 8 = n/c
COM
Page 22
18 Desire D40/D60 XTI v1.8.0 User Manual
DMX Profile
Addressing
Addresses must be set between 1 and 510.
Each Desire fixture must be considered a separate DMX device for the purpose of DMX lineloading calculations.
DMX line-loading practice dictates that no more than 32 devices can be daisy-chained together.
Consequently, no combination of Desire fixtures totaling more than 32 DMX devices should be
configured in one DMX line. For runs of fixtures totaling more than 32 DMX devices, split the DMX
runs by using a DMX splitter.
Profiles
Desire Series fixtures occupy 1 to 14 DMX channels depending on the profile and which features are
turned on. The tables below describe the order and function of each channel.
Vivid, Lustr+, Fire, Ice, and Studio HD
Direct Control
Direct Control uses one DMX channel per individual color within the LED array for a total of seven color
channels, arranged according to the Color Mixes on page 19 table. Each controls the intensity of the
color from 0 to 100%. An additional, 8th DMX channel is used as a master intensity fader for
controlling the brightness of the overall fixture. Channel 9 is for strobe when enabled.
Note:
Depending on the selected fixture profile and activated features, a fixture with a
starting address higher than 499 may not have control of all parameters, even
though the highest address shown on the user interface is 512.
Addressing is not required for standalone operation.
Data Channel Control Value Function
1 Fixture address
Color 1
a
a) See Color Mixes on page 19.
0 to 255 Color intensity 0 to100%
2 Fixture address + 1
Color 2
a
3 Fixture address + 2
Color 3
a
4 Fixture address + 3
Color 4
a
5 Fixture address + 4
Color 5
a
6 Fixture address + 5
Color 6
a
7 Fixture address + 6
Color 7
a
8 Fixture address + 7 Intensity Overall intensity 0 to 100%
9 Fixture address + 8 Strobe Variable strobe control
Page 23
Installation and DMX Profiles 19
Color Mixes
The following table shows the color mixes for each fixture type.
HSI (Hue Saturation Intensity) and HSIC (Hue, Saturation, Intensity, Color
Temperature (White Point))
The HSI profile uses 4 channels of DMX input, corresponding to 16-bit hue (two channels: coarse and
fine), saturation, and intensity. The HSI profile makes Desire fixtures compatible with conventional HSI
console profiles while capitalizing on fixtures' expanded color capabilities. Channel 5 is for Strobe,
when enabled. Also see Color Matching on page 21.
HSIC is similar to HSI, except that it uses an additional 6th channel to control the color temperature of
the white point. White point is the color temperature of the white-light output when saturation is at
zero. The Red Shift function is automatically disabled in the HSIC profile.
RGB
Effectively addresses all 7 colors via three channels of control. The RGB profile produces mediumquality color cross fades. It makes the Desire fixtures compatible with conventional RGB console
profiles while maintaining enhanced color production from the fixture. Also see Color Matching on
page 21.
Color Fire Ice Lustr+ Vivid Studio HD
1 Red Red Red Red
Warm white
2 Red-orange
—White
Red-orange
Cool white
3Amber
—
Amber Amber
Red
4 Green Green Green Green
Amber
5
— Cyan Cyan Cyan Green-cyan
6
— Blue Blue Blue Blue
7 Indigo Indigo Indigo Indigo
—
Data Channel Control Value Function
1 Fixture address Hue coarse
0 to 65535
Hue 0
2 Fixture address + 1 Hue fine
3 Fixture address + 2 Saturation
0 to 255
Saturation 0 to 100%
4 Fixture address + 3 Intensity Intensity 0 to 100%
5 Fixture address + 4 Strobe Variable strobe control
6 Fixture address + 5 White point
Color temperature 2700 to
6500K
Note:
The HSI profile is optimized for maximum brightness at all settings.
At some settings, small changes in hue and saturation may produce unexpected
jumps in brightness.
Shifts in brightness may be perceived during fades across hue, saturation, or both in
cues and presets.
Data Channel Control Value Function
1 Fixture address Red
0 to 255 Intensity 0 to 100%2 Fixture address + 1 Green
3 Fixture address + 2 Blue
4 Fixture address + 3 — — —
5 Fixture address + 4 Strobe 0 to 255 Variable strobe control
Page 24
20 Desire D40/D60 XTI v1.8.0 User Manual
Studio
The fixture produces only white-type light, which is adjustable from 2700 to 6500K. The Studio profile
uses 3 DMX channels to control Intensity, white point, and tint, (the
green/magenta balance). Tint is adjustable without affecting the white point.
Studio is the default mode for Studio HD fixtures. The Studio profile is also available on all other Desire
Series fixtures. For more information, see Color Matching on page 21.
Strobe
In most profiles (Vivid, Lustr+, Fire, Ice, and Studio HD), strobe is assigned to channel 5. It adds another
channel to any of the DMX profiles. Under the Advanced Settings menu, the strobe function may be
disabled and the additional channel for strobe will not be used by the fixture. With strobe at either
DMX value 0 or 255, the fixture output is constantly on. At DMX 1, the fixture strobes slowly and
increases in speed toward DMX 254. When enabled, the Strobe channel controls the fixture output as
follows.
Note:
The RGB profile is optimized for maximum brightness at all settings. Sometimes small
changes in RGB values may produce unexpected jumps in brightness.
Shifts in brightness may be perceived during color cross fades in cues and presets.
Data Channel Control Value Function
1 Fixture address Intensity
0 to 255
Intensity 0 to 100%
2 Fixture address + 1 White point: 2700 to 6500K
0 = 3200K
1 to 254 = 2700K to
6500K
255 = 5600K
3 Fixture address + 2 Tint
0 = neutral white
1 to 127 = full plus-green
to neutral white
128 = neutral white
129 to 255 = neutral white
to full minus-green (full
magenta)
4 Fixture address + 3 — — —
5 Fixture address + 4 Strobe 0 to 255 Variable strobe control
DMX Value Strobe Effect
0 Full on
1 to 254 Variable rate from slow to fast
255 Full on
Page 25
Installation and DMX Profiles 21
Plus 7
Plus 7 adds precision color-control channels to the HSI, HSIC, RGB, and Studio profiles. For example,
HSI with Plus 7 enabled becomes a 14-channel profile. Placing channel 7 at a value over 51% activates
the 14-channel profile within the fixture. The desired color and intensity is achieved by using the HSI or
RGB channels as a starting point. Channels 8 to 14 represent the native LED colors of the fixture and
allow you to adjust each color up or down in order to fine-tune the overall color output.
Color Matching
The color output of all Desire fixtures is calibrated at the factory. When operating in the RGB, HSI,
HSIC, or Studio profile, each fixture makes accommodations for the specific LEDs in its array and
produces output that is consistent with other fixtures, whether or not they utilize LEDs from the same
production batch. Operating in the Direct Control profile or with Plus 7 settings adjustments bypasses
this calibration and multiple fixtures may produce slightly different outputs when controlled as a
group.
Studio Daylight, Studio Tungsten Profiles
Direct Control
The first DMX channel always controls Intensity from 0 to 100%.
Note:
Depending on the initial color mix, some LED colors may begin at full intensity.
Moving the individual control channels for these colors from 128 to 255 (50-100%)
will produce no effective change from the initial color mix. Conversely, some LED
colors may begin at zero intensity, and moving individual control channels from 128
to 0 (50-0%) will produce no change.
Note:
When Plus 7 is enabled and the individual control channels have been adjusted, those
adjustments continue to apply after choosing a new color mix. For best results, reset
each of the individual control channels to 128 (50%) before choosing a new initial
color mix.
Data Channel Control Value Function
7 Fixture address + 6 Plus 7 control
0 to 129 = Plus 7 disabled
130 to 255 = Plus 7 enabled
Disable or enable Plus 7
control
8 Fixture address + 7
Color 1
a
a) See Color Mixes on page 19.
128 = No change from initial color
mix
129-255 = Increase from starting
value to full intensity
127-0 = Decrease from starting
value to zero intensity
Alter the individual LED
colors within the array to a
maximum of full intensity
or a minimum of zero
intensity.
9 Fixture address + 8
Color 2
a
10 Fixture address + 9
Color 3
a
11 Fixture address + 10
Color 4
a
12 Fixture address + 11
Color 5
a
13 Fixture address + 12
Color 6
a
14 Fixture address + 13
Color 7
a
Data Channel Control Value Function
1 Fixture address Intensity 0 to 255 Intensity 0 to 100%
2 Fixture address + 1 Strobe 0 to 255 Variable strobe control
Page 26
22 Desire D40/D60 XTI v1.8.0 User Manual
Channel Mapping and DMX Input Profiles
Vivid, Lustr+, Fire, Ice, Studio HD
Studio Tungsten and Daylight
Channel HSI HSIC RGB Studio Direct
1 Hue Hue Red Intensity Color 1
2 Hue fine Hue fine Green Color temp Color 2
3 Saturation Saturation Blue Tint Color 3
4 Intensity Intensity N/A N/A Color 4
5 Strobe* Strobe* Strobe* Strobe* Color 5
6 N/A Color temp N/A N/A Color 6
7
Plus7 on/off
*
Plus7 on/off
*
Plus7 on/off
*
Plus7 on/off
*
Color 7
8
Plus7 - (1)
*
Plus7 - (1)
*
Plus7 - (1)
*
Plus7 - (1)
*
Intensity
9
Plus7 - (2)
*
Plus7 - (2)
*
Plus7 - (2)
*
Plus7 - (2)
*
Strobe
a
10
Plus7 - (3)
*
Plus7 - (3)
*
Plus7 - (3)
*
Plus7 - (3)
*
N/A
11
Plus7 - (4)
*
Plus7 - (4)
*
Plus7 - (4)
*
Plus7 - (4)
*
N/A
12
Plus7 - (5)
*
Plus7 - (5)
*
Plus7 - (5)
*
Plus7 - (5)
*
N/A
13
Plus7 - (6)
*
Plus7 - (6)
*
Plus7 - (6)
*
Plus7 - (6)
*
N/A
14
Plus7 - (7)
*
Plus7 - (7)
*
Plus7 - (7)
*
Plus7 - (7)
*
N/A
Channel Control
1 Intensity
2 White point
3 Tint
4 –
5 Strobe
Page 27
Installation and DMX Profiles 23
Vivid, Lustr+, Fire, Ice, Studio HD
DMX
Profile
DMX
Channels
Channel Assignments
Notes
Vivid, Lustr+,
Fire, Ice
Studio HD
Direct 9
1 - Red 1 - Red
Direct control of each individual color
with a separate master intensity
channel. Color calibration of LEDs is
not active in this mode. The ninechannel profile will produce the
highest quality color cross fades.
2 - Orange
(White if Lustr+)
2 -Orange
3 - Amber 3 -Amber
4 - Green 4 - Green
5 - Cyan 5 - 3200K White
6 - Blue 6 - 5000K White
7 - Indigo 7 - Indigo
8 - Intensity 8 - Intensity
9 - Strobe 9 - Strobe
RGB
5
(Ch. 4 not
used)
1-Red
Effectively addresses all seven colors via
three channels of control. RGB profile
will produce medium quality color
cross-fades
2-Green
3-Blue
4 - n/a
5 - Strobe
HSI 5
1 – Hue (coarse)
High resolution hue (two channels),
saturation, and intensity control.
HSI mode will produce color crossfades around the color space.
2 – Hue (fine)
3 - Saturation
4 - Intensity
5- Strobe
HSIC 6
1 – Hue (coarse)
High-resolution hue, saturation, and
intensity control as above, with the
addition of a color point channel to
adjust the color temperature of the
fixture in both white light and color.
Color cross-fade performance is the
same as HSI.
2 – Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
6 - Color Point (CCT)
Studio 3
1 – Intensity Controls fixture as a white light unit. If
no DMX is present, (i.e. console input),
a fixture can be adjusted for these 3
parameters on the U/I at the back of
the unit.
2 – Color Point (CCT)
3 - Tint
Additional profile options on following page
Page 28
24 Desire D40/D60 XTI v1.8.0 User Manual
Studio Tungsten and Daylight
Plus 7
Adds seven additional color control channels to RGB, HSI, and HSIC input
profile settings. For example HSI with ‘Plus 7’ enabled becomes an 14channel profile:
1 – Hue (coarse)
2 - Hue (fine)
3 – Saturation
4 – Intensity
5 – Strobe
6 – n/a
7 – Plus 7Control on/off
8 –Red
9 – Orange (white if Lustr+)
10 – Amber
11 – Green
12 - Cyan
13 - Blue
14 - Indigo
The desired color and intensity are
achieved by using the HSI or RGB
channels
Placing channel seven at a value over
51% gives the fixture a 14 channel
profile.
Channels 8-14 represent the native
colors of the fixture and allow the
operator to adjust individual color
channels to fine tune the color output.
Strobe
Variable strobe control: 0% is no strobe. The fixture output will strobe more
rapidly as the strobe-channel value approaches 100%.
DMX Profile
DMX
Channels
Channel
Assignments
Notes
Studio 2
1- Intensity Direct control of each individual color with a
separate master intensity channel. Color calibration
of LEDs is not active in this mode. The ten-channel
profile will produce the highest quality color cross
fades.
2- Strobe
Direct 2
1- Intensity Effectively addresses all seven colors via three
channels of control. RGB profile will produce
medium quality color cross-fades
2- Strobe
Page 29
Operation 25
Chapter 2
Operation
This chapter contains the following sections:
• Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
• Gadget. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
• DMX/RDM Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
• Presets and Sequences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Page 30
26 Desire D40/D60 XTI v1.8.0 User Manual
Overview
Up to 32 Desire XTI fixtures can be daisy-chained on a DMX/RDM network. Each fixture can have an
unique DMX address and each address can be configured separately. Also, more that one fixture can
have the same address, allowing you to configure them identically.
You can use an RDM configuration tool or an RDM lighting control device to configure the fixtures. An
RDM configuration tool is installed on a PC, which is connected to the
DMX/RDM network via Gadget or a DMX/RDM gateway. After the fixtures are configured, Gadget or
the gateway can be disconnected and a DMX or RDM control device can be connected to the network
for continued operation.
See Gadget on page 27 or DMX/RDM Gateway on page 28.

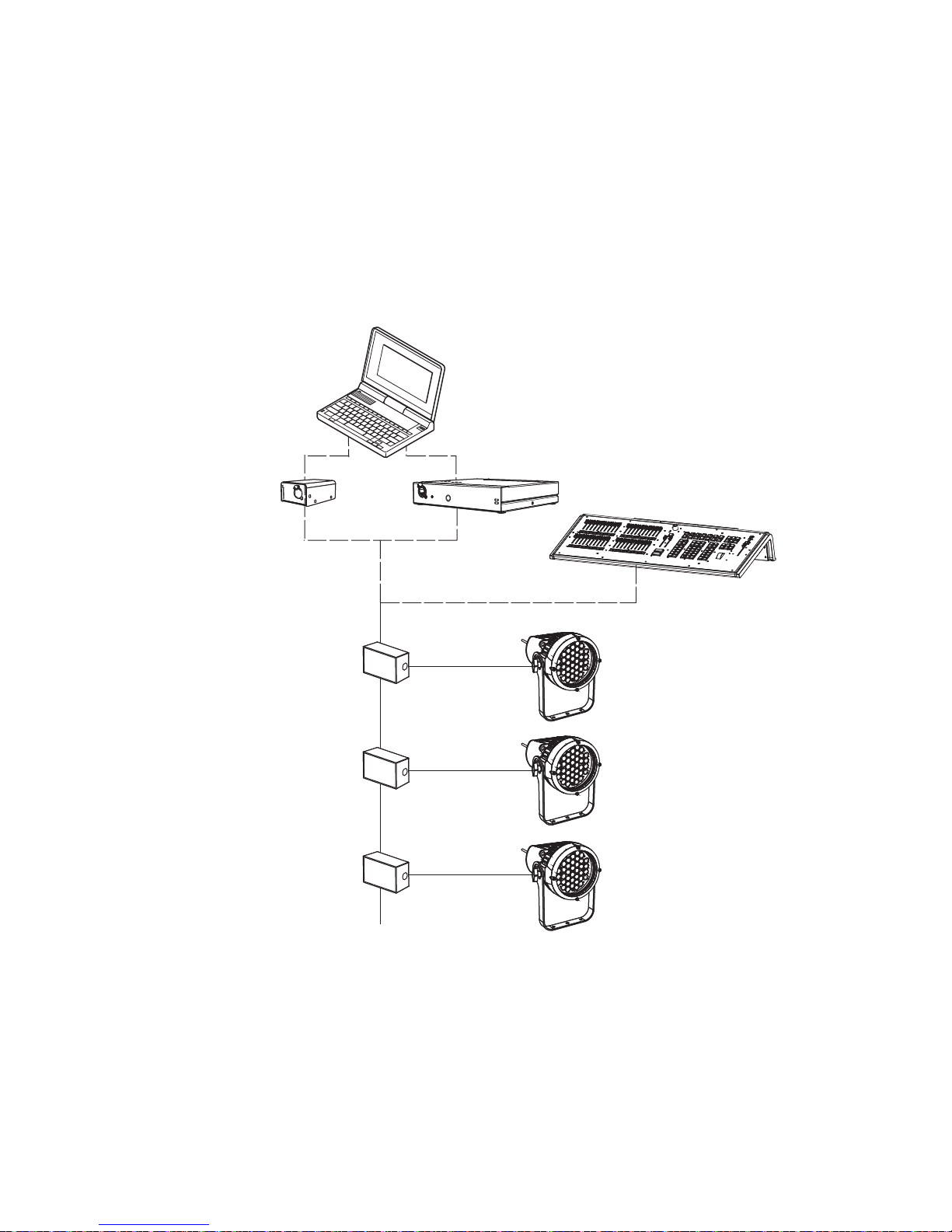

Figure-2.1 Architecture of a Source 4 LED fixture network.
D40XTI
D40XTI
D40XTI
Up to 32 fixtures
Junction
box
Gadget
Console
Junction
box
Junction
box
Or
DMX/RDM
gateway
Computer with Net3 Concert
or UpdaterAtor
DMX/RDM network
Page 31
Operation 27
Gadget
Gadget provides a connection from a PC to your lighting system’s DMX/RDM devices. Gadget provides
DMX control level output, configuration, and monitoring for RDM devices including fixtures, dimmers,
and more. You can also upgrade software for most DMX-based ETC products using UpdaterAtor or
Net3 Concert software.
Prior to connecting Gadget, start the RDM configuration tool and apply power to the fixtures.
For detailed information, refer to Gadget USB to DMX/RDM Interface Setup Guide.
To Connect Gadget to a PC and the DMX/RDM network
Step 1: Connect the USB cable to the PC and the mini USB to Gadget.
Step 2: Connect the DMX cable to Gadget.
Step 3: Connect the other end of the DMX cable to the DMX/RDM network jack.
Figure-2.2 Gadget architecture.
Also see DMX/RDM Gateway on page 28.
Gadget
DMX/RDM network
Computer with Net3 Concert
or UpdaterAtor
To DMX/RDM device
USB cable
To DMX/RDM device
To DMX/RDM device
Page 32
28 Desire D40/D60 XTI v1.8.0 User Manual
DMX/RDM Gateway
A DMX/RDM gateway, such as an ETC Gateway, can be used to connect a PC to the
DMX/RDM network so that you can configure the fixtures on the network. The Gateway can be
connected directly to a PC with an Ethernet cable.
Prior to connecting through a gateway, start the RDM configuration tool software and apply power to
the fixtures.
To Connect a gateway to a PC and the DMX/RDM network
Step 1: Do one of the following.
• Connect the PC to the local area network via Ethernet and then use an RJ45
cable to connect the gateway to the same network.
• Using an RJ45 cable, connect the PC to the gateway.
Step 2: Connect the DMX cable to the gateway.
Step 3: Connect the other end of the DMX cable to the DMX jack that is connected to the DMX/
RDM network.

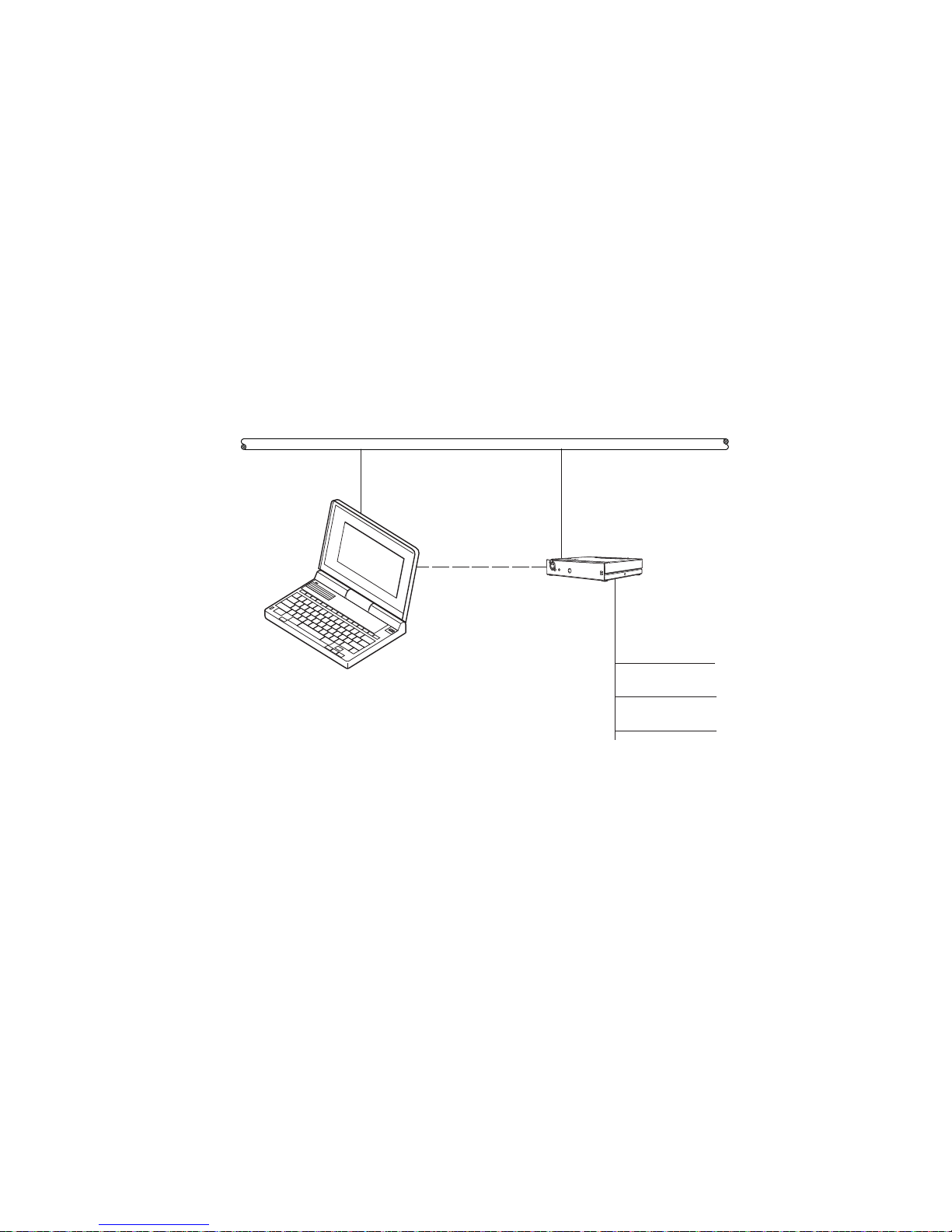

Figure-2.3 Gateway architecture.
Gateway
Local Area Network (LAN)
RJ45 (Optional)
RJ45
Computer with Net3 Concert
or UpdaterAtor
DMX/RDM network
To DMX/RDM device
To DMX/RDM device
To DMX/RDM device
Page 33
Operation 29
Configuration
Use an RDM configuration tool to configure the Desire XTI Series fixtures. After you configure the
fixtures and disconnect Gadget or a DMX/RDM gateway, you may control the fixtures with a DMX or
RDM lighting control device.
For detailed information about LED Config software, refer to the LED Configuration Software
Programming Guide.
DMX Address
Assign a DMX address to one or more devices. The DMX address is 1 to 510.
Data Loss
Select the type of data loss. Data Loss is what happens to the fixture's output when the external control
signal (either DMX or data from the Master fixture in a Master/Slave configuration) is lost. The choices
are as follows:
Instant
As soon as the control signal is lost, the fixture shuts off output and the LED array goes black.
HLL-2Min
Hold last look for 2 minutes. The fixture retains its last setting for 2 minutes after the control
signal is lost, after which it shuts off output.
Cycling power to the fixture before the 2 minutes have passed will clear the last look and the
LEDs will remain off until control signal is restored.
HLL-4ever
Hold last look forever. After data is lost, the fixture maintains its last look until power is removed
from the fixture or control signal is restored. The last look will not be restored after power has
been cycled.
Plus 7 (Vivid, Lustr+, Fire, Ice, and Studio HD)
Plus 7 adds precision color-control override channels to the HSI, HSIC, RGB, and Studio profiles. When
in one of the above profiles, enabling Plus 7 adds an additional seven channels to the profile(i.e. a
D40XTI fixture in HSI with Plus 7 becomes a 14-channel profile.) To enable Plus 7, place the Plus 7
Control channel at a value above 51%.
When using Plus 7, the desired color and intensity is selected by using the HSI or RGB channels as a
starting point. From there, the additional seven channels represent an individual control channel for
each of the native LED colors of the fixture and allow you to adjust each LED color up or down to finetune the overall color output.
The first additional channel is an activation channel for the Plus Seven function. A value of 0 to 50%
(DMX 0 to 128) deactivates Plus 7. A value of 51 to 100% (DMX 129 to 255) activates Plus 7. The
remaining 7 additional channels correspond to the individual colors within the fixture's LED array.
For more information, refer to Plus 7 on page 21.
Page 34
30 Desire D40/D60 XTI v1.8.0 User Manual
Using Plus Seven Control
The following procedure is performed on your RDM lighting control device.
Step 1: Select a starting color point for the fixture output using the standard control channels
for RGB, HSI, etc.
Step 2: Set the first additional channel to a value between 51 and 100% to activate Plus Seven.
Step 3: Refine the fixture output by altering one or more of the 7 individual color channels.
• The starting point for each color is defined by the original color selection in step 1.
• The brightness of each color can be increased or decreased from the starting point
to any value between zero and full output.
• Colors already at full output will not change when the Plus 7 channels are moved
up from the starting point, and colors already at zero output will not change when
the Plus 7 channels are moved down from the starting point.
LED Settings
Output
Output is the way and amount to which the fixture constrains the overall power going to the LED array,
which determines how consistent the fixture’s brightness may be. Use Output to choose the optimal
balance between two competing performance parameters, maximum brightness and output
consistency, by adjusting:
• How much the fixture limits the overall power to the LED array.
• How the fixture reduces output as internal fixture components heat up during use or in
high ambient temperatures.
The output options are as follows.
Regulated
Regulated is a moderately constrained power or brightness with consistent output under typical use.
Power to the LEDs is separately regulated in order to maintain consistent brightness during the initial
fixture warm-up period. This is recommended for most indoor applications.
Protected
Protected provides the most consistent output possible with the greatest potential for reduced overall
brightness. This is best for outdoor use, changing environmental temperatures, and applications with
high requirements for consistency in extreme operating conditions.
Note:
Once any one of the seven individual color channels is altered from its neutral starting
position, the settings for the original color point may no longer reflect the actual
output of the fixture.
When using RGB, HSI, HSIC, or Studio profile for color selection, each fixture makes
accommodations for the specific LEDs in its array and produces output that is
consistent with other fixtures, whether or not they use LEDs from the same
production batch.
Operating with Plus Seven enabled can override this calibration, and multiple fixtures
may produce slightly different outputs when individual color channels are altered
from their neutral starting points..
Page 35
Operation 31
Boost
Boost provides the brightest possible output, with least guarantee of consistency. This is best for
applications with low duty cycles, loose brightness requirements, or where ambient temperature is
low.
Curve
Curve is the correlation between the change in the value of the dimming control signal and the actual
change in the fixture's brightness. Curve is also the extent to which the fixture lags in its response time
to the control signal in order to facilitate smoothness in dimming.

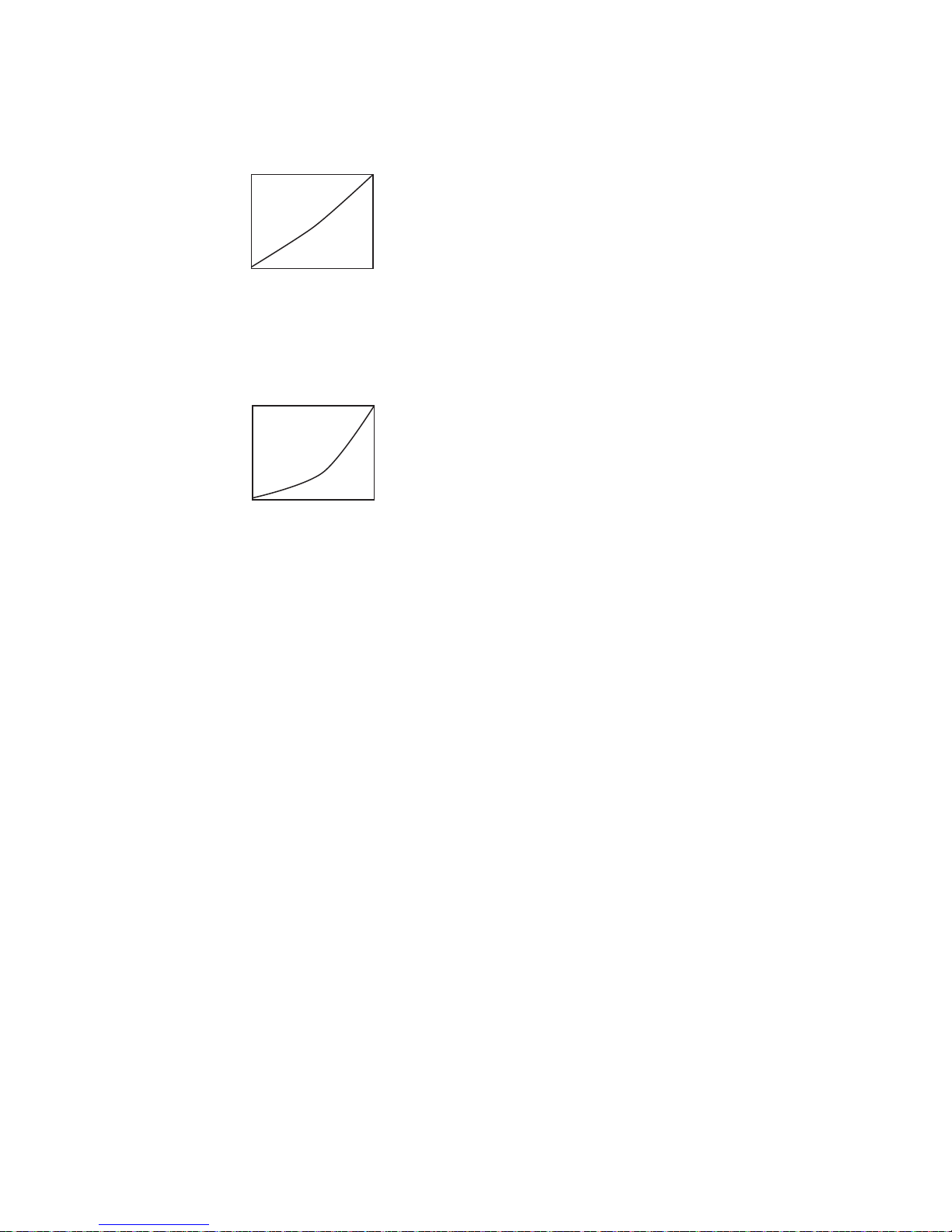

Standard
Standard is a modest curve for intuitive brightness changes at both high and low ends of the dimming
range. Moderate lag in response for good smoothness. It allows quick jumps in brightness. Suitable for
most applications.
Incandescent
Exaggerated curve mimics the response of tungsten on a conventional dimmer. Lag is quite
pronounced and present even in full on or off bumps. Extreme smoothness with no instant changes.
Best when fixtures must operate in sync with incandescent sources.
Note:
In all Output settings, if the fixture gets too warm and internal components approach
unsafe operating temperatures, the total power to the LED array is gradually reduced
and proportionate brightness levels between the various colors of LEDs are
maintained as much as possible in order to preserve the overall color mix; however,
some minor shifts in output may occur. Power continues to ramp down as much as
necessary until internal fixture components return to a safe temperature and an RDM
message is sent.
If the fixture exceeds its maximum internal temperature, the fixture enters a cooldown state, stops responding to the control signal, and it shuts down most or all
power to the LED array and displays its over-temperature status according to its
setting for over-temperature warning.
DMX
0 255
Intensity
DMX
0 255
Intensity
Page 36
32 Desire D40/D60 XTI v1.8.0 User Manual
Linear
Linear has no curve. Brightness levels correlate exactly with the value of the dimming control signal.
Moderate lag in response for good dimming smoothness. Linear allows quick jumps in brightness. It is
best for studio lighting and applications with static scenes or looks.
Quick
Quick uses the standard dimming curve but with no lag or smoothing. All changes are instant and
correlated exactly with the control input signal. Quick is best for extreme high impact and video-based
control.
Output Frequency
Output Frequency is the frequency in Hz at which the LED array pulses, or blinks, as a function of PulseWidth Modulation (PWM). The frequency is adjustable in order to avoid visible flicker on video and film.
When altering the frequency in order to reduce noticeable flicker on camera, often only a small change
is required. The range is 920 to 30,000 Hz in increments of 10. The default value is 1200 Hz.
For high speed exposure or rolling shutter cameras, use 25,000 Hz to increase the PWM which will
result in flicker-free operation in most circumstances.
Changing the frequency from the default value can have a slight impact on the smoothness, color-mix
consistency, or both when dimming.
Red Shift
Red shift allows the fixture to match its dimming performance to that of a conventional tungsten lamp
as it dims. The fixture automatically changes its apparent White Point, or color temperature, as a
function of overall intensity. Red shift works with both white-light and colored-light output settings. It
is also known as amber drift and tungsten shift. Red shift is available only in the HSI and RGB profiles.
It is not available on Studio Daylight and Studio Tungsten fixtures.
White Point (Vivid, Lustr+, Fire, Ice, and Studio HD)
White Point controls the appearance (color temperature) of white-light output when saturation is at or
near zero. This option is available when using the HSI and RGB profiles. The choices are 2950K, 3200K,
5600K, and 6500K.
DMX
0 255
Intensity
DMX
0 255
Intensity
Page 37
Operation 33
Status Indicators
Status Indicators, which are on the back of the fixture, are on by default. Select Off to turn the Status
Indicators off.
Figure-2.4 Status Indicators on the back of the fixture.
The status indicators are three, small, colored LEDs on the back of the fixture that indicate the status of:
• Power — Illuminated blue when AC power is supplied to the fixture.
• DMX — Illuminates green when an active DMX signal is being received by the fixture.
• Error — Illuminates red only when the fixture is experiencing a data error, high
internal temperature, or other abnormal condition.
Over Temp
You can change how an over-temperature situation is indicated in order to control stray light.
Visible (Vivid, Lustr+, Fire, Ice, and Studio HD)
The fixture produces a low-level, red light from the LED array and turns on the error indicator light.
Visible (Studio Daylight, Studio Tungsten)
The fixture produces a low-level light from only some of the LEDs in the LED array and turns on the
error indicator light.
Dark
The fixture turns off the LED array entirely.
Restore Defaults
Use Restore Defaults to return all the settings to the factory settings. This function clears all custom
settings including all changes to Presets and Sequences.
Software Update Mode
When updating software to the fixture, the blue and green LEDs alternately blink to show that the
fixture is in update mode. The blinking can change speed during this process depending on how hard
the processor is being taxed by the update. Upon completion, the fixture reboots and the blinking
ceases.
CAUTION:
Although it may be desirable in some applications to eliminate all stray light from the
back of the fixture, turning the Status Indicators OFF prevents them from
communicating potentially critical information. Use discretion when selecting the
OFF setting.
Page 38
34 Desire D40/D60 XTI v1.8.0 User Manual
Presets and Sequences
Use Presets and Sequences to run a preset color mix or a sequence of presets in a stand-alone
operation. when no external control signal is connected to the fixture.
Presets and sequences override Quick Setups and the Send DMX configuration. When a Preset or
Sequence is stopped, the fixture or fixtures return to the previous configuration.
Presets
A Preset is a single, static look or color mix. Only one Preset can be active at a time. As you edit the
preset settings, the change is updated live in the fixture’s memory. However, the change is not saved
to an RDM configuration tool or DMX/RDM lighting control device. If you customize a Preset for future
use, you must record it. To record a preset, the fixture must be in HSI mode. DMX takes precedence
over presets.
The fixture is shipped with all emitters active so you can focus the fixture during installation. This look
remains active until it is changed with an RDM configuration tool or RDM lighting control device. Once
you record a Preset, this original look is longer available.
Fade Time
Fade time is the length of time the fixture takes to cross fade from the previous setting to the
Preset. The format is MM:SS. The default is 2 seconds.
Delay Time
Delay time is the length of time the fixture waits on the previous setting before initiating the
cross fade to the Preset. The default is 0 seconds.
Hue (Vivid, Lustr+, Fire, Ice, and Studio HD)
Use Hue to change the overall hue of the Preset. If the Preset is currently active, the changes
made in the Preset Settings pane update to the fixture output immediately.
Saturation
Use Saturation to change the saturation of the Preset color.
Intensity
Use Intensity to change the intensity of the Preset color.
Strobe
Use Strobe to change the flashing rate of the Preset. Refer to Strobe on page 20.
Page 39
Operation 35
Presets (Vivid, Lustr+, Fire, Ice, and Studio HD)
A Preset is a single, static look or color mix. The Desire Series fixtures come with 24 default
configurations. Only one Preset can be active at a time. You can activate any of the Preset color mixes
and customize each one through your RDM device. The following table lists the default Preset color
mixes.
Presets (Studio Daylight, Studio Tungsten)
The Desire Studio Daylight and Studio Tungsten fixtures come with 24 available slots for Presets. There
are no default Presets that come pre-configured from the factory. You can activate any of the Presets
and customize each one. Only one Preset can be active at a time. Studio Daylight and Studio Tungsten
fixtures have Presets that you can define both Intensity and Strobe values.
Preset Default Color
1White
2Warm
3Cool
4 Minus Green
5Lite Pink
6 Lite Gold
7 Yellow
8 Dark Straw
9 Dark Amber
10 Orange
11 Red
12 Med Pink
13 Dark Pink
14 Magenta
15 Purple
16 Dark Lavender
17 Deep Purple
18 Clear Blue
19 Lite Blue
20 Med Blue
21 Primary Blue
22 Blue-Green
23 Lite Green
24 Green
Page 40
36 Desire D40/D60 XTI v1.8.0 User Manual
Sequences
A Sequence is a timed series of Presets. Up to 12 different Sequences may be altered for Preset
selections, cross fade rate, and link time. Only one Preset within a sequence can be active at a time.
You can create your own custom sequence that includes two or more Presets. For example, you may
want to sequence through Presets 2, 4, 23, and 1, in that order. As you enter these into the sequence,
you also can set the rate and link time for each step.
As you edit the sequence settings, the change is updated live in the fixture’s memory.
Step Number
You enter the number of the step in the sequence to be edited.
Preset Number
Preset is the number of a Preset, whether it is a predefined or a custom color mix.
Link Time (mm:ss)
Link Time is the length of time the fixture waits before moving from one Preset to the next. The
format is minutes:seconds (mm:ss). The default is 2 seconds.
Rate (%)
Rate is the execution of the Presets' Fade Times and Delay Times within the Sequence, relative to
their settings within the actual Presets. The available Rate range is 2 to 500%. The default is
100%.
A Rate of 100% represents running the Sequence with timing exactly as specified within the
Presets. A Rate above 100% represents running the Sequence with faster timing than specified
within the Presets. For example, with a Rate of 200%, a Preset with a Fade Time of 6 seconds
would actually be run within the Sequence in only 3 seconds.
A Rate below 100% represents running the Sequence with slower timing than specified within
the Presets. For example, with a Rate of 50%, a Preset with a Fade Time of 6 seconds would
actually be run within the Sequence in 12 seconds.
End State
After each of the steps have been configured, set the End State. End state is what the fixture
does once it completes the Sequence. Two end state options are available and both options
repeat indefinitely until the Sequence is deactivated. To end the sequence, you must program an
additional and final step within the sequence using Preset 0. Preset 0 marks the end of the
Sequence. Preset 0 may only be used once within a Sequence. If you want the Sequence to
repeat automatically, you may only define up to 23 steps with Presets 1 through 24, since the
final step must be reserved for Preset 0.
Loop
Once the fixture completes the entire sequence, it immediately returns to the beginning and
starts the sequence over again, in order.
Bounce
Once the fixture completes the entire sequence, it reverses the order of the presets and steps
backward through them until reaching the starting step, at which point it starts the Sequence
over again, in the original order.
Page 41
Quick Start 37
Appendix A
Quick Start
This section will help you to quickly use the Desire XTI Series fixture. For complete, detailed information
and step-by-step instructions, see Operation on page 25.
Install
Step 1: Hang or mount the fixture using the provided hardware and approved hardware
accessories.
Step 2: Attach an approved safety cable.
Step 3: Install a secondary lens, if needed, with the smooth side out.
Step 4: Attach additional accessories (half shield, louver, etc.), if needed, onto the fixture.
Focus
Step 1: Using an RDM configuration tool or DMX/RDM control device, turn the fixture on to full
intensity.
Step 2: Adjust the fixture's position as needed.
Step 3: When focusing is complete, return the fixture to normal operation.
Configure
Set DMX Address
Step 1: Using an RDM configuration tool or RDM lighting control device, set the address of the
fixture.
Quick Setups
Various pre-programmed combinations of operational settings are available to quickly get you started.
These settings are specifically created for different situations and are easily accessible with an RDM
configuration tool or RDM lighting control device.
Quick Setups (Vivid, Lustr+, Fire, Ice, and Studio HD)
Quick Setup Description Profile Features
General
General lighting:
All-purpose settings for most lighting
applications.
The default setup except for fixtures with
Studio LED arrays.
Direct
control
• Standard dimming curve
• Regulated output for brightness
consistency
• Individual color channels plus master
intensity control
• Allows for native color space crossfades
• Output is NOT color-calibrated
Stage
Theatrical lighting:
Tungsten-like performance and precise
color-control.
Uses the most DMX channels of all quick
setups.
HSI
Plus 7
enabled
• Incandescent dimming curve
• Regulated output for brightness
consistency
• White point: 3200K
Page 42
38 Desire D40/D60 XTI v1.8.0 User Manual
Quick Setups (Studio Daylight, Studio Tungsten)
XT Arch
Outdoor and extreme environments:
Longevity and reliability in applications with
limited access.
High degree of output consistency and
protection against temperature swings.
HSI
• Standard dimming curve
• Protected output for high-heat
environments
• Reduced overall brightness
• White point: 3200K
High Impact
Concerts and High Impact lighting:
Enables quickest response, simple RGB
control and strobe channel for maximum
effect usage.
RGB
• Quick dimming response
• Boosted output for maximum intensity
• Reduced consistency of output
• White point: 5600K
Studio
Video or film lighting:
Enables quick, comprehensive control of
white light via DMX or RDM.
High-quality white-light output.
The Studio Quick Setup is operational in all
fixtures for excellent white light
performance. It is the default setting for
Studio fixtures.
Studio
• Linear dimming curve
• Regulated output for brightness
consistency
• Variable white point of 2950 to 6500K
• Variable green/magenta balance (tint)
Quick Setup Description Profile Features
Studio
Video or film:
The default setting for Studio Daylight and
Studio Tungsten fixtures.
Studio
• Linear dimming curve
• Regulated output for brightness
consistency
• Strobe enabled
Stage
Theatrical lighting:
Behaves like a theatrical fixture in control
and dimming performance.
Direct
• Incandescent dimming curve
• Regulated output for brightness
consistency
• Strobe enabled
Single
Channel
Architectural installations:
Most streamlined settings for applications
with limited control options.
Direct
• Standard dimming curve
• Regulated output for brightness
consistency
Quick Setup Description Profile Features
Page 43
RDM Commands 39
Appendix B
RDM Commands
The following table lists the RDM commands applicable to the Desire XTI fixtures.
Feature Get Set Queued RDM Parameter ID
Parameter
Values
Enumerations
Status Messages Yes No Yes E120_STATUS_MESSAGES — —
Supported
Parameters
Yes No Yes E120_SUPPORTED_PARAMETERS
See RDM
E1.20-2006
—
Parameter
Description
Yes No Yes E120_PARAMETER_DESCRIPTION
See RDM
E1.20-2006
—
Device Info Yes No Yes E120_DEVICE_INFO
See RDM
E1.20-2006
—
Device Model
Description
Yes No Yes E120_DEVICE_MODEL_DESCRIPTION
ASCII string for
Model
Description
—
Manufacturer
Label
Yes No Yes E120_MANUFACTURER_LABEL
ASCII string for
manufacturer
label
—
Device Label Yes Yes Yes E120_DEVICE_LABEL
ASCII string for
device label
—
Factory Defaults No Yes Yes E120_FACTORY_DEFAULTS None —
Software
Version Label
Yes No Yes E120_SOFTWARE_VERSION_LABEL
ASCII string for
software label
—
DMX Personality Yes Yes Yes E120_DMX_PERSONALITY 0 thru 7
“7CH, 8CH, HSI,
HSIC, RGB, EHSI,
EHSIC”
DMX Personality
Description
Yes No Yes E120_DMX_PERSONALITY_DESCRIPTION 0 thru 7
“7CH, 8CH, HSI,
HSIC, RGB, EHSI,
EHSIC”
DMX Start
Address
Yes Yes Yes E120_DMX_START_ADDRESS 1 thru 512 DMX Address
Slot Info Yes No No E120_SLOT_INFO — —
Slot Description Yes No No E120_SLOT_DESCRIPTION — —
Default Slot
Value
Yes No No E120_DEFAULT_SLOT_VALUE — —
Sensor
Definition
Yes No Yes E120_SENSOR_DEFINITION 0 thru 8
“LED1, LED2,
LED3, LED4, LED5,
LED6, LED7, LED
Ambient, Control
Ambient”
Sensor Value Yes No Yes E120_SENSOR_VALUE 0 thru 8
“LED1, LED2,
LED3, LED4, LED5,
LED6, LED7, LED
Ambient, Control
Ambient”
Identify Device Yes Yes Yes E120_IDENTIFY_DEVICE “0, 1"
“Stop Identify,
Start Identify”
Reset Device No Yes Yes E120_RESET_DEVICE — —
LED Curve Yes Yes Yes ETC_LED_CURVE “0, 1, 2, 3"
“Standard,
Incandescent,
Linear, Quick”
LED Curve
Description
Yes No Yes ETC_LED_CURVE_DESCRIPTION “0, 1, 2, 3"
“Standard,
Incandescent,
Linear, Quick”
Page 44
40 Desire D40/D60 XTI v1.8.0 User Manual
Strobe Yes Yes Yes ETC_LED_STROBE “0, 1"
“Disabled,
Enabled”
Output Mode Yes Yes Yes ETC_LED_OUTPUT_MODE “0, 1, 2"
“Regulated,
Boost, Protected”
Output Mode
Description
Yes No Yes ETC_LED_OUTPUT_MODE_DESCRIPTION “0, 1, 2"
“Boost,
Regulated,
Protected”
Red Shift
a
Yes Yes Yes ETC_LED_RED_SHIFT “0, 1"
“Disabled,
Enabled”
White Point
a
Yes Yes Yes ETC_LED_WHITE_POINT “0, 1, 2, 3"
“2950K, 3200K,
5600K, 6500K”
White Point
Description
a
Yes No Yes ETC_LED_WHITE_POINT_DESCRIPTION “0, 1, 2, 3"
“2950K, 3200K,
5600K, 6500K”
Output
Frequency
Yes Yes Yes ETC_LED_FREQUENCY 900 thru 1500 Hertz
Data Loss
Behavior
Yes Yes Yes ETC_DMX_LOSS_BEHAVIOR “0, 1, 2"
“Instant Black,
Wait 2 min, HLL”
Data Loss
Behavior
Description
Yes No Yes ETC_DMX_LOSS_BEHAVIOR_DESCRIPTION “0, 1, 2"
“Instant Black,
Wait 2 min, HLL”
Plus Seven
a
Yes Yes Yes ETC_LED_PLUS_SEVEN “0, 1" “Disable, Enable”
Backlight
Brightness
Yes Yes Yes ETC_BACKLIGHT_BRIGHTNESS 0 thru 255
“0 = off, 255 =
max brightness”
Backlight
Timeout
Yes Yes Yes ETC_BACKLIGHT_TIMEOUT “0, 1, 2, 3, 4"
“0 = Never, 1 =
30sec, 2 = 1min, 3
= 5min, 4 =
15min”
Status Indicators Yes Yes Yes ETC_STATUS_INDICATORS “0, 1"
“0 = Indicators
Off, 1 = On”
Recalibrate
Fixture
No Yes No ETC_RECALIBRATE_FIXTURE — —
Over Temp
Mode
Yes Yes Yes E120_ETC_OVERTEMPMODE “0, 1"
“0 = Dark, 1 =
Visible”
Quick Setup
Mode
Yes Yes Yes E120_ETC_SIMPLESETUPMODE
“0, 1, 2, 3, 4,
5"
“0 = General, 1 =
Stage, 2 = Arch, 3
= Effects, 4 =
Studio, 5 =
Advanced”
LED Strobe
Description
Yes No No E120_ETC_LED_STROBE_DESCRIPTION “0, 1" —
LED Red Shift
Description
a
Yes No No E120_ETC_LED_RED_SHIFT_DESCRIPTION “0, 1" —
LED Plus Seven
Description
a
Yes No No E120_ETC_LED_PLUS_SEVEN_DESCRIPTION “0, 1" —
Backlight
Timeout
Description
Yes No No
E120_ETC_BACKLIGHT_TIMEOUT_DESCRIPTIO
N
“0, 1, 2, 3, 4" —
Quick Setup
Description
Yes No No E120_ETC_SIMPLESETUPMODE_DESCRIPTION
“0, 1, 2, 3, 4,
5"
—
Over Temp
Description
Yes No No E120_ETC_OVERTEMPMODE_DESCRIPTION “0, 1" —
Prepare For
Software
Download
No Yes No
E120_ETC_PREPAREFORSOFTWAREDOWNLOA
D
——
Get requested
CIE 1931 (x,y)
coordinate
Yes No No E120_ETC_LED_REQUESTED_XY 0 to 32767
0 = 0.0 32767 =
1.0
Feature Get Set Queued RDM Parameter ID
Parameter
Values
Enumerations
Page 45
RDM Commands 41
Get current CIE
1931 (x,y)
coordinate
Yes No No E120_ETC_LED_CURRENT_XY 0 to 32767
0 = 0.0 32767 =
1.0
Get current
PWM duty cycle
Yes No No E120_ETC_LED_CURRENT_PWM 0 to 32767 —
Get LED CIE
Tristimulus
values
Yes No No E120_ETC_LED_TRISTIMULUS
See ETC Manf
RDM doc
—
Get LED
information
Yes No No E120_ETC_LED_INFORMATION
See ETC Manf
RDM doc
—
a) Fire, Ice, Studio, Lustr+ only
Feature Get Set Queued RDM Parameter ID
Parameter
Values
Enumerations
Page 46
Page 47
Page 48
Corporate Headquarters Middleton, WI, USA Tel +608 831 4116 Service: (Americas)
service@etcconnect.com
London, UK Tel +44 (0)20 8896 1000 Service: (UK)
service@etceurope.com
Rome, IT Tel +39 (06) 32 111 683 Service: (UK)
service@etceurope.com
Holzkirchen, DE Tel +49 (80 24) 47 00-0 Service: (DE)
techserv-hoki@etcconnect.com
Hong Kong Tel +852 2799 1220 Service: (Asia)
service@etcasia.com
Web:
www.etcconnect.com
Copyright © 2015 ETC. All Rights Reserved.
7410M1250-1.8.0
Rev A Released 2015-10 Product information and specifications subject to change.
Loading...
