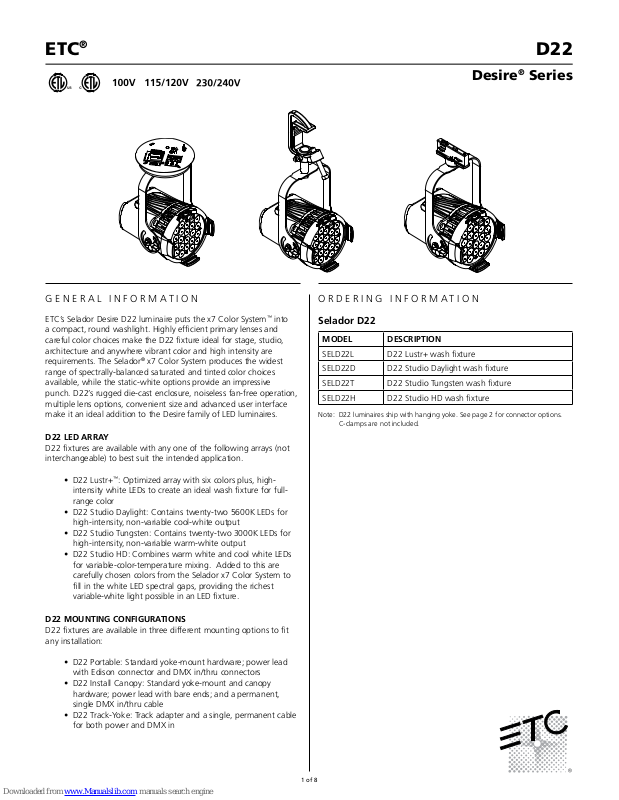

ETC D22 Desire series User Manual

ETC

®

1 of 8

GENERAL INFORMATION

ETC’s Selador Desire D22 luminaire puts the x7 Color System™ into
a compact, round washlight. Highly efficient primary lenses and
careful color choices make the D22 fixture ideal for stage, studio,
architecture and anywhere vibrant color and high intensity are
requirements. The Selador

®

x7 Color System produces the widest
range of spectrally-balanced saturated and tinted color choices
available, while the static-white options provide an impressive
punch. D22’s rugged die-cast enclosure, noiseless fan-free operation,
multiple lens options, convenient size and advanced user interface
make it an ideal addition to the Desire family of LED luminaires.

D22 LED ARRAY

D22 fixtures are available with any one of the following arrays (not
interchangeable) to best suit the intended application.

• D22 Lustr+

™

: Optimized array with six colors plus, high-
intensity white LEDs to create an ideal wash fixture for full-
range color

• D22 Studio Daylight: Contains twenty-two 5600K LEDs for
high-intensity, non-variable cool-white output

• D22 Studio Tungsten: Contains twenty-two 3000K LEDs for
high-intensity, non-variable warm-white output

• D22 Studio HD: Combines warm white and cool white LEDs
for variable-color-temperature mixing. Added to this are
carefully chosen colors from the Selador x7 Color System to
fill in the white LED spectral gaps, providing the richest
variable-white light possible in an LED fixture.

D22 MOUNTING CONFIGURATIONS

D22 fixtures are available in three different mounting options to fit
any installation:

• D22 Portable: Standard yoke-mount hardware; power lead
with Edison connector and DMX in/thru connectors

• D22 Install Canopy: Standard yoke-mount and canopy
hardware; power lead with bare ends; and a permanent,
single DMX in/thru cable

• D22 Track-Yoke: Track adapter and a single, permanent cable
for both power and DMX in

ORDERING INFORMATION

Selador D22

MODEL DESCRIPTION

SELD22L D22 Lustr+ wash fixture

SELD22D D22 Studio Daylight wash fixture

SELD22T D22 Studio Tungsten wash fixture

SELD22H D22 Studio HD wash fixture

Note: D22 luminaires ship with hanging yoke. See page 2 for connector options.

C-clamps are not included.

Desire® Series

D22

2 of 8

SPECIFICATIONS

GENERAL

• 22-LED color-mixing wash fixture (Lustr+

™

)

• 22-LED variable white-light fixture (Studio HD)

• 22-LED static cool- or warm-white wash fixture (Studio
Tungsten and Studio Daylight)

• ETL listed general purpose lighting

• IP20-rated for indoor use

• DMX in/thru for easy setup (no DMX thru on D22 Track)

• User-friendly control interface with multiple modes and
fixture settings

• Permanent power input cable connected

PHYSICAL

• Rugged die-cast all-metal housing

• Easy access slots for secondary lenses and 5.5” accessories

• Available in black (standard), white, silver (optional) or
custom colors (contact factory)

• Hanging yoke standard

• DMX512 in/thru via five-pin XLR connectors (D22
Portable only)

ELECTRICAL

• 100VAC to 240VAC 50/60Hz universal power input

• Requires power from a non-dim source

• Inrush

- 120V: 17V

- 240V: 25V

LED*

• 50,000-hour LED life (50,000 hours at 70% intensity)

• 22 Luxeon

®

Rebel LED emitters

*See additional LED notes on page three

COLOR (LUSTR+ AND STUDIO HD ONLY)

• Exclusive x7 Color System

™

seven-color LED array (Lustr+)

• Unique mix of x7 colors and warm and cool LEDs (Studio HD)

• Beautifully illuminates skin tones and other objects for
natural appearance and high color rendering

• Broad-spectrum color interacts seamlessly with
conventional sources

• Exclusive, optional red-shift option emulates tungsten
dimming performance

OPTICAL

• Primary field angle of 21°

• Secondary lenses available for multiple beam spread options

• Refer to accessories charts for lenses available

CONTROL

• Multiple control options, including RGB, strobe, and console­ free Master/Slave mode

• See DMX Control Table for additional information

• 15-bit virtual dimming engine provides smooth, high-quality
theatrical fades, and minimizes color shift during dimming

• RDM functionality for address and setting changes

THERMAL

• Ambient operating temperature of -4° to 104°F (-20° to 40°C)

• Active electronic thermal management for

droop-free operation

• Noiseless, fan-free convection cooling for acoustically

sensitive installations

• Fixture is designed for continuous operation up to 104°F
(40°C) ambient temperature and requires free flow of air
around fixture housing

ETC

®

Desire® Series

D22

ADDITIONAL ORDERING INFORMATION

Connector Options

Use information below to order input with factory-fitted connectors

MODEL DESCRIPTION

n/a Portable with Edison connector

-I Install Canopy Mounting

-T Track Mounting

Fixture Accessories

MODEL DESCRIPTION

SELD22BD Barn door (Use only as a flexible top hat to diminish

aperture glare. Not for beam shaping.)

SELD22CF 5.5” Color Frame (use for round and oblong lenses)

SELD22ECL Egg Crate Louver

SELD22HS Half-Shield

SELD22FSY Yoke with floor stand attachment

400CC C-Clamp (does not ship with fixture)

400SC Safety Cable (32”)

Note: All model numbers above are for black accessories. Add -1 for white or -5 for silver. Custom
colors are available upon request.

3 of 8

ADDITIONAL ORDERING INFORMATION

Secondary Lens Options

MODEL DESCRIPTION: The following lenses are cut

for D22 fixtures and create round, linear or
oblong field patterns as described below. These
lenses are not sized for use in Selador

®

Classic

(Vivid-R

™

, Lustr®, Paletta™, etc.) fixtures.

Narrow Linear
Field

Note: This is the same material as Selador

Classic

lenses

SELLVN-D22

Very Narrow lens (narrow linear
field)

Linear
lenses
may be
combined
to create
desired field
size, i.e.
40° X 60°

SELLN-D22

Narrow lens (narrow linear field)

SELLM-D22 Medium lens (narrow linear field)

SELLW-D22

Wide lens (narrow linear field)

SELLXW-D22

Extra Wide lens (narrow linear
field)

Round Field

SELRVN-D22 Very Narrow lens (round field)

SELRN-D22 Narrow lens (round field)

SELRM-D22 Medium lens (round field)

SELRW-D22 Wide lens (round field)

SELRXW-D22 Extra Wide lens (round field)

Oblong Field

SELON-D22 Narrow lens (oblong field)

SELOM-D22 Medium lens (oblong field)

SELOW-D22 Wide lens (oblong field)

http://www.etcconnect.com/docs/docs_downloads/
miscdocs/Desire_vs_PAR_EA_revB.pdf

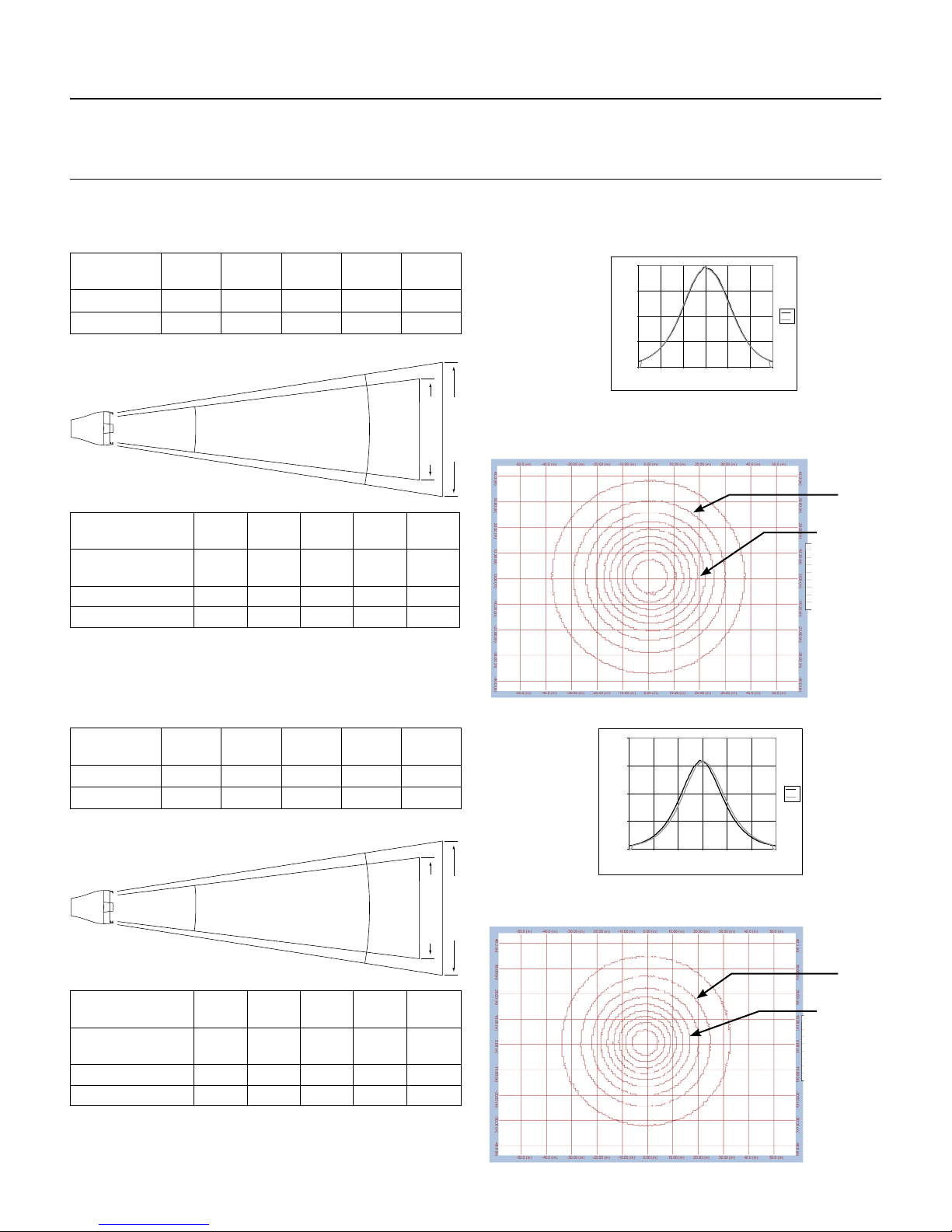

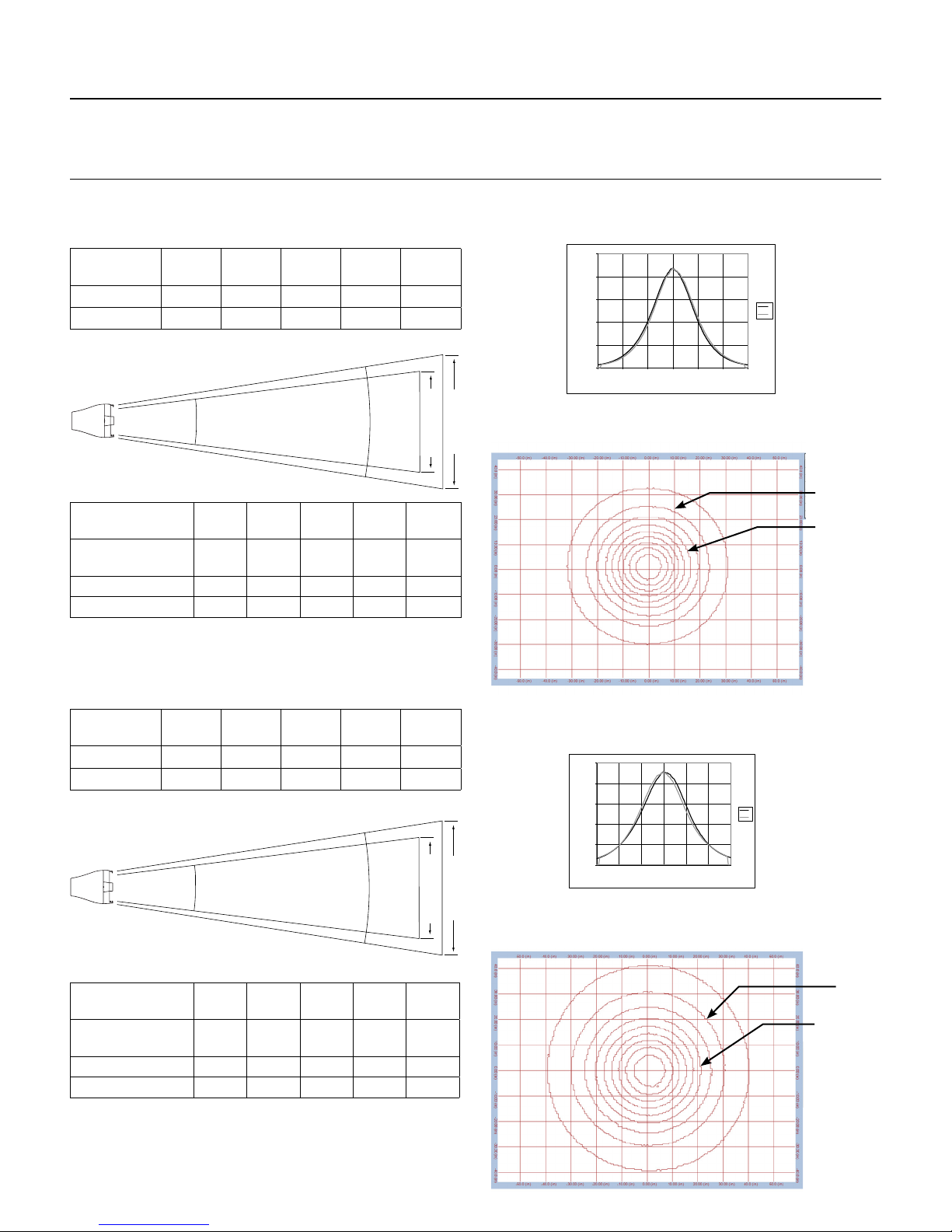

Typical Lens-Field Profiles

Power Consumption at Full Intensity

MODEL VOLTAGE

(V)

CURRENT

(A)

WATTS

D22 120/240 0.47 56.5

ETC

®

Desire® Series

NOTES ABOUT LED LUMINAIRES

All LED sources experience light-output reduction and some color
shift over time. LED output will vary with thermal conditions, which
can be affected by ambient temperatures and orientation. See the
D40 Ambient Temperature and Power Budgeting Guide for more
details. Based on the LED manufacturer’s B50 L70 specification, a
Selador luminaire will achieve ~70% of its initial output after 50,000
hours of typical usage. In individual situations, LEDs will be used
for different durations and at different levels. This can eventually
lead to minor alterations in color performance, necessitating slight
adjustment to presets, cues or programs.

CRI AND CQS RATINGS

Desire fixtures were evaluated for CRI and CQS performance using
measured output spectrum and optimized mix solutions for the best
spectral match to black body sources at 3200K and 5600K.

Fixture CRI CQS Color

Fidelity

Duv

D22 Lustr+ at 3200K 86 88 88 0.000

D22 Lustr+ at 5600K 93 92 90 0.000

The D22 luminaire provides excellent color rendering to the eye,
particularly at higher color-temperature settings such as 5600K. A
Duv rating of 0.000 indicates that the color mix used is exactly on
the black body line, with no green or magenta tint.

D22

Round OblongNarrow Linear
