ETC 4ML3080120P User's Guide

Source Four Mini LED

User Manual

Part Number: 7063M1220 Rev: F

Released: 2020-02

To view a list of ETC trademarks and patents, go to
All other trademarks, both marked and not marked, are the property of
their respective owners.

ETC intends this document, whether printed or electronic, to be
provided in its entirety.

etcconnect.com/ip

.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . 1

Basic Assembly. . . . . . . . . . . . . . . . . . . . . . 2

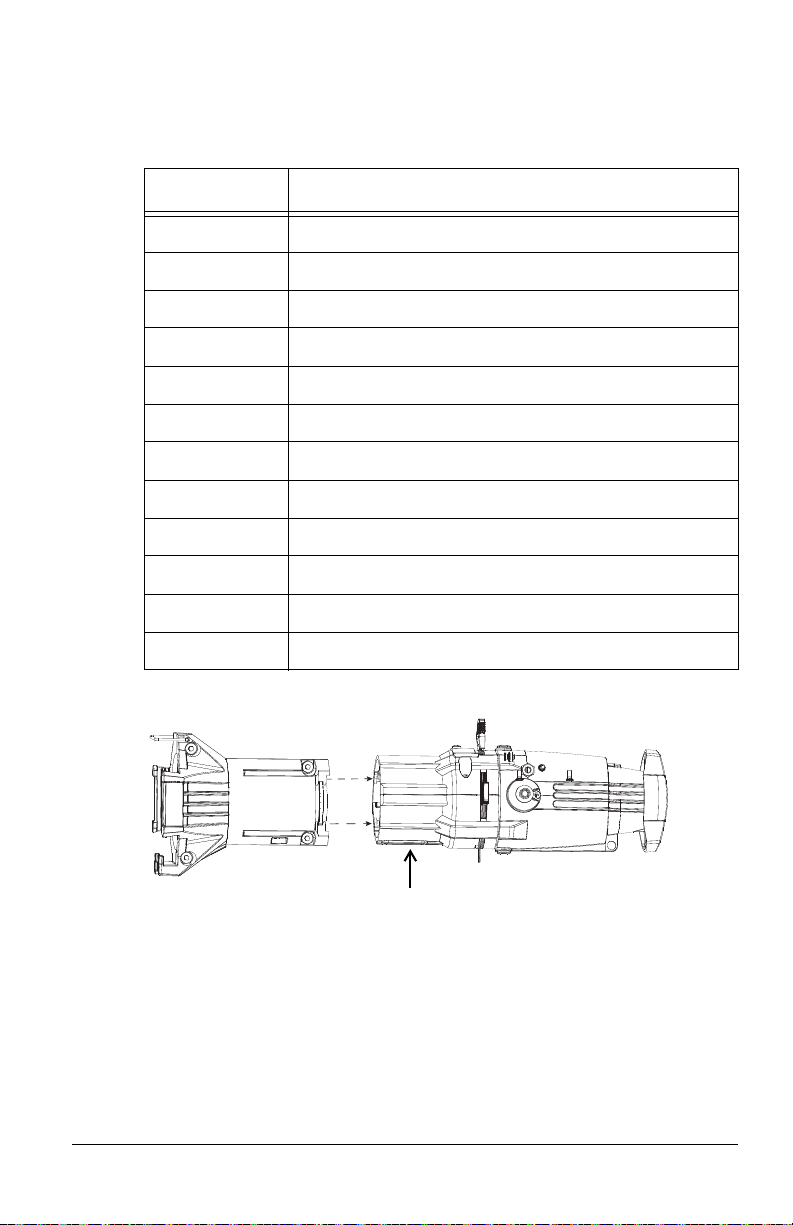

Install a Lens Tube. . . . . . . . . . . . . . . . . . . 3

Install a Canopy or Track Fixture . . . . . . . 4

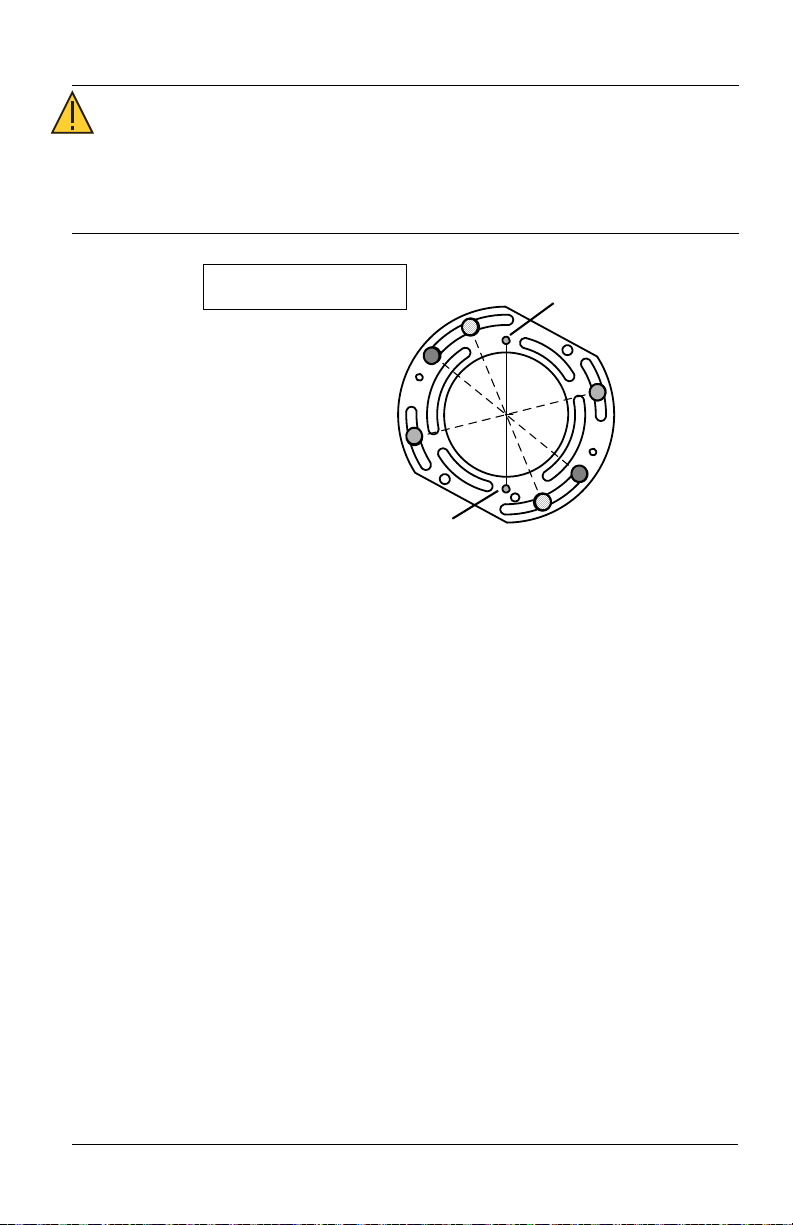

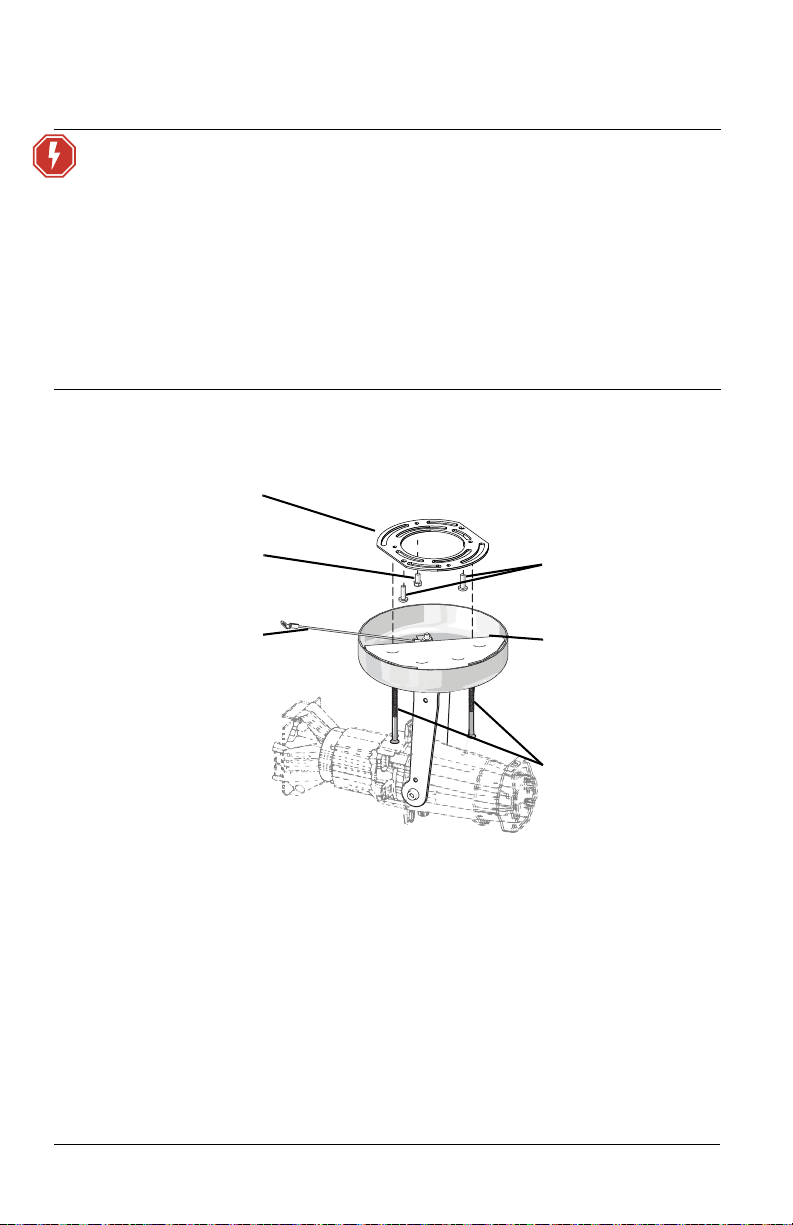

Install a Canopy Fixture. . . . . . . . . . . . . . . . . . 4

Install a Track Fixture. . . . . . . . . . . . . . . . . . . . 6

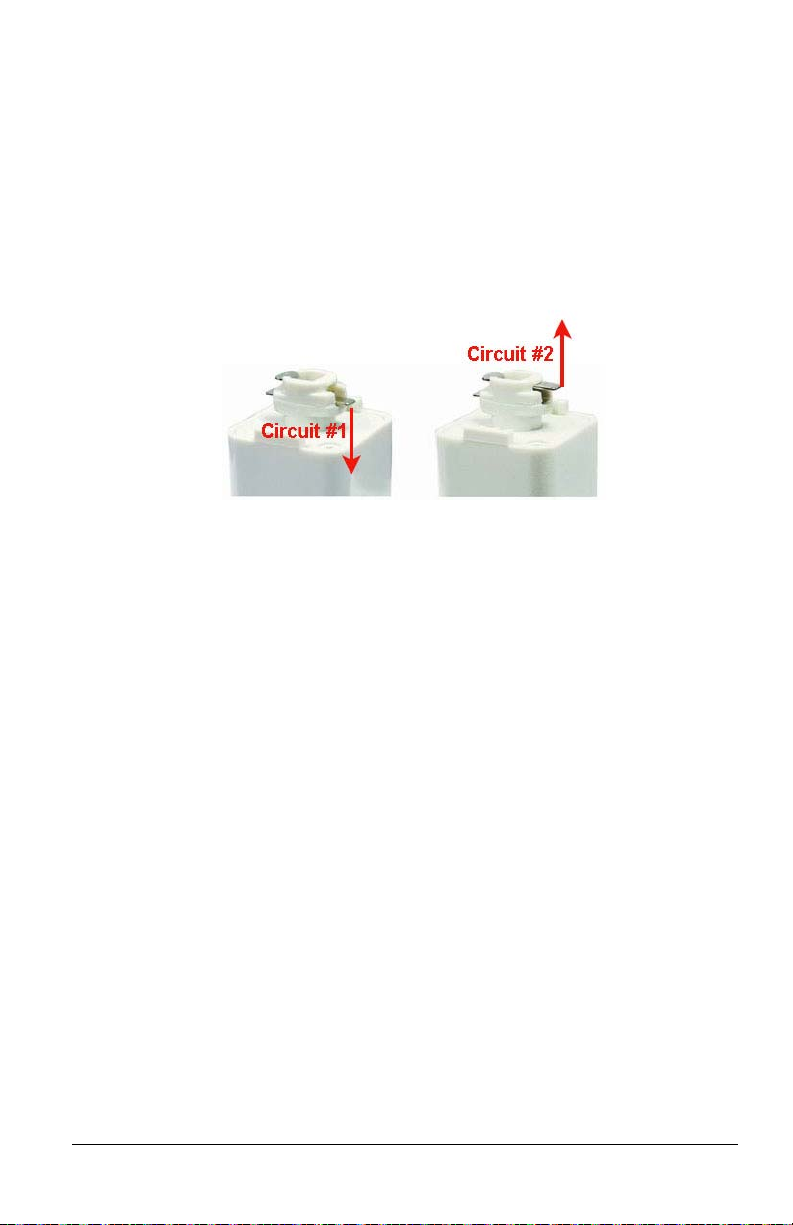

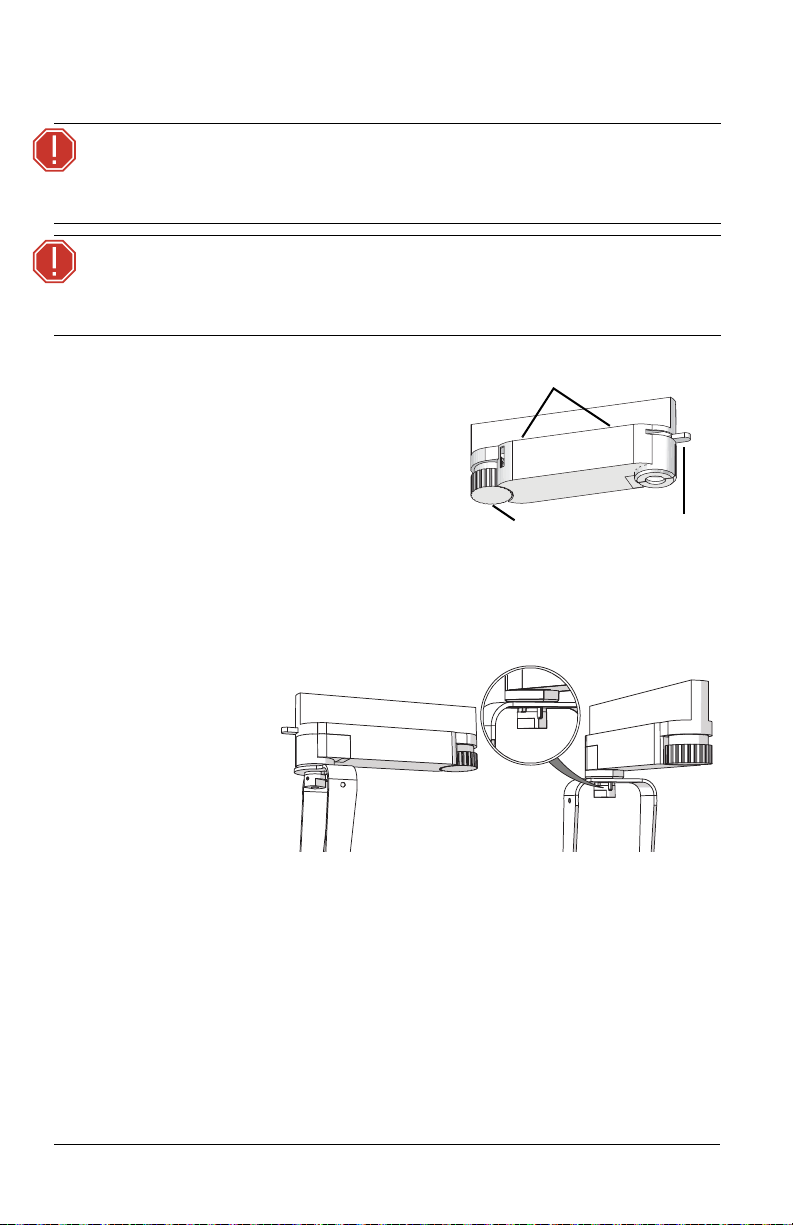

Use the AD1 Track Adapter . . . . . . . . . . . . 7

Adjustments . . . . . . . . . . . . . . . . . . . . . . . 8

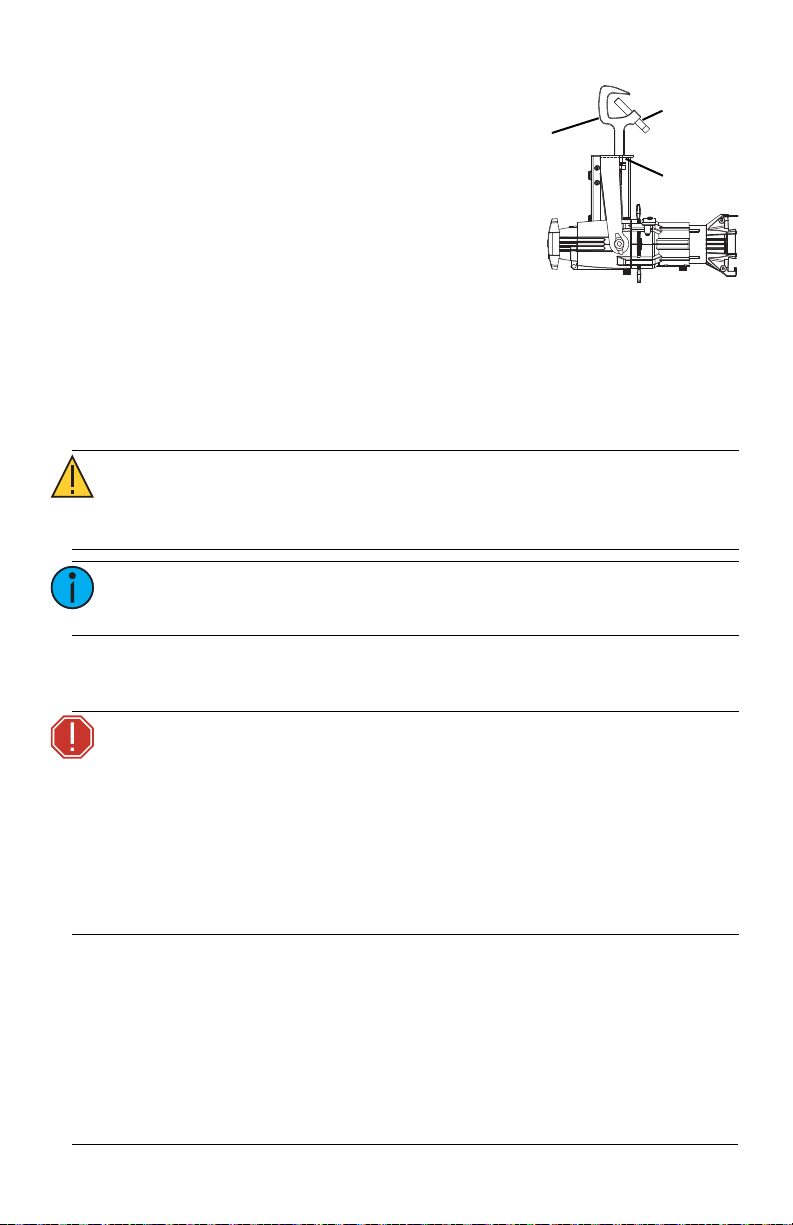

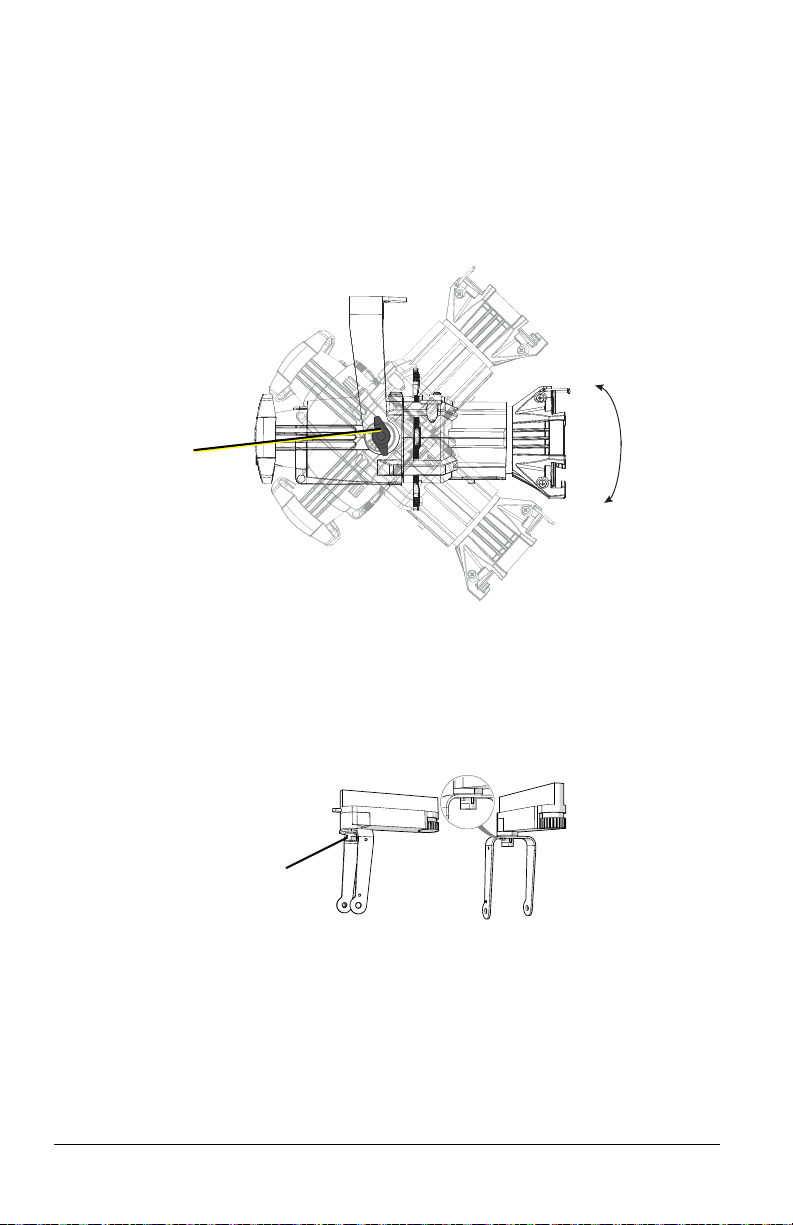

Adjust the Yoke Position. . . . . . . . . . . . . . . . . 8

Set the Angle with the Yoke . . . . . . . . . . . 8

Lock the Rotation on the Canopy

and Track Fixtures . . . . . . . . . . . . . . . . . . . 8

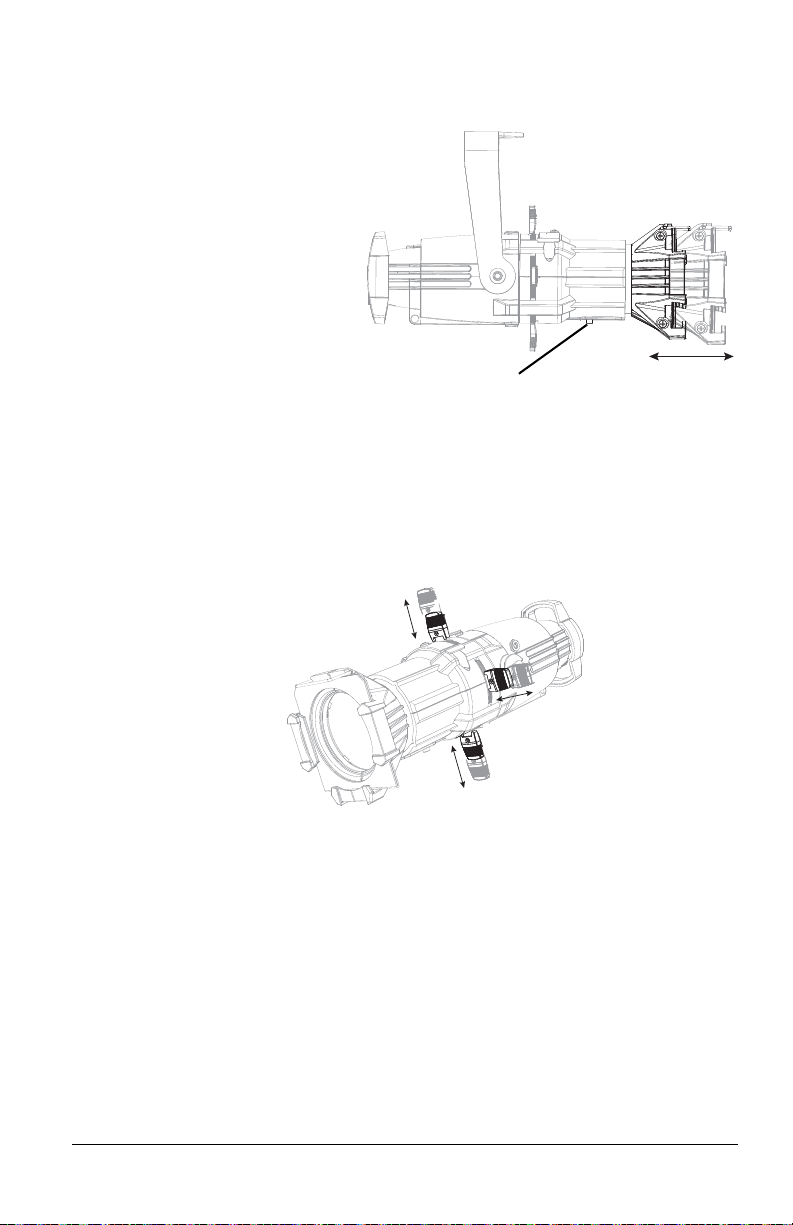

Focus the Beam. . . . . . . . . . . . . . . . . . . . . . 9

Shape the Beam. . . . . . . . . . . . . . . . . . . . . . . . 9

Project a Pattern. . . . . . . . . . . . . . . . . . . . 10

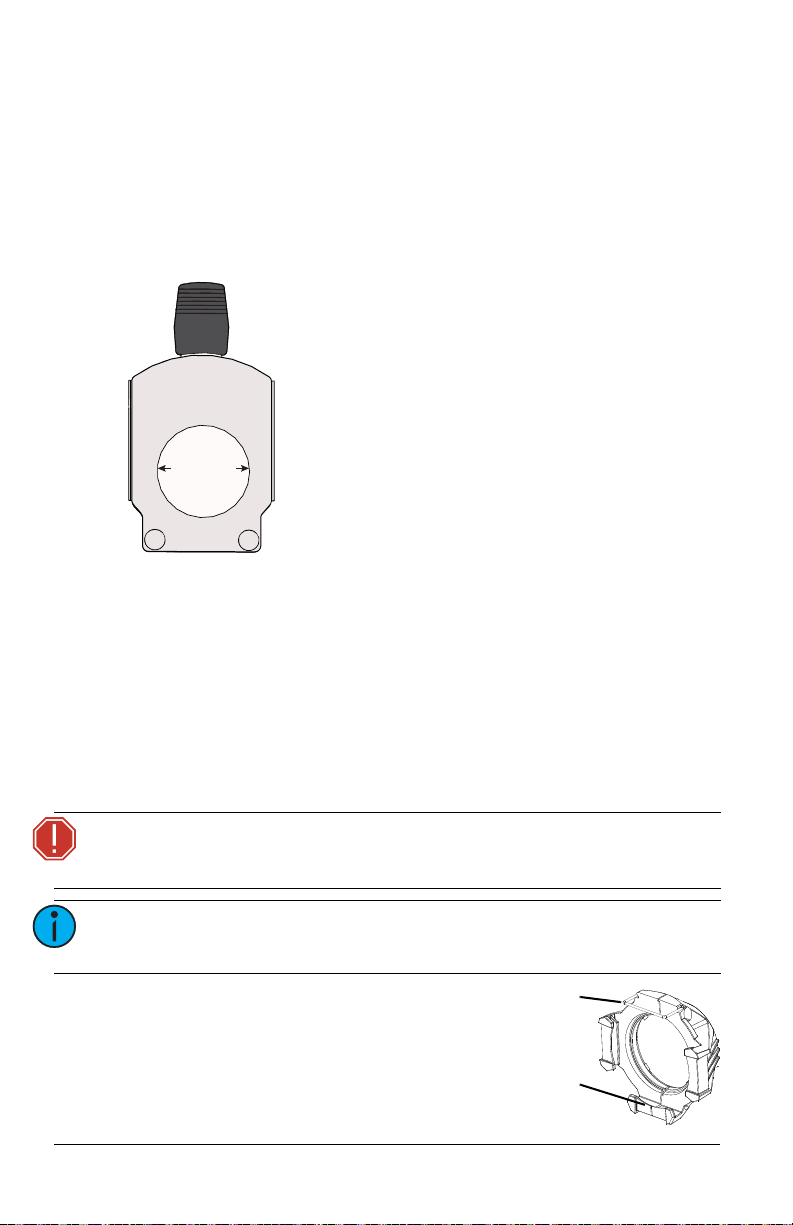

Use the Color Frame Holder . . . . . . . . . . . . . 10

Adjust the C-clamp on the Portable

Fixture (120 V Only) . . . . . . . . . . . . . . . . . . . . 11

Clean the Glass Lens . . . . . . . . . . . . . . . . 11

Table of Contents i

ii Table of Contents

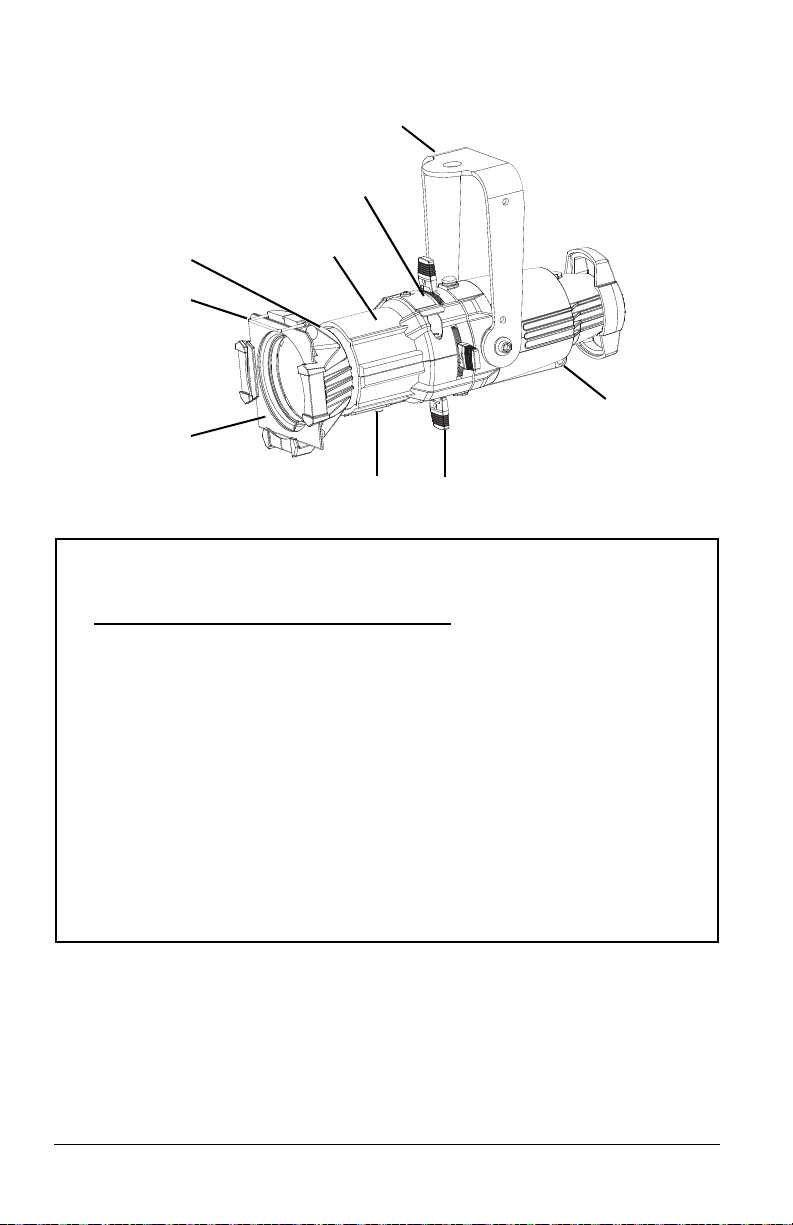

Introduction

Portable TrackCanopy

The Source Four Mini LED has three available mounting options:

• Portable: The portable fixture includes a miniature C-clamp and yoke­mounted driver, and has a permanently installed power cord with
3-prong Edison connector. Region-specific connectors are available.
Contact ETC for available options. Use L5-15 plugs on branch circuits
with L5-15 receptacles only.

• Canopy-mount and track-mount: The canopy-mount fixture and track­mount fixture both include an integral driver.

There are four lens tube sizes available for each mounting option: 19°, 26°, 36°,
and 50°. A lens tube

must

be installed prior to use of the Source Four Mini LED.

Note:

The miniature C-clamp for the portable fixture is included
only with the 120 V fixture. For the 240 V fixture, use an
M10 bolt to secure a clamp (provided separately) to the
fixture.

WARNING:

WARNING:

AVERTIR:

Source Four Mini LED User Manual 1

Please note the following safety warnings before use:

• Do not mount the fixture on or near combustible
surfaces.

• Do not operate the fixture without a lens installed.

• Always hang the fixture with the retaining clip on the
color frame holder in the locked position.

To reduce the risk of fire and electric shock, use the
track-mount fixture only with the DataTrack (EUTRAC
track system.

Pour éviter le risque d'incendie ou de choc électrique
avec le modèle adaptateur pour rail, utiliser uniquement
avec une alimentation par rail DataTrack (EUTRAC).

®

)
