ETA Systems PS220 User Manual

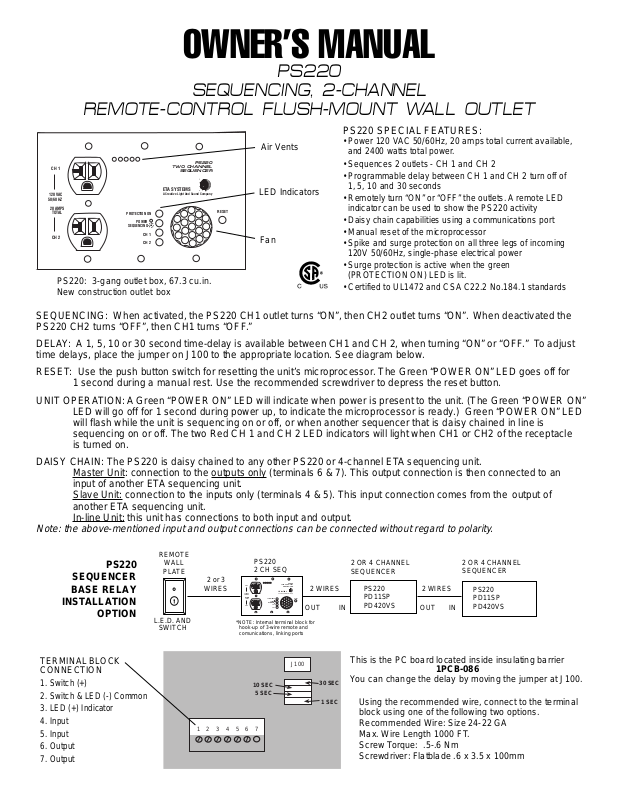

OWNER’S MANUAL
PS220
SEQUENCING, 2-CHANNEL
REMOTE-CONTROL FLUSH-MOUNT WALL OUTLET
PS220 SPECIAL FEATURES:
Air Vents
PS220
ETA SYSTEMS
A Creative Light And Sound Company
CH 1
CH 2
TWO CHANNEL
SEQUENCER
LED Indicators
RESET
Fan
CH 1
120 VAC
50/60 HZ
20 AMPS
TOTAL
CH 2
PROTECTION ON
POWER
PS220: 3-gang outlet box, 67.3 cu.in. New construction outlet box
SEQUENCING: When activated, the PS220 CH1 outlet turns “ON”, then CH2 outlet turns “ON”. When deactivated the PS220 CH2 turns “OFF”, then CH1 turns “OFF.”
DELAY: A 1, 5, 10 or 30 second time-delay is available between CH1 and CH 2, when turning “ON” or “OFF.” To adjust time delays, place the jumper on J100 to the appropriate location. See diagram below.
• Power 120 VAC 50/60Hz, 20 amps total current available, and 2400 watts total power.
• Sequences 2 outlets - CH 1 and CH 2
• Programmable delay between CH 1 and CH 2 turn off of 1, 5, 10 and 30 seconds
• Remotely turn “ON” or “OFF” the outlets. A remote LED indicator can be used to show the PS220 activity
• Daisy chain capabilities using a communications port
• Manual reset of the microprocessor
• Spike and surge protection on all three legs of incoming 120V 50/60Hz, single-phase electrical power
• Surge protection is active when the green (PROTECTION ON) LED is lit.
• Certified to UL1472 and CSA C22.2 No.184.1 standards
RESET: Use the push button switch for resetting the unit’s microprocessor. The Green “POWER ON” LED goes off for
1 second during a manual rest. Use the recommended screwdriver to depress the reset button.
UNIT OPERATION: A Green “POWER ON” LED will indicate when power is present to the unit. (The Green “POWER ON”
LED will go off for 1 second during power up, to indicate the microprocessor is ready.) Green “POWER ON” LED will flash while the unit is sequencing on or off, or when another sequencer that is daisy chained in line is sequencing on or off. The two Red CH 1 and CH 2 LED indicators will light when CH1 or CH2 of the receptacle is turned on.
DAISY CHAIN: The PS220 is daisy chained to any other PS220 or 4-channel ETA sequencing unit.
Master Unit: connection to the outputs only (terminals 6 & 7). This output connection is then connected to an input of another ETA sequencing unit. Slave Unit: connection to the inputs only (terminals 4 & 5). This input connection comes from the output of another ETA sequencing unit. In-line Unit: this unit has connections to both input and output.
Note: the above-mentioned input and output connections can be connected without regard to polarity.
PS220
SEQUENCER
BASE RELAY
INSTALLATION
OPTION
TERMINAL BLOCK CONNECTION
1. Switch (+)
2. Switch & LED (-) Common
3. LED (+) Indicator
4. Input
5. Input
6. Output
7. Output
REMOTE
WALL
PLATE
L.E.D. AND
SWITCH
2 or 3
WIRES
1 2 3 4 5 6 7
PS220 2 CH SEQ
PS220
10 SEC
5 SEC
PROTECTION ON
SEQUENCING
TWO CHANNEL
SEQUENCER
ETA SYSTEMS
A Creative Light And Sound Company
RESET
POWER
CH 1
CH 2
OUT
J100
CH 1
120 VAC 50/60 HZ
20 AMPS
TOTAL
CH 2
*NOTE: Internal terminal block for hook-up of 3-wire remote and comunications, linking ports
2 WIRES
30 SEC
1 SEC
2 OR 4 CHANNEL SEQUENCER
PS220 PD11SP PD420VS
IN
2 WIRES
OUT
2 OR 4 CHANNEL SEQUENCER
PS220 PD11SP PD420VS
IN
This is the PC board located inside insulating barrier
1PCB-086
You can change the delay by moving the jumper at J100.
Using the recommended wire, connect to the terminal block using one of the following two options.
Recommended Wire: Size 24-22 GA Max. Wire Length 1000 FT. Screw Torque: .5-.6 Nm Screwdriver: Flatblade .6 x 3.5 x 100mm
REMOTE LED INDICATOR: This can be used with remote switch as a remote unit activity indicator. A flashing LED
indicates the unit is actively sequencing. When the LED is on constant the unit is completely “ON” or “OFF.” To use this feature the (-) negative short lead of the LEDs is connected to terminal 2, and the (+) positive long lead of the LED is connected to terminal 3.
One of the two options must be used in order for the outlet to operate!
1. Connect a SPST / NO / Latching switch to terminals 1 & 2. Closed contact turns outlets on. Open contact turns outlets off.
2. Connect the output from any ETA sequencing unit to the input terminals 4 & 5. ADDITIONAL CONNECTIONS should be made at this time. These connections may include the LED indicator, input
and/or output for daisy chaining. FINAL CONNECTION: Connect the PS220’s flying wire leads to the wires inside the outlet box.
Green is Ground, Black is Hot, and White is Neutral. Minimum 12 gauge wire.
"CAUTION"
REMOVE ALL POWER BEFORE INSTALLING OR SERVICING THE UNIT
"CAUTION"
THESE INSTRUCTION ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT PERFORM ANY INSTALLATION OR SERVICING OTHER THAN THAT
CONTAINED IN THE OWNERS MANUAL UNLESS YOU ARE QUALIFIED TO DO SO.
“ATTENTION”
THIS DEVICE IS TO BE INSTALLED BY DESIGN INTO A WALL WITH AN OUTLET BOX. FOR PROPER FIT,
A 3-GANG OUTLET BOX IS REQUIRED WITH THE MINIMUM SIZE OF 67.3 CU. IN.
“CAUTION”
THE INSULATING BARRIER PROTECTING PS220 COMPONENTS MUST BE USED WHEN INSTALLING THE PS220. PLACE THE OUTLET WITH THE INSULATING BARRIER INTO THE OUTLET BOX AND SCREW THE COVER PLATE AND THE INSULATION BARRIER TO THE OUTLET BOX BEFORE APPLYING POWER TO THE UNIT.
KL3RR
KEYLOCK
POWER DISTRIBUTION
ETA SYSTEMS
A Creative Light And Sound Company
SEQUENCING SYSTEM ON
OFF
ON
KL3R KL3RR 1-Gang Profile Standard 19” Rack-Mounted Version
Thank you for choosing ETA Systems Power Distribution
Drawing upon our 25 years of solving high-amperage lighting needs and listening to customers’ concerns, we have developed a most extensive line of Audio Conditioned Power Distribution. As the problems inherent with AC power increase, you will find ETA providing solutions.
Telephone or e-mail us requesting a Full Line Brochure
©
SYSTEMS
A Creative Light & Sound Company
1532 Enterprise Parkway • Twinsburg, Ohio 44087 USA 330-425-3388 • 800-321-6699 • Fax: 330-425-9700 http://www.etasys.com E-mail eta@etasys.com
All designs and specifications are subject to change without notice. Copyright © 2003 ETA Systems. 11/03 6MAN-034
