ETA’s line of Conditioned Power Distribution units are designed to reduce damage to sensitive electronic equipment
from sudden voltage spikes, damaging power surges, and EMI/RFI noise, which is inherent in utility power lines.
The PD11SP is a sequential four step/stage power up/down conditioned power distribution unit. It is designed to
protect electronic equipment that requires a time-delayed start-up, particularly when high in-rush current can potentially damage audio, video, or computer equipment at power up.
PD11SP units are shipped with the ability to be linked or daisy chained. All linked units function as slaves;
however, slaves can be set to specific time delays. Any number of units can be linked together with a distance of up
to 1000 feet between each location (see Fig. 4).
1 thru 4 steps/stages in sequential power up/
down 1, 5, 10, 30 second pre-sets
Sequential
On / Off
Stage 1 Stage 2 Stage 3 Stage 4
PD11SP Features:
• Microprocessor monitored sequential power distribution system
• Four power up/down steps or stages of distributed and conditioned power
• Four pre-set power up/down intervals of 1, 5, 10 or 30 seconds
• Optional manual settings for up to 240 seconds between intervals
• One dual 20 amp U-grounded outlet per stage
• Full 20 amps, 2400 watts capacity per unit
• 12-gauge, 3-prong, 10-foot, 20-amp power cord. Requires 20 amp circuit and receptacle outlet
• Protected "always on" 15 amp AC power outlet on the front panel
• Total unit 20 amp and 15 amp outlet circuit breakers located on front panel
• Three-stage spike and surge protection
• Two-stage EMI/RFI filtration
• Ground and AC line fault check
• One rack space high
• One year limited warranty
Other Features:
• Remote control operation
• Standard rear panel RCA connectors and 2 screw terminals
Protection "On"
Indicators
Breaker protected and unswitched
Power switch
On / Off
15 amp outlet
20 amp total unit breaker
15 amp front panel outlet breaker
Input RCA phono jack
Output RCA phono jack
3 pin terminal block for remote
sequential operation of unit
Output screw terminal
Input screw terminal
Specifications:
Dimensions 19" L x 10" D x 1 3/4" H
Weight 10 lbs.
Quality
Electrical 120V, 50/60 Hz, single phase
Max. amps 20/unit
Max. watts 2400/unit
Max. front outlet 15 amps
Spike/surge protection Line to neutral, neutral to ground, line to ground
Clamping level 200V peak
Response time 1 nanosecond
Max. surge voltage 6000V
Max. surge current 26,000 amps
Max. spike energy 630 joules total
Noise attenuation Transverse greater than 20 dB, 1.5 kHz to 200 MHz
Certification ETL listed
Black powder coated chassis, black anodized aluminum front panel
The PD11SS is a sequential four step/stage power up/down conditioned power distribution unit. It is designed to protect
3 pin terminal block for remote
sequential operation of unit
electronic equipment that requires a time-delayed start-up, particularly when high in-rush current can potentially damage
audio, video, or computer equipment at power up.
1 thru 4 steps/stages in sequential power up/
down 1, 5, 10, 30 second pre-sets
Sequential
On / Off
Stage 1 Stage 2 Stage 3 Stage 4
15 amp breaker
Power switch
On / Off
Breaker protected and unswitched
15 amp outlet
Protection "On"
Indicator
Protected
"Always On” Outlets
PD11SS Features:
• Microprocessor monitored sequential power distribution system
• Four power up/down steps or stages of distributed and conditioned power
• Four pre-set power up/down intervals of 1, 5, 10 or 30 seconds
• Optional manual settings for up to 240 seconds between intervals
• One dual 15 amp U-grounded outlet per stage
• One dual 15 amp "always on" U-grounded outlet
• Full 15 amps, 1800 watts capacity per unit
• 12-gauge, 3-prong, 6-foot, 15-amp power cord
• Protected "always on" 15 amp AC power outlet on the front panel
• Total unit 15 amp outlet circuit breakers located on front panel
• Three-stage spike and surge protection
• EMI/RFI filtration
• Watch dog circuitry with "Go/No Go" L.E.D. display
• One rack space high
• One year limited warranty
Other Features:
• Remote control operation

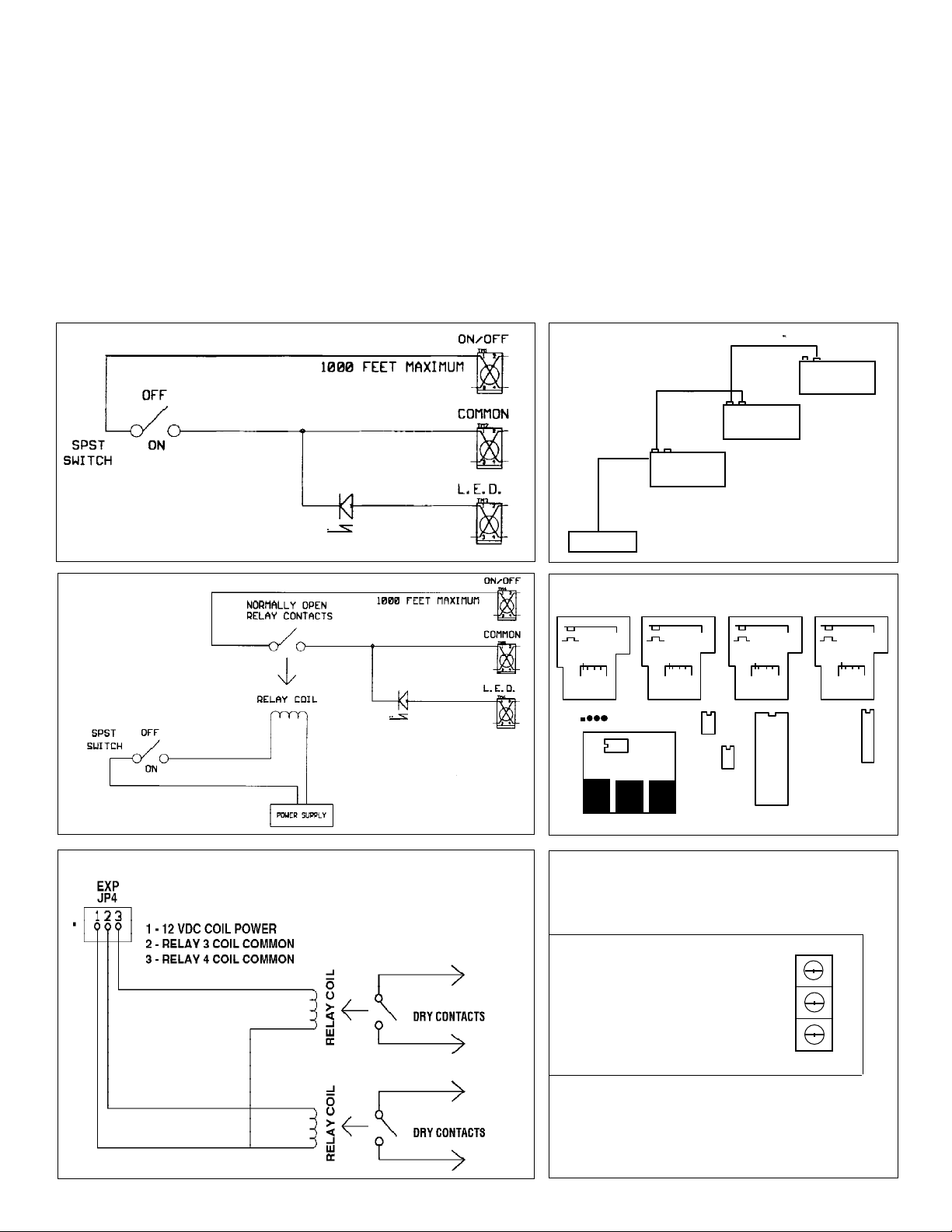

Access to remote feature is internal to three PC board mounted screw terminals for 3-wire hook-up.
Specifications:
Dimensions 19" L x 10" D x 1 3/4" H
Weight 10 lbs.
Quality Finish
Electrical 120V, 50/60 Hz, single phase
Max. amps 15/unit
Max. watts 1800/unit
Max. front outlet 15 amps
Spike/surge protection Line to neutral, neutral to ground, line to ground
Clamping level 200V peak
Response time 1 nanosecond
Max. surge voltage 6000V
Max. surge current 12,000 amps
Max. spike energy 450 joules total
Noise attenuation Transverse > 35 dB, 1.5 kHz to 200 MHz
Certification ETL listed
Black powder coated chassis, black anodized aluminum front panel
