Thank you for choosing a wheelchair from Etac. The manual
must be read thoroughly to avoid damage when handling and
using the chair. In this manual the User is the person sitting in
the chair. The Care giver is the person helping the user.

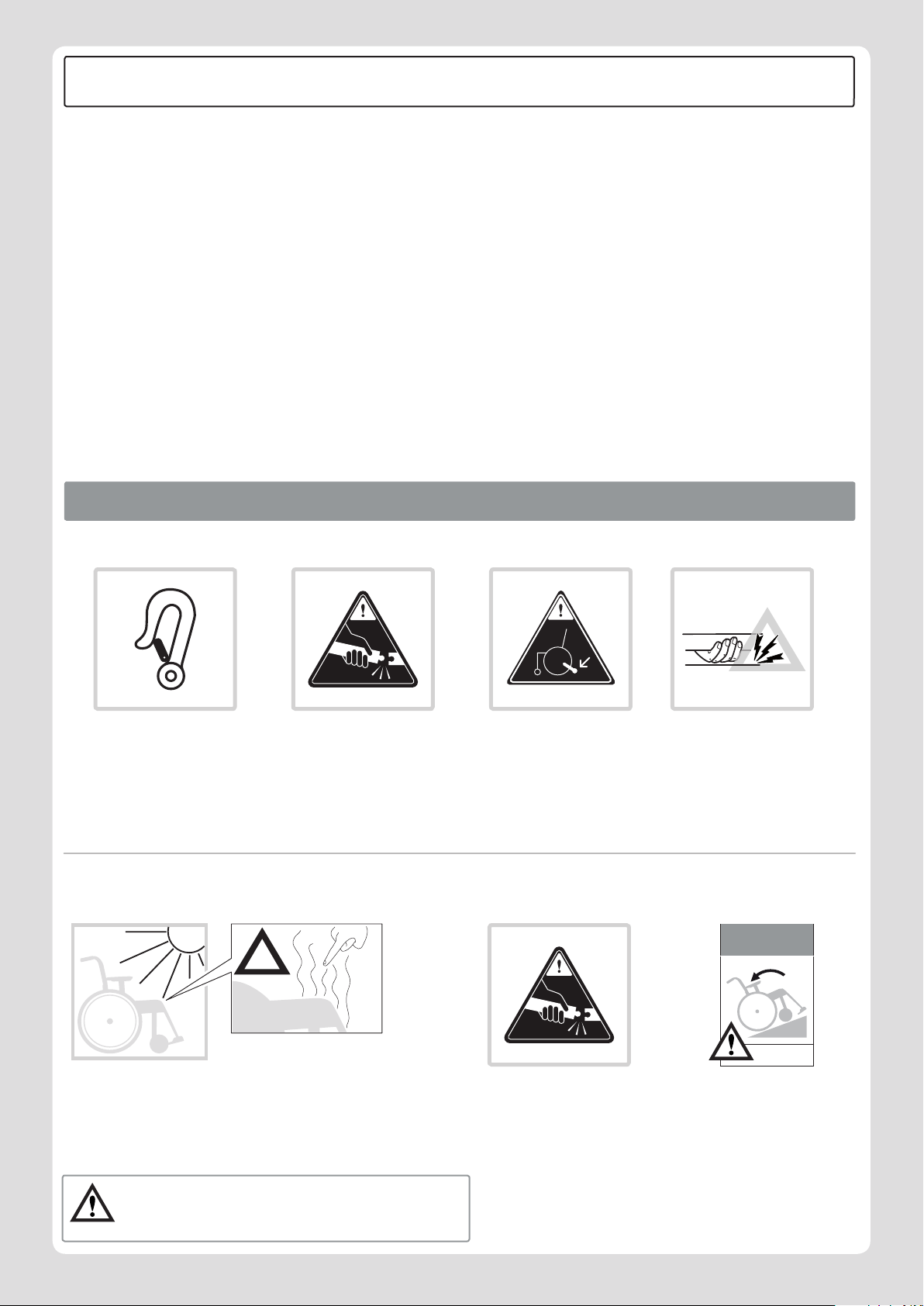

This symbol appears in the manual together with text. It
highlights actions where the wheelchair’s, the user’s or
the care giver’s safety can be put at risk.
This symbol appears in the manual together with text.
Here you will find advice and tips worth considering.
Explanation for list of points
Applies to model
Standard for this model
Intended use:
Etac Cross 5 and Etac Cross 5 XL are manual, cross-folded,
allround wheelchairs with multiple functions and they are
intended for use both outdoors and indoors. Etac Cross 5 Active
is a configuration of Etac Cross 5 (hereafter called Cross 5).
Their seats are adjustable in height, angle and depth. The back
supports are adjustable in height, angle and contour. The foot
supports are adjustable in height, angle and depth.
Etac Cross 5 and Etac Cross 5 XL can be supplemented and
adjusted if need change. A large range of options and accessories are available: Various types of back support and leg support,
fixing points for transport in mobility service buses, antitips,

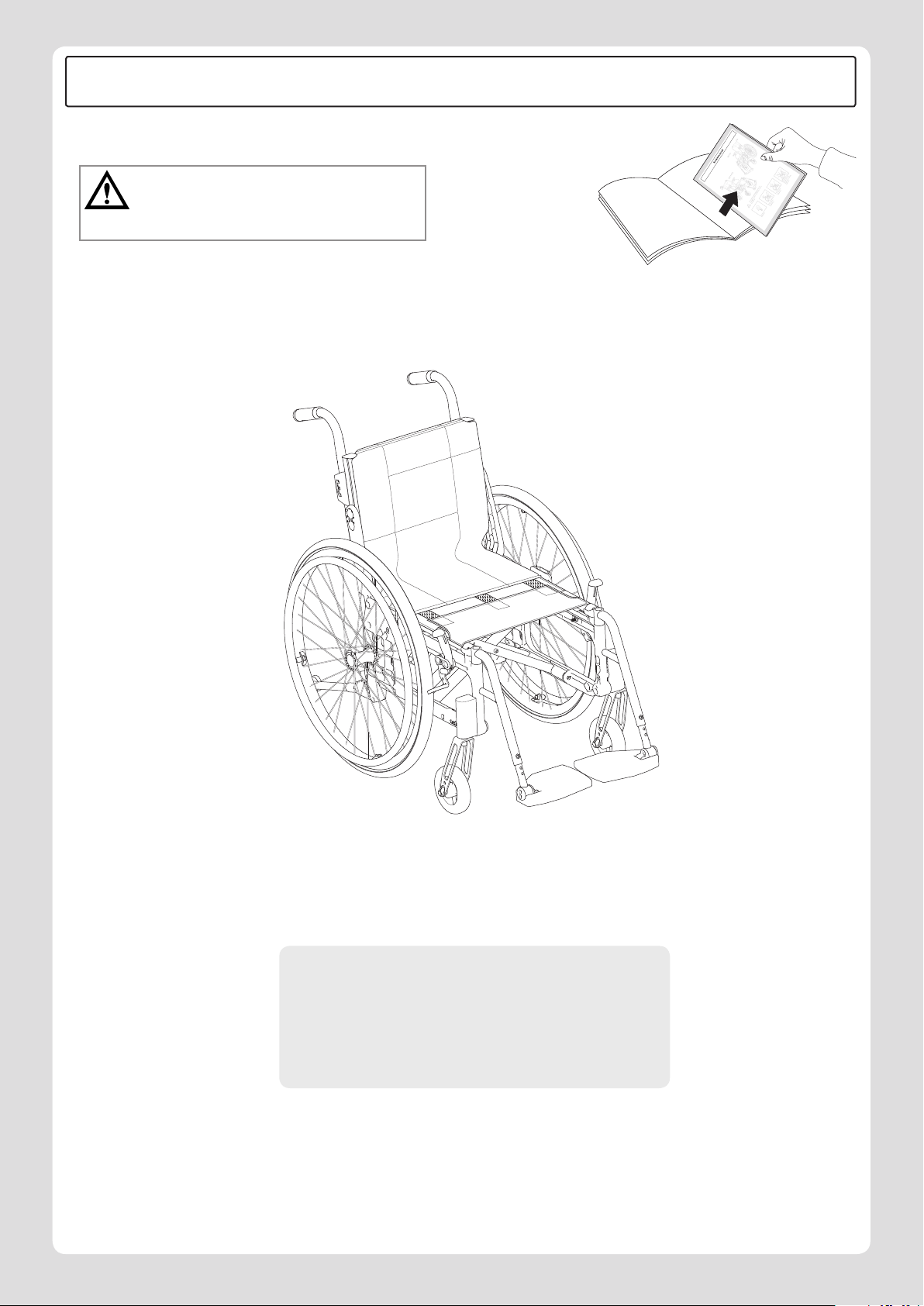

In the centre spread of this manual you will
find a removable section that contains user
information.
Tools
Allen key
3, 4, 5, 6 mm
various types of handrims and brakes etc.
Etac Cross 5 and Etac Cross 5 XL have the best prerequisites
to create comfort, functionality and good manoeuvrability.
Etac regularly improves its products. We therefore reserve the
right to modify the products without prior notice. The dimensions given on drawings or other material are solely for guidance.
We recommend that the wheelchair is adapted individually to
the user before it is put into use.
We are not responsible for printing errors or incomplete
information.
Socket spanner
8, 10, 13, 24 mm
Socket wrench
19 mm
Screw driver
PH1
3
Page 4
Etac / Cross 5 / www.etac.com
1
2. Description
11
20
21
22
12
2
13
3
14
15
4
5
6
16
17
7
18
8
9
10
1. Push handles
2. Locking knob, push handles
3. Back rail
4. Handrim
5. User brake
6. Quick release hub
7. Side frame
8. Front fork attachment
9. Front fork
10. Castor wheel
11. Back support cover
19
12. Back support upholstery
13. Rear wheel
14. Cross frame
15. Seat upholstery
16. Leg support
17. Serial number
18. Locking knob, foot support
19. Foot support
20. Brake handle, drum brake
21. Cross brace
22. Brake wire, drum brake
4
Page 5
Etac / Cross 5 / www.etac.com
3. The chair’s possibilities
In the section ”The chair’s possibilities” you can see all the adaptions possible on the wheelchair. Variations
may occur in different markets, e.g. as regards back support models. For more information, see www.etac.com
or contact our customer service.
More so called ”odd combinations” are available, for example rear wheels and castor wheels. Please, contact
our customer service for more information.
Front34-56.5 cm
Seat height
Rear34-53 cm
Seat height rear
Seat angle
Castor wheel
Front fork
Rear wheel
Handrims
Camber angle
Seat
Seat height front
Max forward angle: 2 cm lower front than back (3°)
Max backward angle: 6 cm higher front than back (9°)
4” massive (max user weight 100 kg)
5” massive (with Cross 5 XL max user weight 135 kg)
6” semipneumatic
6,5” massive
7” massive soft
8” semipneumatic
Extra short (two alternative wheel height positions)
Short (three alternative wheel height positions)
Medium (three alternative wheel height positions)
Long
20”
22”
24”
24” Carbon (not in combination with drum brakes)
26”
Aluminium
Stainless steel
Plastic coated
Cellular rubber (not in combination with drum brakes)
Titanium (not in combination with drum brakes)
2°
0°
Black fabric
hard seat
ECS: A fixed seat/back support system with anatomically
shaped cushions, detachable
Cross 5
Cross 5 XL
Back support
3A
/
Back support
3A high
3A3A high
Height 32-45 cm 38-51 cm
Back support angle-5° - +20°-5° - +20°
Lumbar angle
Triangular -8° - +18°
5
Page 6
Etac / Cross 5 / www.etac.com
3. The chair’s possibilities
Cross 5
Cross 5 XL
Seat depth
Back support
mod. 2
Seat depth back
support mod. 2
Back support
upholstery
Back support
cover
Seat depth
Short frame 36-42 cm (triangular 36-49 cm)
Long frame 42-48 cm (triangular 42-55 cm)
Height 30-45 cm
Angle -5° - +15°
Short frame 36-42 cm. Long frame 42-48 cm.
Functional: Short frame 42-48 cm. Long frame 48-54
cm.
Adjustable upholstery
ECS
Standard
Widened
Standard
Comfort
Tidy, water-repellent, wipeable
Push handles/
Bow handle
Fixed
push handles
Fixed back support with fixed
push handles,
2B

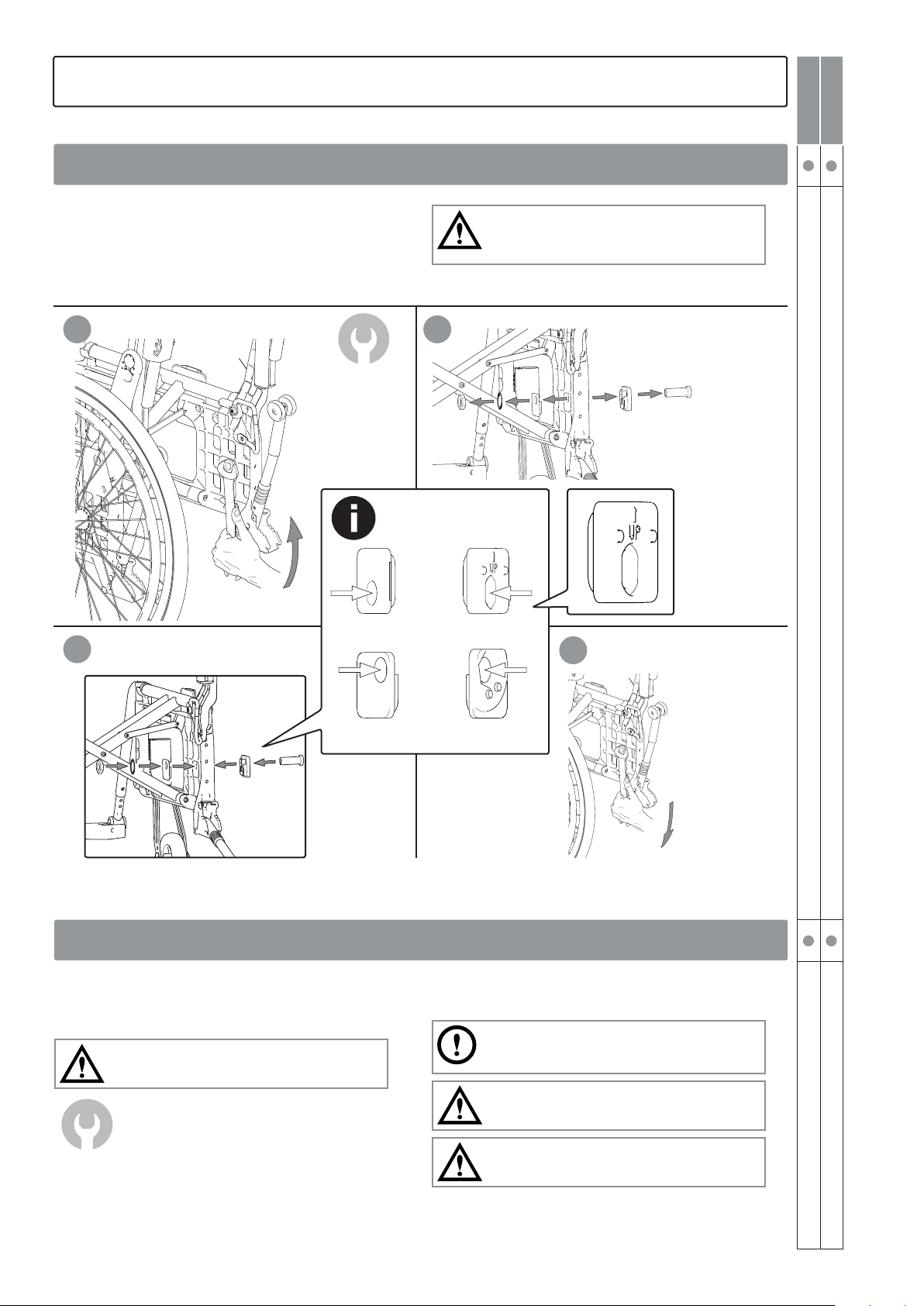

Leg supports,
detachable
swing-away
Height adjustable at
intervals of 2 cm.
Detachable.
Right/left fits back support 3A
Height, low back 35-40
Height, high back 42,5-47.5
Angle -5° - +15°
Normal knee angle
Narrow angle (only together with 5” castor)
Narrow angle, short

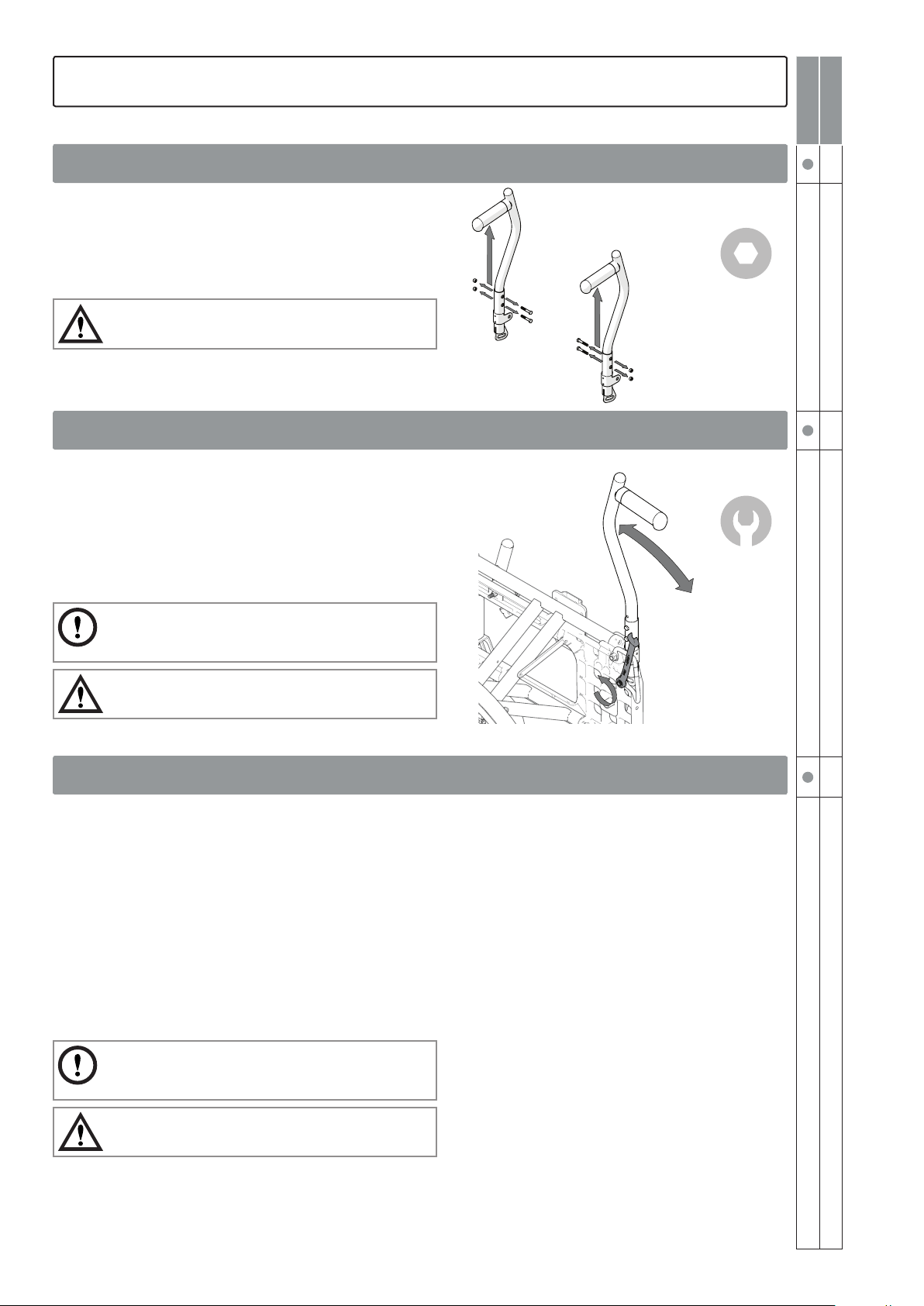

Push handles
Bow handle
6
Page 7

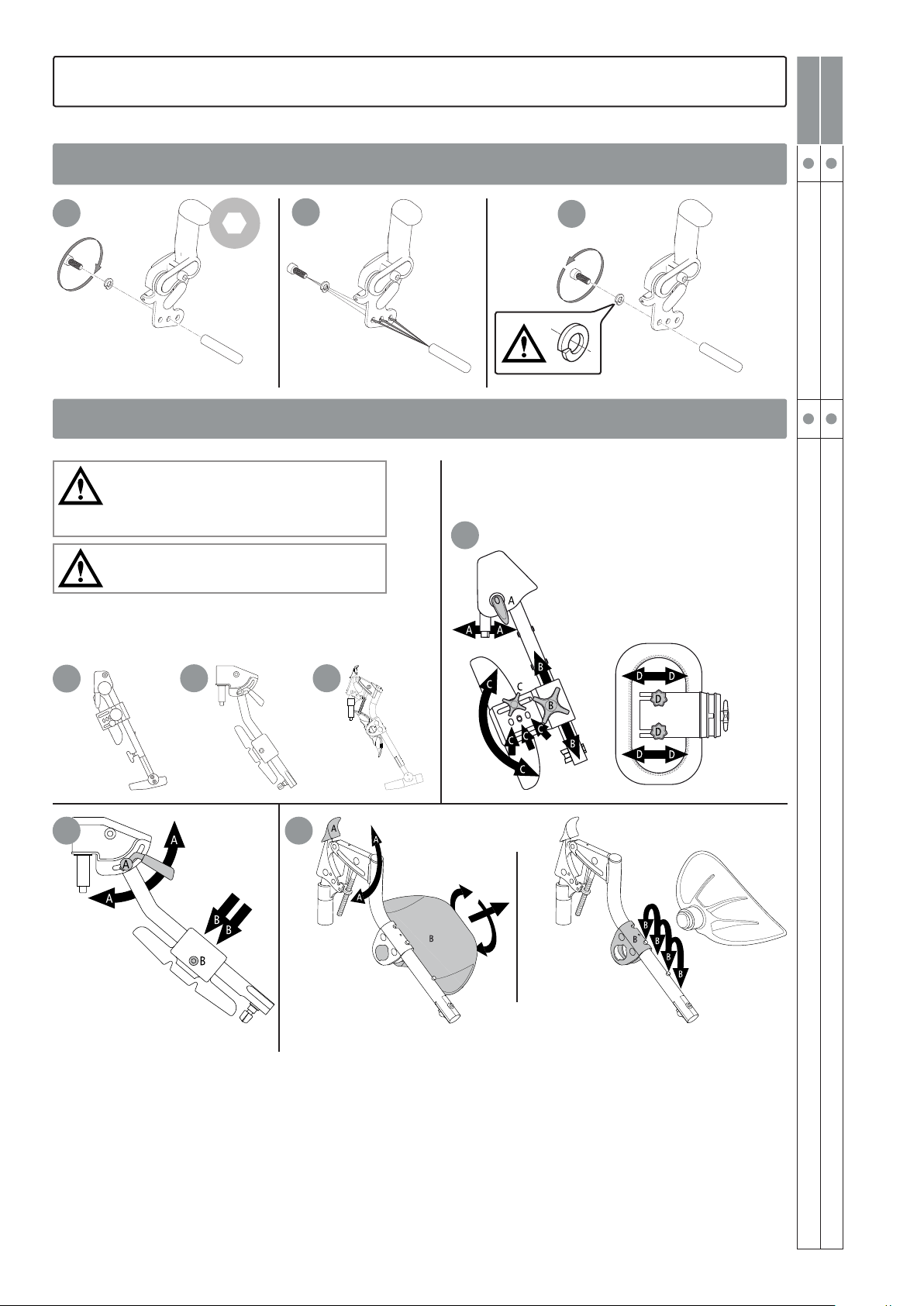

Leg supports
+ 6 cm
lockable,
Leg supports
Angle
adjustable
Leg supports
other
3. The chair’s possibilities
Normal knee angle
Narrow angle
Narrow angle, short
Elevating with foldable calf support from 40 cm
seat width
Elevating with attachment and padded foldable
calf support.
Elevating with flip-up attachment and calf support.
Plaster leg support
Amputee leg support
Amputee weight
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Arm support
Foot support
Short 25 cm
Long 35 cm
Std Max length: 51 cm.
Min length: 33 cm.
Extended attachment tubes +10 cm
Shorter attachment tubes -8 cm
One-piece foot support
One-piece foot support complete for 35-37,5
seat width, adjustable in angle, settable height
and depth
Low widened
Front fork
attachment
Brakes
Standard
widened 6 cm
Angled handle
Extended handle
Single hand brake (standard or angled handle)
7
Page 8
Etac / Cross 5 / www.etac.com

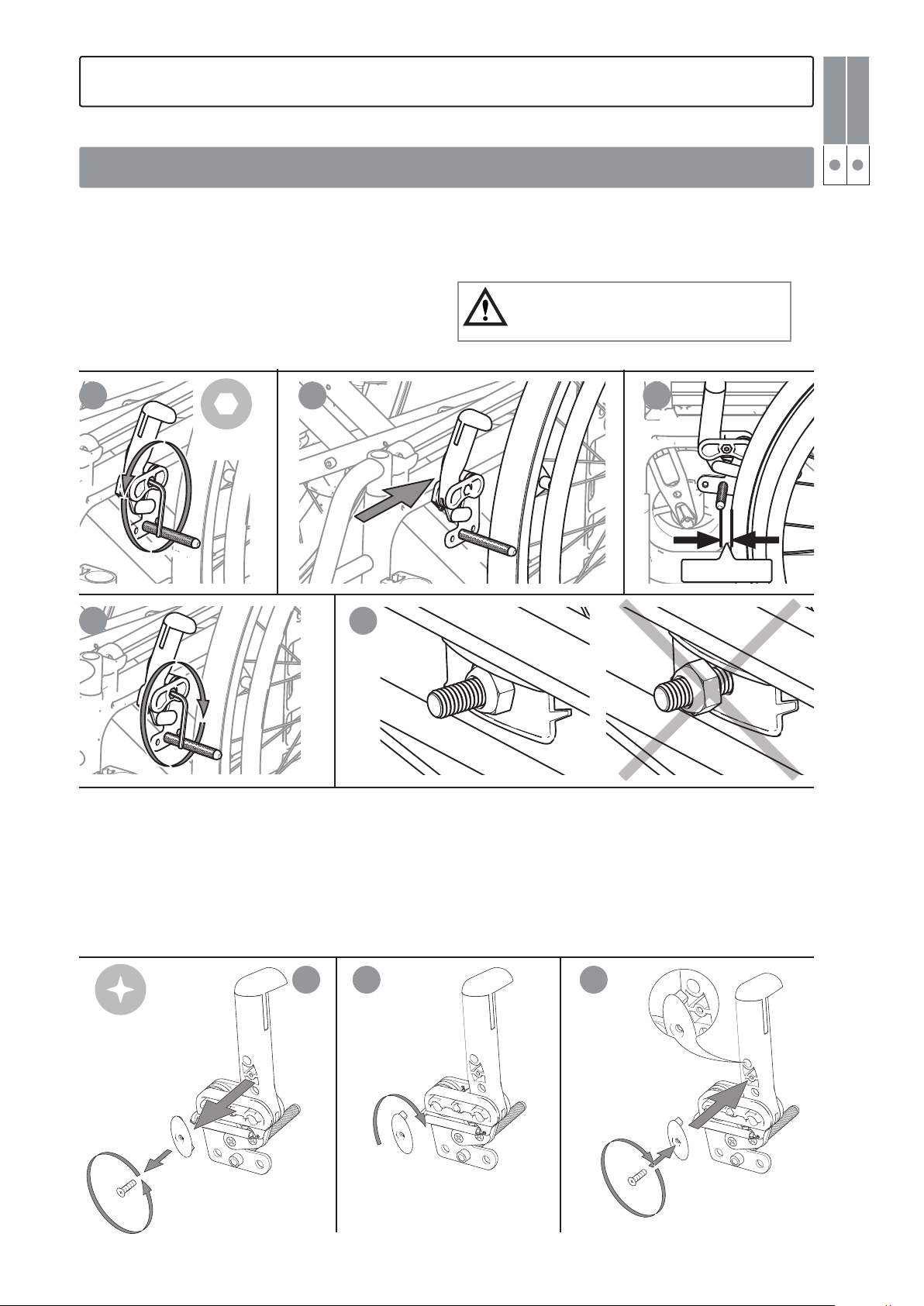

Drum brake
3. The chair’s possibilities
Brake handle 75 mm grip
Brake handle 100 mm grip
Cross 5
Cross 5 XL
Single hand
drive
Frame colour
Frame active
01 = Black 92 = White 93 = Dark blue
For right or left side. Telescoping axle, easy to
remove when folding. (Not in combination with
drum brakes)
Without anti-tip attachment.
Colour: black 01, white 92
4. Accessories
Assembly instructions are always provided with accessories when they are supplied by Etac.
Instructions are also available on our website, www.etac.com
Settable = Adjusted using tools. Adjustable = Adjusted without tools.
Arm support
height-adjustable 25 cm long, solid top, black
Cross 5
Cross 5 XL
Arm support
Arm support cover
Arm support cushion Hemi
Arm support Locking Kit
Arm support foldable
Side guard
Mudguard
height-adjustable 38 cm long, solid top, black
detachable, 25 or 38 cm long padded or gel, dark grey
plush or black Dartex
swing-away for mounting on long arm supports
A locked arm support is not detachable but its height can
be adjusted freely.
height adjustable or fixed height (not with telescopic antitips. Use anti-tips for Etac Cross 5 Active)
black
right and left
Thigh support
8
Page 9
4. Accessories
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Thigh support
Widening kit
Tray
Hemi tray
Anti-slip device
Tray Hemi/Communication
Seat extension
With soft cushion
to extend handrims, brake and arm supports 5 mm on
each side
transparent, fits onto long arm support
transparent, width 35-50 cm. Can be fitted onto short or
long arm supports.
for the Hemi tray
tip up right/left
To be used together with triangular back
Seat cushion
Seat cushion Tidy
Comfort wedge
Cover for calf support
Calf strap
Padding
Calf support
dark grey plush and black velour, 56 cm, cut according to
seat depth set, washable
water-repellent, wipeable
for the cushion, evens out the front part of the seat
on angle adjustable leg support model 3, black Dartex
detachable, black nylon, adjustable in length
for calf strap
Plush. To be mounted/adjusted with velcro
Heel straps
Foot support, padding
black nylon, adjustable length
For foot support with depth 13 cm
For solid, angle adjustable foot support
9
Page 10
Etac / Cross 5 / www.etac.com
4. Accessories
Cross 5
Cross 5 XL
Extended foot support

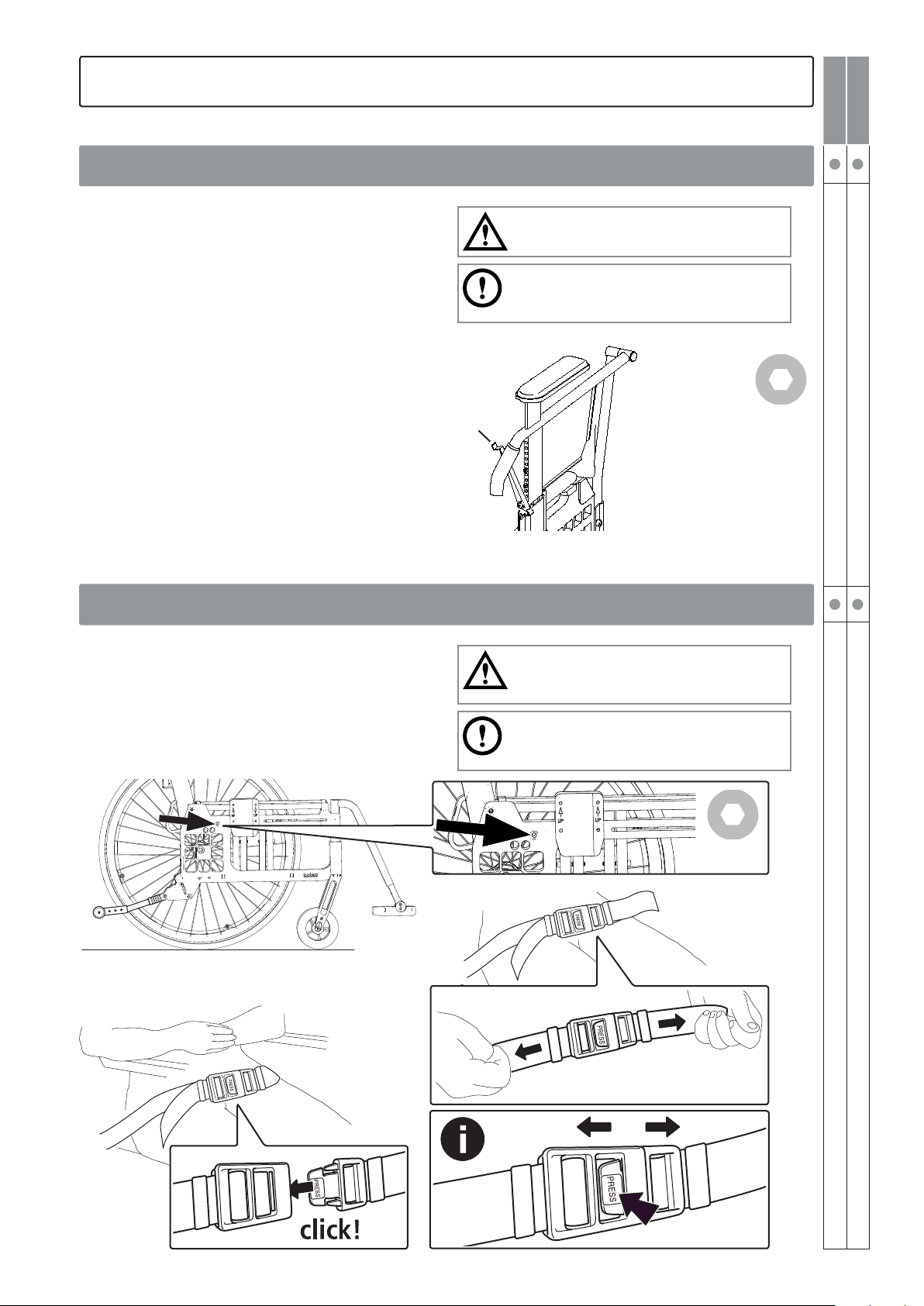

Positioning belt
Seat belt

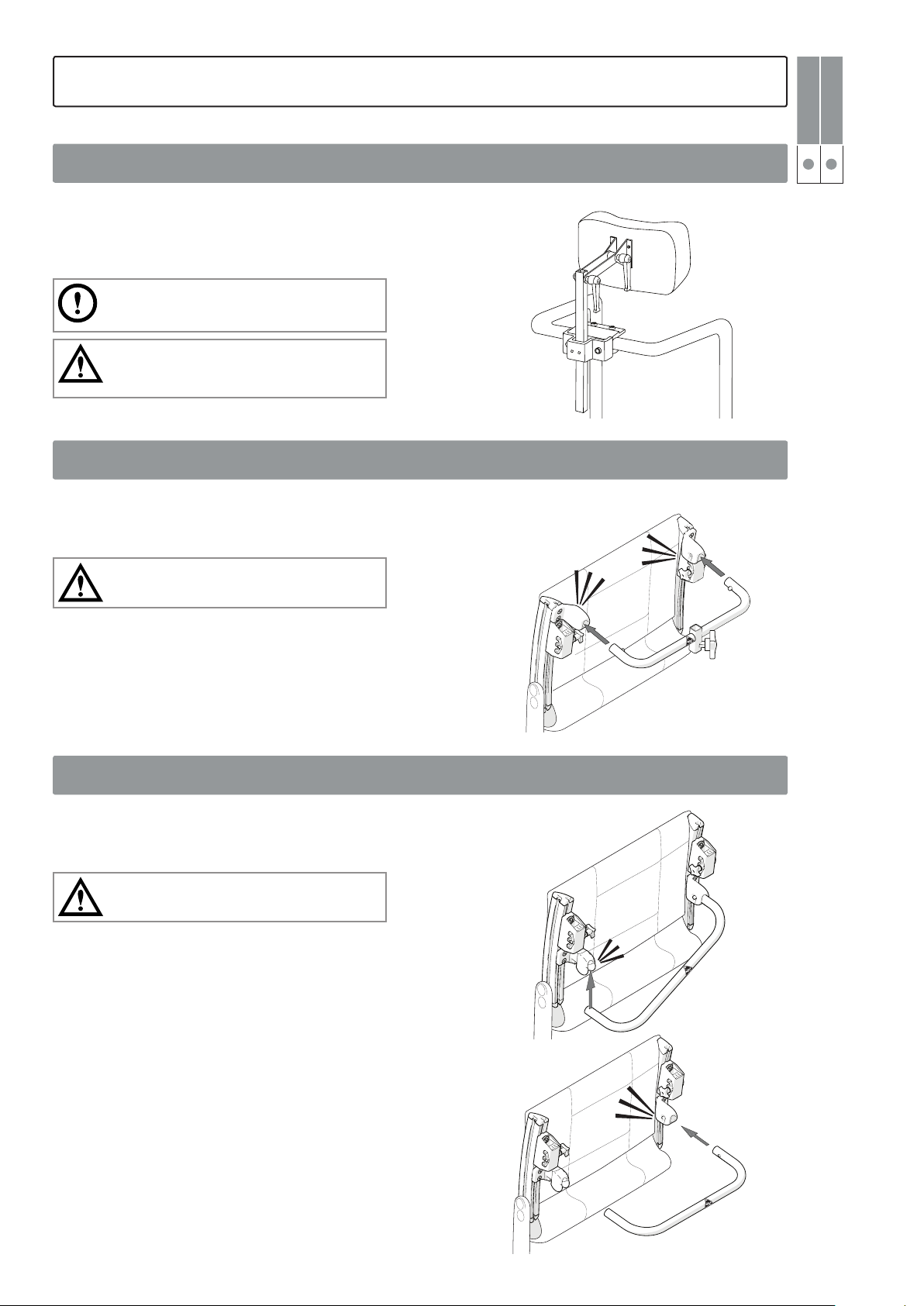

Head support
Head support attachment
Head support attachment
fits onto the existing foot support, from seat width 4055 cm
two pieces, with snap-lock, fixing points on the wheelchair frame
with snap lock
Adjustable in height, depth and angle.
With side support. Adjustable in height, depth and
angle. Hygiene cover
Cross back 3A, mod 4
To be mounted on bow handle
Cross brace
Cross brace
Back wedge
Back wedge
Side cushion
Side stop
Trunk support
Cross back 3A. With snap lock
Cross back 2. With snap lock
Three different sizes, attached with Velcro. Provides
support and contour. The wedges can also be combined
with other accessories and cut to desired size. Several
wedges can also be put together.
length 15 and 30 cm, attached with Velcro
Provides gentle lateral support. Used when the trunk
support is too stabilising. (Combined with arm support
and, if necessary, side stop)
Straight or angled. Combined with wedge or side support cushion.
Creates a more distinct stop and holds the wedge or
side support cushion in place.
Settable in height, depth and width. Detachable
Trunk support
Trunk support
Swing-aside and detachable. Settable in height, depth
and width
Cross back 3A, PUR or Dartex
10
Page 11
4. Accessories
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Trunk support
Anti-tips
Anti-tips
Cane holder
Drip stand
Spoke guard
Cross back 3A, swing-aside, medium or large cushion
telescopic, foldable, settable height, adjustable length
and angle (not with foldable arm supports)
For Etac Cross 5 Active
two parts, one of which is an elasticated section that is
fastened around the cane
Bracket and stand
with grey or yellow print
Tetra quickrelease adapter
Tool kit
Bags
Gloves
for persons with reduced hand function
Information is available at www.etac.com
11
Page 12
Etac / Cross 5 / www.etac.com
5. Settings

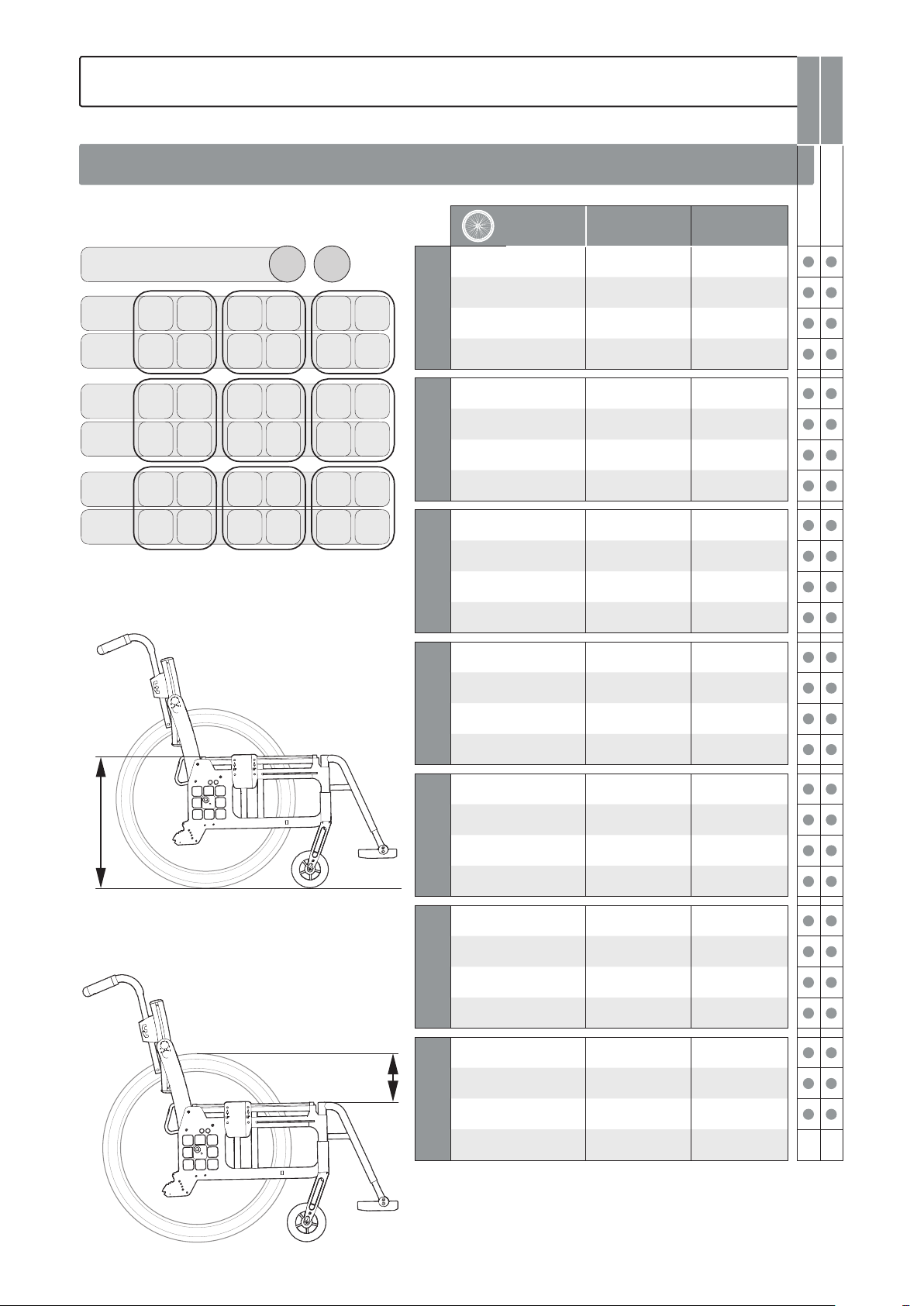

Front seat height
The front seat height may be adjusted by:
- Using the front fork attachment, adjustable in
height and angle.
-Changing the position of the castor wheel.
-Changing the front fork.
-Changing the castor
Risk of tipping: Always check the setting of the
the anti-tips.

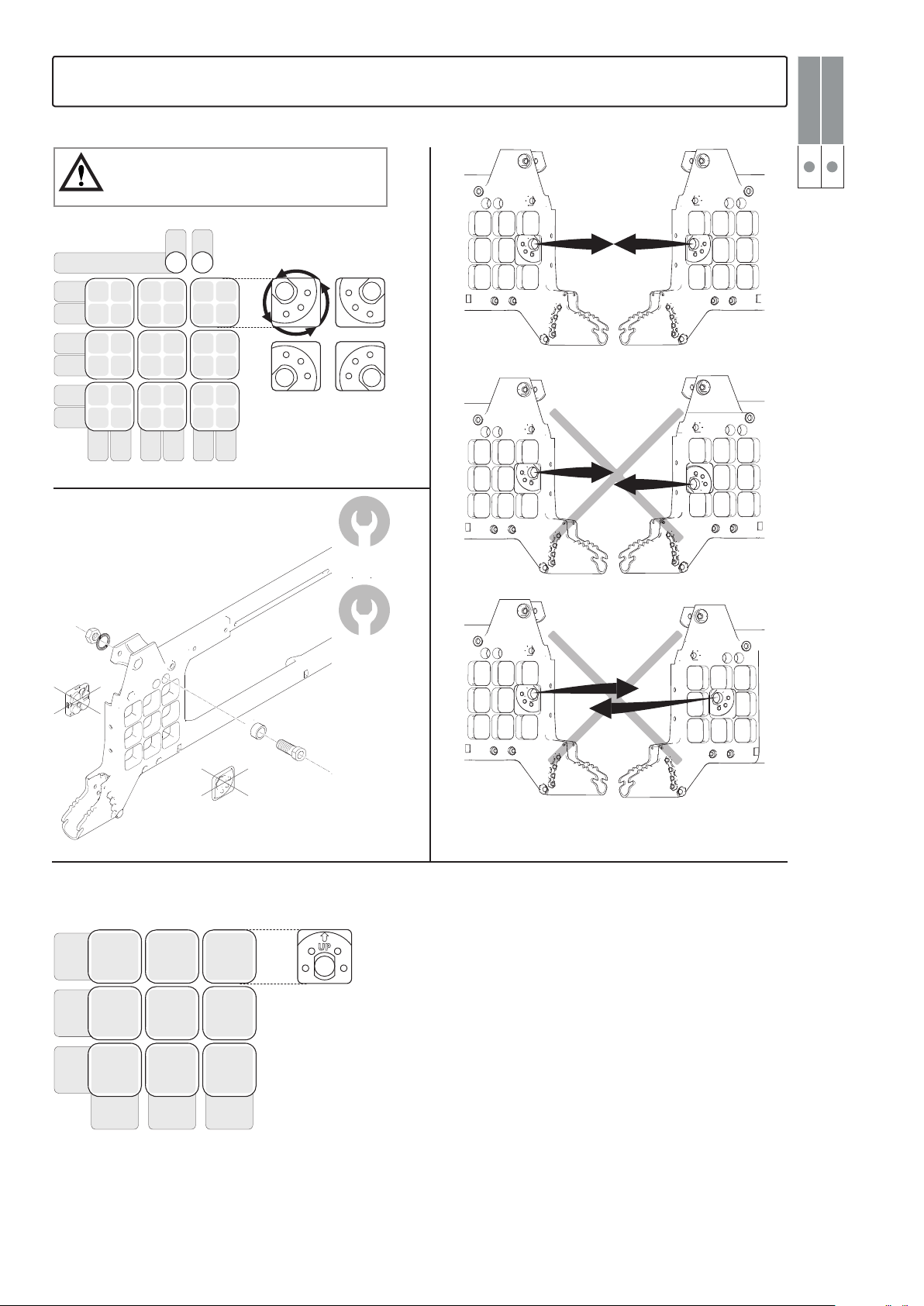

Adjusting the front seat height by using the front fork attachment
Cross 5
Cross 5 XL
Loosen the screws (A and B). Set the desired seat
height by measuring from the floor to the seat
upholstery and tighten the screws on one front fork
mounting. Use the position markings as a reference
for adjusting the height on the other side. Tighten
the other mounting. Check and adjust so that the
mountings are perpendicular. (See section ’Angle
A
B
setting of front fork mounting’.) Fine-tune the height
of the front fork mountings so that both wheels are
flush with the floor.
Risk of tipping: Always check the setting of the
the anti-tips.
Adjusting the front seat height by changing the position of the castor wheel
See also section ”Front seat height table”.
Risk of tipping: Always check the setting of the
the anti-tips.
6 mm
20Nm
5 mm
± 1,5 cm
12
Page 13
5. Settings
Adjusting the front seat height by changing the castor wheel/front fork
See sections “Adjusting the front seat height by
changing the position of the castor wheel” and ”Front seat height table”.
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Risk of tipping: Always check the setting of the
the anti-tips.
Front seat height table
G
F
E
D
C
B
A
6 54 32 1
Rear wheel
pos.
G
attachment
Low front fork
Castor
wheel
4”*
5 mm19 mm
1
2
3
Castor wheel position (cm)
Front fork extra shortFront fork shortFront fork mediumFront fork long
123123123123
-34-38
35,5-
39,5
---------
5”***
---36-40
37,5-
39-43------
41,5
A-F
attachment
Low front fork
6½”
5”***
A-F
6”
6½”
A-E
Standard/Widened front fork attachment
A-C
* Maximum user weight 100 kg
For correct setting of the front fork attachment: Max. backward inclination 6 cm higher front than rear (9°), max. forward
inclination 2 cm lower front than rear (3°).
** Possible in balance position 4-6 with 3° backward inclination and Std leg support. Make sure the fork/castor wheel
can rotate freely without hitting the wheelchair or user. For 8x2” castor wheels, use the Transit fork (gives a seat height of
47-51 cm).
*** With Cross 5 XL max user weight 135 kg.
7”
8”**
-----41-45------
---
----40-44
----41-45
-------
-------48-5149-52-
37,5-
41,5
39-43
40,5-
44,5
41,5-
45,5
42,5-
46,5
43-4645-4846-49---
45-4746-4947-50---
46-4847-4948-51
47,5-
49,5
48,5-
51,5
50,5-
51,5-
52,5
53,5
--53-56
52,5-
54,5
52,5-
55,5
53,5-
56,5
13
Page 14
Etac / Cross 5 / www.etac.com
Mounting front fork
5. Settings
Cross 5
Cross 5 XL
- Pull out the cover plug (A) and unscrew the retain-
ing nut (B). Pull out the front fork and put the bevelled washer (C) and the bearing on the new fork.
- Mount the washers and bearings in the front fork
attachment as illustrated. Washer (C) is mounted
with the bevelled side towards the front fork. Washer (D) on top under the retaining nut.
- Tighten the retaining nut until it cannot be turned
any more. Loosen it 1/2-1 turn. The spring washer
then has the correct tension. It reduces the risk of
the castor starting to “wobble”.
- Mount the cover plug.
Setting the angle of the front fork attachment
The correct angle setting is important
for the wheelchair’s manoeuvrability.
Unscrew the lower attachment screw (A) about 2
turns so that the shaft (C) moves freely inside the
sleeve.
A
B
D
19 mm
C
position that enables the wheel to move forward in
the rotation (D). Hold the shaft in place while the
lower attachment screw is tightened.
Risk of tipping: Always check the setting of the
the anti-tips.
Insert the Allen key in the hole (B) and turn until the
attachment is 90° to the floor. Always start from a
6 mm
B
C
20Nm
A
Keep your eye on something vertical, e.g. a door
frame or table leg, while setting the angle.
D
14
Page 15
5. Settings
Rear seat height
Rear seat height can be adjusted by:
-Changing the position of the rear wheel in the
frame.
-Changing the position of the rear wheel in the
camber washer.
-Changing the rear wheel.
Risk of tipping: Always check the setting of the
the anti-tips.
Adjusting rear seat height by changing rear wheel position or rear wheel size
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
1. Remove the rear wheel.
2. Unscrew the nut.
3. Reassemble in desired position (see table in section
”Rear seat height table”).
1
2
24 mm
Risk of tipping: Always check the setting of the
the anti-tips.
4
20 Nm
3
15
Page 16
Etac / Cross 5 / www.etac.com
When assembling, check so that the rear wheel
axle is correctly adjusted. The button in the hub
must pop out to the original position.
1
2
G
F
E
D
C
B
A
6 54 32 1
5. Settings
Cross 5
Cross 5 XL
Assembly in pos. G1 & G2
Assembly 0° Camber
E
24 mm
17 mm
C
A
135
16
Page 17
Rear seat height table
Rear wheel position, height
5. Settings
Etac / Cross 5 / www.etac.com
WheelSeat hgtDistance
Cross 5
Cross 5 XL
G
F
E
D
C
B
A
Seat height, rear
Position A
Position B
Position C
20”
22”
24”
26”
20”
22”
24”
26”
20”
22”
24”
26”
20”
22”
46 cm4,5 cm
48,5 cm7,0 cm
51 cm9,5 cm
53 cm12 cm
44 cm6,5 cm
46,5 cm9,0 cm
49 cm11,5 cm
51 cm14 cm
42 cm8,5 cm
44,5 cm11,0 cm
47 cm13,5 cm
49 cm16 cm
40 cm10,5 cm
42,5 cm13,0 cm
Distance wheel-seat
Position D
Position E
Position F
Position G
24”
26”
20”
22”
24”
26”*
20”
22”
24”
26”*
20”
22”
24”
26”
45 cm15,5 cm
47 cm18 cm
38 cm12,5 cm
40,5 cm15,0 cm
43 cm17,5 cm
45 cm20 cm
36 cm14,5 cm
38,5 cm17,0 cm
41 cm19,5 cm
43 cm22 cm
34 cm16,5 cm
36,5 cm19,0 cm
39 cm21,5 cm
--
*In pos E1 and F1 not with user brake
17
Page 18
Etac / Cross 5 / www.etac.com

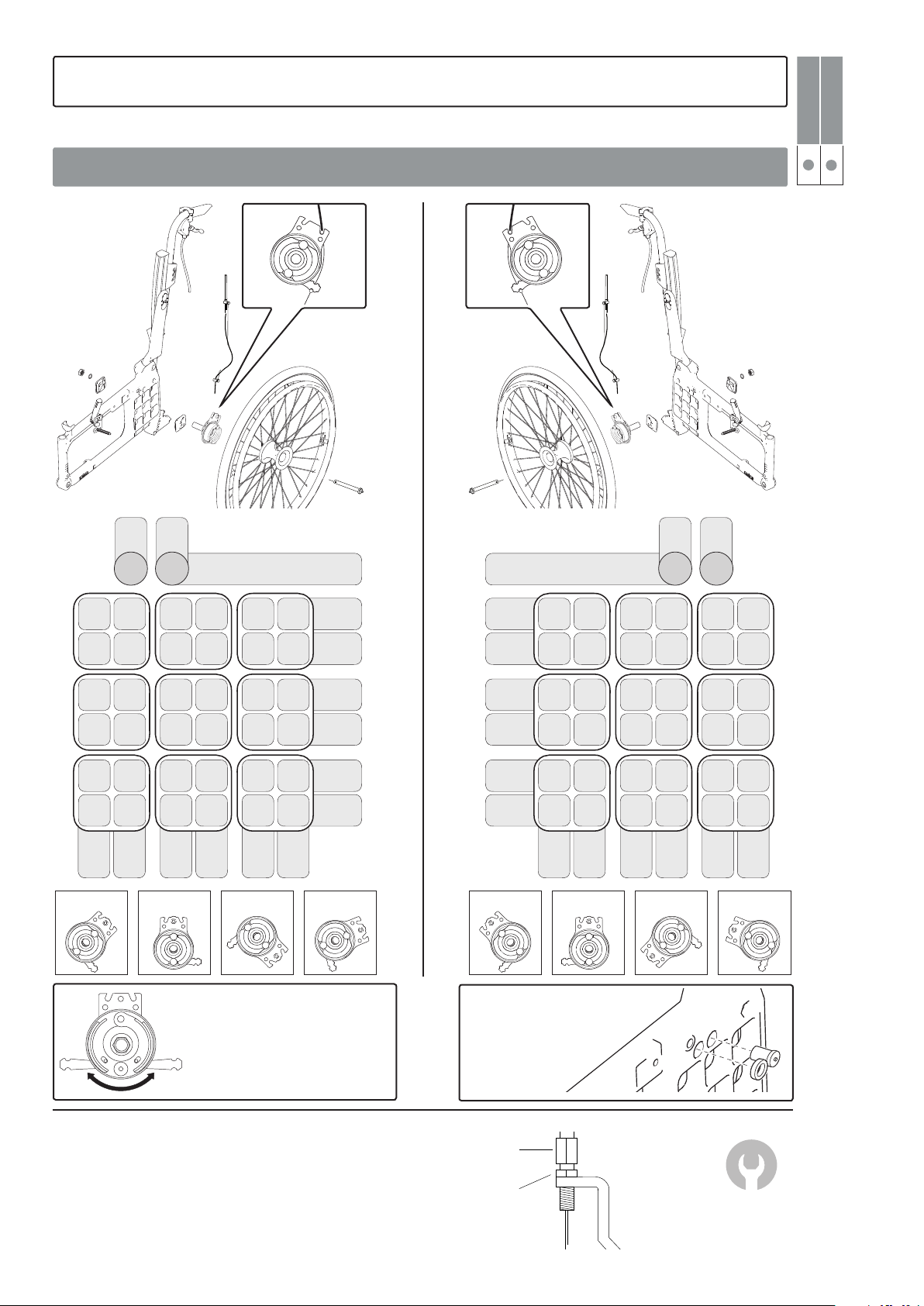

Drum brake
5. Settings
Cross 5
Cross 5 XL
2
1
G1G2
F1F2
E1E2
D1 D2
C1 C2
B1B2
A1 A2
F3F4
E3E4
D3 D4
C3 C4
B3B4
A3 A4
123456
Pos A1-5, B-E,
F1-F2
Pos A6
G
F5F6
E5E6
D5 D6
C5 C6
B5B6
A5 A6
Pos F3-F6Pos G1- G2
F
E
D
C
B
A
G
F
E
D
C
B
A
Pos A1-5, B-E,
F1-F2
1
2
G2G1
F6F5
E6E5
D6 D5
C6 C5
B6B5
A6 A5
F4F3
E4E3
D4 D3
C4 C3
B4B3
A4 A3
F2F1
E2E1
D2 D1
C2 C1
B2B1
A2 A1
654321
Pos A6
Pos F3-F6Pos G1- G2
The brake arm is reversible.
To adjust the brakes, loosen nut (A). Loosen/tighten
screw (B) in order to reach proper brake function.
Tighten the nut (A). This adjustment should be done
when the brakes are not working properly.
Assembly pos. G1 and G2
B
A
8 mm
18
Page 19
75190T 18-01-09
This part of the manual (User manual)
should be torn out and at all times follow
the wheelchair. This as it contains important user information.
Etac / Cross 5 / www.etac.com
User manual
Etac Cross 5
Etac Cross 5 XL
Etac Cross 5 Active
19
Page 20
Etac / Cross 5 / www.etac.com
User manual
Contents
User manual
Symbols and warnings .....................................................20
Transportation in vehicles ................................................. 21
These symbols appear on labels and in the user manual.
SecuringRemovable part, do not lift! Risk of tipping: Always have
the anti-tips down when in
motion
General warnings
The following should be taken into account in any use of the product.
Pinch point hazard
Max tilt up
(excl anti-tip)
Bright sunlight can heat up
parts of the wheelchair and
cause burns
After adjusting seat height, centre of balance, back support
angle or back support upholstery, the anti-tips function must
always be checked.
20
Do not lift the chair by
removable parts!
6°
The chair may tip over if the
backward tilt is greater than
6°. Use anti-tips!
Page 21
User manual

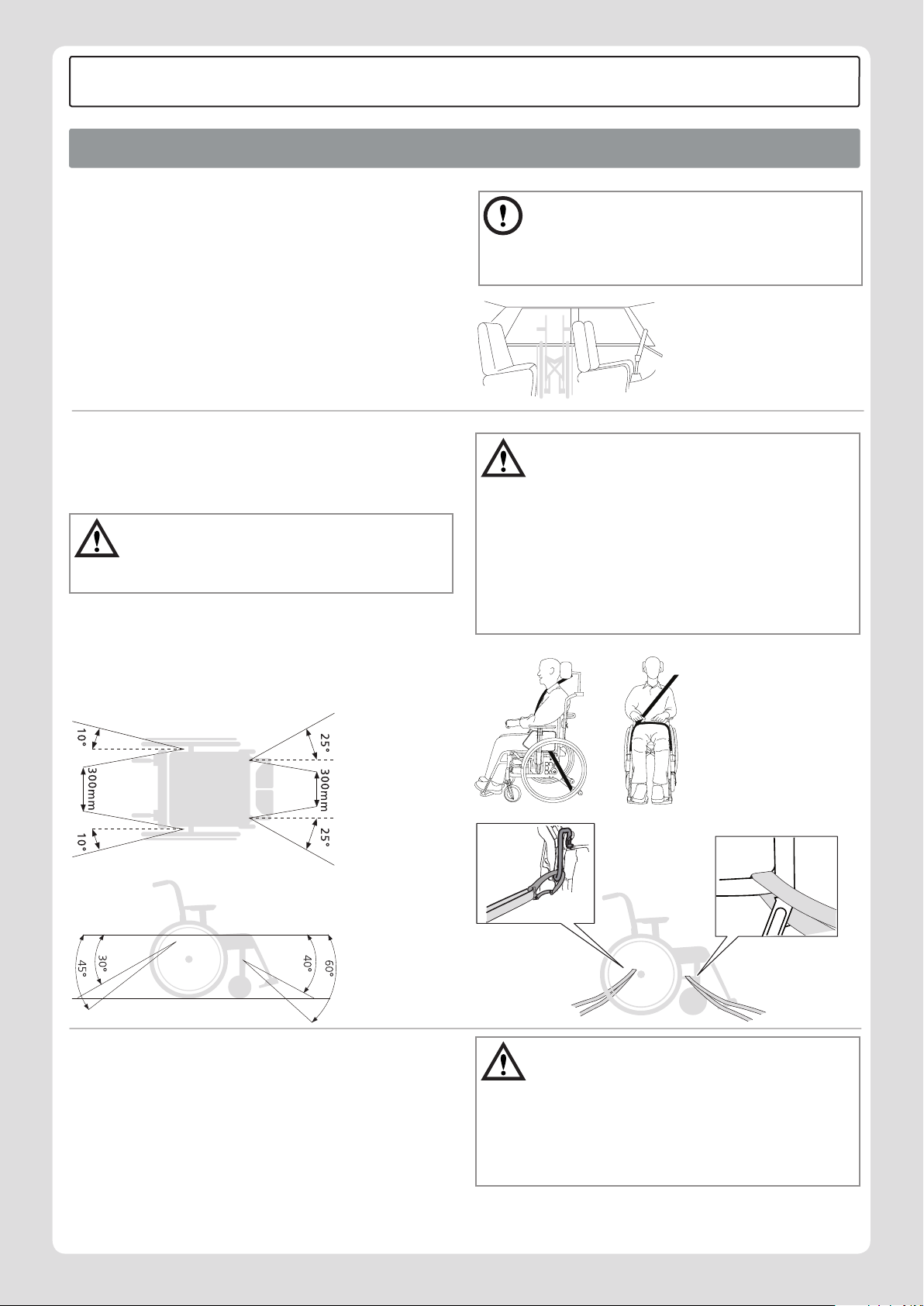

Transportation in vehicles
Etac / Cross 5 / www.etac.com
3
Etac’s wheelchairs are tested in accordance with ISO
7176-19 (see ”Tests and guarantees” section in the
manual).
Etac recommends in the following order:
1) The user transfers to a seat in the vehicle and uses the
vehicle’s 3-point belt while travelling. The wheelchair
is then placed in the boot or safely in the back seat so
that it cannot overturn or roll.
2) The wheelchair is secured facing forwards in the vehicle
as per this manual, the user uses a separate 3-point
belt that is secured in the vehicle. This is the way in
which the wheelchair is tested and approved.
Securing
• Securement points rear must be used.
• Restraining device must not be put through the wheels
or around the back tubes.
• If possible, the wheelchair should be placed in the
boot.
• If the wheelchair is placed in the back seat, make
sure it can not overturn or roll. If possible secure the
wheelchair with the car’s safety belt.
• The parking brake must be used.
• The anti-tips must be lowered.
• Accessories/parts that can be removed without tools,
shall be removed and secured.
• A correctly adjusted head support shall be used.
• The back support shall be level with or above the user’s
shoulders.
• Cross brace or head support attachment 3A must be
used (Cross 5)
• Cross brace must be used (Cross 5 XL).
• Rear wheels must have handrims.
3) According to directive 2001/85/EC, appendix VII, point
3.8.3. there are specially marked wheelchair locations
in vehicles that permit transport with a wheelchair
facing in the opposite direction of travel. If this means
of travel is used, the user/carer must be aware while
travelling, prepared for sudden movements and have
the capacity to maintain a safe sitting position throughout the entire journey. The user’s disabilities must not
be of such an extent that he/she is not able to hold
onto the handles fitted in the vehicle when there are
changes of speed or direction.
• The parking brake must be used.
• The anti-tips must be lowered.
• Accessories/parts that can be removed without tools,
shall be removed and secured.
• A correctly adjusted head support shall be used.
• The back support shall be level with or above the user’s
shoulders.
• Positioning belt must be used.
21
Page 22
Etac / Cross 5 / www.etac.com

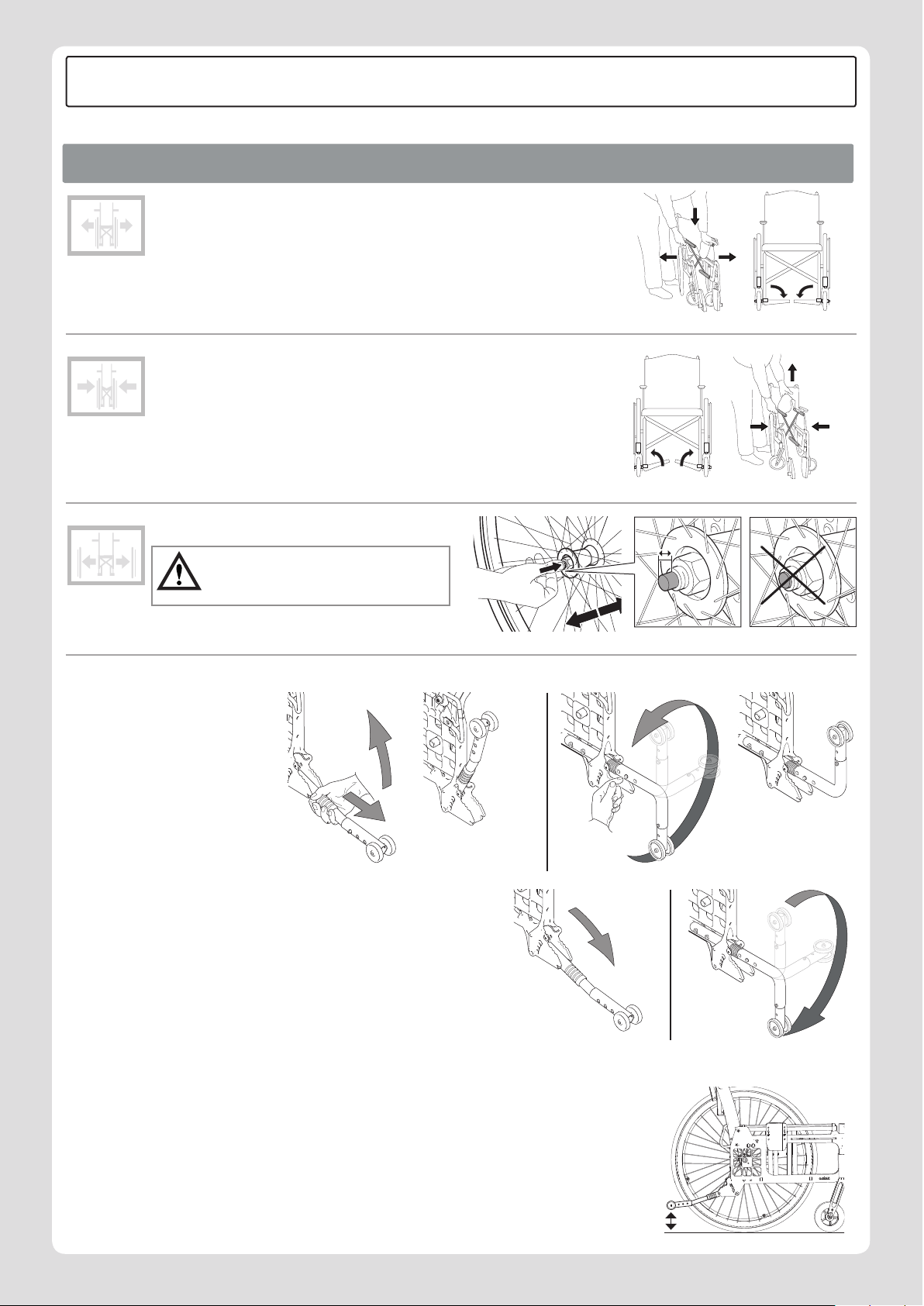

Unfolding
• Push down on one side of the seat frame,
using the whole of the flat of the hand.
• Do not hold the seat frame tube while
unfolding as there is a risk of pinching
your fingers.
• Lower the foot supports.
Folding
• If a bow handle and/or cross brace is
mounted they should be removed.
• Flip up the foot supports.
• Lift up the seat.
User manual
Handling
Rear wheel with quick release
When assembling, always check so that
the quick release button pops out to the
original position.
Anti-tips
• The anti-tips can be flipped up.
• Ensure the locking function
works properly when activating the anti-tip.
Click!
Click!
Click!
Click!
• After any adjustments on your wheelchair, always
ensure that you check the function of the anti-tips.
If necessary to adjust, please contact your dealer or
your Technical Aids Centre.
3-7 cm
22
Page 23
User manual
Etac / Cross 5 / www.etac.com
3

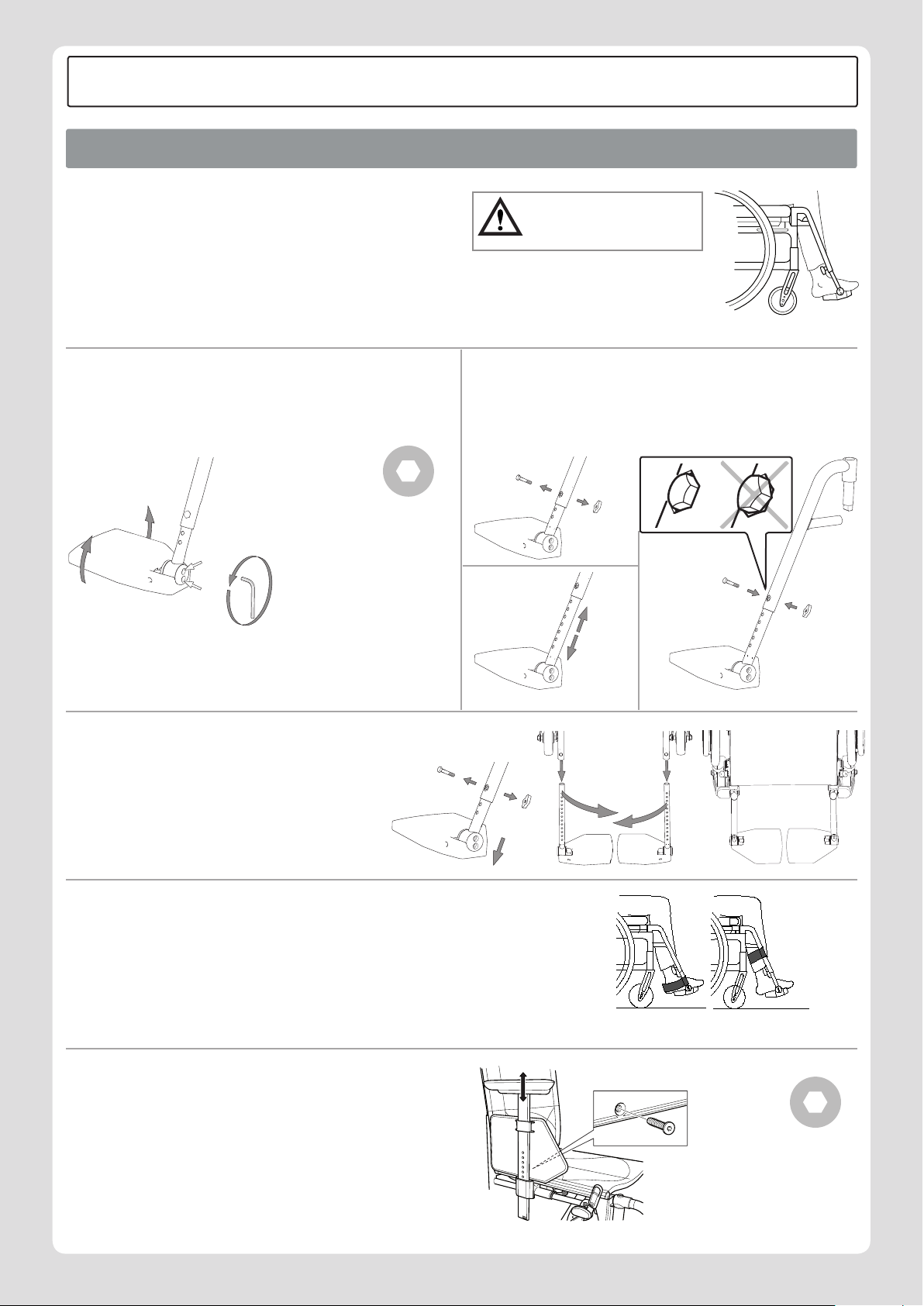

Leg support
The leg supports can be removed/swung to the side if
needed. Lockable leg supports by pushing the red button
(A).
To fasten the lockable leg supports press down on the red
button (A), put the leg support into place and release the
button. The leg support is now locked (B).
Before lifting the wheelchair, check that the leg
supports are locked.

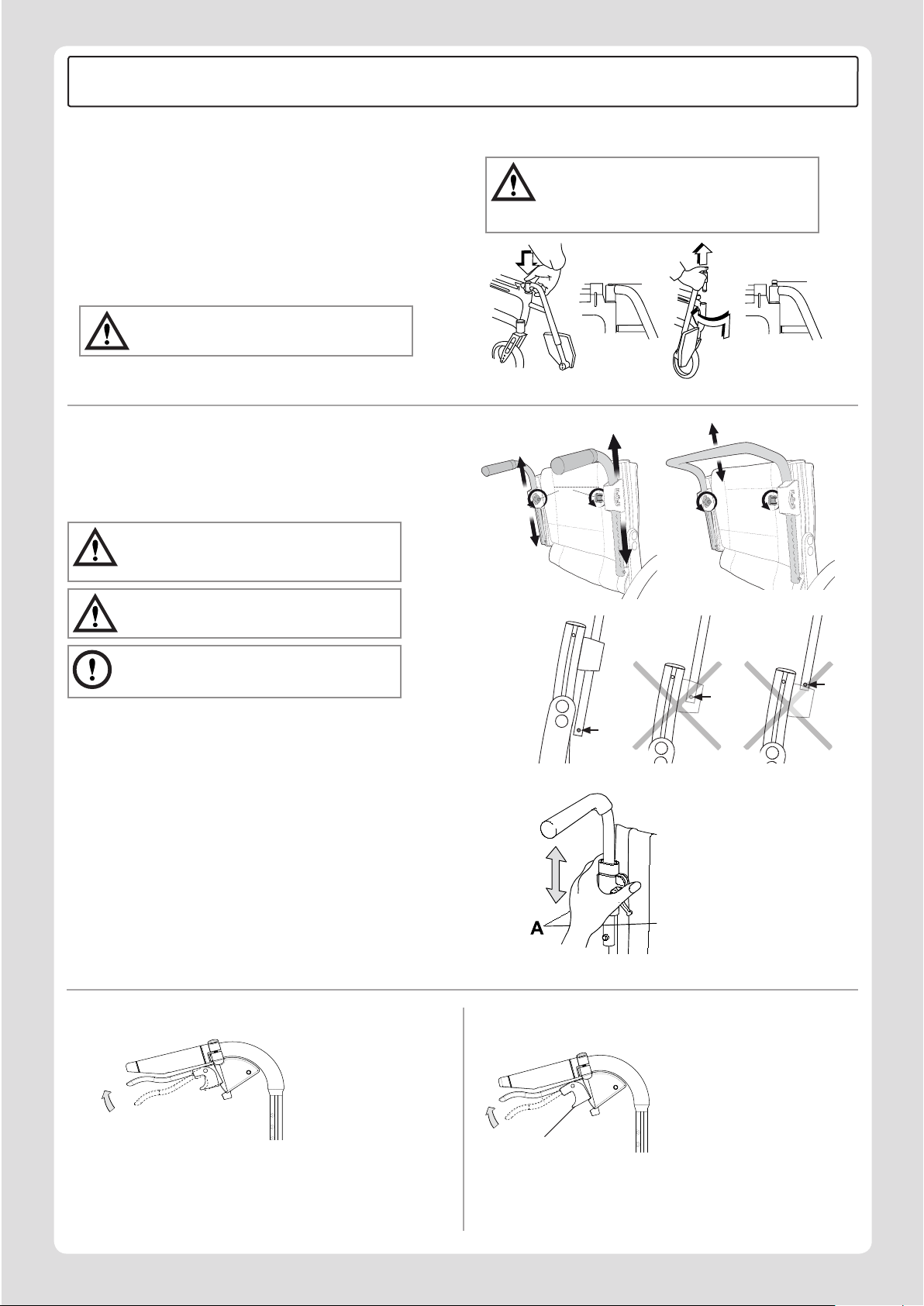

Push handles/bow handle, height adjustable
Loosen the knobs (A). Set desired height. Ensure that the
push handles are locked in the correct position, tighten
the knobs.
Ensure that the knobs are properly tightened.
This is especially important if the chair is to be
lifted with the user sitting in it.
Make sure the safety button pops out below the
bracket.
For lifting a wheelchair without lockable leg
supports: Swing in the leg supports under the
seat, or remove them, and lift using the frame
(lower or upper part).
A
AA
B
The bow handle must be removed before the
chair can be folded.
Back support mod. 2
Loosen the knob (A) and press the red plastic washer.
Then as above.
Cross drum brake (service brake)
Cross drum brake (parking brake)
• Brake while in motion by pulling the brake lever
upwards.
A
• Activate the parking brake by pulling the brake lever
upwards and pressing in button A.
• Release by pressing the lever upwards.
23
Page 24
Etac / Cross 5 / www.etac.com
User manual

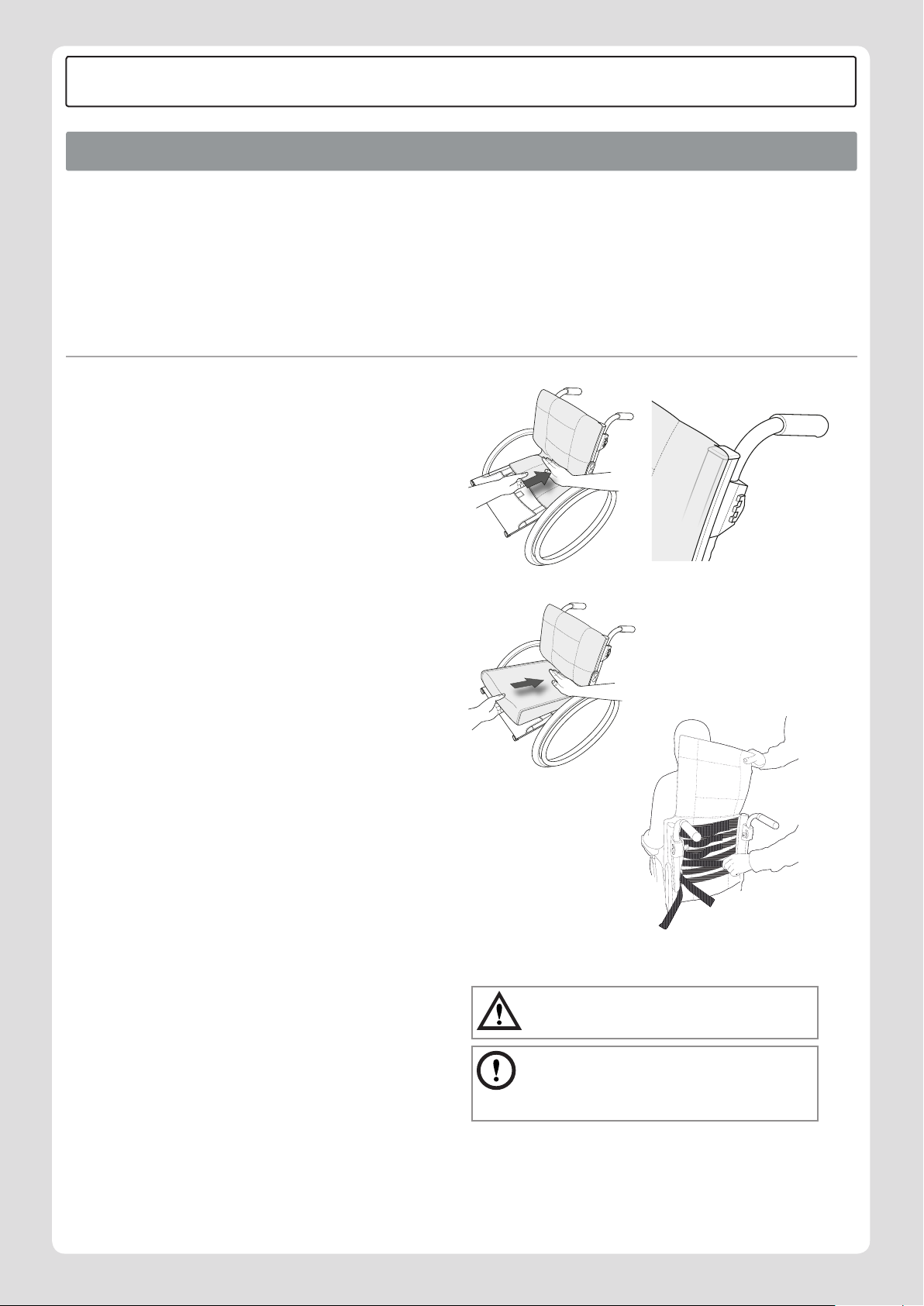

Settings seat comfort
Seat comfort
Good seating comfort depends on the needs and possibilities available to each individual. The following general
guidelines here show what to consider when settings are
made.
Select a seat cushion with care. Aside from comfort, it has
an impact on stability and thereby freedom of movement.
Seat cushions also have different pressure distribution
Back support cover
• Loosen all back straps, but make sure that the Velcro is
still stuck together.
• Place the back support cover so that it covers the upper
edge of the back rails and forms a crease between the
seat and the back support allowing the user to properly
sit in on the seat.
Seat cushion
• Make sure that the correct seat depth is set.
qualities.
The back support setting is a combination of angles,
height and shape. This is why the angle settings and
height for the back support may need to be adjusted
when the back support cover is being adjusted.
• Position the cushion as far back on the seat so that the
rounded corners end up between the back rails.
• Measure a suitable seat cushion length and cut it accor-
ding to supplied instructions.
• A more contoured seat cushion can be obtained by
using a comfort wedge which is placed in the cushion
cover’s pocket under the seat cushion.

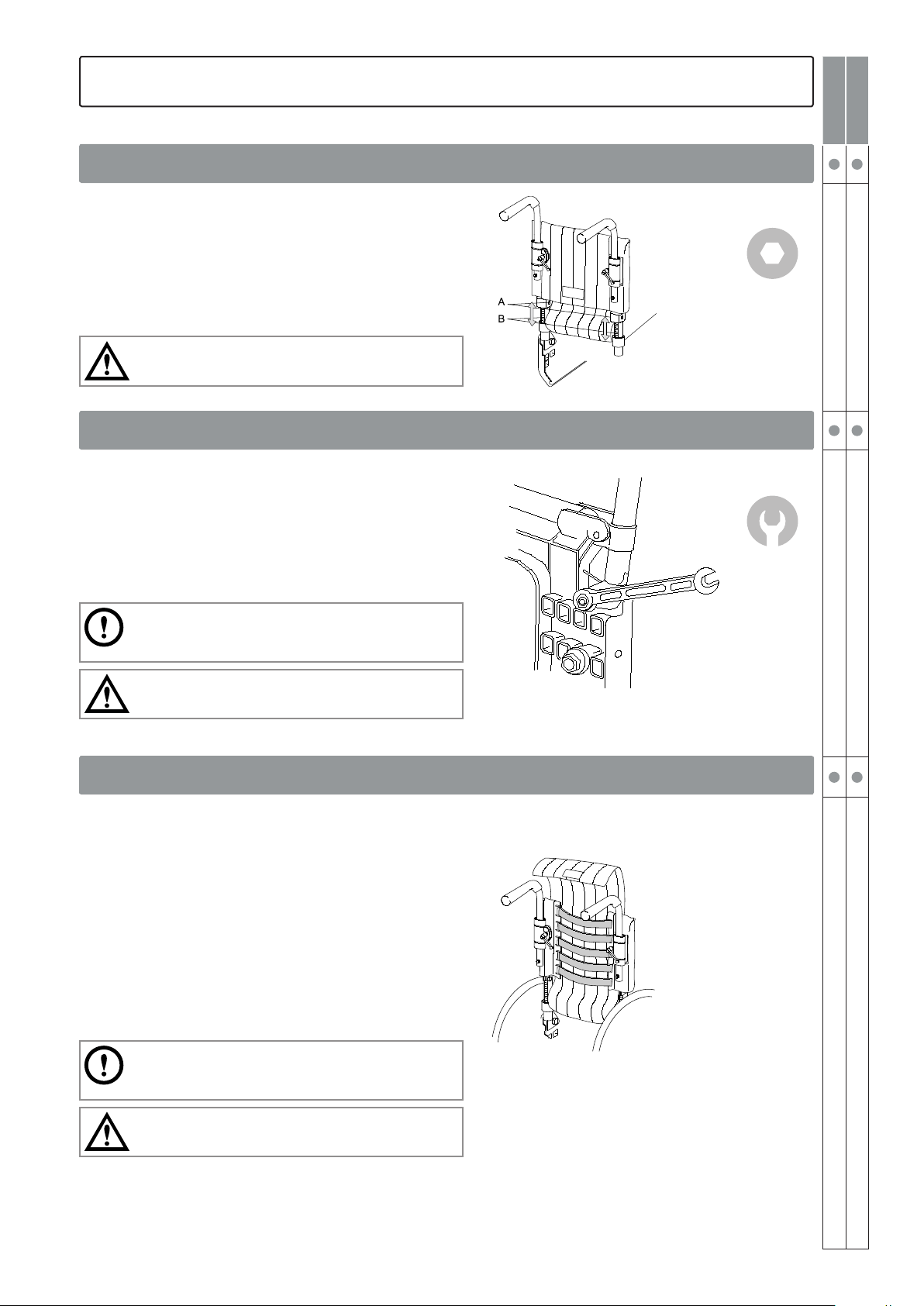

Back support upholstery
The back support upholstery is adjusted with the user sitting in the wheelchair.
• Make sure the user is sitting as far back in the seat as
possible.
• Support the pelvis by tightening the strap found just
below the lumbar region.
• Then adjust the upper strap to provide the user with
upper body support and balance.
• The other straps are adjusted to provide space for the
user’s posterior and follow the back’s natural curvature.
Risk of tipping: Always check the setting of the
the anti-tips.
Do not overtighten the upper straps as this can
prevent the cross-brace from unfolding properly,
i.e. the seat-frame tubes do not sit flush in the
sideframes.

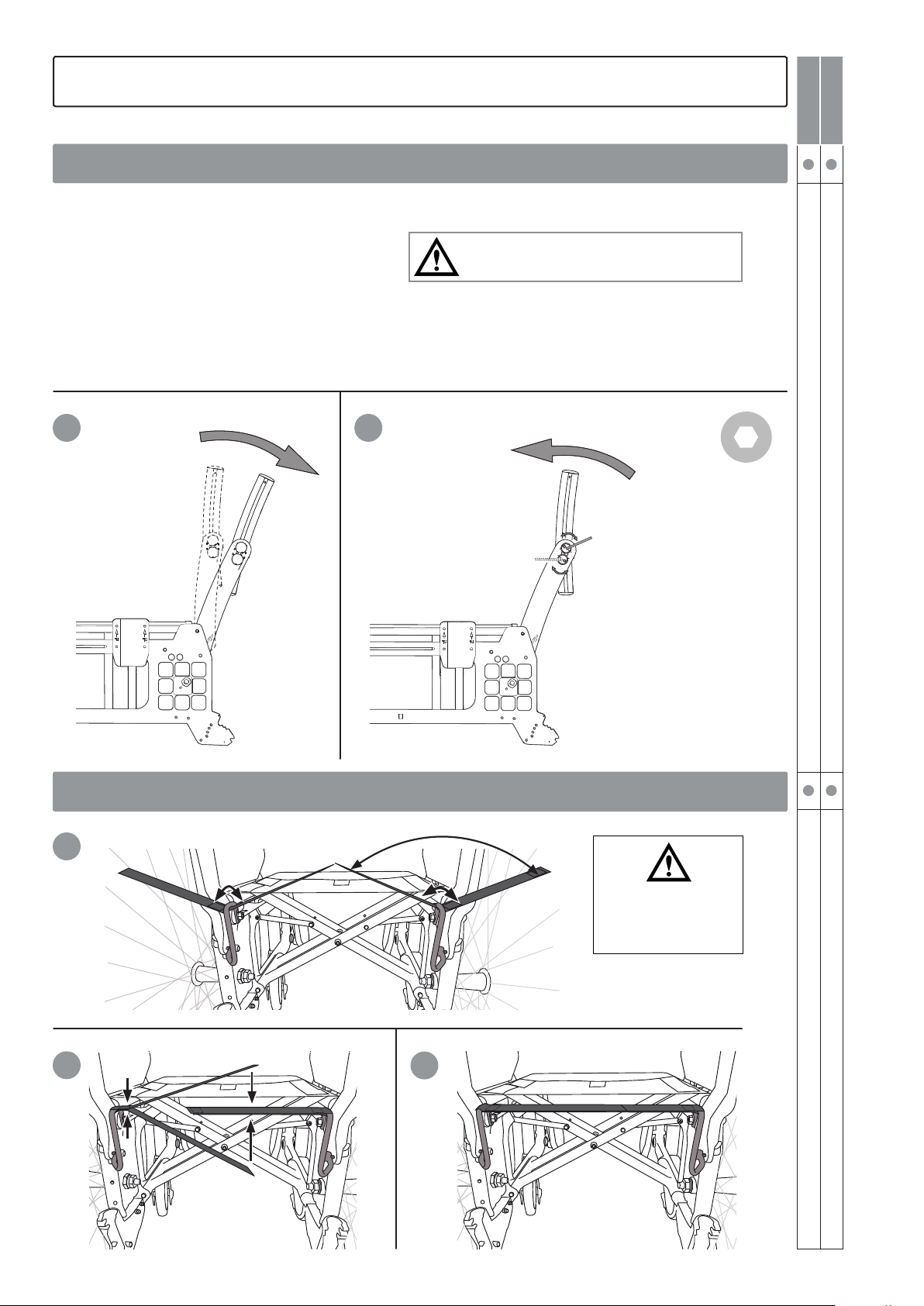

Back support angle
The back support angle may need to be adjusted when
adjusting the shape of the back support upholstery.
Contact your dealer or your Technical Aids Centre.
24
Page 25
User manual
Settings seat comfort
Etac / Cross 5 / www.etac.com
Foot supports
Adjust the height until you are sure that your feet are
supported and your thighs are resting on the cushion.
For outdoor use the foot supports should be raised 4-5
cm above the ground.
Adjusting the angle
Adjust the foot support angle, so the ankles are at 90°.
5 mm
Never stand on the foot
supports as there is a risk of
tipping!
Adjusting the height
Loosen the knob and pull out the screw. Set the height.
Assemble the screw and knob and tighten firmly.
Changing the depth of the foot supports
Adjust the depth of the foot supports by switching the
right and left foot support. Do not forget to adjust the
angle.
Calf/heel strap
• Adjust the length so that your insteps rest on the foot
supports.
Arm support (adjusting)
• Loosen the screw on the inside of the arm support
plate.
• Set the required height and tighten the screw.
• The high position of the arm supports, supports and
relieves pressure on the back better than a lower
position.
3 mm
25
Page 26
Etac / Cross 5 / www.etac.com

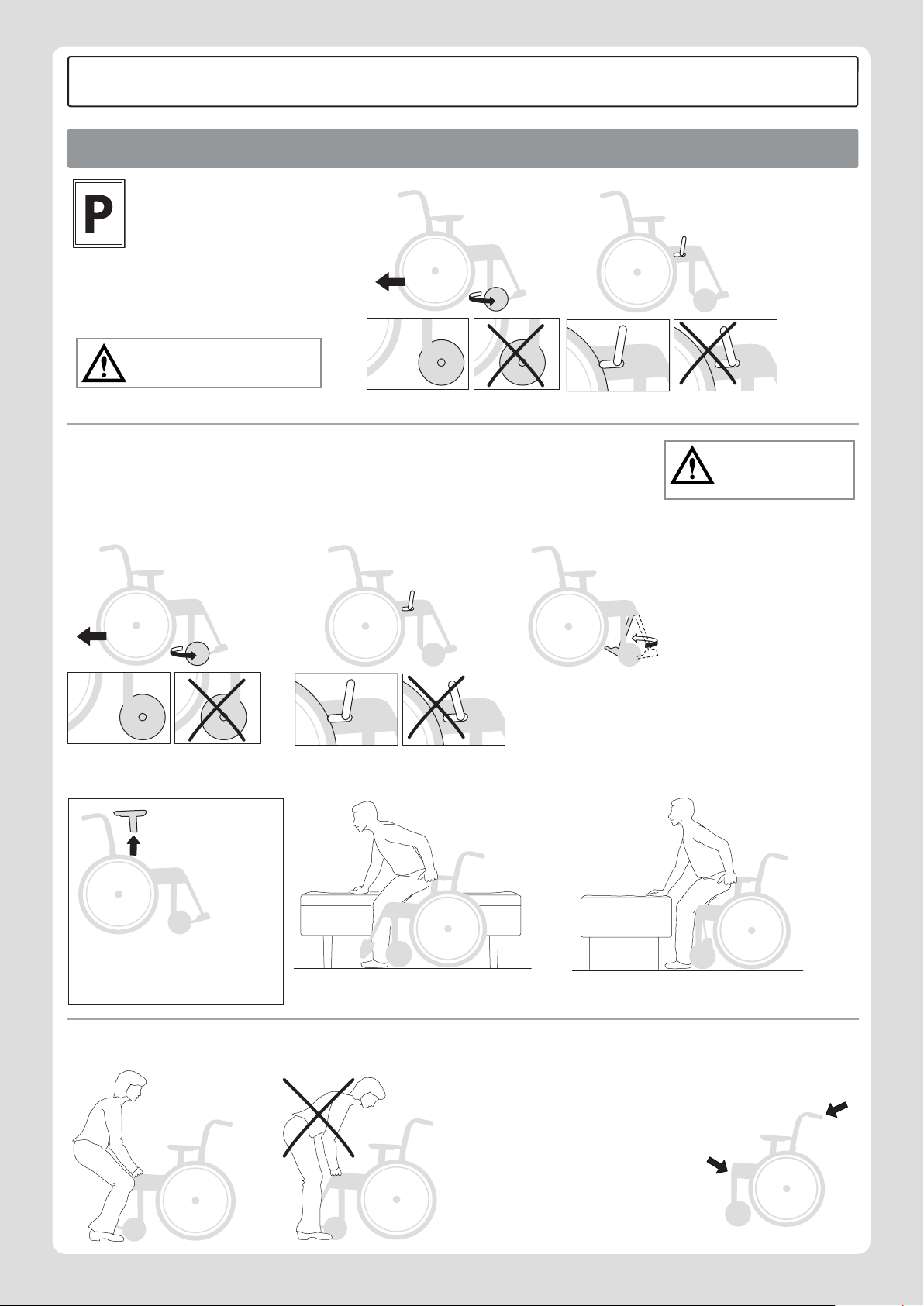

Parking
Turn the castor wheels forwards and
activate the brakes.
Never park on a slope with a
user in the wheelchair.
5
User manual
Driving technique, maneuvering
Transferring into/out of the wheelchair
Turn the castor wheels forwards, activate the brakes, flip
up the foot supports and twist the leg supports to one
side.
Sideways
Never stand on the
foot supports as there
is a risk of tipping!
From the front
Remove the arm support on
the side where transfer is to
take place.
Lifting the wheelchair
• Ensure that the vertically adjustable push handles are
properly tightened.
• Swing non-lockable leg supports in
under the seat and lift the
wheelchair by the front
upper part of the frame.
26
Page 27
Etac / Cross 5 / www.etac.com
User manual

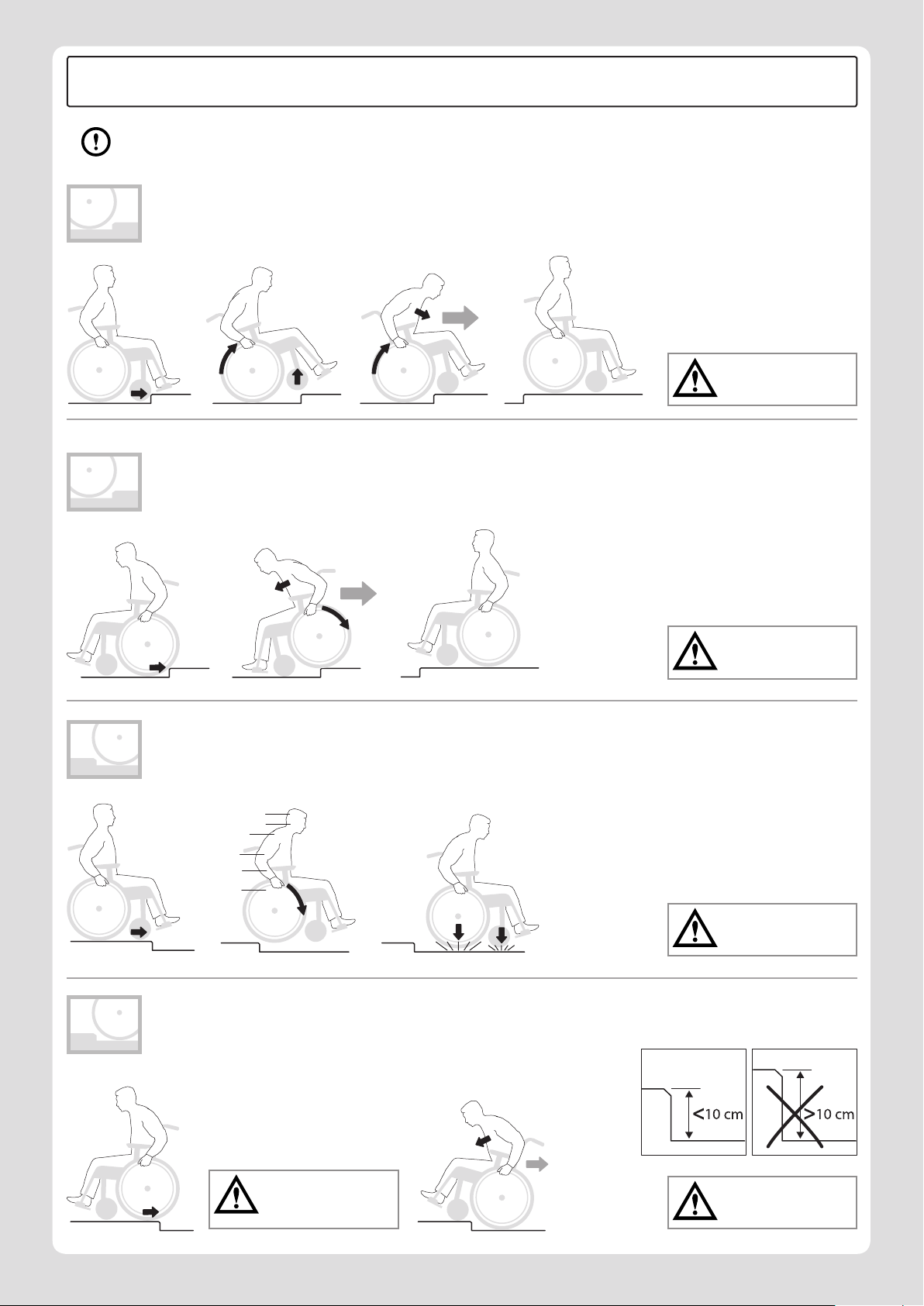

The following figures show principles for propelling techniques and how to overcome obstacles like steps and curbs.
User, up forwards
This technique is recommended only for experienced wheelchair users.
– Ensure that the anti-tips are deactivated.
Activate the anti-tips
afterwards!
User, up backwards
This technique only works if there is a low kerb/threshold, relative to the installed height of the foot supports.
– Ensure that the anti-tips are deactivated.
User, down forwards
This technique is recommended only for experienced wheelchair users.
– Ensure that the anti-tips are deactivated.
Activate the anti-tips
afterwards!
Activate the anti-tips
afterwards!
User, down backwards
This technique is recommended only for experienced wheelchair users.
– Ensure that the anti-tips are deactivated.
There is a greater risk
of tipping during this
manoeuvre!
27
Activate the anti-tips
afterwards!
Page 28
Etac / Cross 5 / www.etac.com

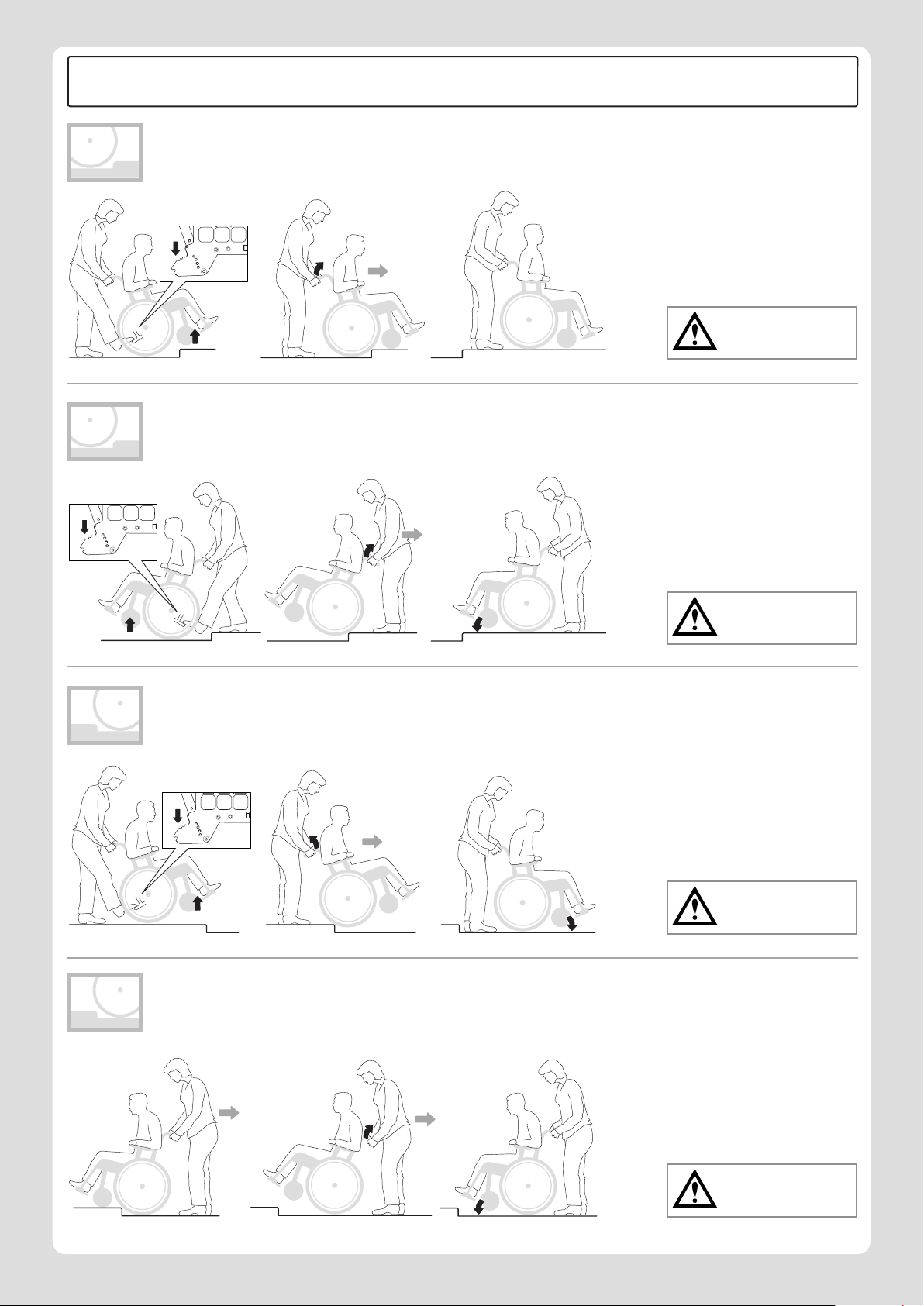

Care giver, up forwards
– Ensure that the anti-tips are deactivated.
Care giver, up backwards
– Ensure that the anti-tips are deactivated.
7
User manual
Activate the anti-tips
afterwards!
Care giver, down forwards
– Ensure that the anti-tips are deactivated.
Care giver, down backwards
– Ensure that the anti-tips are deactivated.
Activate the anti-tips
afterwards!
Activate the anti-tips
afterwards!
28
Activate the anti-tips
afterwards!
Page 29
8
Etac / Cross 5 / www.etac.com
User manual

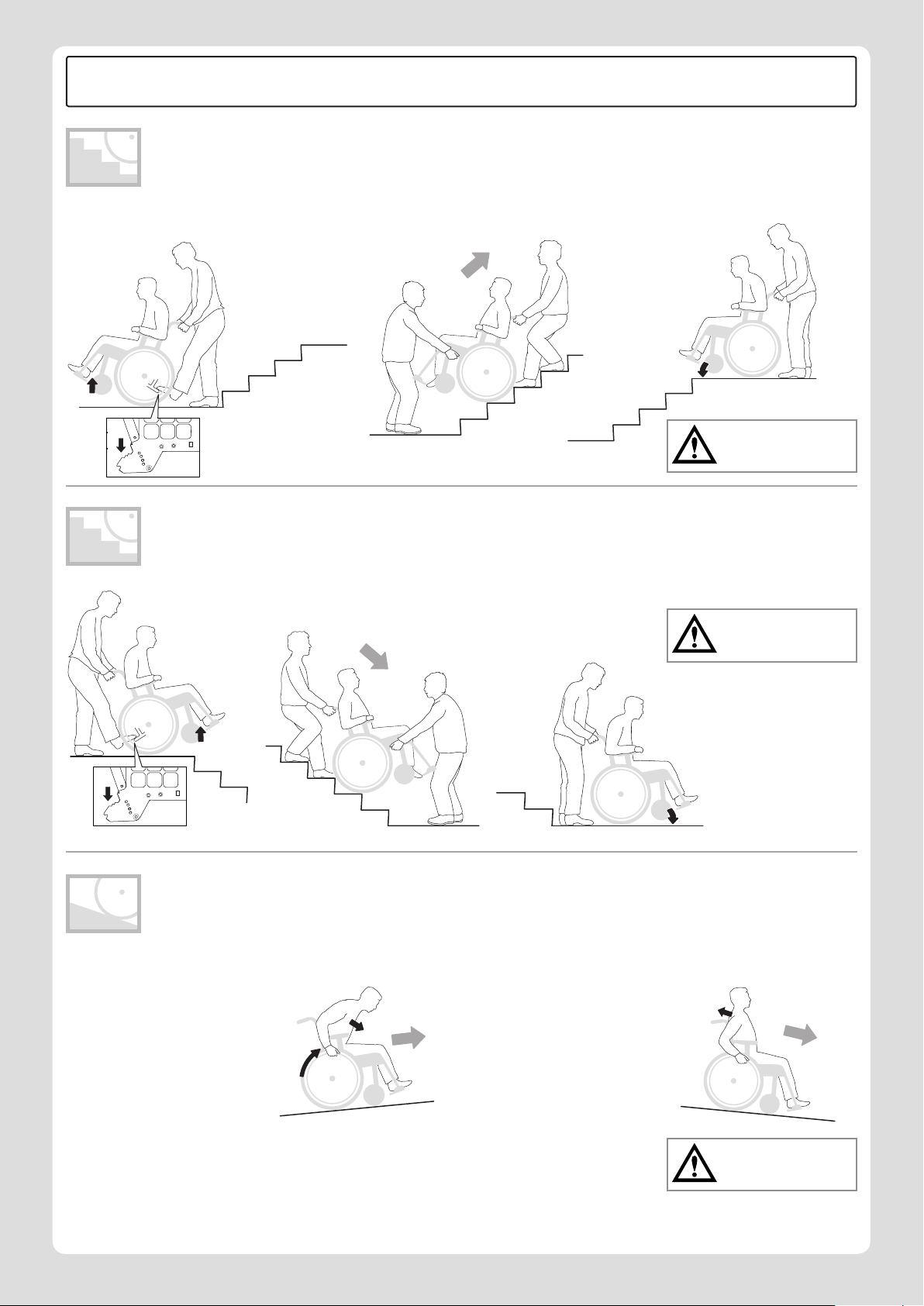

Stairs, up
– Ensure that the anti-tips are deactivated. Never
use an escalator, even if a care giver is available.
Ensure that height adjustable push handles
are tightened.
Stairs, down
– Ensure that the anti-tips are deactivated. Never
use an escalator, even if a care giver is available.
Ensure that height adjustable push handles are
tightened.
We always recommend using two carers for this
transfer. One who walks behind and holds on to
the push handle and one who walks in front and
holds on to the frame (or in the leg supports if
these are lockable).
Activate the anti-tips
afterwards!
We always recommend using two carers for this
transfer. One who walks behind and holds on to
the push handle and one who walks in front and
holds on to the frame (or in the leg supports if
these are lockable).
Ascending/descending hills
Control your speed using the handrims, not the brakes!
Avoid turning round in the middle of a hill. Always drive as straight up/down as possible. If uncertain,
ask for assistance.
Uphill
Lean forwards to correct your
centre of balance.
Activate the anti-tips
afterwards!
Downhill
Lean backwards to correct your
centre of balance.
29
Activate the anti-tips
afterwards!
Page 30
Etac / Cross 5 / www.etac.com
User manual
Maintenance
Rear wheels: Clean quick release axles as required.
Tyre pressure: Check the tyre pressure (once/month).
Castors: Clean castor wheel axles as required.
Chassis: Clean the chassis with non-abrasive detergent,
pH value 5-9 or with 70 % disinfectant solution. Rinse
and dry.
Fault-finding chart
• Pump up the tyres
The wheelchair is pulling
diagonally
The wheelchair feels “heavy” to
propel
The wheelchair feels “heavy” to
turn
• Check and adjust the angle of the front fork attachments
• Check that the front fork attachments are set at the same height
• The user’s weight is not evenly distributed in the wheelchair
• More strength being used on one side than the other when propelling the chair
• Pump up the tyres
• Rear wheel mountings are incorrectly fitted
• Clean the castor axles from hair and dirt
• Too much weight over the castors. Adjust the centre of balance
• Pump up the tyres
• Check that the front fork attachments are not too tight
• Check and adjust the angle of the front fork attachments
• Clean the castor axles from dirt
• Too much weight over the castors. Adjust the centre of balance
Upholstery: Wash, see labels on each item.
In the event of problems, contact your dealer or Technical
Aids Centre.
If necessary, lubricate moving parts/joints with cycle oil
or similar.
Brakes not effective
Rear wheels “loose”• Adjust the length of the axle shaft
Rear wheels hard to remove/replace
The castor wheels “wobble”
The wheelchair is hard to fold/
unfold
The wheelchair feels “awkward”
Etac
Box 203, 334 24 Anderstorp, Sweden
Tel +46 371 58 73 00
Fax +46 371 58 73 90
www.etac.com
• Pump up the tyres
• Adjust the distance between brake and tyre
• Clean and lubricate quick release with cycle oil or similar
• Adjust the length of the axle shaft
• The front forks are not tight enough
• Check and adjust the height and angle of the front fork attachments
• Too much weight over the castors. Adjust the centre of balance
• The upholstery is too tight
• Clean and lubricate the cross-brace under the seat
• Pump up the tyres
• Check that screws, nuts and bolts are properly tightened
30
Page 31

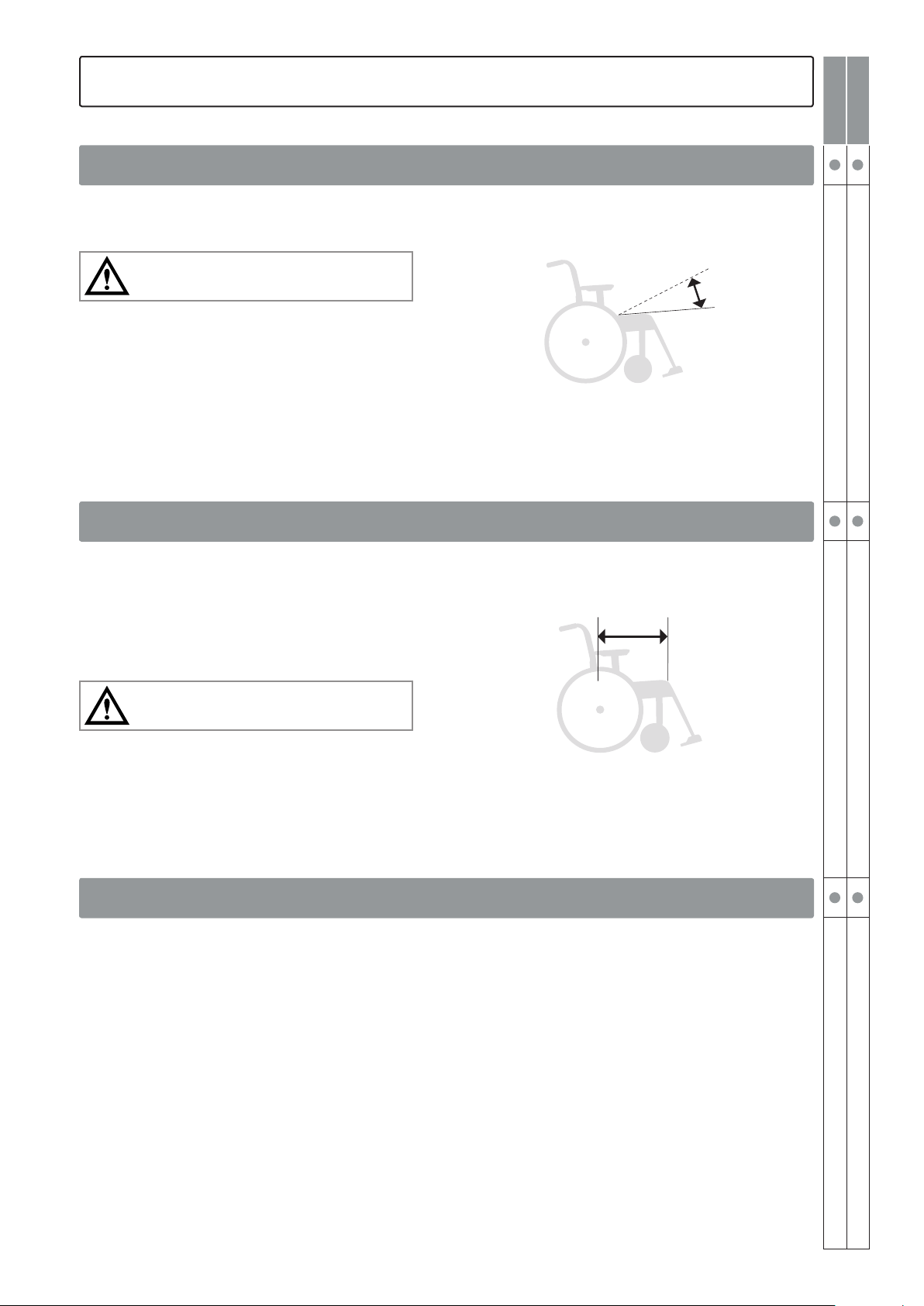

5. Settings
The seat angle is dependent on the difference
between the front and the rear seat heights.
Risk of tipping: Always check the setting of the
the anti-tips.
If the seat angle is changed:
- Adjust the angle of the front fork attachment.
- Check the back support angle.
Seat angle
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Seat depth
The seat depth can be adjusted by lifting the front
seat upholstery and sliding it backwards or forwards.
With Cross back support 3A triangular, the seat
depth can be further adjusted by means of the
lumbar angle (see the section ”Adjusting seat depth using lumbar angle, triangular back”).
Risk of tipping: Always check the setting of the
the anti-tips.
Seat comfort
After adjusting seat height, seat angle, seat depth
and back support angle, the back support upholstery must be adjusted to optimize the seat comfort.
See the “Settings seat comfort” section in the User
manual.
31
Page 32
Etac / Cross 5 / www.etac.com
2°
6. Settings back support 3A

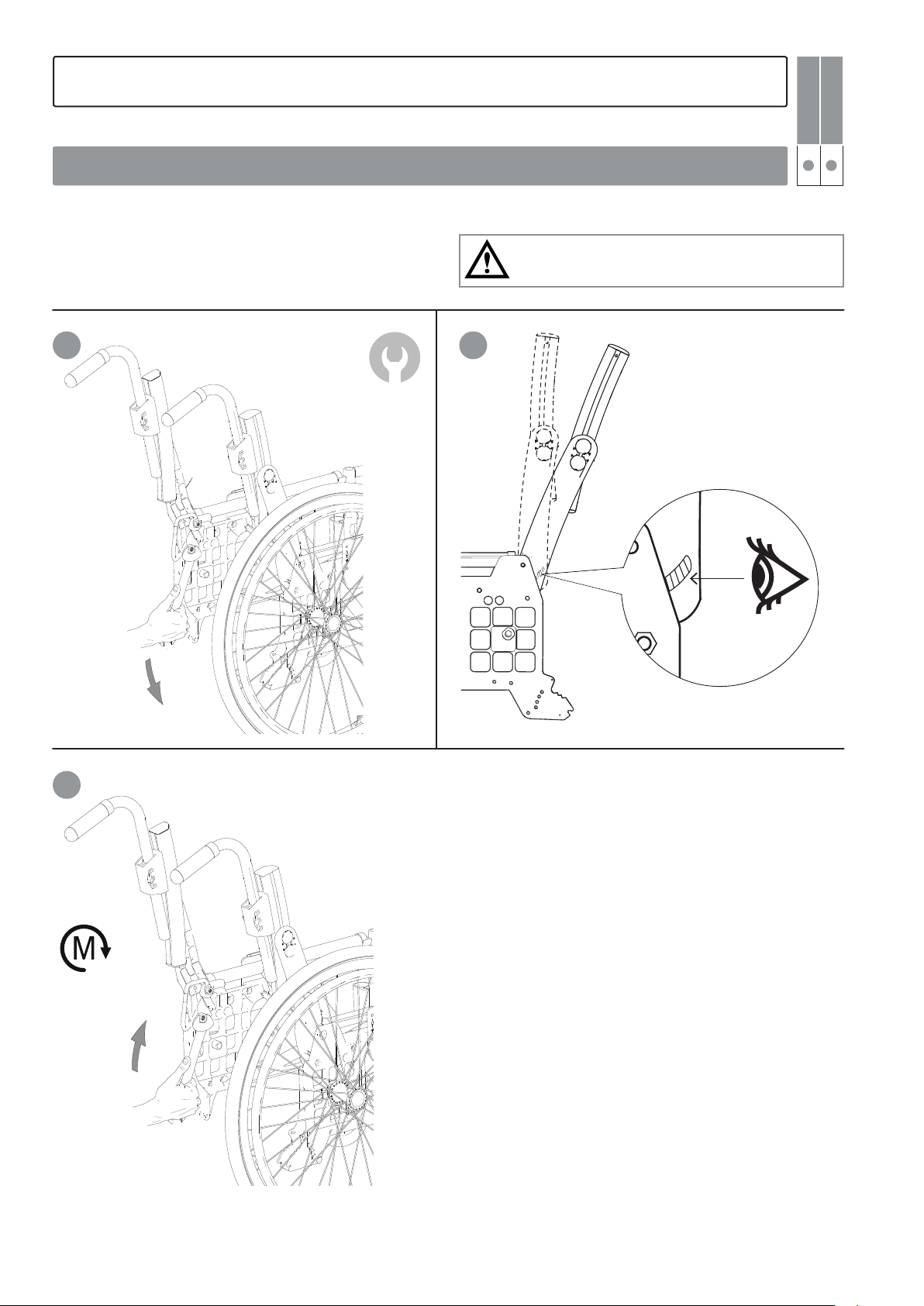

Adjusting back support angle
Cross 5
Cross 5 XL
1. Loosen the nut.
2. Adjust the back support angle. Use the position markings to obtain the same back support angle on the right
and left sides respectively.
12
13 mm
3. Tighten the nut.
Risk of tipping: Always check the setting of the
the anti-tips.
3
20 Nm
32
Page 33
Etac / Cross 5 / www.etac.com
1
1
5
5
1
1
5
5
6. Settings back support 3A

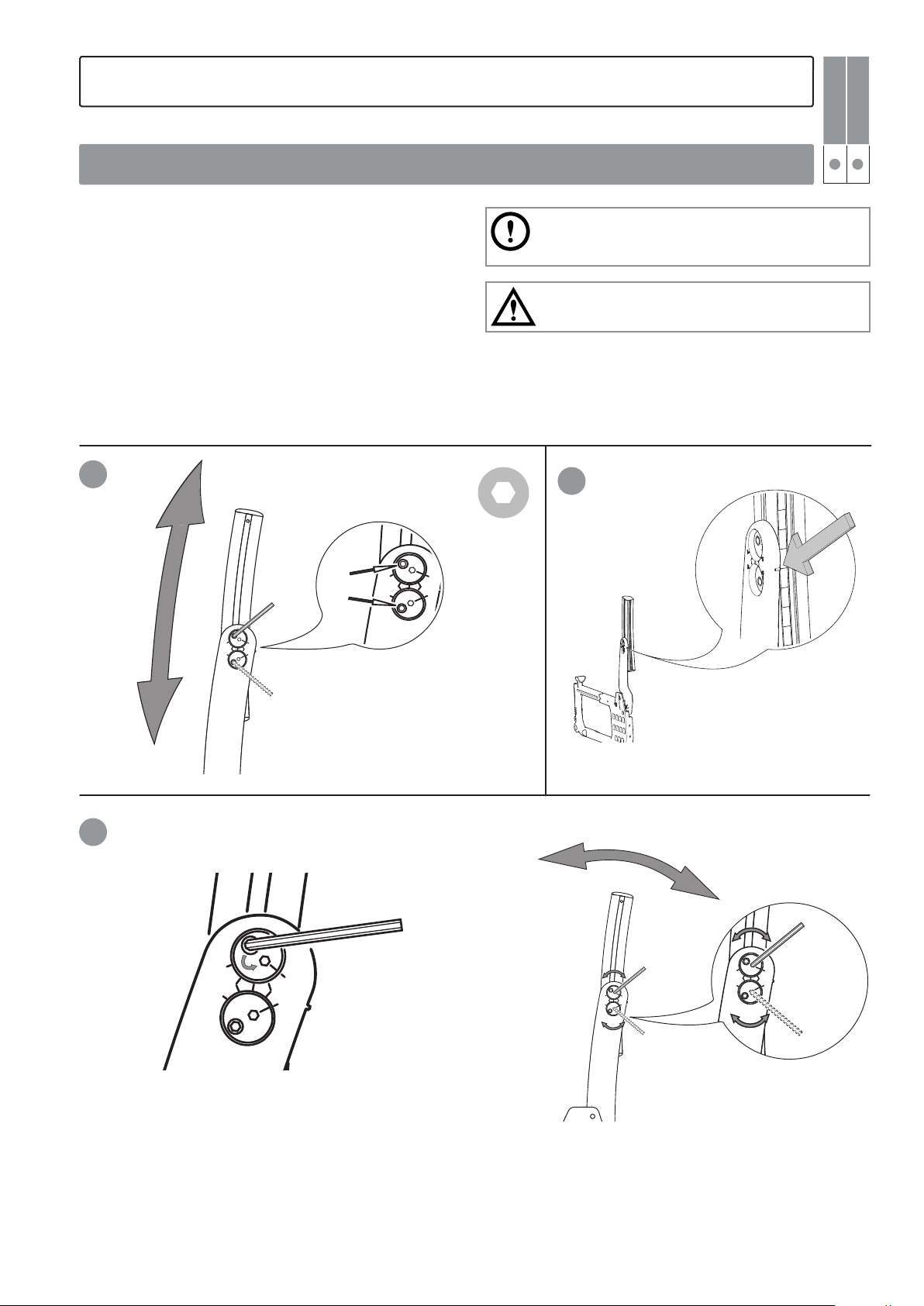

Adjusting the back support height and lumbar angle
Cross 5
Cross 5 XL
1. Loosen the locking screws (A) max. 1 turn.
2. Adjust the back support height using the graduation
and the marking on the lower back rod. Tighten the
locking screws max. 1/2 turn.
3. Place the Allen key in the selected (upper recommended) eccentric shaft’s locking screw and loosen it 1/2
turn. Move the Allen key to the eccentric shaft‘s key
handle and set the required lumbar angle.
4. Tighten the locking screws with 6 Nm.
1
A
1
5
1
5
We recommend that you start adjusting the lumbar
angle with the upper eccentric shaft. If a larger angle is
required, adjust the lower eccentric shaft as well.
Risk of tipping: Always check the setting of the
the anti-tips.
2
5 mm
3
1
1
5
1
5
1
5
5
33
Page 34
Etac / Cross 5 / www.etac.com
Adjusting seat depth using lumbar angle
6. Settings back support 3A
Cross 5
Cross 5 XL
An extended seat depth is achieved by opening
the back support angle (hip) and then the lumbar
angle.
1. Adjust the back support angle (see also illustra-tion 1-3 on page 32).
2. Adjust the lumbar angle to the required back
support angle using the eccentric shafts as in
point 4-5 on page 34.
1
2
3. If necessary fit seat extender (accessory)..
Risk of tipping: Always check the setting of the
the anti-tips.
1
5
1
5
5 mm
Fitting seat extender
1
Risk of tipping: Always
check the setting of the
the anti-tips.
2
3
34
Page 35
7. Settings back support mod. 2
Setting back support height
The back support height is continuously settable (See
“The chairs possibilities”).
Loosen the screws (A) 2-3 turns to set the height of
the back support. Ensure that both sides are at the
same height by checking against the ruler (B) on the
back of the back tube. Tighten the screws securely.
Risk of tipping: Always check the setting of the
the anti-tips.
Adjusting back support angle
The back support angle is infinitely variable (See “The
chairs possibilities”). The angle is adjusted using the
nut on the inside of the rear wheel attachments.
- Loosen the nut on one of the back tubes, set the
desired angle and tighten the nut firmly again.
- Repeat the procedure on the other side.
Etac / Cross 5 / www.etac.com
Cross 5
5 mm
13 mm
Cross 5 XL
Check that the angle is the same on both sides by comparing the distance between the back tube and the arm
support plate.
Risk of tipping: Always check the setting of the
the anti-tips.
Adjusting back support upholstery
The contour of the back support upholstery is individually adjustable by using the five Velcro straps and
the back support cover.
- Allow the cover plenty of room between seat and
back support, so that it is possible to “sit in” against
the back support.
- Loosen all the straps and ensure that the user is sit-
ting as far back in the seat as possible.
- Tighten the straps in such a way that they follow
the contours of the user’s back and give plenty of
support to the lumbar region.
Do not overtighten the upper straps as this can prevent
the cross-brace from unfolding properly, i.e. the seatframe tubes do not sit flush in the sideframes.
Risk of tipping: Always check the setting of the
the anti-tips.
35
Page 36
Etac / Cross 5 / www.etac.com
7. Settings back support mod. 2B
Setting back support height
The back support height is settable (See “The chairs
possibilities”).
Loosen the screws to set the height of the back support. Tighten the screws.
Cross 5
Cross 5 XL
Risk of tipping: Always check the setting of the
the anti-tips.
Adjusting back support angle
The back support angle is infinitely variable (See “The
chairs possibilities”). The angle is adjusted using the
nut on the inside of the rear wheel attachments.
- Loosen the nut on one of the back tubes, set the
desired angle and tighten the nut firmly again.
- Repeat the procedure on the other side.
Check that the angle is the same on both sides by comparing the distance between the back tube and the arm
support plate.
Risk of tipping: Always check the setting of the
the anti-tips.
5 mm
13 mm
Adjusting back support upholstery
The contour of the back support upholstery is individually adjustable by using the five Velcro straps and
the back support cover.
- Allow the cover plenty of room between seat and
back support, so that it is possible to “sit in” against
the back support.
- Loosen all the straps and ensure that the user is sitting as far back in the seat as possible.
- Tighten the straps in such a way that they follow
the contours of the user’s back and give plenty of
support to the lumbar region.
Do not overtighten the upper straps as this can prevent
the cross-brace from unfolding properly, i.e. the seatframe tubes do not sit flush in the sideframes.
Risk of tipping: Always check the setting of the
the anti-tips.
36
Page 37
Brake, adjustment
8. Readjustments
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
The brakes are infinitely settable.
1. Loosen the screw a couple of turns.
2. Set the brake in correct position.
3. The brake block should be 15-20 mm from the tyre
when the brake is not applied.
4. Ensure that the brake is straight in the groove and
tighten the nut. Test the brakes.
5. Ensure the nut locks on the inside.
The braking effect is dependent on the air pressure in the tyres. The brakes are parking brakes
and should not be applied during use.
123
5 mm
45
15-20 mm
If the rear wheel is positioned in one of the forward
settings it is possible for a leg support, when swung
to the side, to unlock an applied brake. To avoid this
the brake handle should be adjusted so that you
attain a “neutral” position. In this way the brake will
unlock first when the handle is pushed close to the
rear wheel.
123
Ph 1
1. Loosen the screw on the inside of the brake
handle.
2. Remove the oval plate, turn it 180° (the pin on the
plate’s inside must sit in the upper hole).
3. Tighten it again.
37
Page 38
Etac / Cross 5 / www.etac.com
Adjusting the brake block
8. Readjustments
Cross 5
Cross 5 XL
1
5 mm
2

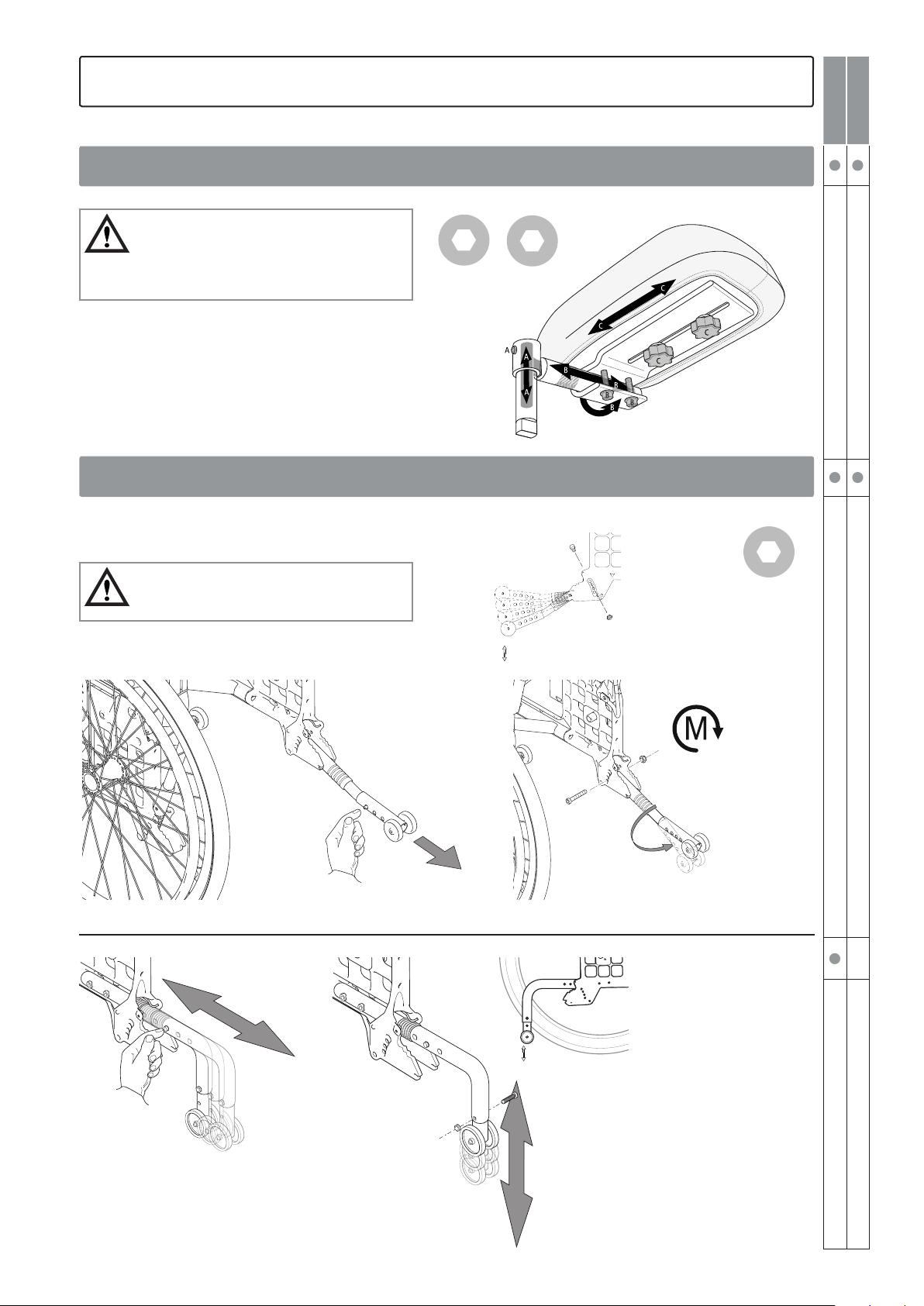

Leg support, infinitely angle adjustable
Never stand on the foot supports as you may tip
the chair! For lifting a wheelchair. swing in the
leg supports under the seat, or remove them,
and lift using the frame (lower or upper part).
Always have the screw and knob for foot support attached even if not using foot support.
3
1
1
23
23
38
Page 39
Amputee leg support
Never sit on the amputee leg support. When
lifting the wheelchair, remove the amputee leg
support, swing the other leg support in under
the seat (or remove it) and lift using the frame
(lower or upper part).
Anti-tips
8. Readjustments
4 mm
6 mm
± 6 cm
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
The anti-tips are settable in height and angle and
adjustable in length.
After adjusting seat height, centre of balance,
back support angle or back support upholstery,
the anti-tips function must always be checked.
5 mm
3-7 cm
5 Nm
Click!
3-7 cm
39
Page 40
Etac / Cross 5 / www.etac.com
Changing the camber angle
8. Readjustments
Cross 5
Cross 5 XL
The camber angle can be changed by changing the
washers that are mounted between the hub sleeve
and the nut. See section ”Adjusting rear seat height by changing rear wheel position or rear wheel size”.
12
24 mm
0° camber
3
When assembling, check so that the rear wheel
axle is correctly adjusted. The button in the hub
must pop out to the original position.
4
2° camber
Adjusting the centre of balance
The centre of balance can be adjusted by changing the
position of the rear wheels.
- Move the axle shaft/rear wheels forwards/backwards.
The brakes must also be adjusted, see section
”Brake, adjustment”.
24 mm
When the position of the rear wheels is moved forwards the wheelchair becomes more manoeuvrable,
but the tendency to tip backwards increases. See
section ”Adjusting rear seat height by changing rear wheel position or rear wheel size”.
The centre of balance is also altered when the
seat and/or back support angle is adjusted.
We recommend the use of anti-tips.
Ensure that rear wheels with quick release hubs
are mounted securely.
40
Page 41
Handrims
8. Readjustments
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
The way in which the user is able to grip the handrims is influenced by the handrim’s material and its
distance from the wheel.
Cellular rubber/ plastic coated handrims increases the friction.
Violent braking can cause mild friction burns
(e.g. blisters).

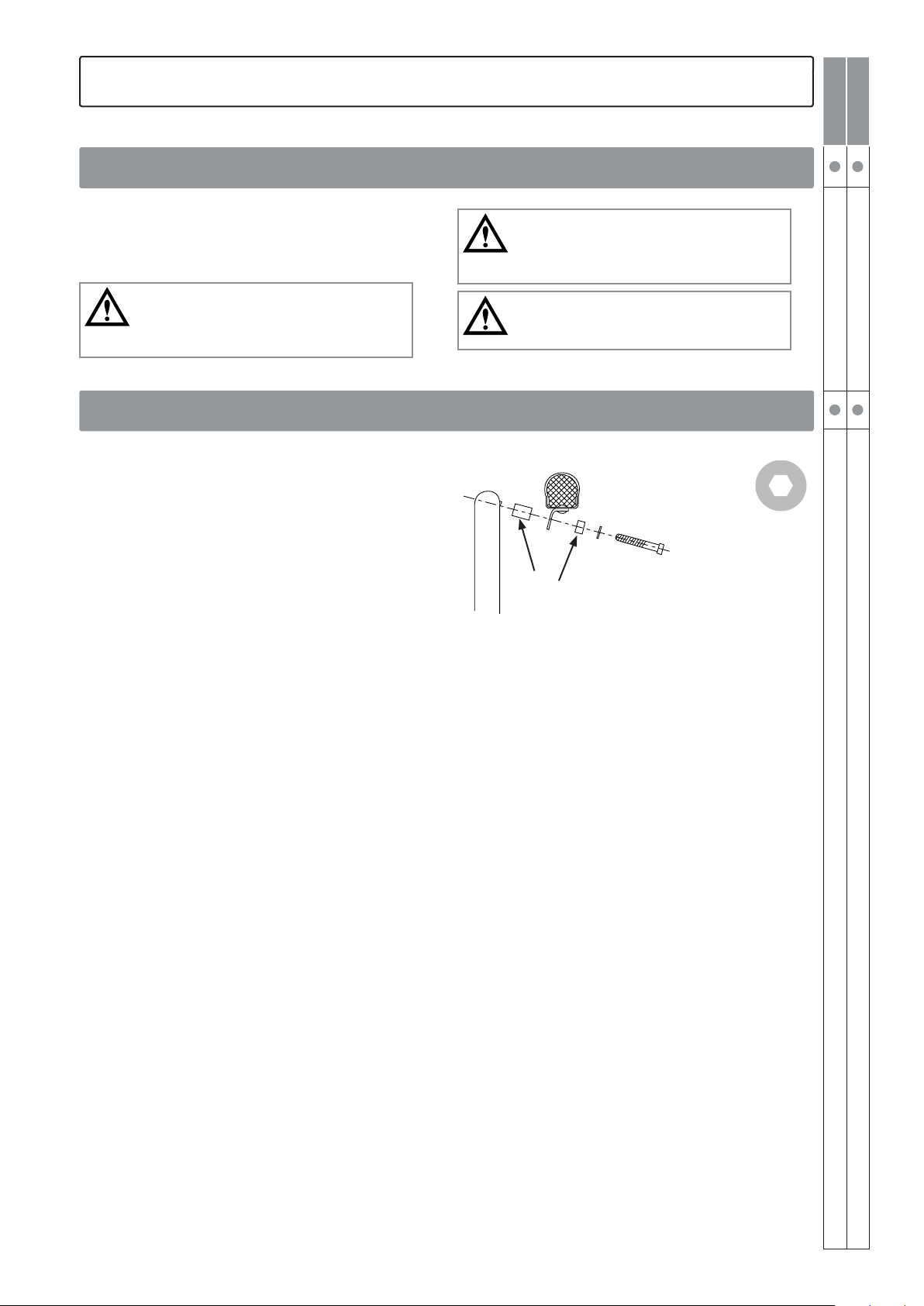

Adjusting the distance of the handrim
Aluminium, stainless, plastic-coated and cellular rubber
handrims for 24”, 22” and 20” rear wheel.
The distance between the wheel and the handrim can
be adjusted by moving or exchanging the two spacers.
Be aware that when passing through narrow
spaces there is a risk of getting your fingers
caught. There is also a risk of fingers getting
caught in the spokes.
If there is a risk of the user’s fingers getting
caught in the spokes we recommend spoke
guards.
4 mm
41
Page 42
Etac / Cross 5 / www.etac.com
9. Accessories - adjusting, handling
Assembly instructions are always provided with accessories when they are delivered from Etac.Instructions are also available on our website www.etac.com.

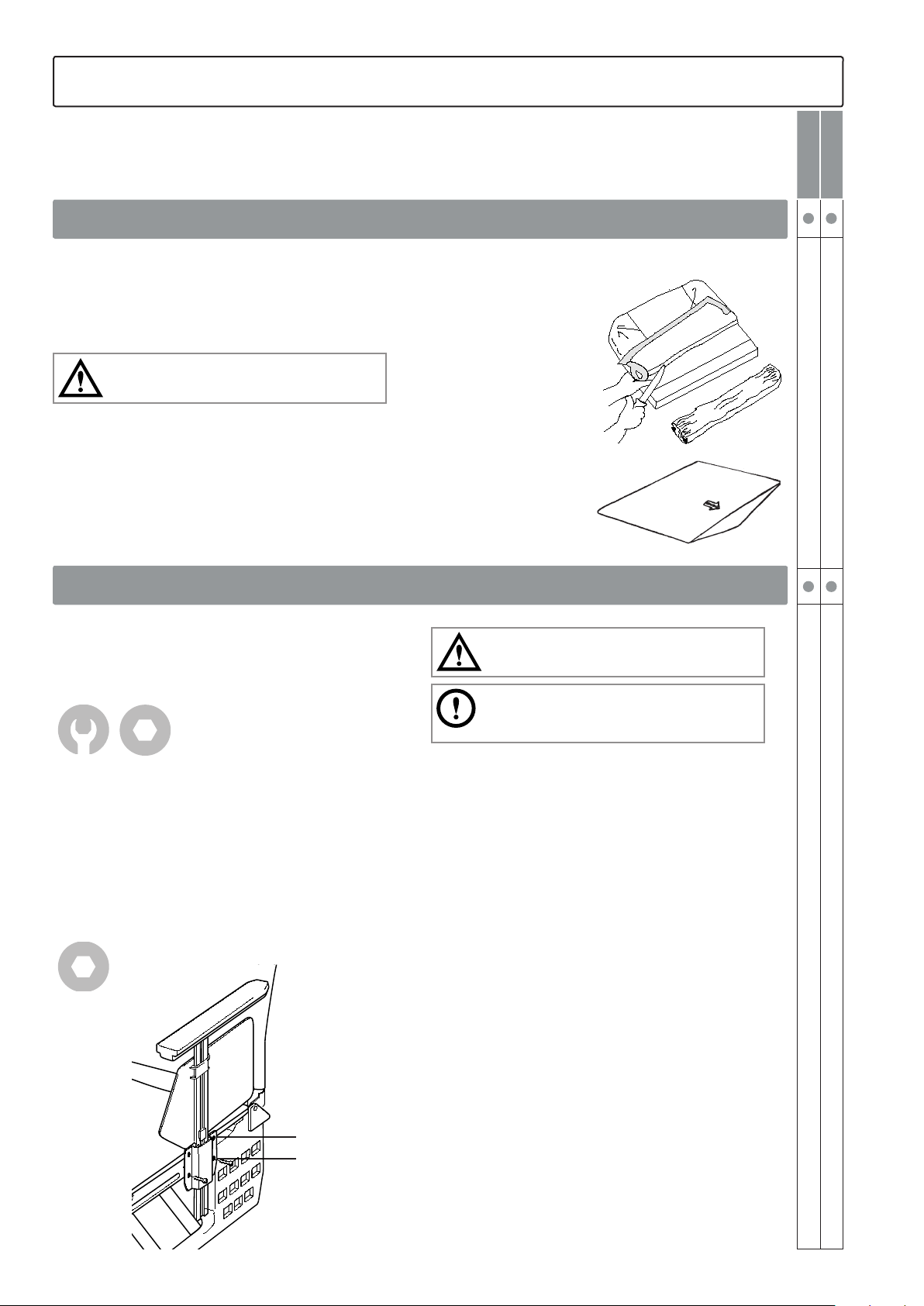

Seat cushion and comfort wedge
The cushion is cut to the required depth at the
front or back edge. When measuring the length,
ensure that the cushion is properly positioned
between the back tubes with the rounded corners
to the rear.
The cushion is a standard model and is not
suitable for users with sitting sores.
A comfort wedge is a useful accessory for the
seat cushion. It evens out the front edge of the
seat, giving even greater seat comfort. Place
the comfort wedge in the cushion-cover’s inside
pocket, under the cushion. The arrow on the comfort wedge should be on the top-side pointing
forwards.
Cross 5
Cross 5 XL
Arm support, detachable, height adjustable
The arm support attachment can be fitted in 2 different
heights. In position 1 the height of the arm support is
settable between 19 and 26 cm, and in position 2
(standard) between 24 and 31 cm, with 1 cm intervals.
10 mm5 mm
The lock lug is used both to set the height of the arm
support and secure the side guard:
- Loosen the screw that fastens the lock lug.
- Slide the guard up or down to the desired height.
- Refasten the lug on the side guard.
If necessary the right arm support can be fitted on the
left side and vice versa.
3 mm
Never use the arm supports to lift the wheelchair.
With 24” low pressure or solid tyres in pos. C1,
the arm support’s sideguard does not cover the
front edge of the rear wheel.
1
2
42
Page 43
9. Accessories - adjusting, handling
Arm support, flip-up, height adjustable
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
The flip-up arm support comes in two varieties, height
adjustable and fixed. It is mounted onto the wheelchair’s
frame and can be flipped upwards/backwards by pressing the red lever (A) inwards.
Mount the arm support according to the assembly
instructions supplied.
The arm support height is settable between 22 and 30
cm with 1 cm intervals.
- Push the red lever to one side and loosen the screws
that fix the arm support bracket to the frame.
- Slide the arm support up or down to the desired
height.
- Tighten the screws again.
Positioning belt
The positioning belt is in two parts, is adjustable in
length and has a snap-lock. It is mounted in the holes
just in front of the back support joint, above the wheel
mounts.
Assembly instructions are supplied with the belt.
Never use the arm supports to lift the wheelchair.
These arm supports cannot be combined with
cane holder or with 24” 22” or 20” rear wheels
in position C.
A
The belt is to be used only for positioning in the
wheelchair. It must not be used as a substitute
for a car safety belt.
Ensure that the user does not slide forwards in
the seat as this can lead to the belt impairing
the supply of blood to the hip/waist area.
3 mm
43
5 mm
Page 44
Etac / Cross 5 / www.etac.com
9. Accessories - adjusting, handling
Head support
The head support is mounted onto the bow handle
(accessory) or onto a separate head support attachment. The head support is adjustable in height, depth and
angle, and is detachable.
Before the head support is adjusted, ensure that
the user has a good, secure sitting posture.
Check the balance of the wheelchair when the
user leans against the head support.
We recommend the use of anti-tips.
Head support attachment
Cross 5
Cross 5 XL
The head support attachment is used to fit the head
support.
Do not use the head support attachment to lift
the wheelchair.
Cross brace
The cross bar is used when the back chassis needs to
be reinforced.
Do not lift the wheelchair by the cross bar.
“Click”
“Click”
44
“Click”
Page 45
10. Technical data
Etac / Cross 5 / www.etac.com
Cross 5
Cross 5 XL
Type of chair
35 cm short1312300156,0 cm36-42 cm15,0 kg135 kg
35 cm long1312300256,042-4815,2 kg135 kg
37,5 cm short1312300358,536-4215,1 kg135 kg
37,5 cm long1312300458,542-4815,3 kg135 kg
40 cm short1312300561,036-4215,2 kg135 kg
40 cm long1312300661,042-4815,4 kg135 kg
42,5 cm short1312300763,536-4215,3 kg135 kg
42,5 cm long1312300863,542-4815,5 kg135 kg
45 cm short1312300966,036-4215,5 kg135 kg
45 cm long1312301066,042-4815,7 kg135 kg
47,5 cm short 1312301168,536-4215,6 kg135 kg
47,5 cm long1312301268,542-4815,8 kg135 kg
50 cm short1312301371,036-4215,7 kg135 kg
50 cm long1312301471,042-4815,9 kg135 kg
47,5 cm short1312311168,5 cm 36-42 cm15,9 kg160 kg
47,5 cm long1312311268,5 42-4816,1 kg160 kg
50 cm short 1312311371,0 36-4216,0 kg160 kg
50 cm long1312311471,0 42-4816,2 kg160 kg
52,5 cm short1312311573,5 36-4216,1 kg160 kg
52,5 cm long1312311673,5 42-4816,3 kg160 kg
55 cm short1312311776,0 36-4216,3 kg160 kg
55 cm long1312311876,0 42-4816,5 kg160 kg
57,5 cm short1312311978,5 36-4216,4 kg160 kg
57,5 cm long1312312078,5 42-4816,6 kg160 kg
60 cm short1312312181,0 36-4216,5 kg160 kg
60 cm long1312312281,0 42-4816,7 kg160 kg
Item no
Cross 5
Total width
Seat depth from
back support
tube**
Weight with rear
wheel
Max
user weight
Seat height
rear
34-53 cm34-56,5 cm32-45 cm32 cm74-128 cm102-122 cm26-64 cm76-92 cm108°-114°46,5-48,5 cm
* Applies to Cross back support 3A. For Cross back support 3A high applies 38-51 cm.
** With triangular back
*** With solid tyre andstainless steel handrim, +1,3 kg
Seat height
front
Back support
height*
Transport
width
Total heightTotal length
Leg support
length
Length when
folded
Leg support
angle
Rear wheel
Weights and dimensions given are for a chair with 24” rear wheels with quick-release hubs, high pres-
Cross 5
sure tyre, aluminium handrims, leg supports, foot supports, brakes, arm supports, 6 1/2” castors with
medium forks. The measurements given may vary by ± 2%.
Weights and dimensions given are for a chair with 24” rear wheels with quick-release hubs, massive
Cross 5 XL
tyres, stainless steel handrims, cross brace back, leg supports, foot supports, heel strap, brakes, arm support attachment, 6 1/2” castor wheels with medium forks. The measurements given may vary by ± 2%.
Max lateral tilt
Max tilt
down
size
>20°
>20°
45
Page 46
Etac / Cross 5 / www.etac.com
Upholstery
11. Service and maintenance
The upholstery is made of two-ply polyester. The seat
upholstery is fastened lengthways to the seat frame, and
can easily be removed from the frame by unscrewing the
end caps.
The back support upholstery is removed by loosening
Rear wheel/castor wheel, front fork attachment
Tyre/inner tube: Check the tyre pressure (see side of tyre)
at least once a month, also check the
tread.
Spokes: Loose spokes can lead to wheel wobble.
Consult a cycle dealer or your Technical
Aids Centre if it is necessary to adjust the
spokes
Wheel axles: Clean the wheel axles from hair and dirt
as necessary.
Brakes
the screws of the end caps and then pulling the upholstery upwards.
Wash seat and back support upholstery according to
the washing instructions on the product.
Ball bearings: Require no maintenance.
Handrim: If a handrim should be damaged in
such a way that it could lead to injury, it
should be replaced.
Front fork attachments:
To achieve the best operating conditions,
the attachments should be installed
at 90°. Check also that the front forks
are correctly tightened. See section
”Mounting front fork”.
The braking effect is dependent on the air pressure in the
tyres. Encrusted dirt can have a negative effect
Washing the frame
It is important to keep the wheelchair clean, both for your
own comfort and the longevity of the chair. It is equipped
with drainage holes which ensure that it is easy to wash
and dry.
Touch-up paint
Touch-up paint is available for minor scratches and chips
in all the frame colours available for Cross wheelchairs.
Miscellaneous
If there is a fault in your wheelchair you should contact
your dealer or Technical Aids Centre. Defective wheelchairs should not be used.
If your chair needs reconditioning or repair, only original
parts from Etac or components with equal quality, as
specified in Cross diagrams, should be used. Etac will not
on the brake mechanism. Check the functioning of the
brakes once a month. In the event of adjustments, see
point ”Brake, adjustment”.
Clean the frame with a nonabrasive cleaning agent with
a pH level between 5 and 9, or with a 70% disinfectant
solution. Rinse and dry.
be held responsible for damage or injury caused by use of
non-original parts.
When necessary lubricate moving parts/joints
with bicycle oil or similar.
46
Page 47
12. Tests and Guarantees
Etac / Cross 5 / www.etac.com
CE marking, tests:
The product complies with the Medical Device Directive 93/42/
EEC.
The product has been tested and complies with the requirements set out in EN 12183, which includes ISO 8191-2.
Combination agreements exist – see www.etac.com.
Etac’s wheelchairs have been tested in accordance with ISO
7176-19. They have been crash-tested by the Technical Research
Institute of Sweden. Testing was carried out using restraining
device UNWIN_WWR/ATF/K/R and 3-point seat belt 907523,
Klippan Safety AB.
Service life:
The main product’s durability and lifetime is at least five
years when used in accordance with intended use, the safety
instructions, the reconditioning manual and instructions for
use in the user manual. The main product consists of the chassis for seat and back support. Additional parts/accessories are
handled in accordance with the manual and reconditioning
manual. The actual lifetime can vary, depending on how much
and how intensively the product is being used, but a maximum
of 10 years. If the product is intended for use after the service
life period specified by Etac, it is the responsibility of the product owner to ensure product functionality in accordance with
the manual and reconditioning instructions. If this cannot be
ensured then the product should be taken out of use.
Methods of surface treatment:
Lacquered surfaces = Polyester powder coating or ED-coating
Non-lacquered aluminium parts = Anodized coating
Non-lacquered steel surfaces = Galvanized
Guarantee:
5 year guarantee against material and manufacturing defects.
For terms and conditions, see www.etac.com
Special adaptations:
comprise everything that falls outside the instructions and settings in this Manual. Wheelchairs specially adapted by customers
are not eligible for Etac’s CE marking. Etac’s guarantee no longer
applies. If in the least doubt about the validity of adjustments,
please contact Etac for advice.
If wheelchair is combined with another product not manufactured by Etac, neither of the products will retain their CE
marking unless combination agreement exists. Please contact
Etac for up-to-date information.
To be sorted according to national regulations
47
Page 48
Etac Sverige AB
Box 203
334 24 Anderstorp
Sweden
Tel 0371-58 73 00
Fax 0371-58 73 90
info@etac.se
www.etac.se
Etac GmbH
Bahnhofstraße 131,
45770 Marl,
Germany
Tel 02365-98710
Fax 02365-986115
info@etac.de
www.etac.de
Etac AB (export)
Box 203
334 24 Anderstorp
Sweden
Etac AS
Pb 249,
1501 Moss,
Norway
Etac A/S
Egeskovvej 12
8700 Horsens
Denmark
Snug Seat, Inc.
12801 E. Independence Boulevard
P.O. Box 1739
Matthews, NC 28106, USA
