Congratulations on your purchase of this high-quality ESYLUX product. To ensure correct device operation,
please read these installation/operating instructions carefully and keep them in a safe place for future reference.
1 • SAFETY INSTRUCTIONS
WARNING! Work on electrical systems must be carried out by authorised personnel only, with due
regard to the applicable installation regulations. Switch off the power supply before installing the
system. Please observe the installation regulations laid out in the safety measure for separated
extra-low voltage (SELV).
Use this product only as intended (as described in the user instructions). Do not make any
changes or alterations as this will render any warrantees null and void. You should check the
device for damage immediately after unpacking it. If there is any damage, you should not install
the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn the
device off immediately and make sure that it cannot be operated unintentionally.
NOTE: this device must not be disposed of as unsorted household waste.
Used devices must be disposed of correctly. Contact your local town
council for more information.
2 • DESCRIPTION
The ESYLUX PD 360/8 KNX BASIC is a presence detector with a 360° field of detection and
an integrated bus coupler for ceiling mounting. Follow the installation instructions provided
when installing the device. For further features, please refer to the operating instructions
"Description of applications". With a range of up to 8 m in diameter, the detector is suitable for use
in small rooms and passageways with natural lighting.
The PD 360/8 KNX BASIC is only intended for use in a KNX (EIB), TP (twisted pair) bus system
in conjunction with other KNX components.
If the PD 360/8 KNX BASIC detects that persons are present in its field of detection, it transmits
controlling telegrams for light outputs, depending on ambient brightness.
•BlendedlightmeasurementissuitableforFL,PL,halogenandincandescentlamps.
Certified KNX/EIB training centres provide specialist training on how to plan, install, activate,
document and apply the ETS (Engineering Tool Software) that is required for parameter setting.
3 • INSTALLATION / ASSEMBLY / CONNECTION
See separate assembly instructions.
For correct use of the device, ensure that the UC network (or KNX/EIB) to be connected is
designed for protection class III.
••
PD 360/8 KNX BASIC
4 • START-UP
All parameter settings are carried via the ETS (Engineering Tool Software).
Pressing the programming button (see Fig.) activates the programming status for the physical
address on the PD 360/8 KNX BASIC. This is indicated by the blue LED. The product database
and application description are available to download at www.esylux.com.
5 • SWITCH-ON BEHAVIOUR / LED DISPLAY
•Connectthebussupply
This initiates a warm-up phase that lasts approx. 10 seconds.
The red LED and green LED will slowly flash alternately (f = 1 Hz).
•LEDdisplayafterwarm-up
Each time motion is detected, this is indicated by 2 x flashes of the green LED.
•In the "Slave" function each detection is acknowledged by 2 x flashes of the green LED.
6 • TEST MODE
Parameters can be set via the ETS (Engineering Tool Software).
Test mode switches to the RUN status after “storing”, or 10minutes after activating the test
mode. The blue LED flashes to indicate movement.
7 • ESYLUX MANUFACTURER’S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufactured with the
utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, D-22908 Ahrensburg,
Germany (for Germany) or the relevant ESYLUX distributor in your country (visit www.esylux.com
for a complete overview) provides a guarantee against manufacturing/material defects in ESYLUX
devices for a period of three years from the date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to follow
the user or maintenance instructions and/or as a result of improper installation. Any illuminants or
batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief description of
the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period, either repair
the device or replace it. The guarantee does not cover further claims; in particular, the guarantor
will not be liable for damages resulting from the device’s defectiveness. If the claim is unfounded
(e.g. because the guarantee has expired or the fault is not covered by the guarantee), then the
guarantor may attempt to repair the device for you for a fee, keeping costs to a minimum.
GB
OPERATING INSTRUCTIONS
PD 360/8 KNX BASIC (EB10430442)
www.esylux.com
2
/6
LIGHT CHANNEL OBJECTS
Object 0: "Input: Lock light channel" (length = 1 bit)
The switching/dimming outputs for the light channel are locked with an ON
telegram and unlocked with an OFF telegram.
Parameters can be set to determine the status of the light channel after
locking and unlocking.
Object 1: "Input: Light channel manual ON/OFF" (length = 1 bit)
Please note: essential when in semi-automatic mode!
Manual operation is maintained when persons are present until the switch-off
delay time has elapsed if "while presence" is set in the parameters. Light
measurement is not active for the set time if the parameter "With disabled
light processing during off-period" has been selected. After this, the detector
switches to normal operating mode. Manual operation has no impact on
motion detection. The function is transmitted to communication objects 5/6.
Object 2: "Output: Light channel ON/OFF" (length = 1 bit)
If artificial lighting is required (switching threshold 1/set value via parameter)
and persons are present, the output sends an ON telegram.
If natural light is sufficient and/or no persons are present, an OFF telegram is
sent once the switch-off delay time has elapsed.
Object 3: "Input: Light channel 1/actuator acknowledgement" (length = 1 bit)
This object can be used to evaluate the status object of an actuator. In the
event that the actuator is not only controlled by the detector, the detector will
be switched on with an ON telegram and then switched off once the switchoff delay time has elapsed (provided no further movement is detected). If an
OFF telegram is sent, the detector will be switched off and will then revert
immediately to standby mode. This is only available if "actuator feedback"
has been enabled.
LIGHT VALUE OBJECTS
Object 4: "Output: Current light value" (length = 2 bytes)
This object can be used to output the light's current actual value.
This takes into account the offset and internal light value factor.
The light channel uses this value to evaluate the light value.
MOTION OBJECTS
Object 5: "Input: Lock motion detection" (length = 1 bit)
An ON telegram locks the internal motion detection function, while an OFF
telegram unlocks it again. The red LED lights up if motion detection is locked.
Object 6: "Input: Slave/Master motion" (length = 1 bit)
Trigger input for parallel connection of Master/Master or input of Slave.
Object 7: "Output: Motion detection" (length = 1 bit)
Output of own PIR motion detection.
RESET OBJECT
Object 8: "Input: Reset" (length = 1 bit)
An ON telegram via this object restarts the device.
GB
OPERATING INSTRUCTIONS
PD 360/8 KNX BASIC (EB10430442)
www.esylux.com
3 /6
DESCRIPTION OF APPLICATION
1. MASTER/SLAVE
The Master detects presence and evaluates it according to set parameters.
"Lighting ON/OFF"
The Slave is used exclusively for extending the field of detection.
A presence is transferred to the Master (object 6) for evaluation according
to the set parameters.
•Master/Masterselection
To extend the field of detection, two Masters can work in parallel.
Each Master evaluates the presence (object 7) according to its parameters
set via the ETS (Engineering Tool Software) and controls the lighting
appropriately.
Default setting: Master
2. TEST MODE
(Only for Master device configuration)
When test mode is "ON" light measurement is disabled.
When test mode is enabled, the connection with the
lighting system is checked.
If the motion sensor detects movement, the lighting will be "ON"
for 5seconds, followed by a dead time of 1second "OFF".
The blue LED indicates that movement has been detected.
Test "ON" automatically switches to test "OFF" after 10minutes,
or when the parameters are stored.
NB: During test Slave input enabled.
3. BEHAVIOUR AFTER ETS DOWNLOAD/RESET
Choose from: "No reaction", "ON", "OFF"
During the process, the following objects are sent:
Switching operating mode:
- Object 2: "Output: Light channel 1 ON/OFF"
GB
OPERATING INSTRUCTIONS
PD 360/8 KNX BASIC (EB10430442)
www.esylux.com
4 /6

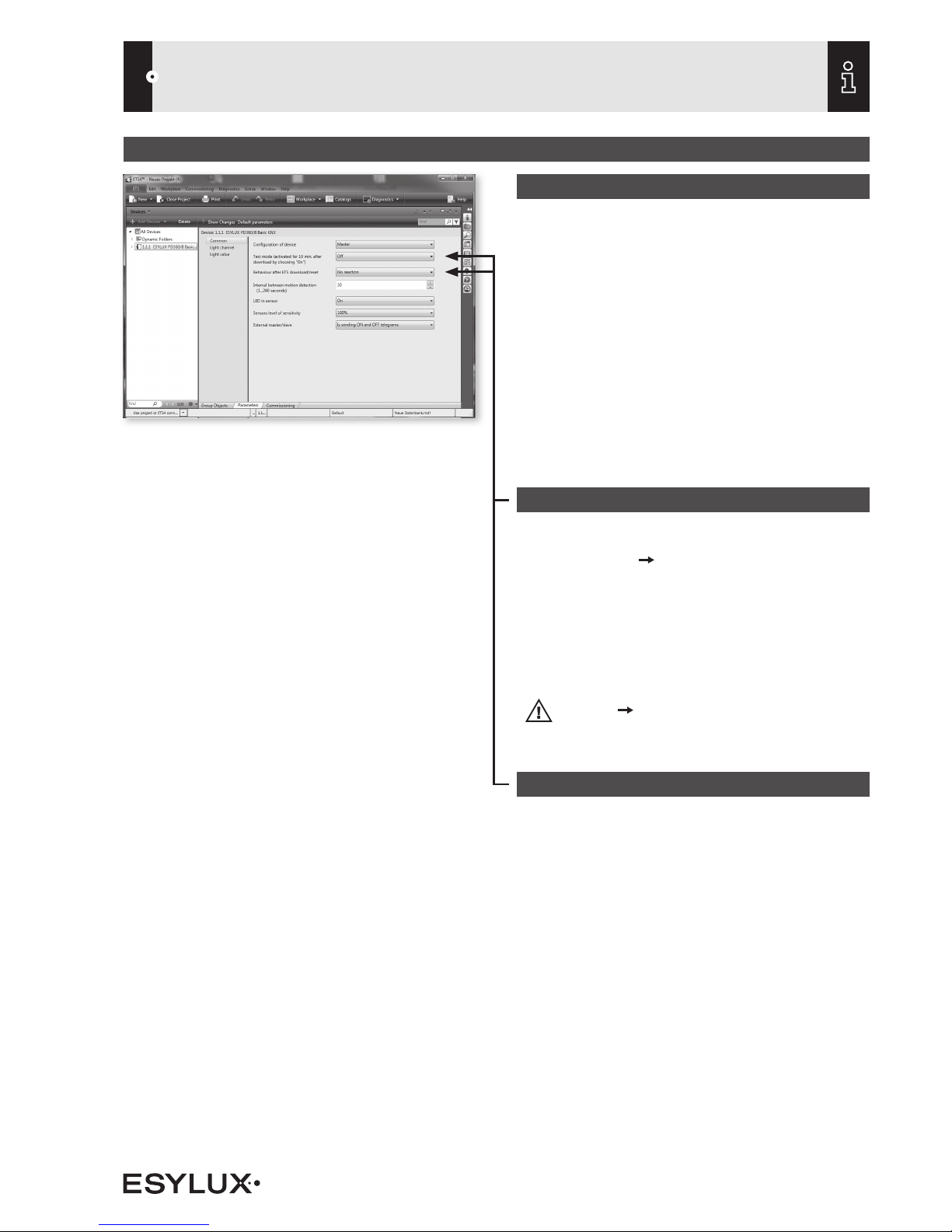

4. LED IN SENSOR
Options: choose between one of the LED brightness levels or "OFF"
The LED can be switched ON or OFF to indicate whether or not motion is
detected (2 x flashes).
DESCRIPTION OF APPLICATION
5. EXTERNAL MASTER/SLAVE
This parameter can be used to determine whether the external Master/Slave
only sends ON telegrams when motion is detected, or whether the external
device sends an ON telegram when motion is detected and OFF telegrams
when no movement is detected.
GB
OPERATING INSTRUCTIONS
PD 360/8 KNX BASIC (EB10430442)
www.esylux.com
5 /6
0 %
Light
measurement
disabled
Light channel
On
O
No motion
Switch o
time starts
Manual
operation
Switch o
time ends
Motion
DESCRIPTION OF APPLICATION

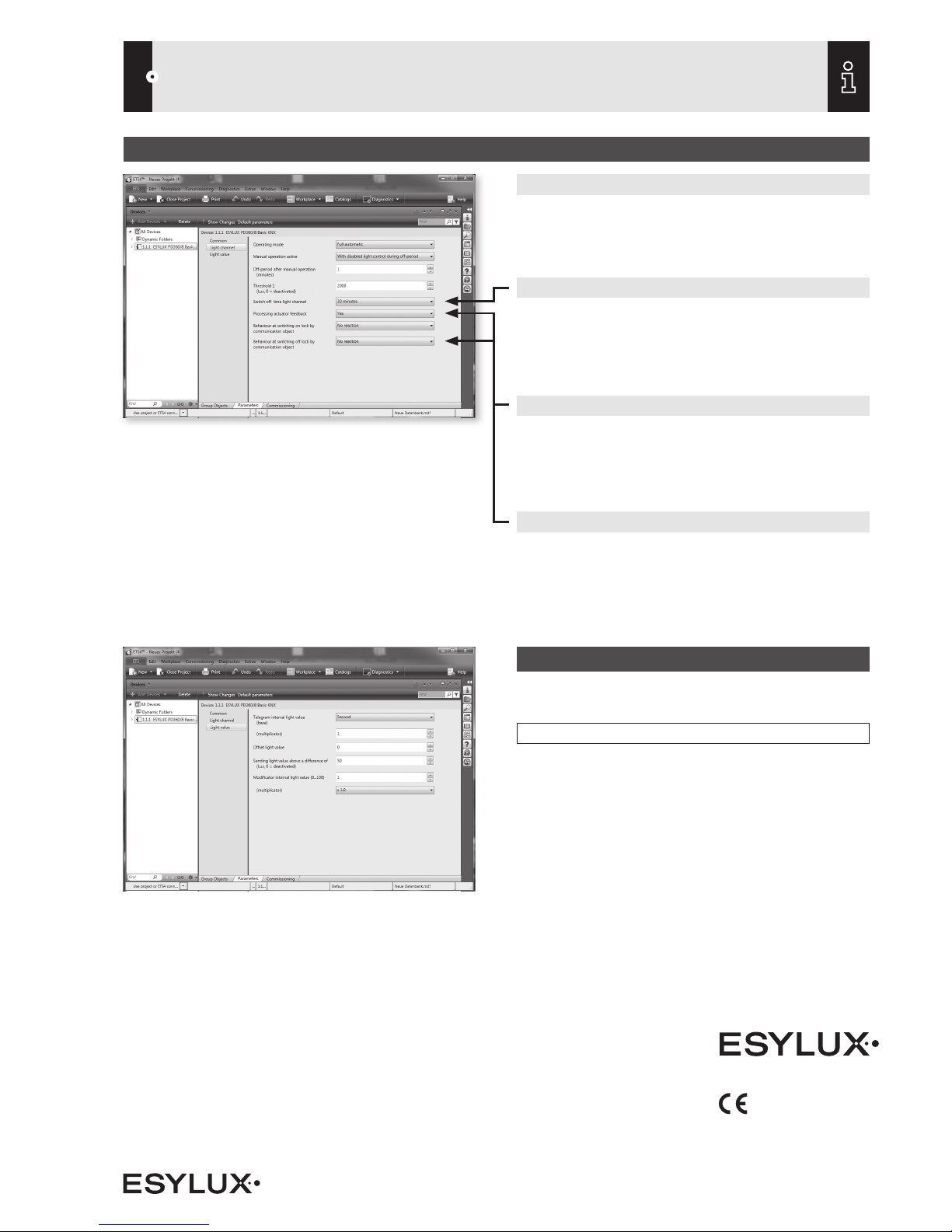

6. LIGHT CHANNEL
6.1 Light channel operating mode
•"Fullyautomatic"operatingmode
Lighting is automatically switched on if the detector detects presence and the
ambient lighting level has fallen below the preset brightness threshold or set
value. The lighting is automatically switched off if no persons are present and
once the set switch-off delay time has elapsed.
The lighting will also switch off if the preset brightness threshold or set value is
exceeded, regardless of presence.
When persons are present, in order to avoid sudden changes in brightness
caused by undesired switching on/off of the lighting, the detector will only be
triggered after a time delay.
Example: a passing cloud could potentially cause unnecessary switching.
Time delay from light to dark: 30 seconds
Time delay from dark to light: 5 minutes
•Additionalmanuallightingcontrolin"Fullyautomatic"mode
The lighting can be switched on or off manually by telegrams, e.g. by
pressing external KNX/EIB buttons.
If "Manual operation active while presence" is set, the light can be switched on
manually. This will remain switched on for as long as the detector continues
to detect movement, regardless of the ambient brightness.
If "Manual operation active during off-period" is set, the detector turns the lighting to
100 % during this period. Once the off-period comes to an end, the device
will start evaluating the light value.
If no more movement is detected, the detector will revert to the previous
automatic mode after the set switch-off time has elapsed.
NB: Applies to all light channel operating modes.
•"Semi-automatic"operatingmode
If "semi-automatic" mode has been selected, the lighting must be switched
on manually by telegrams, e.g. by pressing external KNX/EIB buttons. This
means that the detector does not automatically switch "ON" the lighting when
persons are present.
However, should the natural lighting level increase and the ambient lighting
level exceed the preset light value, the detector will automatically switch the
lighting off 5minutes after reaching the preset light value, regardless of any
presence.
The lighting can subsequently be switched back on manually at any time.
If "Manual operation active during off-period" is set, during this time the
detector behaves in the same way as when the setting "Manual operation
active while presence" is set. The detector then switches to normal operating
mode. This means that the light can be switched on by the user even if the
threshold value has been exceeded, but will then be automatically switched
off again once the preset time has elapsed.
NB: External ON telegram, e.g. through KNX/EIB button, is essential in semi-
automatic mode! Applies to all light channel operating modes.
Default setting: Fully automatic
GB
OPERATING INSTRUCTIONS
PD 360/8 KNX BASIC (EB10430442)
www.esylux.com
6 /6
DESCRIPTION OF APPLICATION
6.2 Switching
Threshold 0 = disabled, motion detection only
Direct entry 0– 2000lux
Default setting: 500 lux
6.3•Switch-offdelaytime(light)
•Switch-offdelaytime(light)
Options: 0seconds, 30seconds – 12hours
Default setting: 5 min
6.4 Processing actuator feedback
Object 3 can be used to evaluate the status object of an actuator. In the
event that the actuator is not only controlled by the detector, the light channel
switches to standby mode if the status of the channel differs from that of the
actuator.
6.5 Behaviour at switching lock ON or OFF
Options for each include: "No reaction", "Switch off" or "Switch on" the light
channel.
ESYLUX GmbH
An der Strusbek 40, 22926 Ahrensburg/Germany
Website: www.esylux.com
e-mail: info@esylux.com
MA00550400
7. LIGHT VALUE
The current light value can be transmitted either in cycles or from a specified
offset to the last actual value sent. This value is calculated as follows:
Value = [light value from sensor x modifier x multiplier] + offset
Loading...
