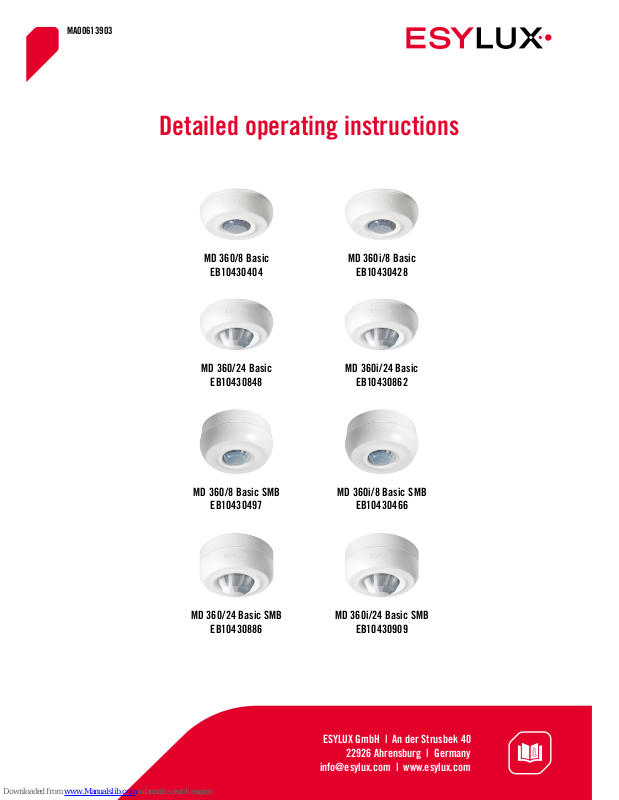

ESYLUX MD 360/24 Basic, MD 360i/8 Basic SMB, MD 360/24 Basic SMB, EB10430428, EB10430848 Detailed Operating Instructions

1

MA00613903

ESYLUX GmbH | An der Strusbek 40

22926 Ahrensburg | Germany

[email protected] | www.esylux.com

Detailed operating instructions

MD 360/8 Basic

EB10430404

MD 360i/8 Basic

EB10430428

MD 360/24 Basic

EB10430848

MD 360i/24 Basic

EB10430862

MD 360/24 Basic SMB

EB10430886

MD 360i/24 Basic SMB

EB10430909

MD 360/8 Basic SMB

EB10430497

MD 360i/8 Basic SMB

EB10430466

OPERATING INSTRUCTIONS

2 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

Table of contents

1 Description 3

2 Safety instructions 3

3 Operation / functionality 4

3.1 Conditions in which the lighting is switched on 4

3.2 Conditions in which the lighting is switched off 4

3.3 Switching delay – not in pulse mode 4

4 Installation / connection 5

4.1 Masking the field of detection 7

5 Activation 7

5.1 Overview of factory settings 7

6 Settings 8

6.1 Control via external “S” button 8

6.2 Configuring parameters via remote control 8

6.3 Mobil-PDi/MDi 8

6.4 Mobil-PDi/MDi temporary settings 9

6.5 Programming the Mobil-PDi/MDi 9

6.6 Mobil-PDi/MDi-universal 11

6.7 Mobil-PDi/MDi-universal temporary settings 11

6.8 Programming the Mobil-PDi/MDi-universal 13

7 Technical data 15

8 Troubleshooting 15

8.1 Maintenance 16

8.2 Cleaning 16

9 ESYLUX manufacturer's guarantee 17

OPERATING INSTRUCTIONS

3 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

1 Description

The ESYLUX ceiling-mounted motion detector is a passive infrared presence detector
that responds to moving heat sources, such as people walking.
The motion detector is designed for areas with low levels of natural light, such as
hallways, cellars, staircases, changing rooms, toilets, garages etc.

Note: Use this product only as intended (as described in the user instructions).

The device must not be changed, modified or painted – doing so will void any warranty
claims. You must check the device for damage immediately after unpacking it. If there
is any damage, you should not install the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn
the device off immediately and make sure that it cannot be operated unintentionally.

2 Safety instructions

• Work on the 230-V power system must be carried out by authorised personnel only, with
due regard to the applicable installation regulations / standards

• Switch off the power supply before installing the system

• On the input side, the device is to be protected against short circuits with a 10-A circuit
breaker

• Protection type IP 40 for interior use

OPERATING INSTRUCTIONS

4 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

3 Operation / functionality

• 360° field of detection, 8 m / 24 m range at an installation height of 2.5 m

• Automatically controlled lighting channels when motion is detected

• With zero-cross switching

3.1 Conditions in which the lighting is switched on

The lighting is switched on if the target brightness value is below the preset lux
value and movement is detected in the field of detection. Further movement is
acknowledged by the sensor with two short flashes of the red LED (the LED can be
switched off; see “Configuring parameters via remote control”).
Once the lighting has been switched on, the sensor deactivates light measurement for
this period.

3.2 Conditions in which the lighting is switched off

The lighting is switched off if no movement is detected in the field of detection and
the preset switch-off delay time has elapsed

3.3 Switching delay – not in pulse mode

When persons are present, in order to avoid sudden changes in brightness caused by
undesired switching on / off of the lighting, the detector will only be triggered after a
time delay.

Example: a passing cloud could potentially cause unnecessary switching.

Time delay from light to dark: 30 sec. = red LED lights up during this period.
Time delay from dark to light: none = only switch-off delay active.

OPERATING INSTRUCTIONS

5 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

4 Installation / connection

Note: Switch off the power supply before installing the system.

• The detectors can be flush mounted or surface mounted, and are also suitable for
recessed ceiling mounting using accessories

Recessed mounting Recessed ceiling mounting (see accessories)

for suspended ceilings

Surface mounting Surface mounting

with spacers

OPERATING INSTRUCTIONS

6 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

• Specifications regarding the range of the detector relate to an ambient temperature
of approx. 20°C

• Movement crossways to the detector is optimal for triggering the detector; head-on
approaches to the detector are more difficult to detect and therefore the range of
the detector is significantly reduced

• The detector should be positioned depending on the available space and usage
requirements

• Make sure that the detector has a clear line of sight, as infrared beams cannot
penetrate solid objects

• Connect the detector in accordance with the circuit diagram

Single connection
Parallel connection

L Phase, 230 V

Lighting

Neutral conductor

Push button

24 m

8 m

MD ... 24 Basic

8 m

4 m

MD ... 8 Basic

OPERATING INSTRUCTIONS

7 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

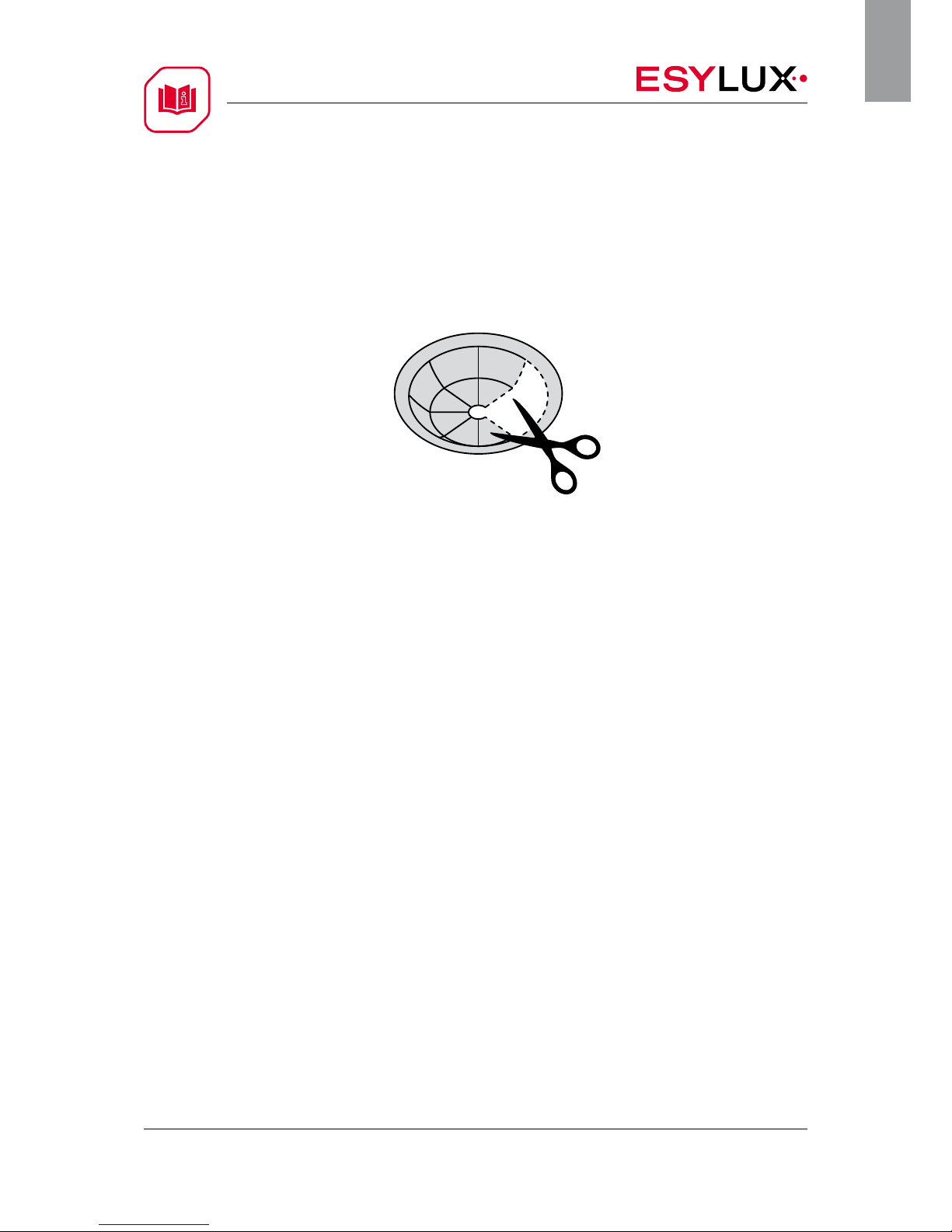

4.1 Masking the field of detection

Use the lens mask provided to mask out specific areas of detection.

5 Activation

Connect the power supply.

A warm-up phase of 25seconds is initiated. The red LED flashes.
During this time, the lighting is switched on.

5.1 Overview of factory settings

Factory settings

Light value approx. 100lux

Switch-off delay time 5 min.
Sensitivity 100 %

The manual setting element values are active on delivery. The values can be
overridden at any time by programming the detector using one of the optional remote
controls.

OPERATING INSTRUCTIONS

8 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

6 Settings

6.1 Control via external “S” button

The ceiling-mounted motion detector is equipped with a connection for an external
button (S terminal). This can be used to switch the lighting on and off manually.

Modes activated by pressing the external button:

Press button for approx. 1 second: The lighting is switched on or off (for the duration

of the switch-off delay time)

Press button for approx. 3 second: The lighting is switched on or off continuously for

4 hours

Further parameters can be configured via remote control. Remote controls can be
purchased as accessories.

6.2 Configuring parameters via remote control

Only models:

MD 360i/8 Basic EB10430428 MD 360i/24 Basic EB10430862
MD 360i/8 Basic SMB EB10430466 MD 360i/24 Basic SMB EB10430909

Note: For optimum reception, when programming the settings, point the remote
control at the detector. Please note that if the sensor is exposed to direct sunlight, the
standard detection range of approx. 8 m may be dramatically reduced due to the sun's
infrared rays.

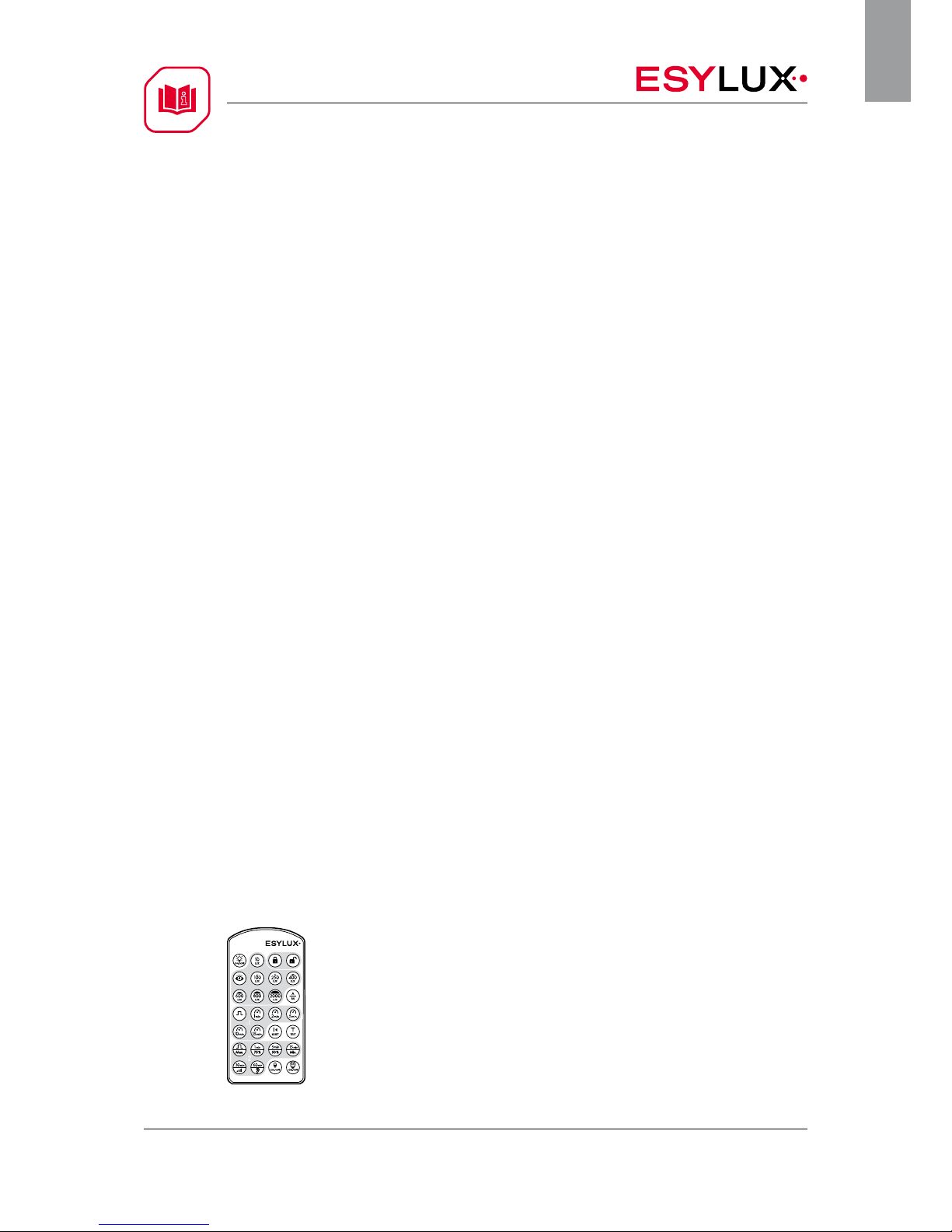

6.3 Mobil-PDi/MDi (EM10425509)

OPERATING INSTRUCTIONS

9 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

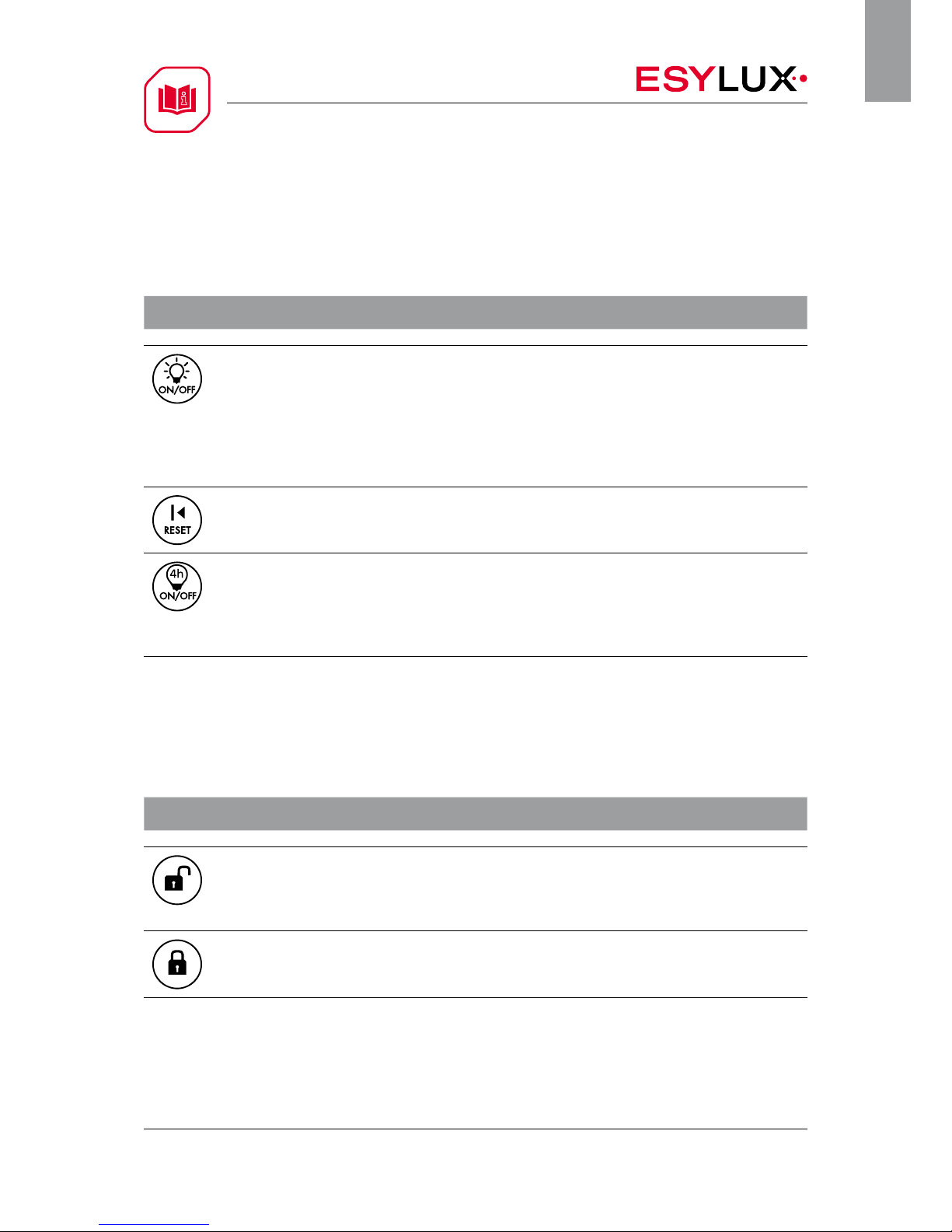

6.4 Mobil-PDi/MDi temporary settings

Parameter configurations are only temporarily applied.

Function Customised setting

ON / OFF

Switching the lighting ON / OFF manually.

Note: The “ON / OFF” mode can be cancelled by pressing the “Reset” button.
“ON” acknowledgement: Movement detected in the field of detection is
acknowledged with two short flashes of the red LED.
“OFF” acknowledgement: Movement detected in the field of detection is
acknowledged with one short flash of the red LED.

Reset / settings

Temporarily set values are cleared and the detector returns to the manually
preset operating mode.

4h ON / OFF

The lighting is switched on or off continuously for approx. 4 hours. If no
movement is detected in the field of detection and the preset switch-off delay
time has elapsed, the detector returns to the previous operating mode.
Note: The “4h ON / OFF” mode can be cancelled by pressing the “Reset” button.

6.5 Programming the Mobil-PDi/MDi

Alterations to parameters are applied permanently.

Function Customised setting

Enter programming mode

The detector goes into programming mode.
Acknowledgement: The red LED lights up permanently and the lighting is
switched on continuously.

Exit programming mode

The set parameters are stored on the detector.
Acknowledgement: The red LED is switched off.

OPERATING INSTRUCTIONS

10 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

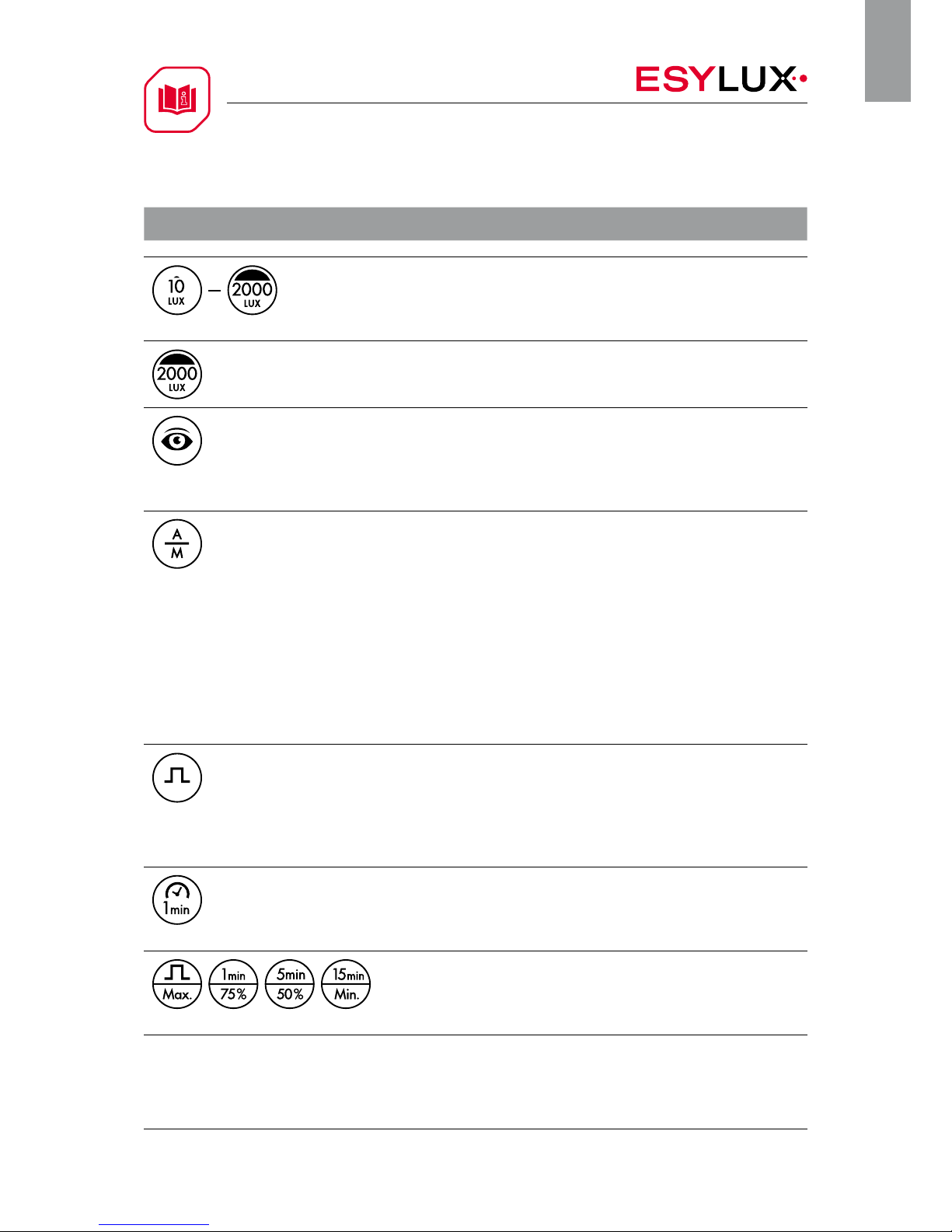

Function Customised setting

Set the brightness switching value, max. 1000 lux

The detector switches the lighting on if the target brightness value is below the
preset lux value and movement is detected in the field of detection.

Acknowledgement: The red LED flashes three times.

The detector operates in daytime mode

Light measurement is no longer active.

Take a reading of the current ambient light value

The detector switches the lighting on if the target brightness value is below the
preset lux value and movement is detected.
Acknowledgement: The red LED and the lighting are switched off for approx. 5
seconds while the reading is taken.

Fully automatic / semi-automatic mode

The lighting can be controlled in fully automatic and semi-automatic modes.

Fully automatic: The lighting is switched on depending on the set lux value
and movement being detected. If movement is no longer detected, the preset
switch-off delay time will start. The relevant active status can be optionally
overridden using the external “S” button.

Acknowledgement: The red LED flashes three times.

Semi-automatic: Control (activation of the lighting) via the external “S”

button. The lighting remains switched on as long as movement is detected and
the target brightness value is greater than the preset lux value.

Acknowledgement: The red LED is switched off for approx. 2 seconds.

Short pulse

As soon as movement has been detected in the field of detection, the detector
switches the lighting on for approx. 5 second and off for approx. 5 seconds.
This function can be used to control automatic stairwell lights, for example.
Acknowledgement: The red LED is switched on for approx. 5 seconds and off
for 5 seconds.

Switch-off delay time

The switch-off delay time starts once movement is no longer detected in the
field of detection.

Acknowledgement: The red LED flashes.

PIR sensitivity
Settings: maximum (100 %), 75 %, 50 %, minimum (25 %)

The sensitivity of the detector for the purpose of detecting movement can be set.
Acknowledgement: The red LED flashes three times.

OPERATING INSTRUCTIONS

11 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

Function Customised setting

Detector LEDs ON / OFF

The LEDs in the detector can be switched on or off.

Acknowledgement:
LEDs OFF: The red LED is switched off for approx. 2 seconds.
LEDs ON: The red LED flashes three times.

Reset

The remote control settings are reset and the detector uses the manual
potentiometer values.
Acknowledgement: The red LED flashes three times.

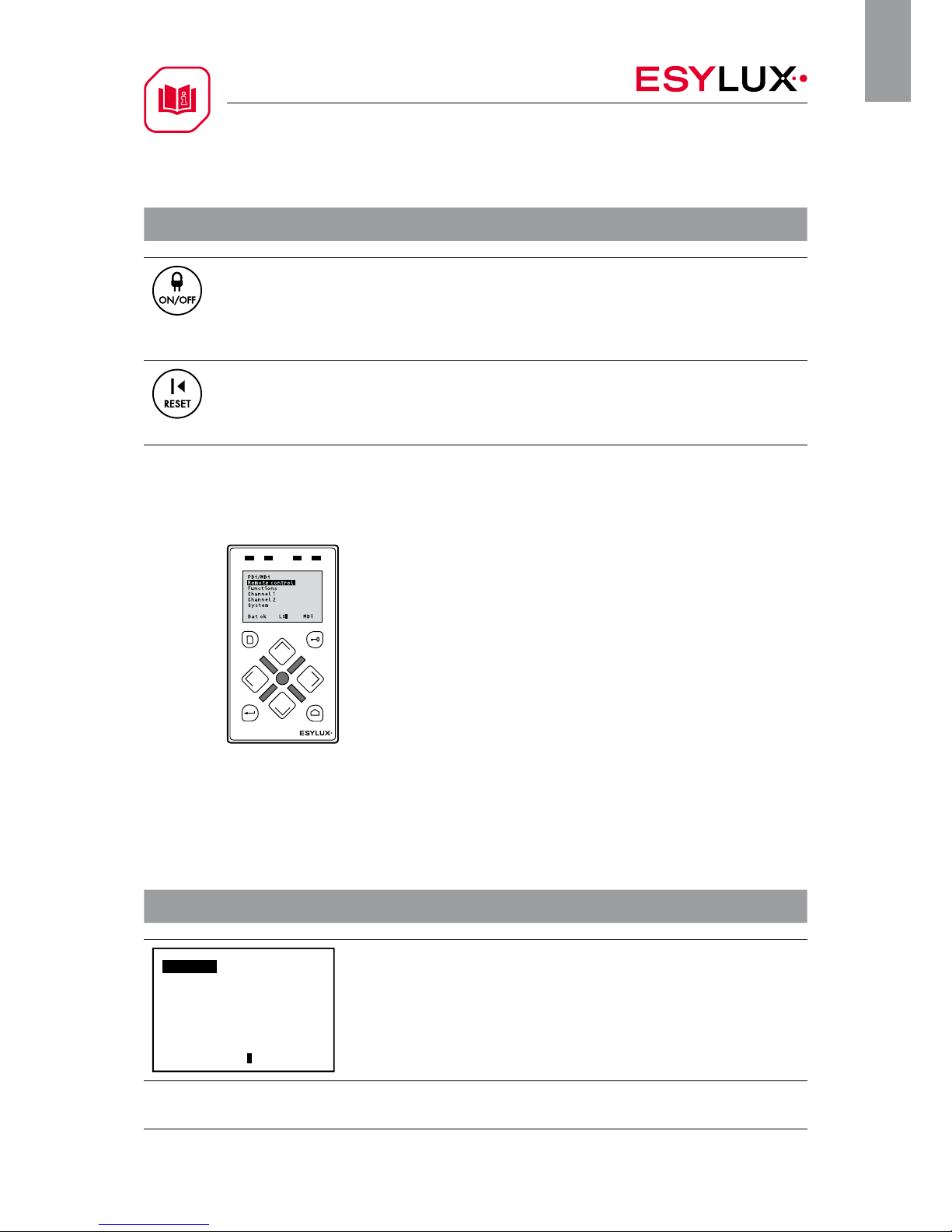

6.6 Mobil-PDi/MDi-universal (EP10433993)

6.7 Mobil-PDi/MDi-universal temporary settings

Parameter configurations are only temporarily applied.

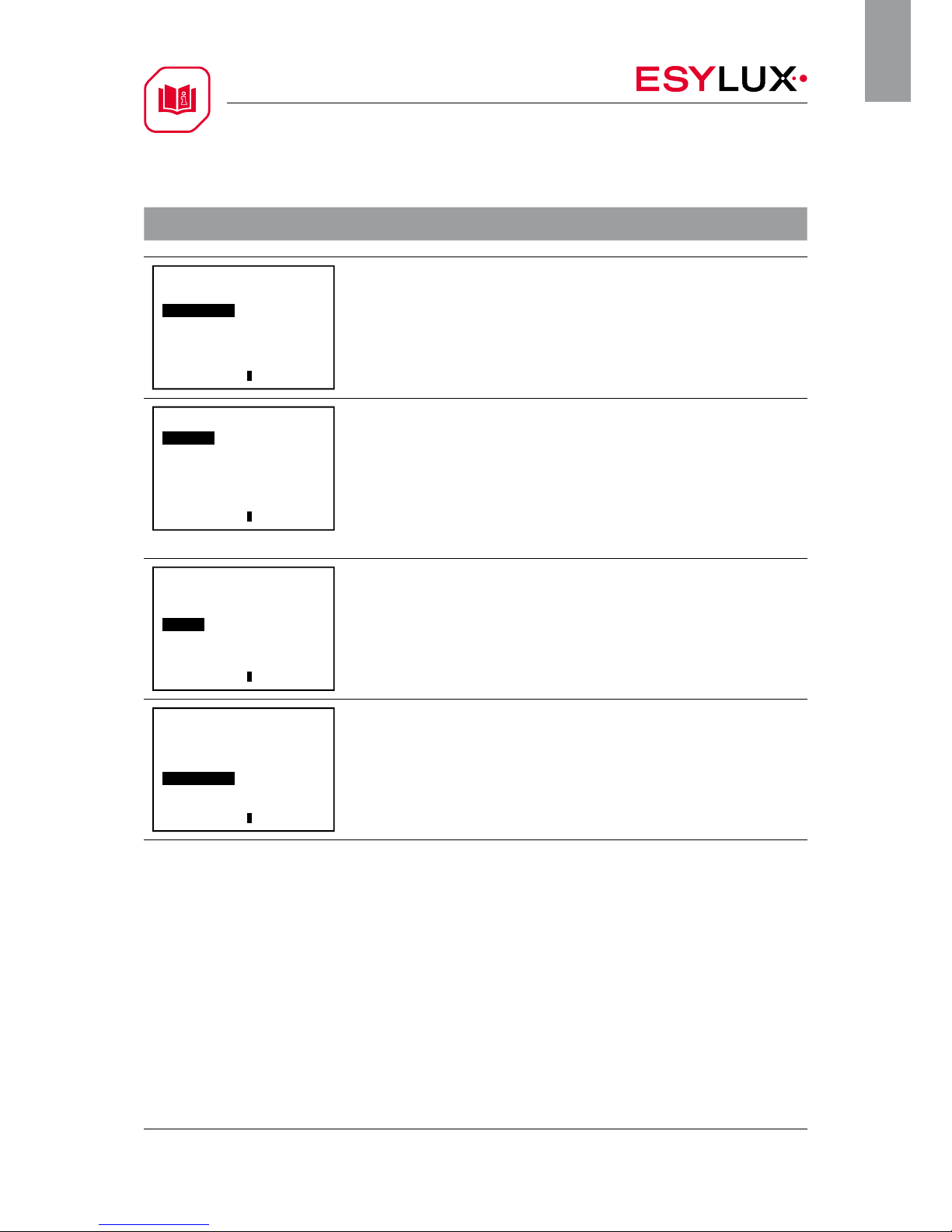

Function Customised setting

PDi/ MDi

Remote control
Functions
Channel 1
Channel 2
System

Bat ok LS MDi

Selecting remote control:

OPERATING INSTRUCTIONS

12 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

Function Customised setting

PDi/ MDi
Remote control

Functions

Channel 1
Channel 2
System

Bat ok LS MDi

To configure temporary settings, select the sub-item “Functions” in the “PDi/MDi”
menu.

Functions

ON/OFF

Tes t
Reset
4 h ON/OFF

Bat ok LS MDi

ON / OFF

Switching the lighting ON / OFF manually.
Note: The “4h ON / OFF” mode cannot be interrupted using the “ON / OFF” function; it
can only be interrupted using the “Reset” function.
“ON” acknowledgement: Movement detected in the field of detection is acknowledged
with one short flash of the red LED.
“OFF” acknowledgement: Movement detected in the field of detection is not
acknowledged.

Functions
ON/OFF
Tes t

Reset

4 h ON/OFF

Bat ok LS MDi

Reset / settings

Temporarily set values are cleared. The detector returns to the preset operating mode.

Functions
ON/OFF
Tes t
Reset

4 h ON/OFF

Bat ok LS MDi

4h ON / OFF

The lighting is switched on or off continuously for approx. 4 hours. If no movement is
detected in the field of detection and the preset switch-off delay time has elapsed, the
detector returns to the previous operating mode.

Note: The “4h ON / OFF” mode can be temporarily exited using the “Reset” function.
Acknowledgement: slow flashing.

OPERATING INSTRUCTIONS

13 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

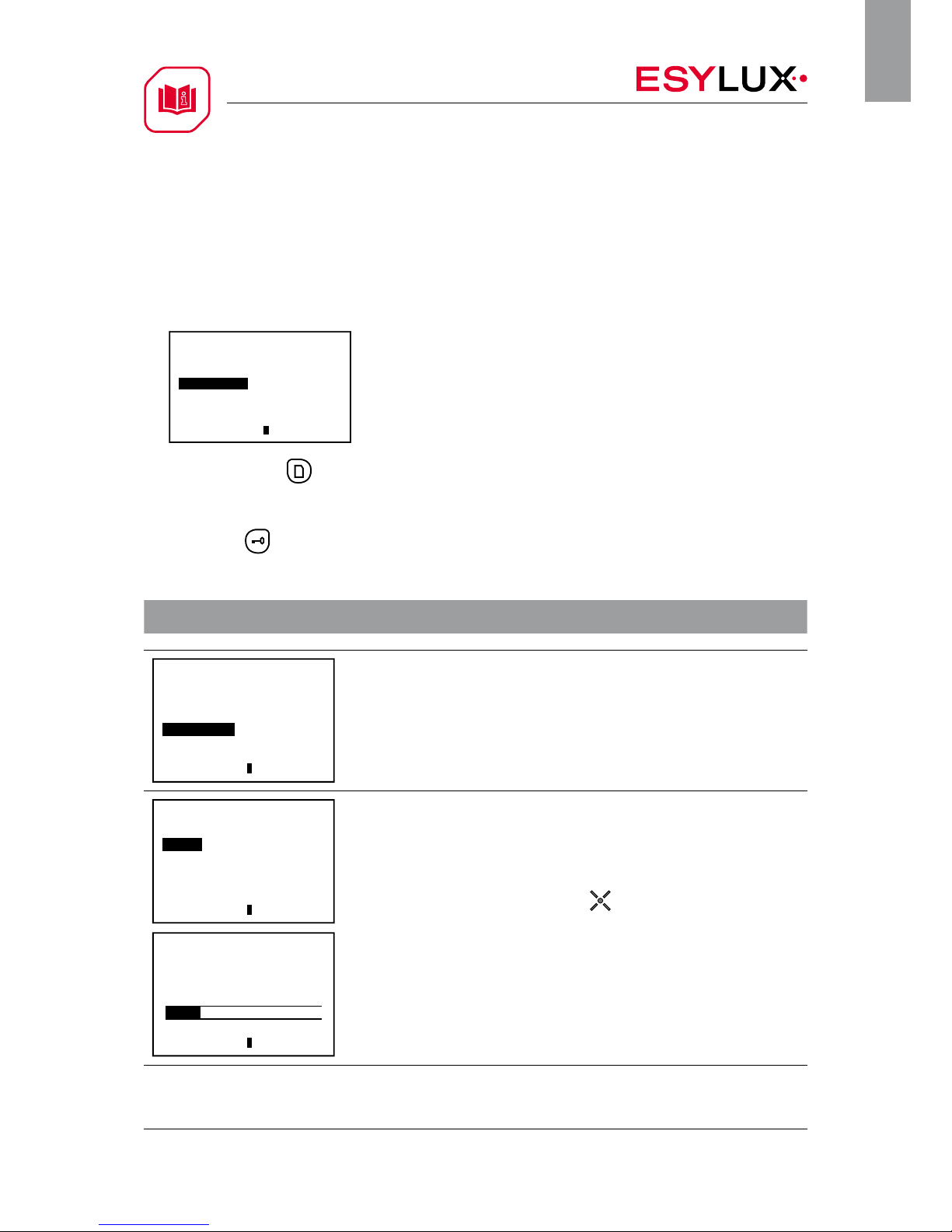

6.8 Programming the Mobil-PDi/MDi-universal

Programmed values are applied permanently.

1. Select the sub-item “Channel 1” in the“PDi/MDi” menu.

PDi/ MDi
Remote control
Functions

Chan nel 1

Chan nel 2
System

Bat ok LS MDi

2. Then press the button to enter programming mode. Acknowledgement: The red
LED lights up permanently and the lighting is switched on continuously.

3. Press the button to exit programming mode.

Acknowledgement: The red LED is switched off.

Function Customised setting

Functions
ON/OFF
Tes t
Reset

4 h ON/OFF

Bat ok LS MDi

Take a reading of the current ambient light value

The detector switches the lighting on if the target brightness value is below the preset
lux value and movement is detected in the field of detection.
Acknowledgement: The red LED and the lighting are switched off for approx. 5 seconds
while the reading is taken.

Channel 1
Read-in

Lig ht

Tim e
Reset
LEDs ON/OFF
Fully/semi-automatic
Bat ok LS MDi

Lig ht

400 Lux
Bat ok LS MDi

Set the brightness switching value
Setting values: 10, 100, 250, 400, 600, 800, 2000 lux

The detector switches the lighting on if the target brightness value is below the preset
lux value and movement is detected in the field of detection.
Acknowledgement: The red LED flashes three times in cycles if the selected brightness
switching value has been confirmed using the button.

OPERATING INSTRUCTIONS

14 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

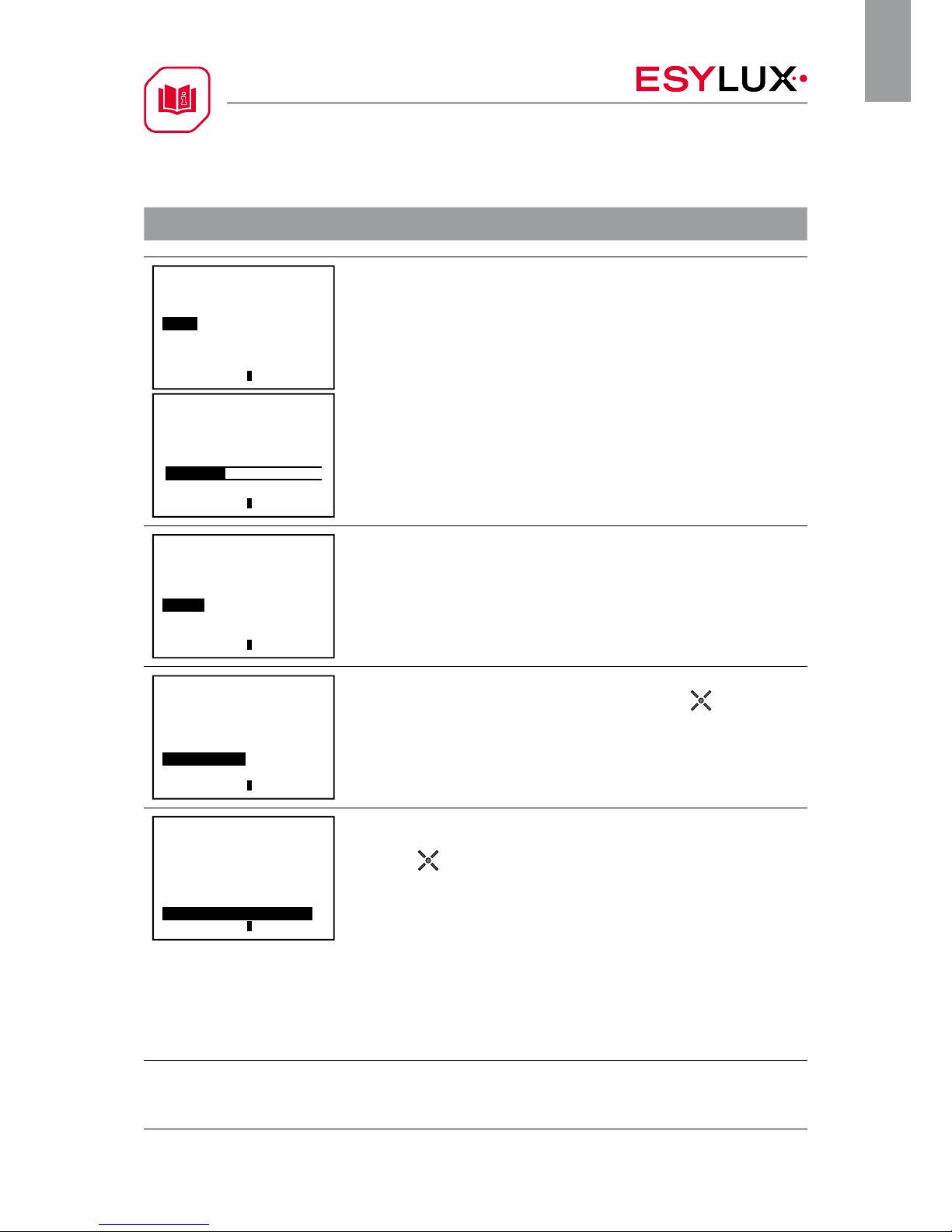

Function Customised setting

Channel 1
Read-in
Lig ht

Tim e

Reset
LEDs ON/OFF
Fully/semi-automatic
Bat ok LS MDi

Tim e

5 min
Bat ok LS MDi

Switch-off delay time

Setting values: Short pulse, 1, 2, 5, 10, 15 min.

Short pulse

As soon as movement has been detected in the field of detection, the detector switches
the lighting on for approx. 5 second and off for approx. 5 seconds. This function can be
used for operating automatic stairwell lights, for example.

Acknowledgement: The red LED is switched on for 5 seconds and off for 5 seconds.

Switch-off delay time: 1, 2, 5, 10, 15 min.

The switch-off delay time starts once movement is no longer detected in the field of
detection.
Acknowledgement: The red LED flashes three times in cycles.

Channel 1
Read-in
Lig ht
Tim e

Reset

LEDs ON/OFF
Fully/semi-automatic
Bat ok LS MDi

Reset / factory settings

The remote control settings are reset and the detector uses the manual potentiometer
values.
Acknowledgement: The red LED flashes three times.

Channel 1
Read-in
Lig ht
Tim e
Reset

LEDs ON/OFF

Fully/semi-automatic
Bat ok LS MDi

Detector LEDs ON / OFF
The LEDs in the detector can be switched on or off by pressing the button.
Acknowledgement:
LEDs OFF: The red LED is switched off for approx. 2 seconds.
LEDs ON: The red LED flashes three times.

Channel 1
Read-in
Lig ht
Tim e
Reset
LEDs ON/OFF

Fully/semi-automatic

Bat ok LS MDi

Fully automatic / semi-automatic mode

The lighting can be controlled in fully automatic and semi-automatic modes by
pressing the button.

Fully automatic: The lighting is switched on depending on the set lux value and
movement being detected. If movement is no longer detected, the preset switch-off
delay time will start. This mode can be optionally switched on or off using the external
“S” button.

Acknowledgement: The red LED flashes three times.

Semi-automatic: The lighting is controlled using the external “S” button. The lighting

remains switched on as long as movement is detected and the target brightness value
is greater than the preset lux value.
Acknowledgement: The red LED is switched off for approx. 2 seconds.

OPERATING INSTRUCTIONS

15 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

7 Technical data

Operating voltage 230 V ~

µ = contact opening width ≤ 1.2 mm

Target brightness value approx. 5 - 1000 lux

Switching capacity 2300 W / 10 A (cos phi = 1)

1150 VA / 5A (cos phi = 0.5)

Max. inrush current 800 A / 200 µs

Switch-off delay time Short pulse / approx. 15 sec. - 30 min.

Protection type / protection class IP 40 / II

Operating temperature range 0 °C to +50 °C

8 Troubleshooting

Fault Cause

Lighting does not switch on. - Ambient light level is above the preset target brightness value

- Lighting has been switched off manually

- There are people in the field of detection

- There are sources of thermal interference in the field of detection, such as
heating, air-conditioning or moving objects (e.g. curtains by open windows)

- The switch-off delay time has been set too short

Lighting is switched off during the hours of
darkness despite the presence of persons

- Ambient light level is above the preset target brightness value

- Lighting has been switched off manually

Lighting does not switch off or lighting
switches on spontaneously when no
persons are present.

- The switch-off delay time has not yet elapsed

- There are sources of thermal interference in the field of detection, such as
heating, air-conditioning or moving objects (e.g. curtains by open windows)

Button does not work. - Device is still in the start-up phase

- Illuminated button has been used without a neutral wire connection

- Button is not routed to the “S terminal”

Lighting switches on and off in warm-up
phase.

- Detector exposed to too much artificial light

Detector does not respond. - Check the power supply

OPERATING INSTRUCTIONS

16 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

8.1 Maintenance

The ceiling-mounted motion detector does not contain any components that require
maintenance. The device can only be replaced as a complete unit.

Note: This device must not be disposed of as unsorted household waste. Used

devices must be disposed of correctly. Contact your local town council for more
information.

8.2 Cleaning

No corrosive cleaning agents or solvents may be used for cleaning and care of the
device. Please use a lint-free cloth that is either dry or dampened only with water.

OPERATING INSTRUCTIONS

17 / 17

GB

MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

9 ESYLUX manufacturer's guarantee

ESYLUX products are tested in accordance with applicable regulations and
manufactured with the utmost care. The guarantor, ESYLUX Deutschland GmbH,
Postfach 1840, 22908 Ahrensburg, Germany (for Germany) or the relevant ESYLUX
distributor in your country (visit www.esylux.com for a complete overview) provides a
guarantee against manufacturing/material defects in ESYLUX devices for a period of
three years from the date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the
device.
The guarantee does not apply to natural wear and tear, changes/interference caused
by environmental factors or damage in transit, nor to damage caused as a result of
failure to follow the user or maintenance instructions and/or as a result of improper
installation. Any illuminants or batteries supplied with the device are not covered by
the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/
receipt, unchanged, packed and with sufficient postage to the guarantor, along with a
brief description of the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period,
either repair the device or replace it. The guarantee does not cover further claims;
in particular, the guarantor will not be liable for damages resulting from the device's
defectiveness. If the claim is unfounded (e.g. because the guarantee has expired or
the fault is not covered by the guarantee), then the guarantor may attempt to repair
the device for you for a fee, keeping costs to a minimum.
