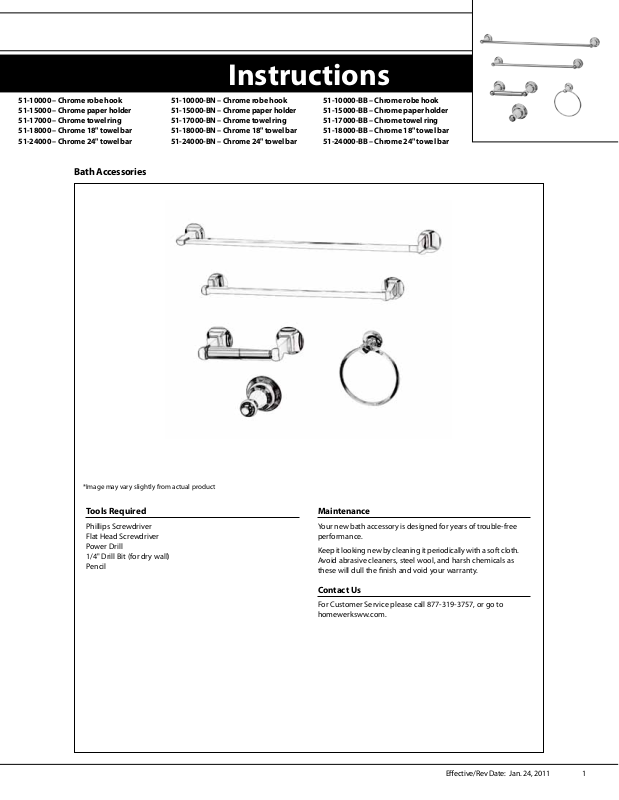

51-10000 – Chrome robe hook
51-15000 – Chrome paper holder
51-17000 – Chrome towel ring
51-18000 – Chrome 18" towel bar
51-24000 – Chrome 24" towel bar
Bath Accessories
51-10000-BN – Chrome robe hook
51-15000-BN – Chrome paper holder
51-17000-BN – Chrome towel ring
51-18000-BN – Chrome 18" towel bar
51-24000-BN – Chrome 24" towel bar
51-10000-BB – Chrome robe hook
51-15000-BB – Chrome paper holder
51-17000-BB – Chrome towel ring
51-18000-BB – Chrome 18" towel bar
51-24000-BB – Chrome 24" towel bar
*Image may vary slightly from actual product
Tools Required
Phillips Screwdriver
Flat Head Screwdriver
Power Drill
1/4" Drill Bit (for dry wall)
Pencil
Maintenance
Your new bath accessory is designed for years of trouble-free
performance.
Keep it looking new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh chemicals as
these will dull the nish and void your warranty.
Contact Us
For Customer Service please call 877-319-3757, or go to
homewerksww.com.
Eective/Rev Date: Jan. 24, 2011 1
51-10000 – Chrome robe hook
51-15000 – Chrome paper holder
51-17000 – Chrome towel ring
51-18000 – Chrome 18" towel bar
51-24000 – Chrome 24" towel bar
Bath Accessories
Preparation and Assembly *Images may vary slightly from actual product
1 2 3
51-10000-BN – Chrome robe hook
51-15000-BN – Chrome paper holder
51-17000-BN – Chrome towel ring
51-18000-BN – Chrome 18" towel bar
51-24000-BN – Chrome 24" towel bar
51-10000-BB – Chrome robe hook
51-15000-BB – Chrome paper holder
51-17000-BB – Chrome towel ring
51-18000-BB – Chrome 18" towel bar
51-24000-BB – Chrome 24" towel bar
Determine desired location for your new
bath accessories. Unscrew set screw at
base of each post and remove mounting
screws and brackets.
Determine desired location for your new bath
accessories. Position base on wall where
desired and lightly outline. Center mounting
brackets horizontally in outline of posts.
4 5 6
Front view
Push anchors into the drilled holes until
ush with the wall surface. Fasten mounting
bracket to the wall with mounting screws.
Mounting
Screw
Mounting
bracket
Side view
Wall
Side view
Anchors
Holding screw
Place base over mounting bracket and
tighten the holding screws.
Front view
Drill 1/4" holes in drywall through the
mounting screw holes. If attaching onto a
wood wall, fasten mounting bracket directly
to the wall with screws without pre-drilling
the holes.
Back view of post
When installing tissue paper holder, center
mounting brackets as shown.
Mounting
Screw
Mounting
bracket
6”
Side view
Wall
Eective/Rev Date: Jan. 24, 2011 2
Physical Characteristics
• Description: Bath accessories
• Concealed mounting
• Zinc and aluminum construction
• Quick and easy installation
24" Towel Bar
No. Part Description Material
1
Mounting package Steel2
3
4 Towel bar post (left) Zinc
5 Set screw Steel
6 24" towel bar Aluminum
7 Towel bar post (right) Zinc
51-10000 – Chrome robe hook
51-15000 – Chrome paper holder
51-17000 – Chrome towel ring
51-18000 – Chrome 18" towel bar
51-24000 – Chrome 24" towel bar
51-10000-BN – Chrome robe hook
51-15000-BN – Chrome paper holder
51-17000-BN – Chrome towel ring
51-18000-BN – Chrome 18" towel bar
51-24000-BN – Chrome 24" towel bar
51-10000-BB – Chrome robe hook
51-15000-BB – Chrome paper holder
51-17000-BB – Chrome towel ring
51-18000-BB – Chrome 18" towel bar
51-24000-BB – Chrome 24" towel bar
18" Towel Bar
No. Part Description Material
1
Mounting package Steel2
3
4 Towel bar post (left) Zinc
5 Set screw Steel
6 18" towel bar Aluminum
7 Towel bar post (right) Zinc
Robe Hook
No. Part Description Material
1
Mounting package Steel2
3
4 Robe hook Zinc
5 Set screw Steel
Eective/Rev Date: Jan. 24, 2011 3
Towel Ring
No. Part Description Material
1
Mounting package Steel2
3
4 Towel ring post Zinc
5 Jacket PE
6 Towel ring Aluminum
7 Set screw Steel
51-10000 – Chrome robe hook
51-15000 – Chrome paper holder
51-17000 – Chrome towel ring
51-18000 – Chrome 18" towel bar
51-24000 – Chrome 24" towel bar
51-10000-BN – Chrome robe hook
51-15000-BN – Chrome paper holder
51-17000-BN – Chrome towel ring
51-18000-BN – Chrome 18" towel bar
51-24000-BN – Chrome 24" towel bar
51-10000-BB – Chrome robe hook
51-15000-BB – Chrome paper holder
51-17000-BB – Chrome towel ring
51-18000-BB – Chrome 18" towel bar
51-24000-BB – Chrome 24" towel bar
Paper Holder
No. Part Description Material
1
Mounting package Steel2
3
Paper holder bar post
4
(left)
Zinc
5 Jacket PE
6 Set screw Steel
7
Tissue tube PP8
9
Paper holder bar post
10
(right)
Zinc
Eective/Rev Date: Jan. 24, 2011 4
